Post Tension 5mm PC Steel Strand Anchor

2019-09-05 09:38:56

post tension 5mm pc steel strand anchor


Post tension anchor is widely application in the building engineering
, it has the function of strength and safe for building, it is essential part in construction. It is consisted of different units, mainly include anchor head/ring, wedges, anchor bearing plate and spiral reinforcement.

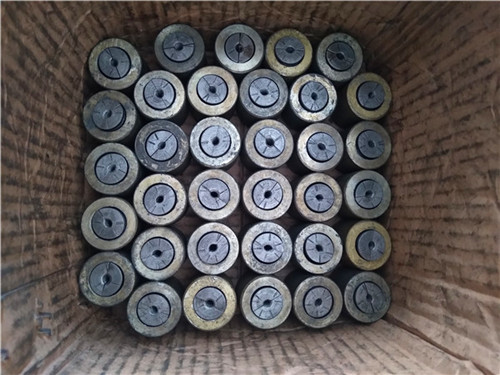

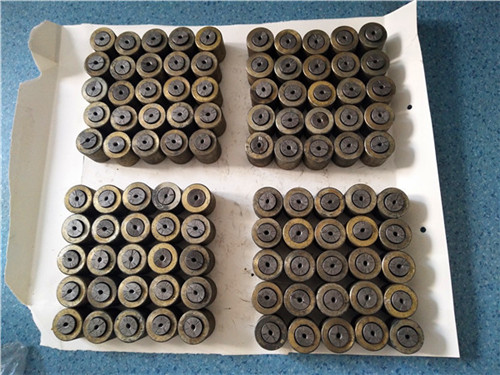

Anchor head/ring

post tension anchor


There are round anchor head/ring and flat anchor head/ring as per strands. It have the function of anchor, its quality is related with its material and craft. It need to recommend specification as per clients’ detailed requirements.

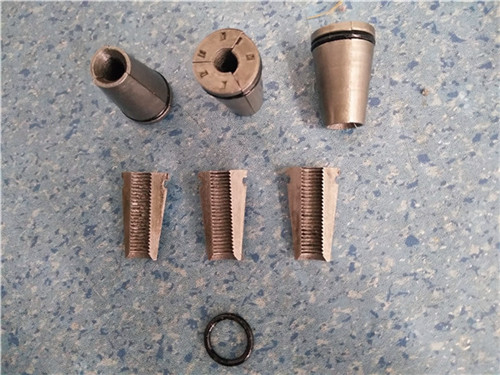

Wedges

post tension anchor for sale


Prestressed anchor wedges is the most important part in the prestressed engineering. It have work wedges and tool wedges. Work wedges just be used for one time, it is permanent in the concrete beam. Tool wedges just be used after the post tension hydraulic jack, it can be used for many time, cycle use. The material of wedges is 20CrMnTi. Round anchor head need to use wedges in the construction site, flat anchor head also need to use wedges in the case roof beam constructs, and multistrands couplers also need it.

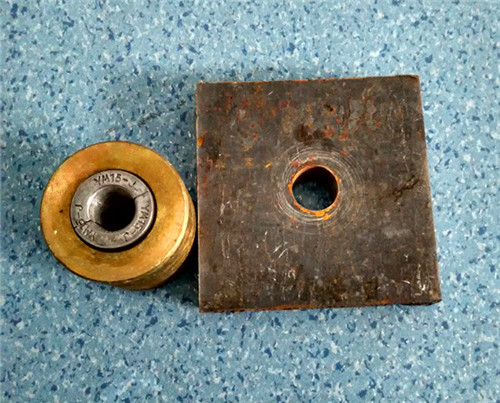

Anchor bearing plate

anchor barrel and wedges


Anchor bearing plate also have round bearing plate and flat bearing plate, it is consentaneous with anchor head.

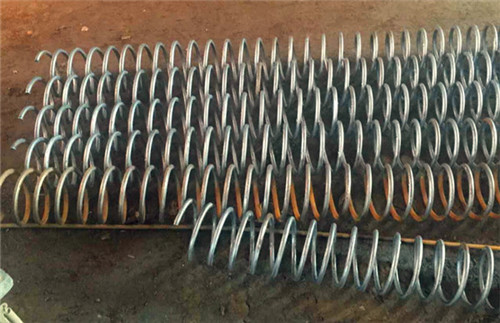

Spiral reinforcement

Spiral reinforcement


Spiral reinforcement also named spiral hoop-iron. In the reinforced concrete structure, the single spiral reinforcement of beam, pillar and pile is connected into cyclic annular. If so, it will generate spiral reinforcement. It can be worked as distributing reinforcement in the anchor concrete engineering, it could avoid concrete craze, and strengthen the function of solidify of spiral reinforcement.
Our post tension anchor for sale to many different countries now, if you want to know more details or technical craft about post tension 5mm pc steel strand anchor, welcome to contact with us:
info@gaodetec.com
