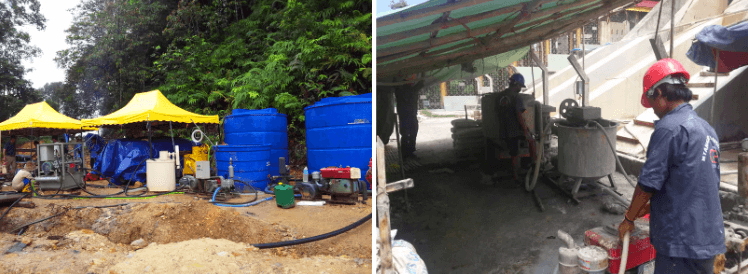

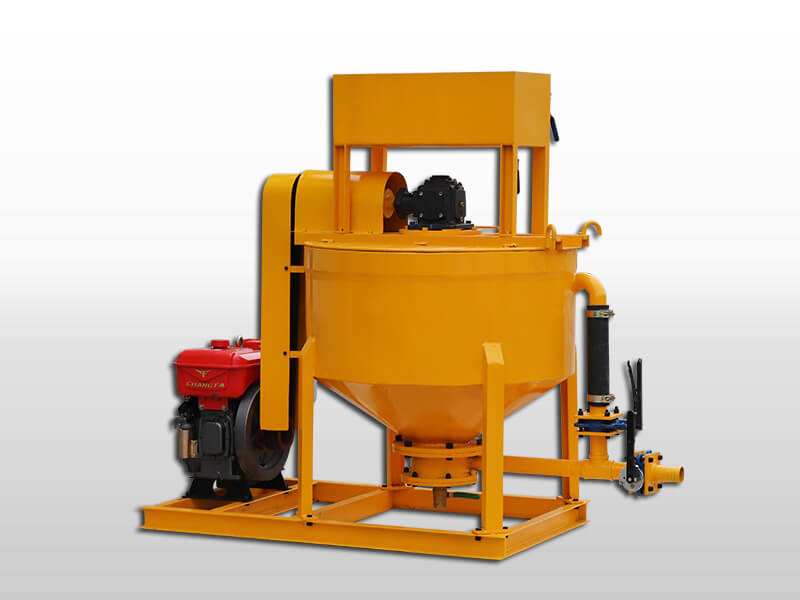

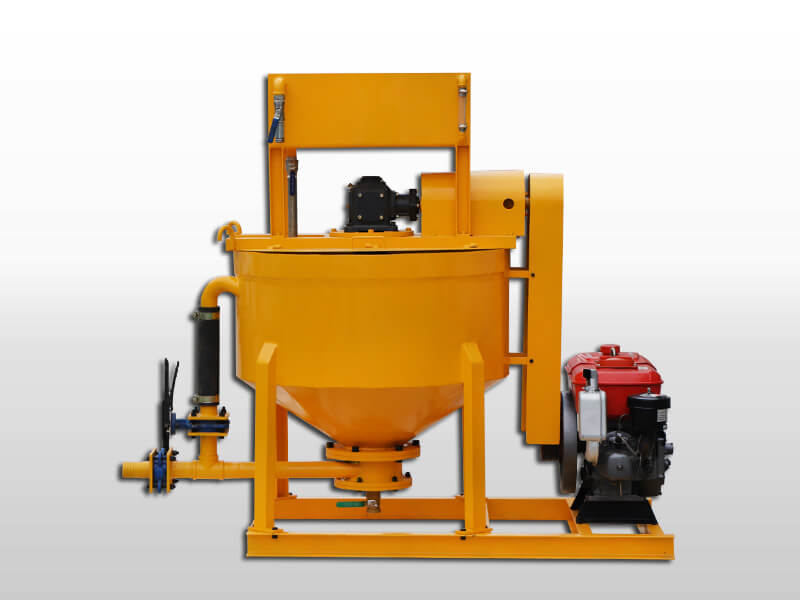

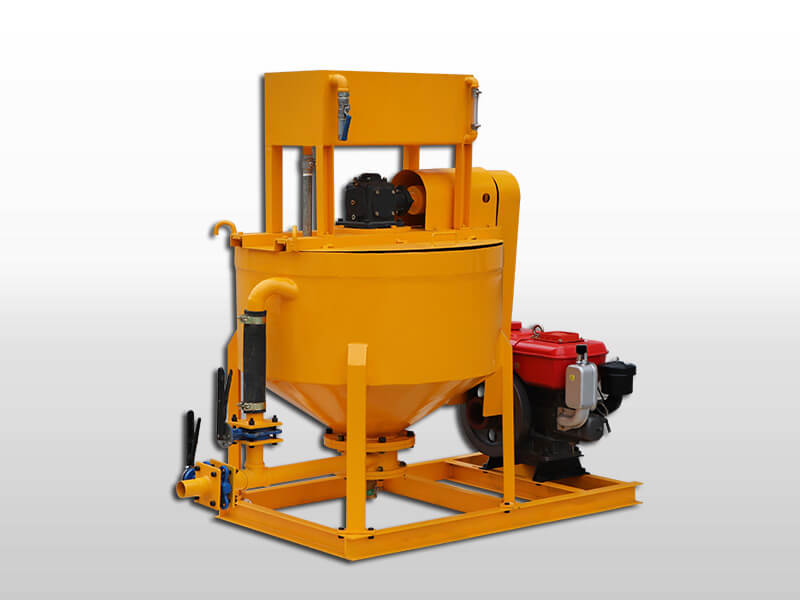

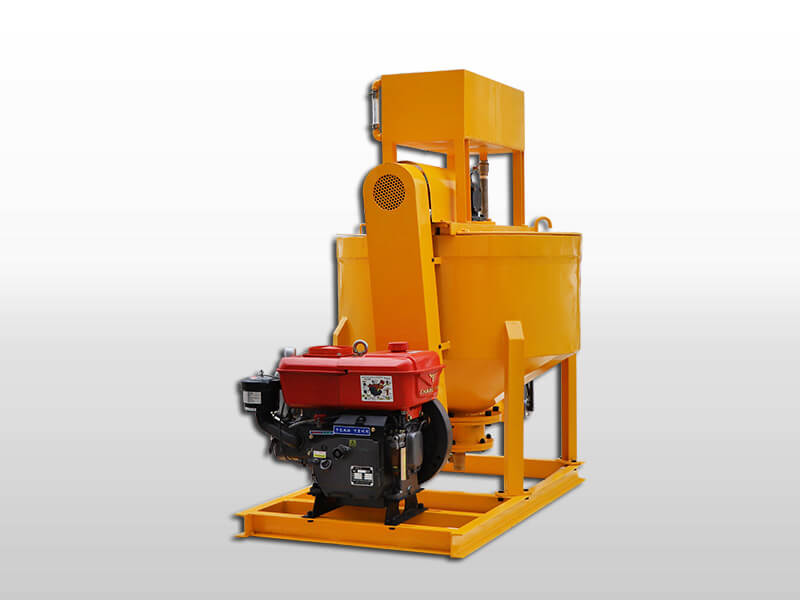

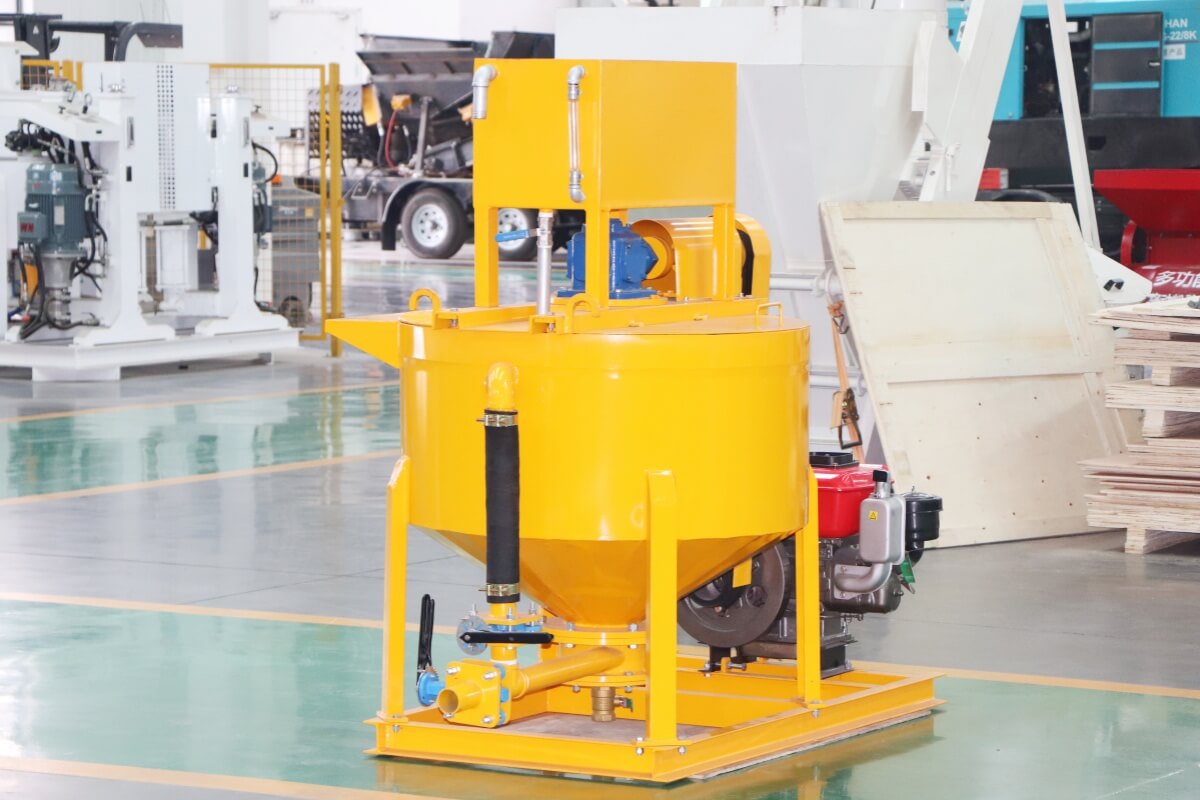

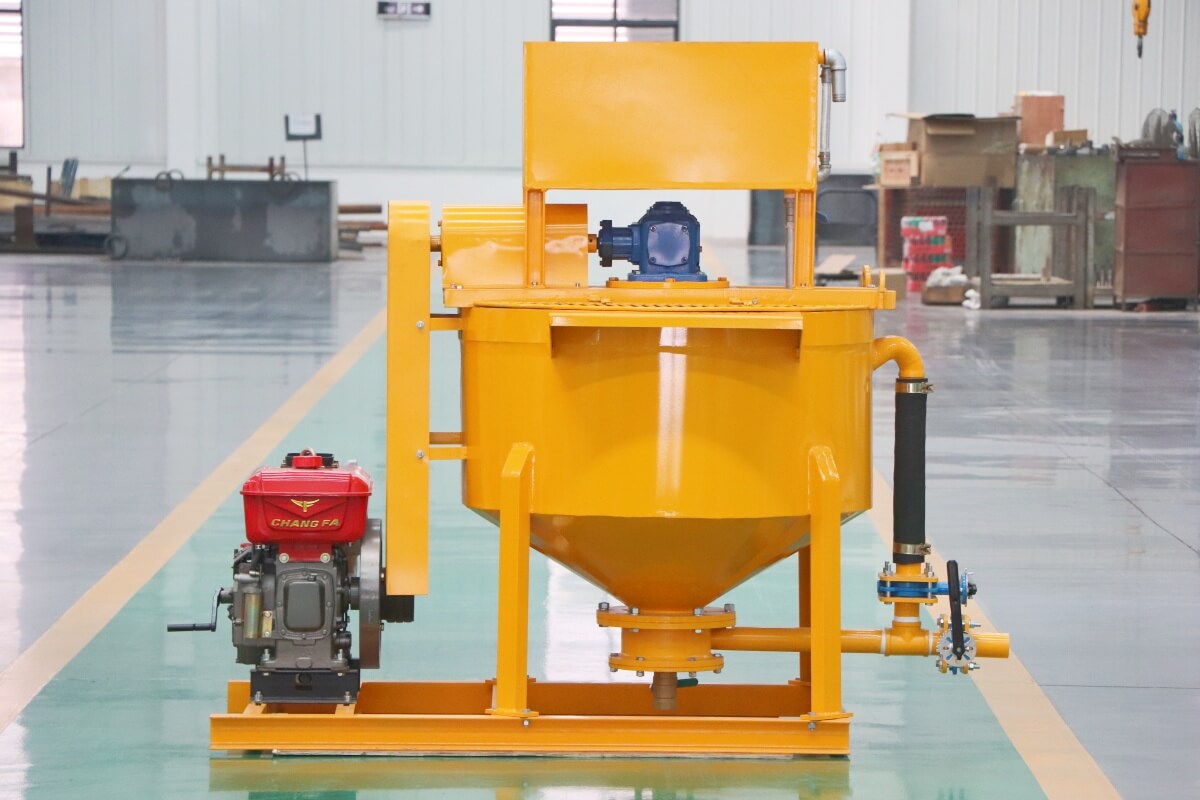

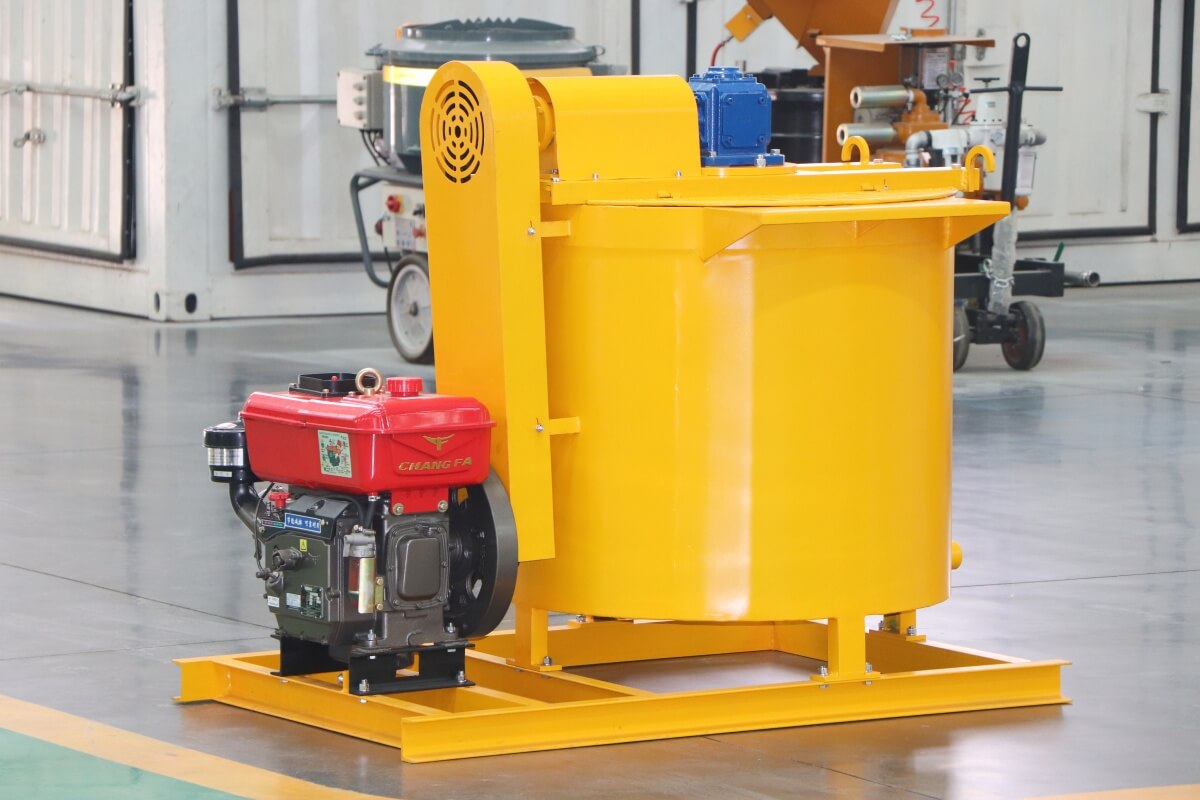

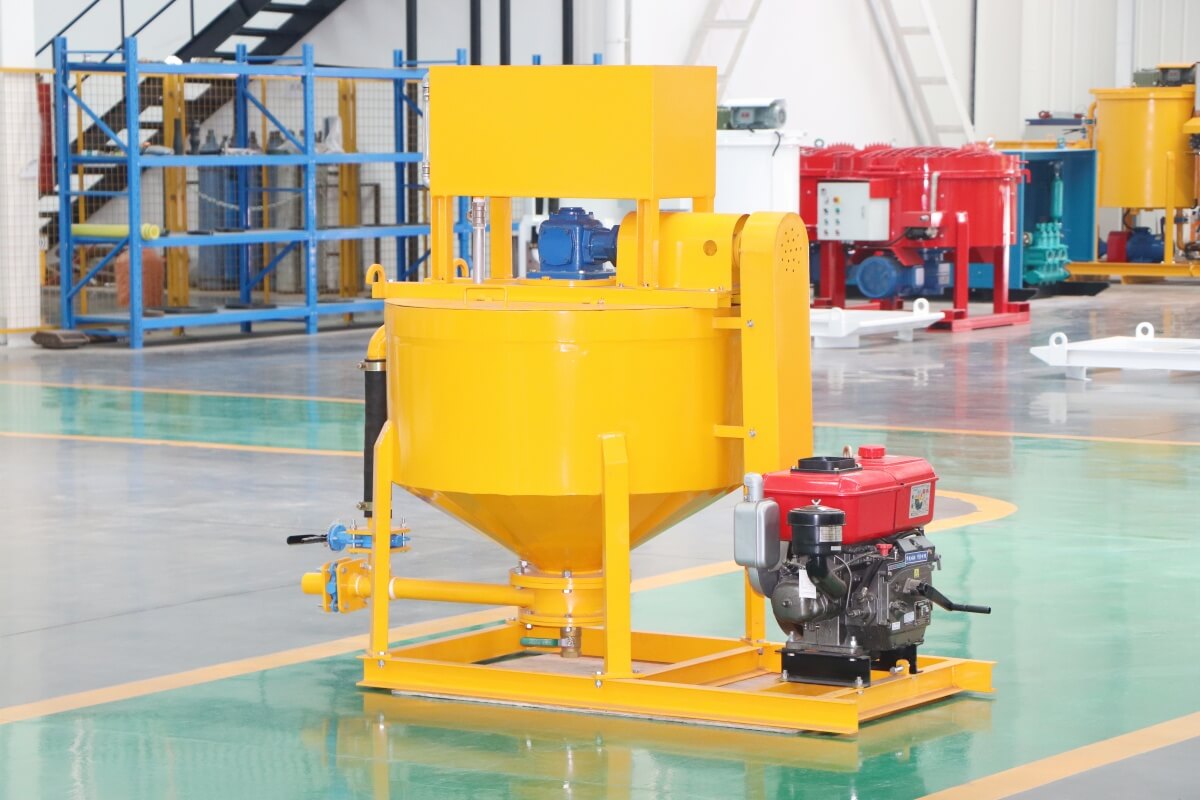

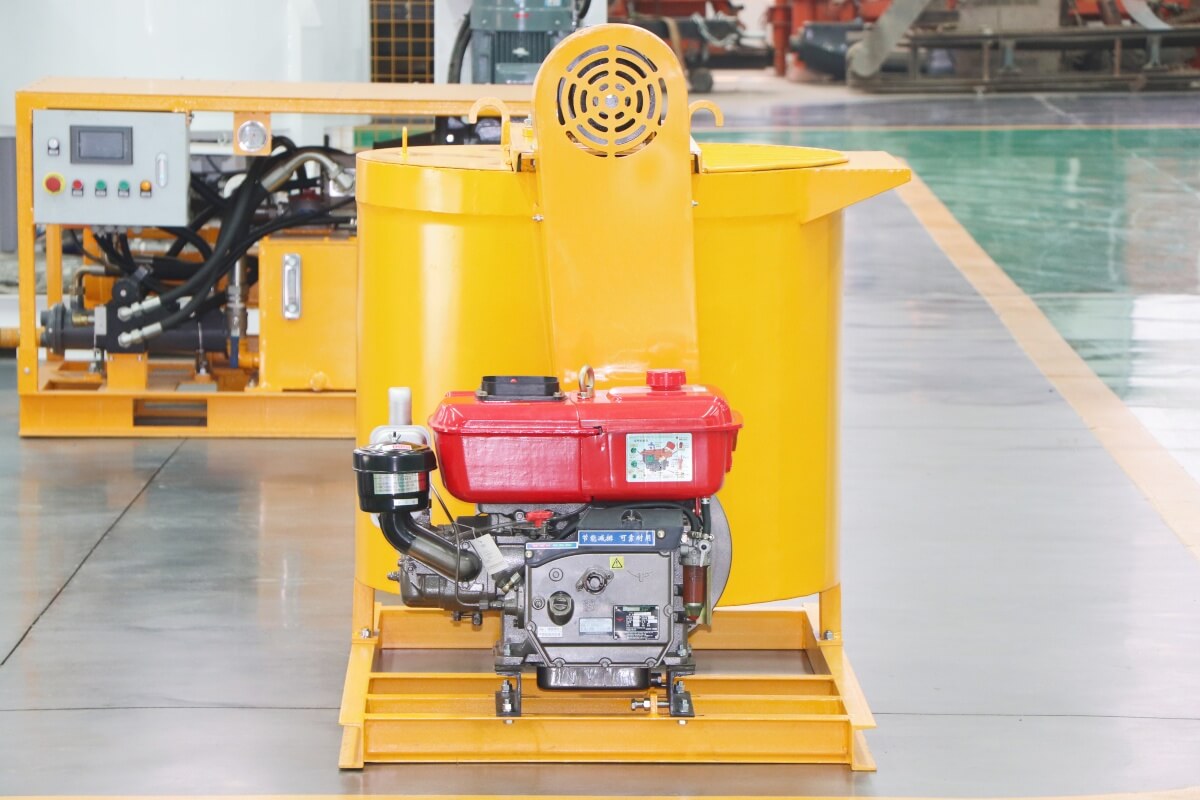

GM400D cement grout mixer is a high speed grout mixer. It has been designed for use either in conjunction with a conventional paddle mixer and pump or, by virtue of its own built in impeller pump, as a stand-alone mix and place machine. The unit will rapidly and efficiently mix various types of grout which can include cement, bentonite and sand. It is specially design for cement mixing and grouting in ground/underground engineering. We also can design the mixer with agitator, to make the mixing work can continuously be done.

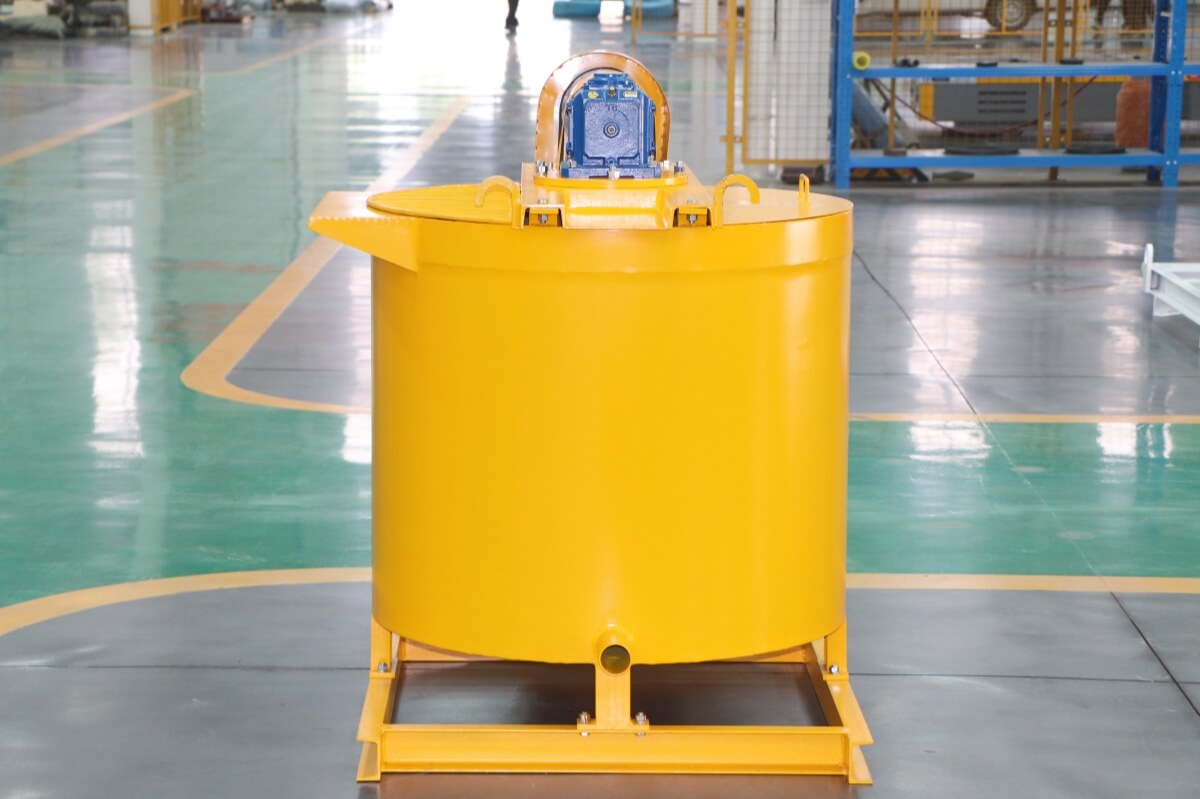

It is specially designed for cement mixing and grouting in ground/underground engineering. We also can design the mixer with agitator separately, to make the mixing work continuously.

1. High speed mixing.
2. High-efficiency(3min).
3. Simple structure, lightweight, easy maintenance.
4. No wearing parts.

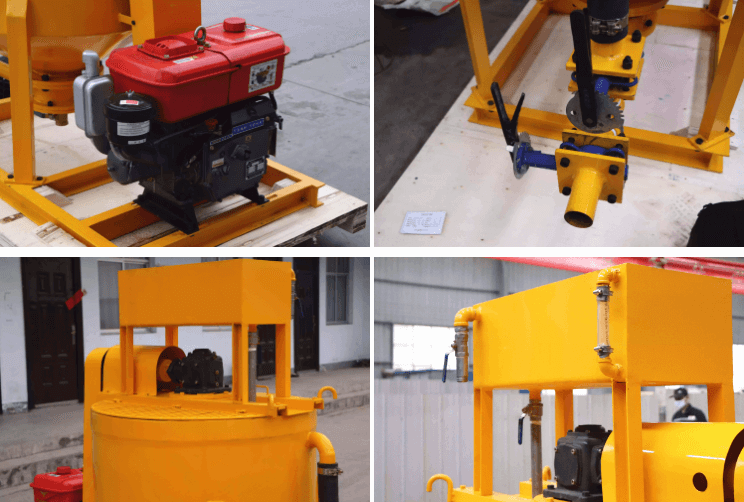

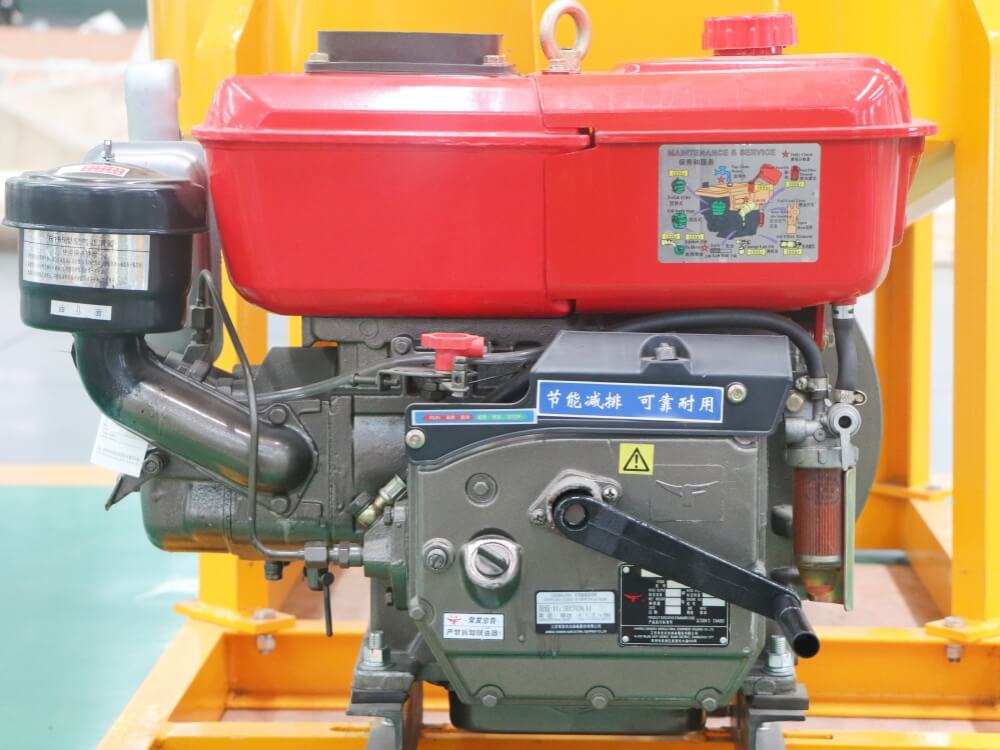

5. Diesel engine drive.

Item	Technical data
Tank Capacity	400L
W/C Ratio	≥0.45
Mixing time	3min
Outlet pressure	1bar
Impeller speed	1500rpm
Diesel Power	10Hp
Diesel rotating speed	2200rpm
Dimension	1650*1600*1200mm
Weight	300kg
