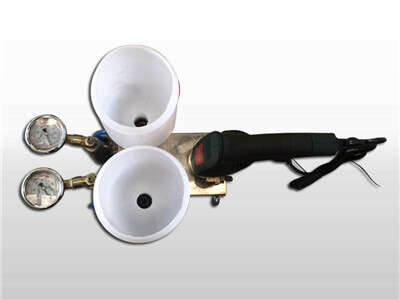

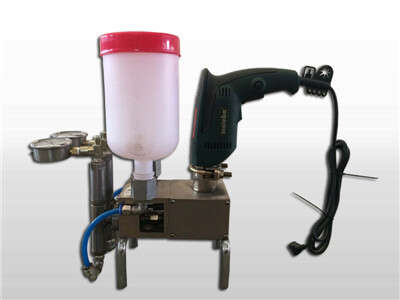

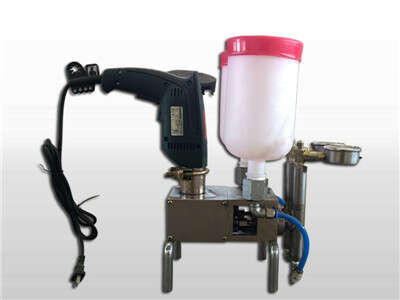

GE series high pressure grout pump is a kind of double slurry chemical grouting pump, it can be widely used for grouting leakage-proof method, consolidation grouting, epoxy grouting, etc. the pump has high pressure and do not need any other air source. GE1.7/40 pump pressure can increase to 4500psi(300kg/cm2) in few seconds, the max. pressure can reach more than 50Mpa, and it can grout into 0.1mm micro-crack effectively. So its water-proofing leakage-stopping technique effect is much longer and better.

a. Leaking stoppage of various kinds of crack, expansion joint, construction joint and structural joint of building and concrete project.
b. Leaking stoppage and reinforce of drilling casing in the geological drilling project.
c. Reservoir dam grouting in the hydro projects, leaking stoppage of water tunnel, leaking stoppage of concrete crack of dam.
d. Leaking stoppage of subway, tunnel, culvert, sewage treatment pool, etc.
e. High pressure epoxy grouting.

GE1.7/40 pump pressure can increase to 4500psi(300kg/cm2) in few seconds, the max. pressure can reach more than 50Mpa, and it can grout into 0.1mm micro-crack effectively. So its water-proofing leakage-stopping technique effect is much longer and better.

Model	GE6/10	GE1.7/40
Stroke	17mm	17mm
Plunger diameter	16mm	8mm
Pump speed	1200times/min	1200times/min
Output	6L/min	1.7L/min
Pressure	100bar	400bar
Power	560w	560w
Inlet hose diameter	13mm	10mm
Outlet hose diameter	10mm	5mm
Dimension	600*200*450mm	530*200*450mm
Weight	10kg	9kg
