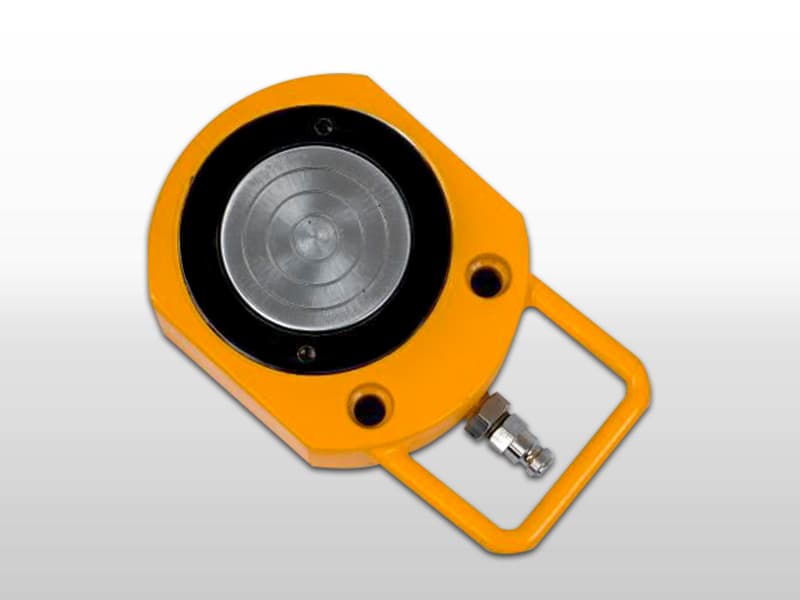

Thin type single acting hydraulic jack

Model: RCS-2002
Tonnage: 200Ton
Stroke: 60mm
Closed height: 162mm
Extend height: 222mm
Cylinder In diameter: 200mm

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)

download:

Share with:

Description
Application
Features
Technical data

■ Description

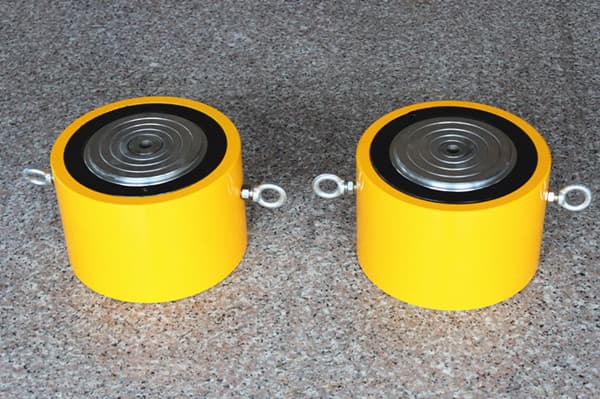

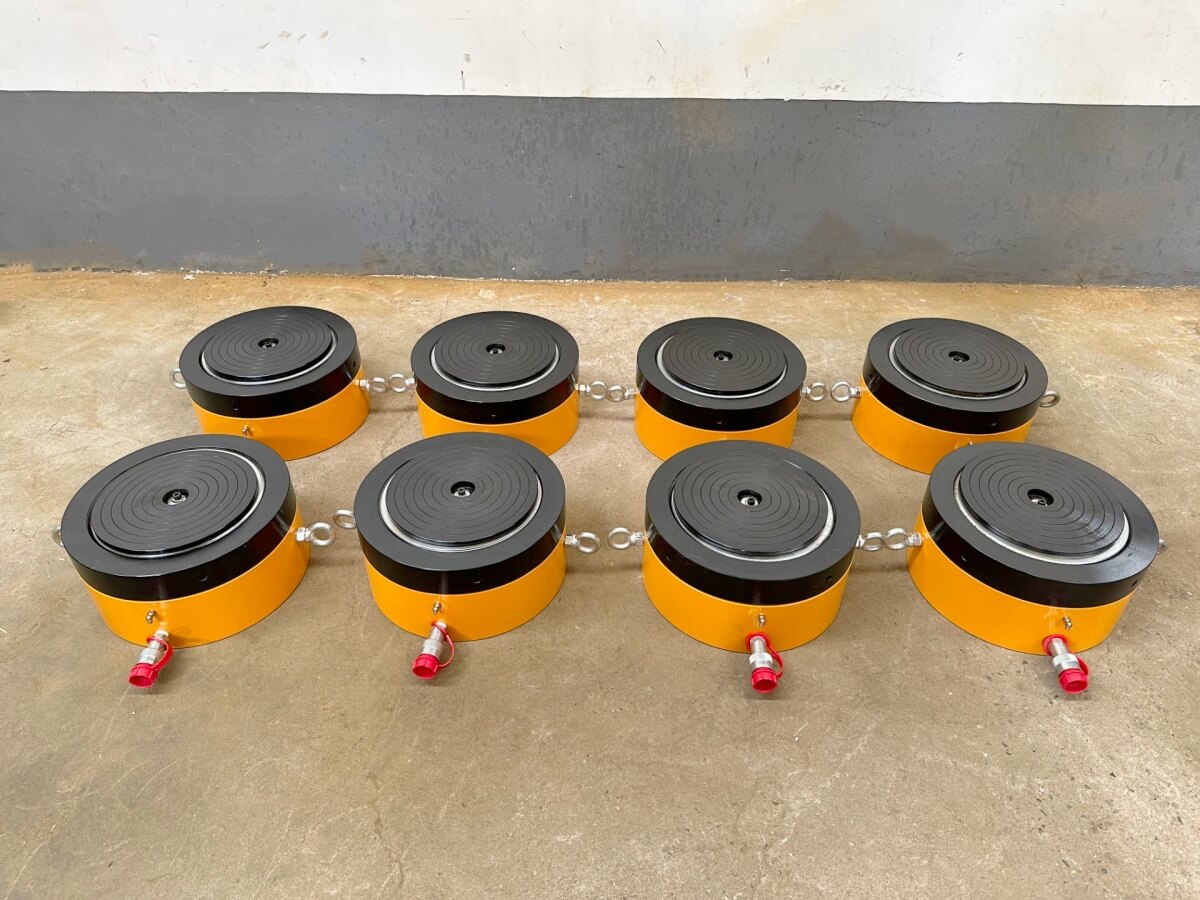

The design of our thin type single acting hydraulic jack is very compact, thin type single acting hydraulic jack is very suited for the place where closed height and max stroke are the main factors.

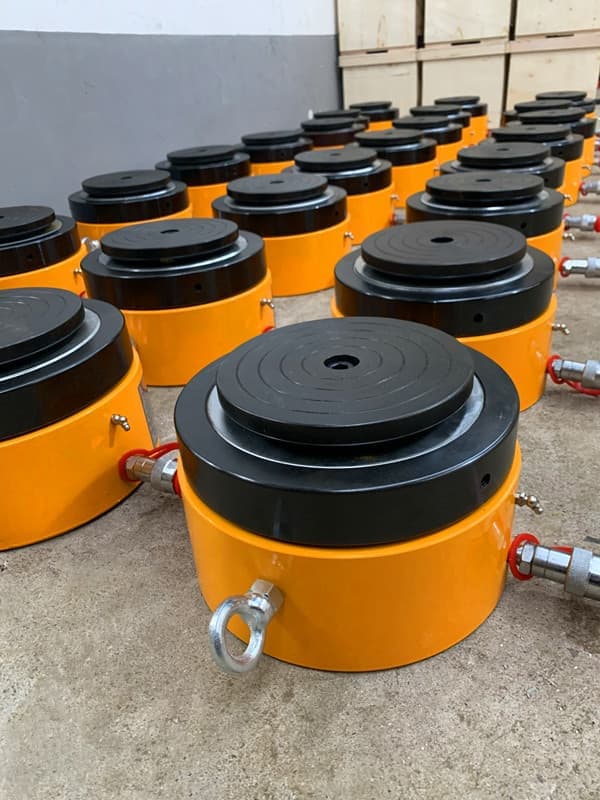

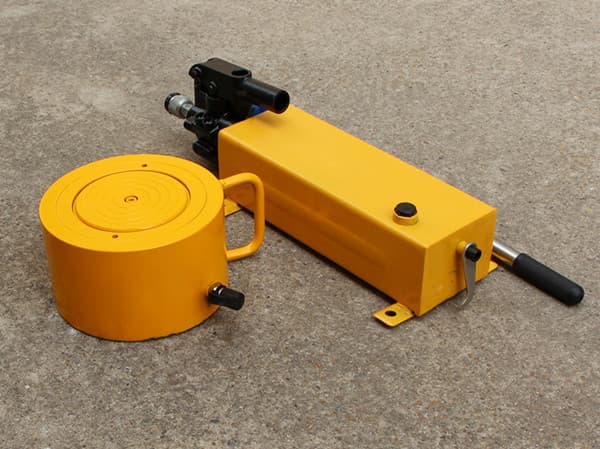

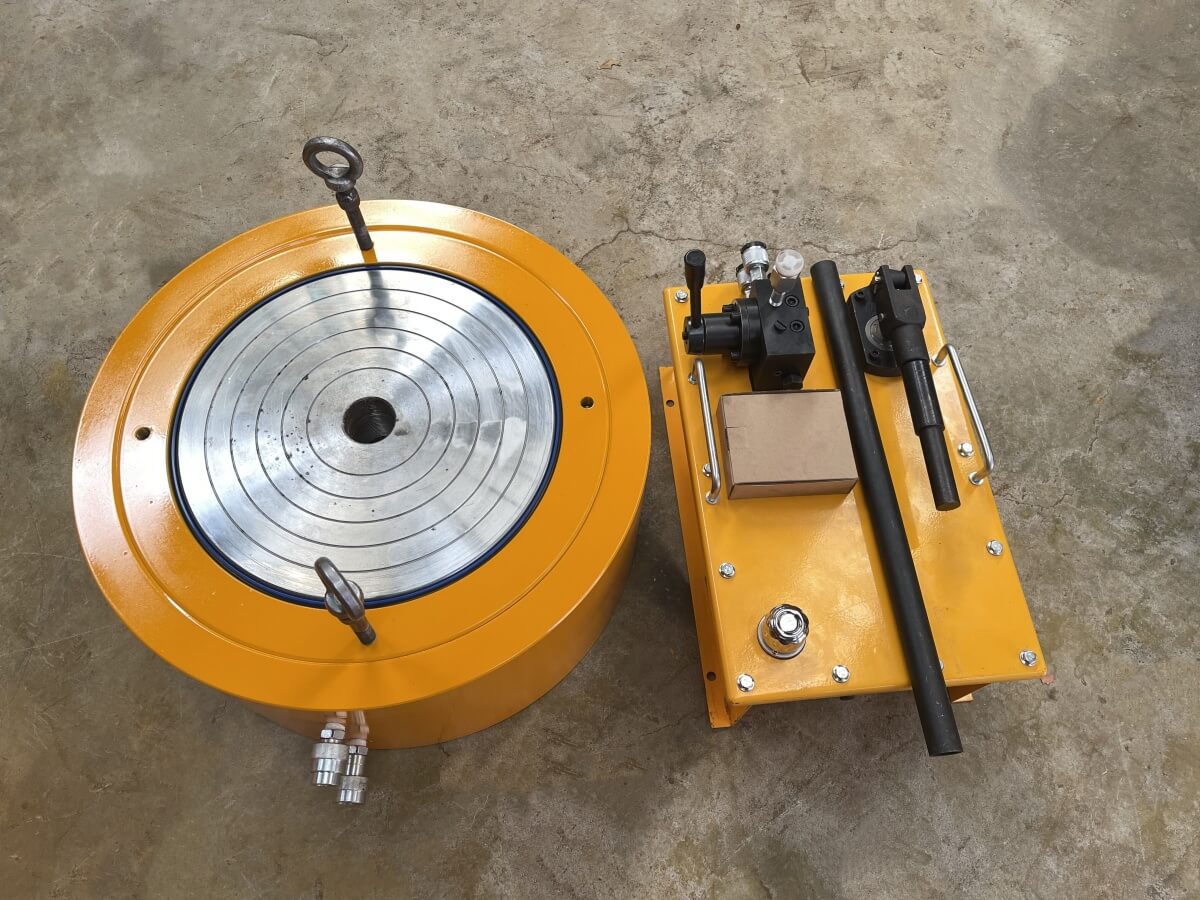

mini manual hydraulic cylinder used with hand pump

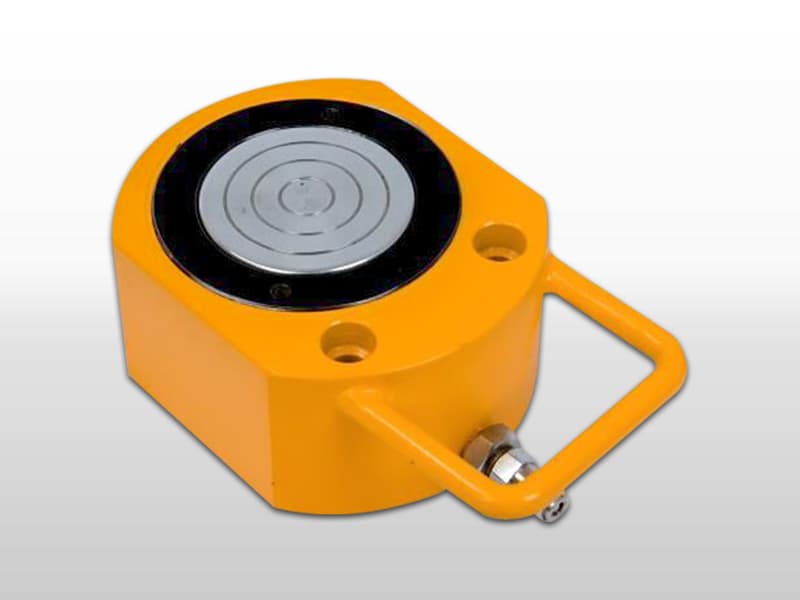

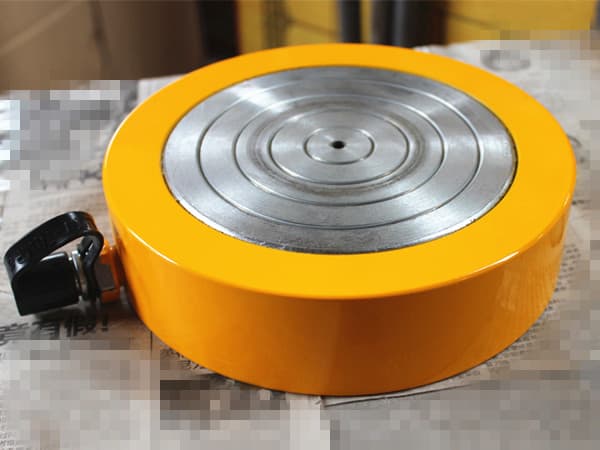

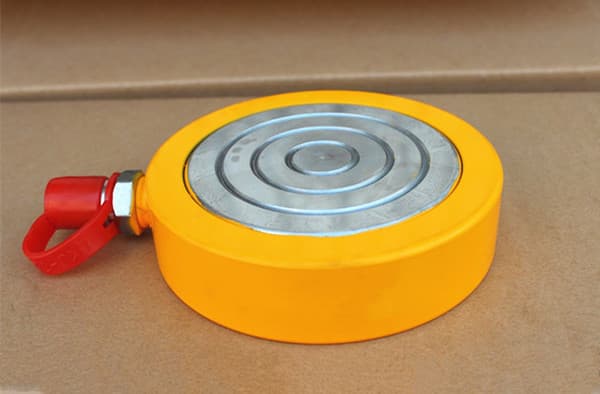

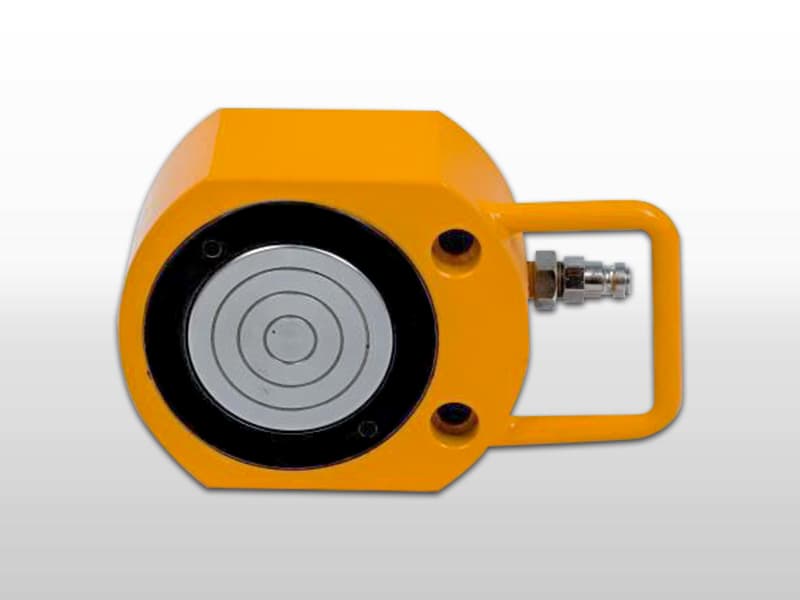

super low height hydraulic jack

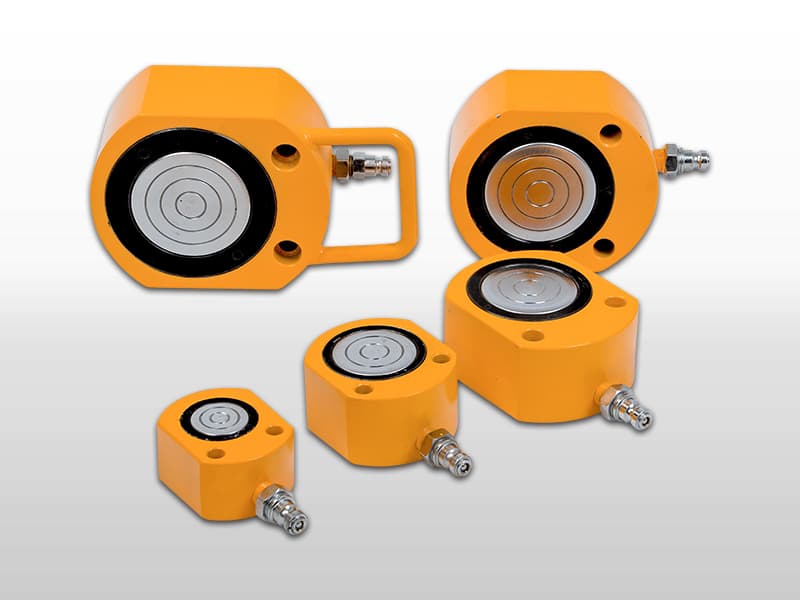

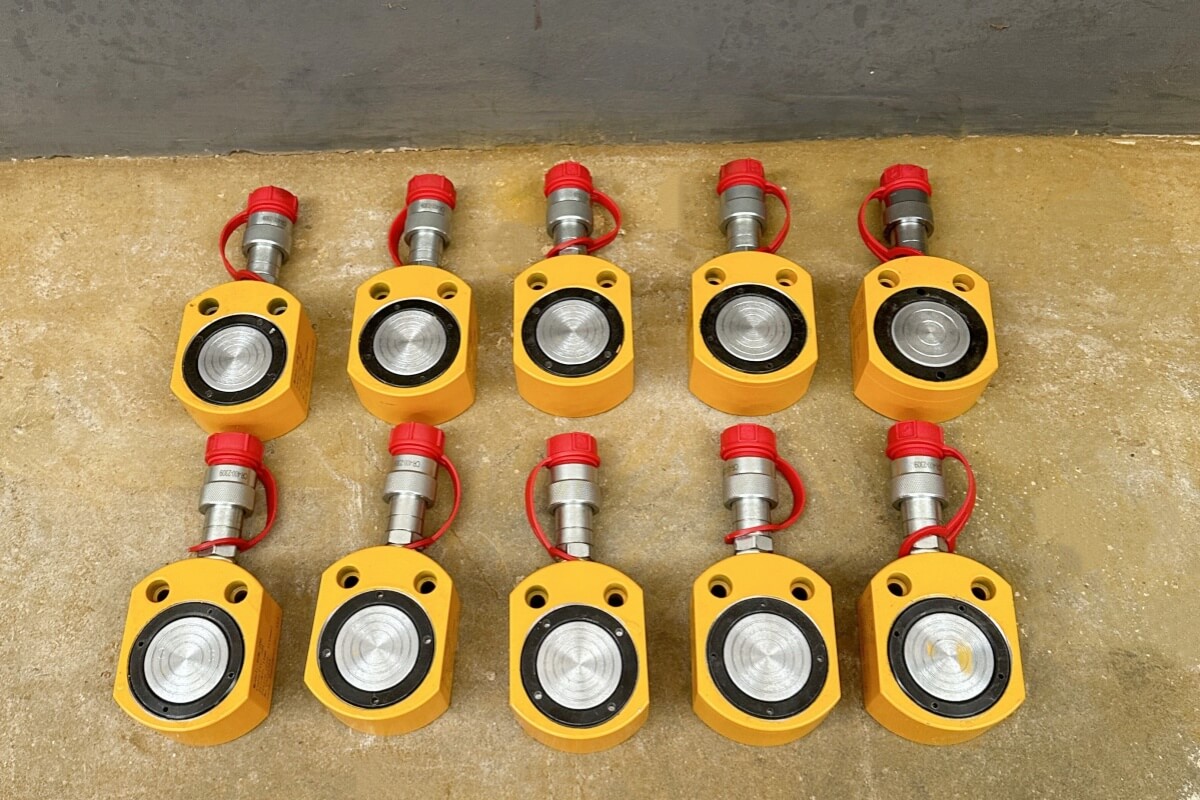

We have RCS series thin hydraulic jacks, RSM series ultra-thin hydraulic jacks, and CRSM series the thinnest hydraulic jacks, they are separate single-acting hydraulic jacks.

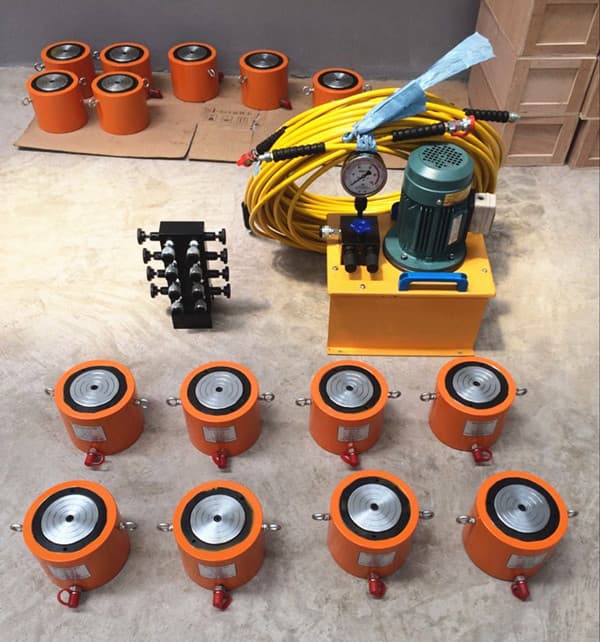

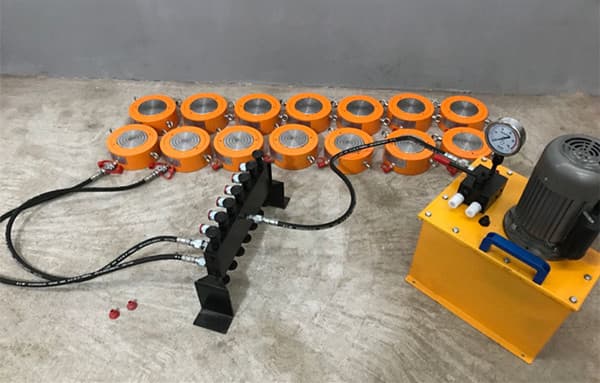

synchronized thin jack with oil pump

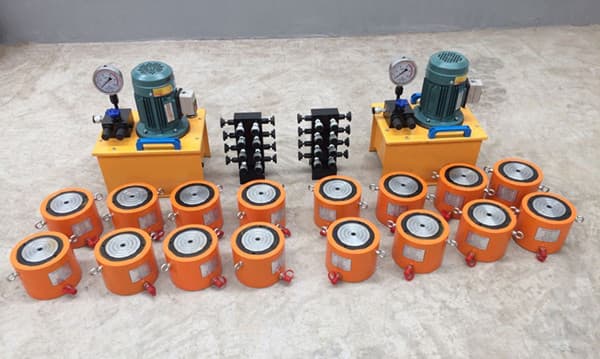

sync super thin hydraulic cylinder with pump

The tonnage of a thin type single acting hydraulic cylinder jack is range from 5-200ton, and its stroke is range from 6-60mm.

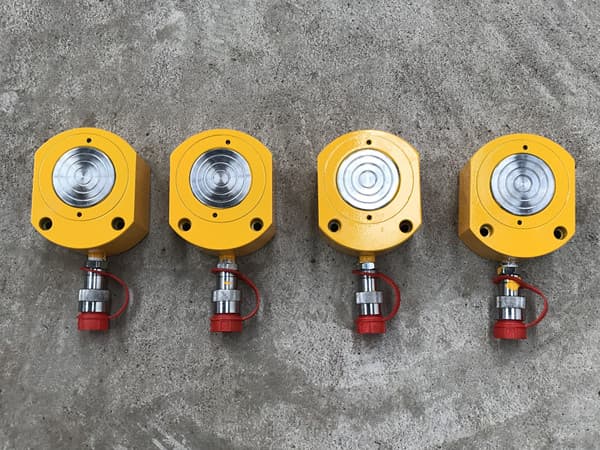

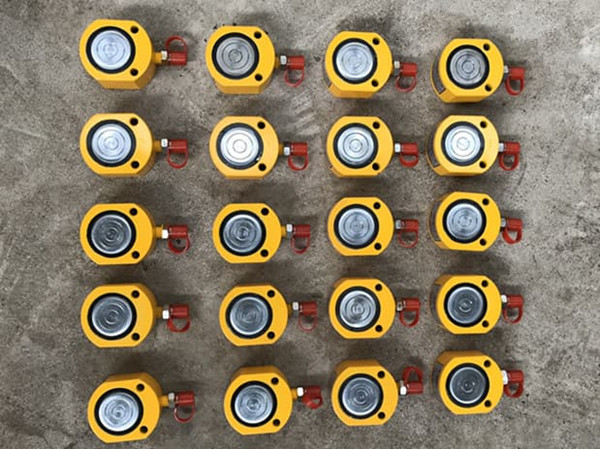

height mini hydraulic ram cylinder

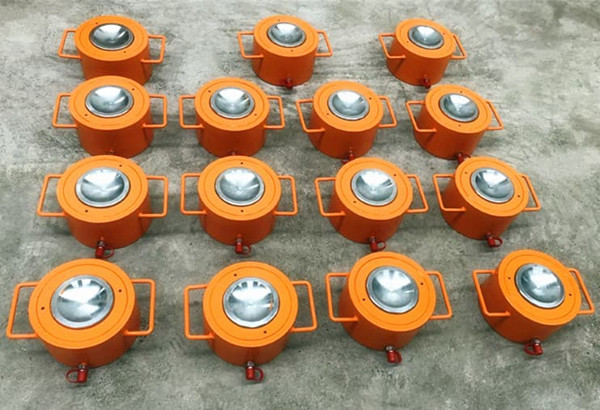

hydraulic lifting ram 36-79mm height

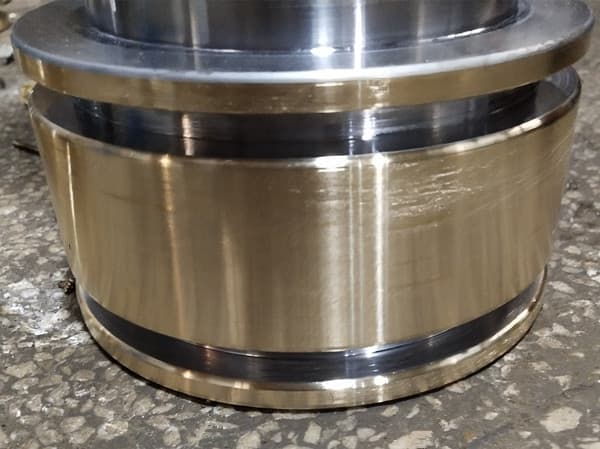

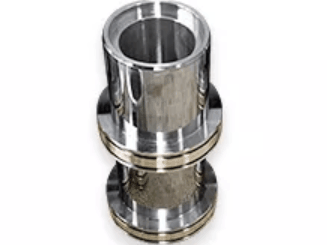

The plunger of thin type single acting hydraulic jack is welding copper, the facial of the plunger rod is plated hard chrome, abrasion resistance is very strong, high-temperature paint, its facial is corrosion resistant and strike.

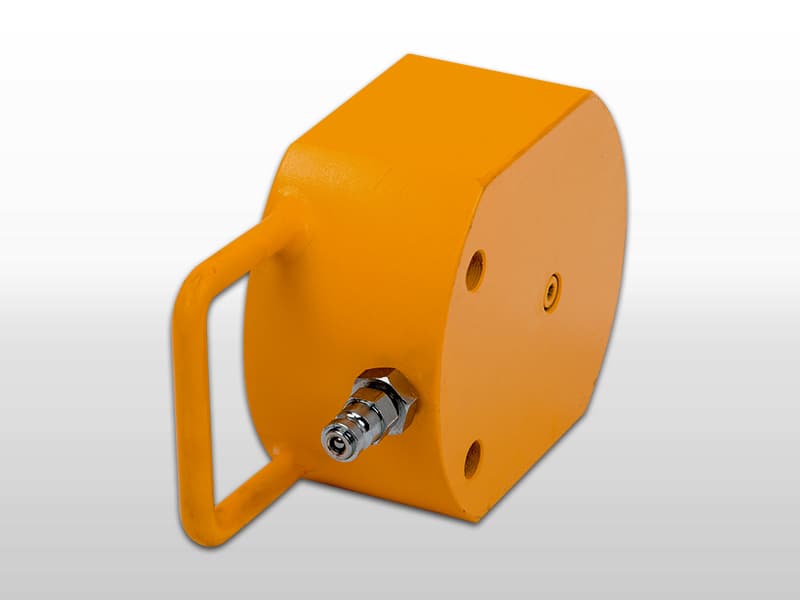

mini micro telescopic hydraulic lift jack

hydraulic mini lifting jacks

■ Technical data

Model	Tonnage	Stroke	Closed height	Extend height	Cylinder in diameter	Outer diameter	Weight
Model	Ton	mm	mm	mm	mm	mm	KGS
RCS-101	10	38	88	126	45	70	4.1
RCS-201	20	44	99	143	63	80	5
RCS-302	30	62	118	180	80	95	6.8
RCS-502	50	60	122	182	100	127	10.9
RCS-1001	100	45	120	165	140	180	20
RCS-1002	100	57	141	198	140	180	22.7
RCS-1530	150	30	120	150	180	230	30
RCS-1545	150	45	140	185	180	230	35
RCS-2002	200	60	162	222	200	250	55

Model	Tonnage	Stroke	Closed height	Extend height	Outer diameter	Weight
Model	Ton	mm	mm	mm	mm	KGS
RSM-50	5	6	33	39	59x41	1
RSM-100	10	11	43	54	83×56	1.4
RSM-200	20	11	52	63	102×76	3.1
RSM-300	30	13	59	72	118×95	4.5
RSM-500	50	16	67	83	140×114	6.8
RSM-750	75	16	80	96	165×139	11.4
RSM-1000	100	16	86	102	178×152	14.5
RSM-1500	150	16	100	116	216×191	26.3
RSM-1530	150	30	140	170	216x191	35

How to choose the right hydraulic jack?

1. If large capacity work and piston return are required, a large tonnage double-acting hydraulic jack (50-2000 tons) can be selected.

2. Double acting hollow jack can be selected when a PC steel strand, steel wire, or anchor bolt (50-2000 tons) needs to be passed.

3. If jacks are to be installed on some work platforms, flanged hydraulic jacks (10-630 tons) are required.

4. Single acting hydraulic jack is used for work with small tonnage and stroke (10-100 tons).

5. The single-acting hydraulic hollow jack (12-100 tons) can be selected to cooperate with the special tool to pass through the cable or pull rod.

6. The single-acting hydraulic jack with lock nut can be used in the work site where the pressure is maintained for a long time (55-200 tons).

7. Ultra thin hydraulic jack is used in narrow working spaces (10-200 tons).

8. The electric oil pump is matched with all kinds of hydraulic jacks, and has double and single functions to choose from.

9. The hydraulic hand pump is also used to match with the hydraulic jack, and the customer has no requirements for work efficiency.

All tonnage, stroke, and height can be customized according to customer requirements to provide the best quality and service. Our warranty period is 2 years.
