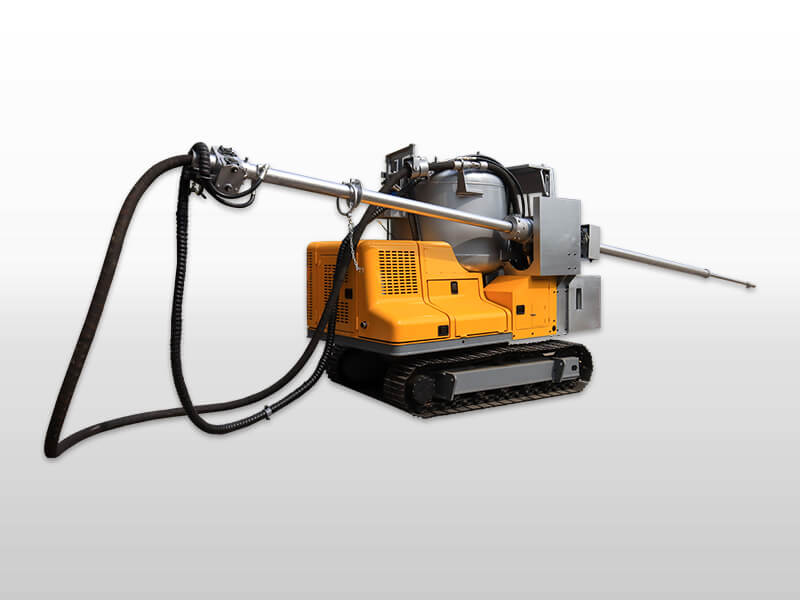

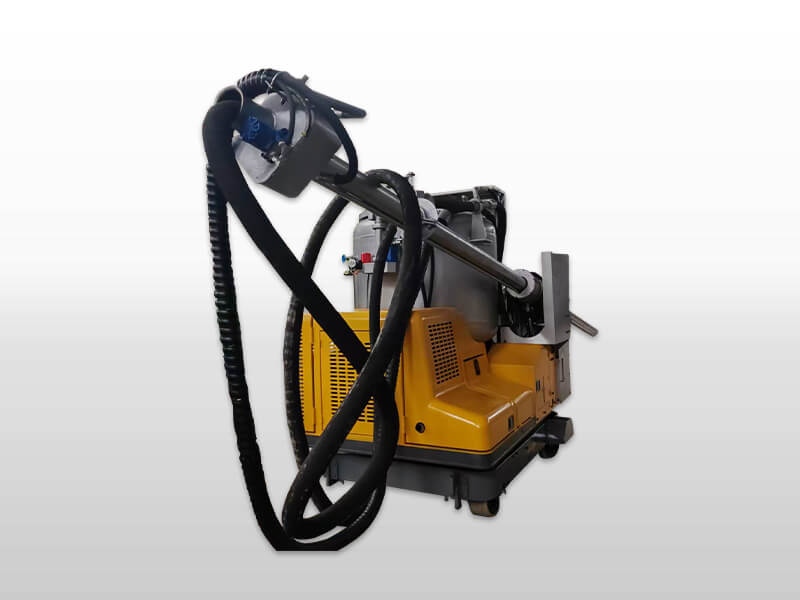

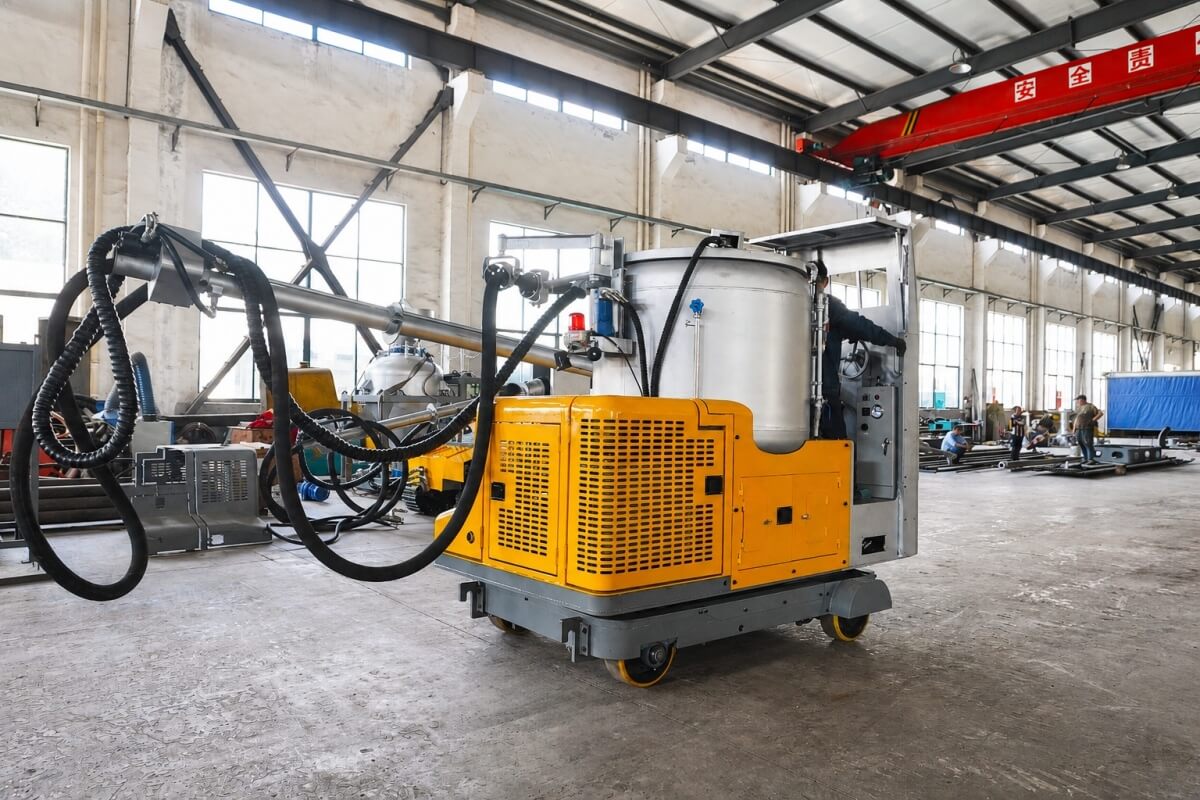

Converter refractory hot repair gunning machine

Output Capacity: 60~100Kg/min
Max. Aggregate Size: 15mm
Nozzle Center Height: 1700mm
Vessel Tank Volume: 1000Kg
Operation Air Pressure: 0.5~0.6Mpa
Air Consumption: 10m3/min

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

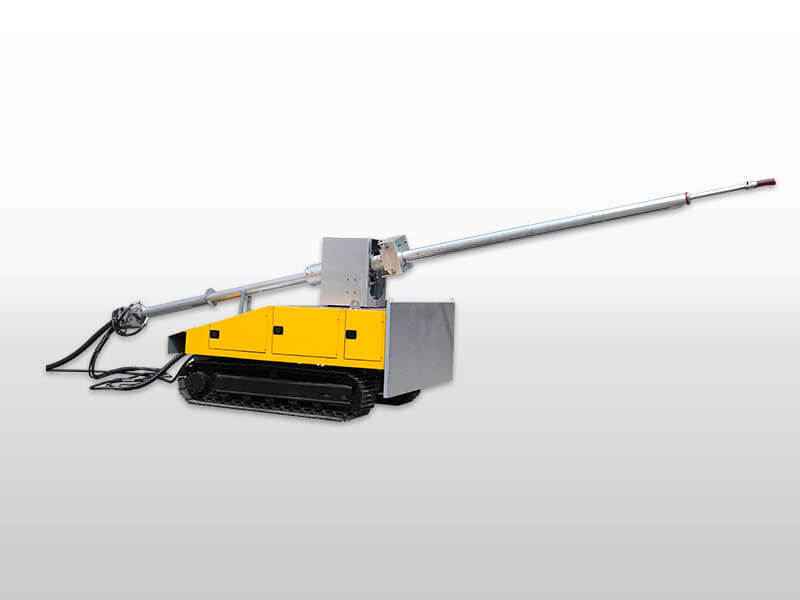

$Refractory Spray Machine for Steel Converter Repair$

Description
Application
Features
Technical data

■ Description

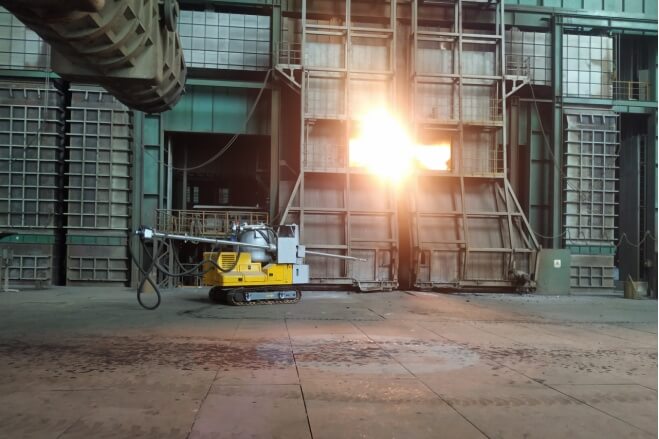

Converter refractory hot repair gunning machine must be capable of performing rapid maintenance and repair operations on the worn areas of the converter liner at temperatures below 1,200°C. It can complete actions such as whole-machine traveling, steering, braking, upper-vehicle slewing, positioning of the spraying pipe, and feeding of gunning materials, thereby enabling efficient local repair of the converter liner.

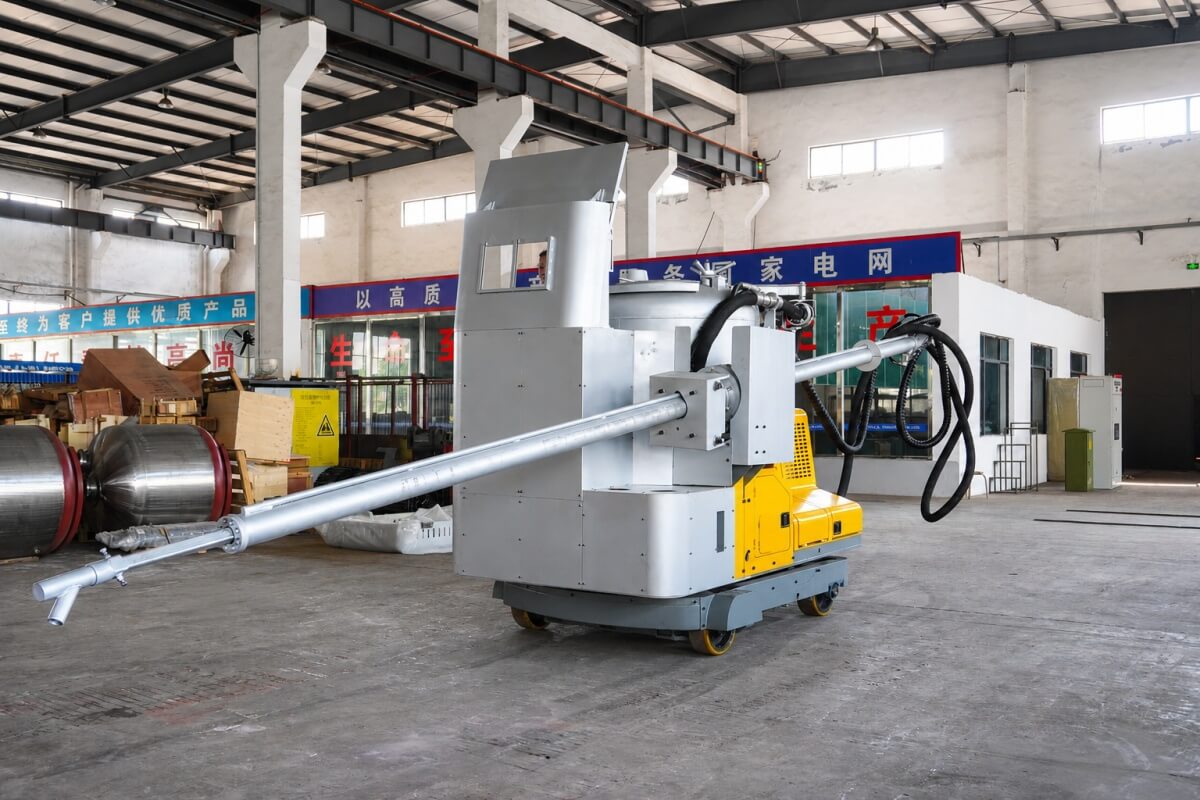

$High-Temperature Refractory Gunning Machine for Steel Converter Hot Repair$

■ Technical data

Output Capacity	60~100Kg/min
Max. Aggregate Size	15mm
Nozzle Center Height	1700mm
Vessel Tank Volume	1000Kg
Operation Air Pressure	0.5~0.6Mpa
Air Consumption	10m3/min
Power Unit
Diesel Engine Power	36.8Kw
Rated Speed	2400rpm
Traveling System
Traveling Type	Crawler-type traveling device
Traveling Speed	3.2km/h
Spraying Pipe Drive System
Pipe Telescoping	The nozzle can extend approximately 1m beyond the front of the machine; maximum telescoping stroke 6400mm, maximum speed 0.25m/s
Pipe Rotation	±170°
Pipe Left/ Right Swing (with upper-vehicle slewing)	360°
Pipe Up / Down Tilt	12° upward, 20° downward
Operating Platform Heat Resistance	Asbestos and air chamber heat insulation, high-temperature resistant glass
Warning Signals	Warning light and siren
Operating Temperature	Converter inner cavity temperature 1200°C
