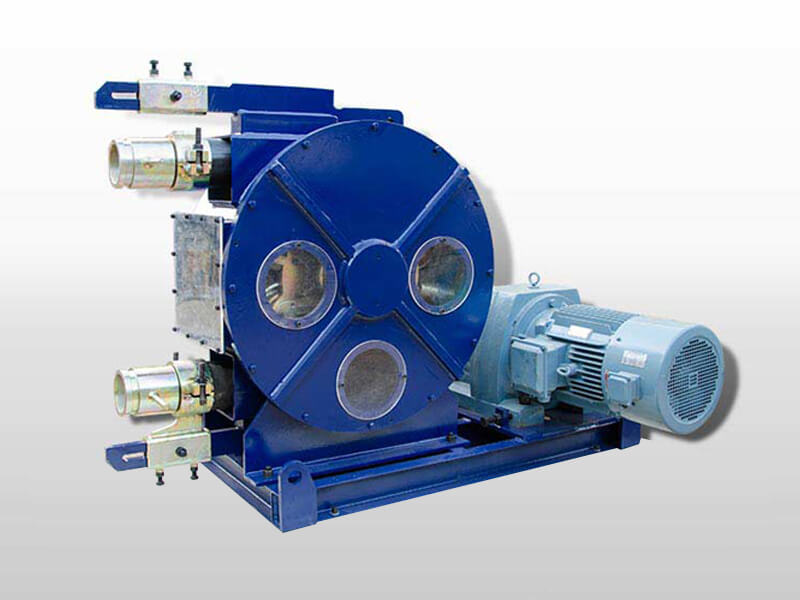

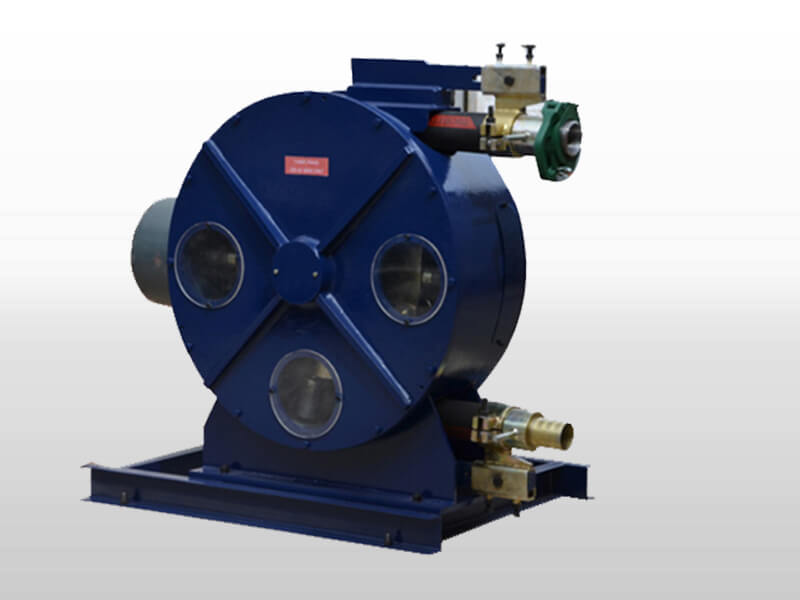

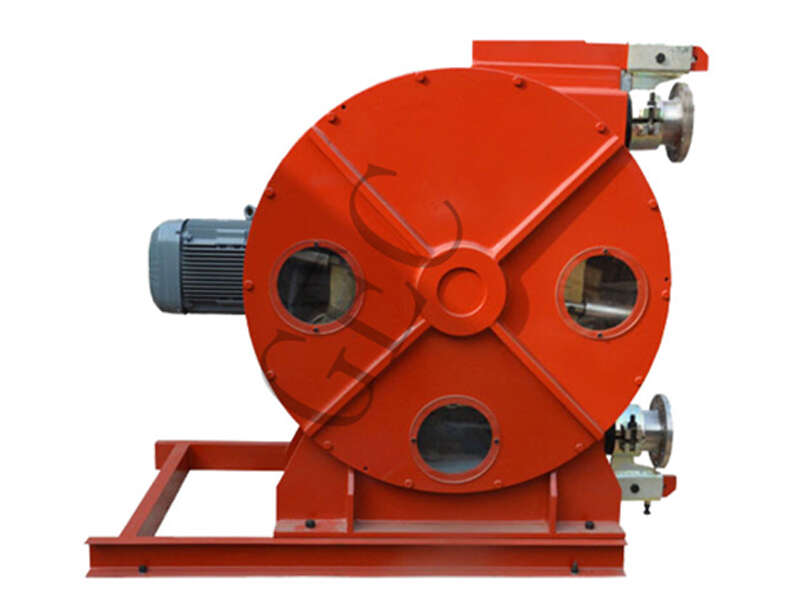

GH Series Industrial Peristaltic Hose ump

Model: GH10-GH100
Output: 100-50000L/h
Hose ID: 10-100mm
Pressure: 0.6-1.5Mpa
Motor power: 0.37-18kw

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

download:

Description
Application
Features
Technical data

■ Description

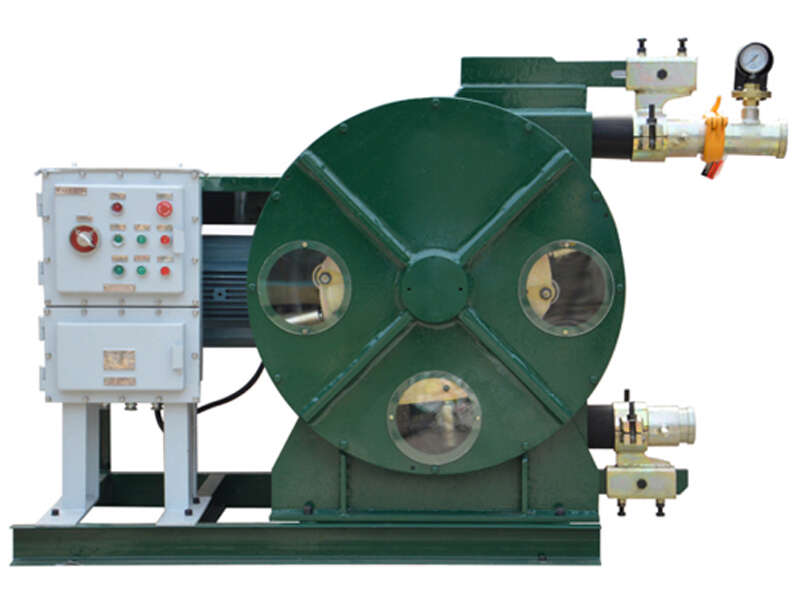

GH series industrial peristaltic hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

Model	Output capacity	Pressure	Rotate Speed	Squeeze Hose ID	Motor Power
GH15-200	0.3m3/h	1.5Mpa	60rpm	15mm	0.75Kw
GH25-265	0.6m3/h	1.5Mpa	36rpm	25mm	1.5Kw
GH32-330	1.3m3/h	1.5Mpa	36rpm	32mm	2.2Kw
GH38-430B	2.2m3/h	1.5Mpa	32rpm	38mm	3Kw
GH50-445B	4.6m3/h	1.5Mpa	38rpm	50mm	4Kw
GH50-558B	6m3/h	1.5Mpa	40rpm	50mm	5.5Kw
GH50-680B	6.4m3/h	1.5Mpa	34rpm	50mm	7.5Kw
GH65-600B	8m3/h	1.5Mpa	34rpm	65mm	7.5Kw
GH65-680B	13m3/h	1.5Mpa	41rpm	65mm	11Kw
GH76-770B	18m3/h	1.5Mpa	38rpm	76mm	18.5Kw
GH100-915B	32m3/h	2.5Mpa	32rpm	100mm	45Kw
GH125-915B	55m3/h	0.6Mpa	35rpm	125mm	22Kw
GCP15H-E	15m3/h	2.5Mpa	37rpm	75mm	22Kw
GCP40H-E	45m3/h	2.5Mpa	39rpm	100mm	45Kw
We could customize the industrial peristaltic hose pump according to output capacity and working pressure of clients' requirement.

■ Technical data

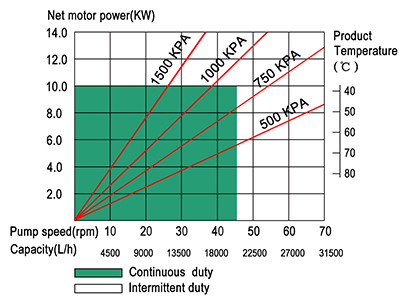

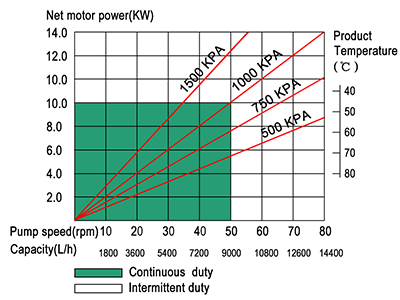

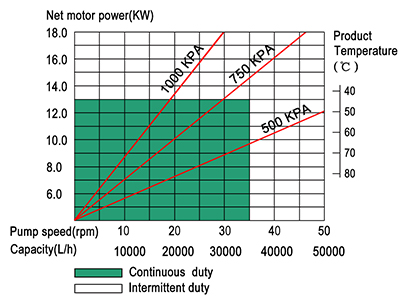

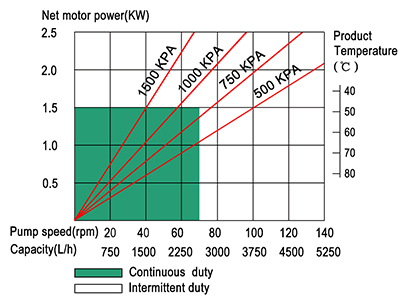

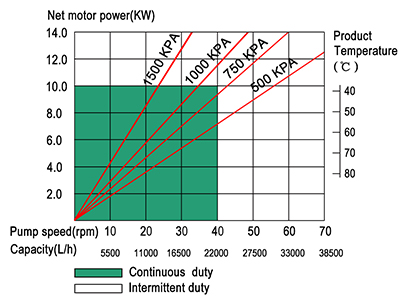

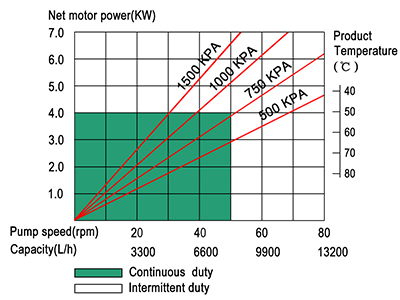

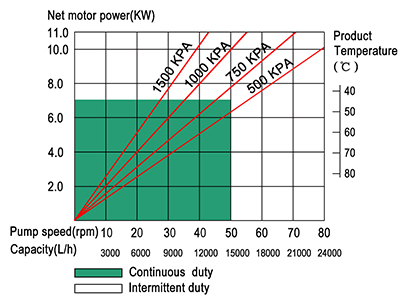

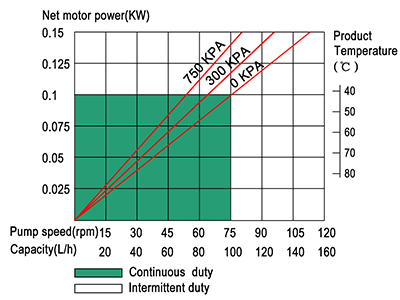

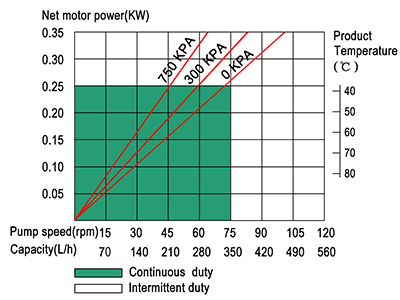

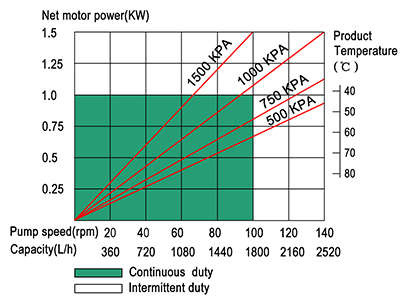

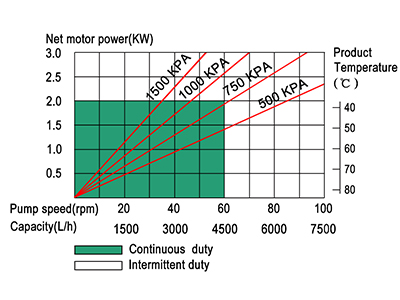

►Tables of GH series industrial peristaltic hose pump

GH10-200 Capacity: 0.037 L/rev Max discharge pressure: 15 bar Hose inner diameter: 10 mm
GH15-200 Capacity: 0.083 L/rev Max discharge pressure: 15 bar Hose inner diameter: 15 mm
GH25-265 Capacity: 0.3 L/rev Max discharge pressure: 15 bar Hose inner diameter: 25 mm
GH32-330 Capacity: 0.625L/rev Max discharge pressure: 15 bar Hose inner diameter: 32 mm
GH38-430 Capacity: 1.14L/rev Max discharge pressure: 15 bar Hose inner diameter: 38 mm
GH50-558 Capacity: 2.75L/rev Max discharge pressure: 15 bar Hose inner diameter: 50 mm
GH50-680 Capacity: 3.14 L/rev Max discharge pressure: 15 bar Hose inner diameter: 50 mm
GH65-680 Capacity: 5.31 L/rev Max discharge pressure: 15 bar Hose inner diameter: 65 mm
GH76-770 Capacity: 8.22 L/rev Max discharge pressure: 15 bar Hose inner diameter: 76 mm
GH76-915 Capacity: 9.77 L/rev Max discharge pressure: 10 bar Hose inner diameter: 76 mm
GH100-915 Capacity: 16.92 L/rev Max discharge pressure: 10 bar Hose inner diameter: 100 mm
Note: 1. Intermittent duty: Max. 2 hours working and stop for 1 hour 2. Flow rate takes water as medium 3. You may inquiry to us if the model you need is not listed

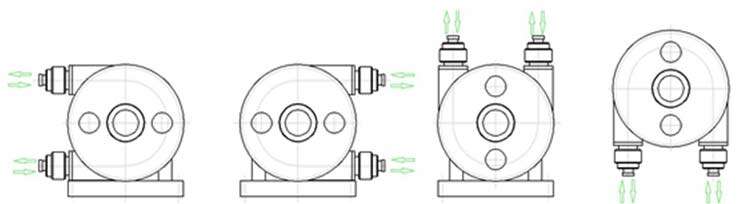

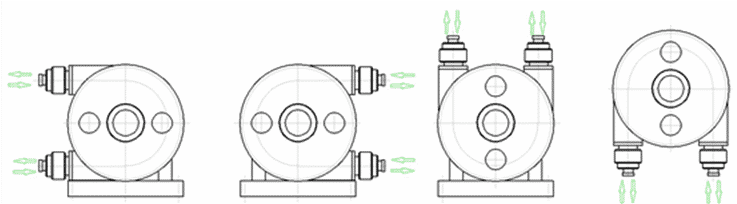

♦ Dimension of Structure

	A	B	D	E	F	G	H	L	h	2-d	4-Φ
GH10	300	160	190	200	50	180	245	420	135	10	12
GH15	270	225	200	265	30	190	295	500	160	15	12
GH25	500	300	265	360	98	245	410	675	230	25	14
GH32	500	300	330	360	98	245	410	700	230	32	14
GH38	600	460	430	520	135	350	550	820	300	38	14
GH50-558	700	540	558	60	190	460	665	1000	360	50	18
GH50-680	800	690	680	750	220	540	800	1150	420	50	18
GH65-680	800	690	680	750	220	540	800	1340	420	65	18
GH76-770	900	760	770	800	260	620	900	1340	480	76	18
GH76-915	1000	860	915	900	320	700	1050	1500	550	76	25
GH100	1000	860	915	900	320	700	1050	1600	550	100	25
