Prestressed concrete round anchors

Model: GYM15-1
Number of Strand: 1
Anchor Head: 80x80xσ14
Bearing Plate: ø48x47

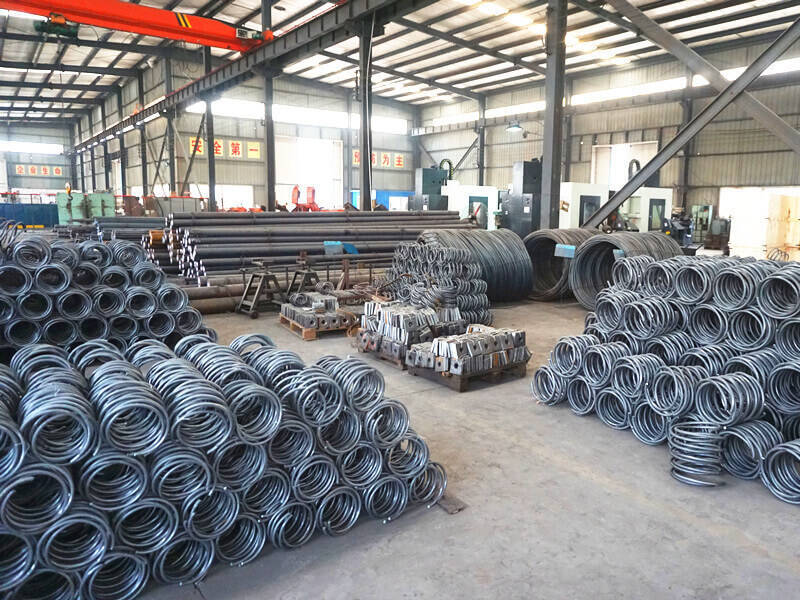

Spiral Reinforcement: ø80xø6x30
The Matched Jack type: YDC series

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

Description
Application
Features
Technical data

■ Description

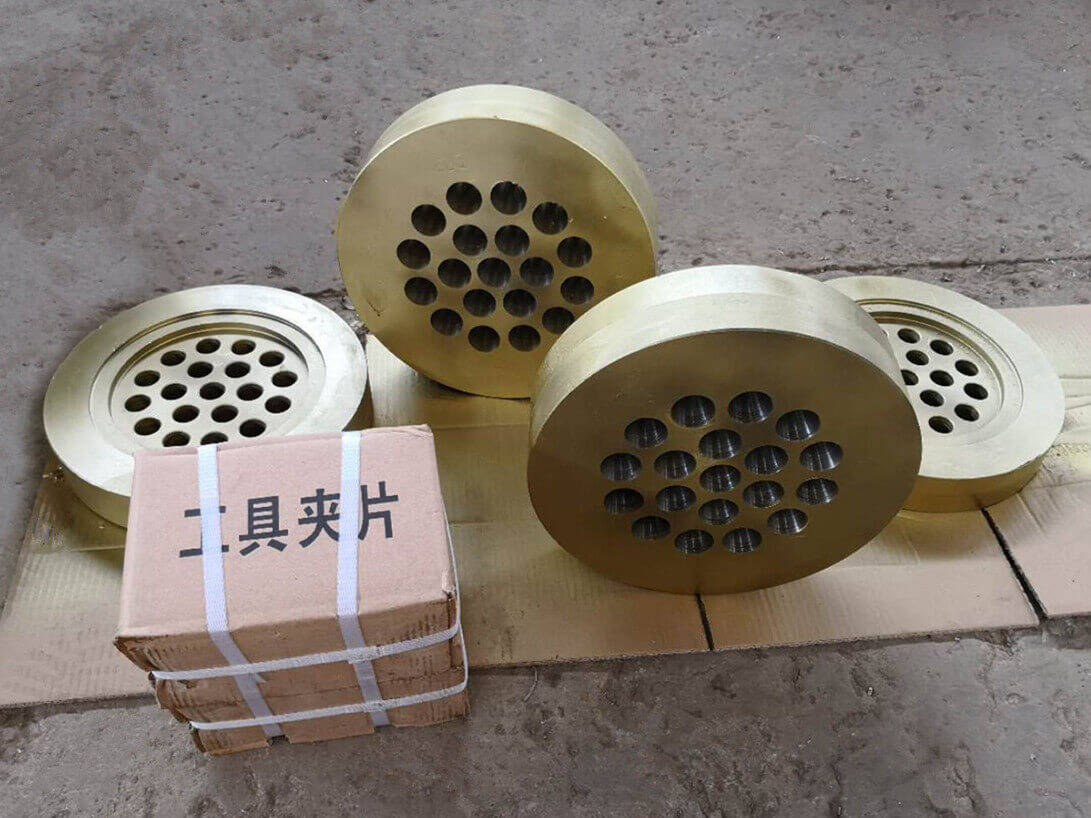

1. Type: Single-hole, Multi-hole; Circular, Flat.
2. Parts: Anchor Ring/Plate, Wedge, Base Plate etc.
3. Have a high anchor efficiency and very good performance
4. Post tensioning and prestressing use
5. We can manufacture all kinds of anchorage and prestressed equipment according to your requirement and drawings.

■ Technical data

Model	Anchor Head		Anchor Plate		Corrugated Pipe I.D.	Spiral Reinforcement/Bar				Matched Tension Jack Model
Model	ØD	B	A	L	ØC	ØG	H	Ød	n	Matched Tension Jack Model
GYM15(13)-1	48 (40)	50 (50)	90 (90)	35 (35)		80(85)	30(35)	6	4(4)	QYC270
GYM15(13)-2	94 (80)	50 (50)	135 (120)	110 (110)	45(40)	120(110)	40(50)	8(8)	3(3)	YDC650 (YDC650)
GYM15(13)-3	94 (80)	50 (40)	135 (120)	110 (120)	50(50)	130(130)	50(50)	10(8)	4(3)	YDC1000 (YDC650)
GYM15(13)-4	98 (85)	50 (50)	150 (135)	120 (120)	50(50)	150(150)	50(50)	14 (10)	4(4)	YDC1500 (YDC650)
GYM15(13)-5	108 (94)	50 (55)	180 (150)	130 (120)	55(50)	170(160)	50(50)	14 (14)	4(4)	YDC1500 (YDC1500)
GYM15(13)-6,7	127(108)	50 (55)	190 (165)	160 (150)	70(60)	200(190)	50(50)	14 (14)	4(5)	YDC2000 (YDC1500)
GYM15-8	137	60	230	180	80	240	60	16	5	YDC2000
GYM15(13)-9	154 (128)	60 (60)	240 (180)	190 (160)	80(60)	240(220)	60(50)	16 (16)	5(5)	YDC2500 (YDC1500)
GYM15(13)-10	167	60	250	210	80	270	60	16	6	YDC2500
GYM15(13)-11/12	167 (148)	60 (60)	260 (215)	210 (190)	90(80)	270(240)	60(60)	16 (16)	6(5)	YDC3000 (YDC2000)
GYM15-14/15	187	65	270	220	90	310	60	18	6	YDC3500
GYM15-16	207	65	290	250	90	330	60	18	6	YDC4000
GYM15(13)-19	207 (178)	70 (65)	310 (270)	265 (260)	100(90)	350(310)	60(60)	18 (18)	7(6)	YDC5000 (YDC3000)
GYM15(13)-22	227 (188)	70 (65)	380 (290)	265 (260)	120(100)	380(330)	60(60)	20 (18)	7(6)	YDC5000 (YDC3000)
GYM15(13)-24	237 (208)	75 (75)	380 (300)	380 (270)	120(100)	380(340)	60(60)	20 (18)	7(6)	YDC6500 (YDC4600)
GYM15(13)-25,27	247 (208)	90 (80)	380 (320)	300 (280)	120(100)	400(360)	60(60)	20 (18)	7(6)	YDC6500 (YDC4600)
GYM15(13)-31	277 (238)	90 (90)	390 (340)	355 (320)	130(105)	450(380)	70(60)	22 (20)	8(6)	YDC6500 (YDC4600)
GYM15(13)-37	287 (238)	100 (100)	430 (370)	435 (370)	140(120)	500(430)	70(70)	22 (22)	8(6)	YDC8000 (YDC6500)
GYM15(13)-42	268	100	395	380	130	450	70	22	7	YDC10000
GYM15(13)-44	327	110	460	465	160	550	70	22	8	YDC10000
GYM15(13)-55	360 (298)	120 (110)	530 (460)	515 (460)	160(140)	630(510)	70(70)	25 (22)	9(7)	YDC12000 (YDC10000)
