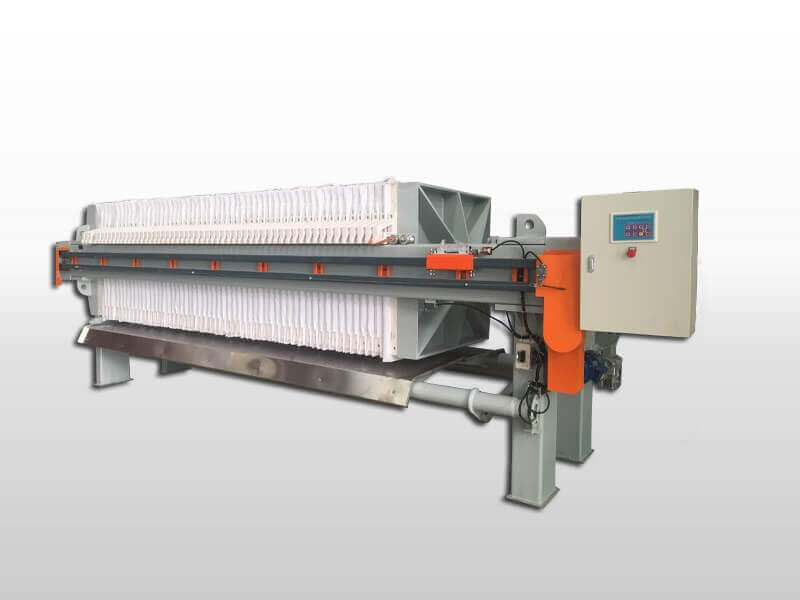

Program controlled automatic filter press

Model: XMZ30/870-30U
Filer area(m2) : 30
Filter size(mm): 870*870
Cake thickness(mm): 30
Filter chamber volume(L): 460
Number plate(pcs): 23

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

Description
Application
Features
Technical data

■ Description

Our program controlled automatic chamber filter press use micro computer processor, PLC and touch screen to control every part's action, such as: cylinder, plate shifter, cloth washing, etc.

High efficency filter press expended the length of cylinder and can discharged several cakes every time. The advantages are stable performance, high efficiency and lower running cost, reduce labor resources.

Working principle of program controlled automatic filter press:
Suspension into the program controlled automatic filter press with a pump filter every closed room, under pressure, the filtrate through the filter layer and the membrane or other filter, the membrane fluid discharge port, the residues were kept in box form a cake plate to achieve solid-liquid separatio.

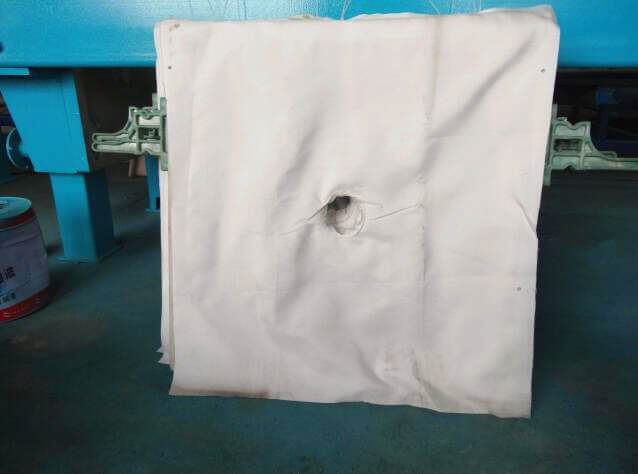

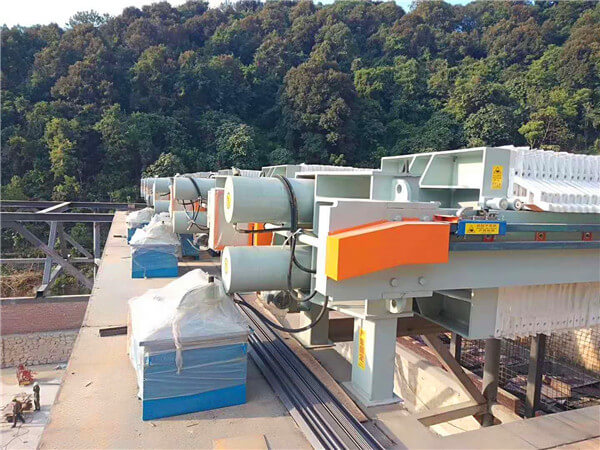

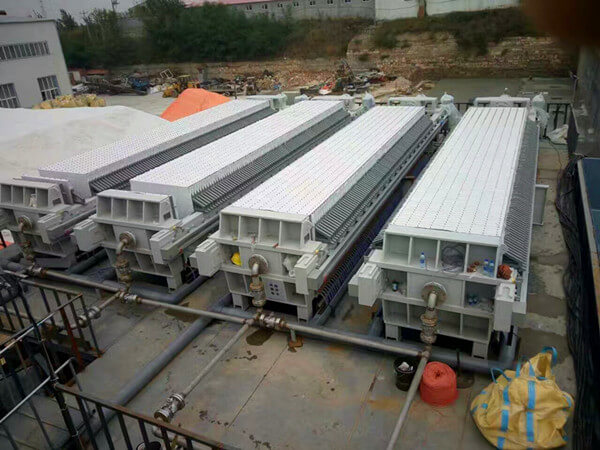

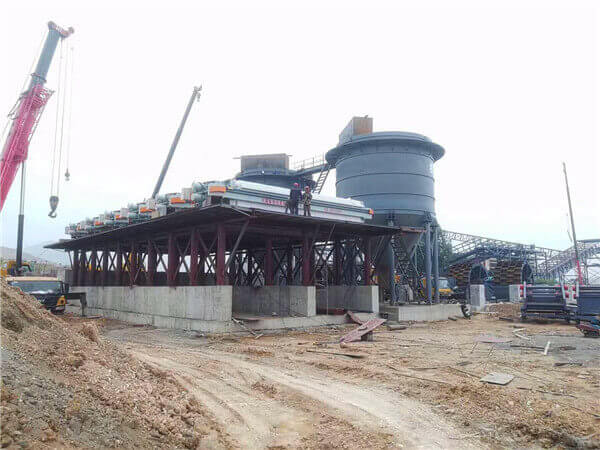

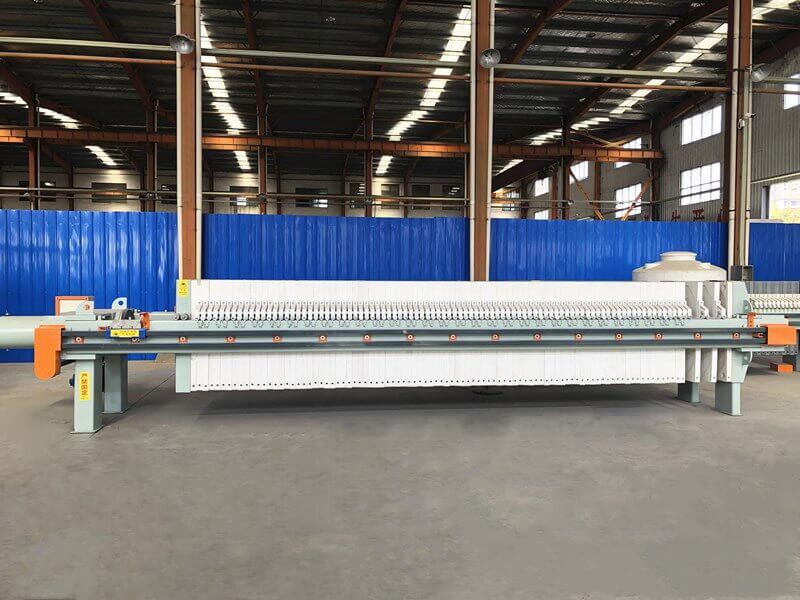

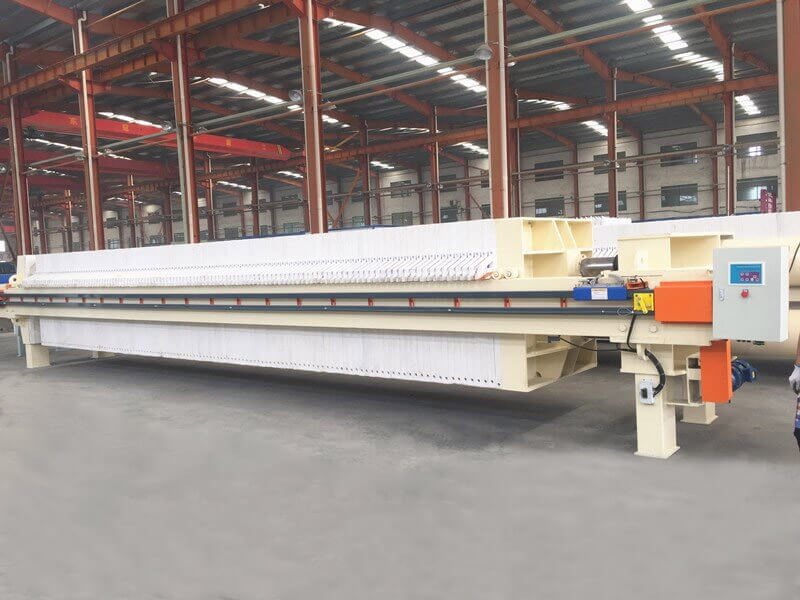

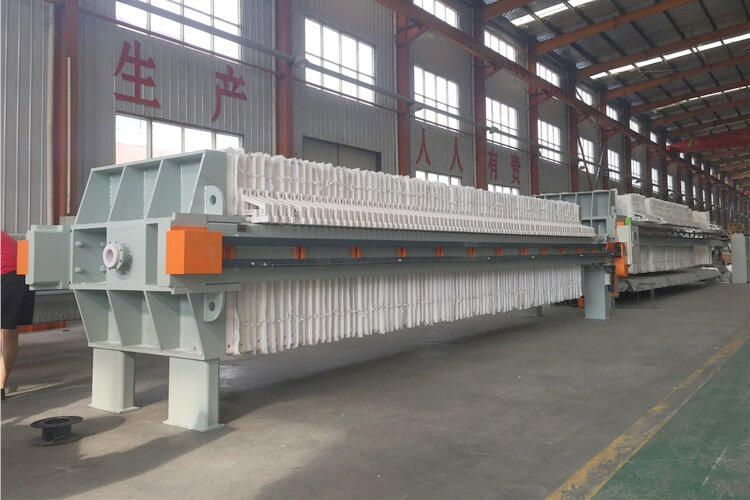

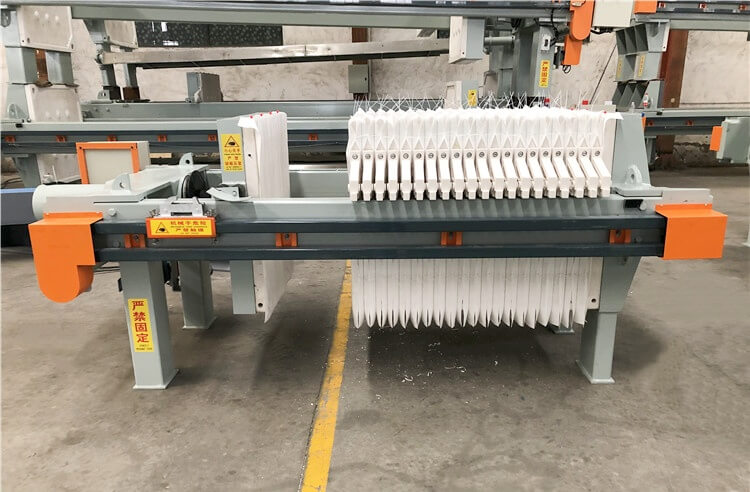

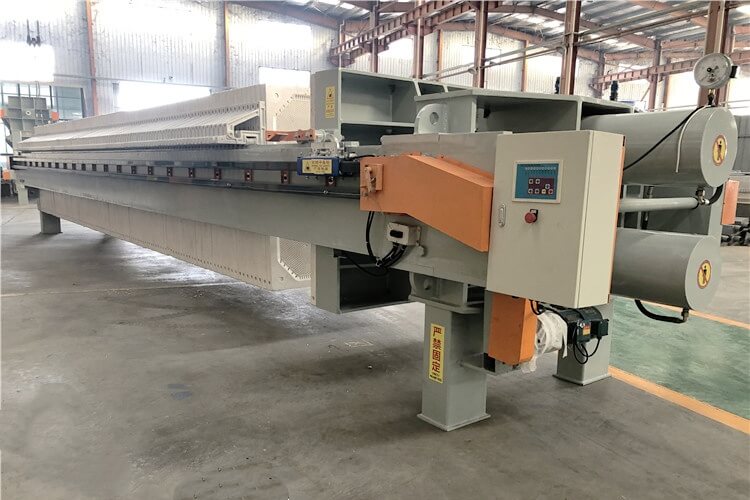

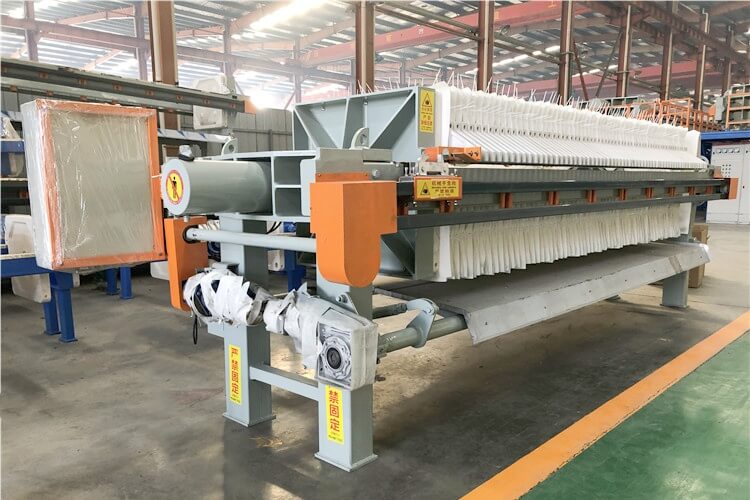

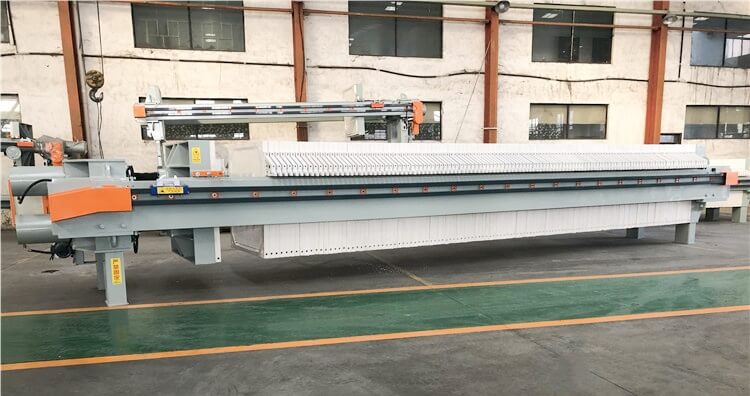

Details of program controlled automatic filter press:

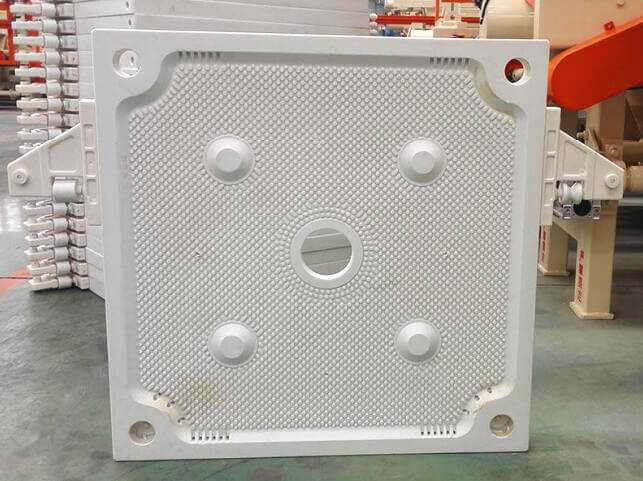

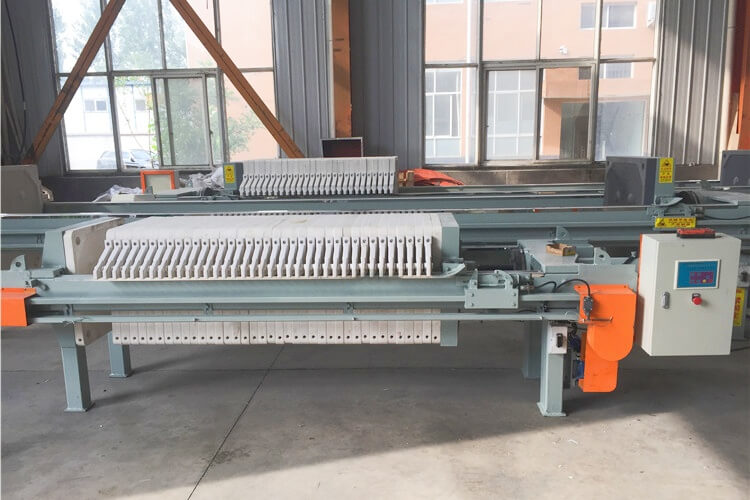

Program controlled automatic filter press filter plate

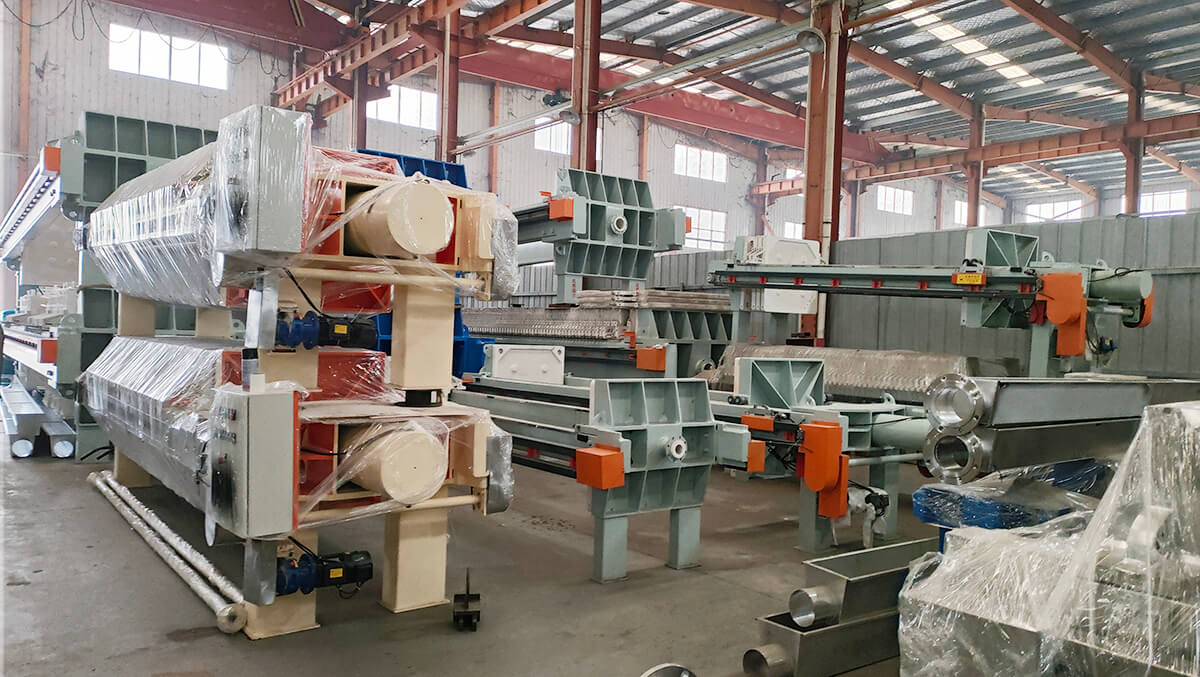

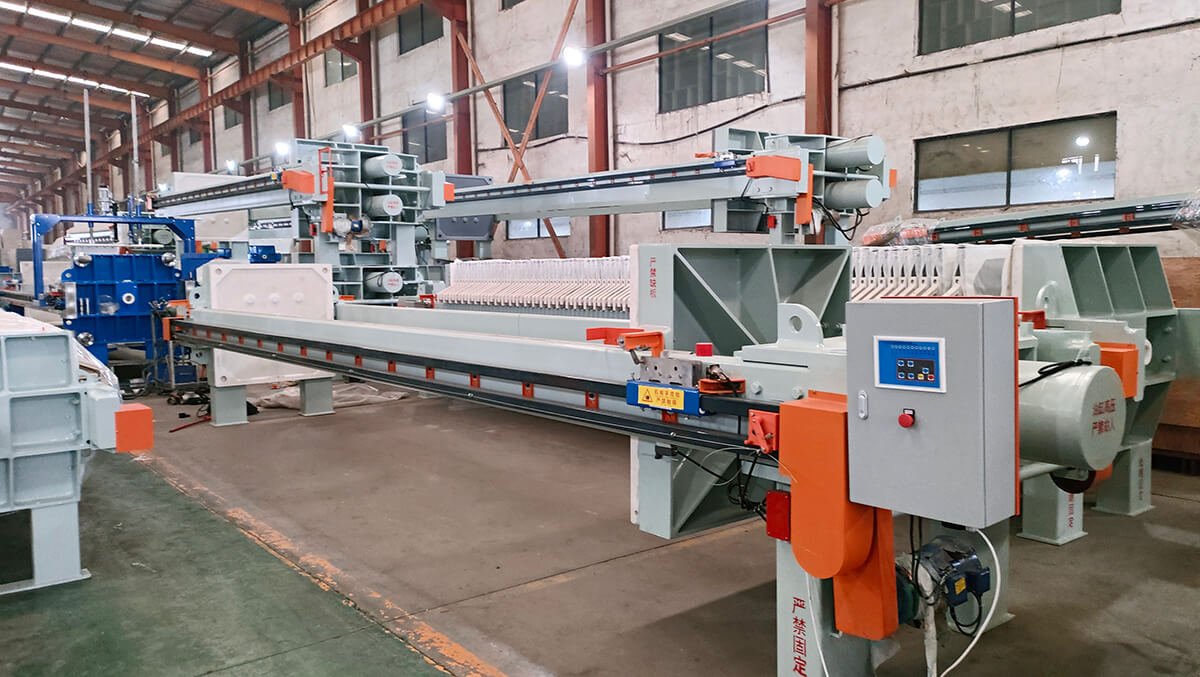

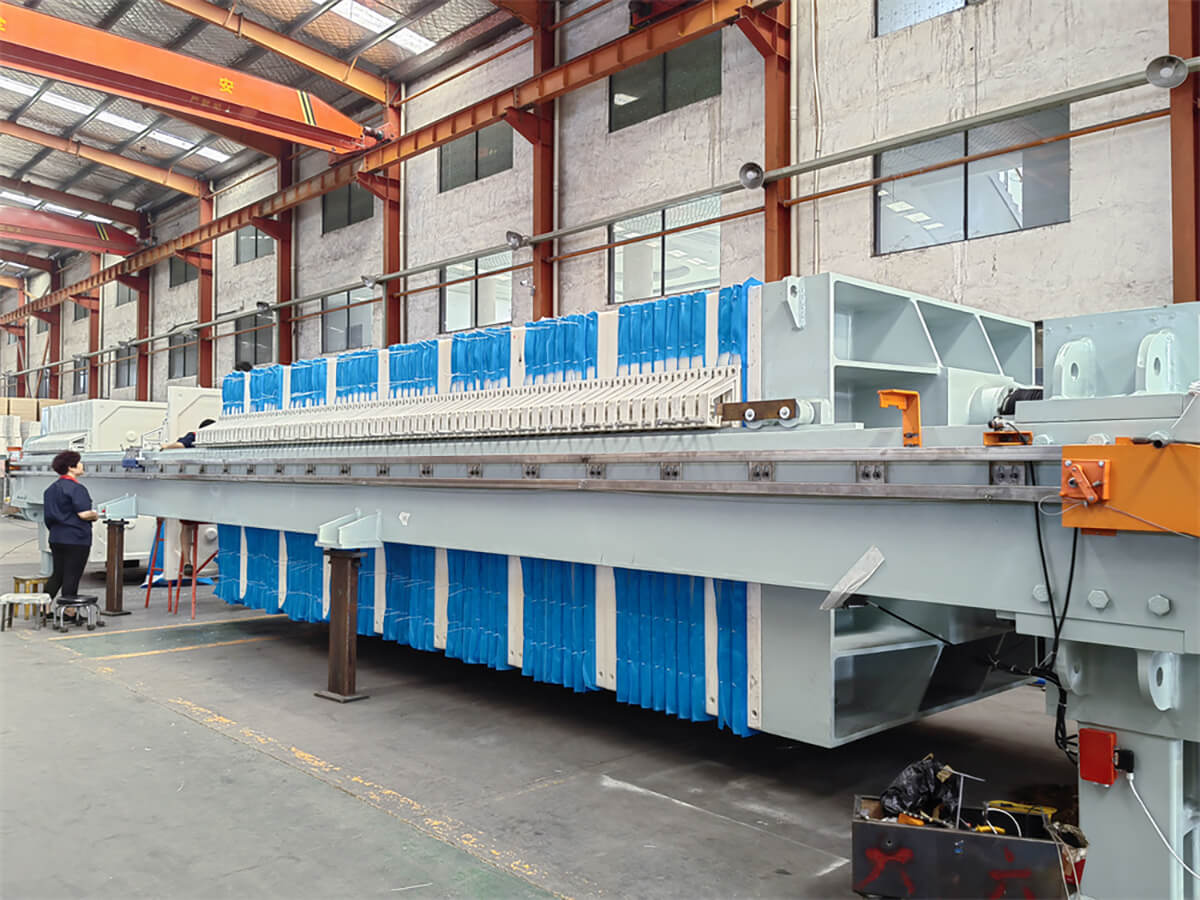

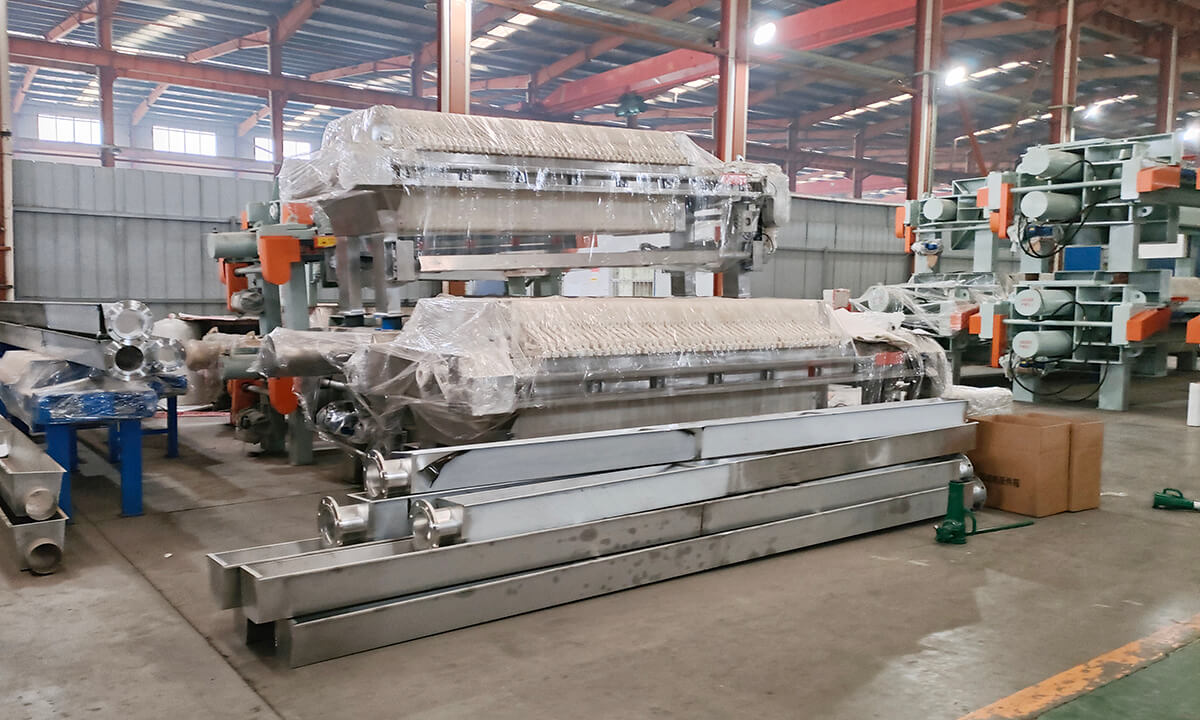

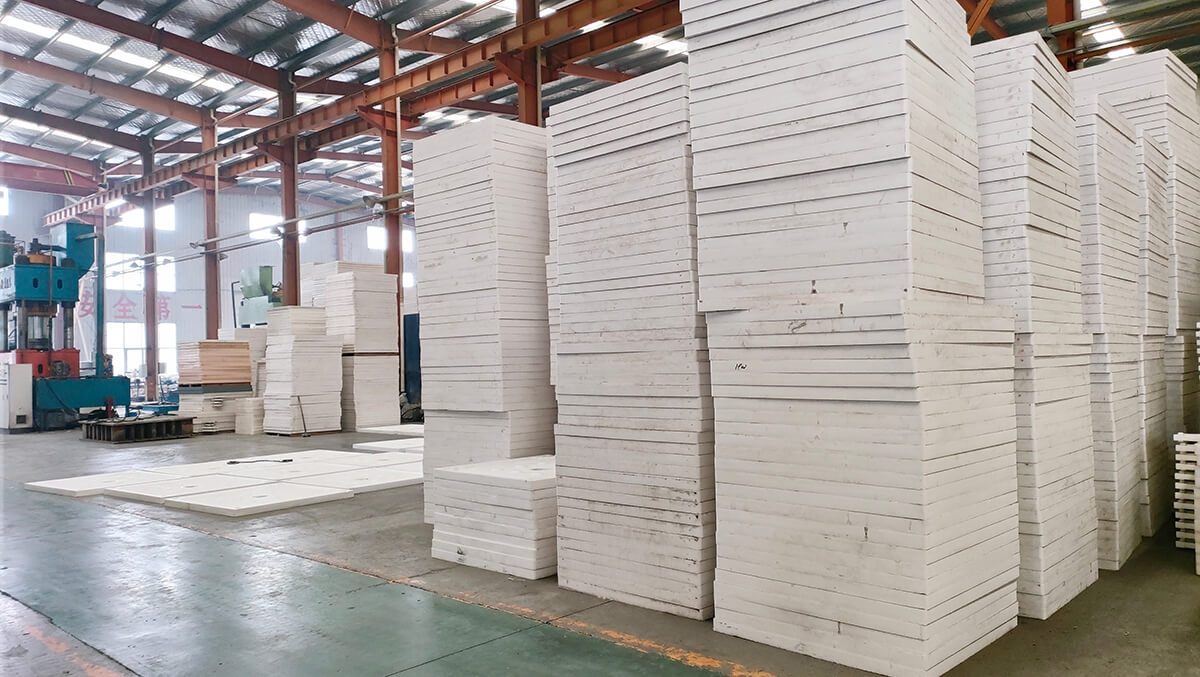

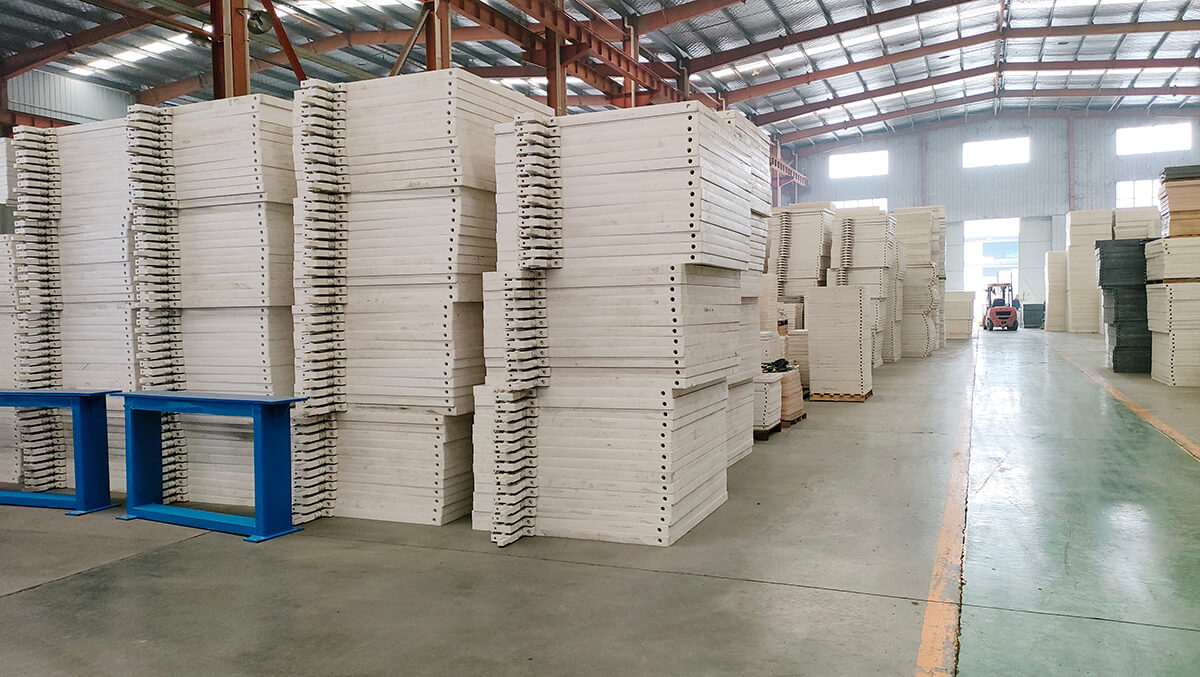

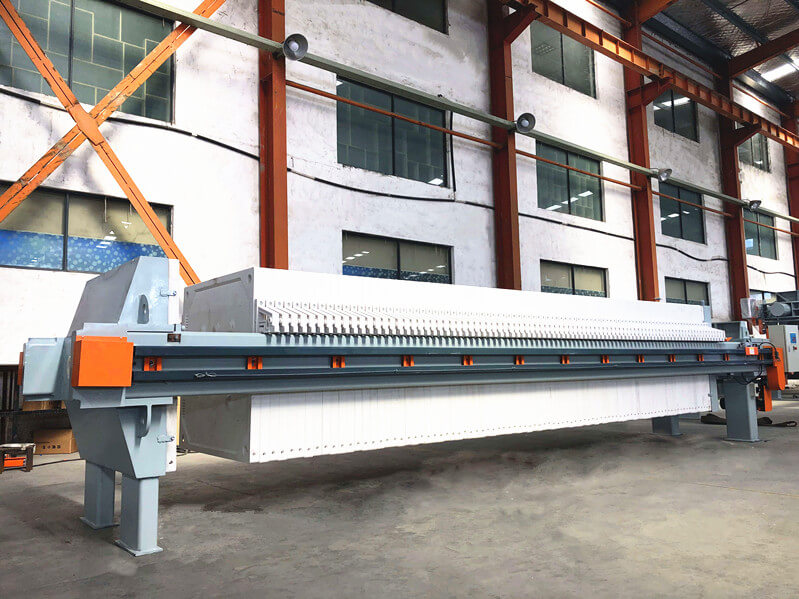

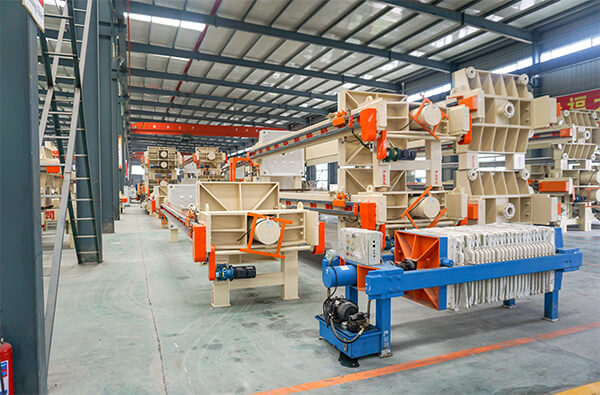

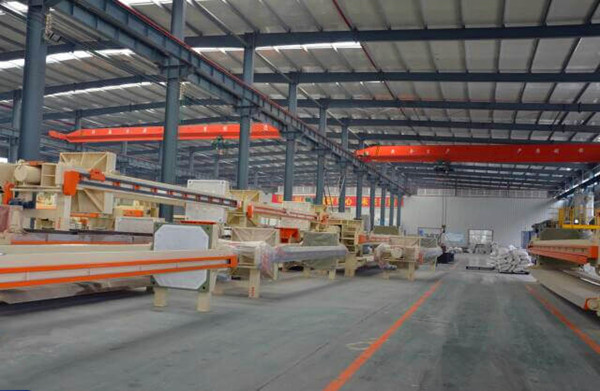

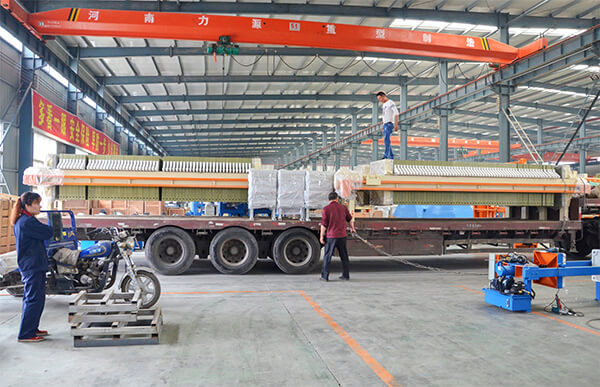

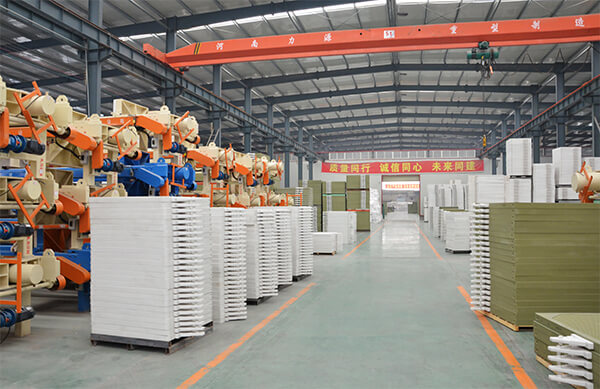

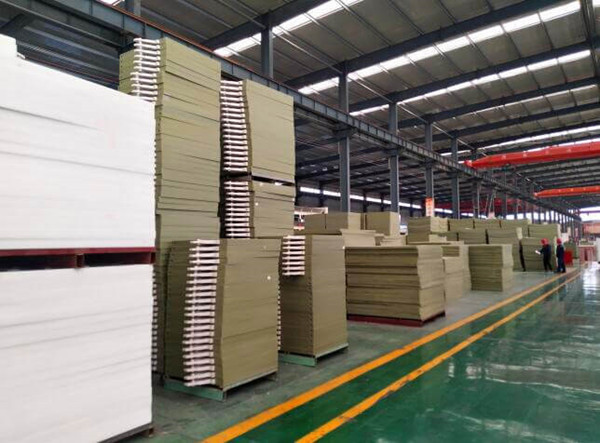

Our program controlled automatic filter press factory:

■ Technical data

Model	Filter area (m2)	Plate size (mm)	Cake thickness (mm)	Filter chamber volume (L)	Plate NO. (pcs)	Filtration pressure (Mpa)	Motor power (Kw)	Weight (kg)	Size (LWH mm)
XMZ30/870-30U	30	870870 or 800800	30	460	23	≥0.6	2.2	2680	318014001230
XMZ40/870-30U	40			595	30			3050	357014001230
XMZ50/870-30U	50			748	38			3456	411014001230
XMZ60/870-30U	60			902	46			4003	455014001230
XMZ70/870-30U	70			1056	54			4584	499014001230
XMZ80/870-30U	80			1210	62			5082	543014001230
XMZ50/1000-30U	50	1000*1000		736	28		4.0	4128	404015001400
XMZ60/1000-30U	60			889	34			4636	446015001400
XMZ70/1000-30U	70			1041	40			5143	476015001400
XMZ80/1000-30U	80			1193	46			5651	512015001400
XMZ100/1000-30U	100			1475	57			6628	578015001400
XMZ120/1000-30U	120			1777	69			7644	650015001400
XMZ100/1250-30U	100	1250*1250		1468	36			8307	502018001600
XMZ120/1250-30U	120			1746	43			9308	547018001600
XMZ140/1250-30U	140			2063	51			10455	599018001600
XMZ160/1250-30U	160			2341	58			11492	645018001600
XMZ180/1250-30U	180			2619	65			12494	690518001600
XMZ200/1250-30U	200			2896	72			13504	736018001600
XMZ220/1250-30U	220			3214	80			14652	788018001600
XMZ250/1250-30U	250			3650	91			16227	860018001600
XMZ200/1500-35U	200	1500*1500	35	2998	49		7.5	20030	640022001900
XMZ250/1500-35U	250			3594	61			22978	722522001900
XMZ300/1500-35U	300			4347	74			26026	813022001900
XMZ350/1500-35U	350			5043	86			29220	895022001900
XMZ400/1500-35U	400			5796	99			32574	988022001900
XMZ450/1500-35U	450			6492	111			35586	1069022001900
XMZ500/1500-35U	500			7187	123			38606	1156022001900
XMZ600/2000-40U	600	2000*2000	40	8926	85		15	49000	1110030002500
XMZ700/2000-40U	700			10380	99			53000	1220030002500
XMZ800/2000-40U	800			11210	107			57000	1335030002500
XMZ900/2000-40U	900			13290	127			61000	1450030002500
XMZ1000/2000-40U	1000			14740	141			65000	1560030002500
