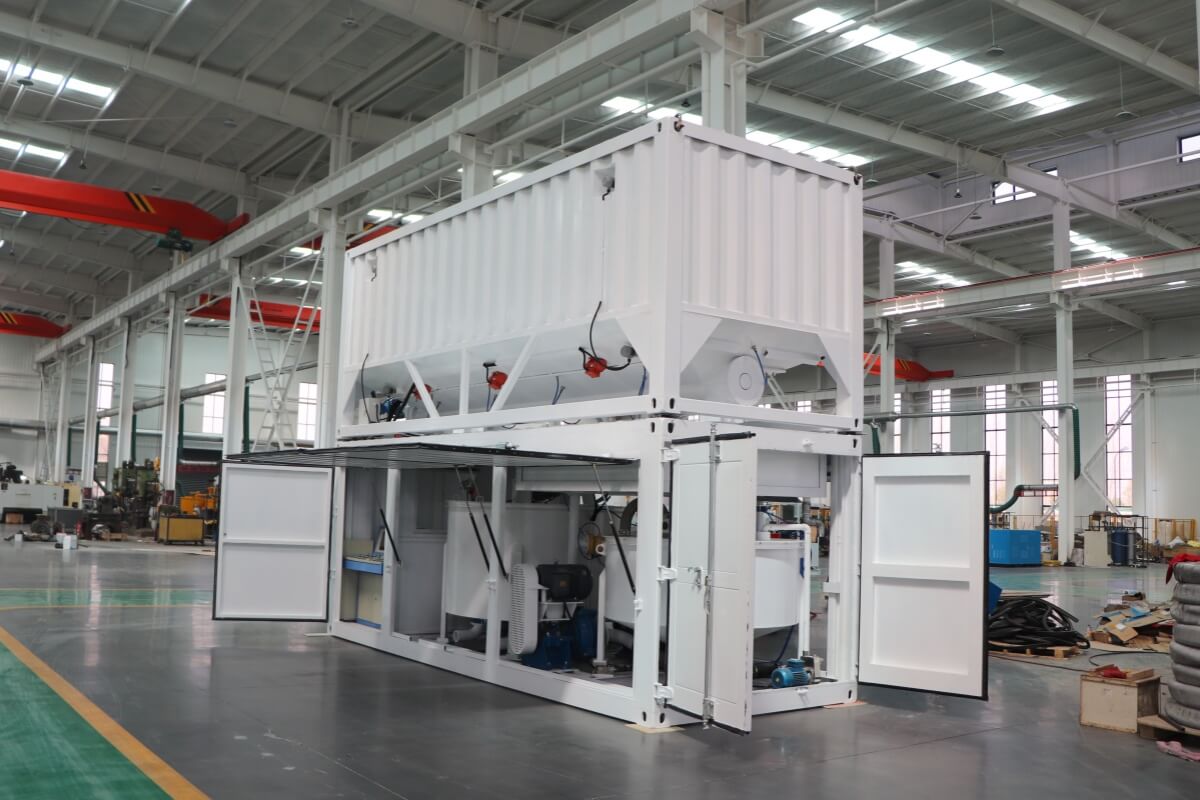

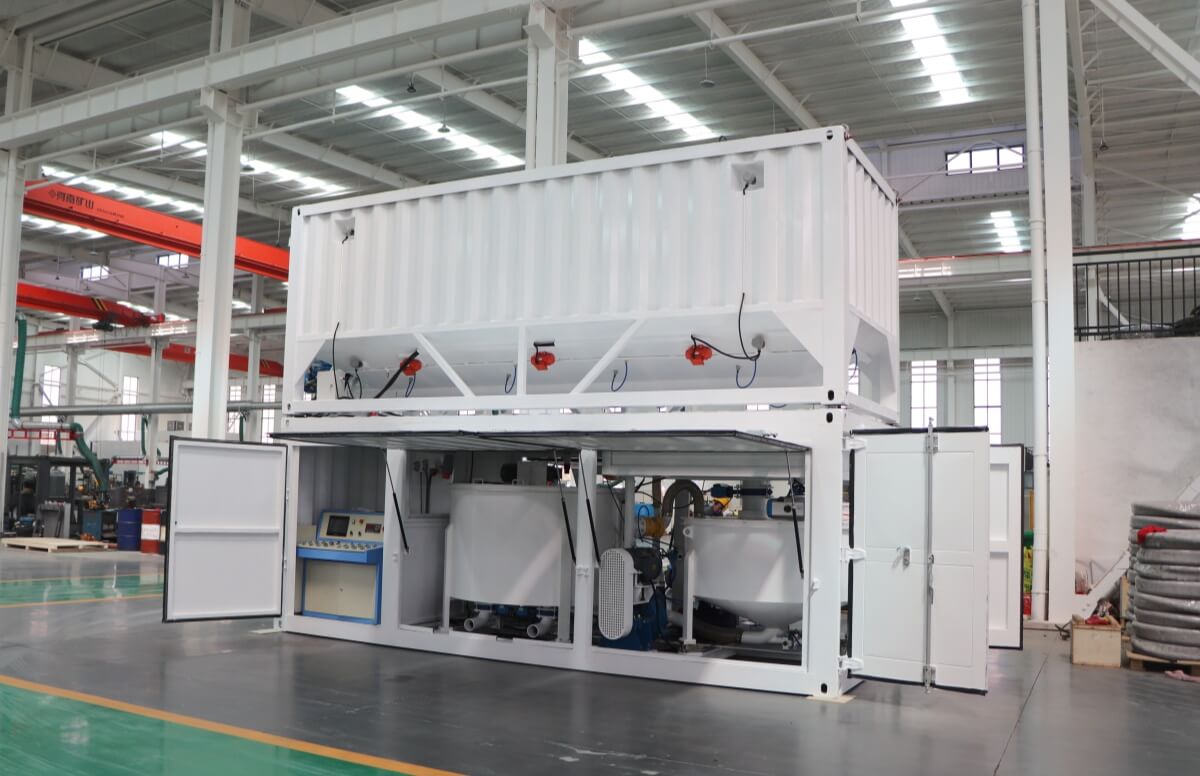

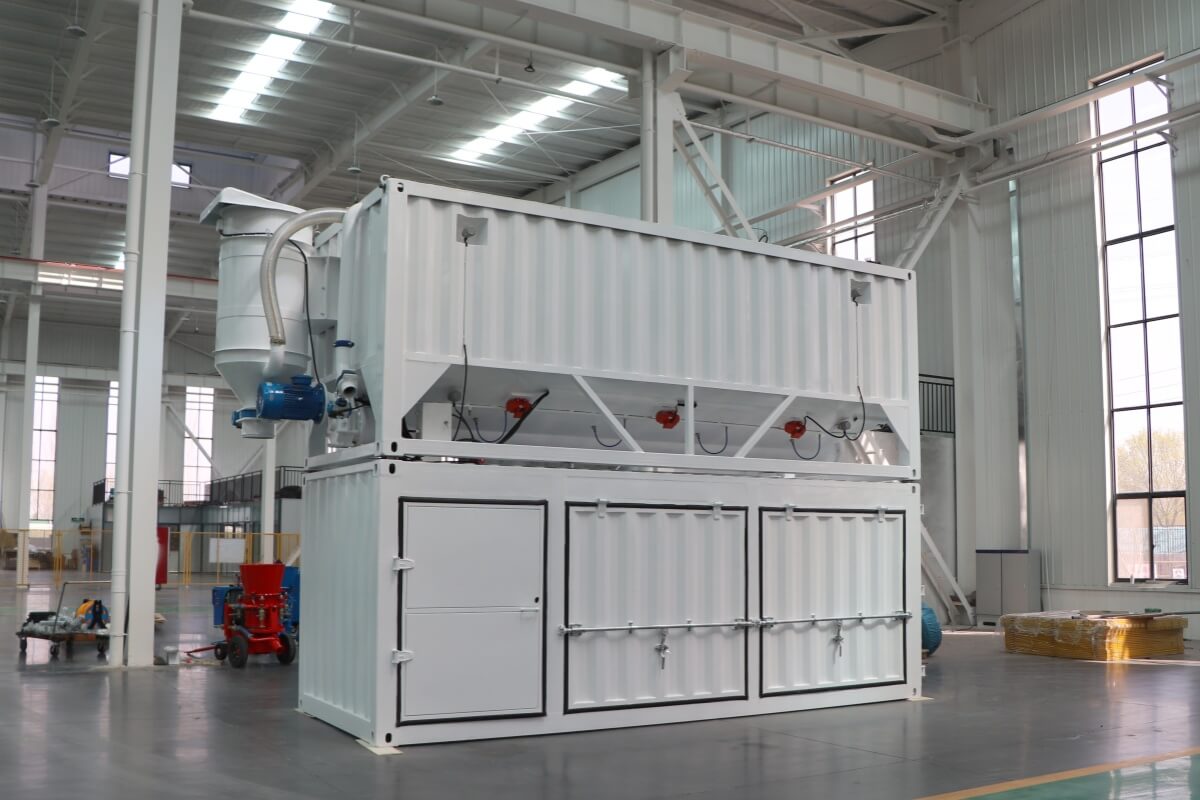

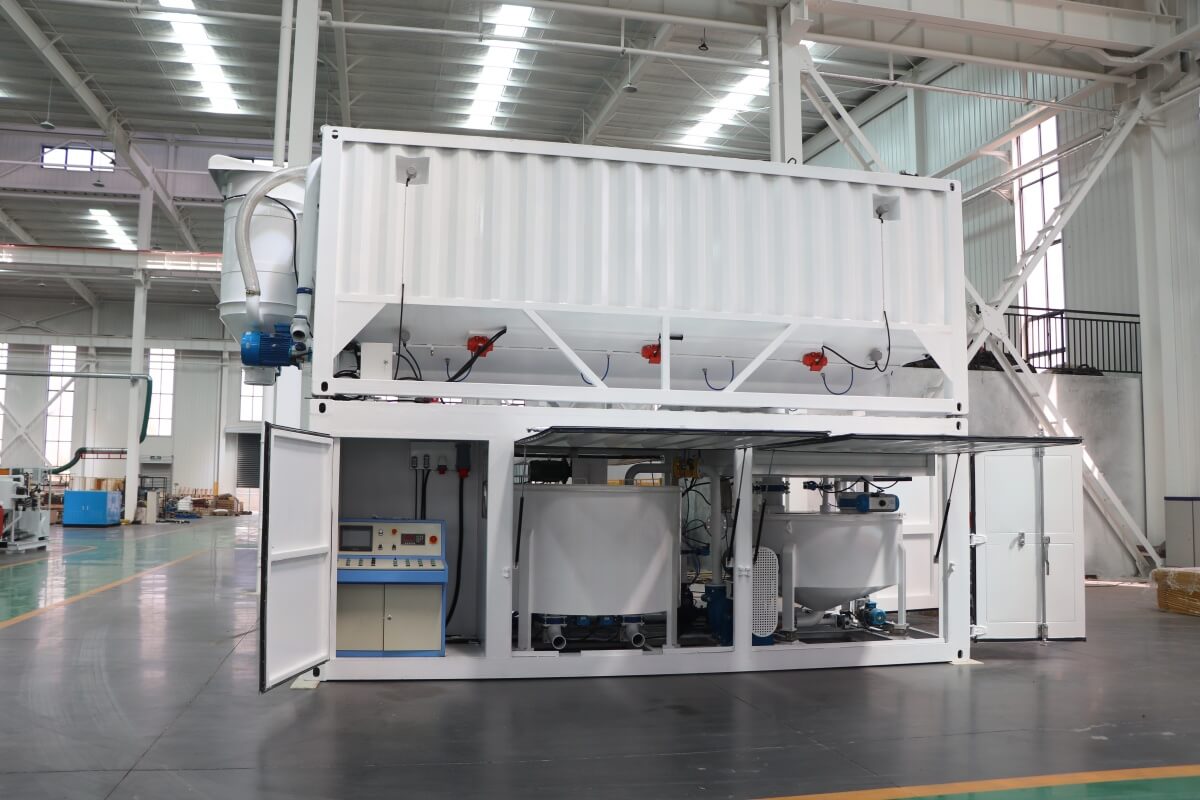

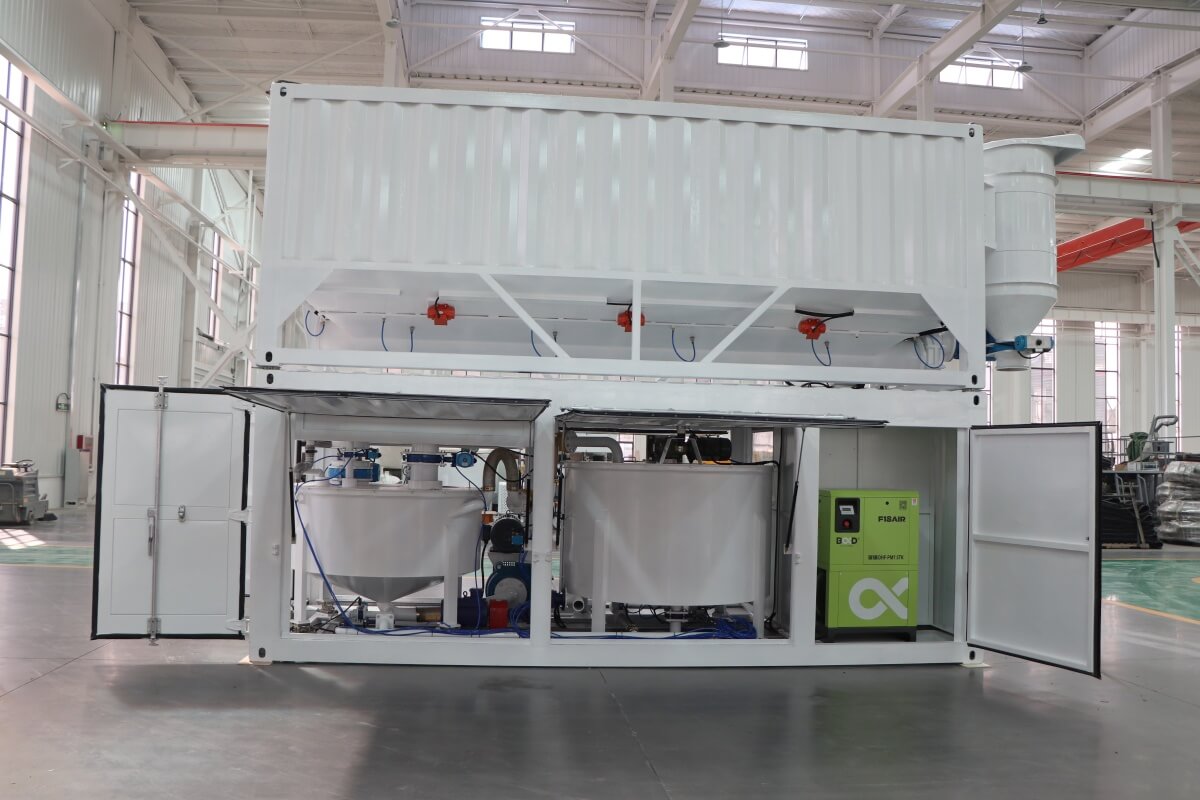

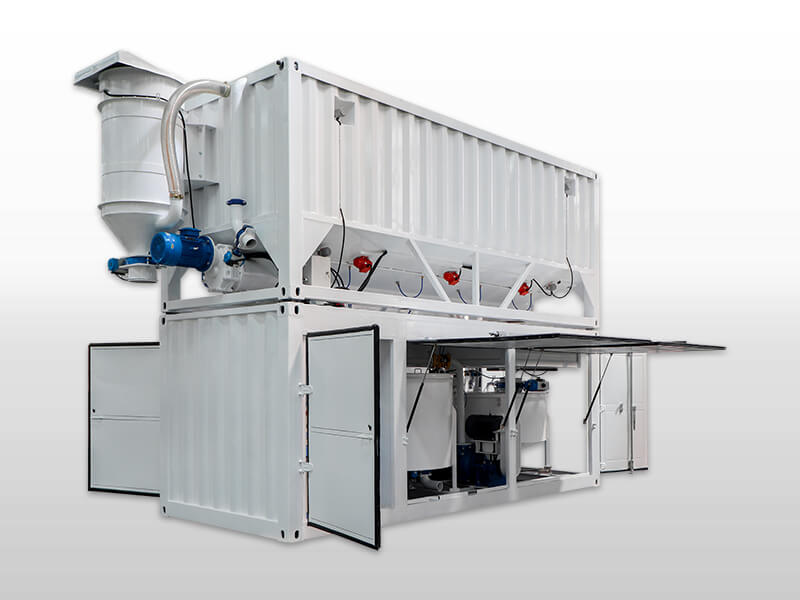

GMA30 Automatic mixing plant and HCS17B cement silo

Model: GMA30 Mixing Plant
Mixer Capacity: 1200L
Mixer Flow: 50L/s
Mixer Max. output: 30m³/h
Mixer Power: 15Kw
Agitator Capacity: 2500L

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

Description
Application
Features
Technical data

■ Description

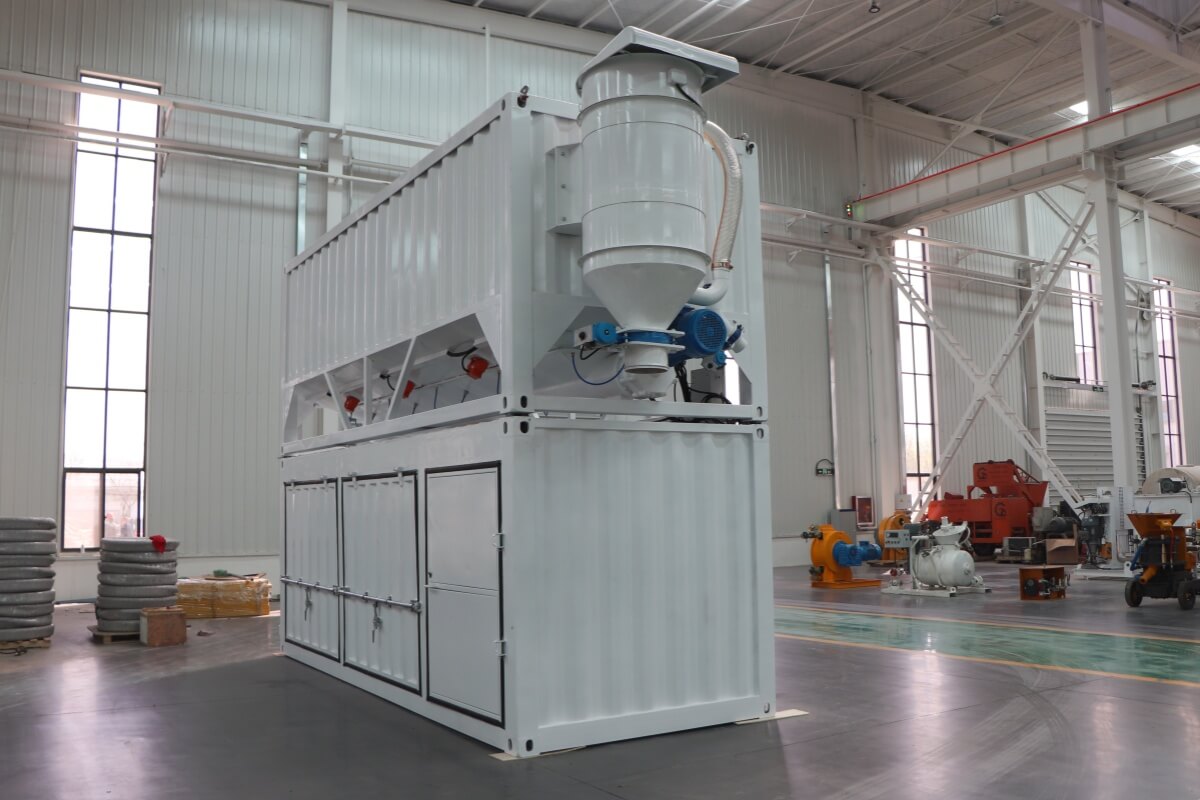

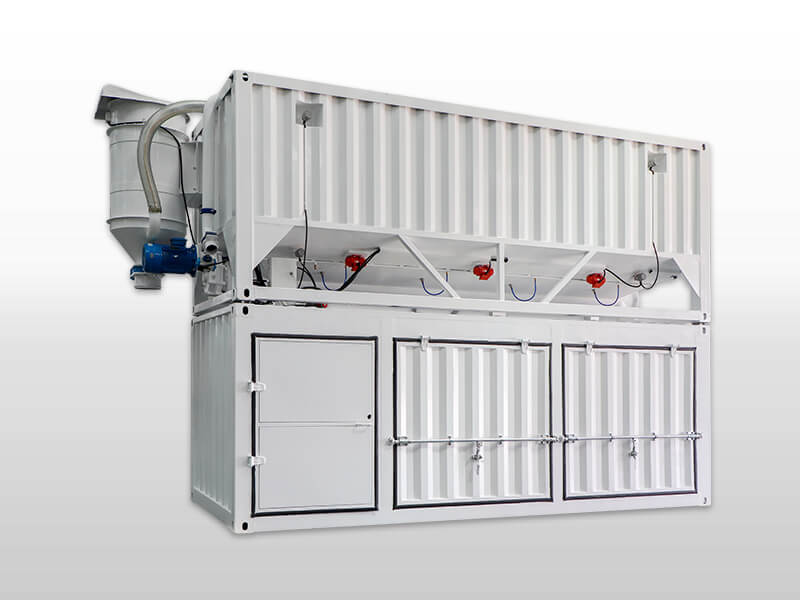

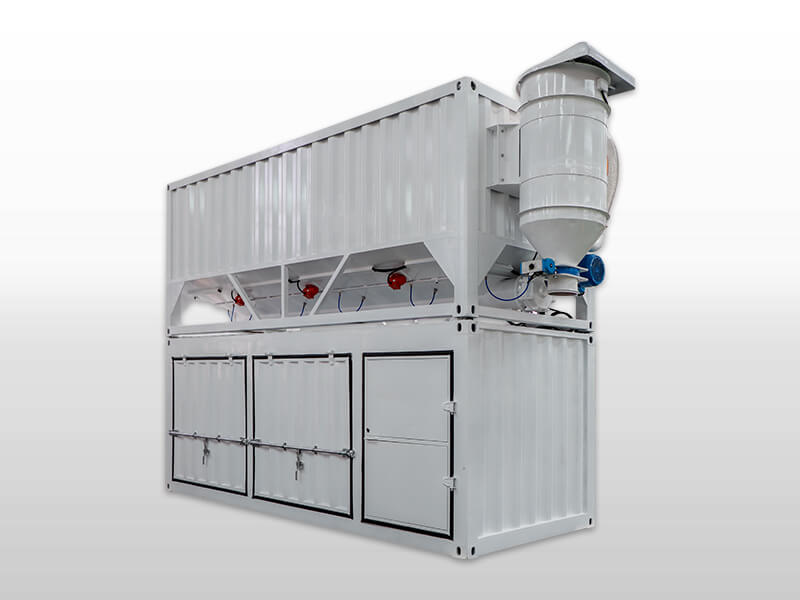

HCS17B Horizontal Cement Silo is designed based on 20ft container size. It can be stored directly in a standard container. Save shipping costs. More container silos can be stacked together to work.

GMA30 Automatic Mixing Plant is mainly conceived to obtain, through a high turbulence mixing of water and cement powder, a cement mixture (cement grout), or, by using water and bentonite powder, a bentonite slurry for plastic mud. Also the preparing of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid components (for every screw conveyor).

The cement mixture or the bentonite slurry is then transferred to the other units, according to the type of foreseen geotechnical machines.

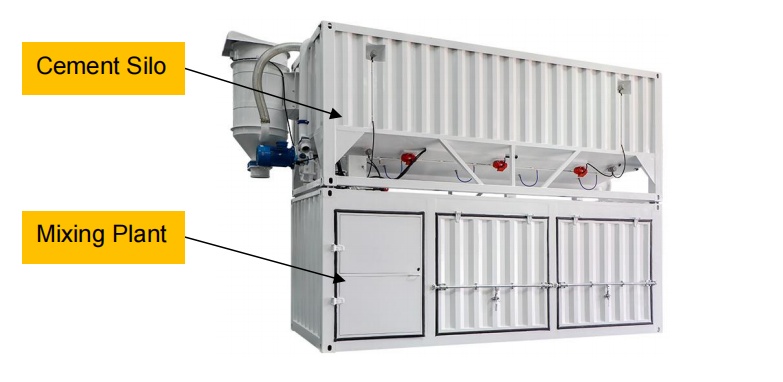

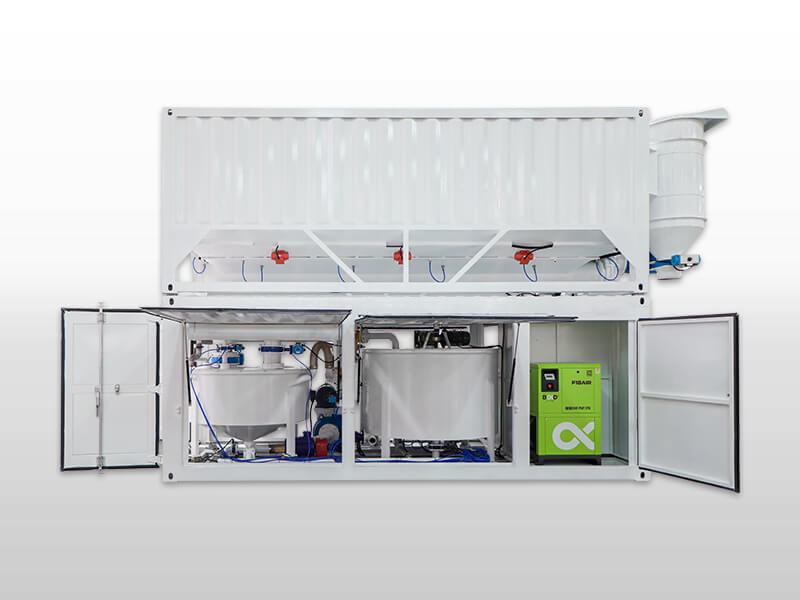

Mixing Plant can be work under Container Silo. 20ft and 40ft container silo both are provided.

■ Technical data

GMA30 Automatic mixing plant and HCS17B cement silo specification:
1. Two modes of operation: fully automatic mode mixing plant and manual mode mixing plant. 2. Automatic cleaning system. 3. The preparation of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid component. 4. GMA30 Automatic mixing plant can be placed directly in the 40ft cabinet.

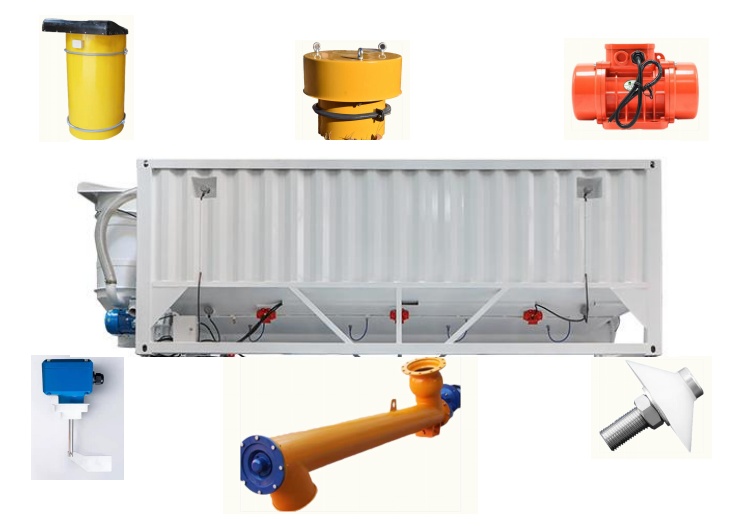

HCS17B Cement Silo
Volume	17m³	Conveying	60t/h
Inlet Dia.	100mm	Outlet Dia.	325mm
Main power	11Kw	Power supply	380V, 50Hz

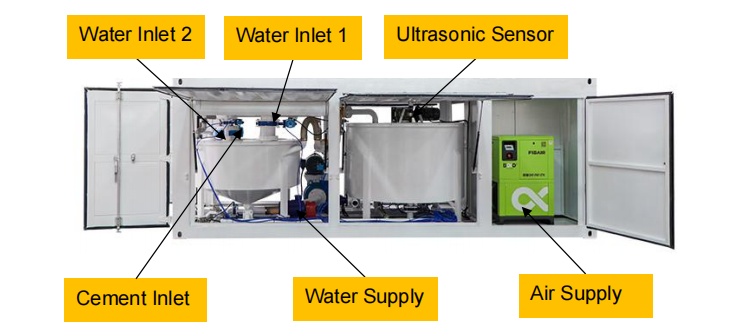

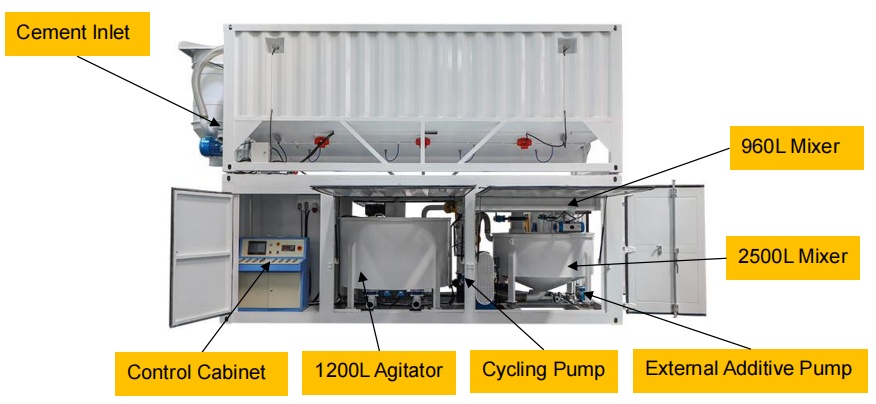

GMA30 Mixing Plant
Mixer		Agitator
Capacity	1200L	Capacity	2500L
Flow	50L/s	Speed	25r/min
Max. output	30m³/h	Level sensor	Ultrasonic sensor
Power	15Kw	Power	3.0Kw
Air supply system		Water supply system
Flow	540-1350L/min	Water tank volume	960L
Pressure	0.8MPa	Flow@lift	11.11L/s@20m
Power	7.5Kw	Power	5.5Kw
External additive supply system		Flow@lift	2.8L/s@18m
External additive supply system		Power	1.5Kw
Power supply		380V, 50Hz
Note: 1. All data are tested by water. 2. We can customize automatic mixing plant and cement silo according to your requirements.
