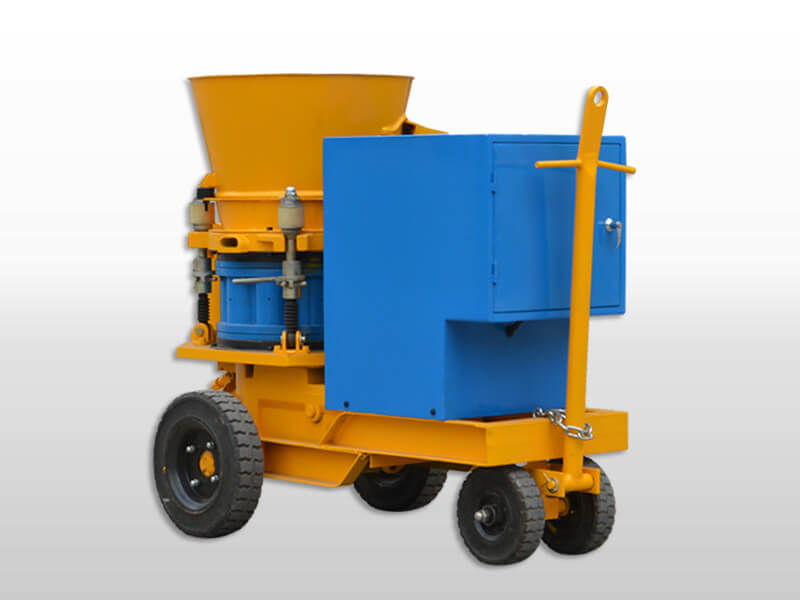

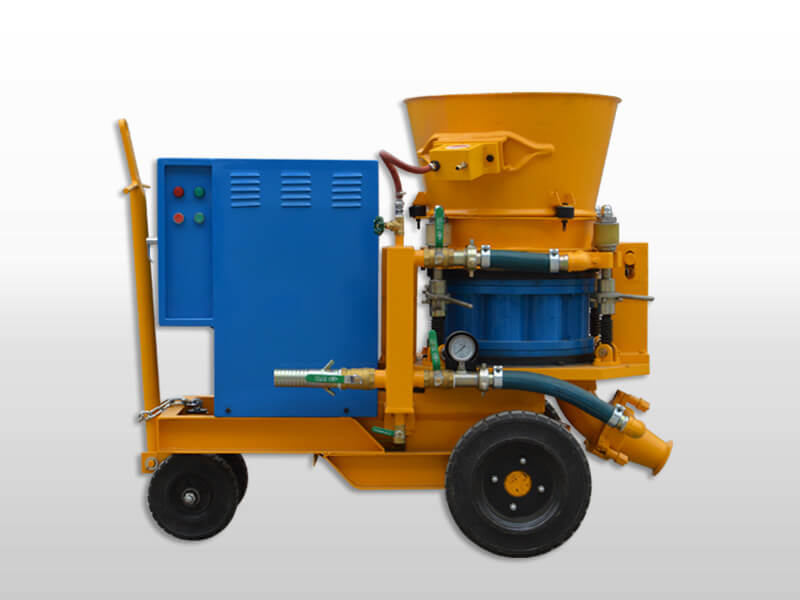

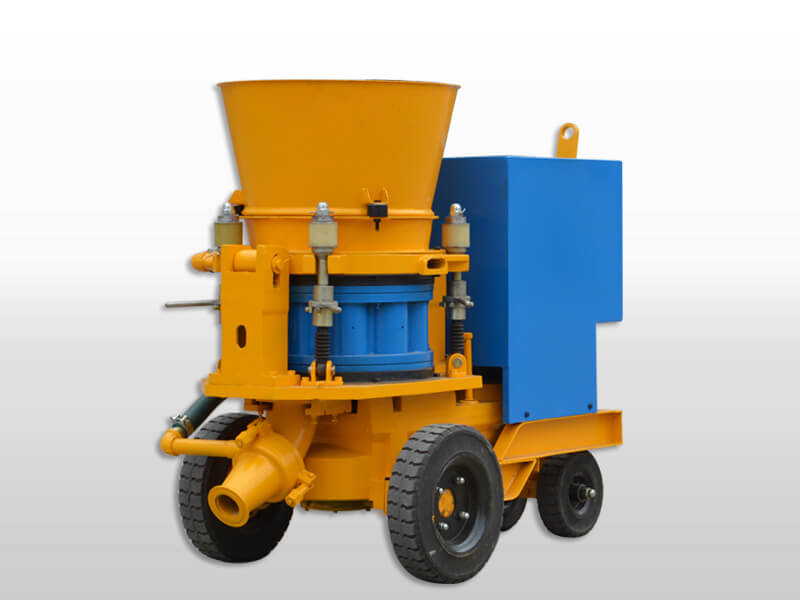

GZ-7 dry mix concrete shotcrete machine is a universal medium-sized shotcrete machine for the processing of dry, and this dry mix concrete shotcrete machine has been using for tunneling, mining, hydropower projects, underground, etc.

GZ-7 dry mix concrete shotcrete machine is available in following versions:
Air motor driver or diesel drive combined with skid or rail-wheel.
Basic: Electric drive can be combined with tyre chassis.
Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.

GZ-7 dry concrete shotcrete machine is a universal medium-sized shotcrete machine for the processing of dry, and this dry mix concrete shotcrete machine has been using for tunneling, mining, hydropower projects, underground, etc.

1. Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
2. Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts working life.
3. Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.

►Specification (with electric motor drive):

Rated Output	7m3/h
Max. Horizontal Conveying Distance	200m
Max. Aggregate Size	20mm
Conveying Hose Inner Diameter	51/64mm
Operating air Pressure	0.2-0.4MPa
Air Consumption	12~15m3/min
Motor Power	7.5kW
Voltage	3phase, 380V, 50Hz
Overall Dimension(L×W×H)	1550×760×1200mm
Weight	730kg

►Specification (with air motor drive):

Rated Output	5-7m3/h
Max. Horizontal Conveying Distance	200m
Max. Aggregate Size	20mm
Conveying Hose Inner Diameter	51/64mm
Operating air Pressure	0.2-0.4MPa
Air Consumption	12+10m3/min
Air Motor Power	8kW
The work air pressure of air motor	0.5MPa
Overall Dimension(L×W×H)	1550×800×1150mm
Weight	760kg
