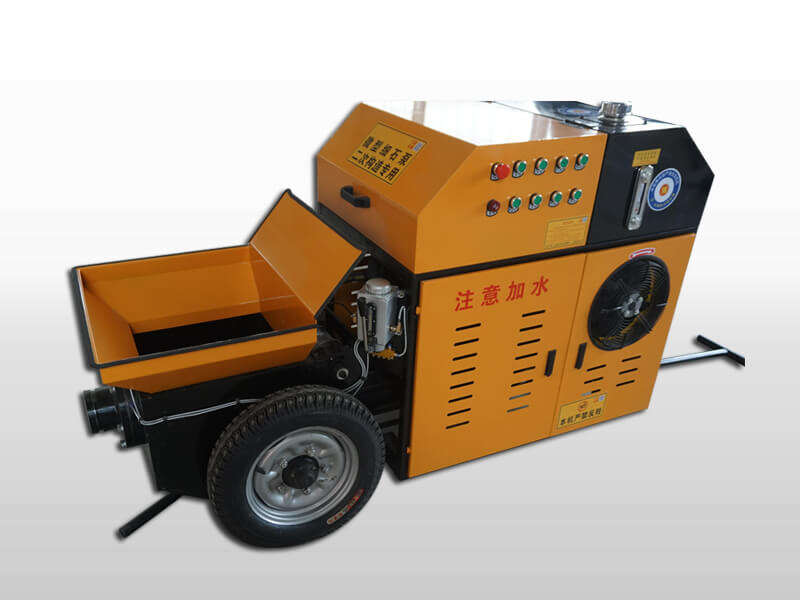

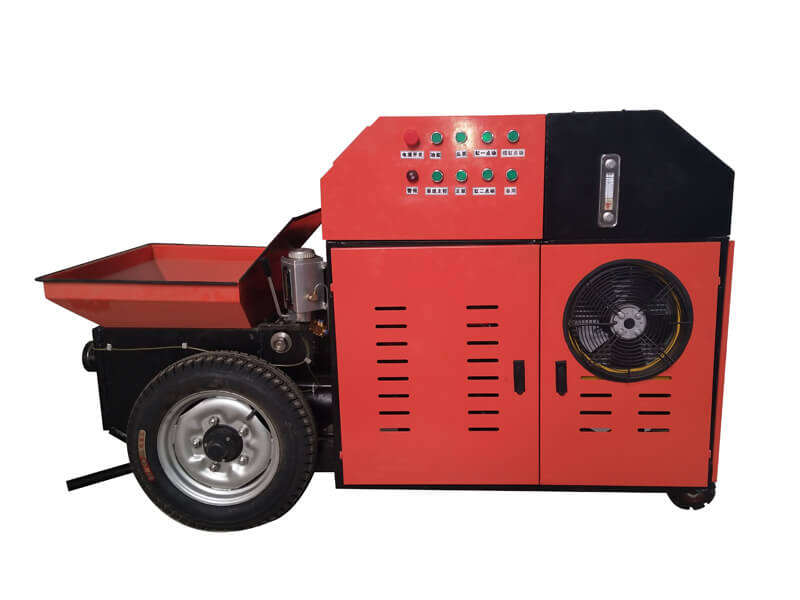

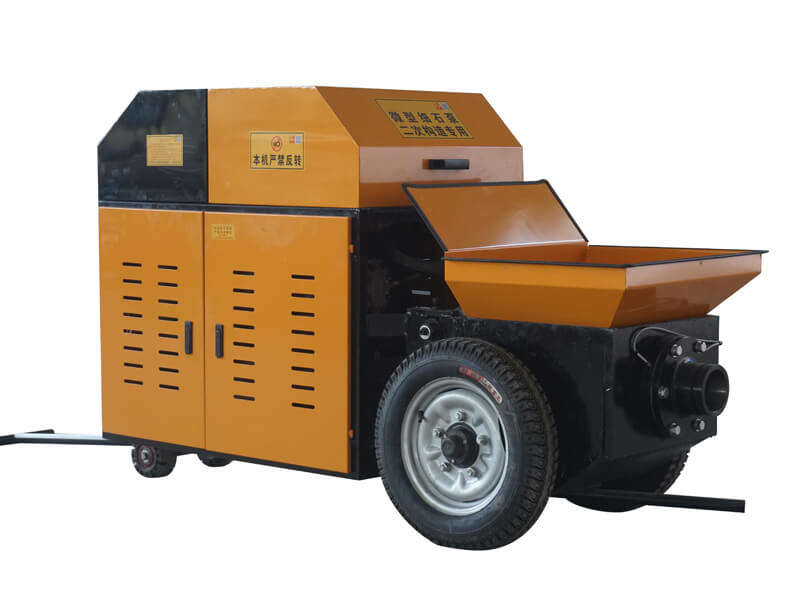

GMP7/35 mini portable concrete pump is the most durable, compact, efficient and versatile swing-tube engineered concrete grout pump available on the market today. It features up to 7.5 cubic meters per hour production output. This product is a new, multi-purpose, multi-purpose industrial pump developed by absorbing advanced technology from abroad. Typical applications include: masonry block filling, wall grouting, hoisting mortar for masonry wall construction; concrete sidewalk and patio slab pumping; low-volume shotcrete.

The secondary structural column grouting pump is a kind of concrete pump required by compound pumping. It can be continuously transported to the fine aggregate concrete conveying equipment at the pouring site through horizontal or vertical pipelines. It is widely used in secondary structural column filling and masonry block fill, Piling encasements , refractory, Shotcrete, Pressure grouting, Soil stabilization, foundation treatment of weak foundation reinforcement grouting tunnel subway mine backfill grouting bolt support.

1. Reduce the weight load of construction materials and greatly reduce manual labor.
2. Improve construction efficiency, cost savings advantages.
3. The machine is stable operation, less dust, low noise, easy to clean.
4. Suitable for medium and large grouting works.
5. With mixing, grouting joint operation function.
6. Wearing parts, long life, low cost accessories.

Name	Mini Masonry concrete pump
Model	GMP7/35
Output	7.5m3/h
Pumping Pressure	35bar
Max. Aggregate Size	15mm
Cylinder diameter	Ø120mm
Cylinder Stroke	360mm
Conveying Hose Inner Diameter	Ø80mm
Main Motor Power	15Kw
Max. Vertical Conveying Distance	30m
Max. Horizontal Conveying Distance	90m
Overall Dimension	1950*700*1130mm
Weight	750kg
Note: the machine can be equipped with electric walking device according to customer demands.
