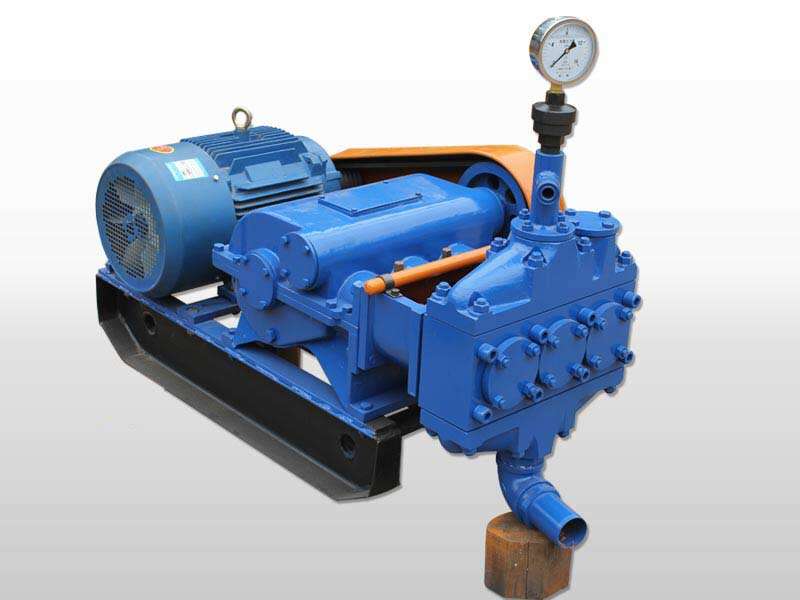

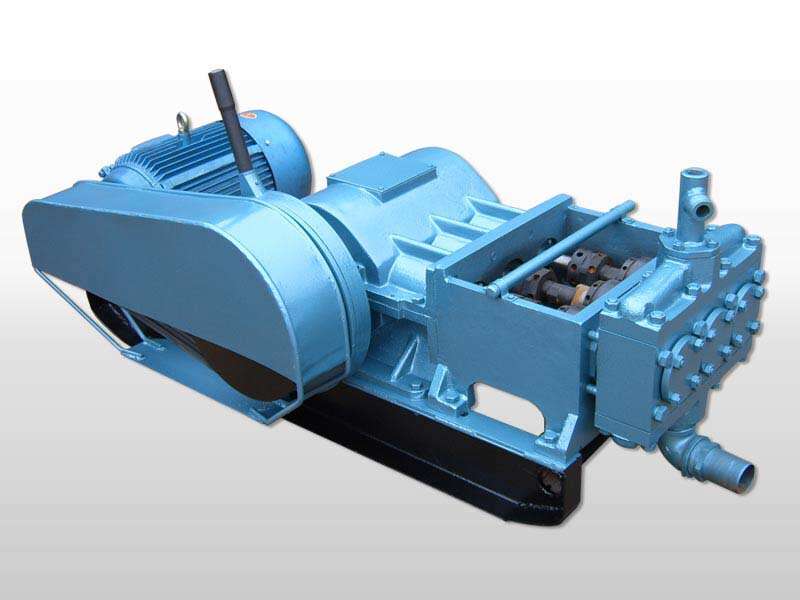

GDB Series Grouting Pump

Model: GDB100/20
Plunger diameter: 55mm
Rotating speed: 200r/min
Output: 100L/min
Pressure: 12Mpa
ratio(water:ash:sand): 1:2:2

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

Description
Application
Features
Technical data

■ Description

GDB series grout pumps are the special equipment of injecting cement paste and mortar in the grouting project.

■ Technical data

Model	GDB100/20
type	Medium pressure variable grout pump
plunger diameter	55mm
rotating speed	200r/min		141r/min
output	100L/min		80L/min
pressure	12Mpa		20Mpa
ratio(water:ash:sand)	1:2:2
inlet pipe diameter	64mm
outlet pipe diameter	32mm
motor power	22kw
weight	880kg
dimension(LWH)	15201100850mm
Model	GDB100/30
type	High pressure variable grout pump
plunger diameter	45(50)mm
rotating speed	245r/min		173r/min
output	128L/min		80L/min
pressure	20(14)Mpa		30(20)Mpa
ratio(water:ash:sand)	1:2:2
inlet pipe diameter	64mm
outlet pipe diameter	32mm
motor power	30kw
weight	950kg
dimension(LWH)	17001100900mm
Model	GDB100/10Q
type	single acting pump with three-cylinder
plunger diameter	63mm
output	100L/min
pressure	10Mpa
ratio(water:ash:sand)	1:2:2
inlet pipe diameter	64mm
outlet pipe diameter	32(25)mm
motor power	18.5kw
weight	650kg
dimension(LWH)	1700742685mm
Model	GDB100/4
type	Anchor grout pump
plunger diameter	55mm
output	100L/min
pressure	4Mpa
ratio(water:ash:sand)	1:2:2
inlet pipe diameter	64mm
outlet pipe diameter	25mm
motor power	11kw
weight	350kg
dimension(LWH)	1300650750mm
Model	GDB50/3Q
type	single acting pump with one cylinder
plunger diameter	75mm
output	50L/min
rated pressure	3Mpa
ratio(water:ash:sand)	1:2:2
input diameter	38mm
output diameter	25mm
motor power	4kw
weight	150kg
dimension(LWH)	1070500490mm
Model	GDB180/10
type	single acting pump with three-cylinder
plunger diameter	63(55)mm
rotating speed	237r/min	184r/min		130r/min	83r/min
output	150L/min	110L/min		80L/min	50L/min
pressure	6Mpa	9Mpa		11Mpa	14Mpa
ratio(water:ash:sand)	1:2:2
motor power	18.5kw
inlet pipe diameter	64mm
outlet pipe diameter	25(32)mm
weight	700kg
dimension(LWH)	1550850685mm
