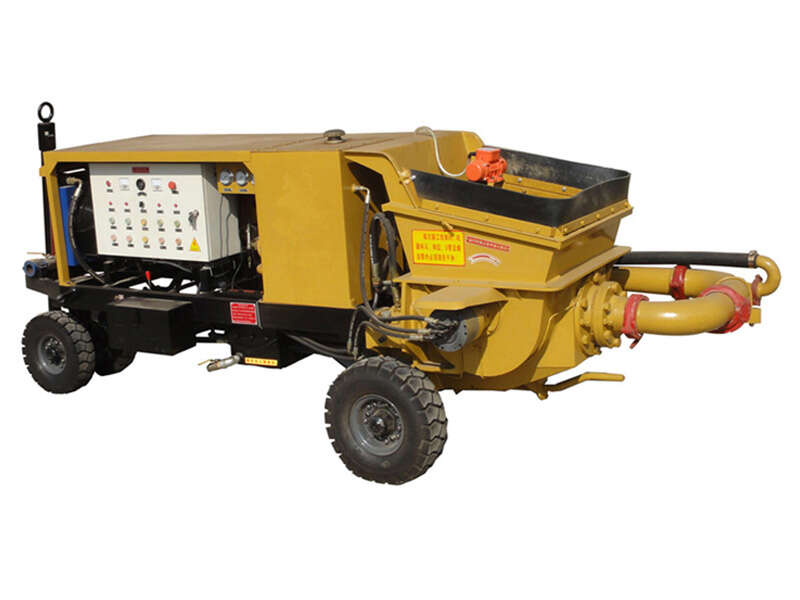

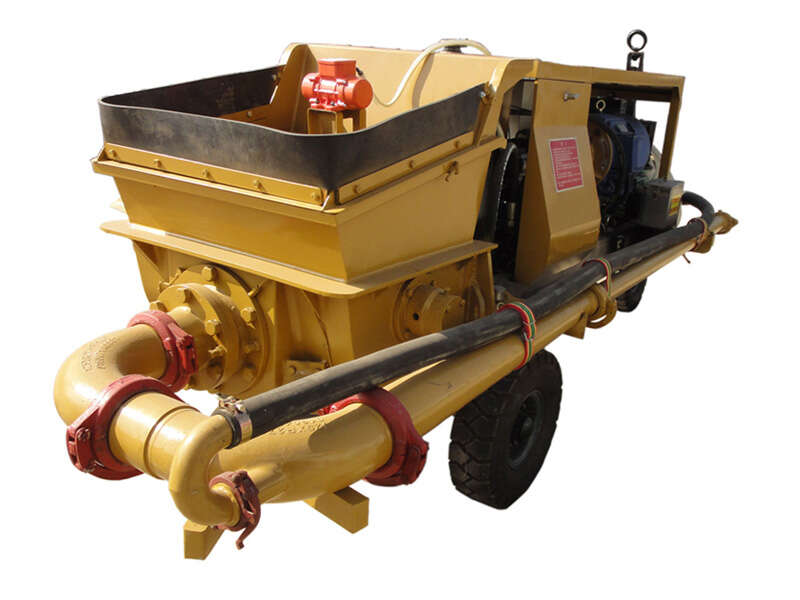

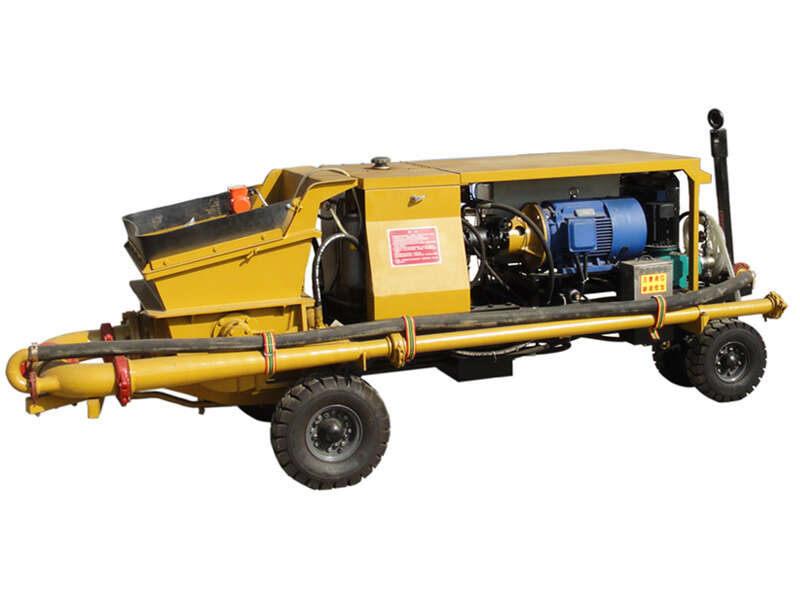

GPS5-15S hydraulic pump wet concrete spray shotcrete machine

Rated output: 5-15m³/h
Rated pressure: 4MPa
Max. Rated vertical distance: 50m
Max. Rated horizontal distance: 180m
Distributing valve: S tube valve
Max. aggregate: 25mm

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

Description
Application
Features
Technical data

■ Description

GPS5-15S hydraulic pump wet concrete spray shotcrete machine is a hydraulic pump for wet shotcrete. It has high efficiency and low cost.

■ Technical data

Parameter	unit	GPS5-15S
Rated output	m³/h	5-15
Rated pressure	MPa	4
Max. Rated vertical distance	m	50
Max. Rated horizontal distance	m	180
Distributing valve		S tube valve
Max. aggregate	mm	25
Slump	cm	12-23
Air consumption	m³/min	9-20
System air pressure	MPa	0.7
Working air pressure	Mpa	0.4-0.6
Rebound rate	%	≦15
Dust density (near machine)	mg/m³	≦10
Conveying cylinder ID *stroke	mm	Ф140*700
Pump motor power	kw	18.5
Dosing pump motor power	kw	0.55
Vibrator motor power	kw	0.25
Cooling fan motor power	kw	0.12
Voltage/frequency	V/Hz	380/50
Oil tank volume	L	128
Charging height	mm	1200
Dimension	mm	327014501450
Weight	kg	1800
