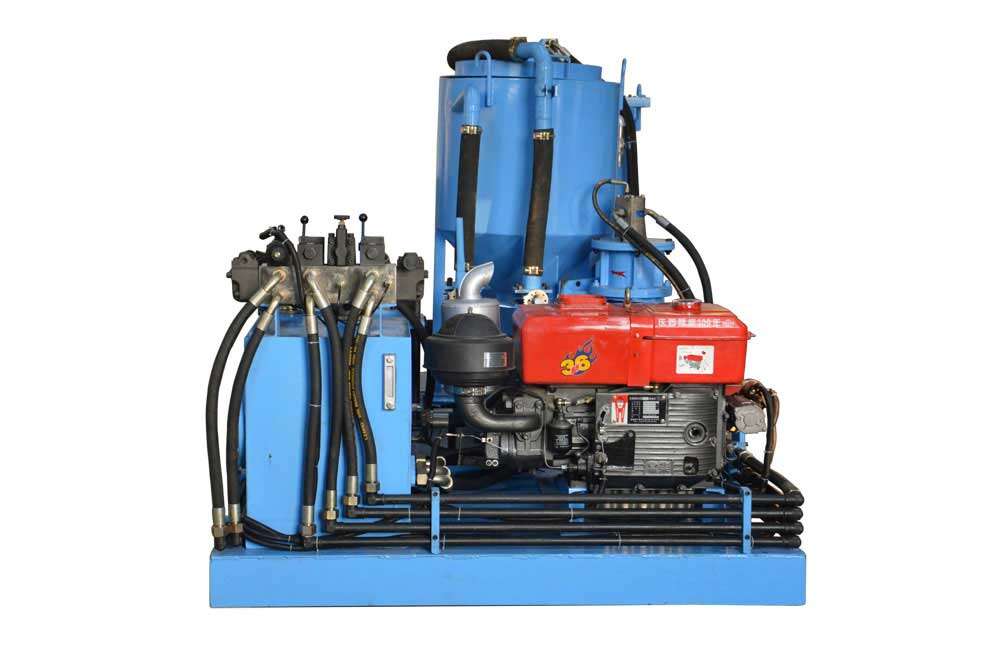

GGP250/350/100PI-D Grout Station is a hydraulic driven combination of mixer, agitator and grout pump, it is specially design for continuous cement mixing and grouting in ground/underground engineering. It can fast mix water, cement and additive, then the mixed slurry can be stored into a 300 liters agitator, thus the mixing work can continuously be done.

This grout station can be used for grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundation, bridge decks, deep well casing, slope line grouting, etc.

1. Compact size, It is combination of mixer, agitator and piston grout pump in one base frame;

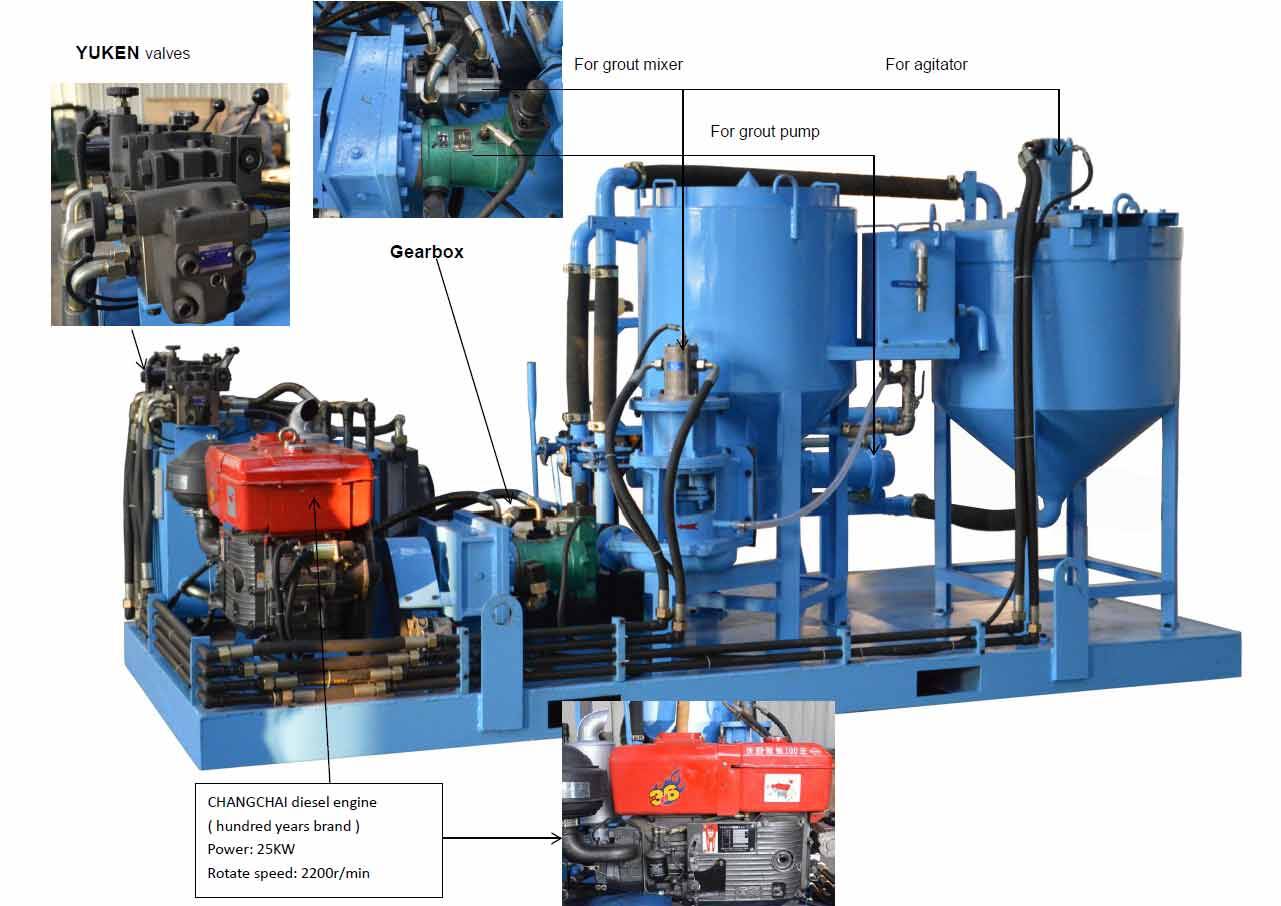

2. Yuken relief valve and directional valve for hydraulic system of grout pump;
3. Butterfly valve of mixer and agitator;
4. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;
5. Operation and maintenance are simple;
6. With ISO, CE certificate.

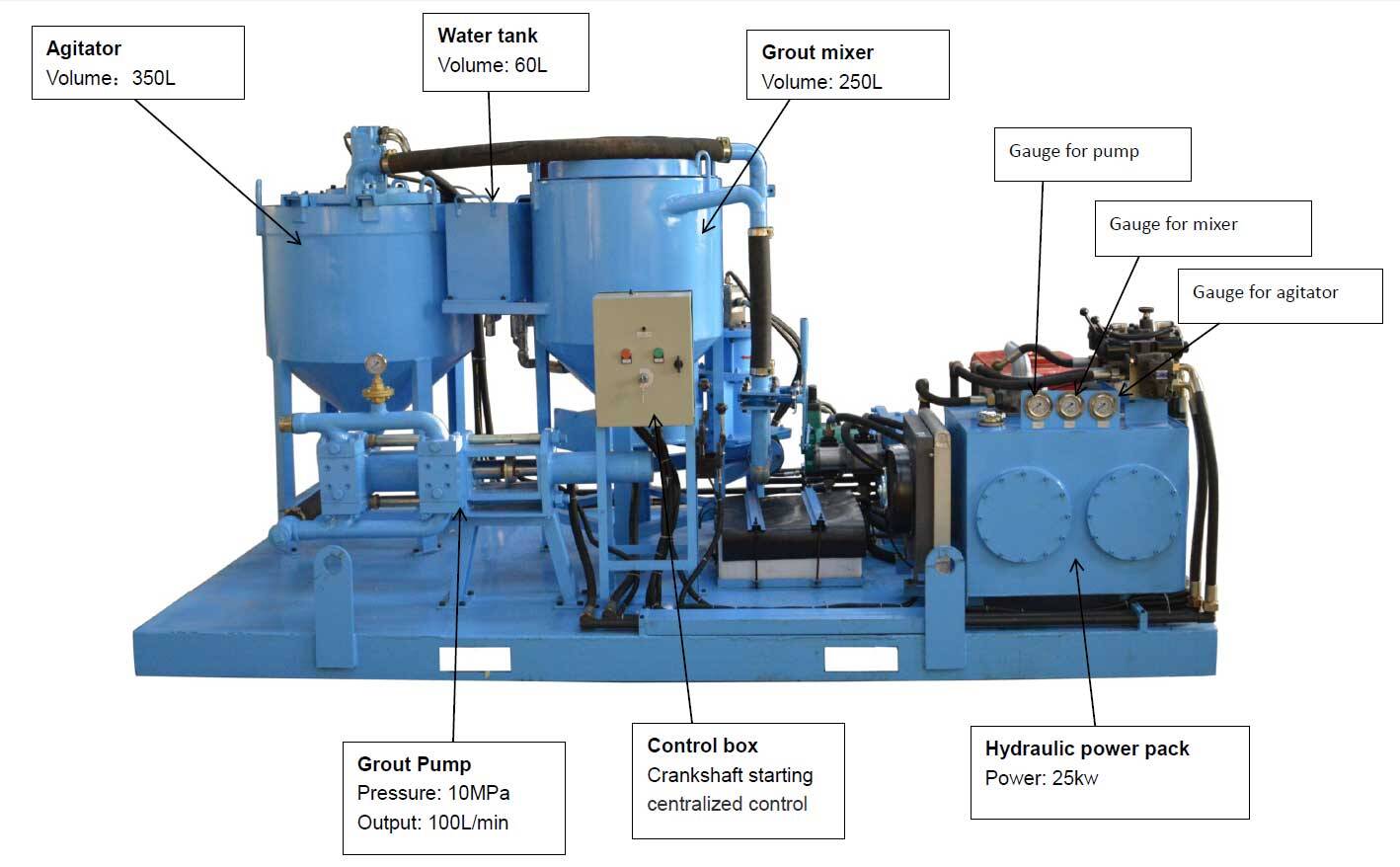

Description	Data
Grout Station type	GGP250/350/100PI-D
Mixer Volume	250L
Mixer production(w/c ratio=1)	4 m3/h
Circulation capacity	1200L/min
Suitable W/C Ratio	0.5 to 1
Agitator Volume	350L
Agitator Speed	36rpm
Water tank	60L
Grout Pump Type	GGH90
Grout pump output(Max.)	100L/min
Grout pump work pressure	10MPa
Grout Station Overall dimension	3300x1650x1500mm
Grout Station Weight	1400kg

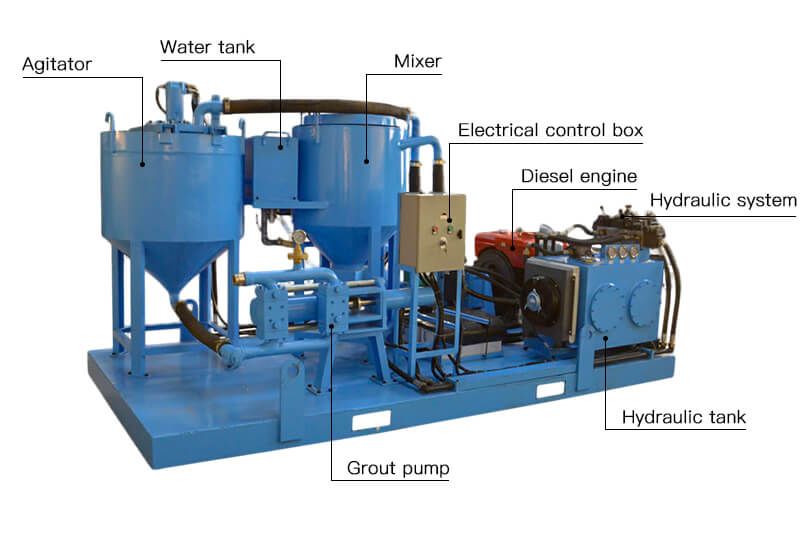

Note: GGP250/350/100PI-D is a combination of mixer, agitator and grout pump in one base frame
