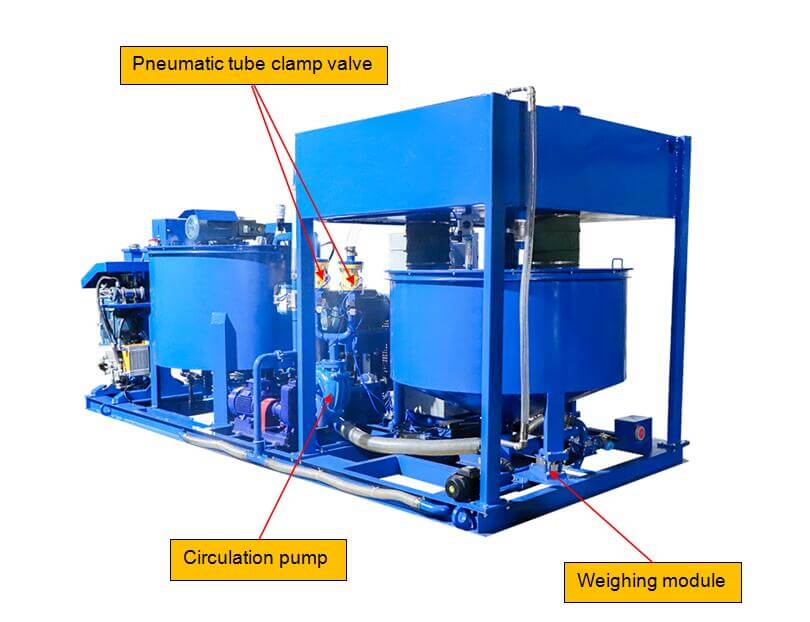

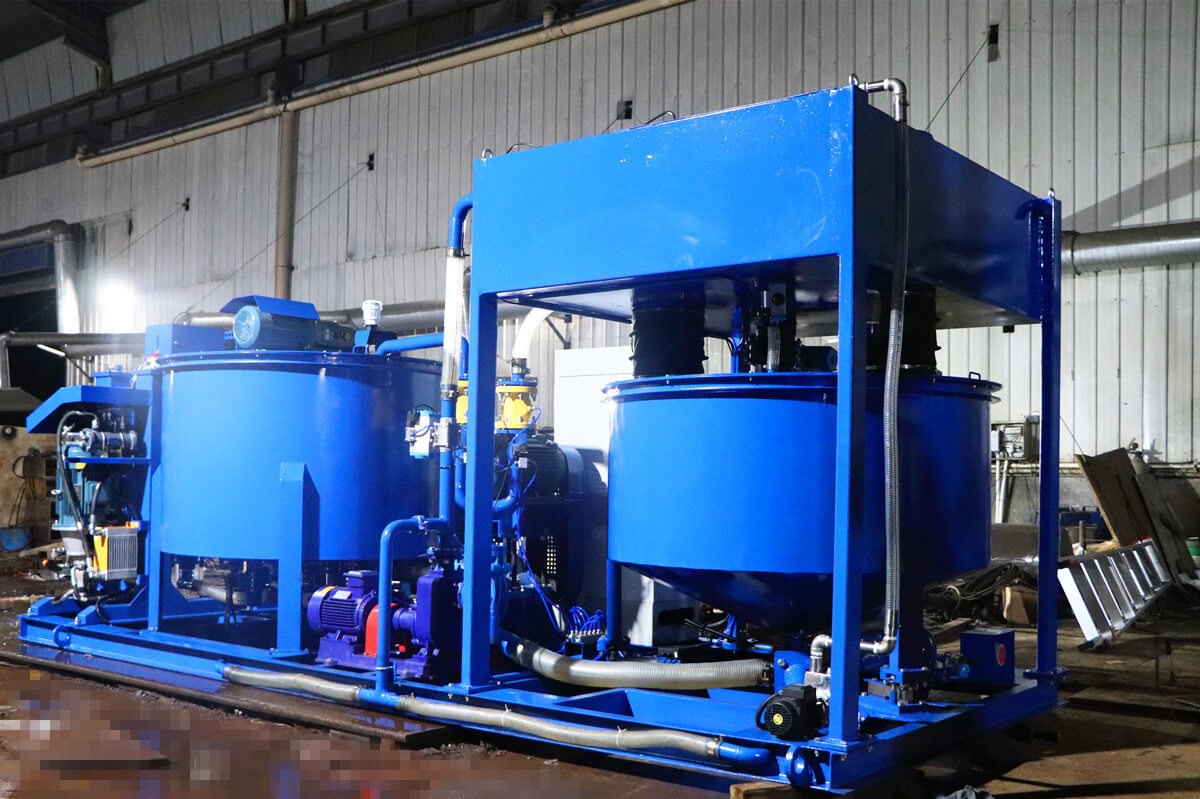

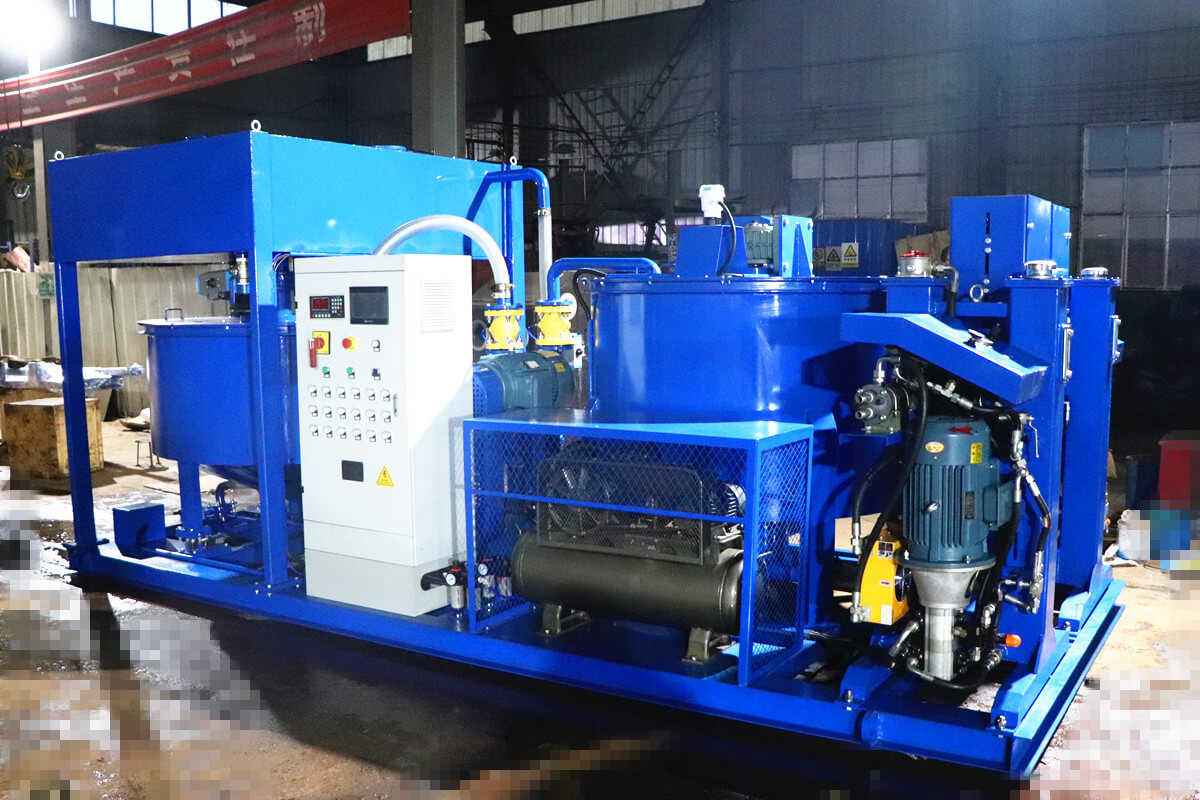

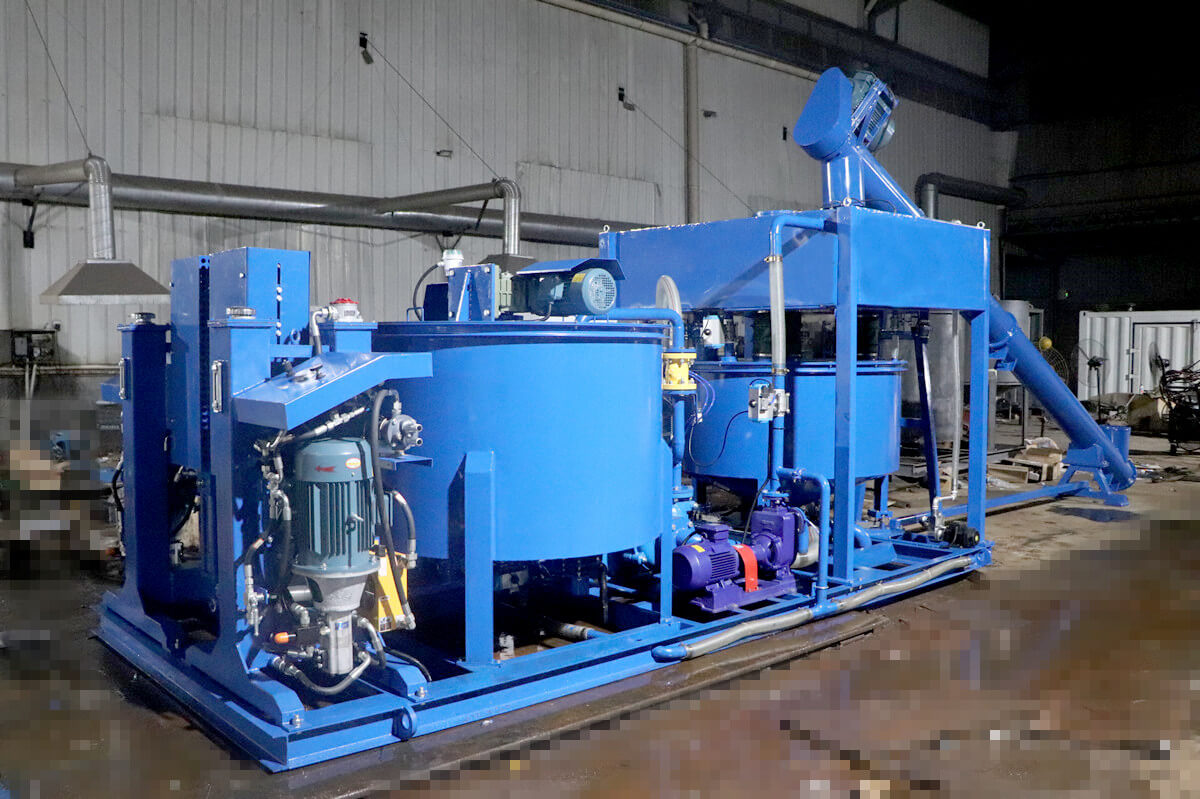

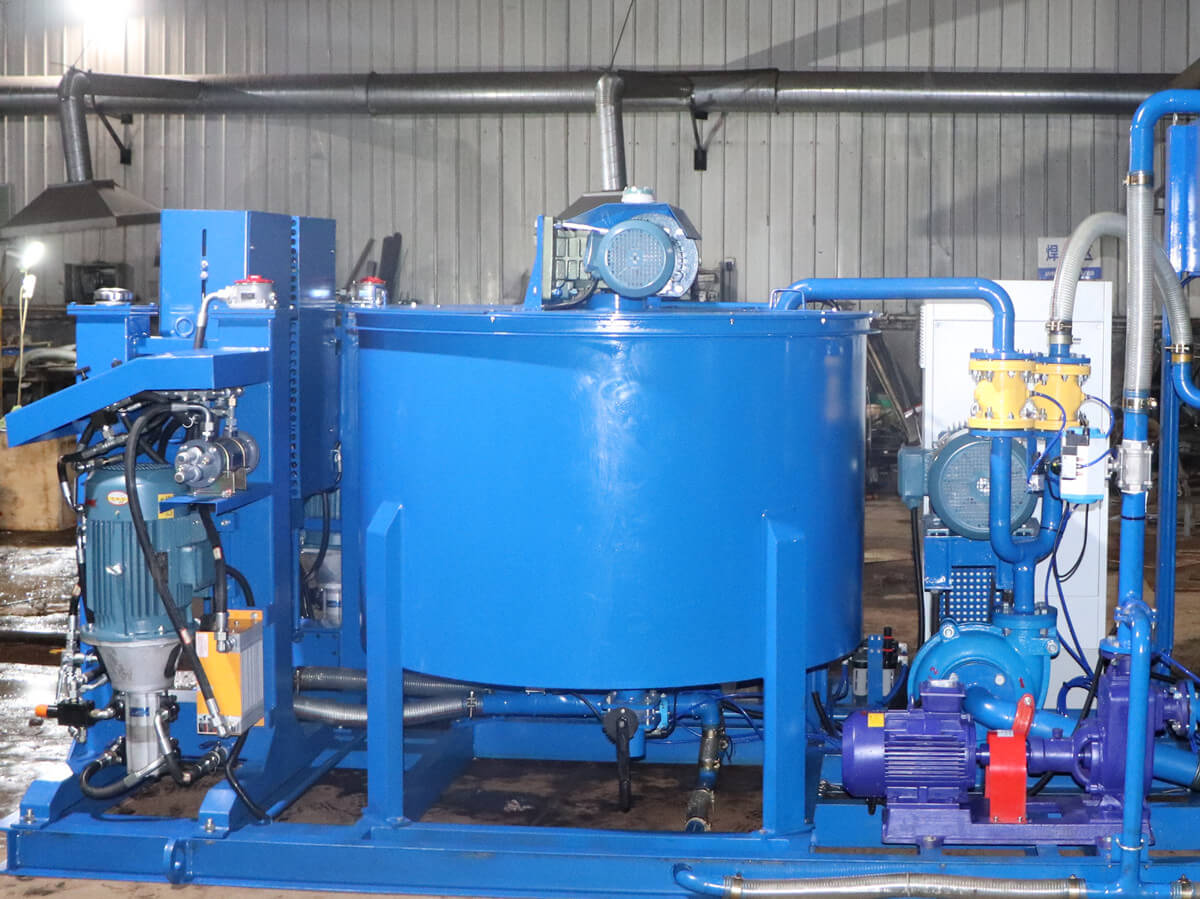

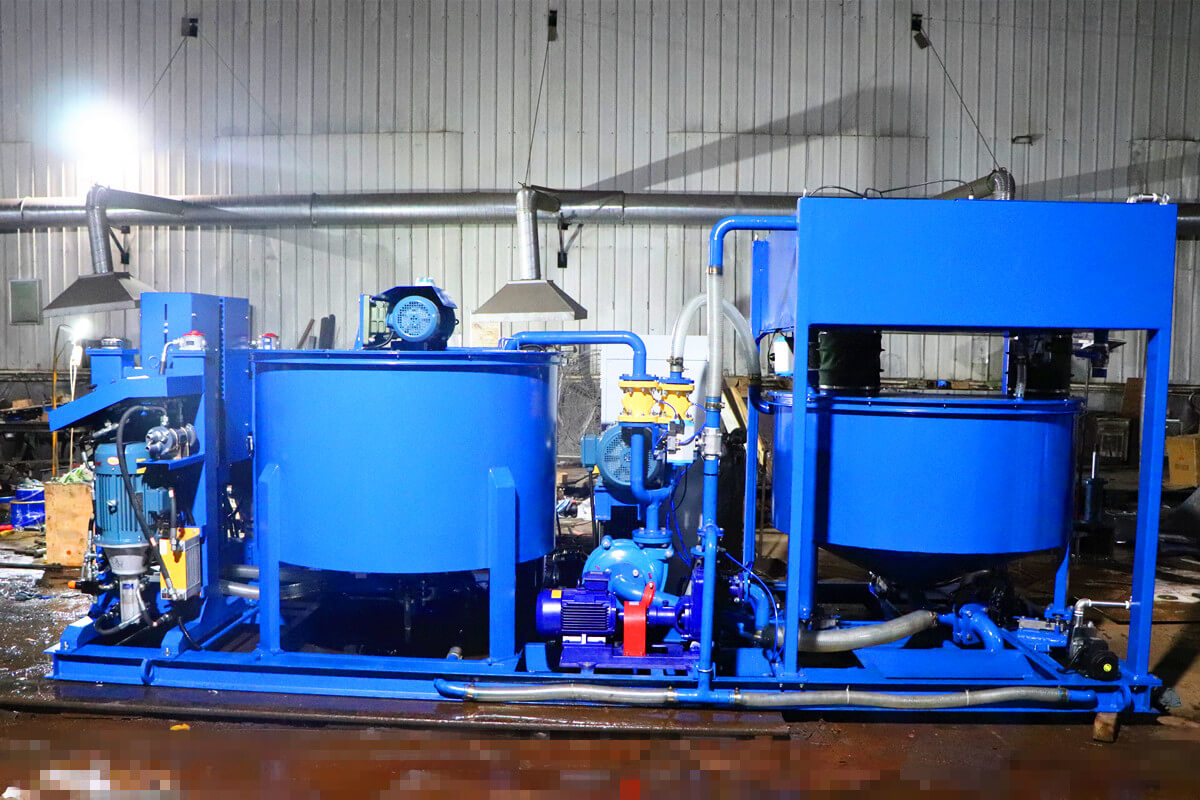

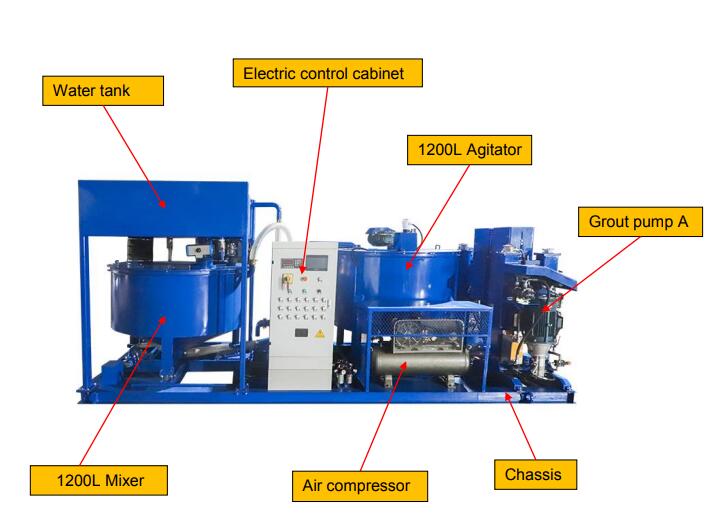

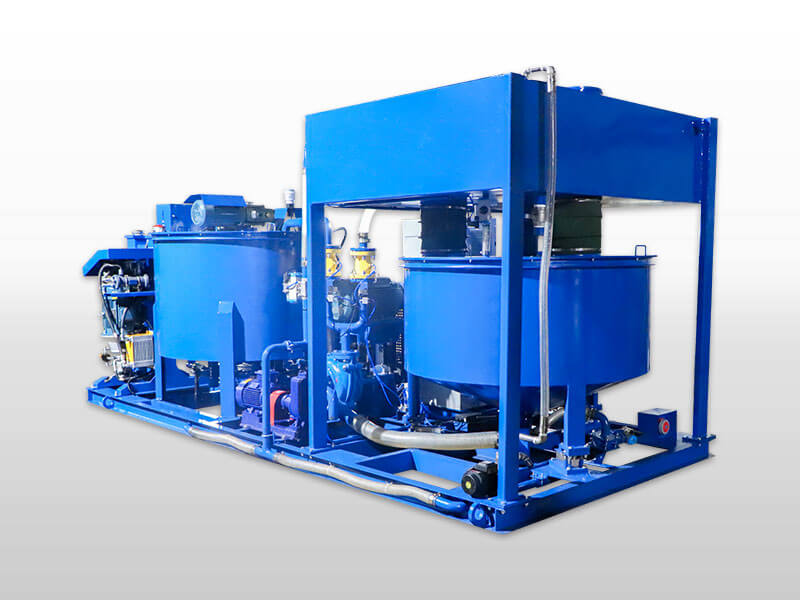

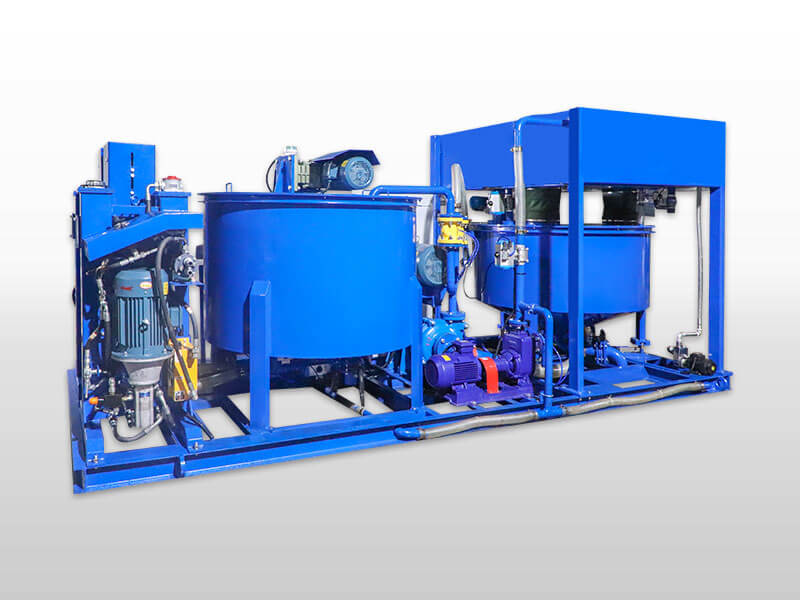

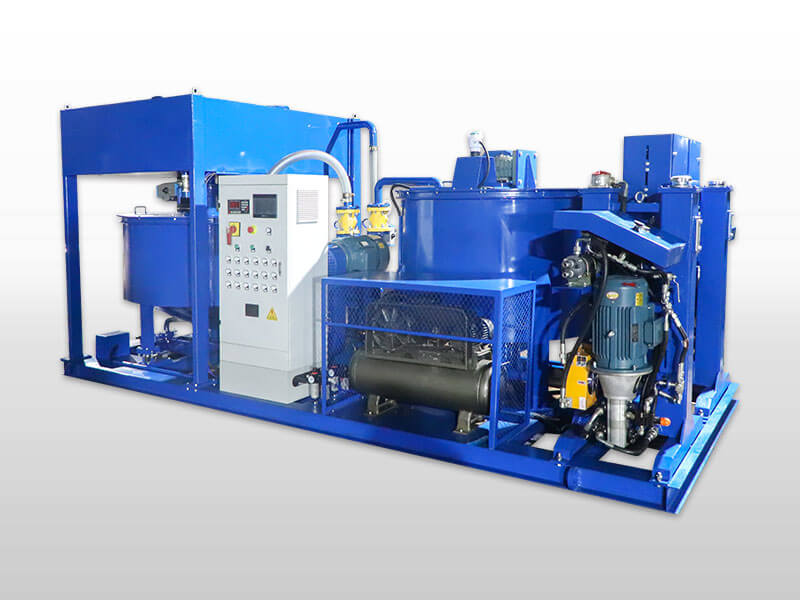

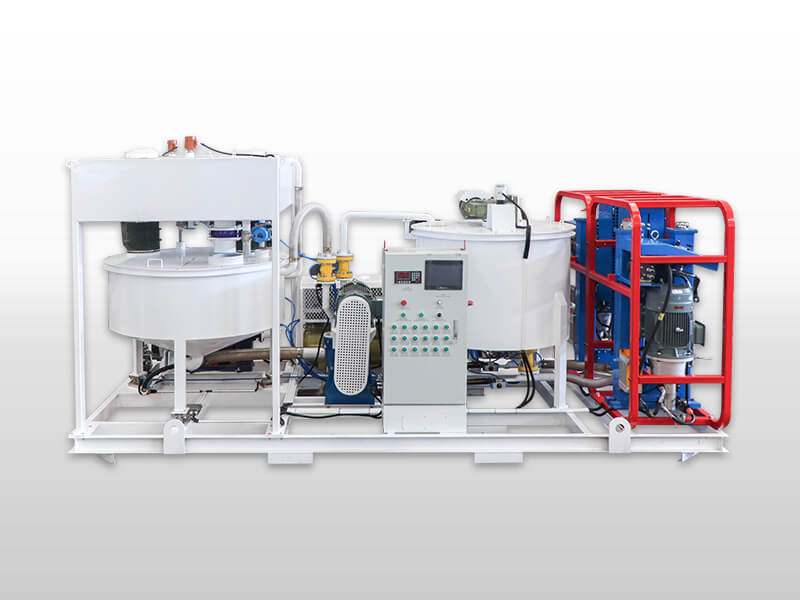

GGP1200/1200/2X75/100PI-E Fully automatic version grout station is a combination of a mixer, circulation pump and grouting pump.

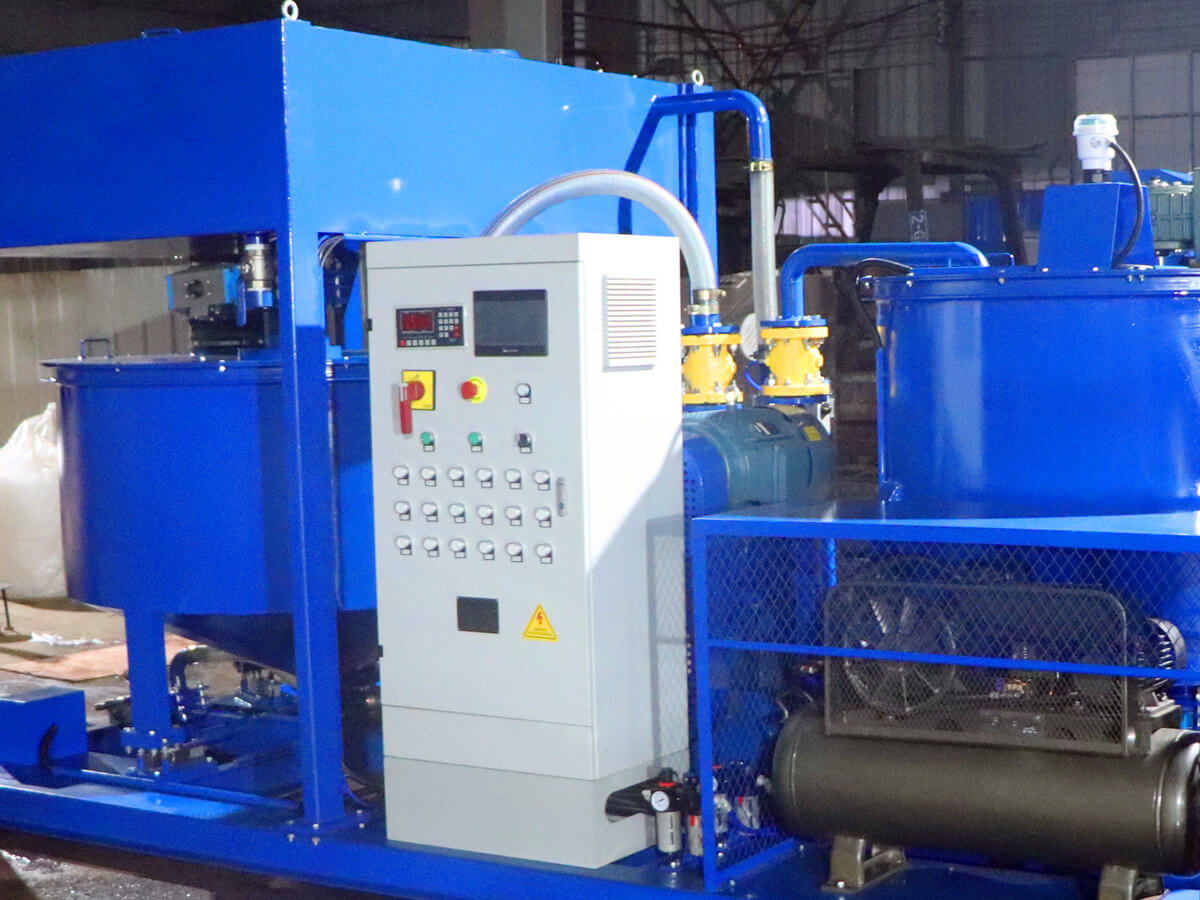

High-speed eddy current mixer ensures fast and even mixing. Water and cement are quickly mixed into a uniform slurry. The grout is then transferred to the grouting pump, which ensures continuous mixing and grout operations. The machine is integrated with the distributor, PLC, can freely adjust the proportion of water, cement, and additives, and can be set according to the formula of automatic configuration of materials, greatly improving the work efficiency.

GGP1200/1200/2X75/100PI-E Automatic version grout station can quickly mix water, cement, sand, bentonite, filler, clay, silicate and other media.

Then grouting pump is used for grouting/grouting to achieve functions such as waterproofing and plugging, tunnel lining, foundation and rock layer reinforcement, and gap filling. This series of grouting pumps has the advantages of a compact structure, high grouting pressure, and wide application range.

Name		Data
Model		GGP1200/1200/2X75/100PI-E Fully automatic version grout station
Mixer	Capacity	1200L
	W/C ratio	0.5~1
Agitator	Capacity	1200L
	Power	3.0Kw

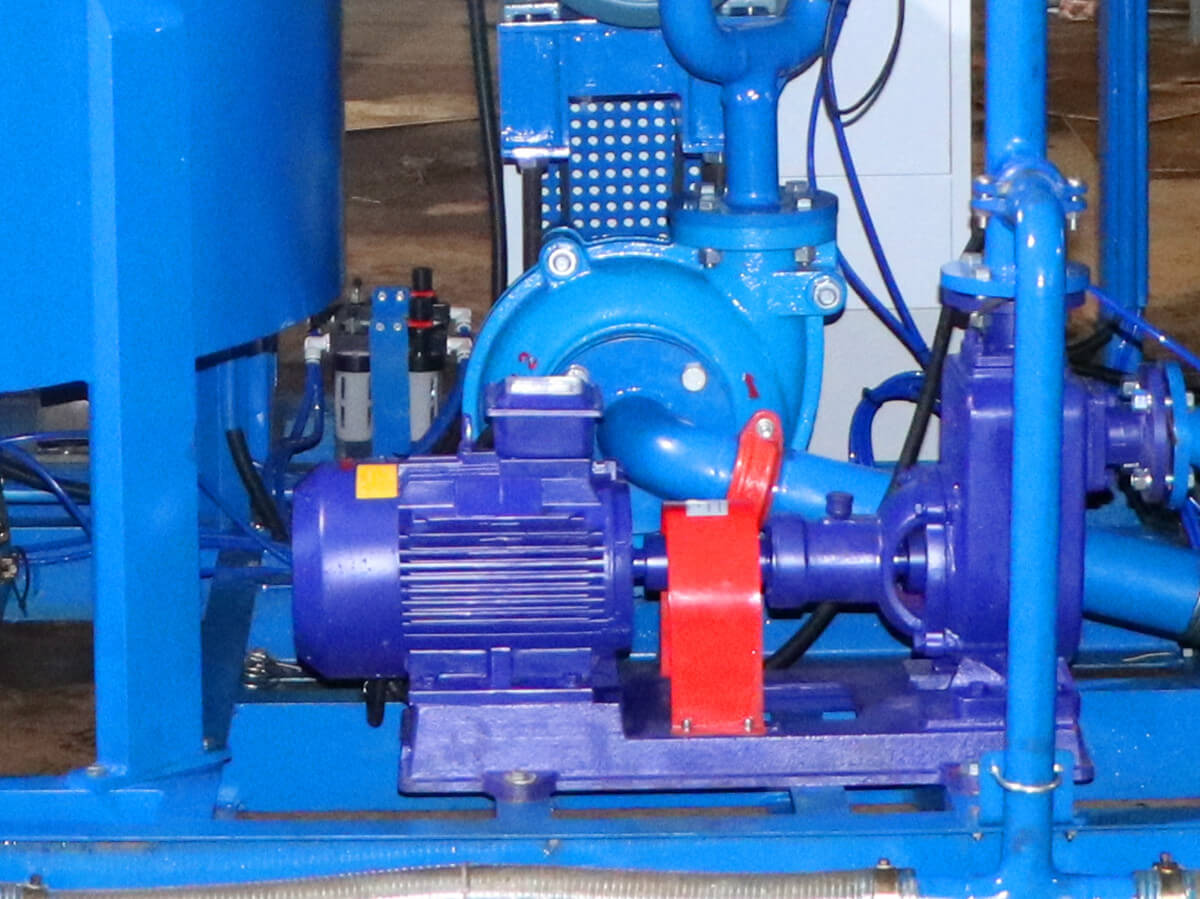

Circulation pump	Power	15KW
	Rate Rev.	1800r/min
	Flow	850L/min

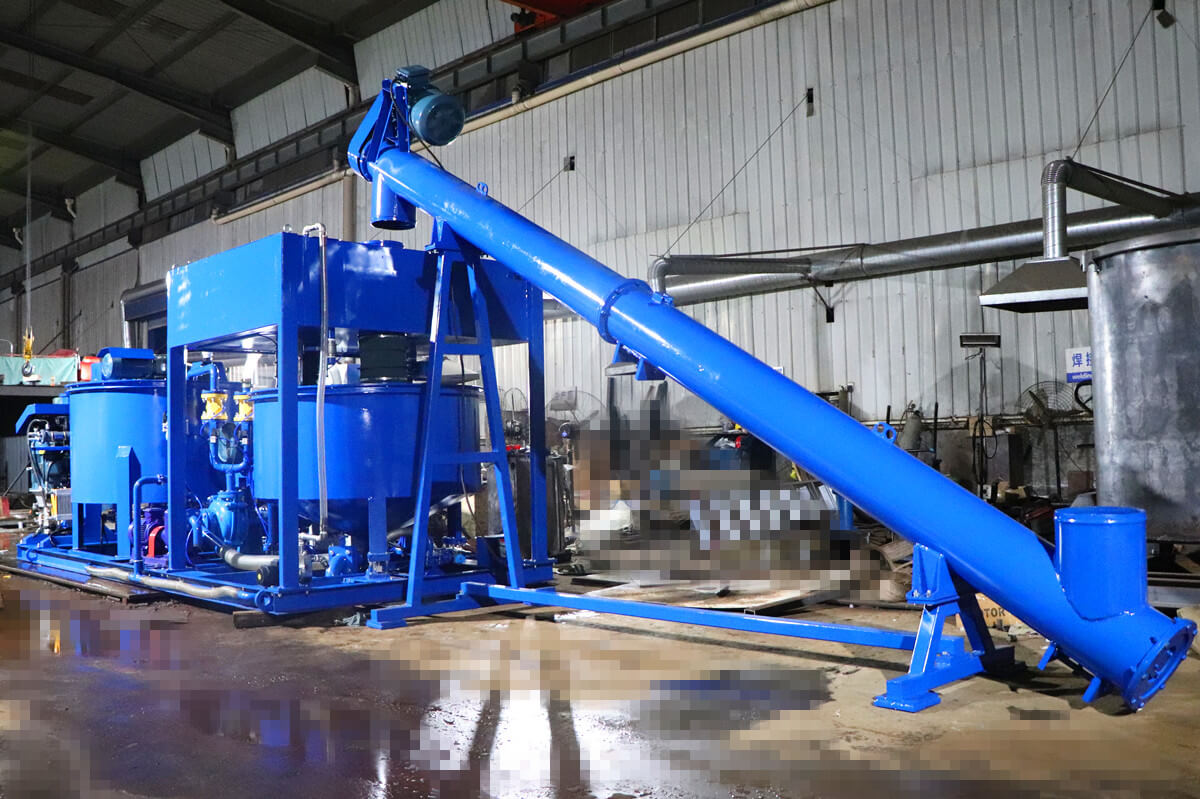

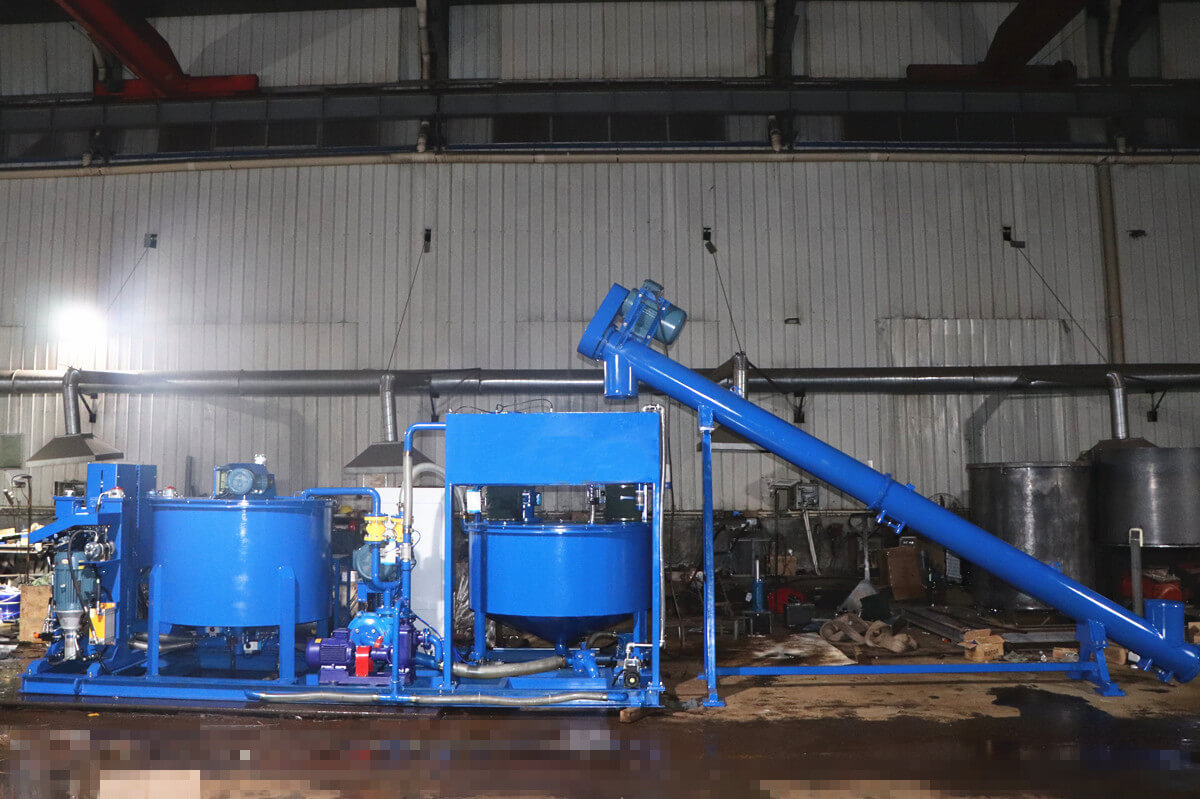

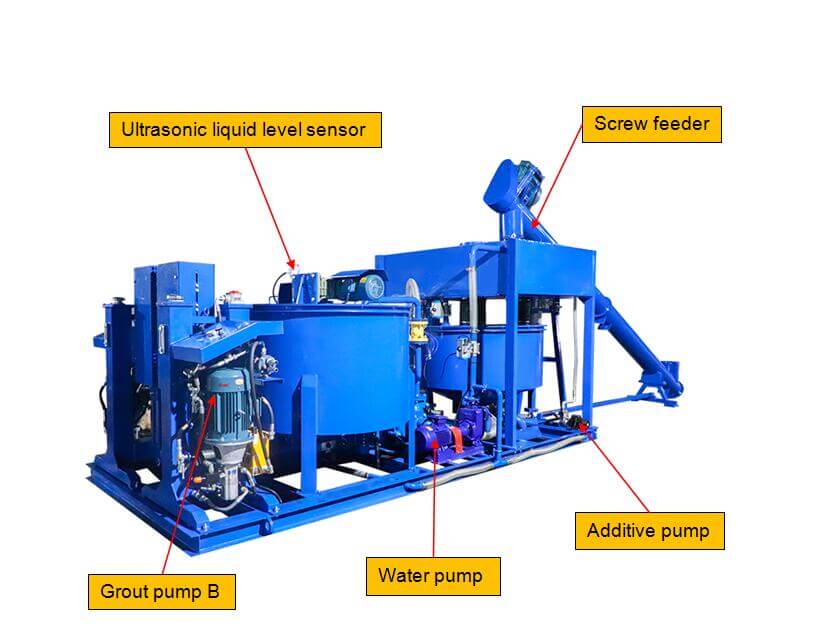

Screw feeder	Power	7.5KW
	Delivery volume	40t/h
Water supply	Tank capacity	950L
	Water pump	50ZX20-30 (4.0KW)
	Flow@head	20m3/h@30m
Additive supply	Tank capacity	150L
	Additive pump	25SFBX-8 (0.25KW)
	Flow@head	2m3/h@8m

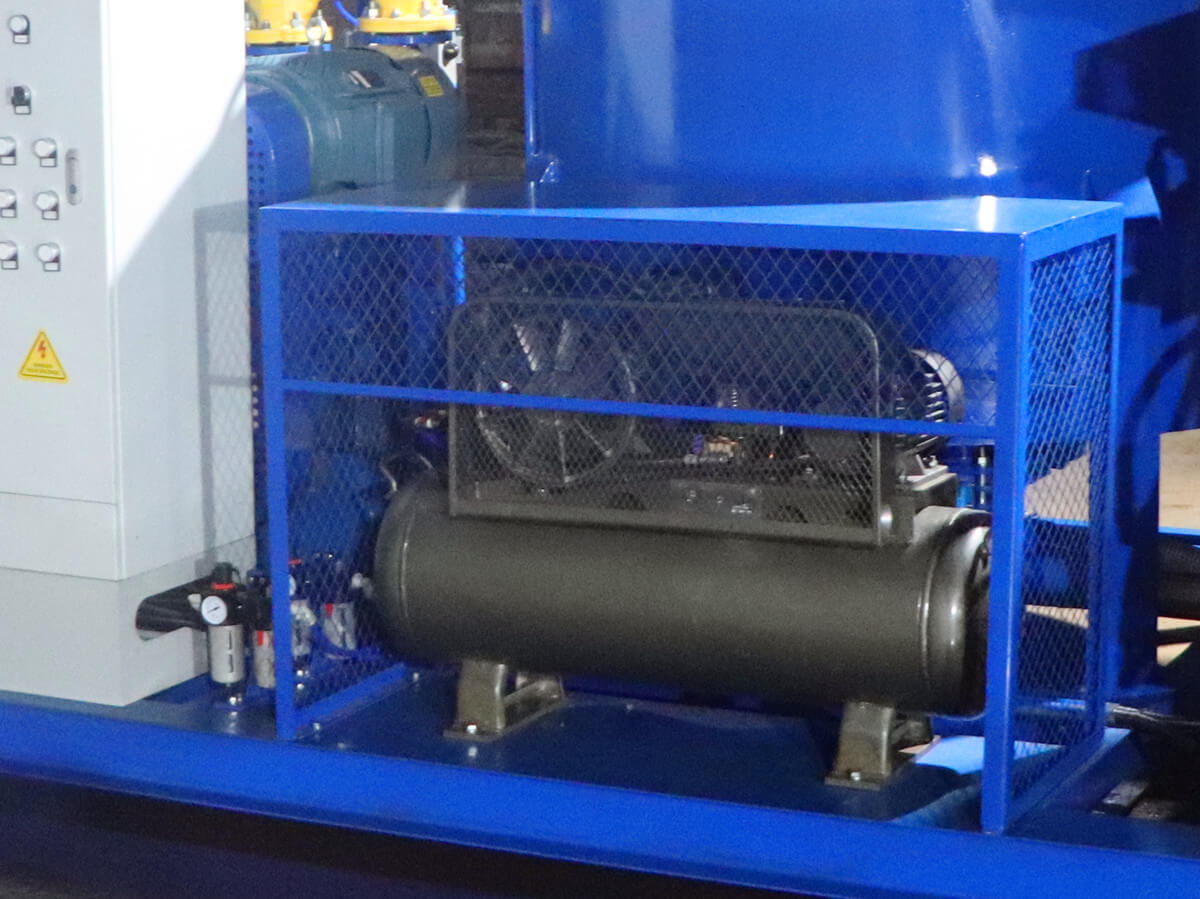

Air Supply	Air compressor	V-0.25/8 (2.2KW)
	Exhaust volume	0.25m3/min

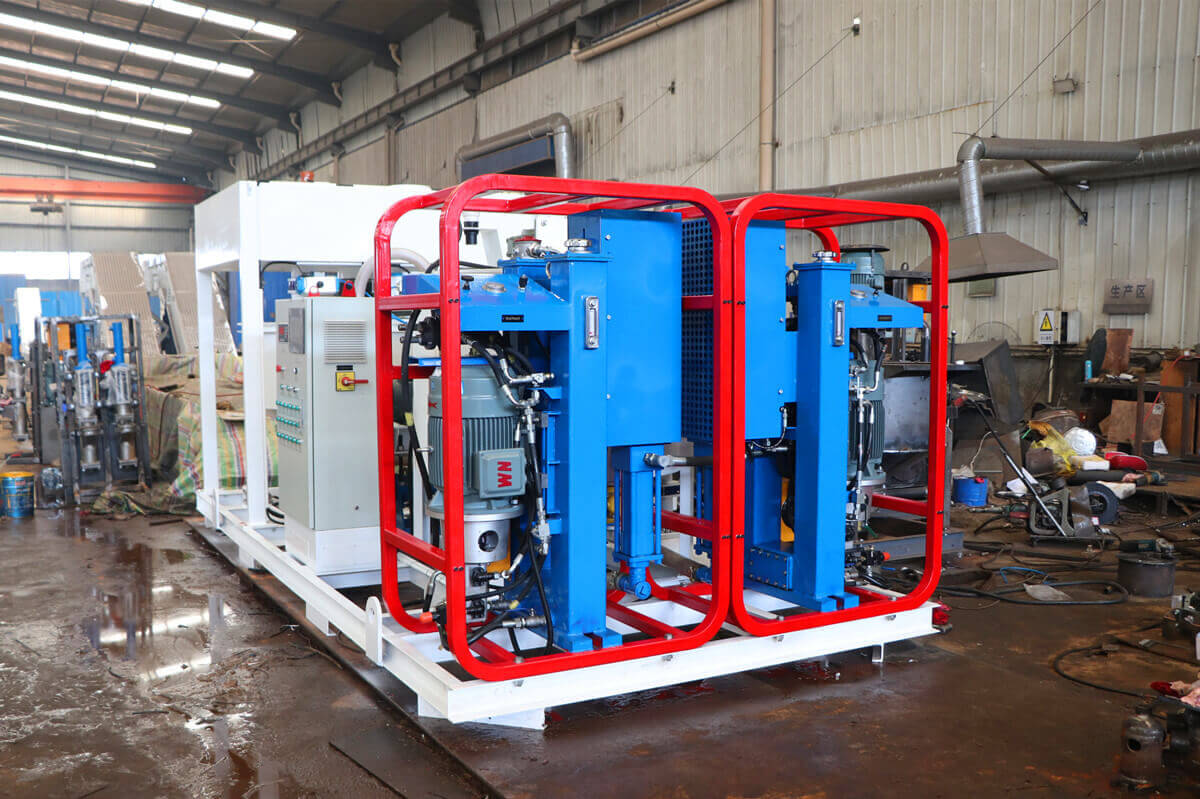

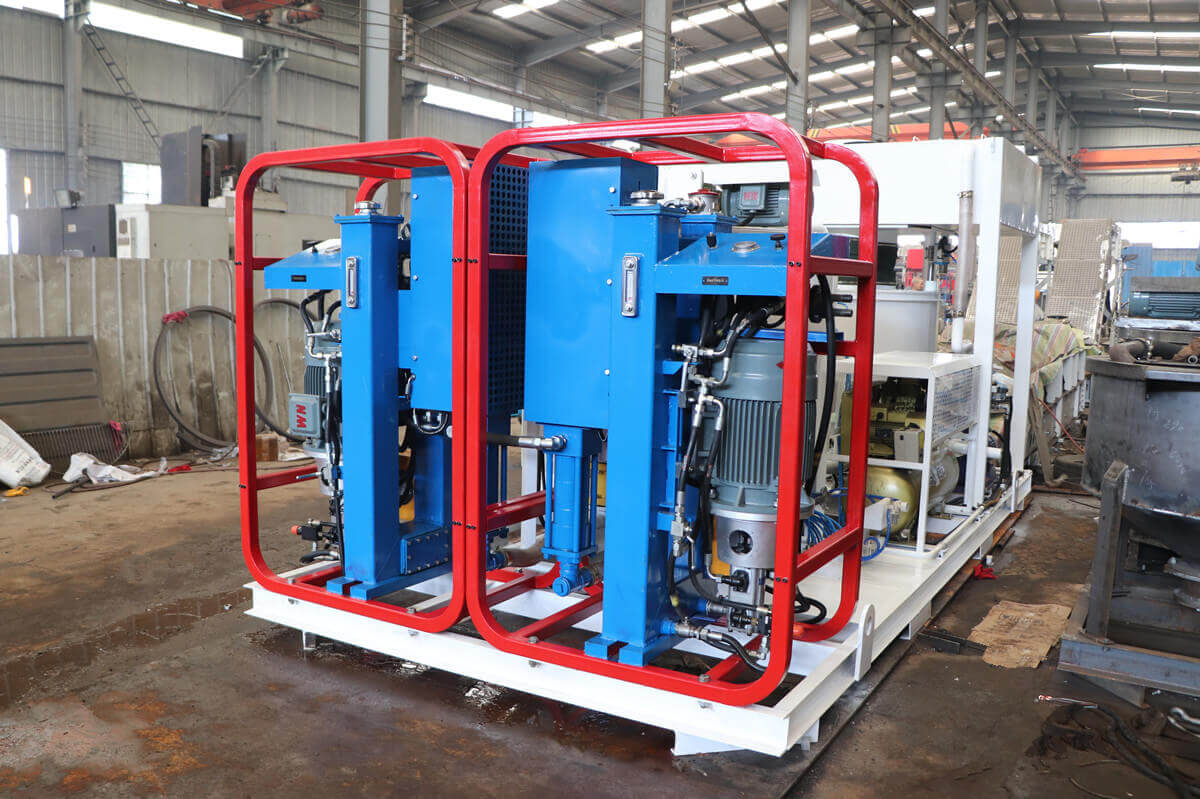

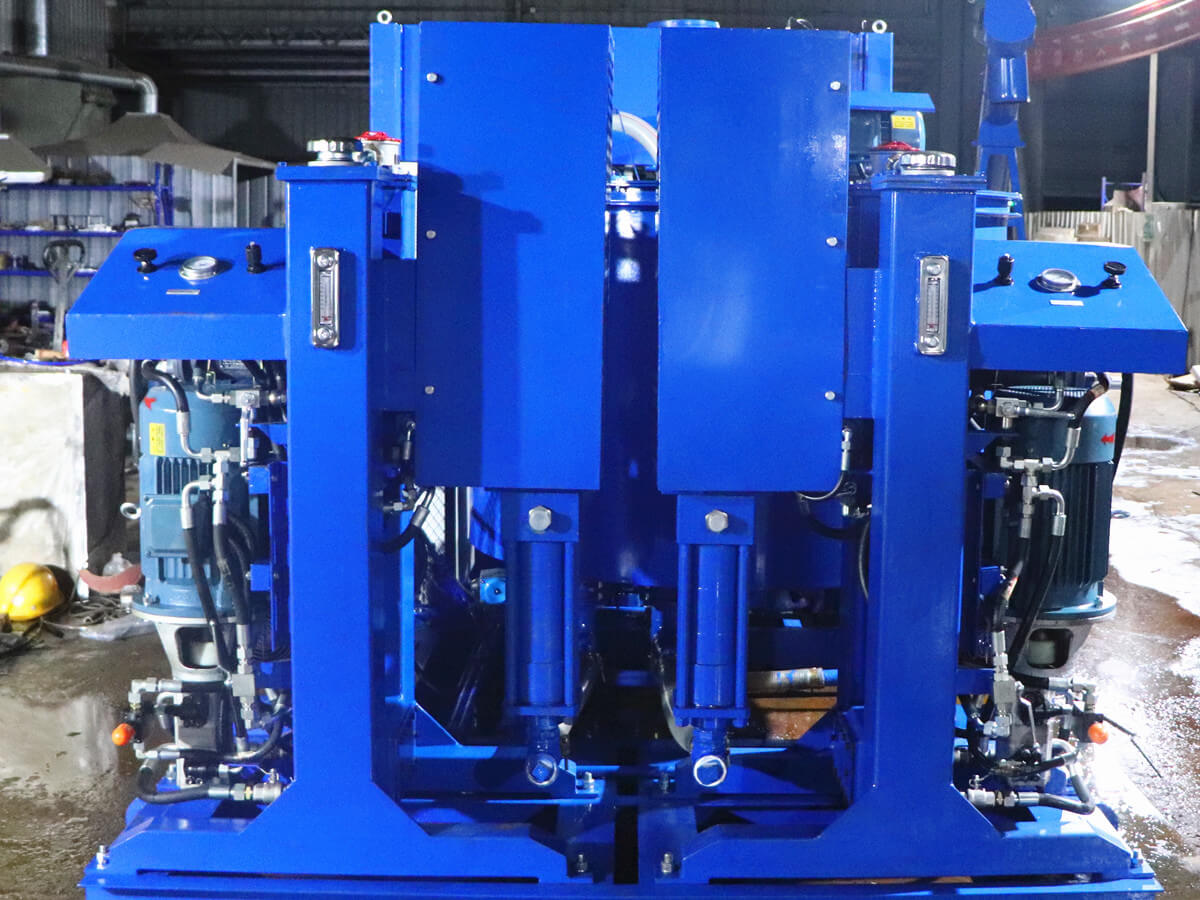

Grouting pump (2X1set)	Model	GGH75/100PI-E
	Piston diameter	100mm
	Piston stroke	150mm
	Low pressure@Flow	0-50bar@0-75L/min
	High pressure@Flow	0-100bar@0-40L/min
	Power	7.5Kw
Dimension(without screw feeder)		4700×2100×2150mm
Weight		3450Kg

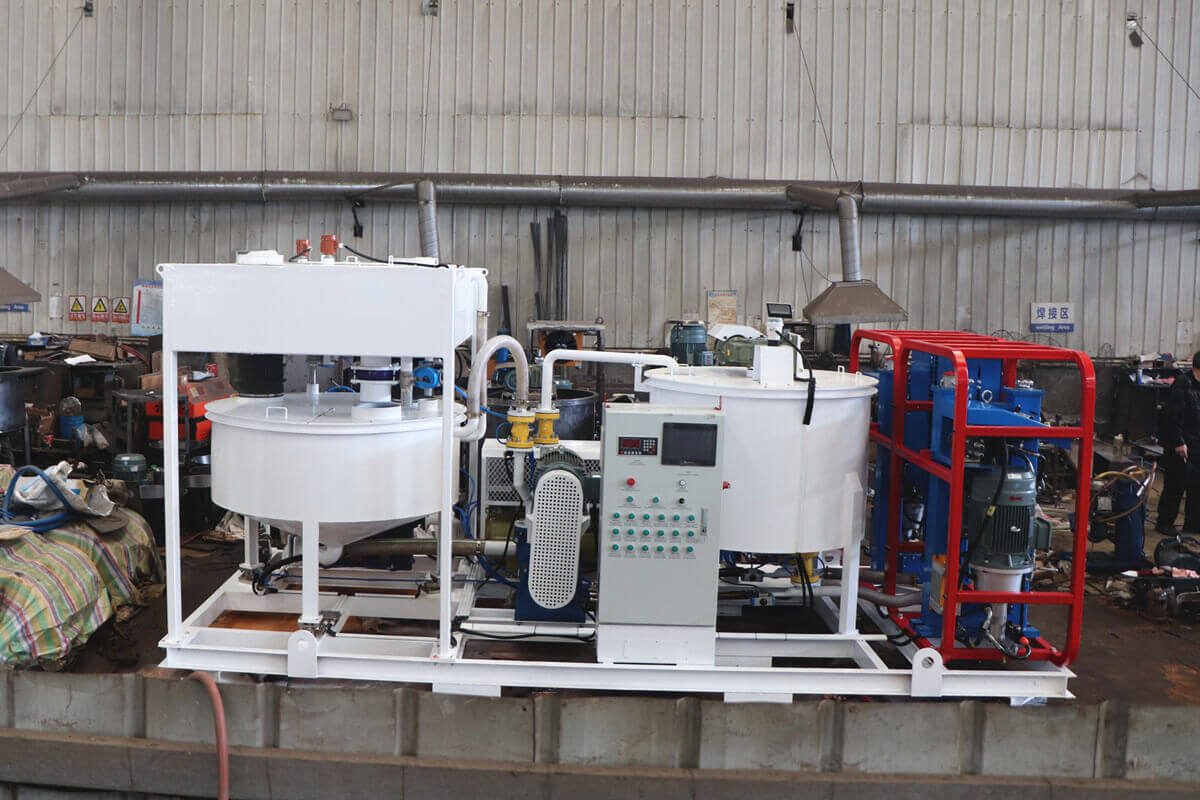

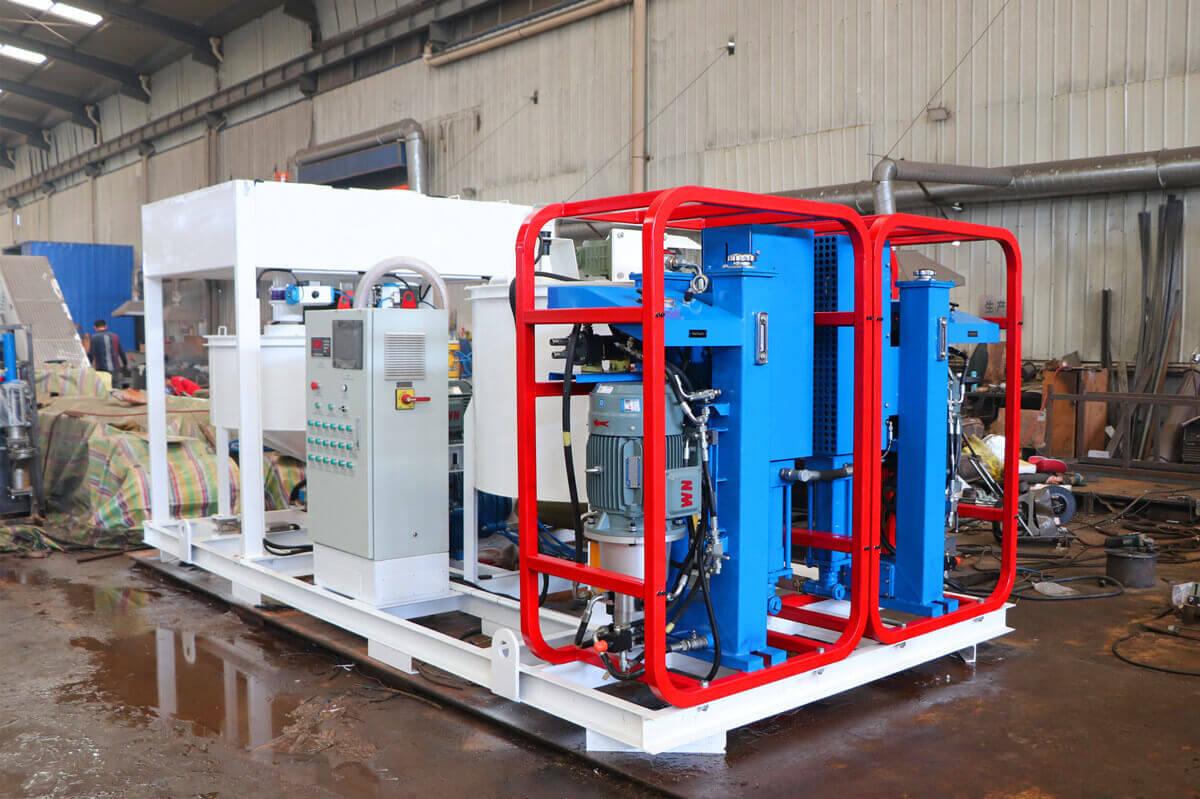

Note: We can customize according automatic grout station to your requirements.
