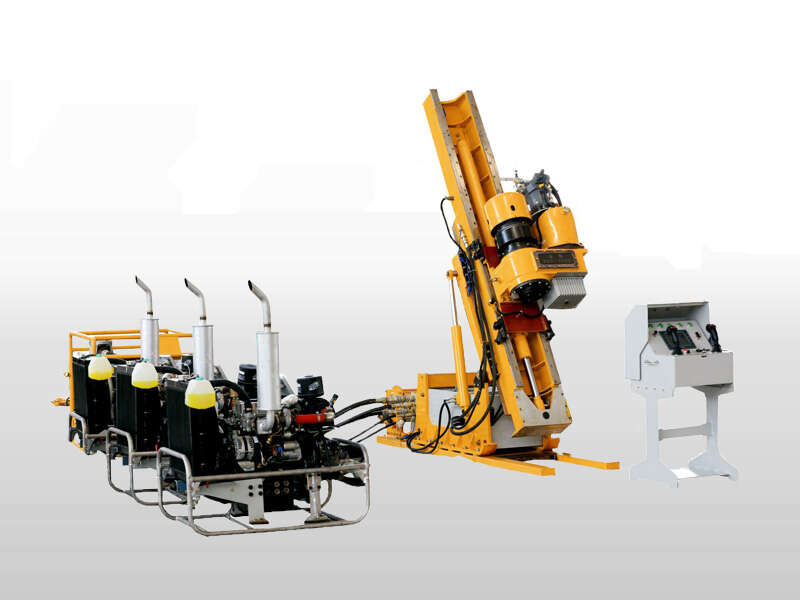

XDQ-1200 Full Hydraulic Portable Diamond Wireline Core Drilling Rig

Drilling capacity: BQ dia.: 55.6mm depth: 1200m, NQ dia.: 71mm depth: 900m, HQ dia.: 89mm depth: 600m
Power: diesel engine (Perkins 403D-15T)

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

Description
Application
Features
Technical data

■ Description

XDQ-1200 Full Hydraulic Portable Diamond Wireline Core Drilling Rig is used specifically for the mountainous areas of solid mineral surface coring operation, and is designed with a variety of diamond core and rope core drilling techniques.

■ Technical data

1.drilling capacity：

BQ dia. : 55.6mm depth: 1200m

NQ dia.: 71mm depth: 900m

HQ dia.: 89mm depth: 600m

2.mast/feed system：

Feed stroke： 1.7m

Feed speed： fast TO low, CVT

thrust： 60kN

pull: 120kN

drilling angle： 0-90 degree

3.auxiliary winch：

Hollowing Line pull： 12KN

Full drum pull： 4.5KN

speed（last layer）： 100m/min

speed（full drum）： 270m/min

rope capacity: 1200m/φ5mm

4.power：

brand：Perkins

model：403D-15T

output：30KW

rotating speed：2600rpm

After cooled turbo diesel engine

5.hydraulic system：

Main pump flow/pressure：111L/min，28Mpa

Auxiliary pump flow/pressure：58L/min, 16Mpa

6.drill head：

spindle： φ94mm

Gear	Rotating speed(rpm)	Max torque(N.m)
1	0-325	4300
2	0-875	1600

7.hydraulic chuck：

type： spring closed hydraulic opened

force： 392kN

8.overall dimensions：

a. transporting： 3300*1000*1700mm（Approximately）

b. working： 2600*1000*6400mm（Approximately）

9.weight：

2800Kg（Approximately）

Rig removable module weight：

1.drill head：

a. Spindle gear box： 300Kg

b. gearbox： 180 Kg

2. Column：

a. main column： 130Kg

b. Side column： 80 Kg

3. Power head carriage： 55Kg

4. Lower bracket： 70Kg

5. Holder： 100 Kg

6. Base： 70Kg

7. Frame： 100Kg

8. Rope hoist： 300Kg

9. Power unit： 270Kg*3

10. Hydraulic Tank： 200 Kg
