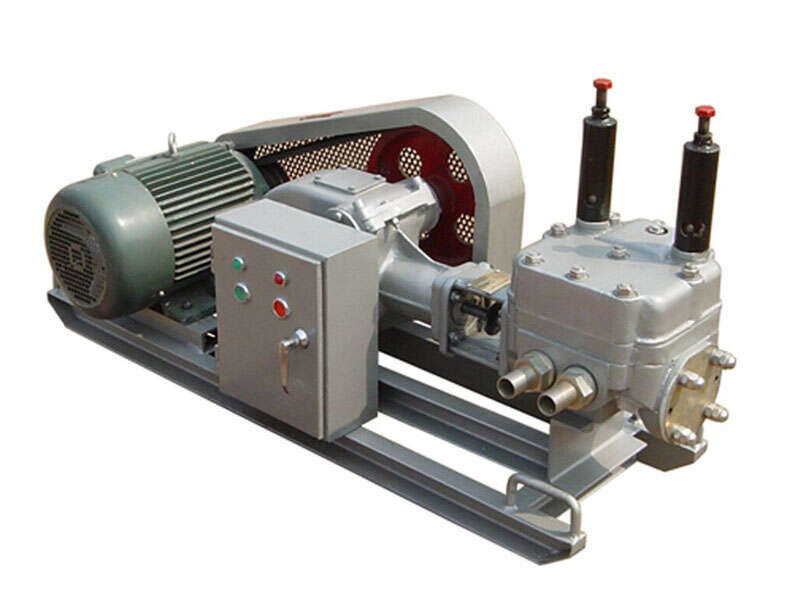

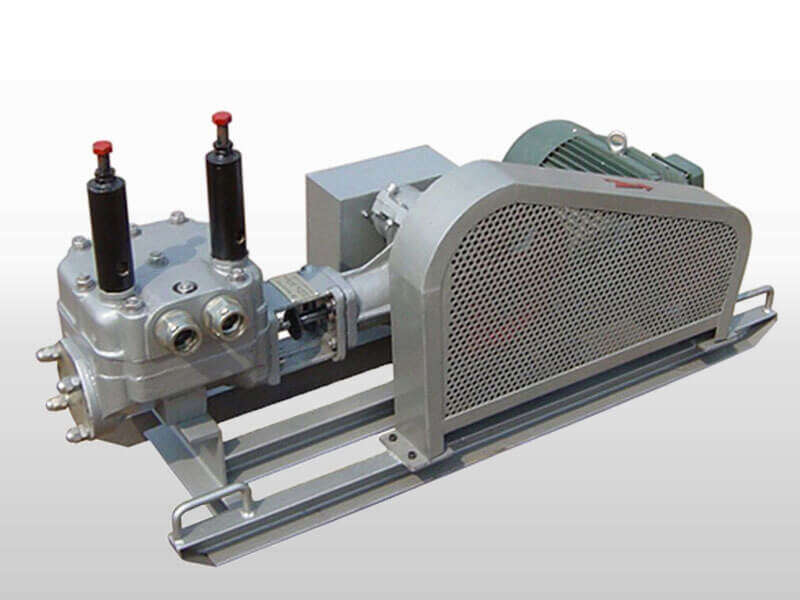

GDM60/40 Medium-Pressure Dual- slurry Grouting Pump
Rated Output:
60L/min
Rated Pressure:
4MPa(40bar/580psi)
Cylinder Dia.:
¢75mm
Piston Stroke:
85mm
Stroke/Minute:
85/min
Inlet diameter:
38mm
We're here to help:
Easy ways to get the answers you need.
Send E-mail
Leave A Message
download:
Catalogue
Description
Application
Features
Technical data
■ Description
GEC grouting pumps provide wide range grouting pressure selection as well as the dependability and durability required on your job site.
■ Application
The grouting pumps are ideal for grouting-process in underground and civil applications.
■ Features
Dual-slurry grouting pump
Single pisom with doble-acting
Gear reducer
Ball valve
Compact size
Iron-casting pump house
■ Technical data
Item
Specification
Rated Output
60L/min
Rated Pressure
4MPa(40bar/580psi)
Cylinder Dia.
¢75mm
Piston Stroke
85mm
Stroke/Minute
85/min
Inlet diameter
38mm
Outlet diameter
32mm

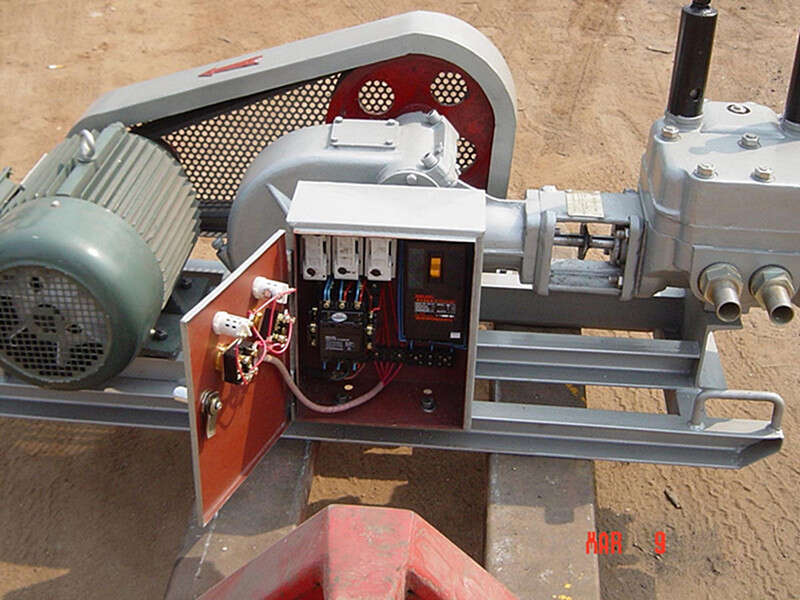

Power unit
5.5KW(Electric) 10hp(Diesel)

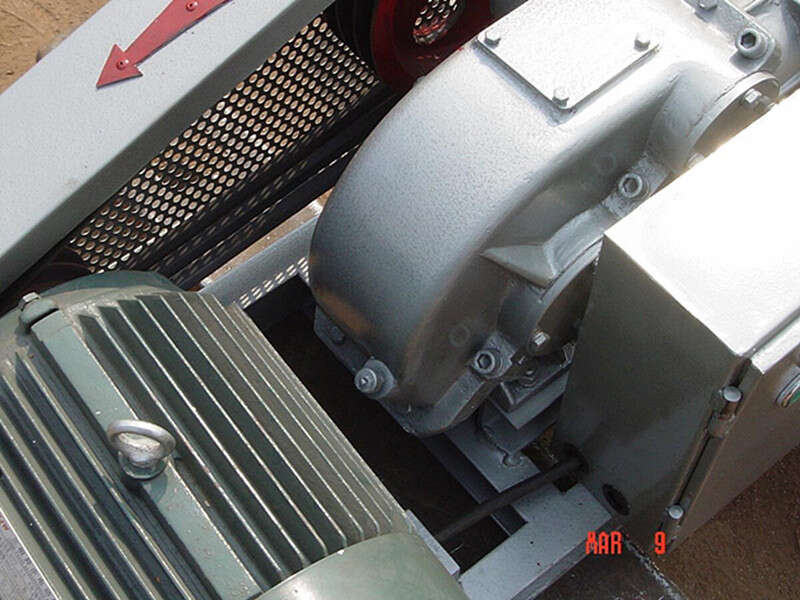

Transmission
V-belt+gearbox
Chassis
Skid
Weight
210kg
Overall Dimensions
1280x485x645mm
Note: Single or Double Passageway are optional; Chassis: Skid or Tyre
