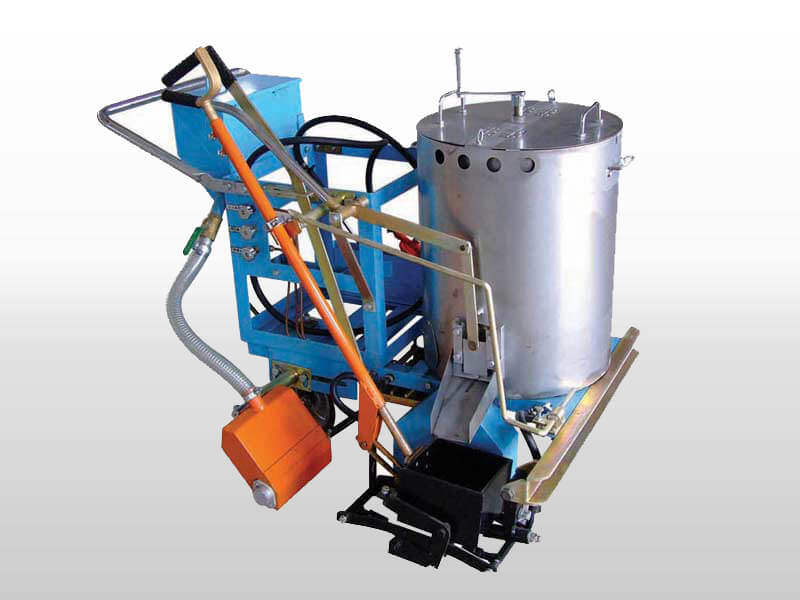

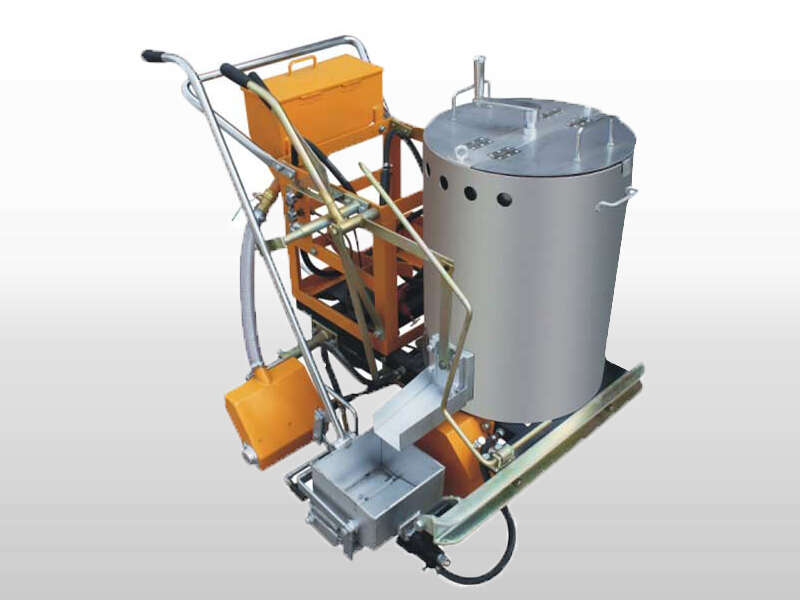

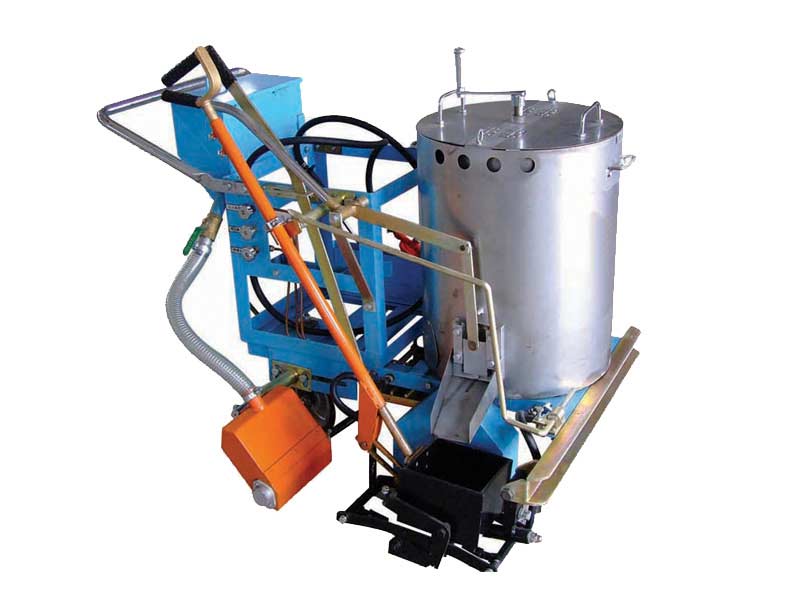

Hand-push thermoplastic road marking machine is key equipment of hot melt index line construction, and it finishes the index line construction cooperating with thermoplastic kettle. GD160 hand-push thermoplastic road mark machine adopts common cast iron shoe and synchronous interface micro glass bead automated broadcasting machine, and it has many features including easy and convenient structure, favorable price and excellent performance.

GD160 Hand Push Road Marking Machine is mainly used for marking reflective lines (such as straight lines, dotted lines, curved lines, direction arrows, letters) on expressways, city streets and parking lots.

1. GD160 Thermoplastic Road Marking Machine is light body, compact structure, nice look.
2. Lift handgrip, operator can adjust it as required.
3. Automatic glass bead broadcaster.
4. Speeder and shocks of bead broadcaster equipped with 2 gears which can be adjusted as required.
5. Demountable device is designed for the heating and holding tank. The reasonable design agitator solves the problem of storing used coating in the tank.
6. The adjustable pointer improves working efficiency.
7. The shoe made by high-precision steel, board scraping structure, it has good thermo stability, resists corrosion, transformation, and can heated easily.
8. The tire is made by cast iron and imported rubber, which make the tire lighter, stronger and more durable.

Coating capacity	80KG
Glass bead tank capacity	10KG
Marking width	50,80,100,120,150,180,200,230,300,400,450mm,change shoe of different scales according to the project
Marking thickness	1.0-2.5mm, adjustable
Heating temperature	180-210℃
Heating method	petroleum liquefied gas
Dimension	1260*880*1000mm
Weight	110KG
