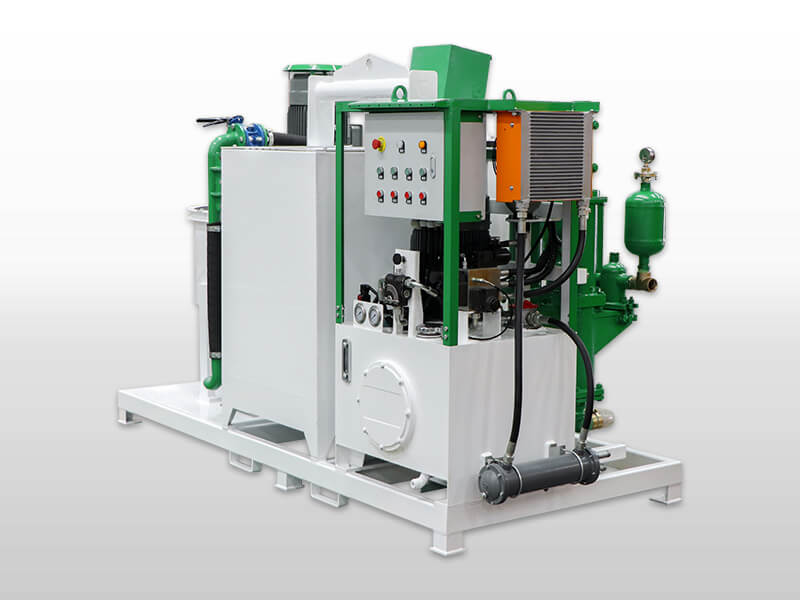

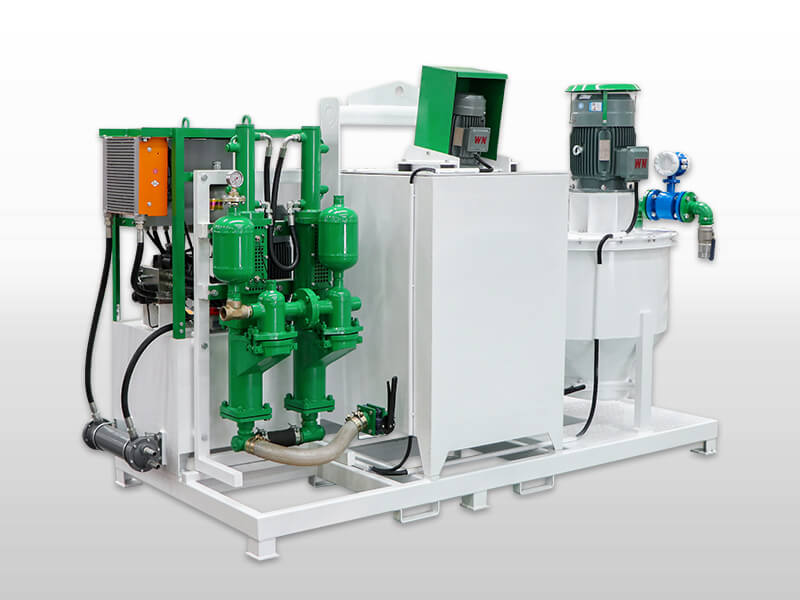

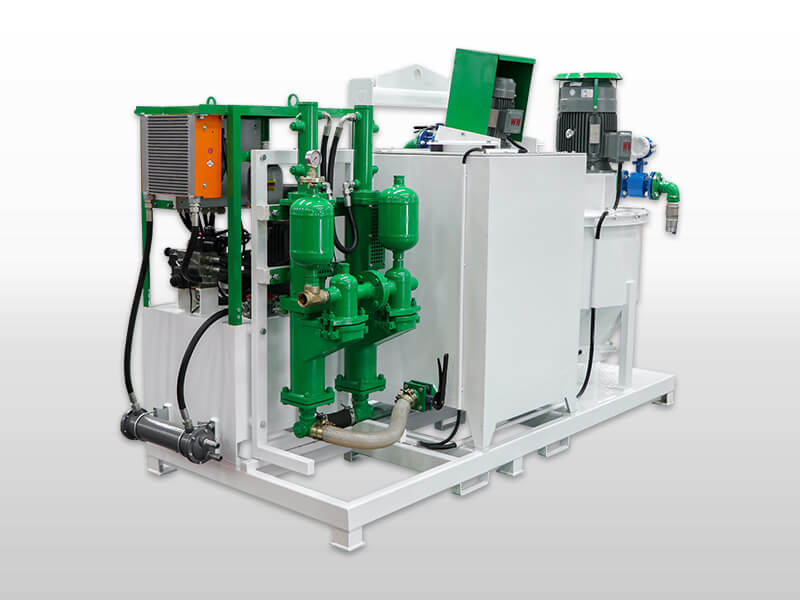

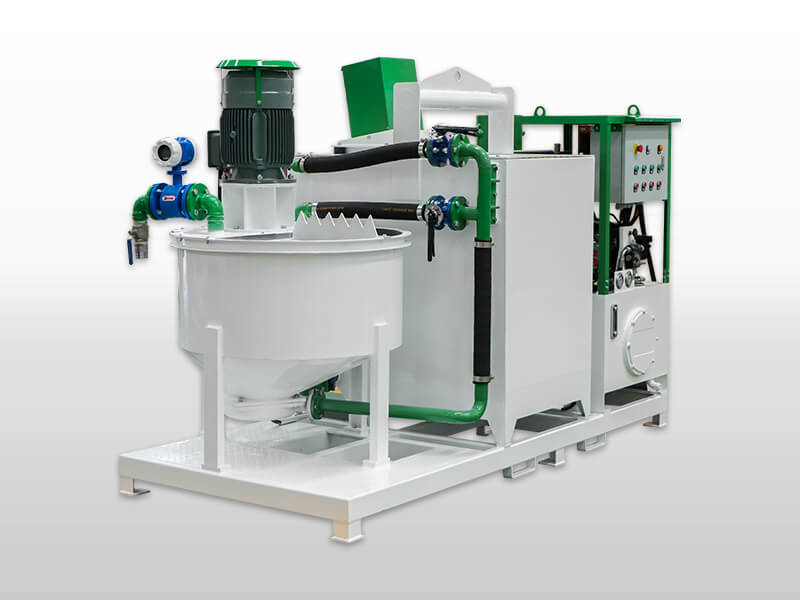

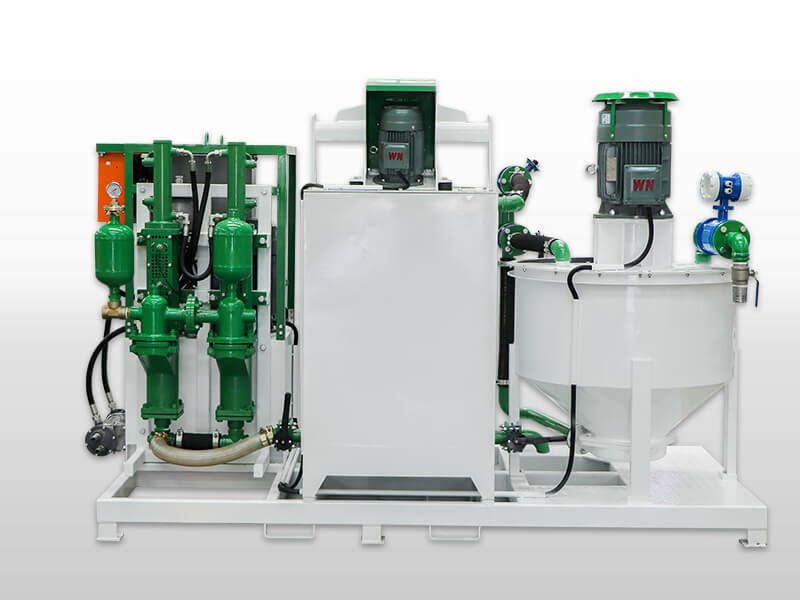

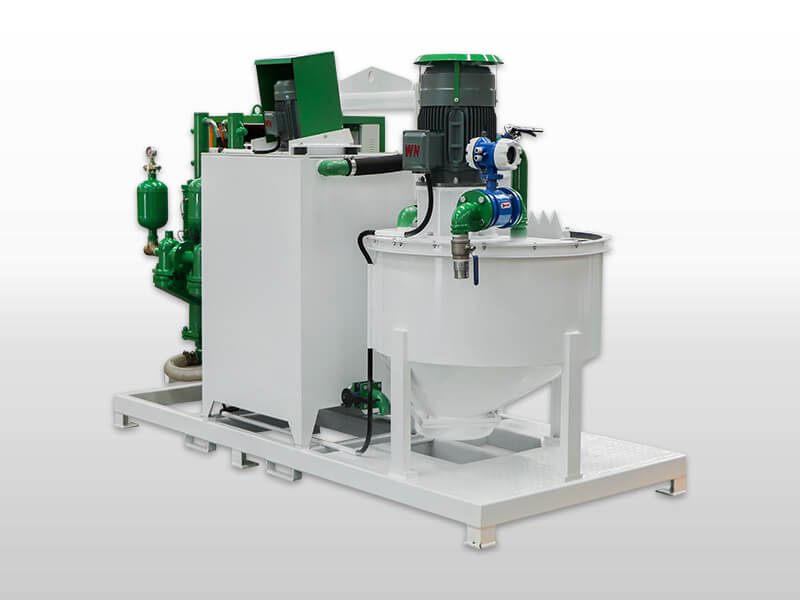

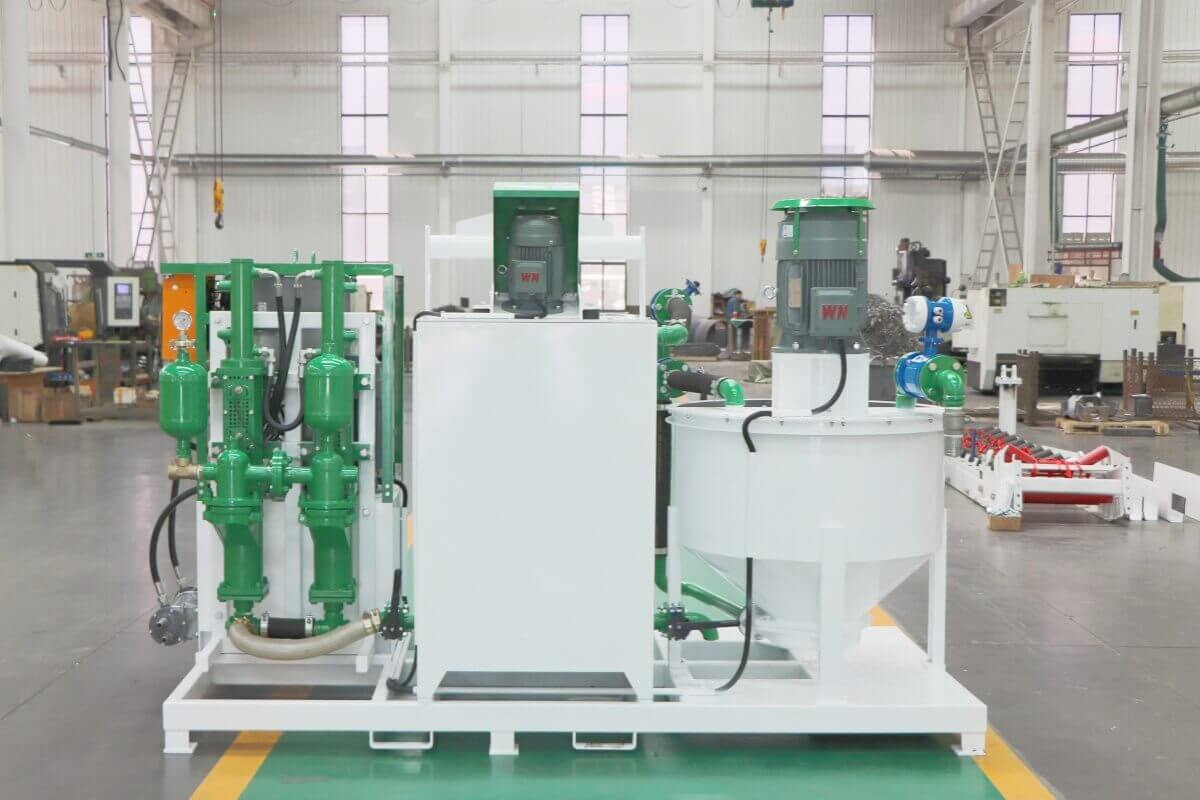

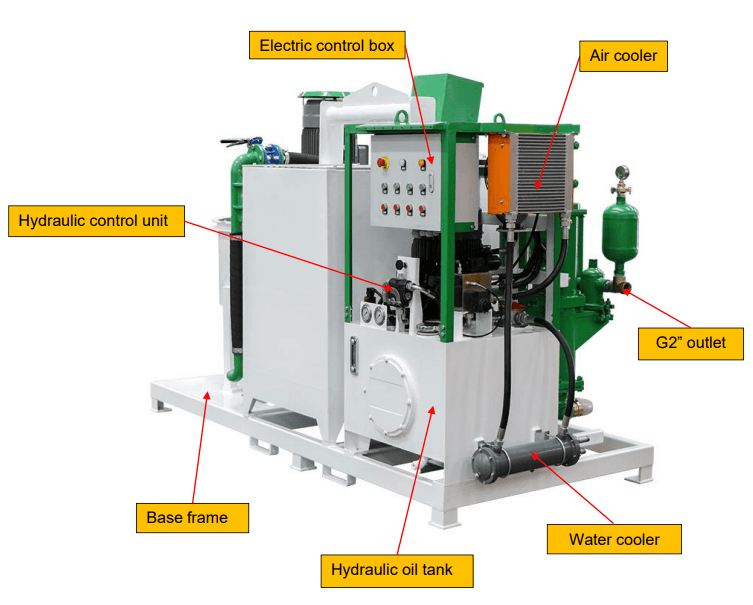

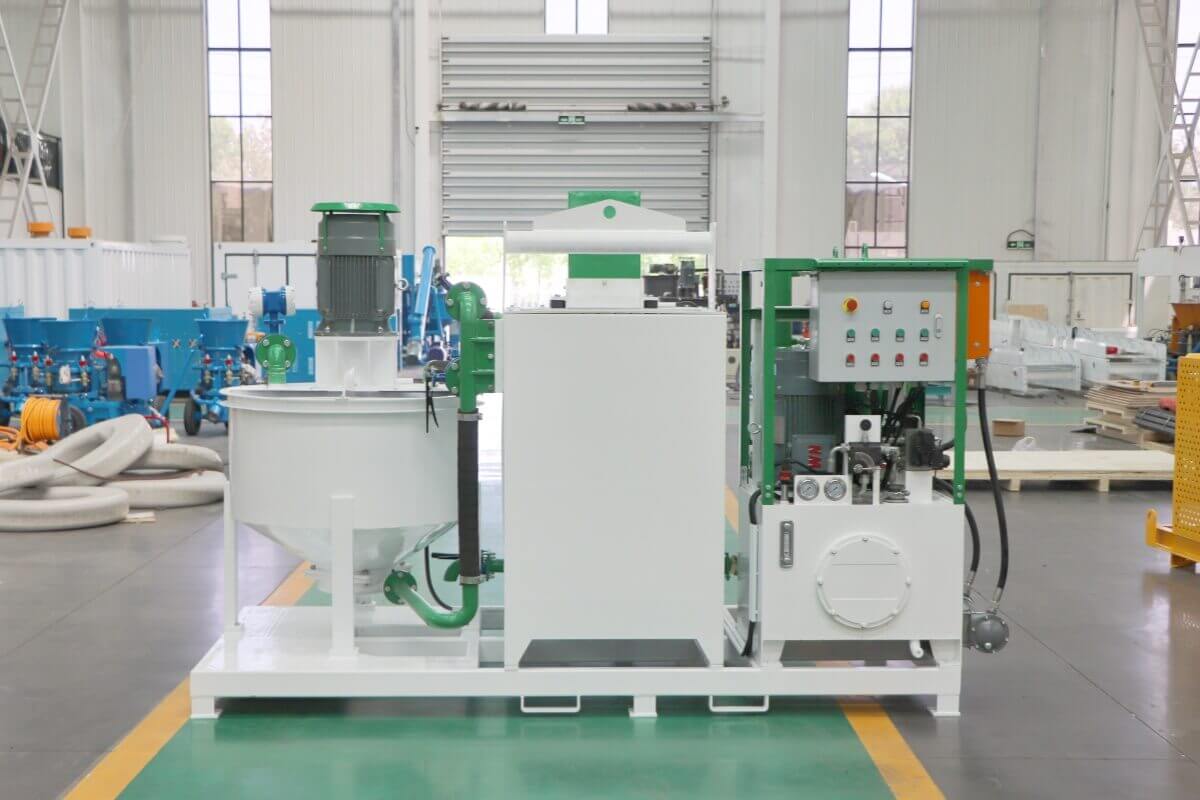

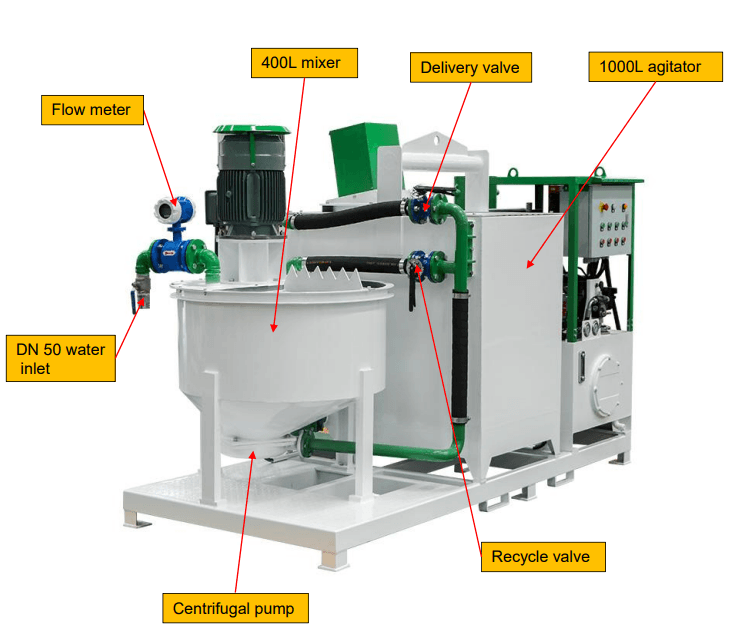

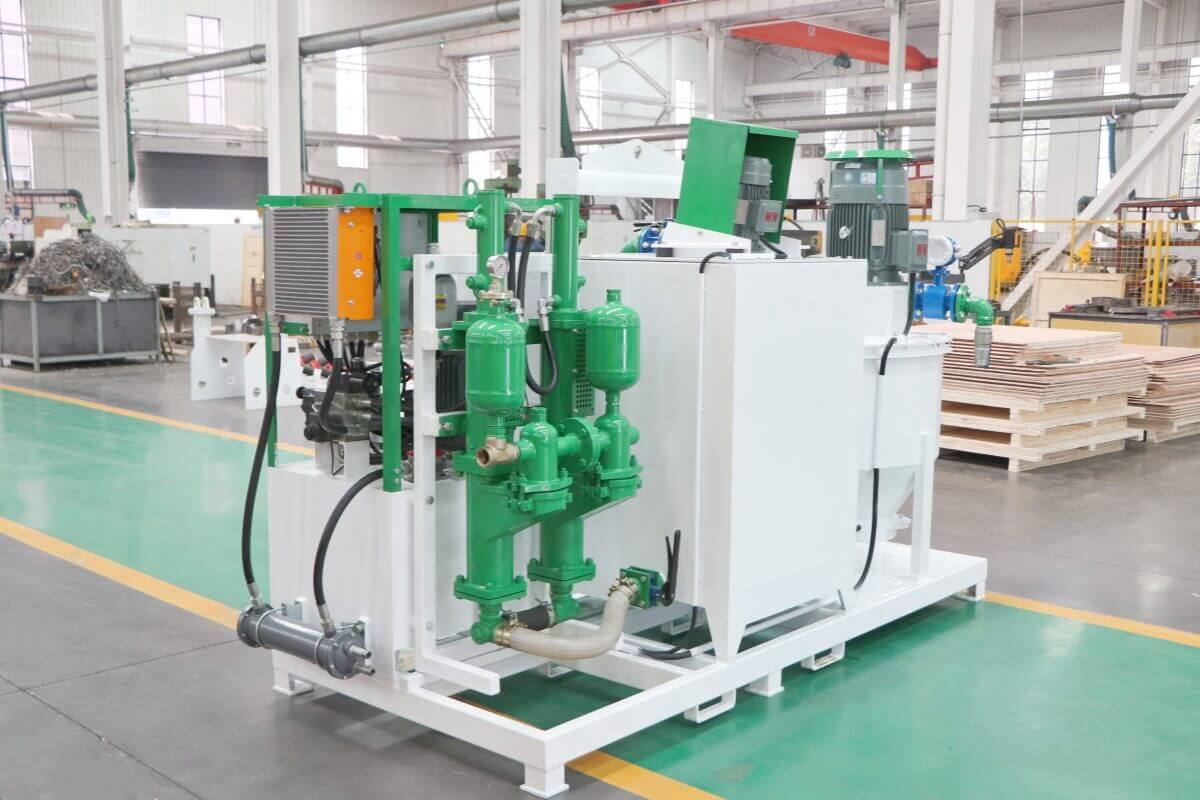

GGP400/1000/90DPL-E Bentonite cement grout mixer and pump adopts an integrated design, with the mixer, agitator and grouting booster pump all mounted on a single base frame. Featuring a compact structure, the equipment is easy to transport. It is mainly used for mixing bentonite mixtures and is widely applied to above-ground and underground engineering projects such as highways, railways, hydropower stations, construction and mining.

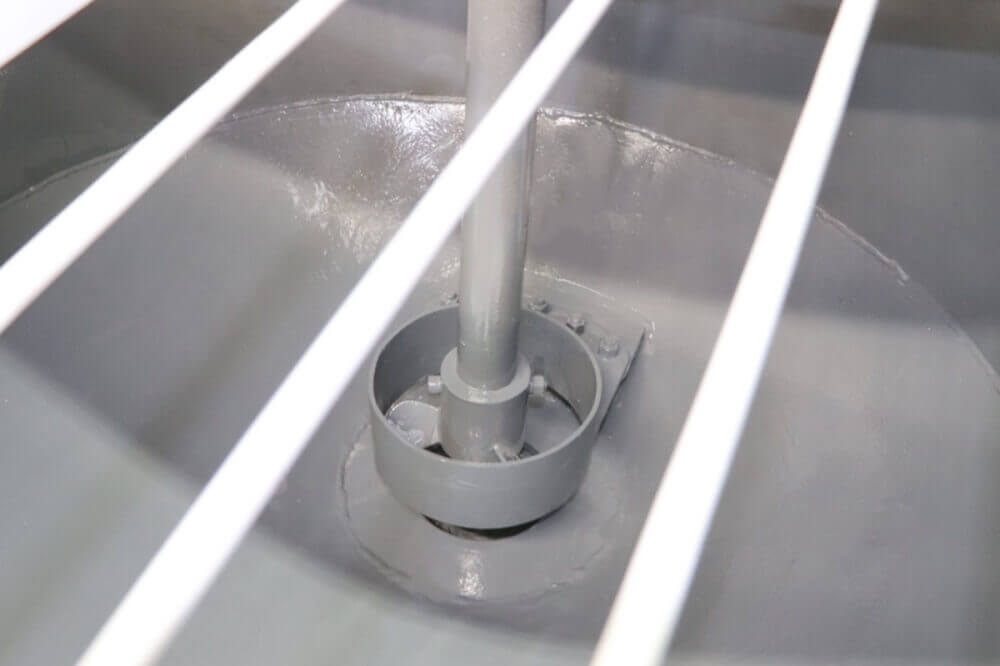

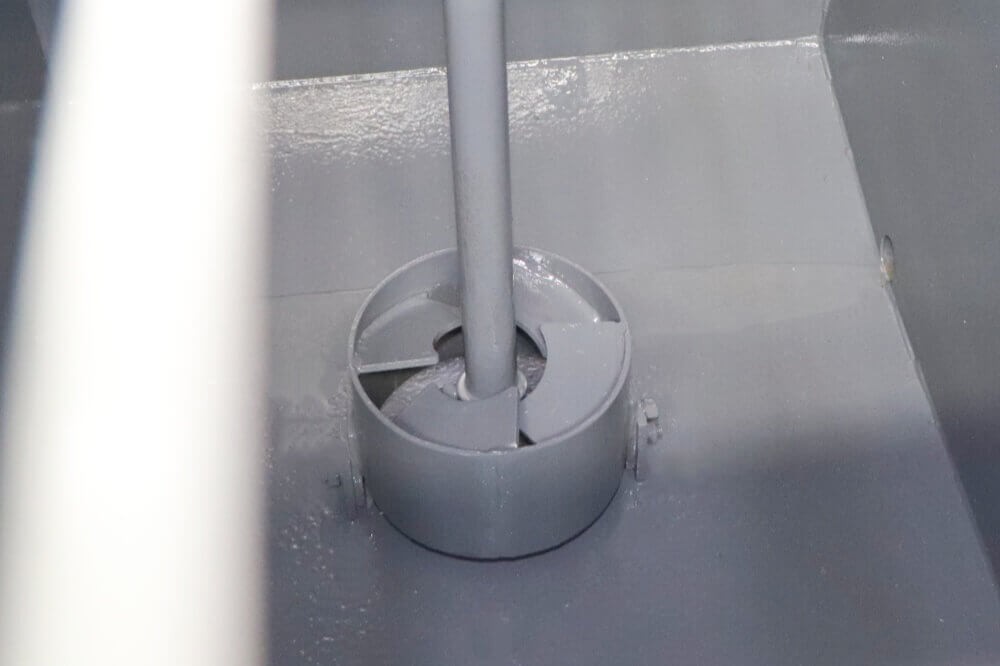

The high-speed vortex mixing technology enables rapid and uniform mixing, allowing water and bentonite to blend quickly and form a homogeneous slurry.

It is mainly used for mixing bentonite mixtures and is widely applied to above-ground and underground engineering projects such as highways, railways, hydropower stations, construction and mining.

1. Compact and reliable structure.
2. Easy to operate and convenient to maintain.
3. Fewer spare parts are required, effectively reducing maintenance costs.
4. The high-speed vortex mixer delivers fast and uniform mixing.
5. Wide range of application.
6. Specially designed for bentonite mixing.

Name		Data
Model		GGP400/1000/90DPL-E Bentonite grout plant
Mixer	Capacity	400L
	Power	11Kw
	Rate Rev.	1450rpm
	Production capacity	6m3/h
Agitator	Capacity	1000L
	Power	2.2Kw
	Rate Rev.	39 rpm

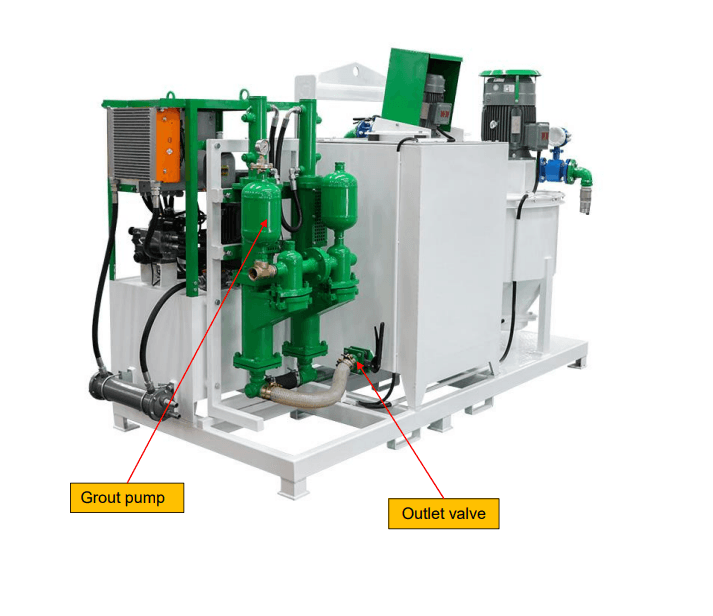

Grout pump	Power	11KW
	Flow	90L/min
	Pressure	10Bar
	Plunger diameter	85mm
	Max. Particle Dia.	2mm
	Outlet connection	G2’’
Power requirements		Voltage 3 Phase 380V, 50Hz

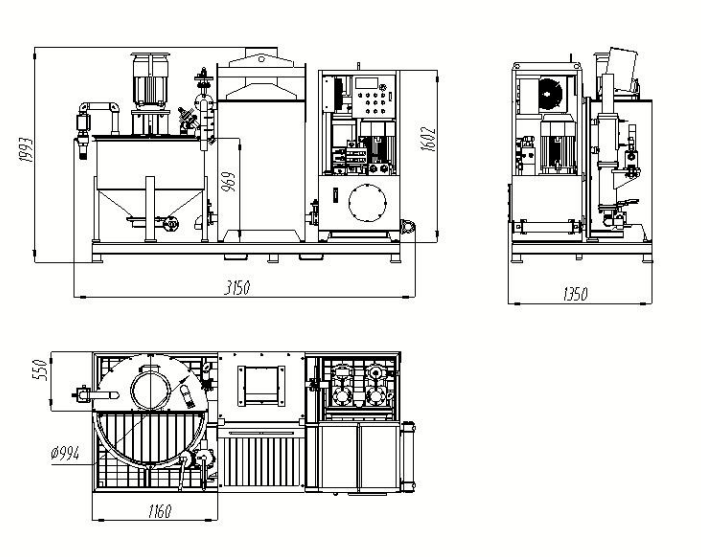

Dimension		3150×1350×2000mm
Weight		1755Kg
We can also customize bentonite grout equipment according to your needs.
