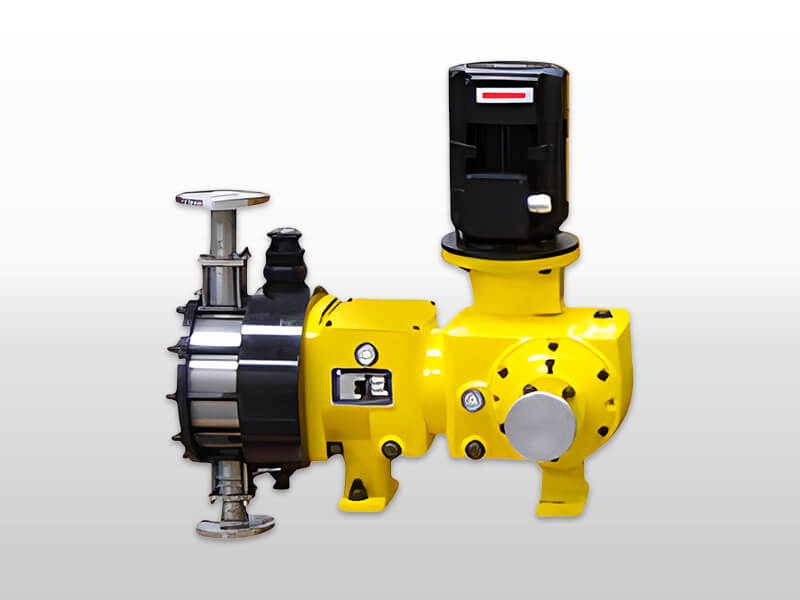

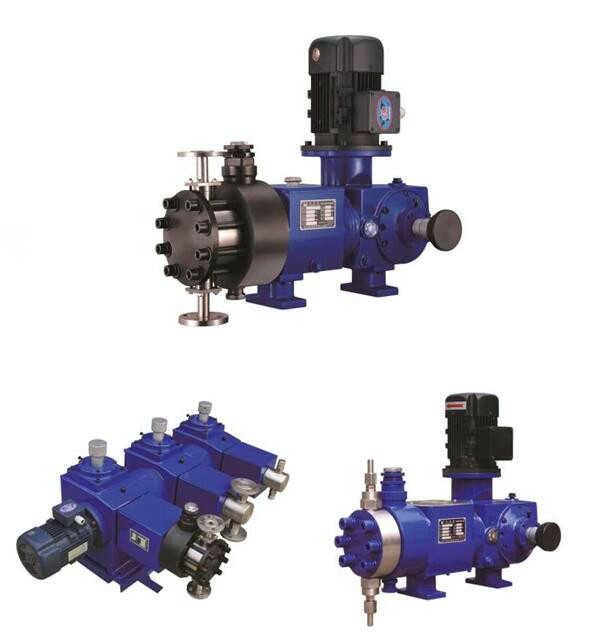

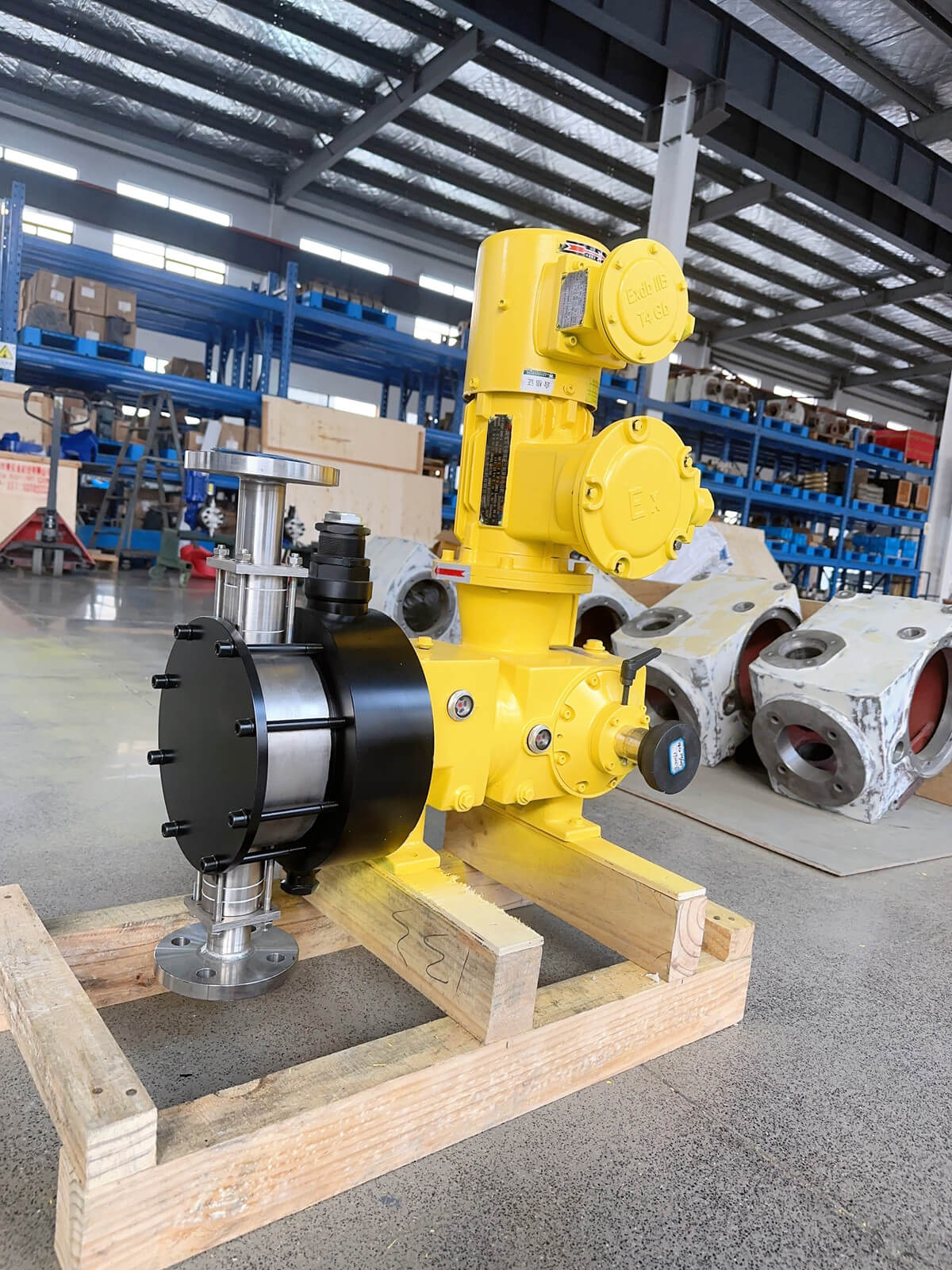

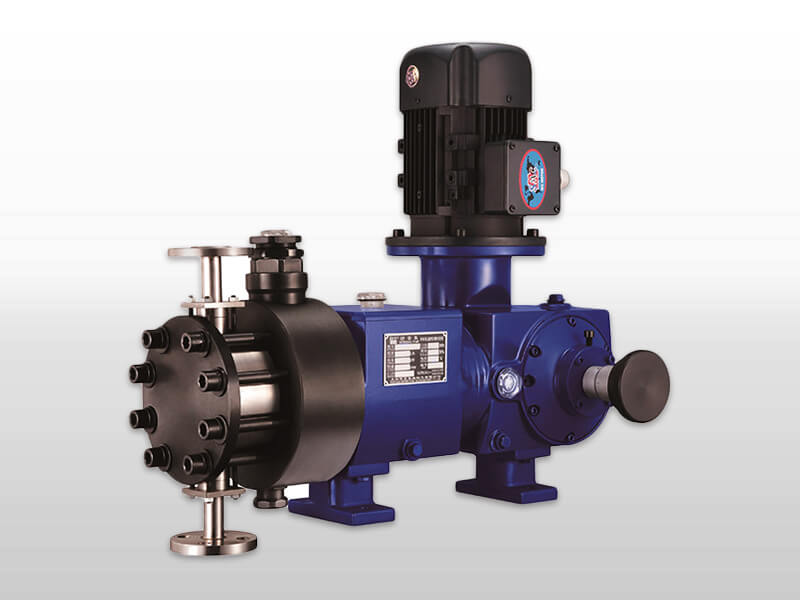

GDJ-M High pressure hydraulic diaphragm dosing metering pump

  • Type: GDJ1-M-2/5
  • Flow L/h: 2
  • Max Pressure MPa: 5

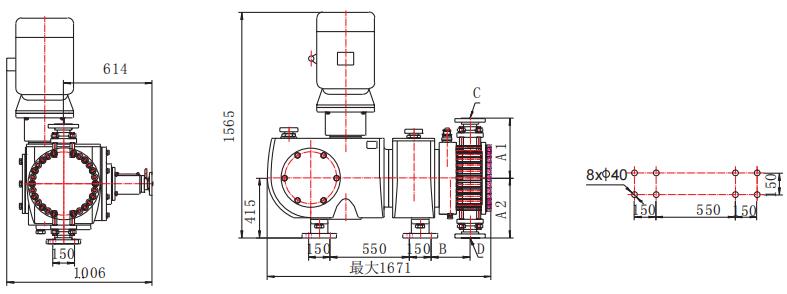

  • Inlet pipe connections(D): Φ12 (outside diameter) *3 hose
  • Outlet pipe connections(C): Φ12 (outside diameter) *3 hose

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message
download:Catalogue
  • hydraulic diaphragm metering pump
  • hydraulic diaphragm dosing pump
  • hydraulic diaphragm dosing metering pump

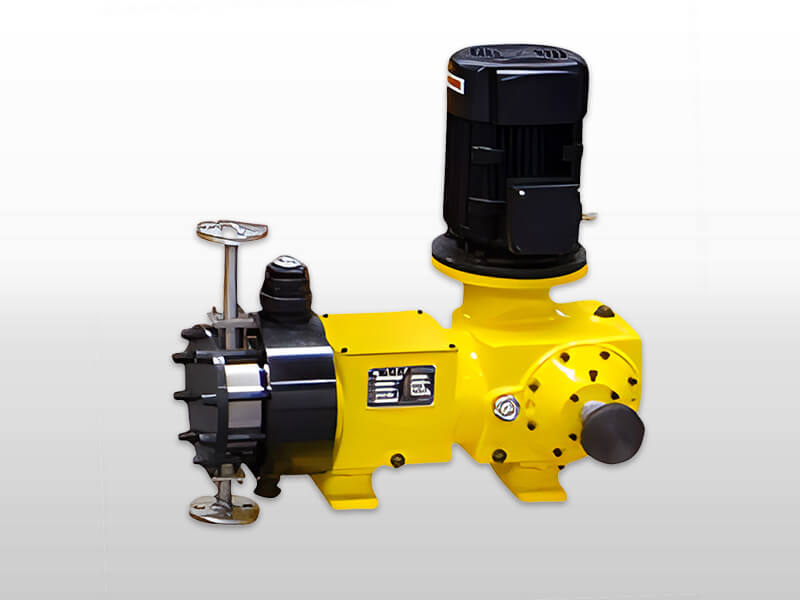

  • high pressure hydraulic diaphragm dosing pump
  • high pressure hydraulic diaphragm dosing metering pump
■ Description
GDJ-M High pressure hydraulic diaphragm dosing metering pump is widely utilized across various industries including petroleum, chemical industry, spinning, food industry, papermaking, atomic energy, power plants, plastics, pharmacy, water works, environmental protection, and more.

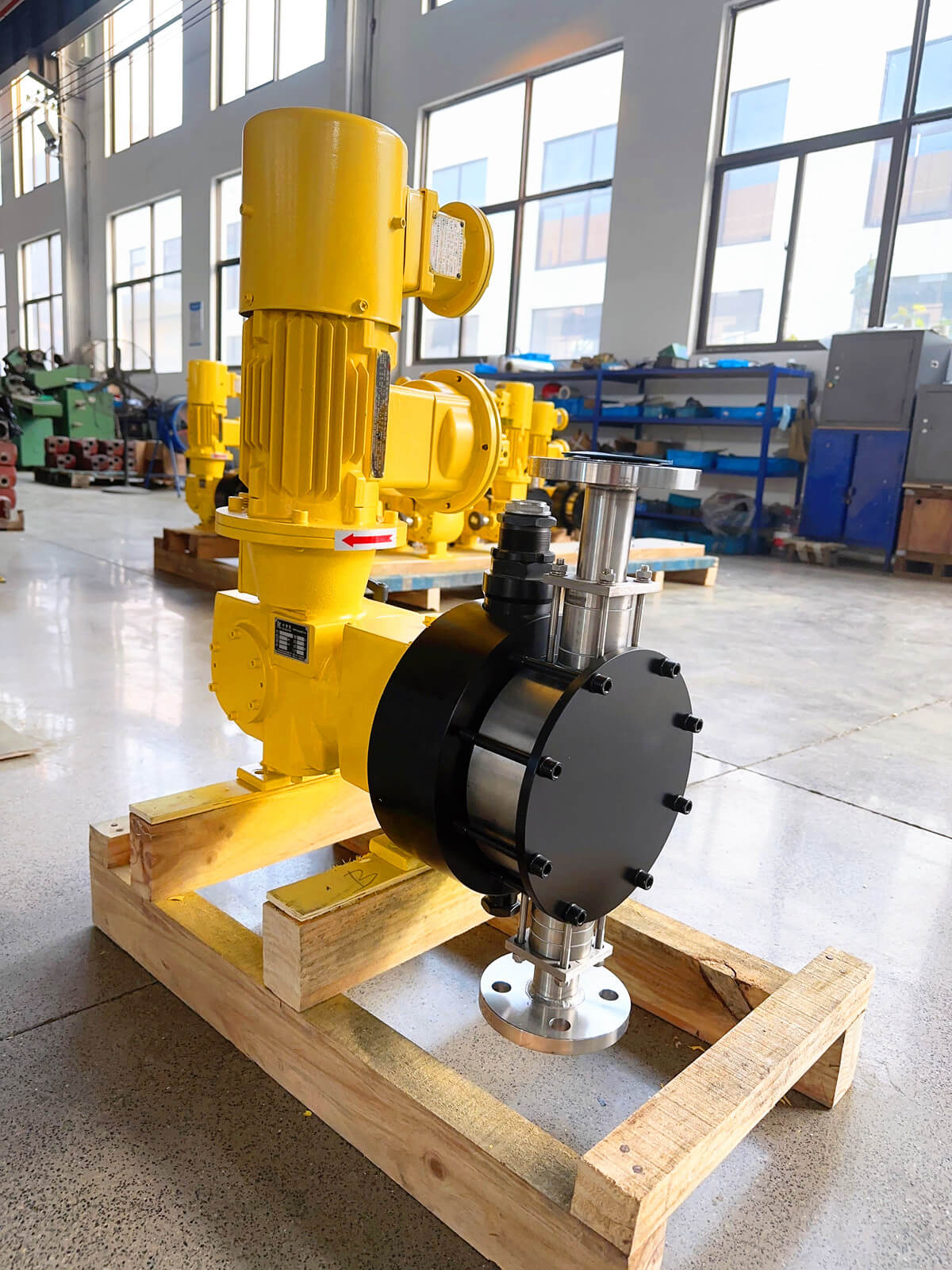

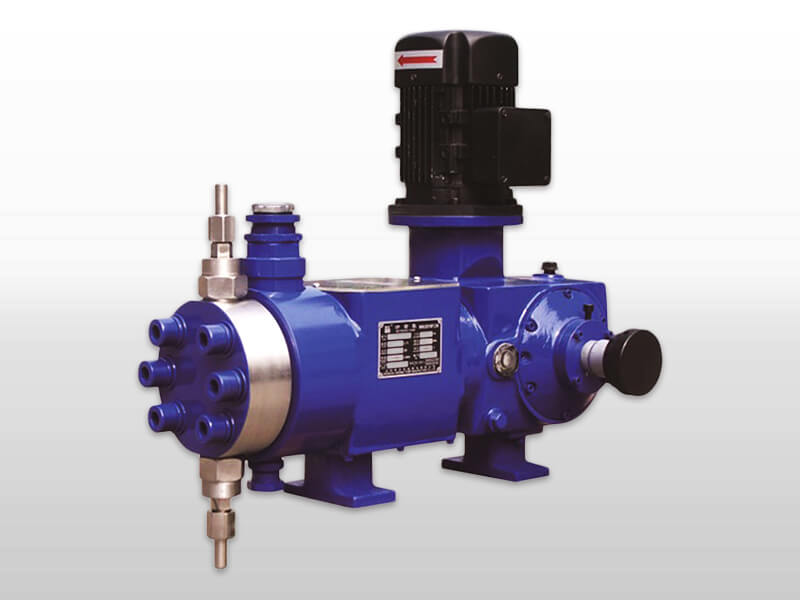

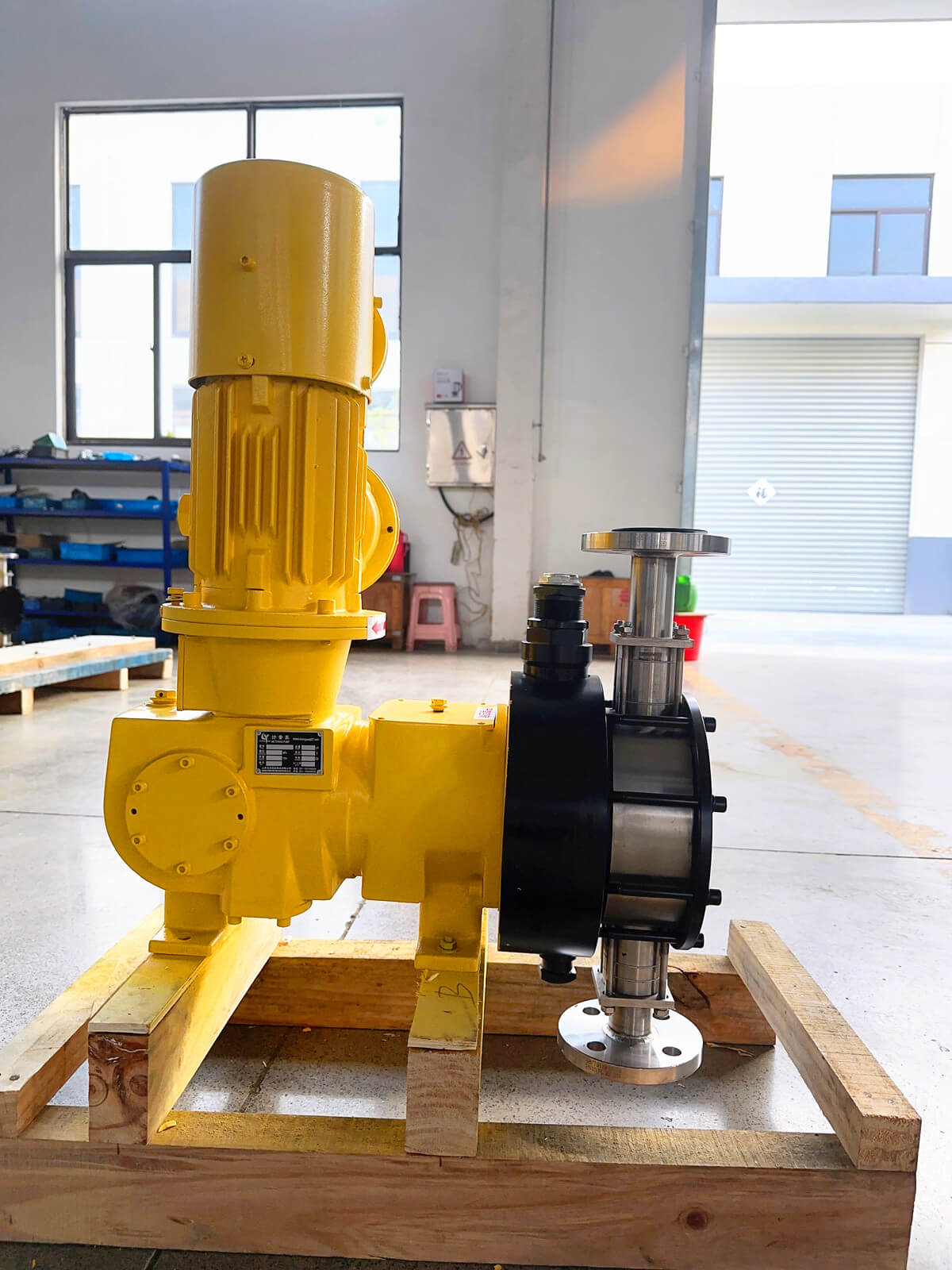

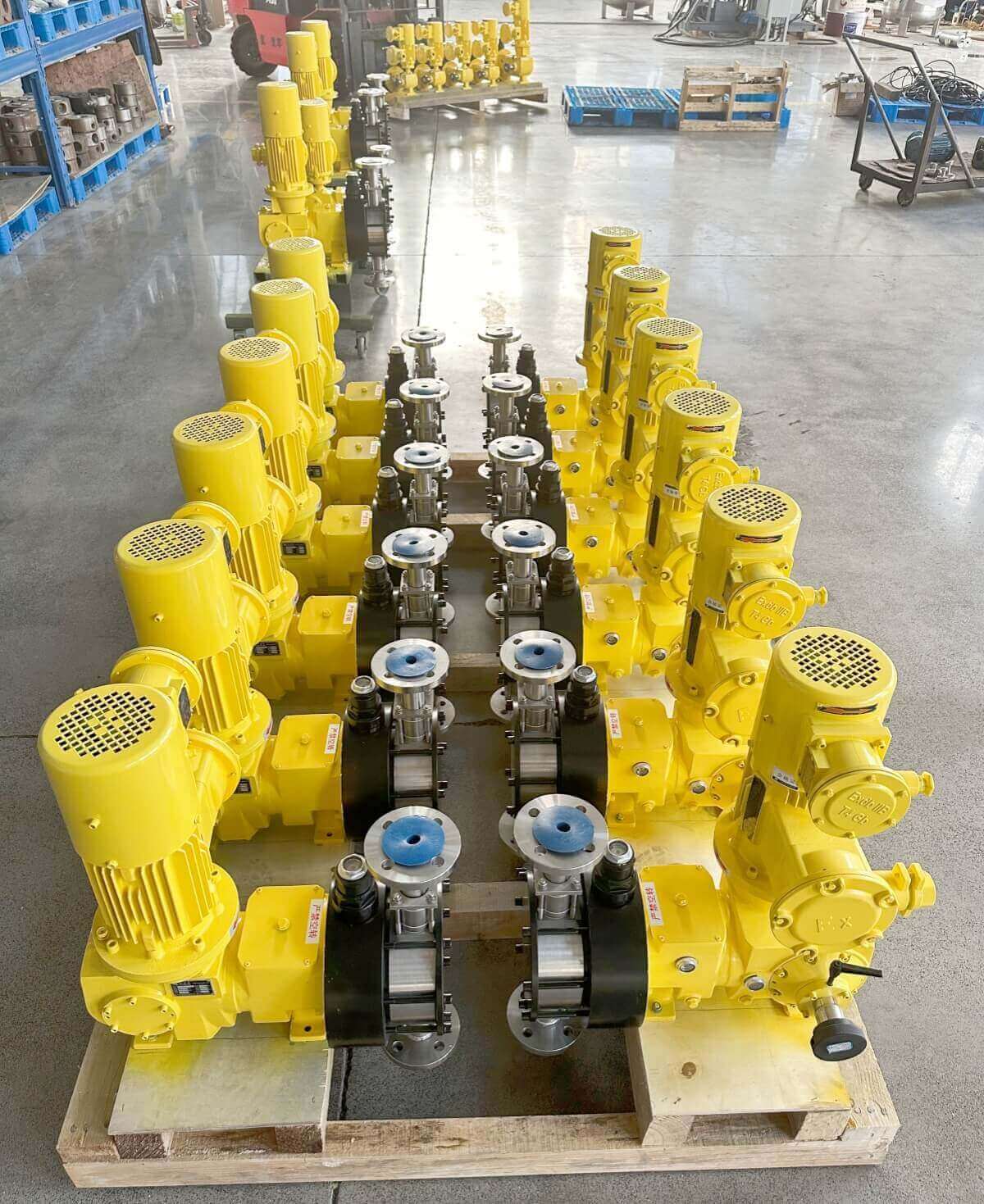

hydraulic diaphragm metering pump for sale

1. It is equipped with an installed stroke adjustor and can be remotely controlled.
2. It is leakage-free, offers low noise, and is easy to operate and maintain.
3. It provides more precise measurement compared to mechanical diaphragm pumps and better sealing compared to plunger pumps.
4. It incorporates an advanced overload protection, limiting displacement, and a three-valve structure for adding oil. This not only ensures sufficient hydraulic oil in the hydraulic chamber but also prevents excess oil and hydraulic shock. This helps to achieve balance on both sides of the diaphragm and extends its service life.
5. The diaphragms are multi-layered. The first layer is made of super tough acid-resistant Teflon, the second layer is EPDM, the third layer is a 3.0mm SS304 support iron core, the fourth layer is reinforced nylon fiber, and the outermost layer is coated with EPDM gum elastic.

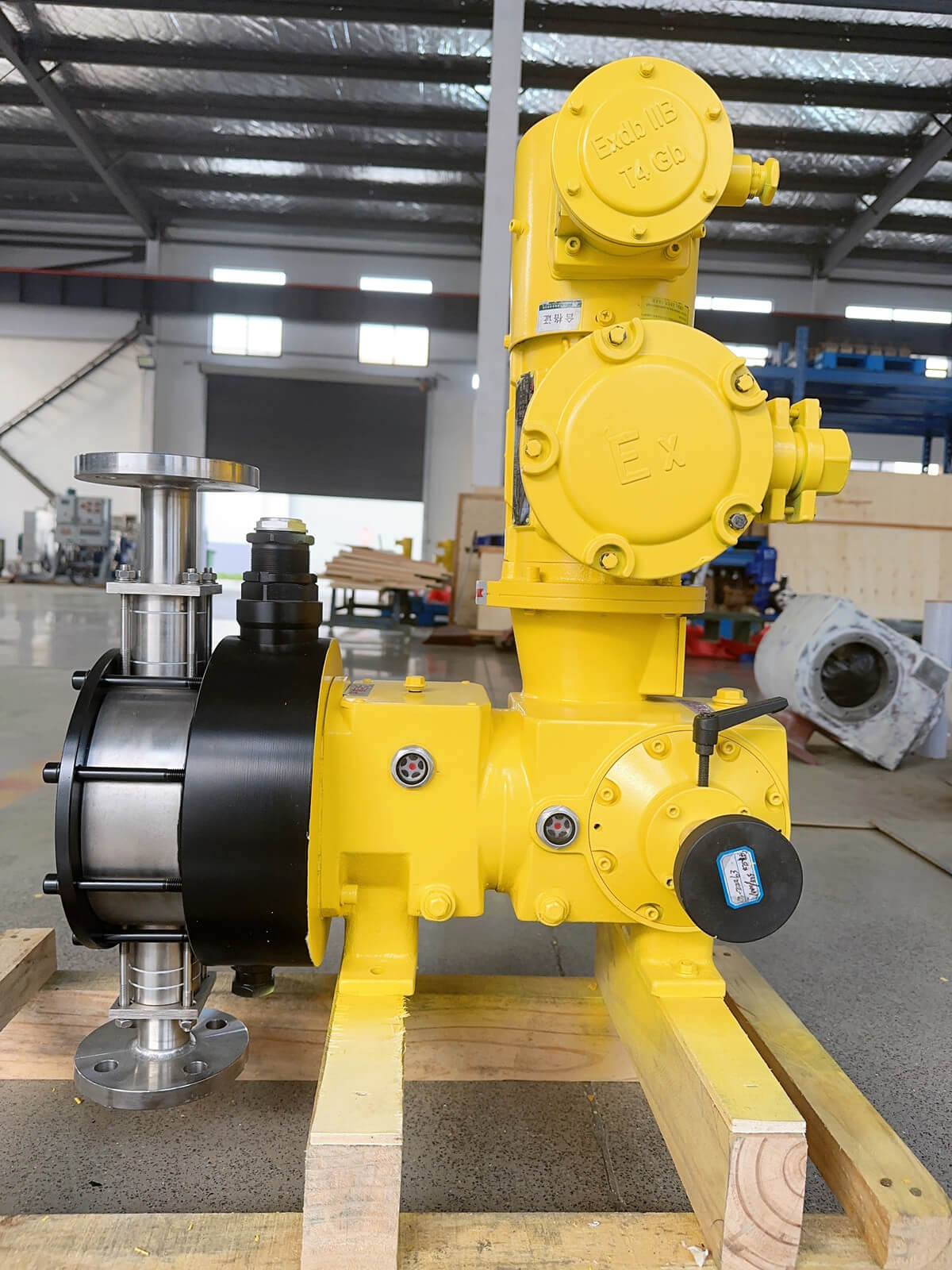

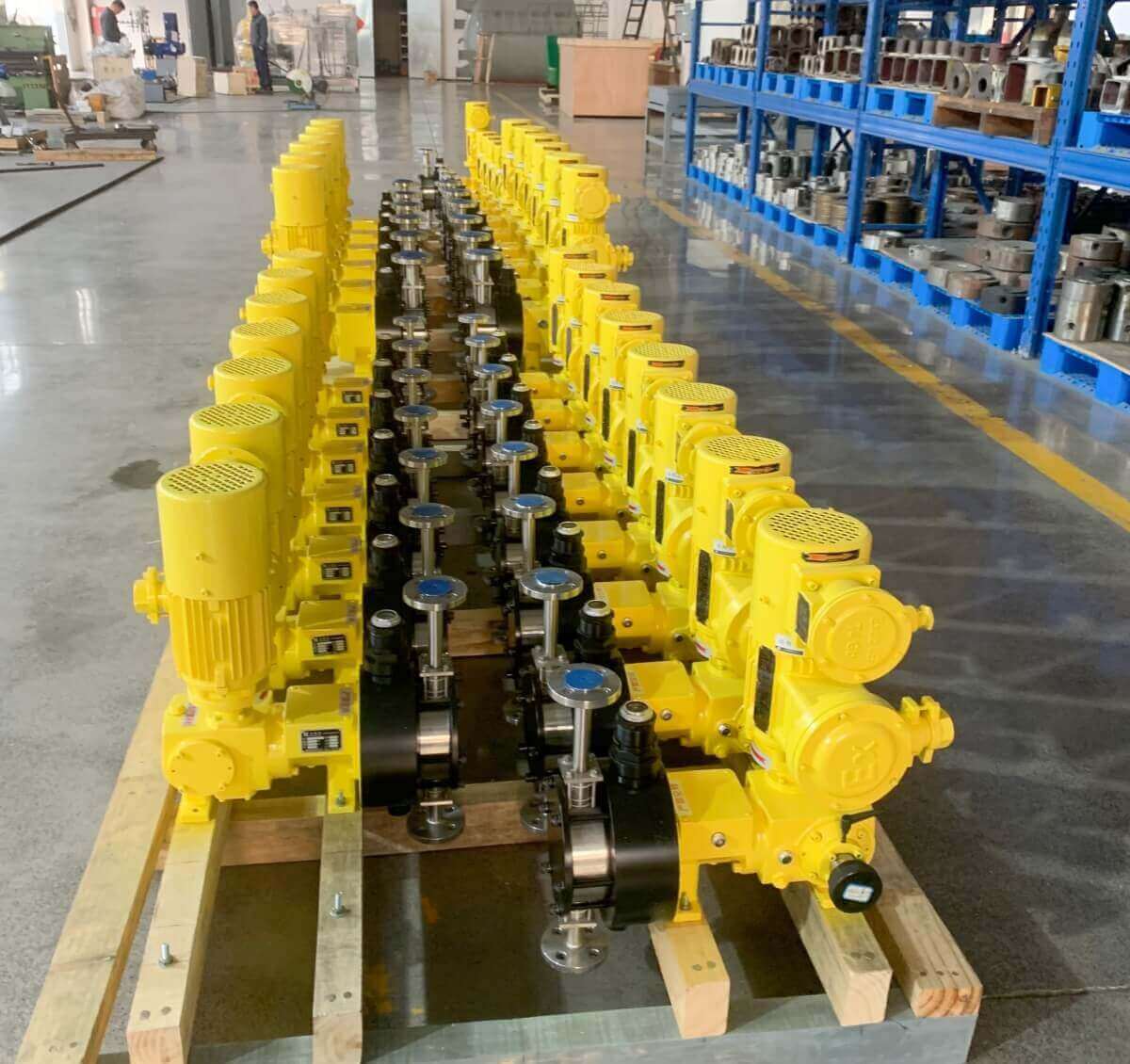

industrial electric chemical metering pump

hydraulic diaphragm metering pump for hydrochloric acid, sulfuric acid

Major performance parameters of GDJ-M Hydraulic diaphragm dosing metering pump:
1. Single-joint maximum flow: 40000 L/h.
2. Maximum discharge pressure: 50 MPa.
3. Steady state accuracy: ±1%.
4. Media Viscosity: 0-800mm²/s.
5. Temperature of transporting media can reach over 450℃.

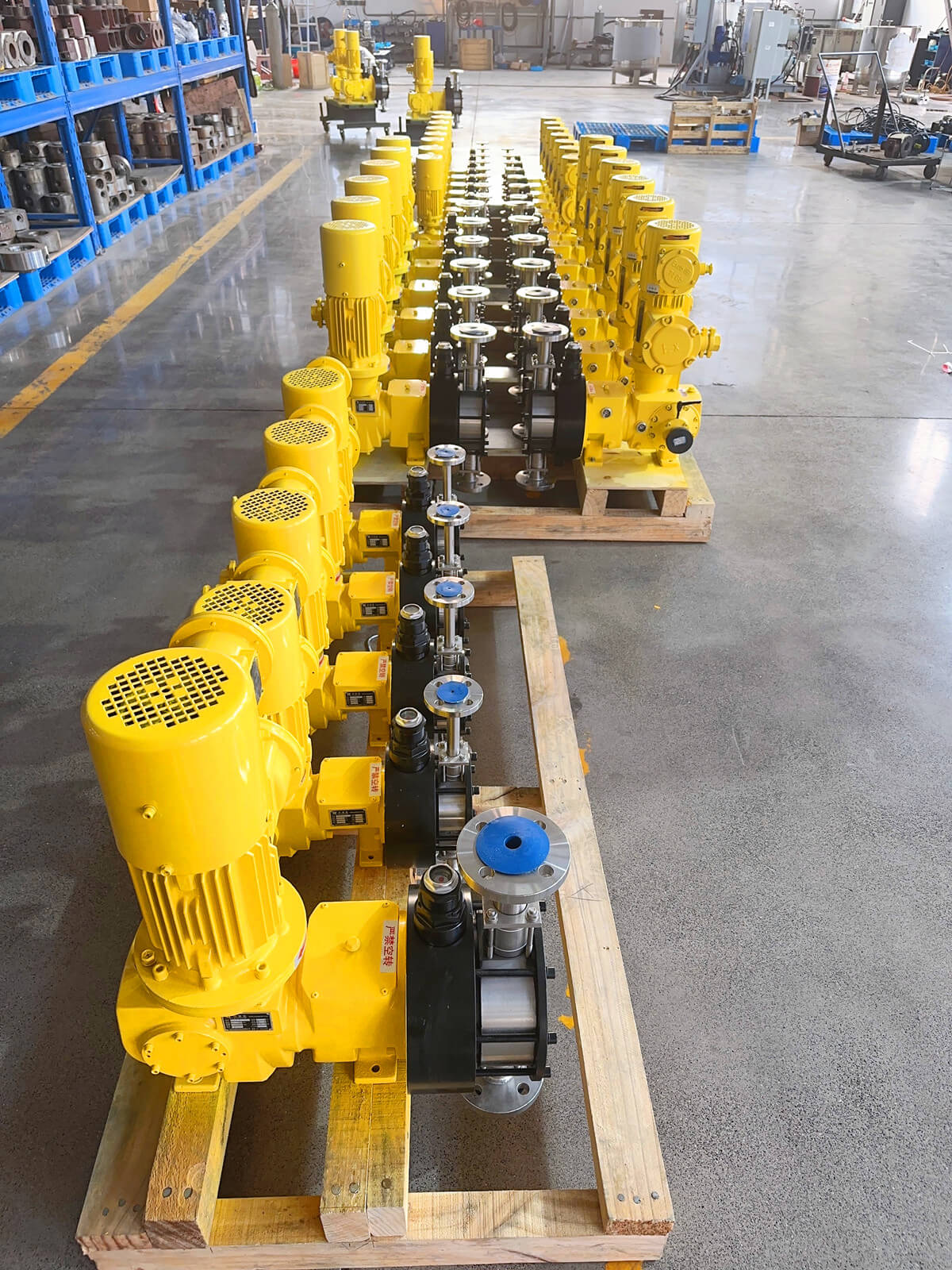

high-performance diaphragm pump

chemical diaphragm dosing pump

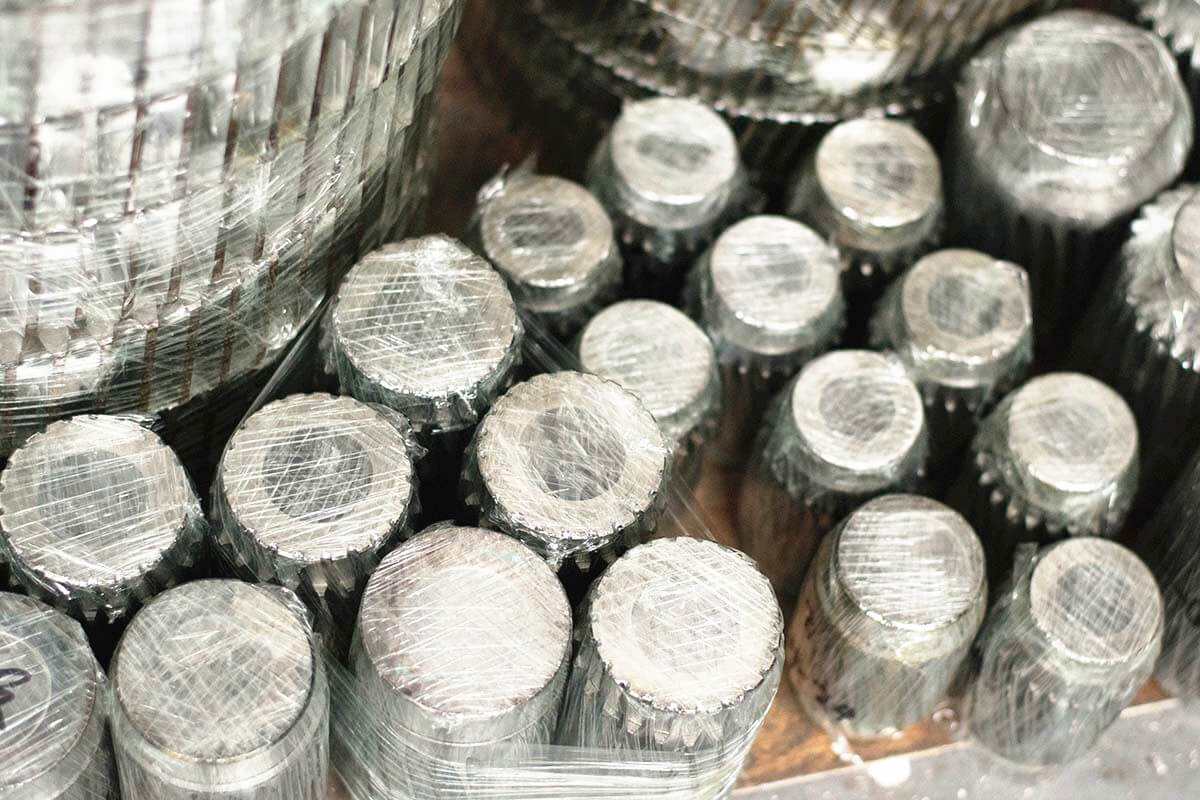

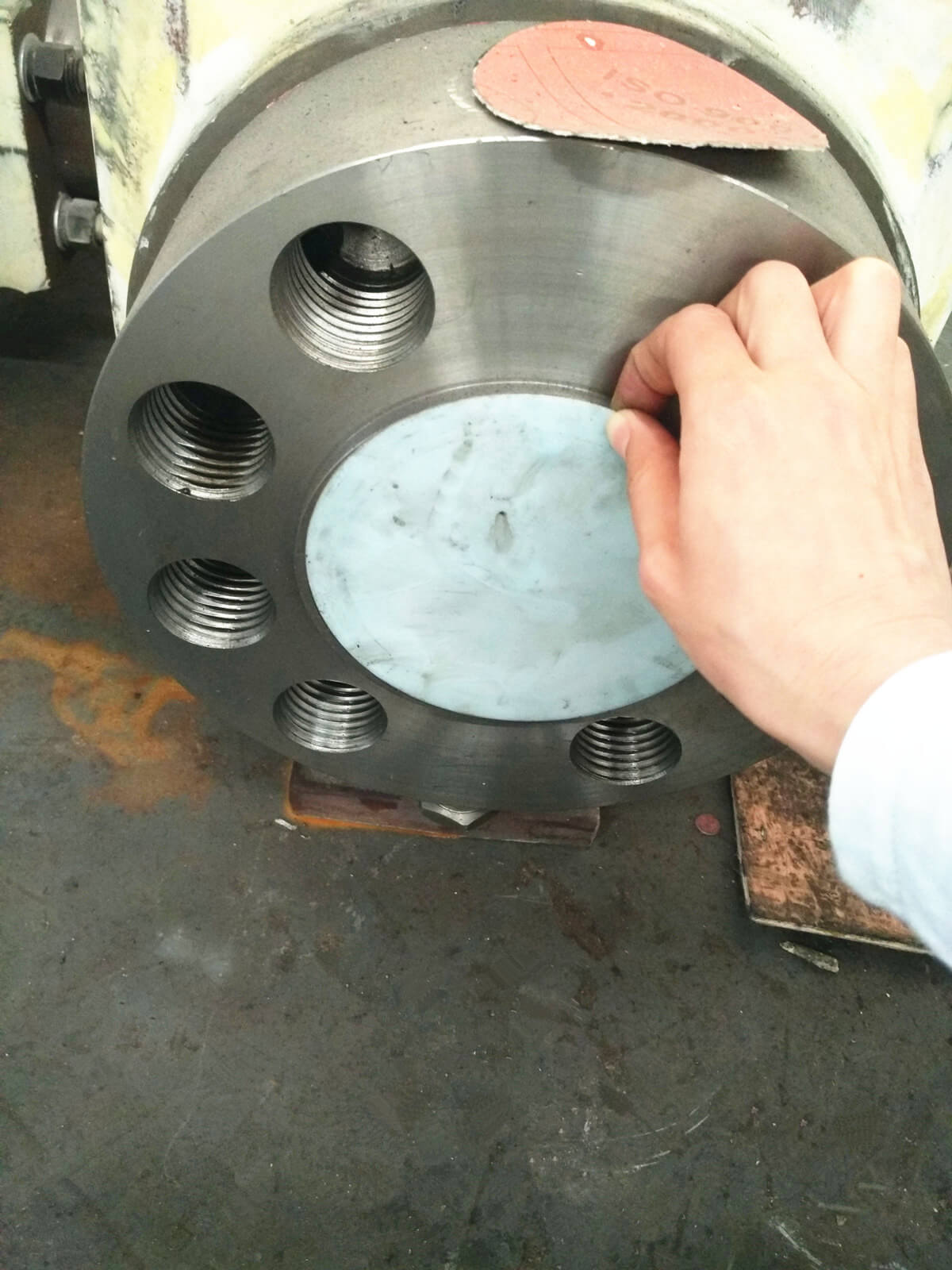

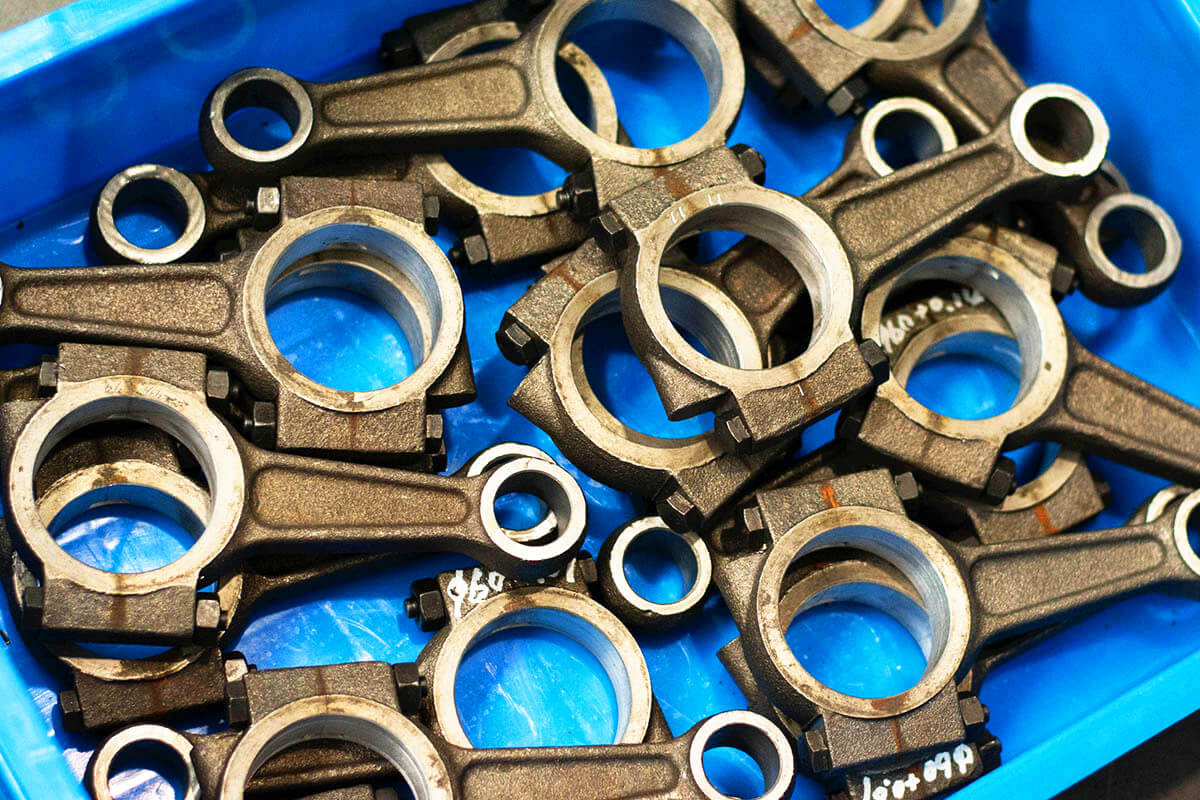

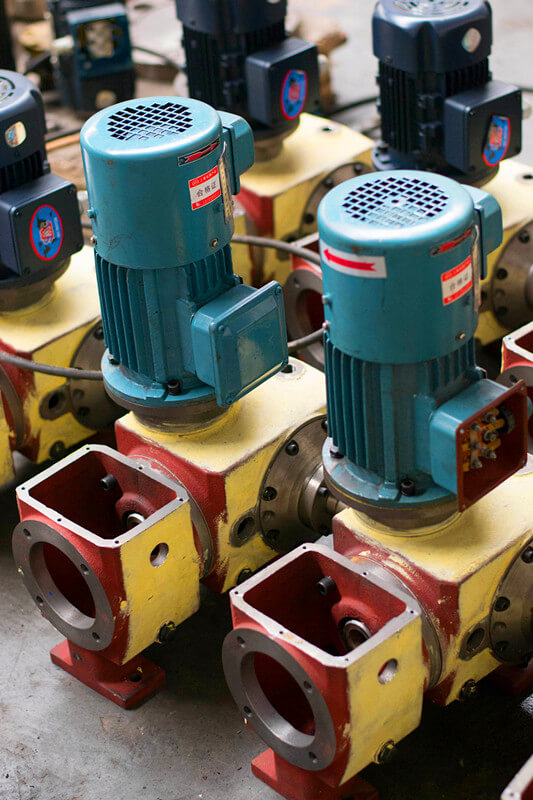

GDJ-M High pressure hydraulic diaphragm dosing metering pump accessories:

alloy hydraulic diaphragm chemical dosing pump accessories

chemical dosing pump diaphragm for water treatment plant accessories

Chinese factory chemical dosing pump diaphragm

high-performance diaphragm pump accessories

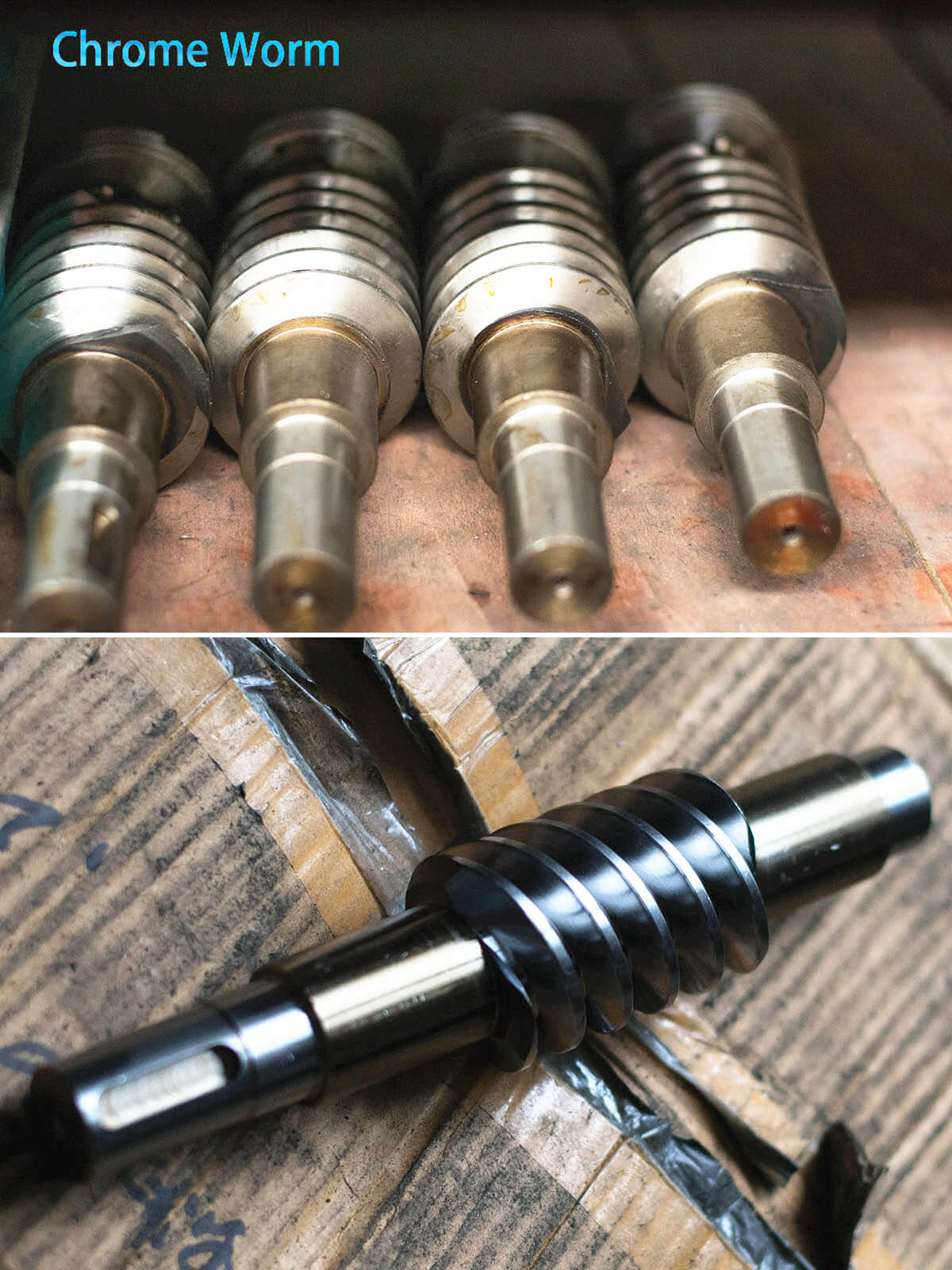

hydraulic diaphragm dosing metering pump chrome worm

hydraulic diaphragm dosing pump accessories

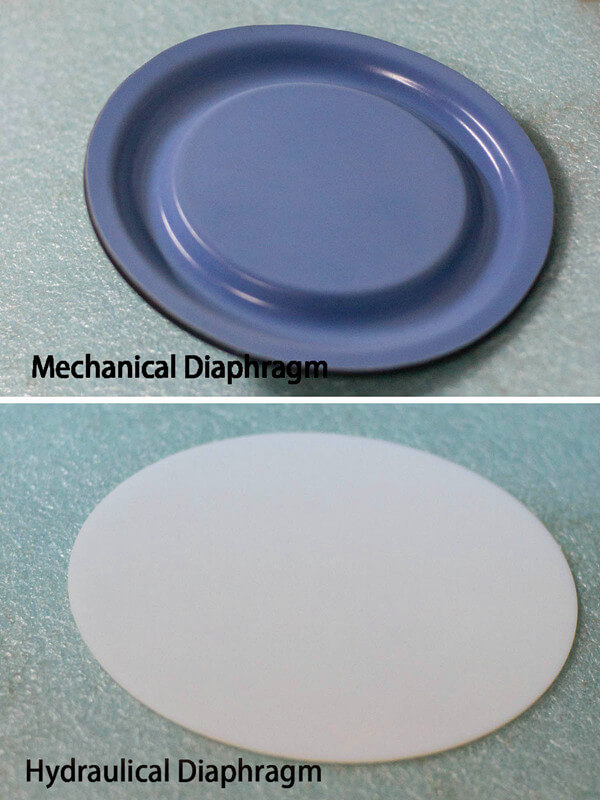

Hydraulical Diaphragm

industrial electric high pressure metering plunger hydraulic pump accessories

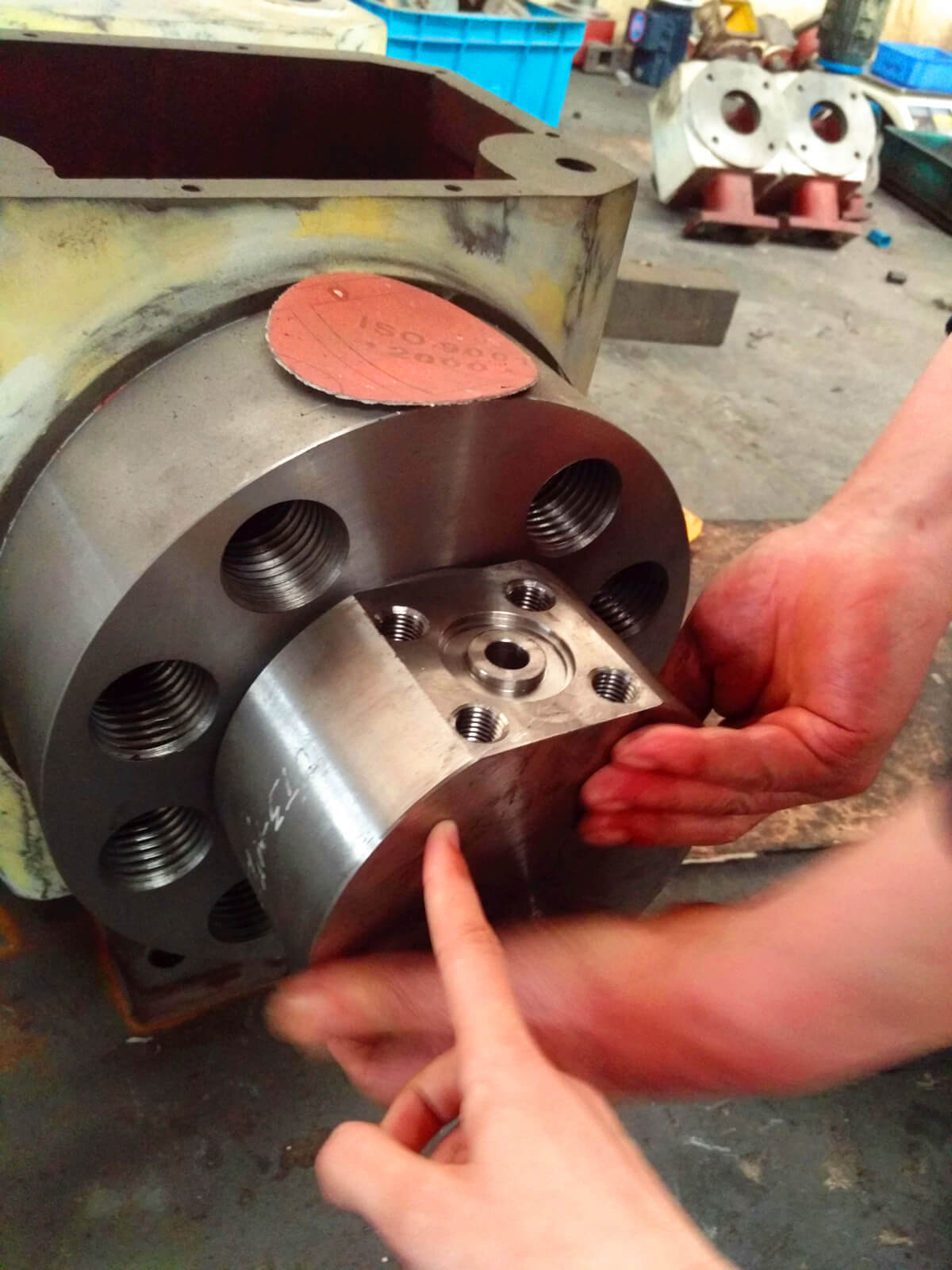

Inlet of high pressure hydraulic diaphragm dosing pump

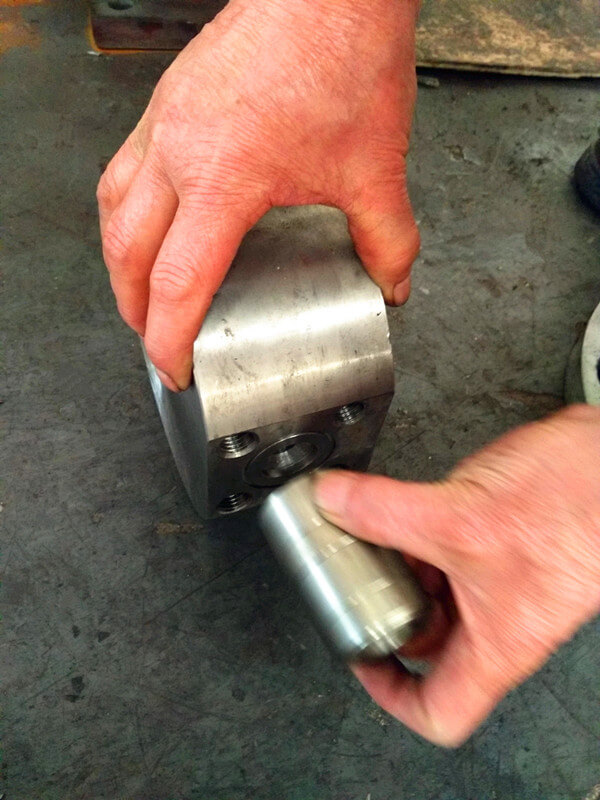

Inlet of hydraulic diaphragm dosing metering pump

large flow hydraulic diaphragm metering pump with high pressure accessories

metering dosing pump diaphragm for water treatment plant accessories

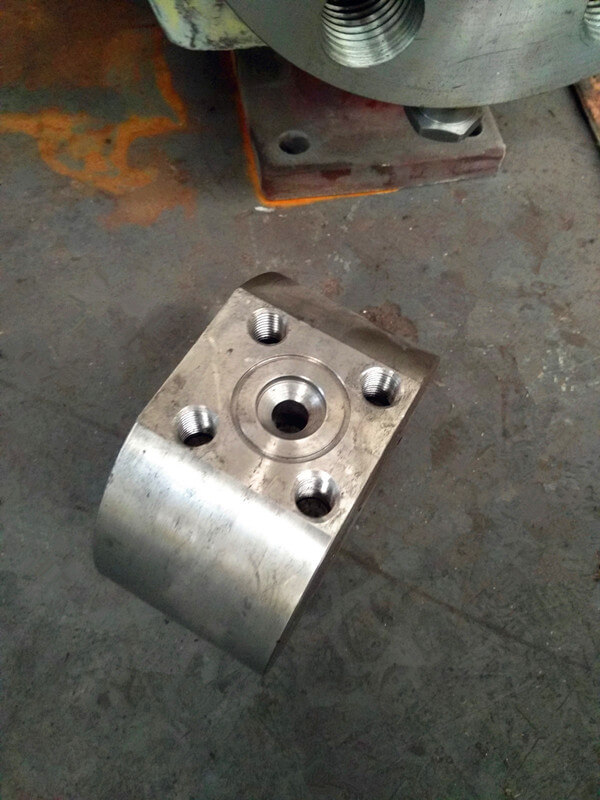

Outlet of hydraulic diaphragm dosing pump

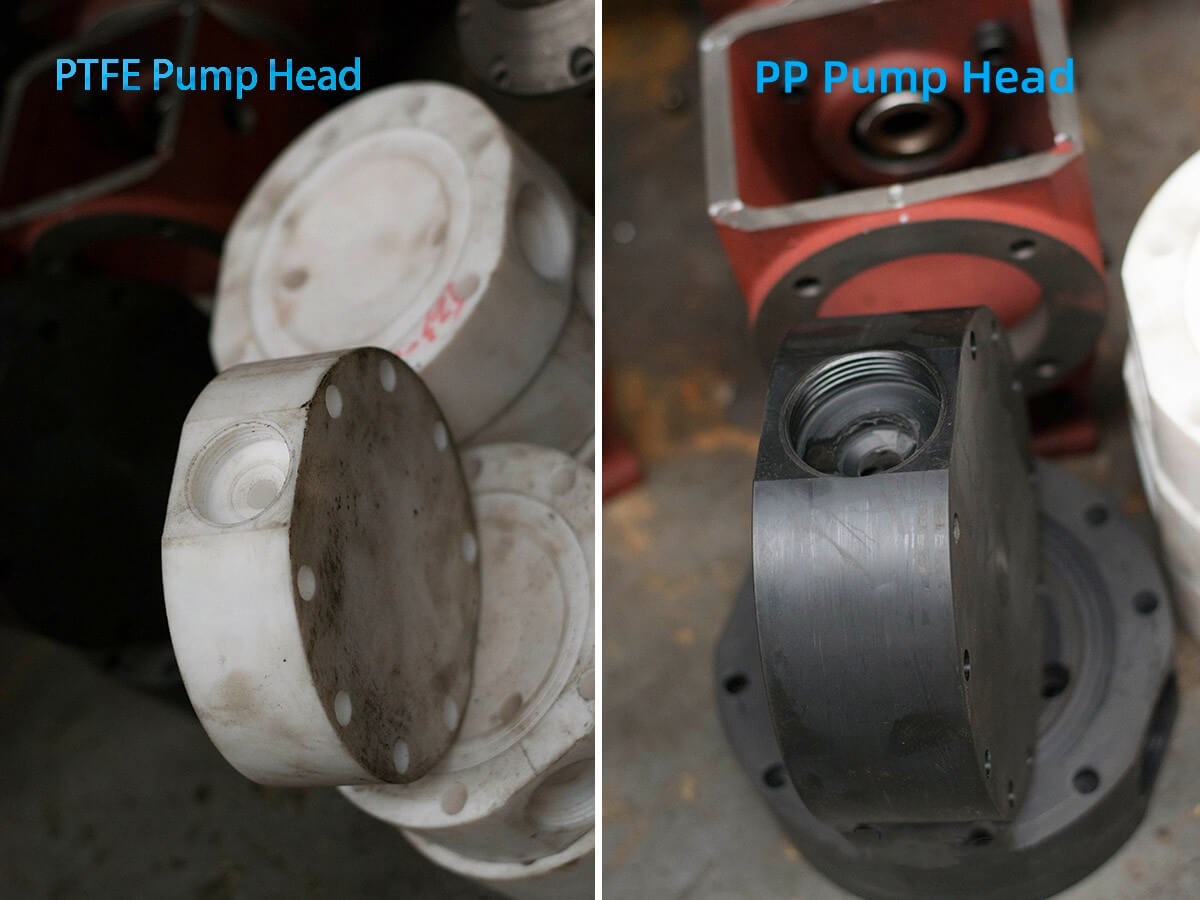

PTFE Pump Head of high pressure hydraulic dosing metering pump
