GCP15H-D Squeeze concrete hose pump is a squeeze hose pump with diesel engine drive, also it is with a 350L capacity hopper, the output of squeeze hose pump is 15m3/h. GCP15H-D Concrete squeeze hose pump is designed on the basis of an extrusion squeeze hose pump, and the concrete hose pump uses high-pressure, wear-resistant extrusion pipes. It is more widely used for pumping foam concrete, lightweight formwork concrete, mortar and refractory materials.

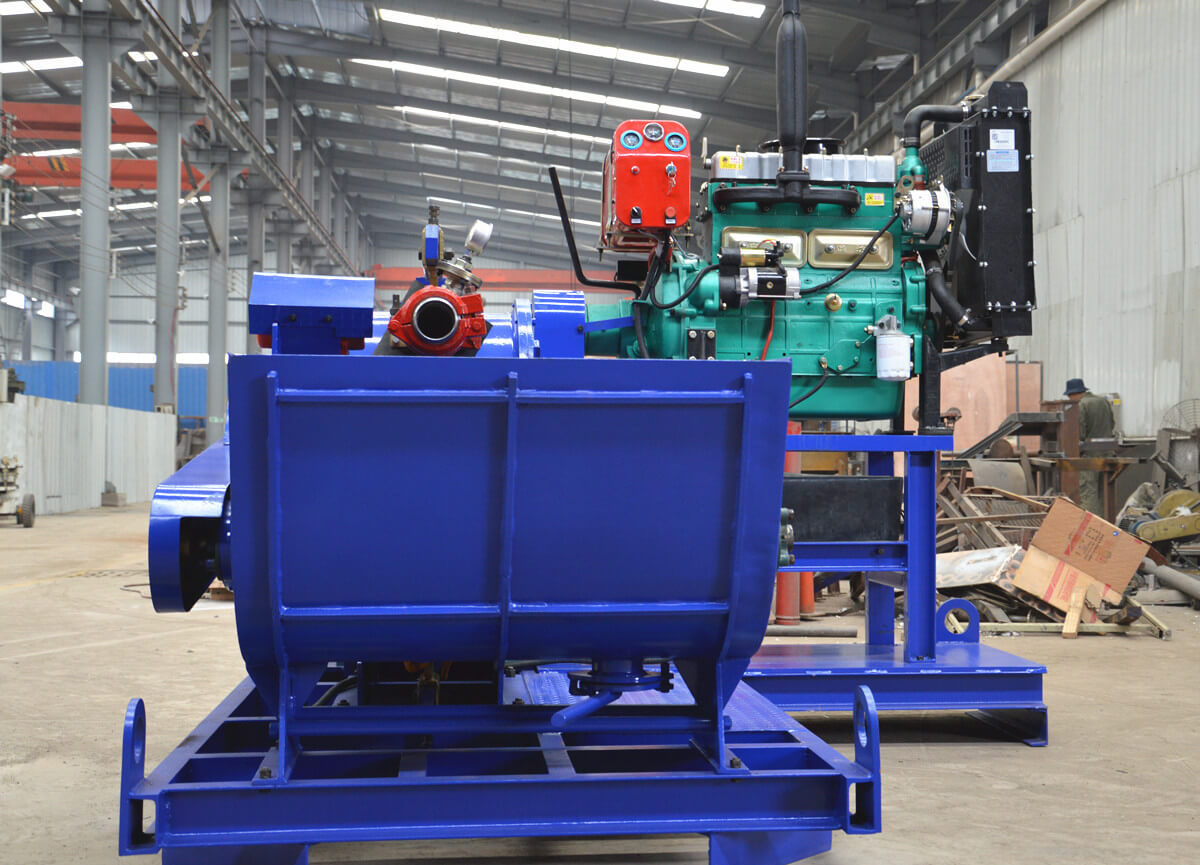

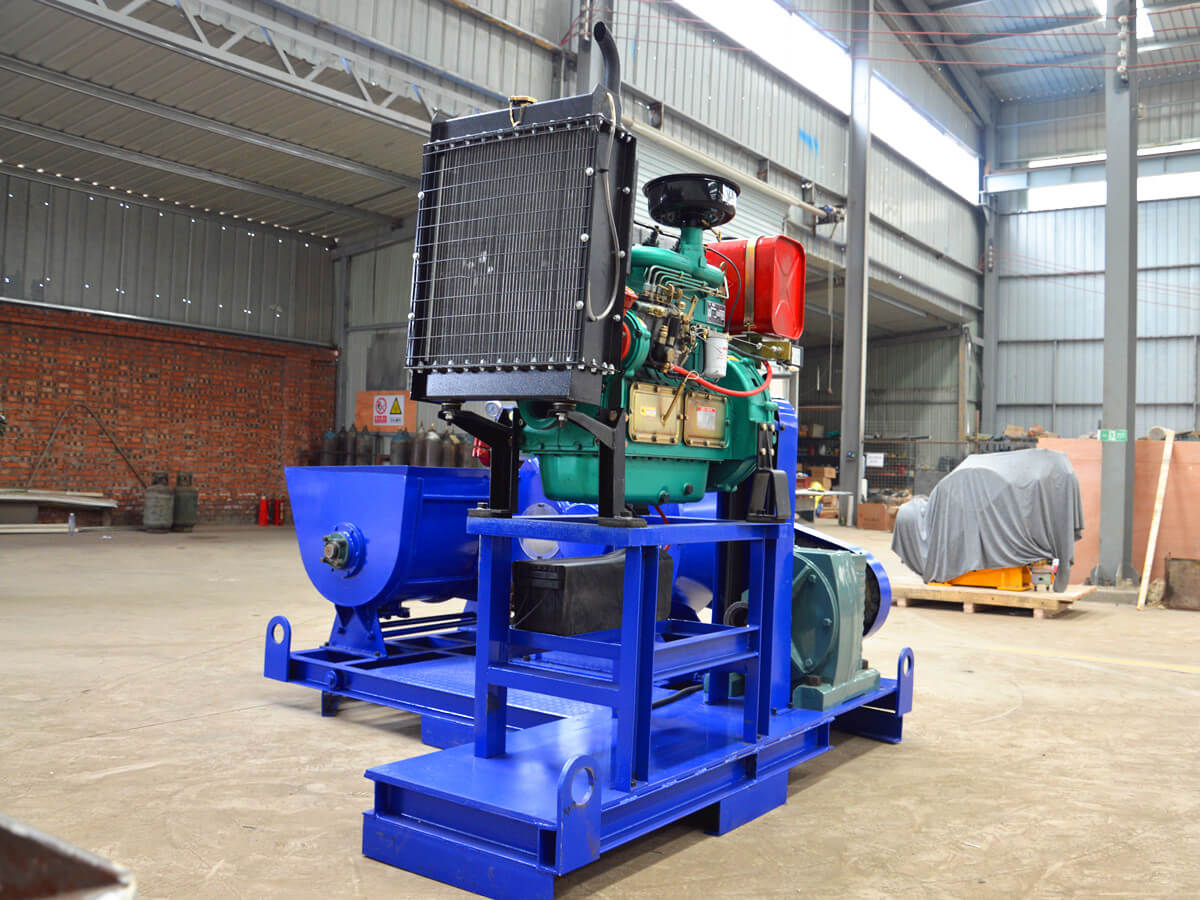

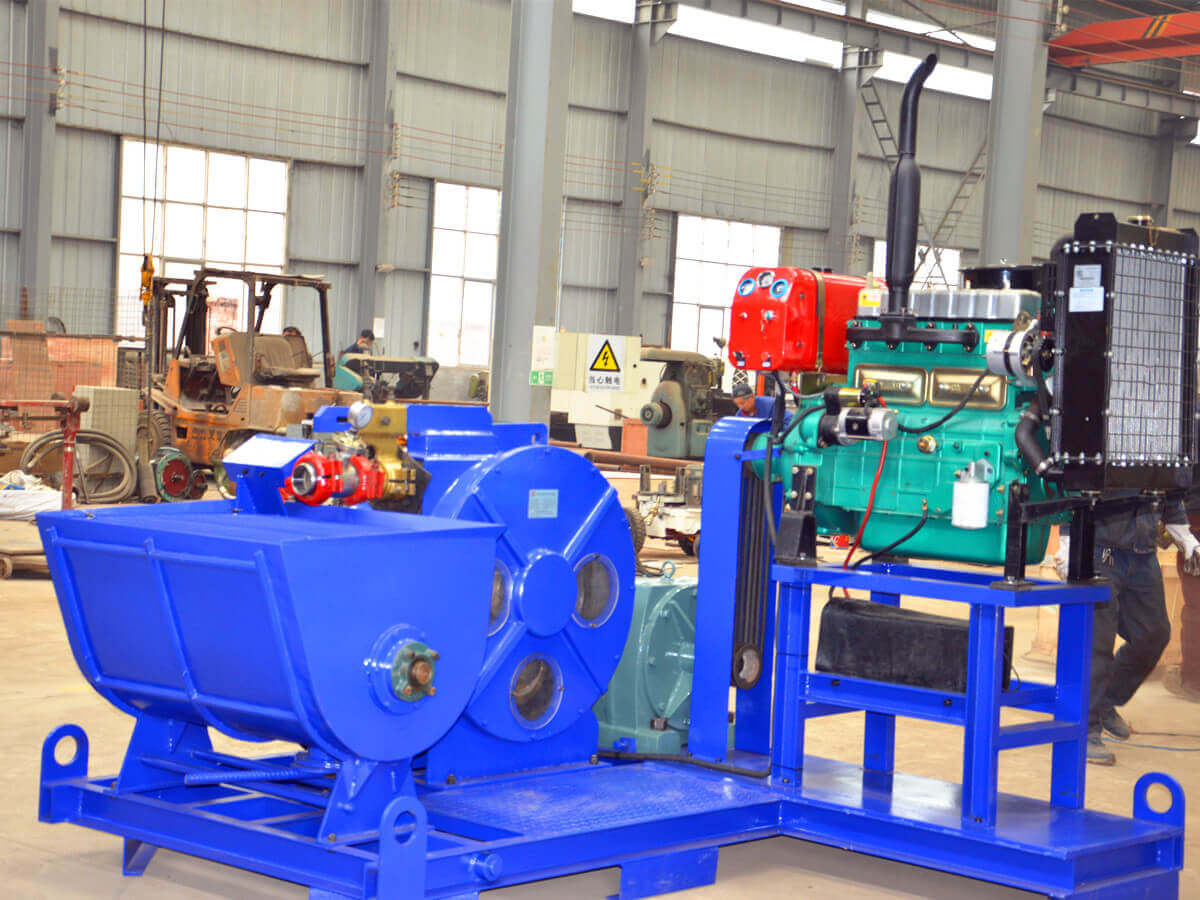

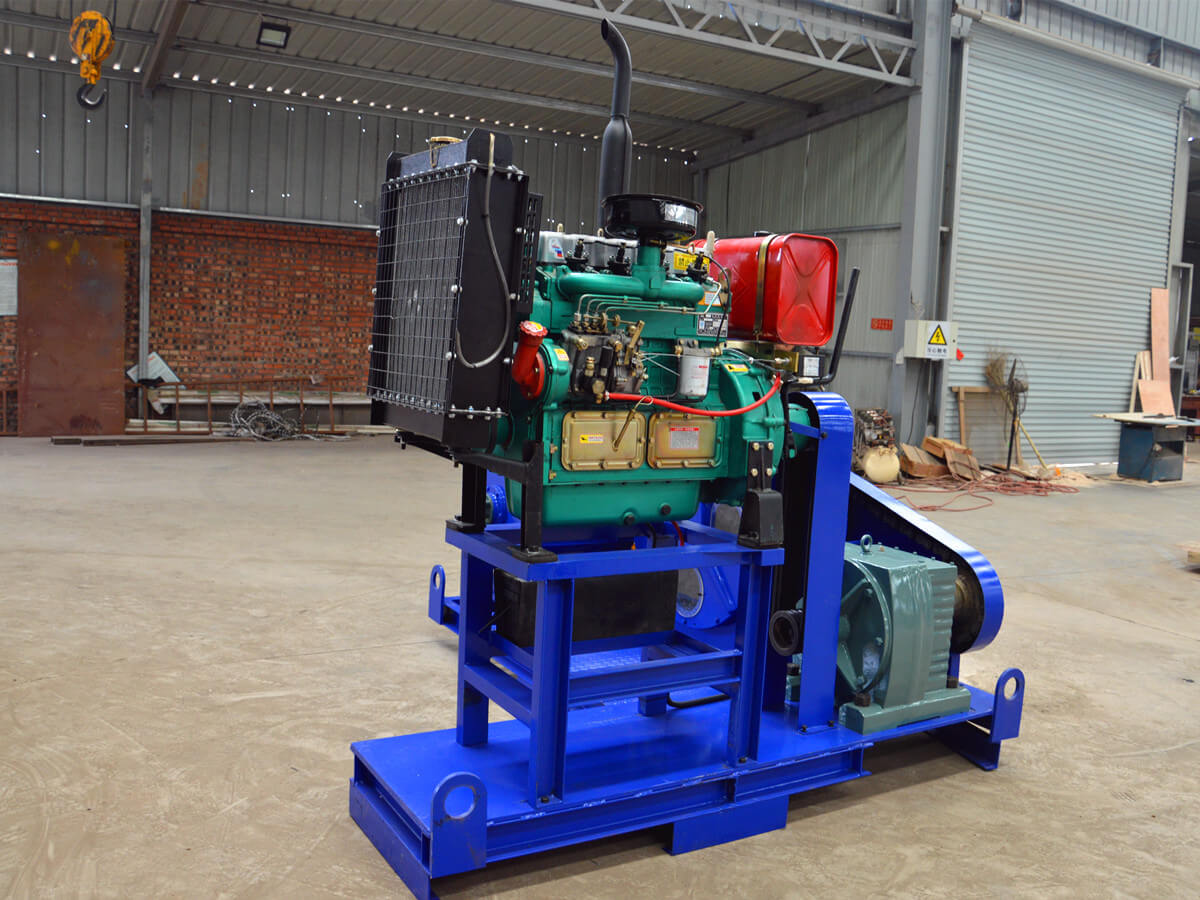

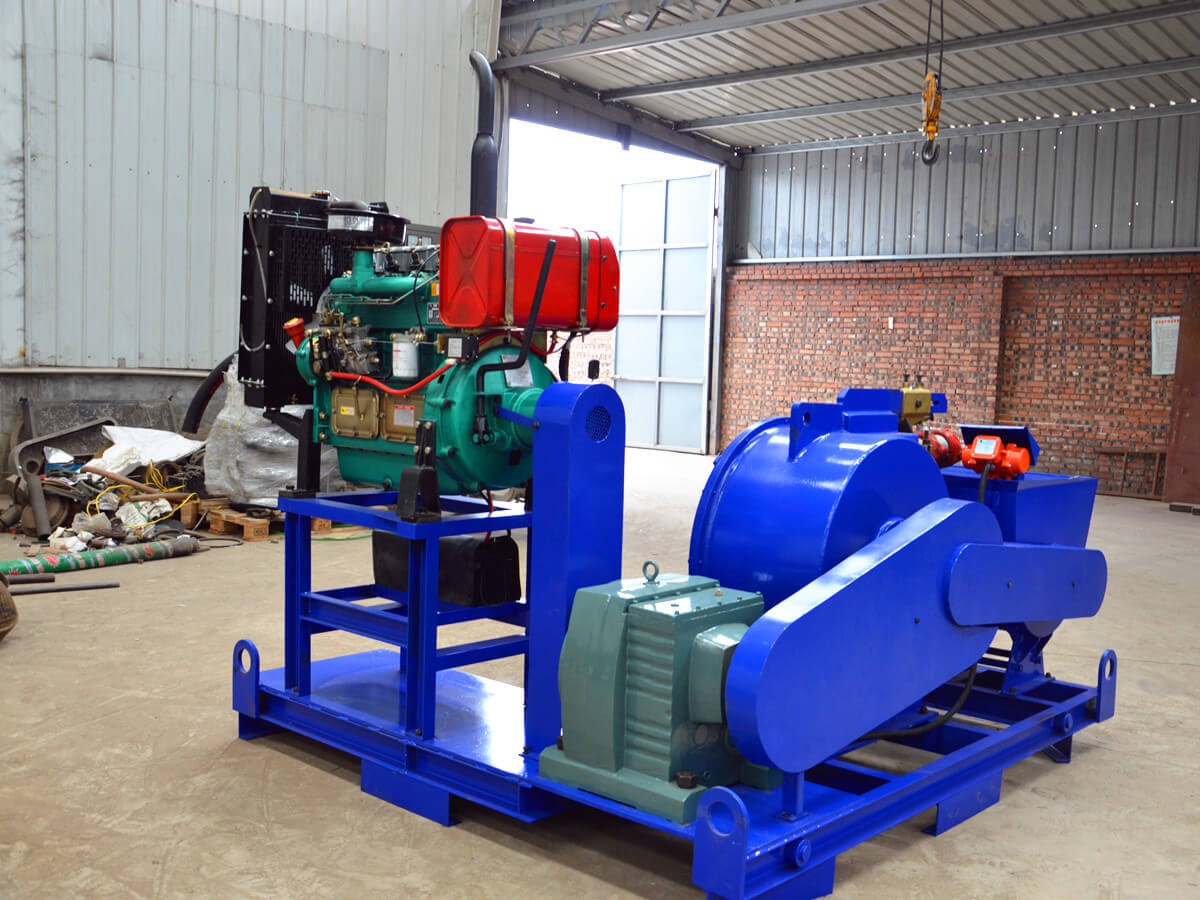

Factory real product pictures:

Shipment of squeeze hose concrete pump:

GCP15H-D Squeeze concrete pump with hopper is widely used for pumping foam concrete, lightweight form concrete, mortar and refractory materials. The hose type concrete pump also could be used for spraying concrete or refractory materials.

Features of GCP15H-D Squeeze concrete hose pump:

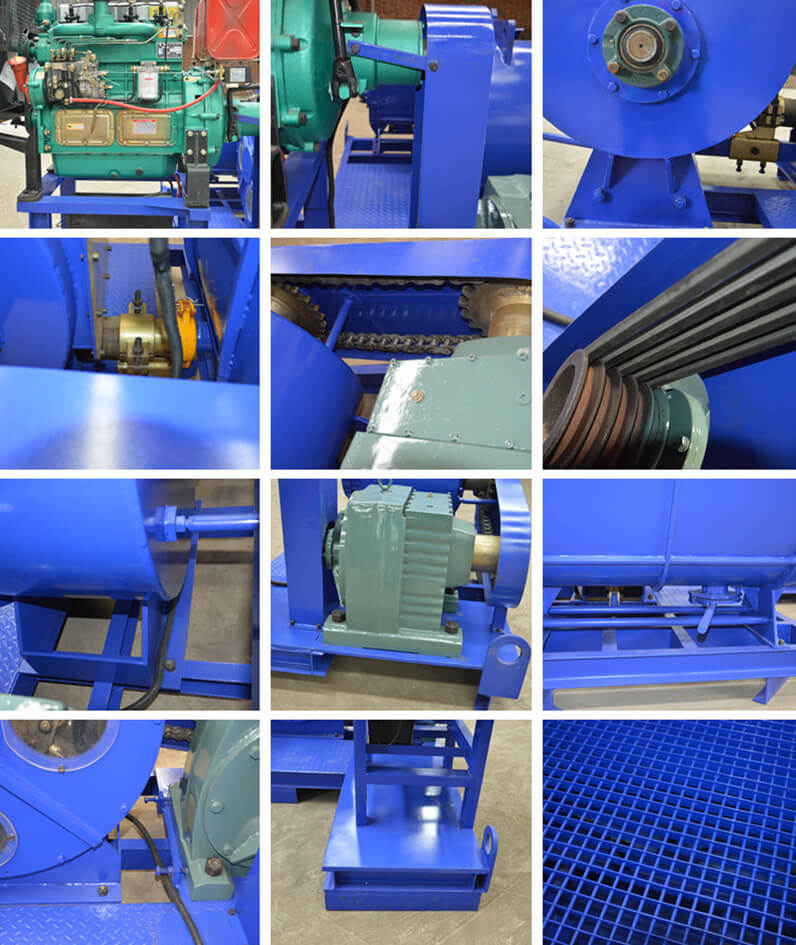

High-quality Squeeze hose pump for pumping concrete detailed images:

GCP15H-D Hose Type Concrete Pump

Description	parameter
Squeeze Pump	GH76-610
Hose ID	75mm (Trelleborg Squeeze hose)
Speed	37rpm
Output	15m3/h
Pressure	2.5Mpa
Max. Aggregate size	<15mm
Concrete Slump	15-23cm
Hopper Capacity	350L
Stirring speed	37rpm
Diesel engine power	30KW
Overall Dimension	2400x2100x1800mm
Weight	2300kg
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar

GCP15H-E Hose Type Concrete Pump

Description	parameter
Squeeze Pump	GH76-610
Hose ID	75mm (Trelleborg Squeeze hose)
Speed	37rpm
Output	15m3/h
Pressure	2.5Mpa
Max. Aggregate size	<15mm
Concrete Slump	15-23cm
Hopper Capacity	350L
Stirring speed	37rpm
Reducer Model	NR137
Voltage	22KW  50HZ  IP55  3~380V
Overall Dimension	2400x1300x1200mm
Weight	1560kg
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar

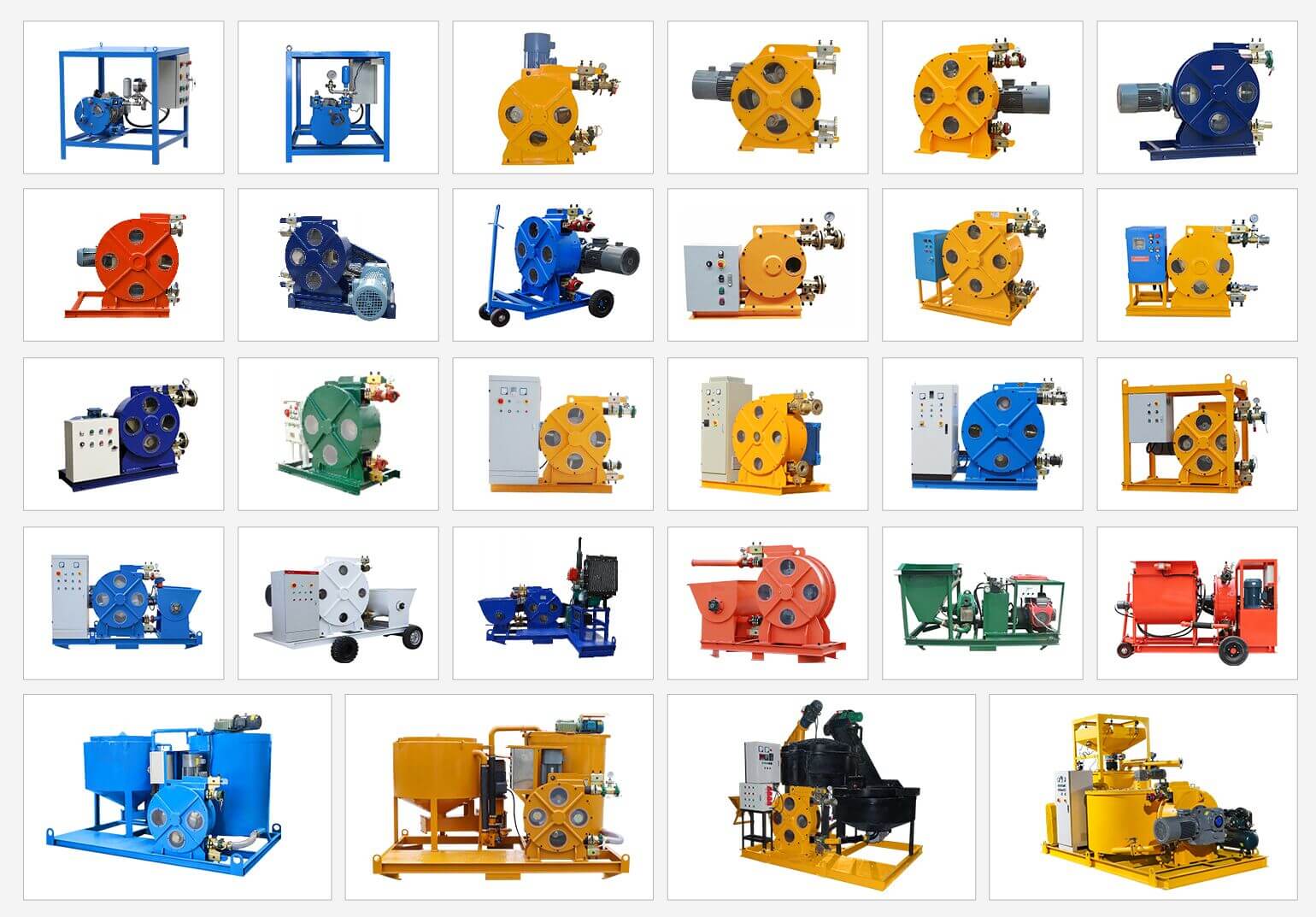

More peristaltic hose pumps available:
