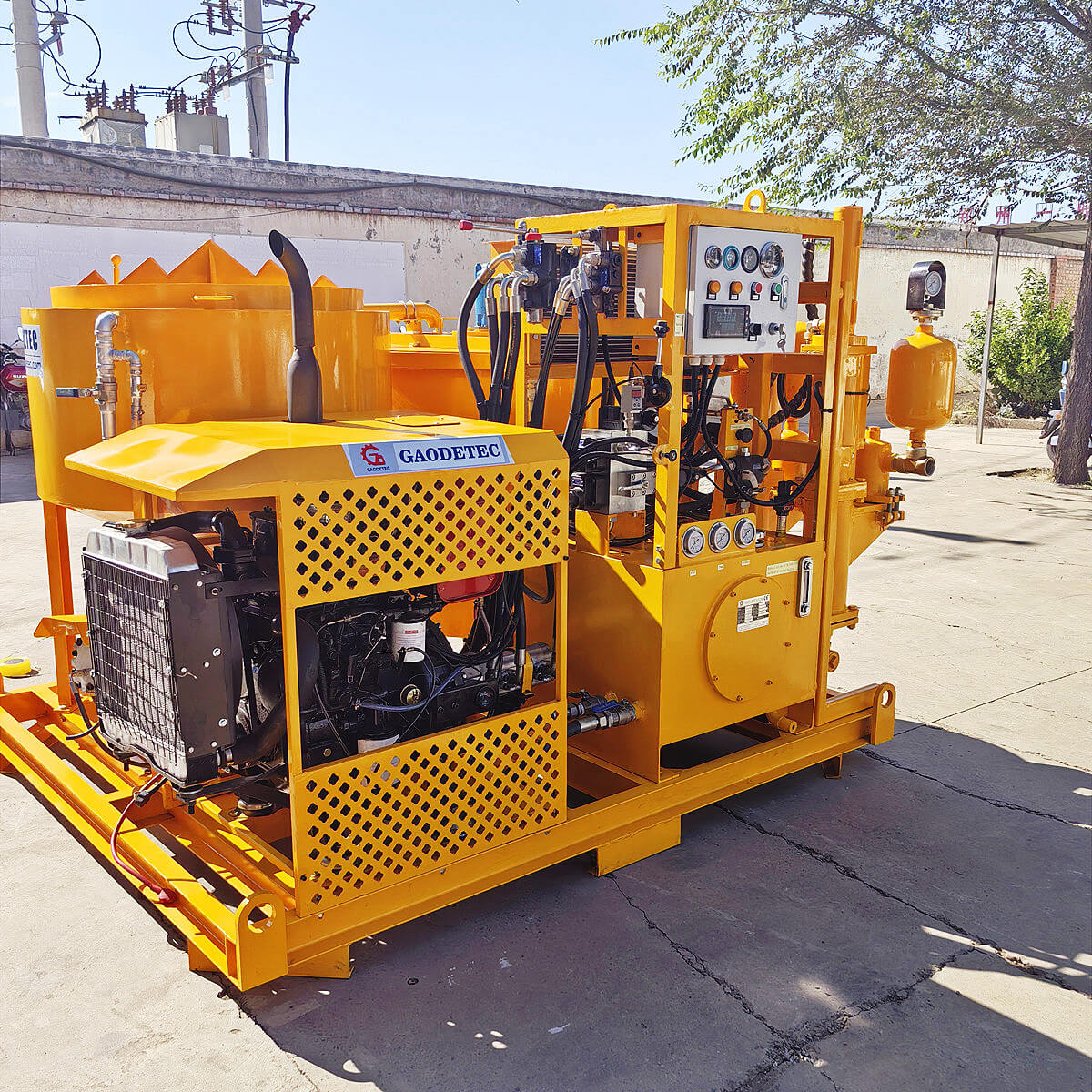

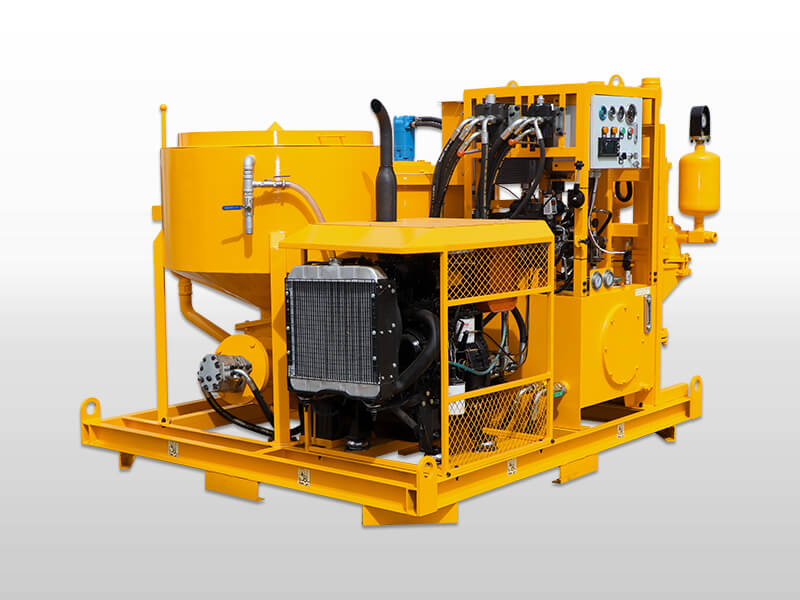

GGP400/700/80DPL-D Diesel engine grout inject station

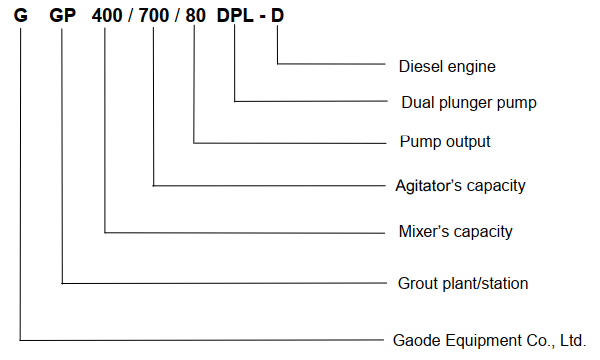

  • Diesel engine grout inject station model: GGP400/700/80DPL-D
  • Dimensions: 2400*2150*1700mm
  • Weight: 1820kg
  • Mixer capacity: 400L
  • Agitator Capacity: 700L
  • Pump(vertical compact hydraulic grout pump) Output/pressure: 80L/min@5Mpa

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
download:
Share with:

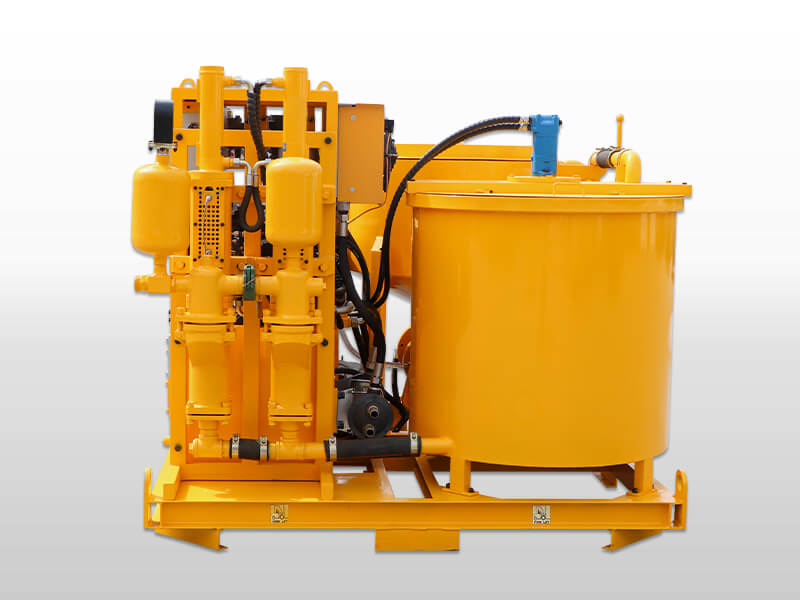

  • grout inject station for sale

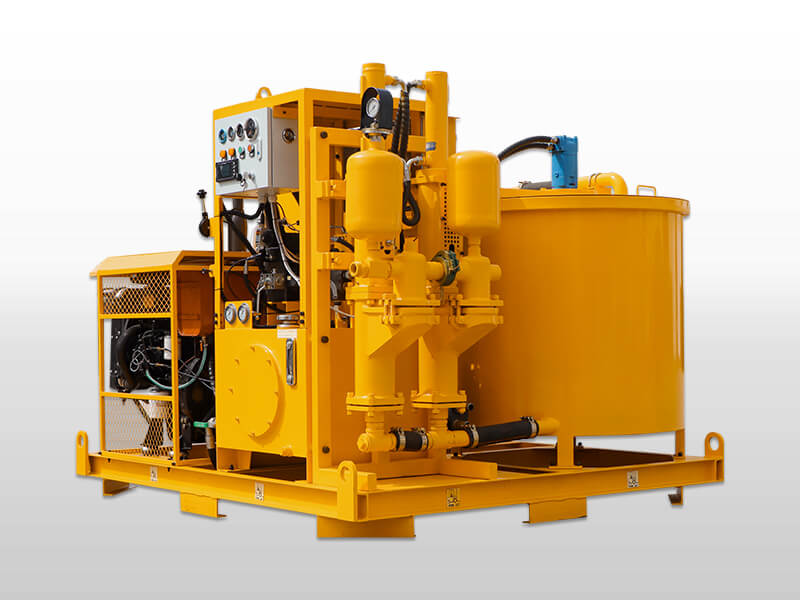

  • grout inject station

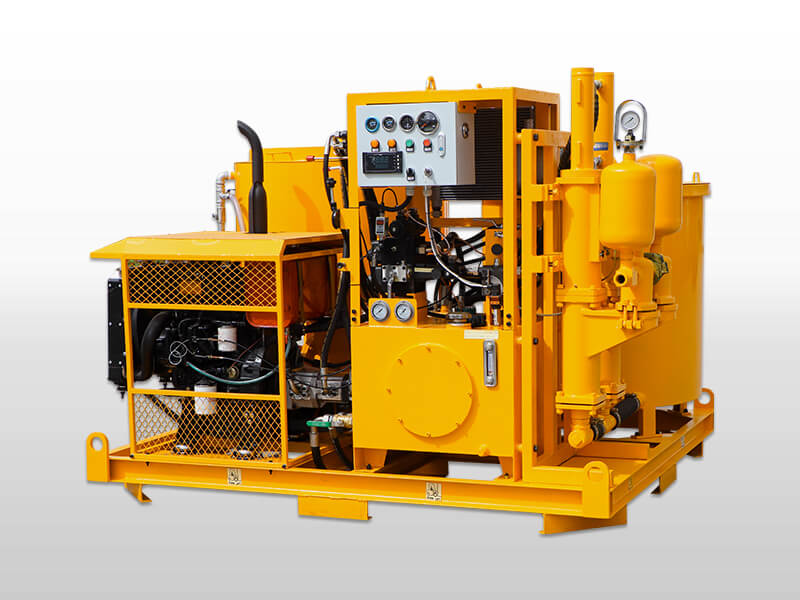

  • diesel engine inject station
  • injection station
  • diesel engine grout inject station
■ Description

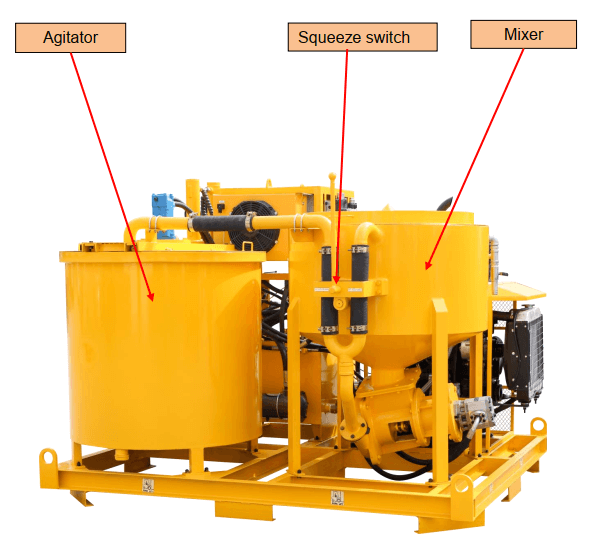

GGP400/700/80DPL-D diesel engine grout inject station is a combination of high-speed colloidal grout mixer, agitator and vertical type double plunger grout pump in one base frame.

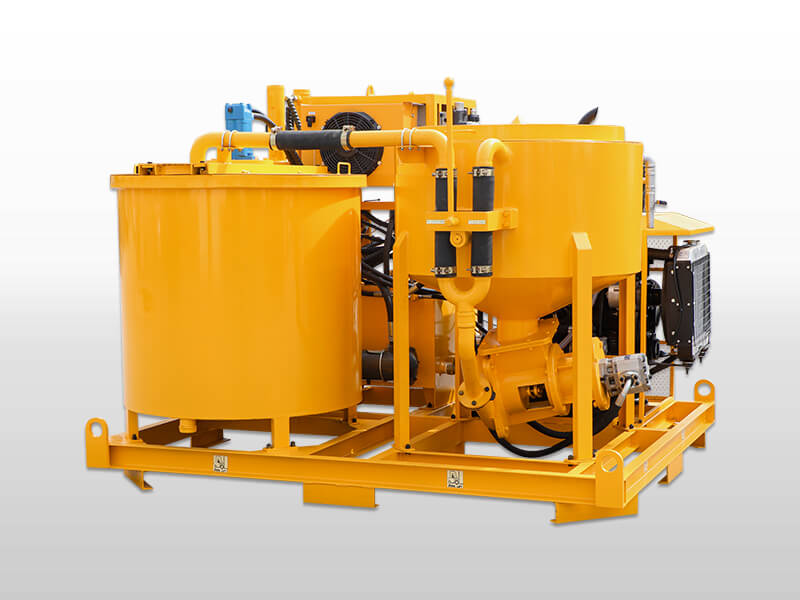

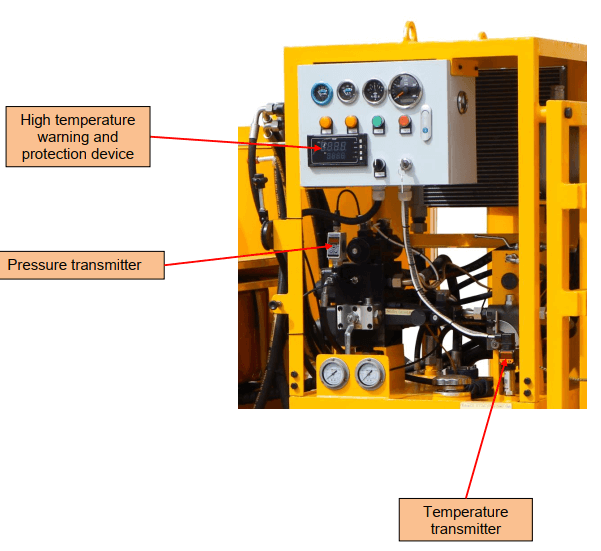

inject station details

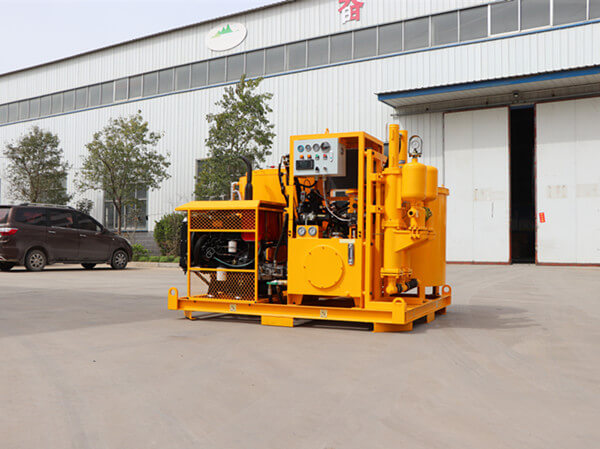

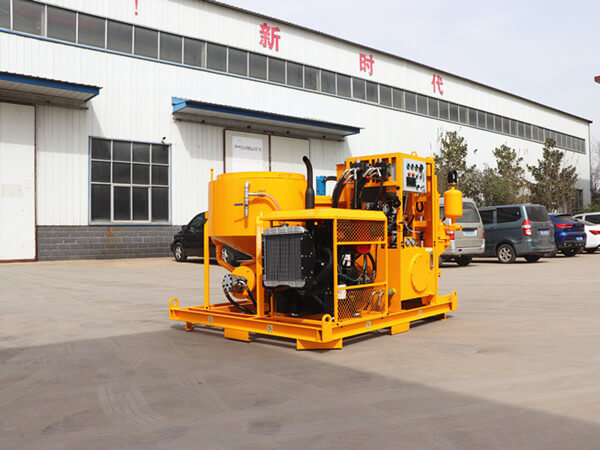

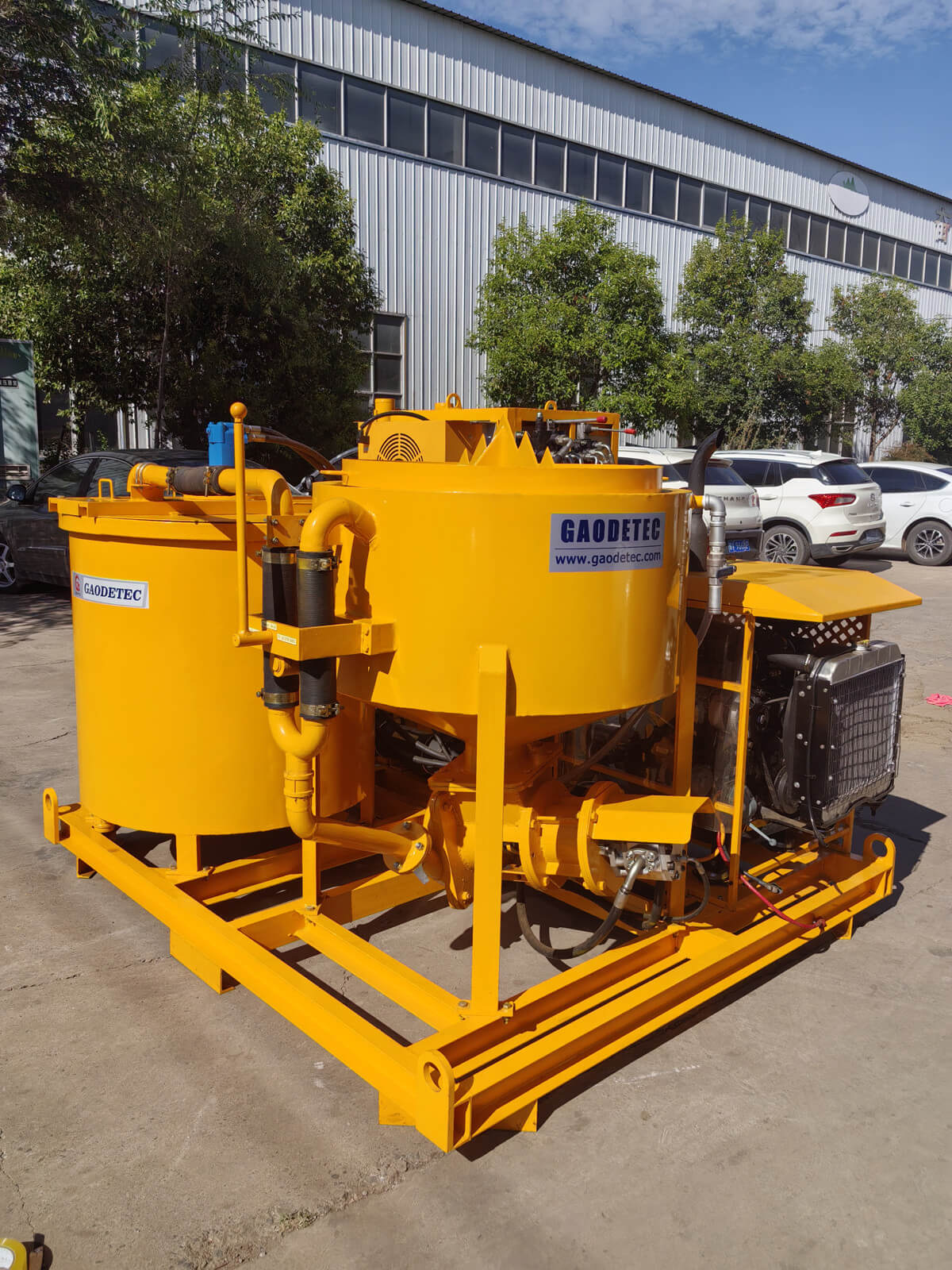

grout station plant


Driving mode of GGP400/700/80DPL-D diesel engine grout inject station is diesel motor, the volume of the mixer is 400L, the volume of the agitator is 700L, and the output and pressure of the grouting pump is 80L/min@5Mpa.

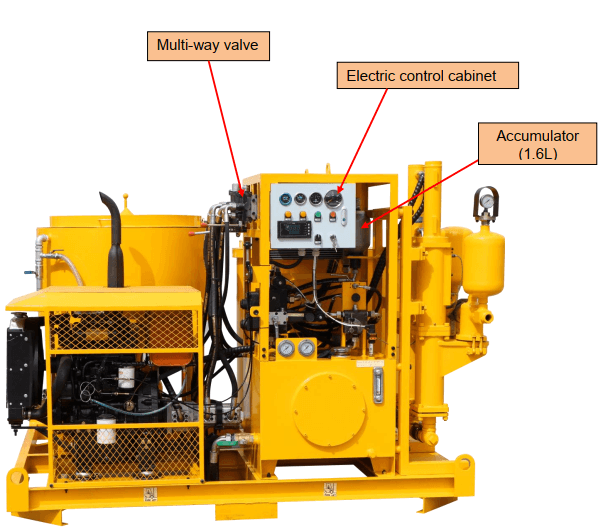

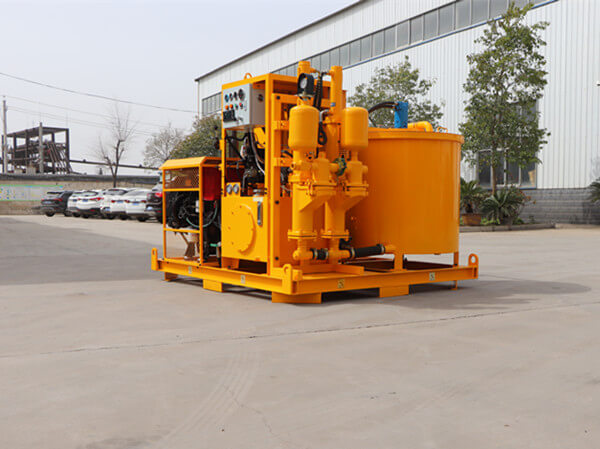

grout station details

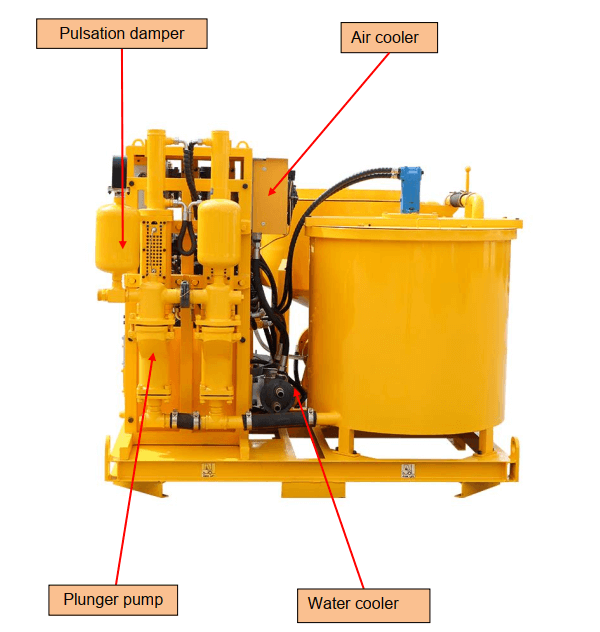

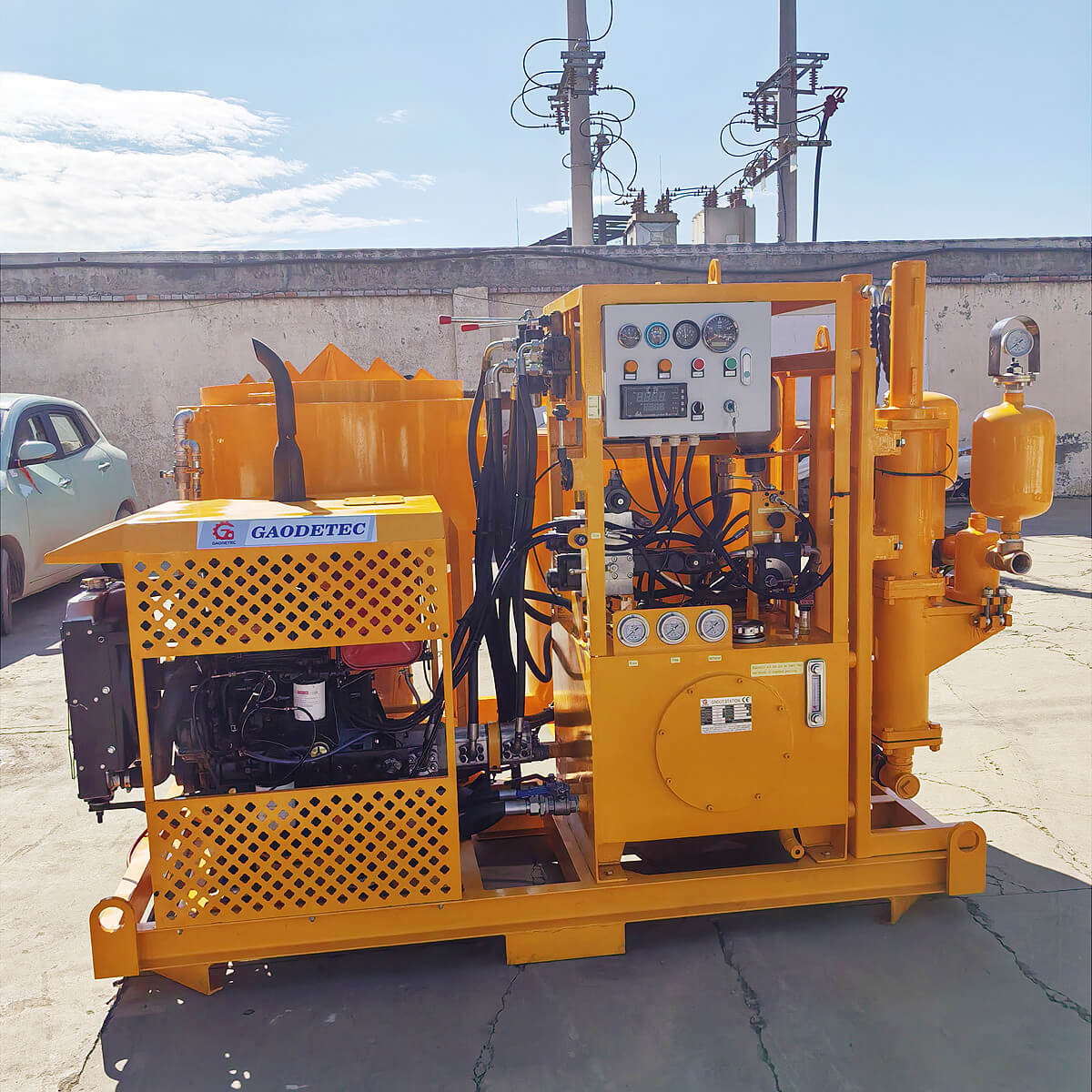

grout injection station details


High speed vortex colloidal grout mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into homogeneous slurry. Then the mixed slurry was delivered to the agitator. Vertical type double plunger grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. What's more, the double plunger pump together with the pressure-holding system is used, so that the pump automatically stops and maintains the very little pressure impulse (1-4bar with 50bar grouting pressure) to ensure that the grouting hole is completely filled. The injection grouting plant is hydraulic drive. You can control flow rate and output of this diesel engine grout inject station.

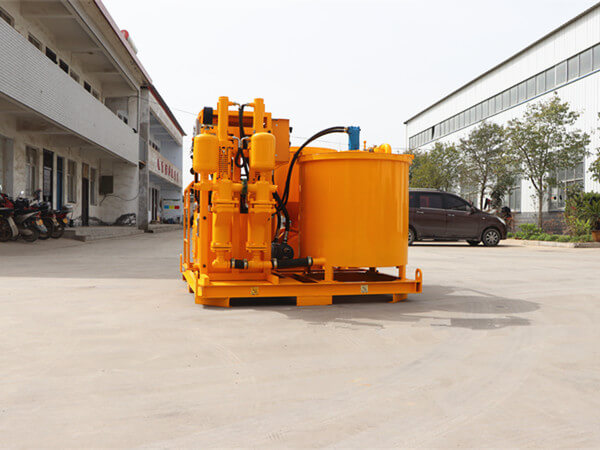

diesel engine inject station manufacturer


diesel engine grout station manufacturer

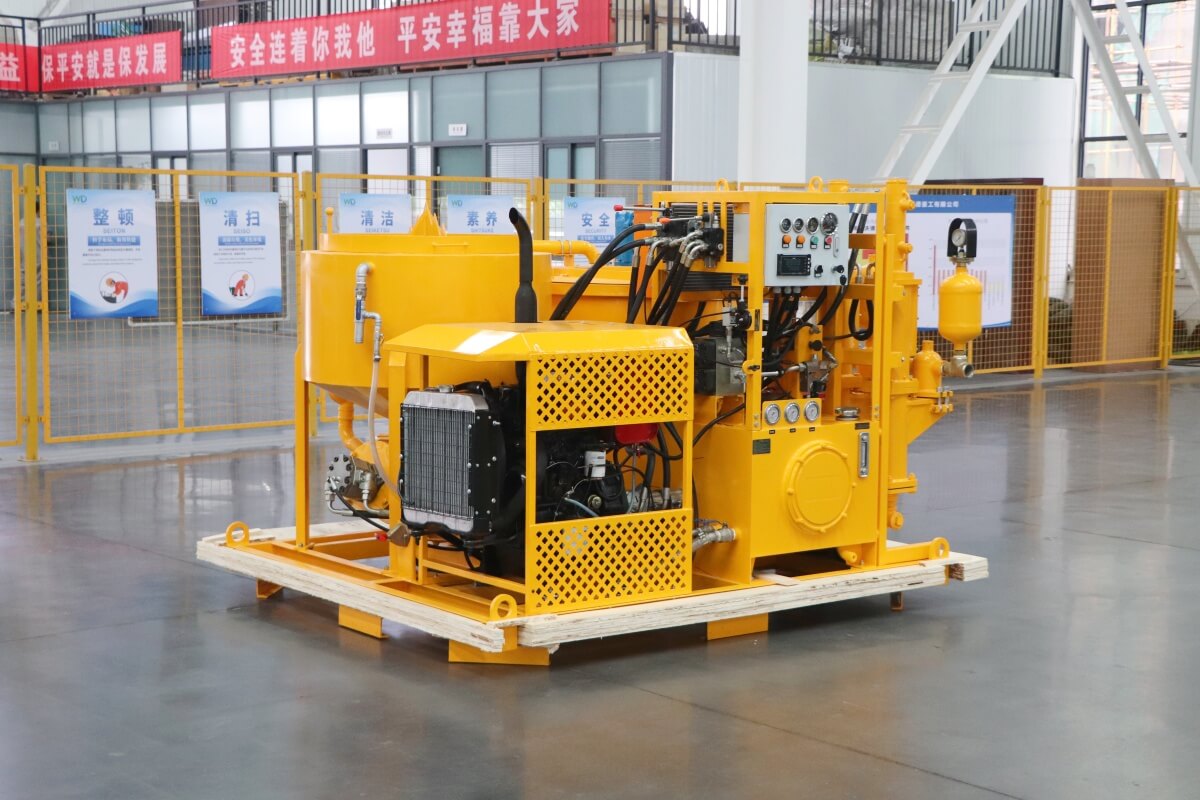

diesel engine grout inject station manufacturer

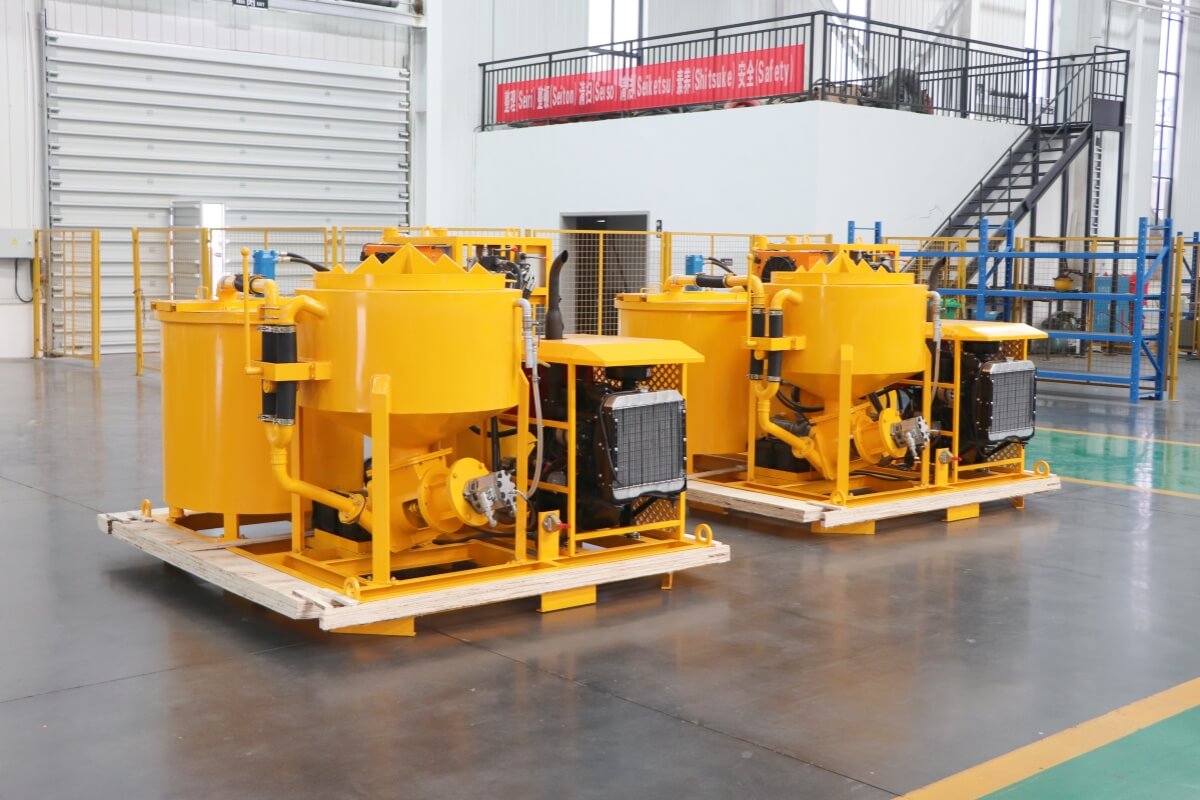

grout inject station manufacturer
