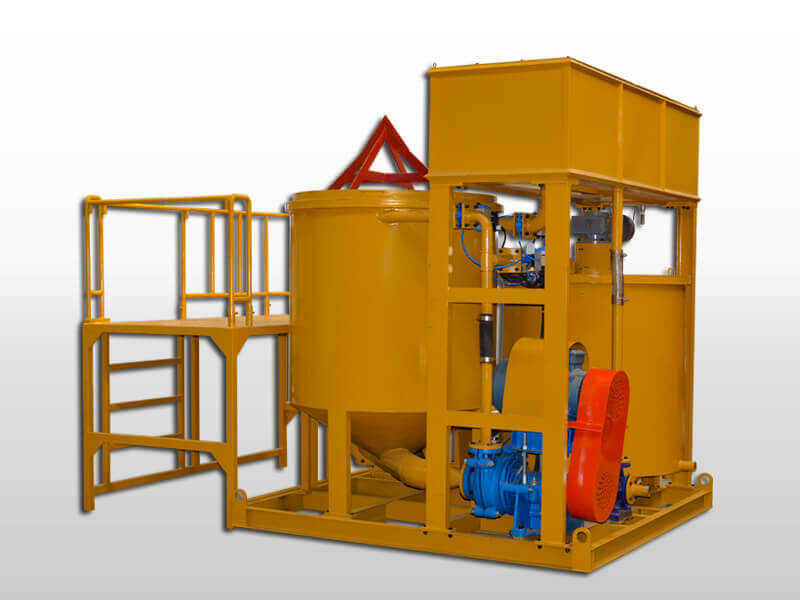

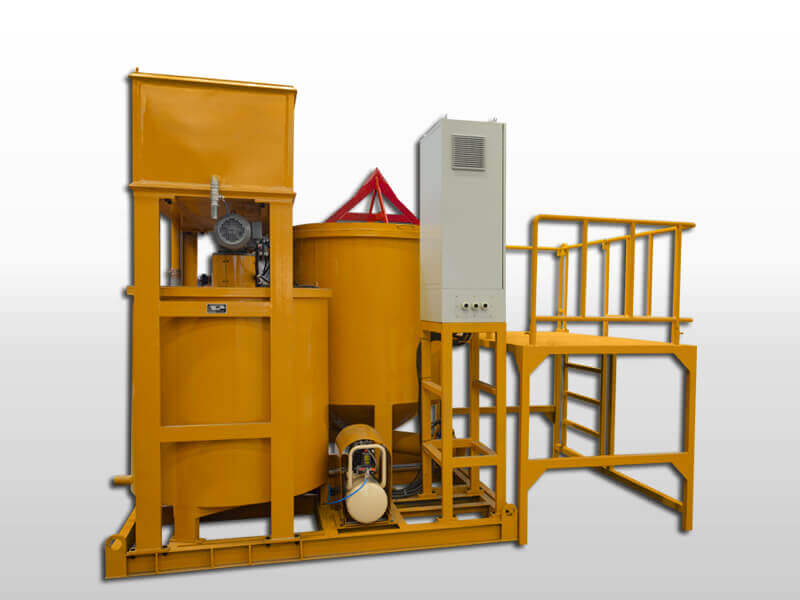

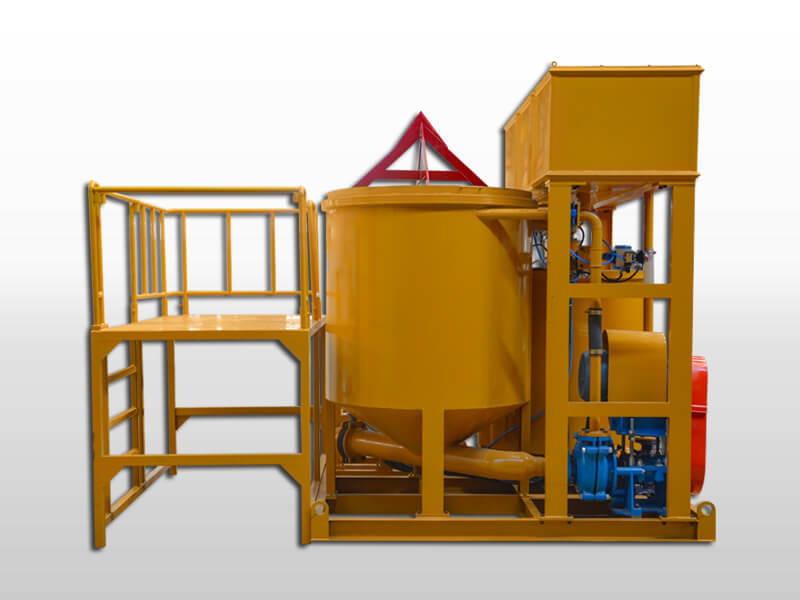

GMA1500-1200E Turbo mix grout mixer with agitator

  • Output: 15~18m3/h
  • Mixer Volume: 1500L
  • Agitator Volume: 1200L
  • Motor Power: 15+3Kw
  • Mixer/Agitator Dimension: 2230×2340×2630mm
  • Mixer/Agitator Weight: 2230kg

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
download:
Share with:
  • turbo mix grout mixer for sale
  • colloidal grout turbo mixer
  • turbo mix grout mixer and agitator
  • turbo grout mixer
  • turbo grout mixer for sale
■ Description
GMA1500-1200E Turbo mix grout mixer with agitator is combination consist of a steel sheet cylindrical mixer tank heavy-duty slurry pump and agitator tank, set-up on a strong base frame. This turbo mix grout mixer and agitator is equipped with an automatic control system that can automatically control the operation of the equipment. The slurry is mixed through a high speed vortex produced by a special pump which, after sucking the material from the bottom of the mixer tank, sends it back tangentially into the same tank in order to get highest possible efficiency. By this process it is possible to obtain homogeneous colloidal and high quality mixtures within a very short period of time.
After mixing, the mixtures are pumped into the agitator tank with slow speed mixing paddles by the above same pump.
When all the mixture in the mixing tank is pumped out, press the discharge completion button to start the next cycle of pulping.

Details of GMA1500-1200E Turbo Mix Grout Mixer:

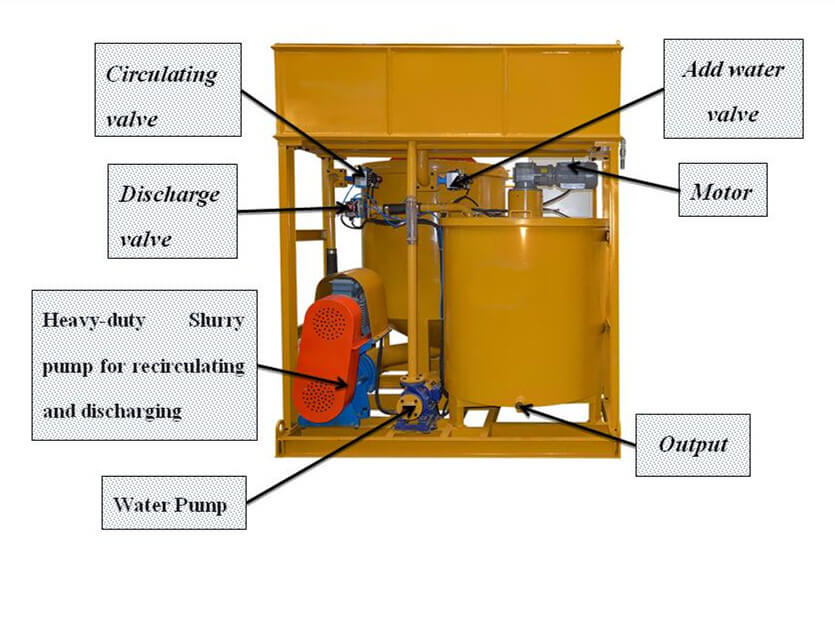

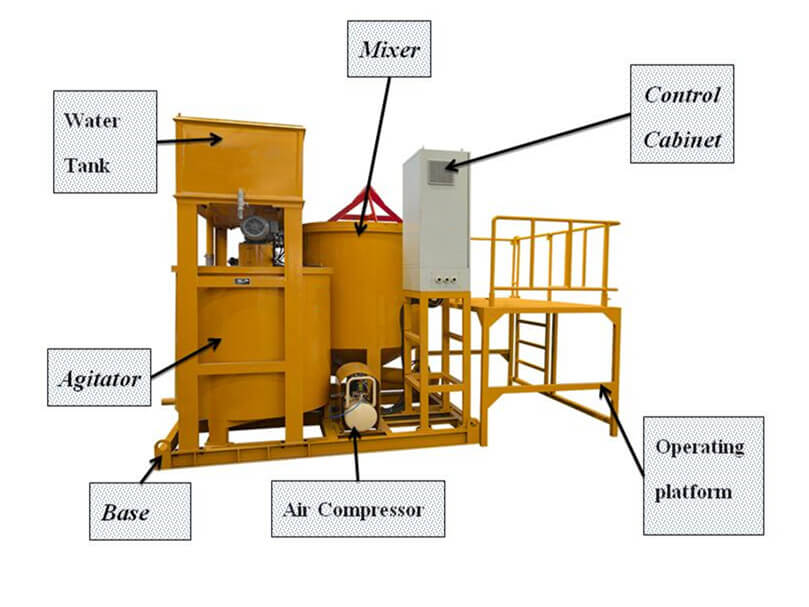

Large turbo mixer and agitator structure Turbo mixer and agitator details
Large turbo mixer and agitator structure Turbo mixer and agitator details

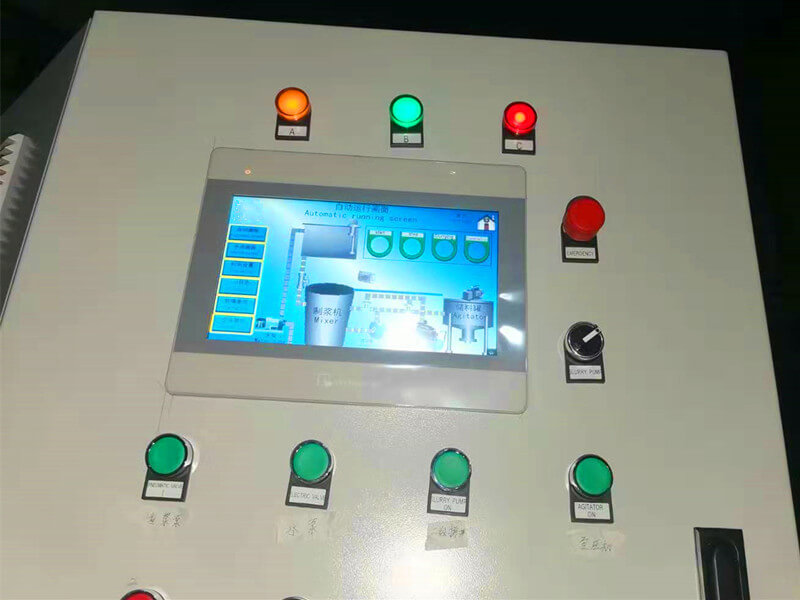

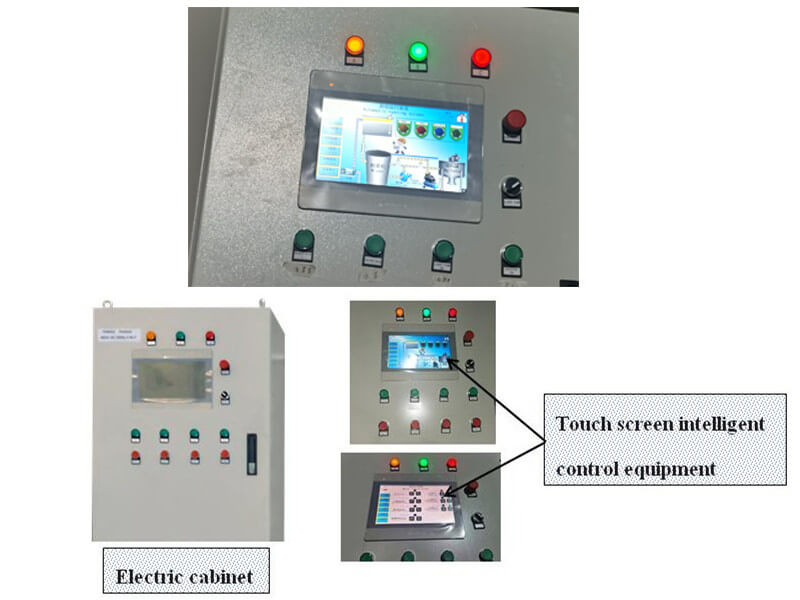

Touch screen intelligent control equipment Intelligent control

touch screen intelligent control equipment

intelligent control turbo mixer agitator

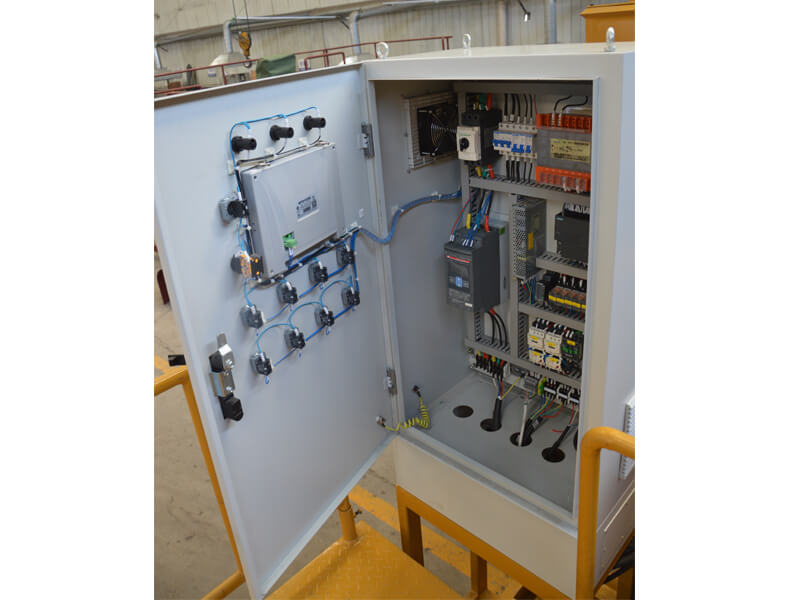

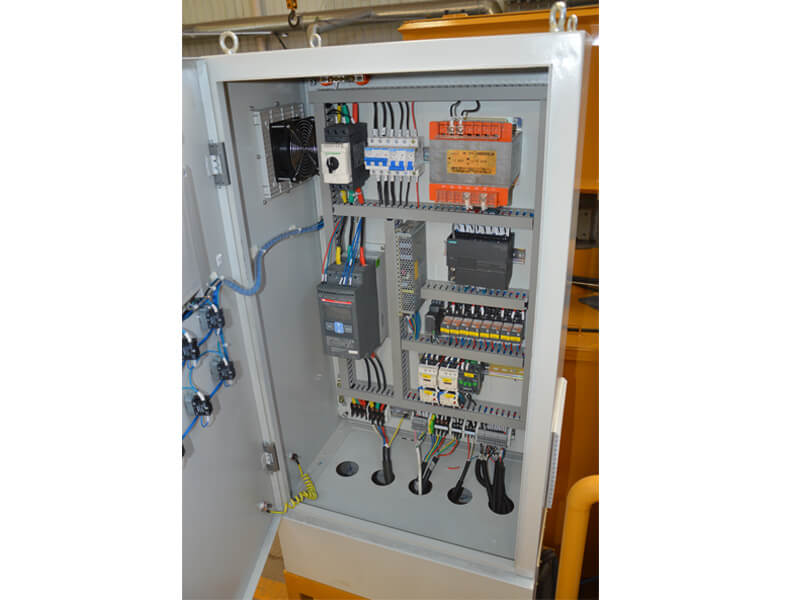

Electric control cabinet of grout mixer Electric control cabinet

electric control cabinet of grout mixer

electric control cabinet
