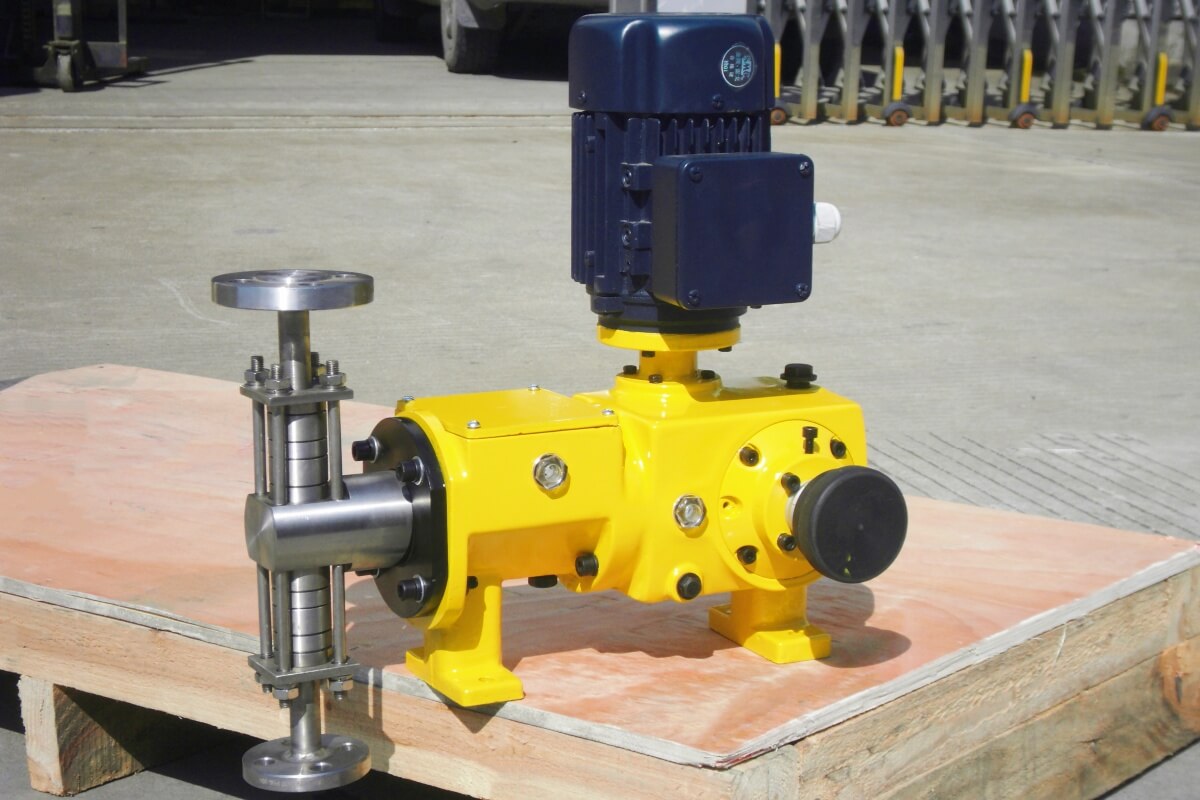

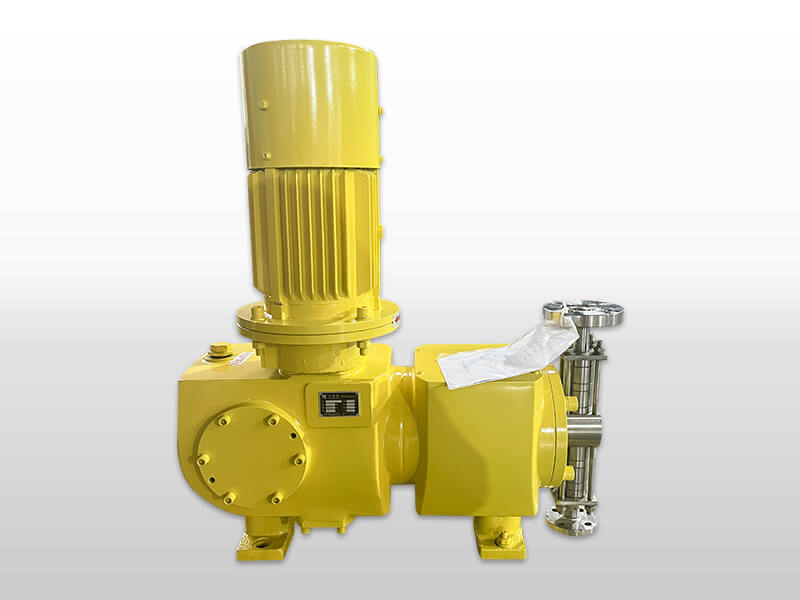

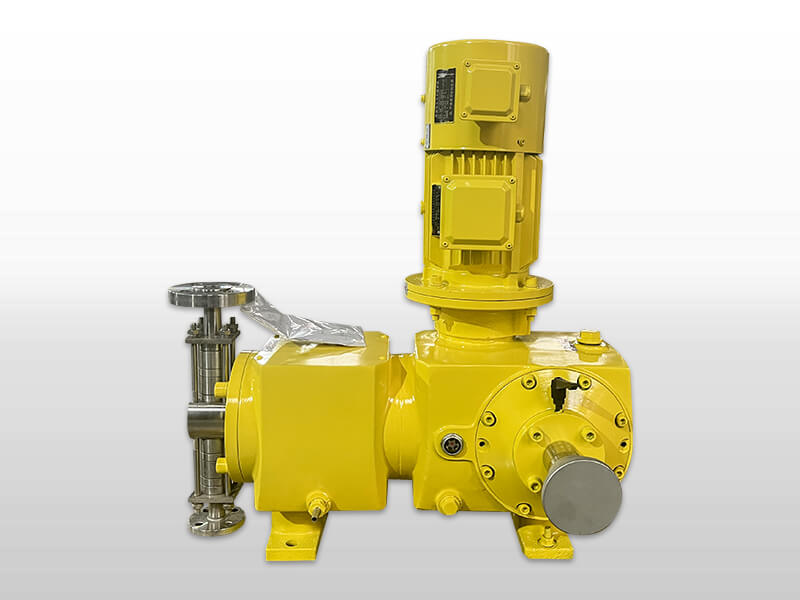

GDJ High Pressure Plunger Metering Pump

Type: GDJ1-200/0.25
Flow: 200L/h
Motor : 0.18kw
Max Pressure: 0.25MPa
Inlet/outlet pipe connections: DN15-PN6Rp GB/T9119

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

Click to view :

Description
Application
Features
Technical data

■ Description

GDJ High Pressure Plunger Metering Pump is a precision positive-displacement pump designed for accurate dosing and controlled delivery of industrial liquids. During operation, the reciprocating plunger directly draws the process medium into the pump head and discharges a measured volume through the outlet valve.

The pump head features a straightforward and economical structure, making it suitable for applications requiring high dosing accuracy, strong self-priming performance and dependable operation. Proper selection of the plunger and sealing materials enables the pump to handle a wide range of industrial chemicals under different pressure, temperature and corrosion conditions.

Stainless steel and oxidized ceramic plungers are available. The oxidized ceramic option offers excellent hardness, corrosion resistance and wear resistance, making it suitable for aggressive liquids and continuous industrial operation. Automatic lateral centering between the plunger and seal helps reduce uneven contact and minimizes component wear.

The GDJ series offers a maximum single-head flow rate of up to 50,000 L/h, discharge pressure up to 50 MPa and steady-state metering accuracy of ±1%. Different pump sizes, liquid-end structures, valve types, sealing arrangements and pipe connections are available to meet specific process requirements.

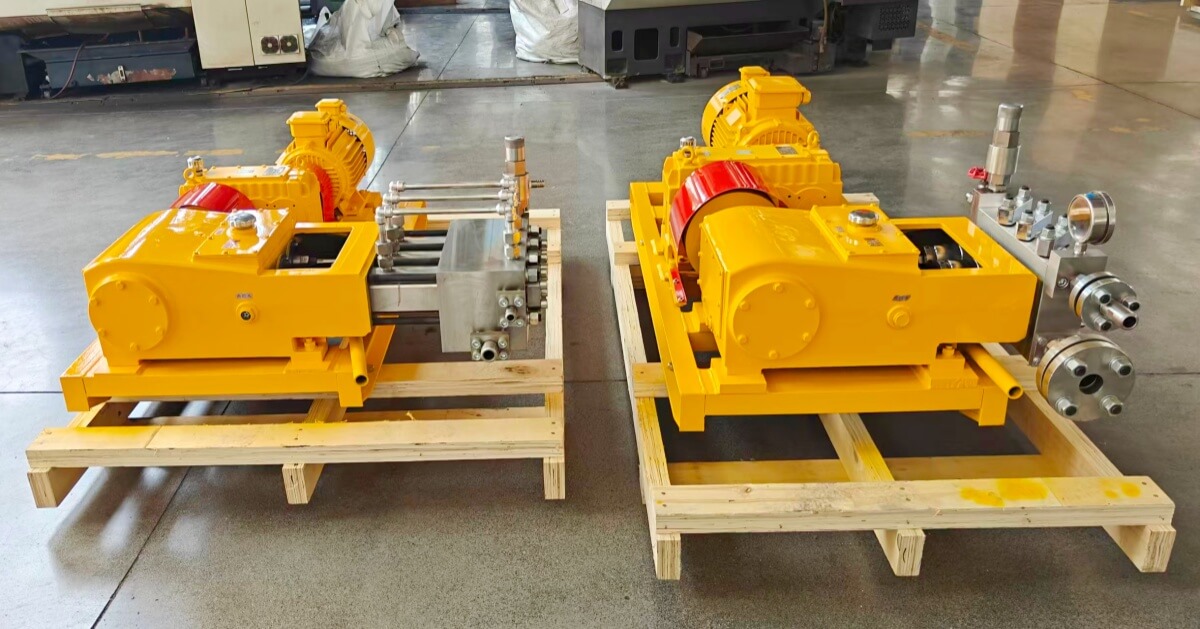

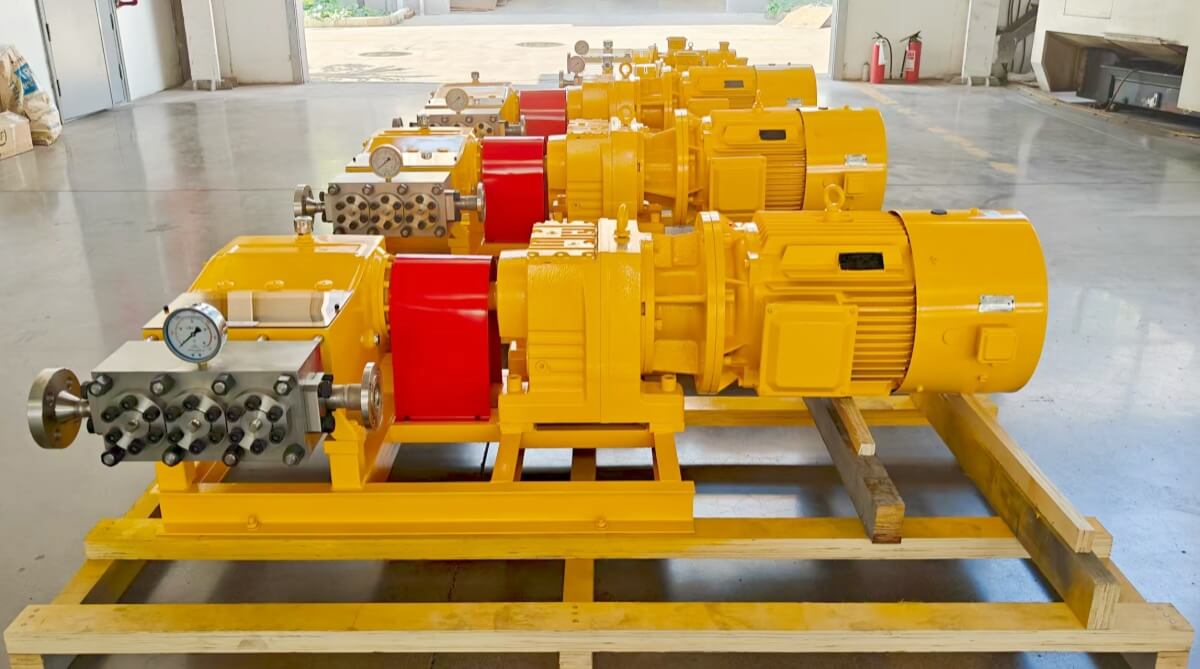

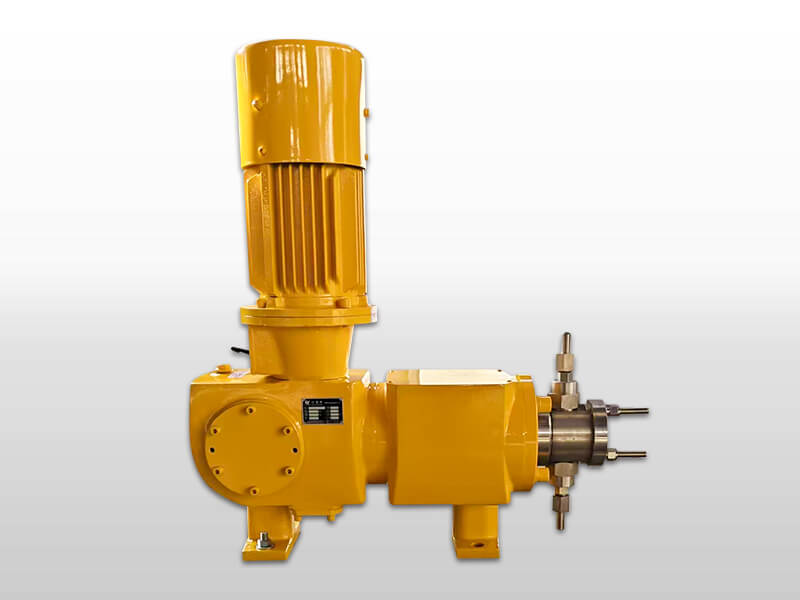

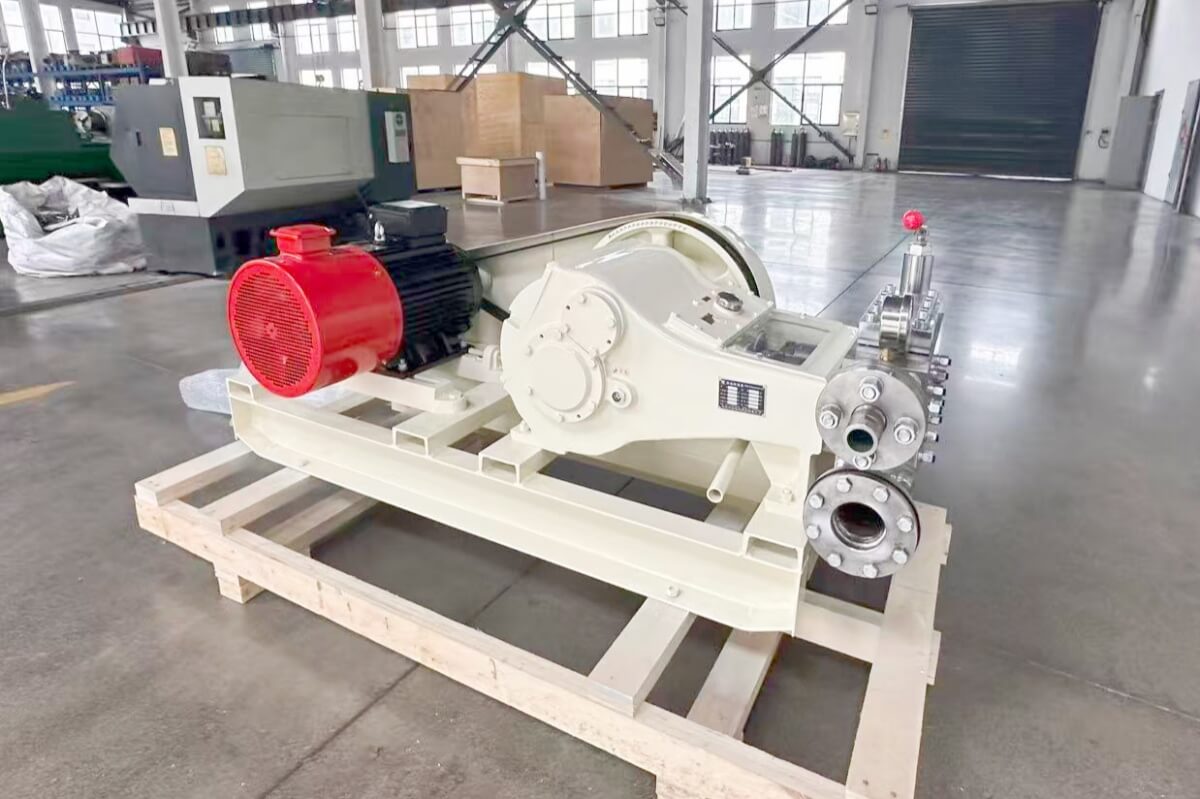

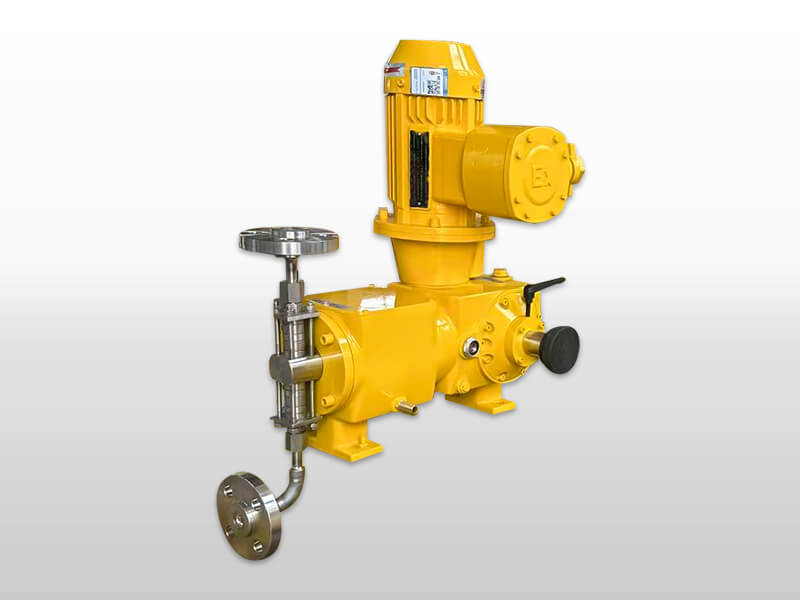

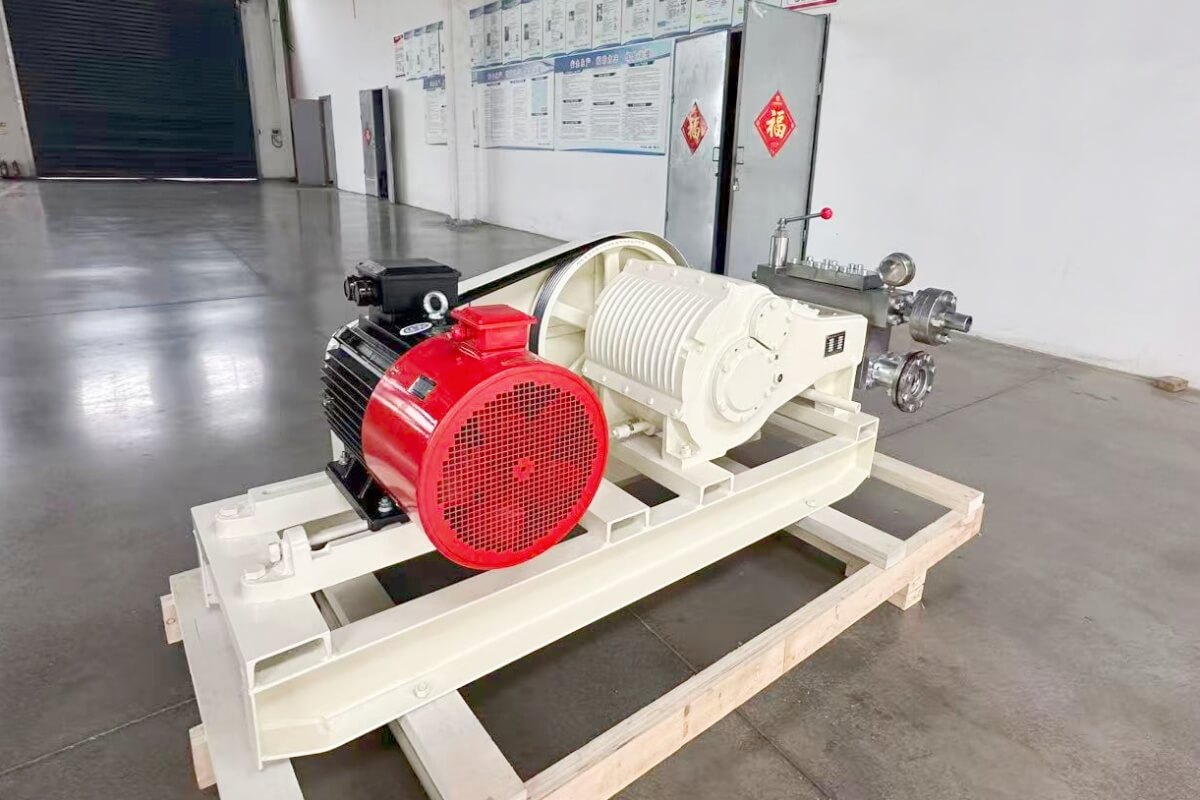

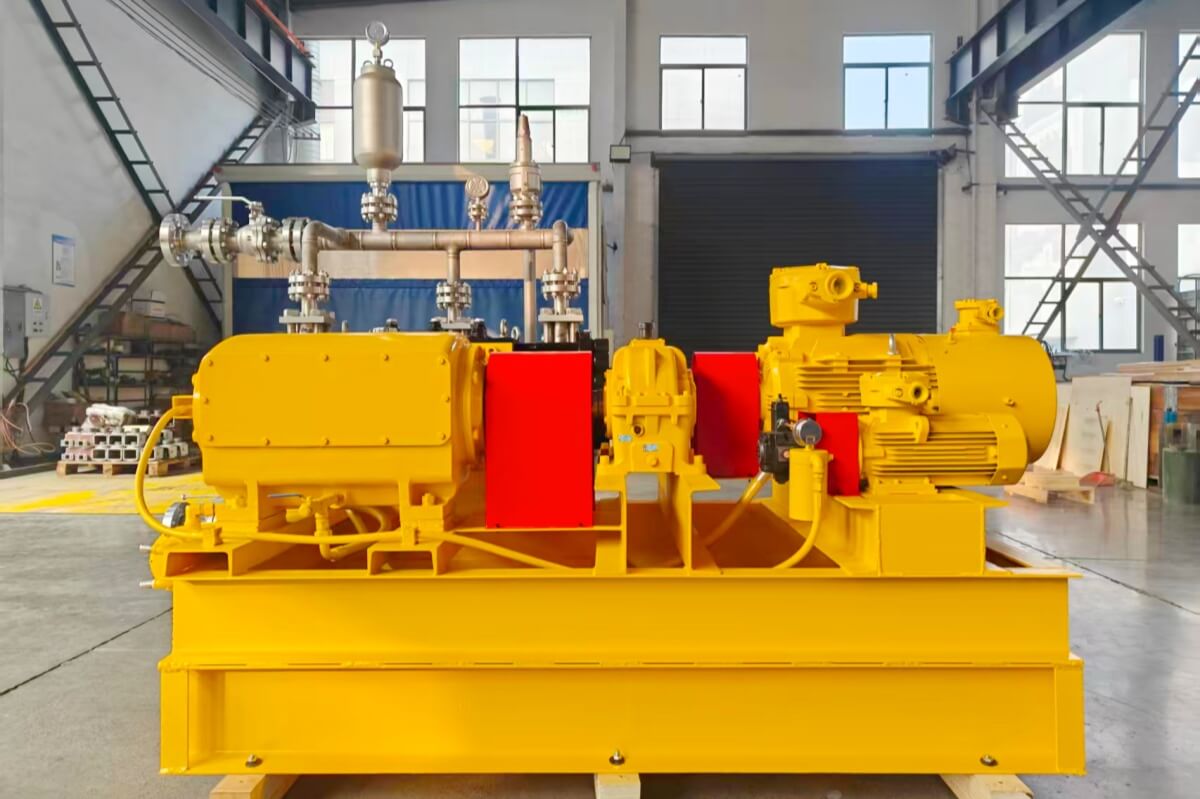

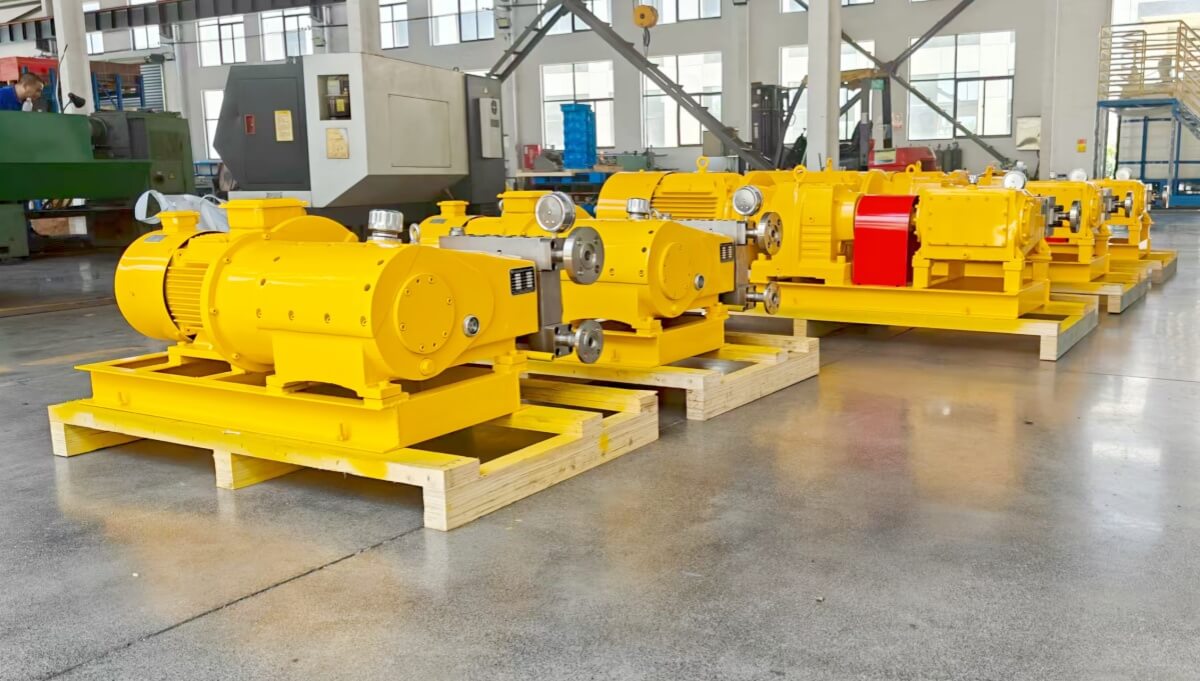

Liquid CO2 Plunger Metering Pump Show Pictures:

Principle of GDJ High Pressure Plunger Metering Pump:

The working medium (yellow) is directly sucked in and discharged through the reciprocating motion of the plunger. Since both the plunger and seal are in contact with the medium, choosing the appropriate plunger material and seal form can ensure the ideal performance of the pump during operation.

The plunger pump head has a simple structure, is economical, and has high measurement accuracy. It requires good seal selection and maintenance. Automatic lateral centering between plunger and seal ensures minimal wear between them. Plunger materials include stainless steel and oxidized ceramics. Oxidized ceramics have the characteristics of corrosion resistance, high hardness and wear resistance.

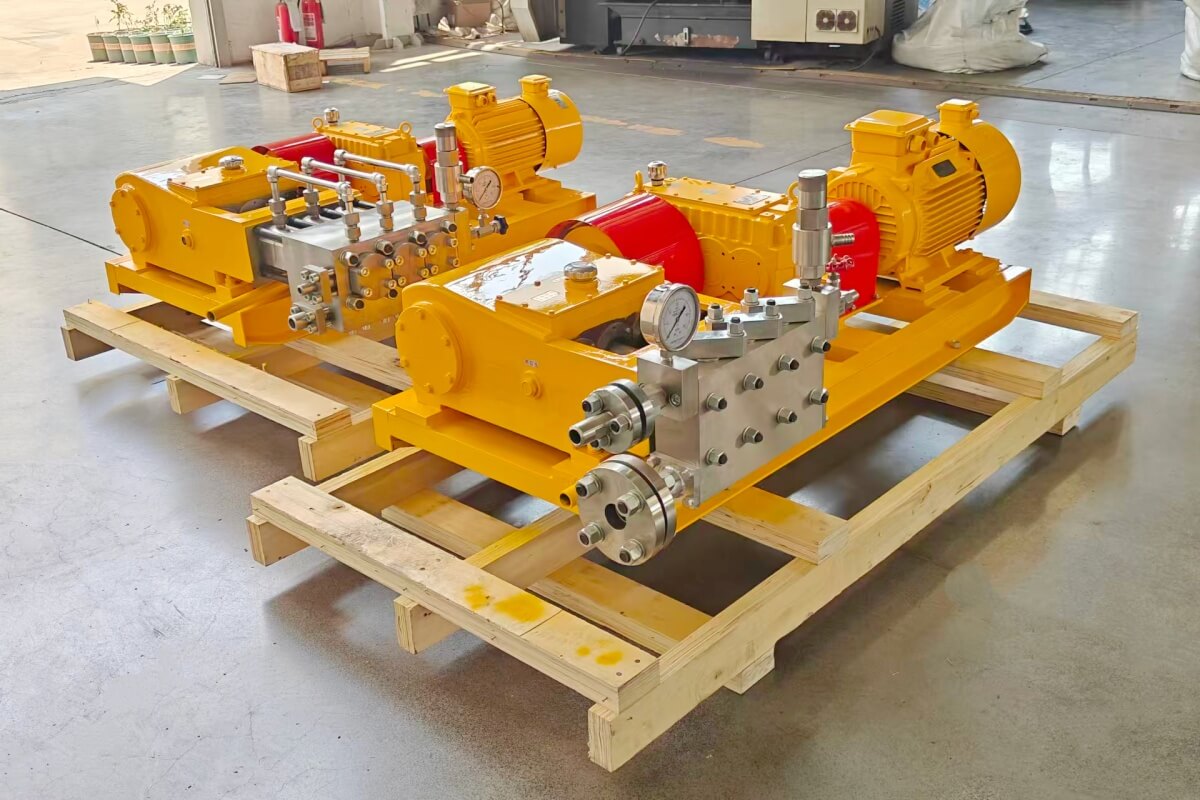

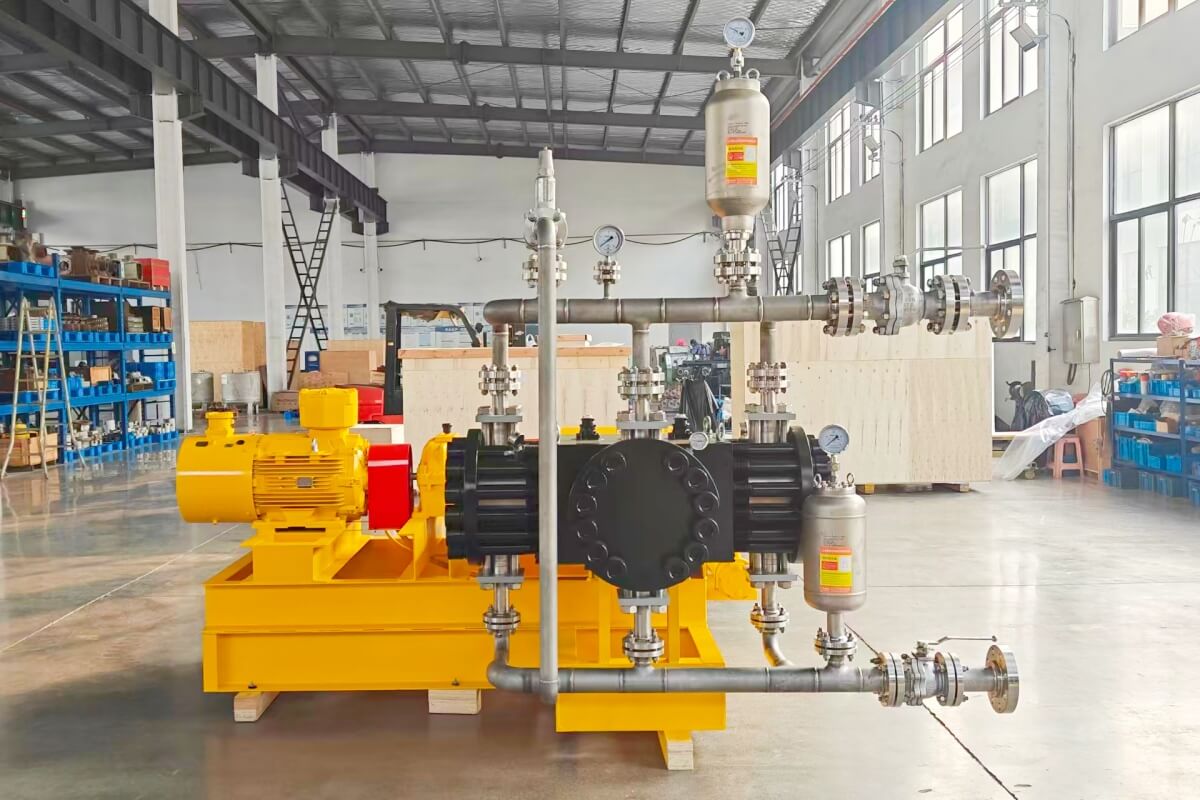

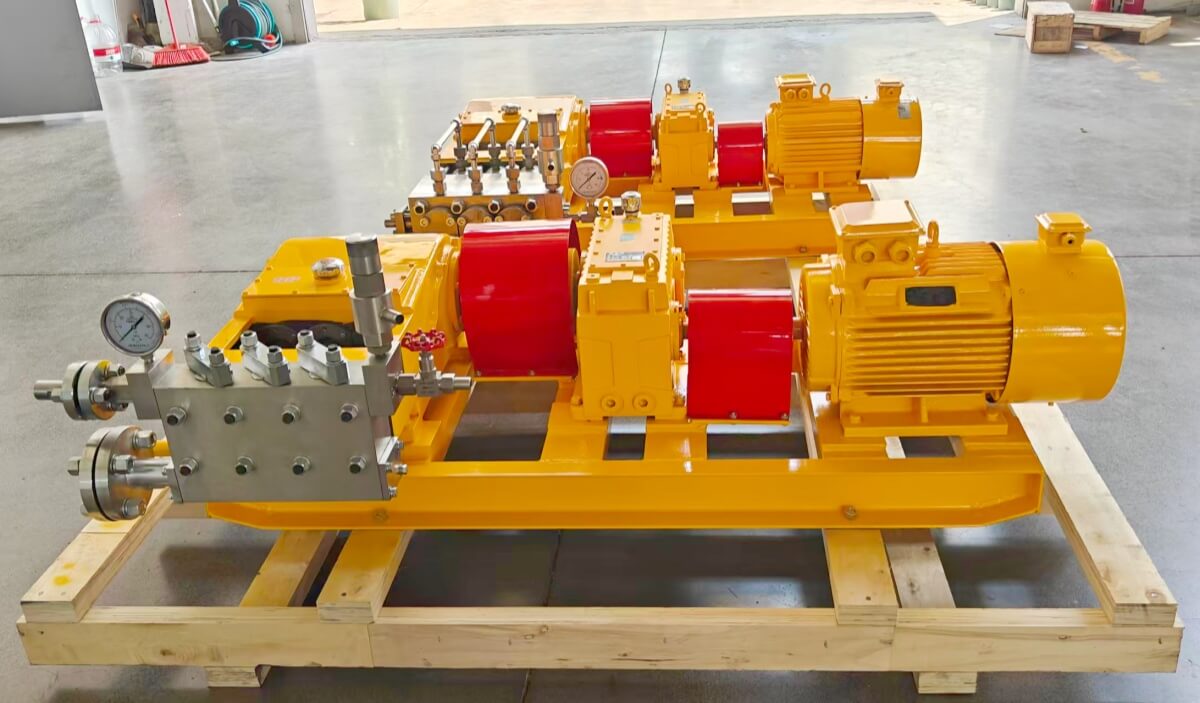

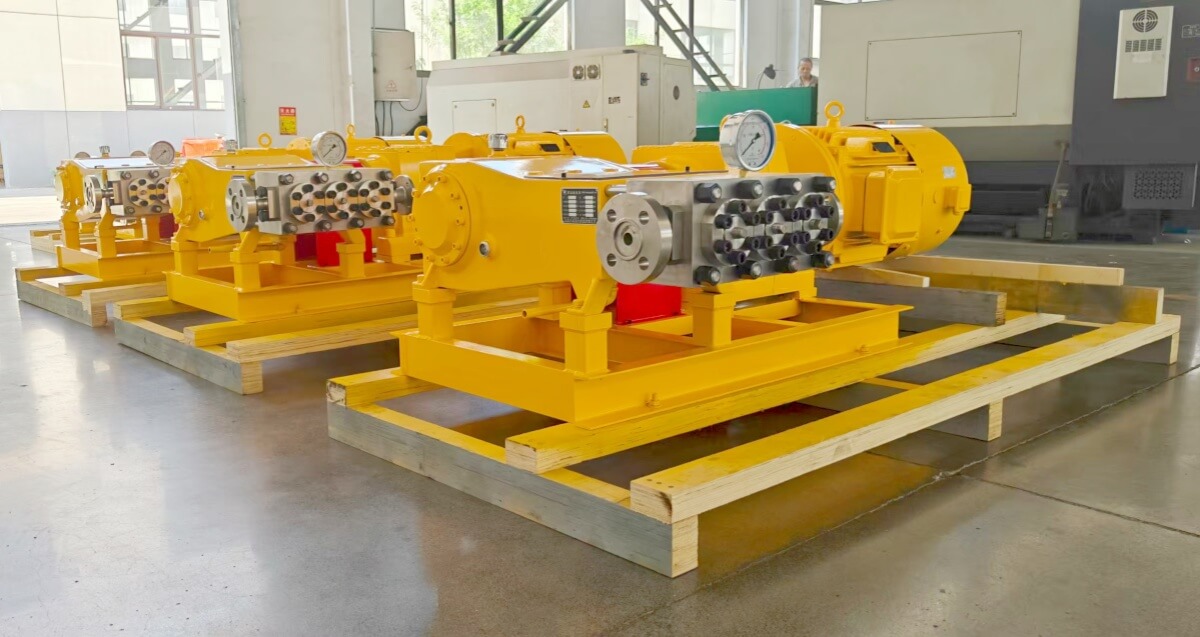

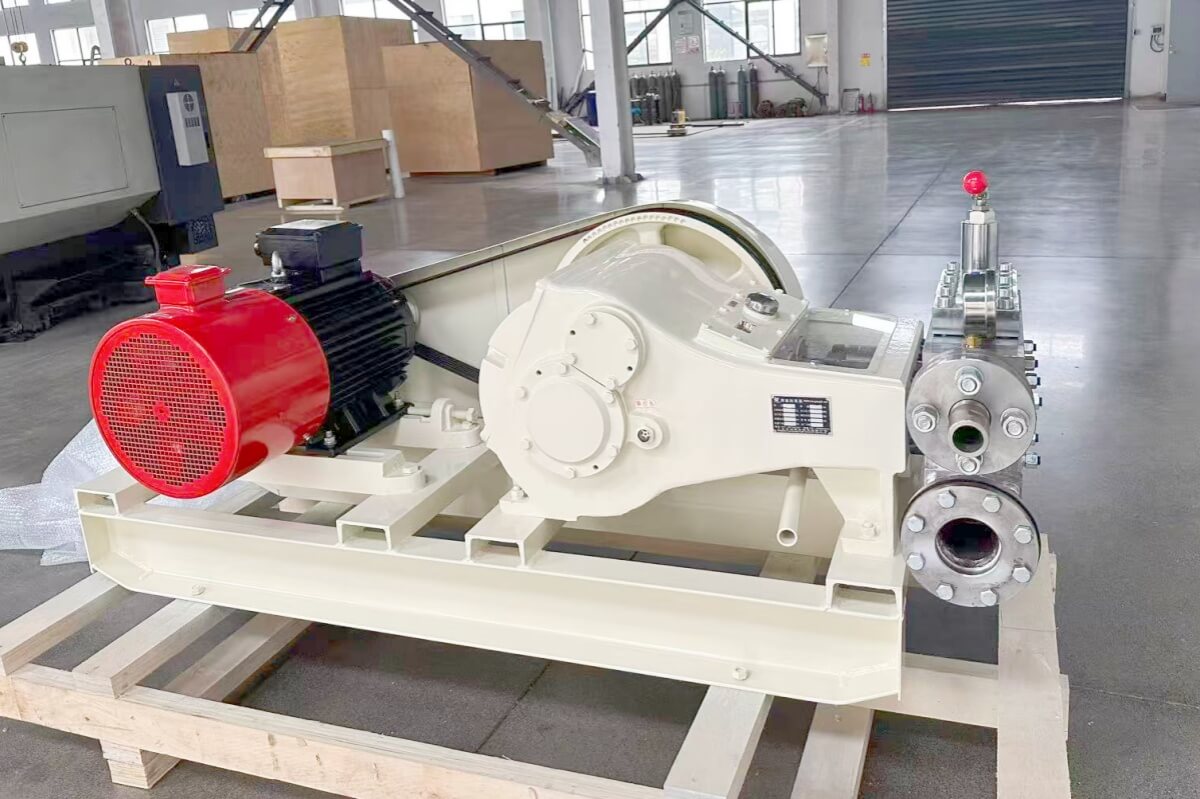

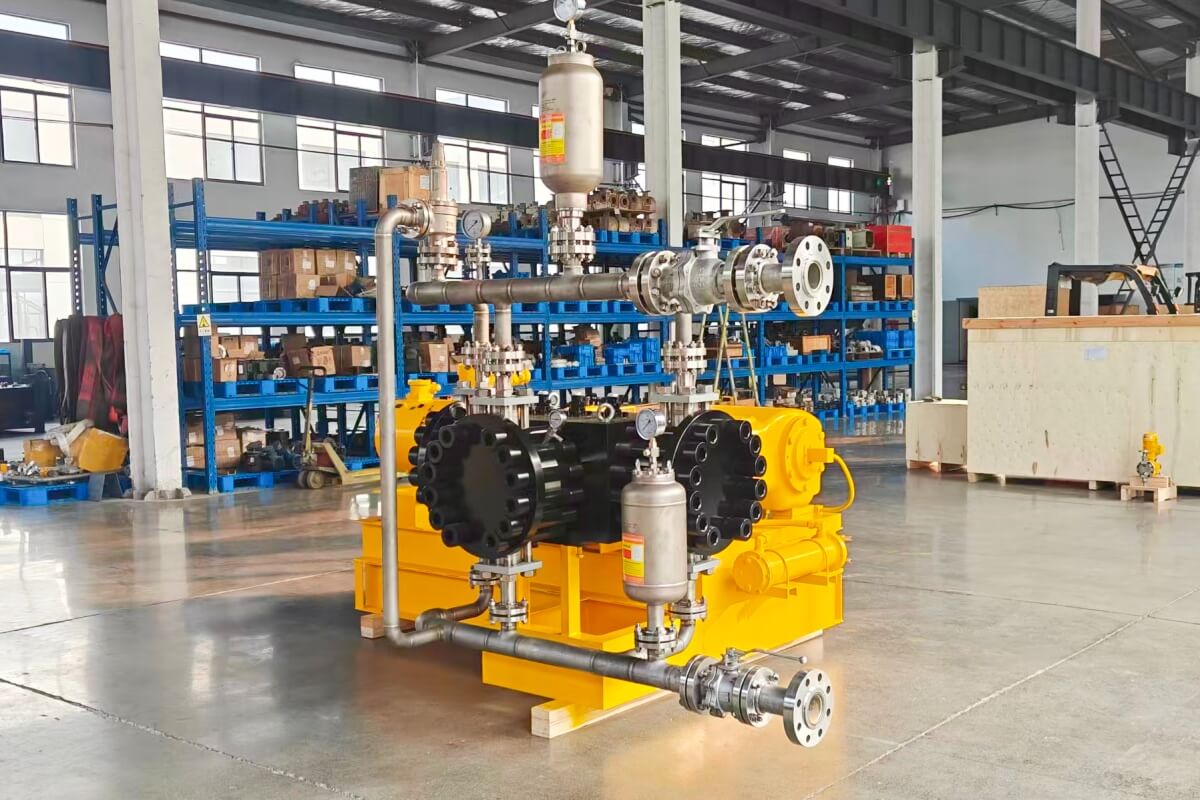

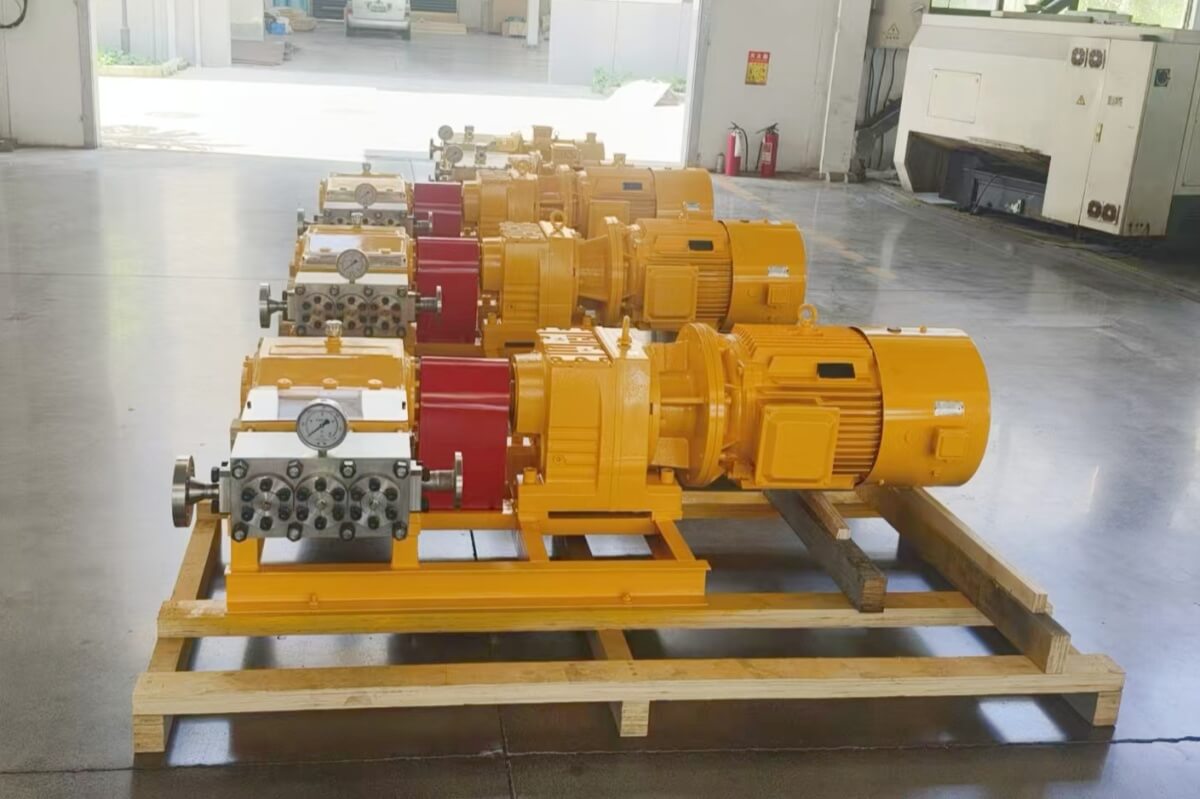

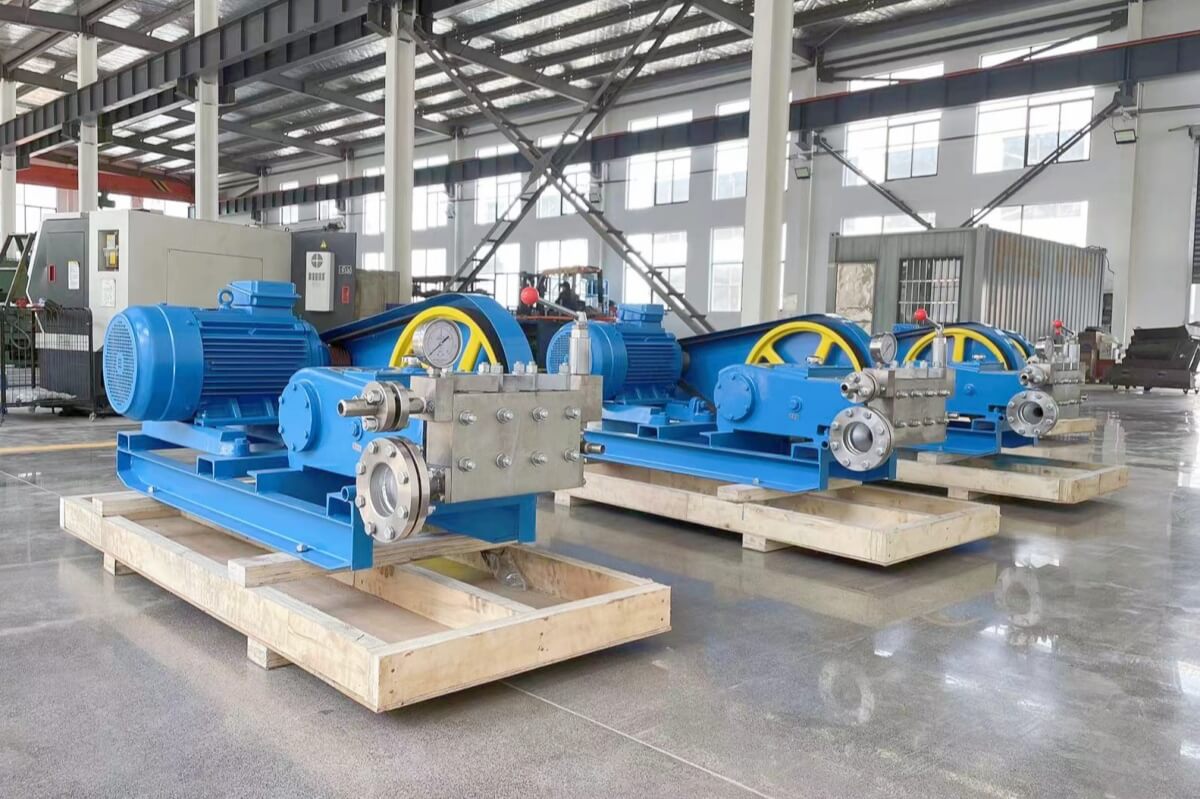

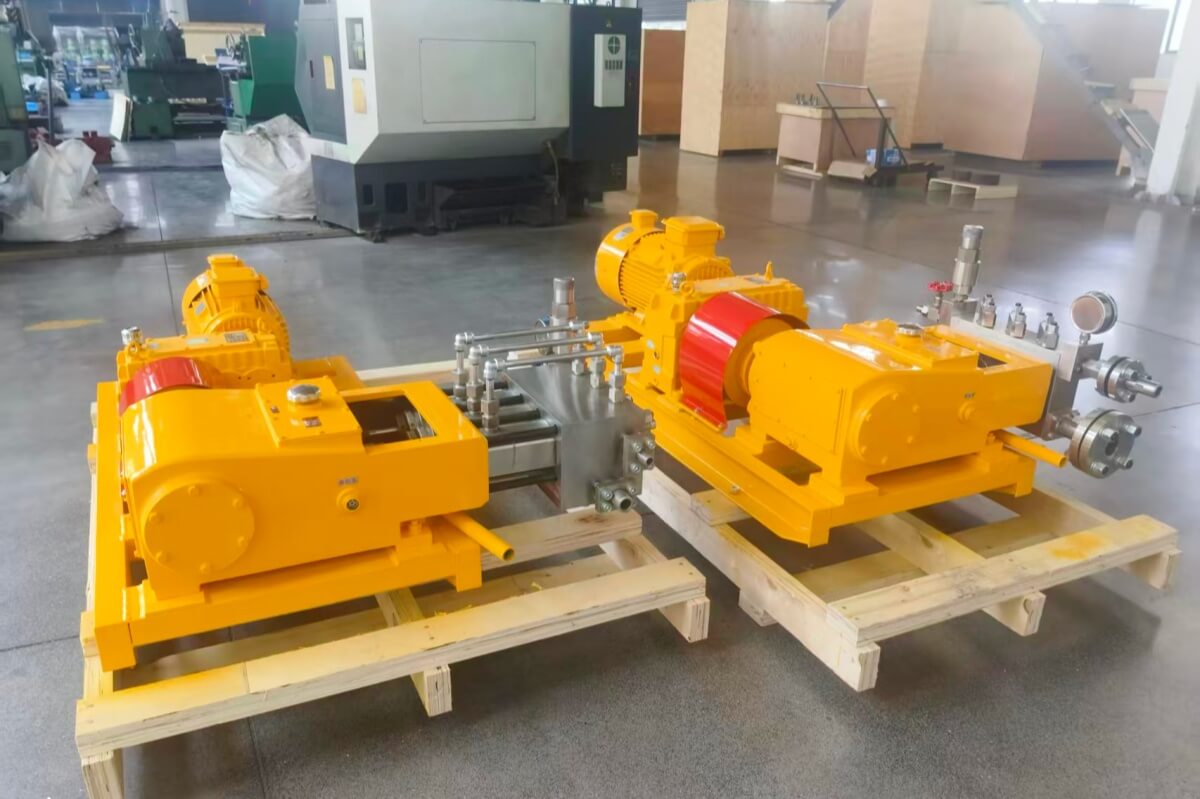

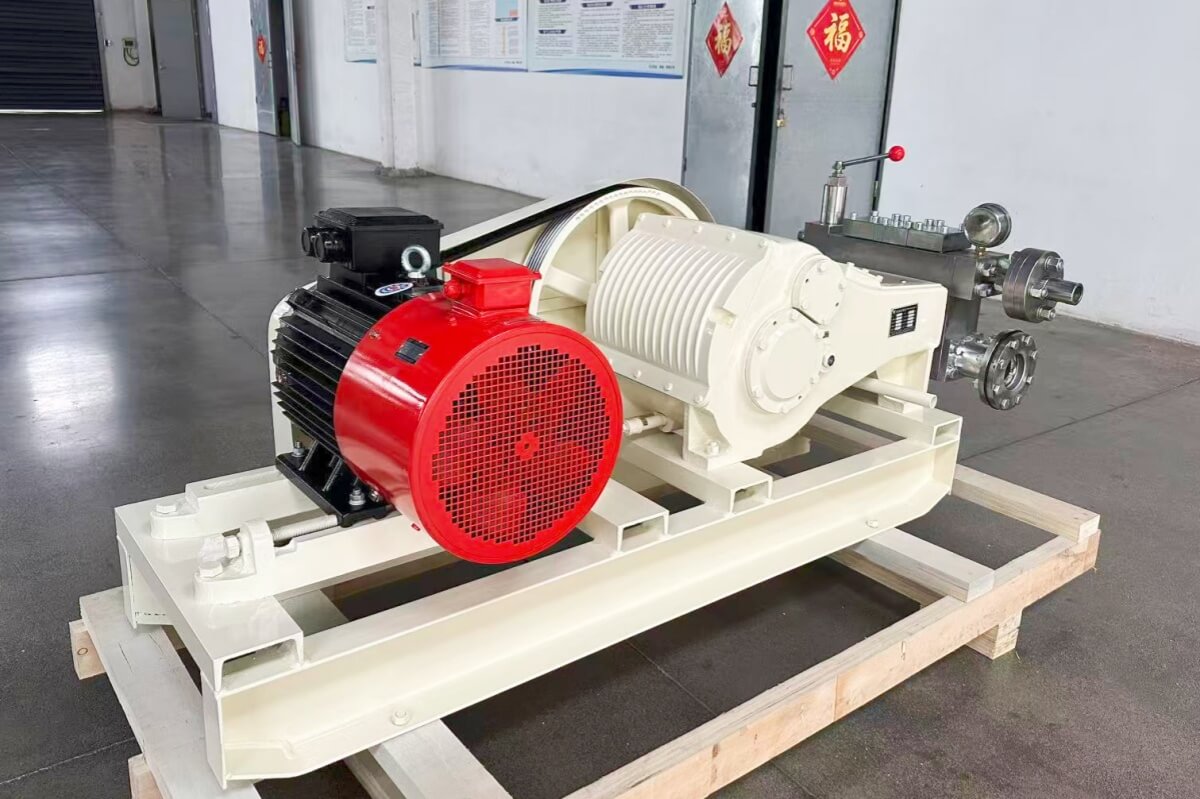

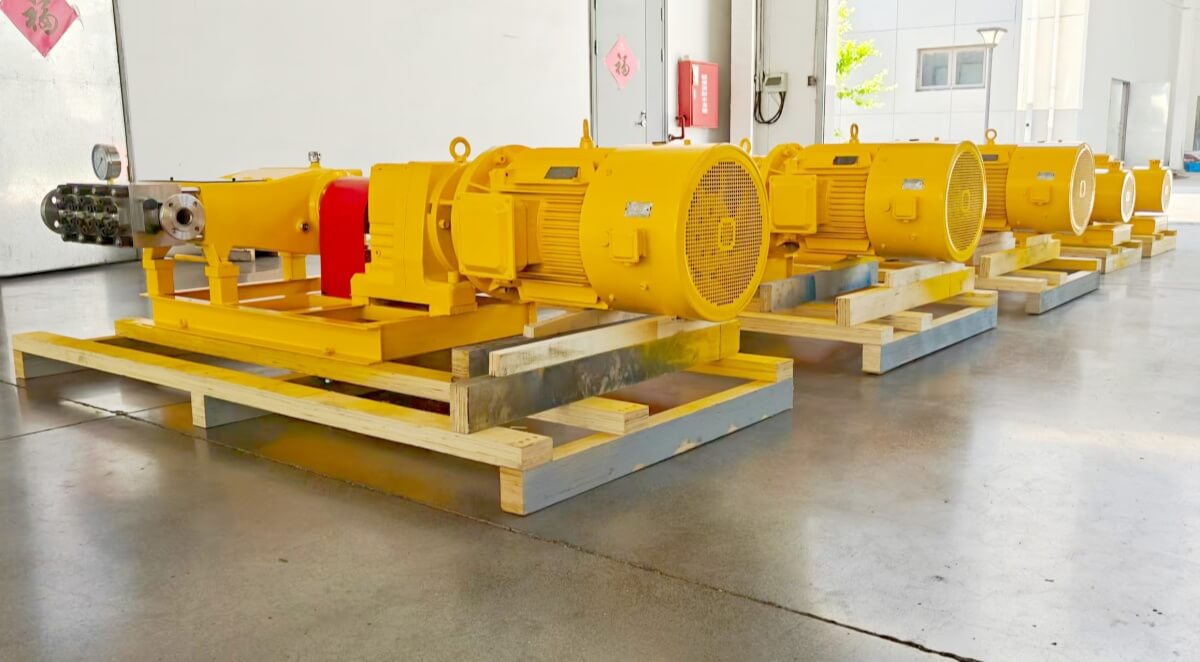

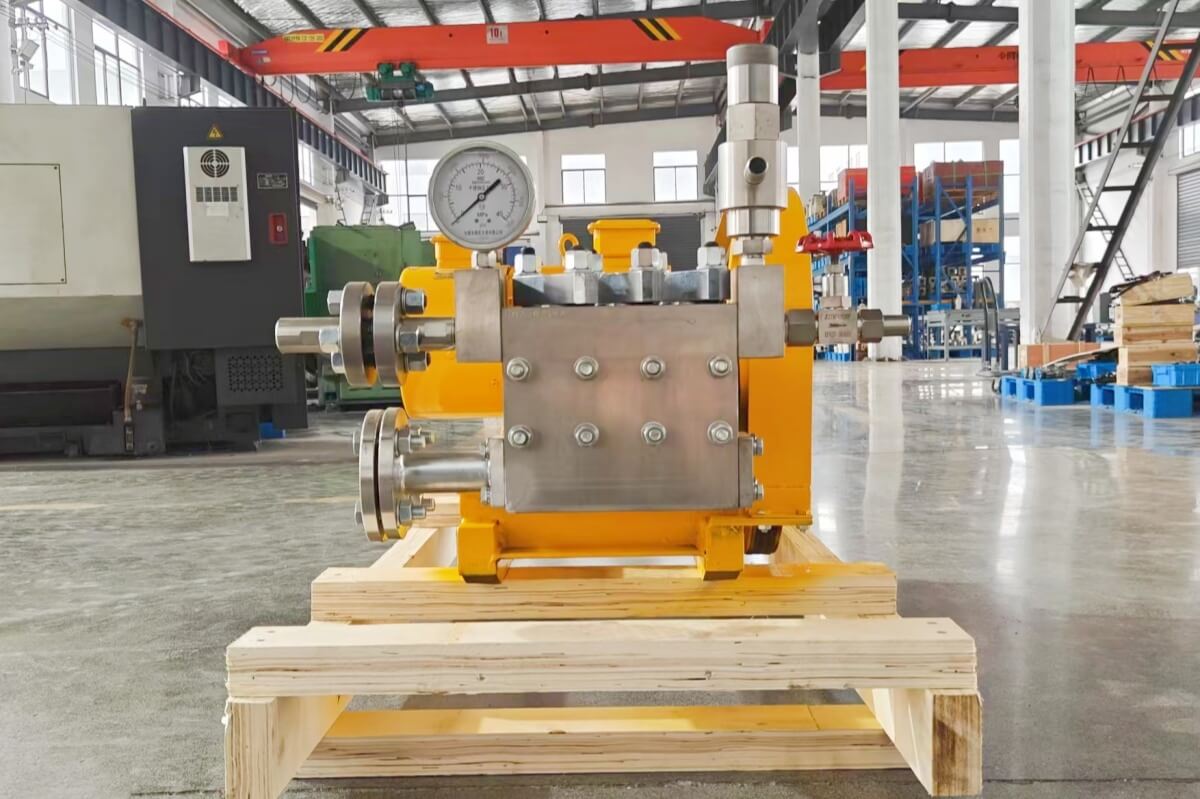

High Pressure Triplex Diaphragm Pump Show Pictures:

■ Technical data

GDJ1 Plunger Metering Pump Parameters:

Type	Flow L/h	Max Pressure MPa	Inlet/outlet pipe connections
Type	Flow L/h	Motor 0.18kw	Inlet/outlet pipe connections
GDJ-0.1/10	0.1	10	Φ10(outside diameter) *3 hose
GDJ1-0.16/10	0.16	10
GDJ1-0.25/10	0.25	10
GDJ1-0.4/10	0.4	10	Φ12(outside diameter) *3 hose
GDJ1-0.7/10	0.7	10
GDJ1-1.25/8	1.25	8
GDJ1-2/5	2	5
GDJ1-3.2/3.2	3.2	3.2	Φ14(outside diameter) *3 hose
GDJ1-5/2.0	5	2.0	Φ14(outside diameter) *3 hose
GDJ1-8/1.3	8	1.3	Φ18(outside diameter) *3 hose
GDJ1-14/0.8	14	0.8	Φ18(outside diameter) *3 hose
GDJ1-1.0/20	1.0	20	Φ10(outside diameter) *3 hose
GDJ1-1.3/20	1.3	20
GDJ1-1.6/20	1.6	20
GDJ1-2/20	2	20
GDJ1-2.5/20	2.5	20	Φ12(outside diameter) *3 hose
GDJ1-3.2/16	3.2	16
GDJ1-4/12.5	4	12.5
GDJ1-5/10	5	10
GDJ1-6.3/8	6.3	8
GDJ1-8/6.3	8	6.3
GDJ1-10/5	10	5
GDJ1-12.5/4	12.5	4
GDJ1-16/3.2	16	3.2	Φ14(outside diameter) *3 hose
GDJ1-20/2.5	20	2.5
GDJ1-25/2	25	2
GDJ1-32/1.6	32	1.6
GDJ1-40/1.3	40	1.3	Φ18(outside diameter) *3 hose
GDJ1-50/1.0	50	1.0
GDJ1-63/0.8	63	0.8
GDJ1-80/0.63	80	0.63
GDJ1-100/0.5	100	0.5	DN15-PN6Rp GB/T9119
GDJ1-125/0.4	125	0.4
GDJ1-160/0.32	160	0.32
GDJ1-200/0.25	200	0.25

GDJ1 Plunger Metering Pump Install Dimensions:

Model	A	B	C	D
GDJ-0.1/10	91	75	Φ10 (outside diameter) *3 hose	Φ10 (outside diameter) *3 hose
GDJ1-0.16/10	91	69
GDJ1-0.25/10
GDJ1-0.4/10	118	65	Φ12 (outside diameter) *3 hose	Φ12 (outside diameter) *3 hose
GDJ1-0.7/10	118	65
GDJ1-1.25/8	124	81	Φ12 (outside diameter) *3 hose	Φ12 (outside diameter) *3 hose
GDJ1-2/5	124	83
GDJ1-3.2/3.2	165	90	Φ14 (outside diameter) *3 hose	Φ14 (outside diameter) *3 hose
GDJ1-5/2.0	165	91
GDJ1-8/1.3	139	100	Φ18 (outside diameter) *3 hose	Φ18 (outside diameter) *3 hose
GDJ1-14/0.8	149	103
GDJ1-1.0/20	91	75	Φ10 (outside diameter) *3 hose	Φ10 (outside diameter) *3 hose
GDJ1-1.3/20
GDJ1-1.6/20	91	69
GDJ1-2/20
GDJ1-2.5/20	118	65	Φ12 (outside diameter) *3 hose	Φ12 (outside diameter) *3 hose
GDJ1-3.2/16	118	65
GDJ1-4/12.5	118	65
GDJ1-5/10
GDJ1-6.3/8	124	81	Φ12 (outside diameter) *3 hose	Φ12 (outside diameter) *3 hose
GDJ1-8/6.3
GDJ1-10/5	124	83
GDJ1-12.5/4
GDJ1-16/3.2	165	90	Φ14 (outside diameter) *3 hose	Φ14 (outside diameter) *3 hose
GDJ1-20/2.5
GDJ1-25/2	165	91
GDJ1-32/1.6
GDJ1-40/1.3	139	100	Φ18 (outside diameter) *3 hose	Φ18 (outside diameter) *3 hose
GDJ1-50/1.0
GDJ1-63/0.8	149	103
GDJ1-80/0.63
GDJ1-100/0.5	159	109	DN15-PN6Rp GB/T9119	DN15-PN6Rp GB/T9119
GDJ1-125/0.4
GDJ1-160/0.32
GDJ1-200/0.25

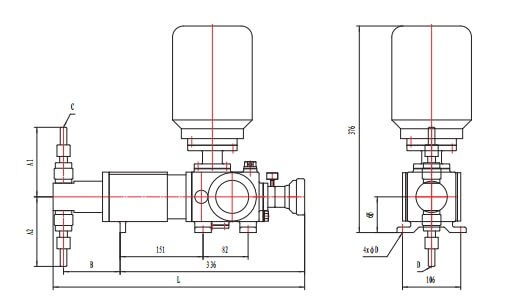

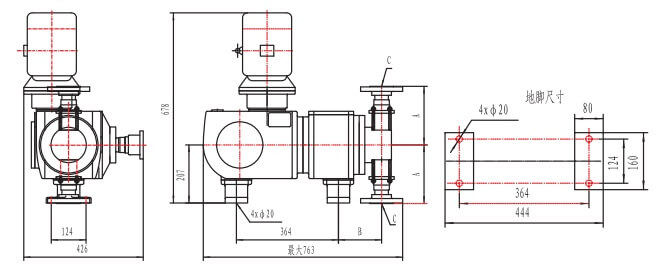

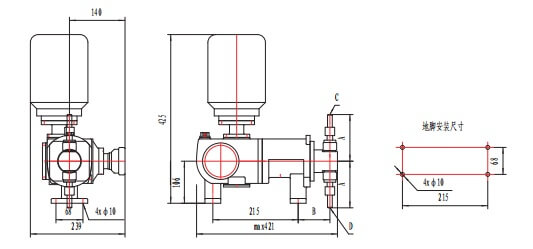

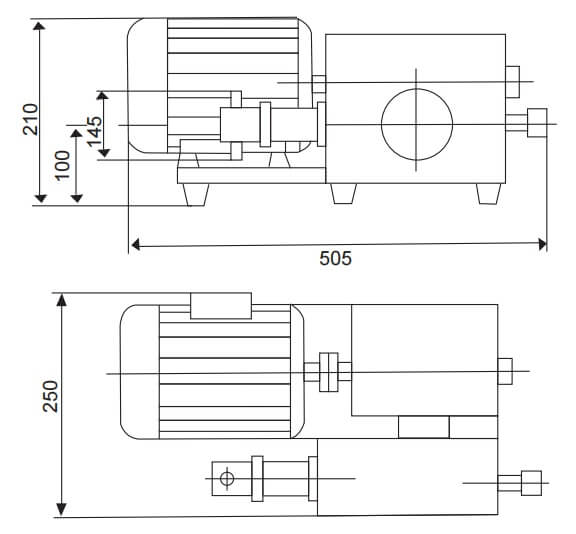

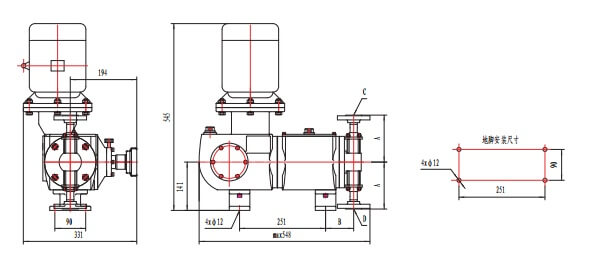

GDJ1 Plunger Metering Pump Installation Diagram:

GDJ1-A Plunger Metering Pump Parameters:

Type	Flow L/h	Max Pressure MPa		Plunger diameter	In and out valve	Number of reciprocations	Itinerary
Type	Flow L/h	Motor 0.18kW	Motor 0.37kW	Plunger diameter	In and out valve	Number of reciprocations	Itinerary
GDJ1-A-0.2/10	0.2	10		5	F3	40	8
GDJ1-A-0.3/10	0.3	10		5	F3	40	10
GDJ1-A-0.4/10	0.4	10		6.3	F5	40	8
GDJ1-A-0.5/10	0.5	10		6.3		40	10
GDJ1-A-0.6/10	0.6	10		8		40	8
GDJ1-A-0.8/10	0.8	10		8		40	10
GDJ1-A-1/10	1	10		10		40	8
GDJ1-A-1.3/10	1.3	10		10		40	10
GDJ1-A-1.7/10	1.7	10		12.5	F7	40	8
GDJ1-A-2.2/10	2.2	10		12.5		40	10
GDJ1-A-3/8	3	8		16		40	8
GDJ1-A-4/6.3	4	6.3		16		40	10
GDJ1-A-5/5	5	5		20	F10	40	8
GDJ1-A-6.3/4	6	4		20		40	10
GDJ1-A-8/3.2	8	3.2		25		40	8
GDJ1-A-10/2.5	10	2.5		25		40	10
GDJ1-A-3.5/10	3.5	10		10	F5	119	8
GDJ1-A-4.5/10	4.5	10		10	F5	119	10
GDJ1-A-5.5/10	5.5	10		12.5	F7	119	8
GDJ1-A-7/10	7	10		12.5		119	10
GDJ1-A-9.5/8(10)	9.5	8	10	16		119	8
GDJ1-A-12/6.3(10)	12	6.3	10	16		119	10
GDJ1-A-15/5(8)	15	5	8	20	F10	119	8
GDJ1-A-19/4(6.3)	19	4	6.3	20		119	10
GDJ1-A-24/3.2(5)	24	3.2	5	25		119	8
GDJ1-A-30/2.5(4)	30	2.5	4	25		119	10
GDJ1-A-40/2(3.2)	40	2	3.2	32	F12	119	8
GDJ1-A-50/1.6(2.5)	50	1.6	2.5	32		119	10
GDJ1-A-63/1.3(2)	63	1.3	2	40		119	8
GDJ1-A-80/1.0(1.6)	80	1.0	1.6	40		119	10
GDJ1-A-100/0.8(1.3)	100	0.8	1.3	50	F16	119	8
GDJ1-A-125/0.63(1)	125	0.63	1	50	F16	119	10

GDJ1-A Plunger Metering Pump Installation Diagram:

GDJ1-B Plunger Metering Pump Parameters:

Type	Flow L/h	Max Pressure MPa	Plunger diameter mm	Coverage mm	Pump speed Times/min	Motor power Kw	Inlet and outlet caliber mm	Weight kg
GDJ1-B-0.085/35	0.085	35	2	20	28	0.37	φ3 Card sets	20
GDJ1-B-0.2/35	0.2	35	2	20	72	0.37	φ3 Card sets	20
GDJ1-B-0.19/32	0.19	32	3	20	28	0.37	φ3 Card sets	20
GDJ1-B-0.5/32	0.5	32	3	20	72	0.37	φ3 Card sets	20
GDJ1-B-0.56/30	0.56	30	5	20	28	0.37	φ3 Card sets	20
GDJ1-B-1.5/30	1.5	30	5	20	72	0.37	φ3 Card sets	20
GDJ1-B-1.5/28	1.5	28	8	20	28	0.37	φ3 Card sets	20
GDJ1-B-3.6/28	3.6	28	8	20	72	0.37	φ3 Card sets	20
GDJ1-B-2.3/25	2.3	25	10	20	28	0.37	φ3 Card sets	20
GDJ1-B-6/25	6	25	10	20	72	0.37	φ3 Card sets	20

GDJ1-B Plunger Metering Pump Installation Diagram:

GDJ2 Plunger Metering Pump Parameters:

Type	Flow L/h	Max Pressure MPa			inlet pipe connections(D)	Outlet pipe connections(C)
Type	Flow L/h	Motor 0.37kW	Motor 0.55kW	Motor 0.75kW	inlet pipe connections(D)	Outlet pipe connections(C)
GDJ2-1.2/20	1.2		20		Φ12 (outside diameter) *3 hose	Φ12 (outside diameter) *3 hose
GDJ2-2/20	2		20
GDJ2-3.2/20	3.2		20
GDJ2-5/16	5	16	16		Φ14 (outside diameter) *3 hose	Φ14 (outside diameter) *3 hose
GDJ2-6.3/40(16)	6.3	16	40		Φ12 (outside diameter) *3 hose	Φ12 (outside diameter) *3 hose
GDJ2-8/32(12.5)	8	12.5		32
GDJ2-10/25(10)	10	10	25
GDJ2-13/20(8)	13	8		20
GDJ2-18/16(6.3)	18	6.3	16		Φ14 (outside diameter) *3 hose	Φ14 (outside diameter) *3 hose
GDJ2-22/12.5(5)	22	5		12.5
GDJ2-32/10(4)	32	4	10
GDJ2-40/8(3.2)	40	3.2		8
GDJ2-50/6.3(2.5)	50	2.5	6.3		DN15-PN6RF GB/T9119	DN15-PN50 RF GB/T9116.1
GDJ2-63/5(2)	63	2		5	DN15-PN6RF GB/T9119	DN15-PN50 RF GB/T9116.1
GDJ2-80/4(1.6)	80	1.6	4		DN10-PN40 RF GB/T9119	DN10-PN40 RFGB/T9119
GDJ2-100/3.2(1.25)	100	1.25		3.2	DN10-PN40 RF GB/T9119	DN10-PN40 RFGB/T9119
GDJ2-125/2.5(1)	125	1	2.5		DN10-PN40 RF GB/T9119	DN15-PN40 RFGB/T9119
GDJ2-160/2(0.8)	160	0.8		2
GDJ2-200/1.6(0.63)	200	0.63	1.6
GDJ2-250/1.3	250			1.3
GDJ2-320/1	320			1	DN20-PN40 RF GB/T9119	DN20-PN40 RF GB/T9119
GDJ2-400/0.8	400			0.8	DN20-PN40 RF GB/T9119	DN20-PN40 RF GB/T9119
GDJ2-500/0.63	500			0.63	DN25-PN6 RF GB/T9119	DN25-PN6 RFGB/T9119
GDJ2-630/0.5	630			0.5	DN25-PN6 RF GB/T9119	DN25-PN6 RFGB/T9119
GDJ2-800/0.4	800			0.4	DN32-PN6 RF GB/T9119	DN32-PN6 RF GB/T9119
GDJ2-1000/0.32	1000			0.32	DN32-PN6 RF GB/T9119	DN32-PN6 RF GB/T9119

GDJ2 Plunger Metering Pump Install Dimensions:

Type	A	B	C	D
GDJ2-1.2/20	118	74	Φ12(outside diameter)*3hose	Φ12(outside diameter)*3hose
GDJ2-2/20	124	74
GDJ2-3.2/20	124	93	Φ14(outside diameter)*3hose	Φ14(outside diameter)*3hose
GDJ2-5/16	165	81
GDJ2-6.3/40(16)	118	74	Φ12(outside diameter)*3hose	Φ12(outside diameter)*3hose
GDJ2-8/32(12.5)
GDJ2-10/25(10)	124	93
GDJ2-13/20(8)
GDJ2-18/16(6.3)	165	81	Φ14(outside diameter)*3hose	Φ14(outside diameter)*3hose
GDJ2-22/12.5(5)
GDJ2-32/10(4)	165	81
GDJ2-40/8(3.2)
GDJ2-50/6.3(2.5)	133	84	DN15-PN50 RF GB/T9116.1	DN15-PN6RF GB/T9119
GDJ2-63/5(2)
GDJ2-80/4(1.6)	139	84	DN10-PN40 RF GB/T9119	DN10-PN6 RF GB/T9119
GDJ2-100/3.2(1.25)
GDJ2-125/2.5(1)	137	82	DN15-PN40 RF GB/T9119	DN15-PN6 RF GB/T9119
GDJ2-160/2(0.8)
GDJ2-200/1.6(0.63)	144	86
GDJ2-250/1.3
GDJ2-320/1	161	103	DN20-PN40 RF GB/T9119	DN20-PN6 RF GB/T9119
GDJ2-400/0.8
GDJ2-500/0.63	186	103	DN25-PN6 RF GB/T9119	DN25-PN6 RF GB/T9119
GDJ2-630/0.5
GDJ2-800/0.4	207	109	DN32-PN6 RF GB/T9119	DN32-PN6 RFGB/T9119
GDJ2-1000/0.32

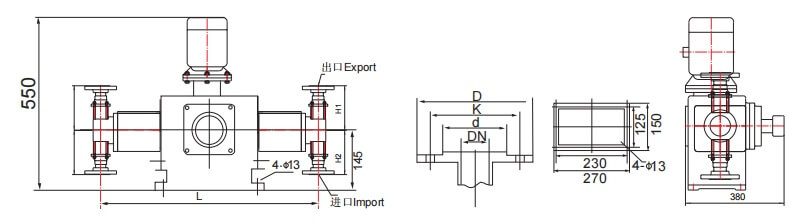

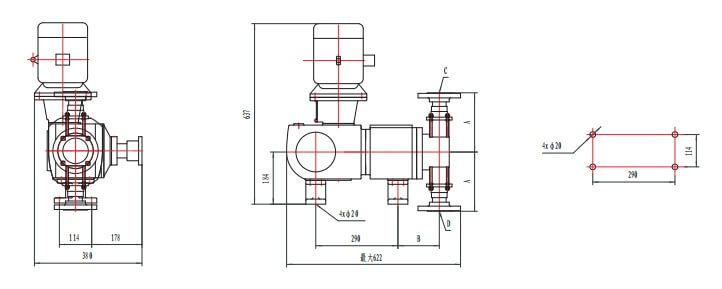

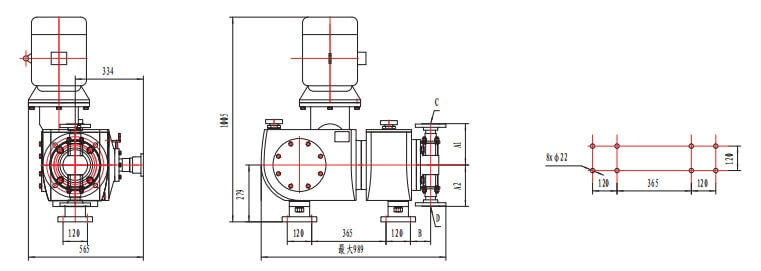

GDJ2 Plunger Metering Pump Installation Diagram:

GDJ3 Plunger Metering Pump Parameters:

Type	Flow L/h	Max Pressure MPa			inlet pipe connections(D)	Outlet pipe connections(C)
		Motor 1.1kW		Motor 1.5kW
GDJ3-8/50(32)	8	32	50		Φ14 (outside diameter) *4 hose	Φ14 (outside diameter) *4 hose
GDJ3-10/50(25)	10	25	50
GDJ3-12.5/50(20)	12.5	20	50		Φ18 (outside diameter) *4 hose	Φ18 (outside diameter) *4 hose
GDJ3-16/40(16)	16	16	40
GDJ3-22/32(12.5)	22	12.5	32
GDJ3-28/25(10)	28	10	25
GDJ3-38/20(8)	38	8	20		Φ18 (outside diameter) *4 hose	Φ18 (outside diameter) *4 hose
GDJ3-48/16(6.3)	48	6.3	16
GDJ3-63/12.5(5)	63	5	12.5
GDJ3-80/10(4)	80	4	10
GDJ3-100/8(3.2)	100	3.2	8		Φ18 (outside diameter) *4 hose	Φ18 (outside diameter) *4 hose
GDJ3-125/6.3(2.5)	125	2.5	6.3
GDJ3-160/5(2)	160	2	5		DN15-PN6 RF GB/T9119	DN15-PN10 RF GB/T9116
GDJ3-200/4(1.5)	200	1.5	4
GDJ3-250/3.2(1.3)	250	1.3	3.2		DN20-PN6 RFGB/T9119	DN20-PN40 RF GB/T9119
GDJ3-320/2.5(1)	320	1	2.5
GDJ3-400/2(0.8)	400	0.8	2		DN20-PN6 RFGB/T9119	DN20-PN40 RF GB/T9119
GDJ3-500/1.6(0.63)	500	0.63	1.6
GDJ3-630/1.3(0.5)	630	0.5	1.3		DN25-PN6 RFGB/T9119	DN25-PN40 RF GB/T9119
GDJ3-800/1(0.4)	800	0.4	1
GDJ3-1000/0.8(0.32)	1000	0.32	0.8		DN32-PN6 RFGB/T9119	DN32-PN40 RF GB/T9119
GDJ3-1250/0.63(0.25)	1250	0.25	0.63
GDJ3-1600/0.5(0.2)	1600	0.2	0.5		DN40-PN6 RFGB/T9119	DN40-PN6 RFGB/T9119
GDJ3-2000/0.4	2000		0.4

GDJ3 Plunger Metering Pump Install Dimensions:

Type	A	B	C	D
GDJ3-8/50(32)	147	128	Φ14(outside diameter)*4hose	Φ14(outside diameter)*4hose
GDJ3-10/50(25)
GDJ3-12.5/50(20)	159	148	Φ18(outside diameter)*4hose	Φ18(outside diameter)*4hose
GDJ3-16/40(16)
GDJ3-22/32(12.5)	159	122
GDJ3-28/25(10)
GDJ3-38/20(8)	159	122	Φ18(outside diameter)*4hose	Φ18(outside diameter)*4hose
GDJ3-48/16(6.3)
GDJ3-63/12.5(5)
GDJ3-80/10(4)
GDJ3-100/8(3.2)	186	129	Φ18(outside diameter)*4hose	Φ18(outside diameter)*4hose
GDJ3-125/6.3(2.5)
GDJ3-160/5(2)	176	129	DN15-PN10 RF GB/T9116	DN15-PN6 RF GB/T9119
GDJ3-200/4(1.6)
GDJ3-250/3.2(1.3)	198	126	DN20-PN40 RF GB/T9119	DN20-PN6 RF GB/T9119
GDJ3-320/2.5(1)
GDJ3-400/2(0.8)	175	138	DN20-PN40 RF GB/T9119	DN20-PN6 RF GB/T9119
GDJ3-500/1.6(0.63)
GDJ3-630/1.3(0.5)	200	138	DN25-PN40 RF GB/T9119	DN25-PN6 RF GB/T9119
GDJ3-800/1(0.4)
GDJ3-1000/0.8(0.32)	209	144	DN32-PN40 RF GB/T9119	DN32-PN6 RF GB/T9119
GDJ3-1250/0.63(0.25)
GDJ3-1600/0.5(0.2)	231	152	DN40-PN6 RF GB/T9119	DN40-PN6 RF GB/T9119
GDJ3-2000/0.4

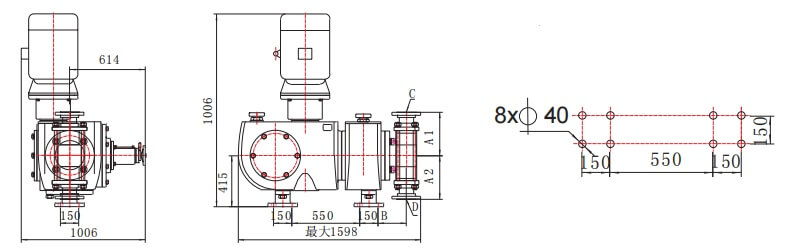

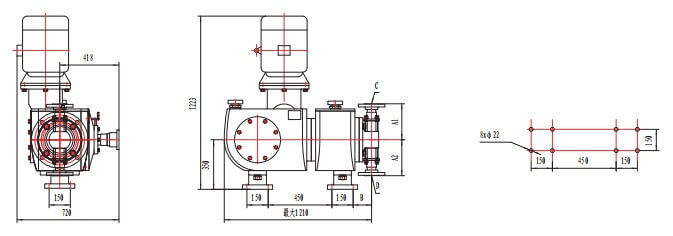

GDJ3 Plunger Metering Pump Installation Diagram:

GDJ4 Plunger Metering Pump Parameters:

Type	Flow L/h	Max Pressure MPa			inlet pipe connections(D)	Outlet pipe connections(C)
		Motor 1.5kW		Motor 2.2kW
GDJ4-25/50(25)	25	25	50		Φ20 (outside diameter) *5 hose	Φ20 (outside diameter) *5 hose
GDJ4-32/40(20)	32	20	40
GDJ4-40/32(16)	40	26	32		Φ20 (outside diameter) *5 hose	Φ20 (outside diameter) *5 hose
GDJ4-50/25(12.5)	50	12.5	25
GDJ4-70/20(10)	70	10	20		Φ20 (outside diameter) *4 hose	Φ20 (outside diameter) *4 hose
GDJ4-90/16(8)	90	8	16
GDJ4-120/12.5(6.3)	120	6.3	12.5		DN15-PN6 RF GB/T9119	DN15-PN150 RF GB/T9116.1
GDJ4-150/10(5)	150	5	10
GDJ4-200/8(4)	200	4	8		DN15-PN6 RF GB/T9119	DN15-PN110 RF GB/T9116.1
GDJ4-250/6.3(3.2)	250	3.2	6.3
GDJ4-320/5(2.5)	320	2.5	5		DN20-PN6 RF GB/T9119	DN20-PN50 RF GB/T9116.1
GDJ4-400/4(2)	400	2	4
GDJ4-500/3.2(1.6)	500	1.6	3.2		DN25-PN6 RF GB/T9119	DN25-PN40 RF GB/T9119
GDJ4-630/2.5(1.25)	630	1.25	2.5
GDJ4-800/2(1)	800	1	2		DN32-PN6 RF GB/T9119	DN32-PN40 RF GB/T9119
GDJ4-1000/1.6(0.8)	1000	0.8	1.6
GDJ4-1250/1.25(0.63)	1250	0.63	1.25		DN40-PN6 RF GB/T9119	DN40-PN40 RF GB/T9119
GDJ4-1600/1(0.5)	1600	0.5	1
GDJ4-2000/0.8(0.4)	2000	0.4	0.8		DN50-PN6 RF GB/T9119	DN50-PN6 RF GB/T9119
GDJ4-2500/0.63(0.32)	2500	0.32	0.63
GDJ4-3200/0.5	3200		0.5		DN65-PN6 RF GB/T9119	DN65-PN6 RF GB/T9119
GDJ4-4000/0.4	4000		0.4

GDJ4 Plunger Metering Pump Install Dimensions:

Type	A1	A2	B	C	D
GDJ4-25/50(25	159	159	146	Φ20 (outside diameter) *5 hose	Φ20 (outside diameter) *5 hose
GDJ4-32/40(20)
GDJ4-40/32(16)	159	159	130	Φ20 (outside diameter) *5 hose	Φ20 (outside diameter) *5 hose
GDJ4-50/25(12.5)
GDJ4-70/20(10)	159	159	124	Φ20 (outside diameter) *4 hose	Φ20 (outside diameter) *4 hose
GDJ4-90/16(8)
GDJ4-120/12.5(6.3)	186	166	137	DN15-PN150 RF GB/T9116.1	DN15-PN6 RF GB/T9119
GDJ4-150/10(5)
GDJ4-200/8(4)	176	166	137	DN15-PN110 RF GB/T9116.1	DN15-PN6 RF GB/T9119
GDJ4-250/6.3(3.2)
GDJ4-320/5(2.5)	200	198	134	DN20-PN50 RF GB/T9116.1	DN20-PN6 RF GB/T9119
GDJ4-400/4(2)
GDJ4-500/3.2(1.6)	175	175	146	DN25-PN40 RF GB/T9119	DN25-PN6 RF GB/T9119
GDJ4-630/2.5(1.25)
GDJ4-800/2(1)	200	200	138	DN32-PN40 RF GB/T9119	DN32-PN6 RF GB/T9119
GDJ4-1000/1.6(0.8)
GDJ4-1250/1.25(0.63)	209	209	152	DN40-PN40 RF GB/T9119	DN40-PN6 RF GB/T9119
GDJ4-1600/1(0.5)
GDJ4-2000/0.8(0.4)	231	231	160	DN50-PN6 RF GB/T9119	DN50-PN6 RF GB/T9119
GDJ4-2500/0.63(0.32)
GDJ4-3200/0.5	264	264	188	DN65-PN6 RF GB/T9119	DN65-PN6 RF GB/T9119
GDJ4-4000/0.4

GDJ4 Plunger Metering Pump Installation Diagram:

GDJ5 Plunger Metering Pump Parameters:

Type	Flow L/h	Max Pressure MPa			inlet pipe connections(D)	Outlet pipe connections(C)
		Motor 5.5kW		Motor 7.5kW
GDJ5-100/50(25)	100	32.0	50.0		DN15-PN6 RFGB/T9119	DN15-PN420 RFGB/T9115.1
GDJ5-130/50(20)	130	20.0	50.0
GDJ5-170/40(16)	170	16.0	40.0		DN15-PN6 RFGB/T9119	DN15-PN420 RFGB/T9115.1
GDJ5-220/32(12.5)	220	12.5	32.0
GDJ5-300/25(10)	300	10.0	25.0		DN20-PN6 RFGB/T9119	DN20-PN260 RFGB/T9116.1
GDJ5-380/20(8)	380	8.0	20.0
GDJ5-500/16(6.3)	500	6.3	16.0		DN25-PN6 RFGB/T9119	DN25-PN150 RFGB/T9116.1
GDJ5-630/12.5(5)	630	5.0	12.5
GDJ5-800/10(4)	800	4.0	10.0		DN32-PN6 RFGB/T9119	DN32-PN110 RF GB/T9116.1
GDJ5-1000/8(3.2)	1000	3.2	8.0
GDJ5-1250/6.3(2.5)	1250	2.5	6.3		DN40-PN6 RFGB/T9119	DN40-PN50 RF GB/T9119
GDJ5-1600/5(2)	1600	2.0	5.0
GDJ5-2000/4(1.6)	2000	1.6	4.0		DN40-PN6 RFGB/T9119	DN40-PN40 RF GB/T9119
GDJ5-2500/3.2(1.25)	2500	1.25	3.2
GDJ5-3200/2.5(1)	3200	1.0	2.5		DN50-PN6 RFGB/T9119	DN50-PN40 RF GB/T9119
GDJ5-4000/2(0.8)	4000	0.8	2.0
GDJ5-5000/1.6(0.63)	5000	0.63	1.6		DN65-PN6 RFGB/T9119	DN65-PN40 RF GB/T9119
GDJ5-6300/1.25(0.5)	6300	0.5	1.25
GDJ5-8000/1(0.4)	8000	0.4	1.0		DN80-PN6 RFGB/T9119	DN80-PN40 RF GB/T9119
GDJ5-10000/0.8(0.32)	10000	0.32	0.8

GDJ5 Plunger Metering Pump Install Dimensions:

Type	A1	A2	B	C	D
GDJ5-100/50(25)	211	201	106	DN15-PN420 RFGB/T9115.1	DN15-PN6 RF GB/T9119
GDJ5-130/50(20)
GDJ5-170/40(16)	211	201	106	DN15-PN420 RF GB/T9115.1	DN15-PN6 RF GB/T9119
GDJ5-220/32(12.5)
GDJ5-300/25(10)	262	232	113	DN20-PN260 RF GB/T9116.1	DN20-PN6 RF GB/T9119
GDJ5-380/20(8)
GDJ5-500/16(6.3)	288	268	110	DN25-PN150 RF GB/T9116.1	DN25-PN6 RF GB/T9119
GDJ5-630/12.5(5)
GDJ5-800/10(4)	267	257	123	DN32-PN110 RF(NPT)GB/T9116.1	DN32-PN6 RF GB/T9119
GDJ5-1000/8(3.2)
GDJ5-1250/6.3(2.5)	205	205	121	DN40-PN50 RF GB/T9119	DN40-PN6 RF GB/T9119
GDJ5-1600/5(2)
GDJ5-2000/4(1.6)	213	213	120	DN40-PN40 RF GB/T9119	DN40-PN6 RF GB/T9119
GDJ5-2500/3.2(1.25)
GDJ5-3200/2.5(1)	238	238	125	DN50-PN40 RF GB/T9119	DN50-PN6 RF GB/T9119
GDJ5-4000/2(0.8)
GDJ5-5000/1.6(0.63)	272	272	141	DN65-PN40 RF GB/T9119	DN65-PN6 RF GB/T9119
GDJ5-6300/1.25(0.5)
GDJ5-8000/1(0.4)	323	323	156	DN80-PN40 RF GB/T9119	DN80-PN6 RF GB/T9119
GDJ5-10000/0.8(0.32)

GDJ5 Plunger Metering Pump Installation Diagram:

GDJ6 Plunger Metering Pump Parameters:

Type	Flow L/h	Max Pressure MPa			inlet pipe connections(D)	Outlet pipe connections(C)
		Motor 11kW		Motor 18.5kW
GDJ6-120/50	120		50		DN20-PN6RFGB/T9119	DN20-PN420RFGB/9115.1
GDJ6-160/50	160		50
GDJ6-220/50(40)	220	40	50		DN20-PN6RFGB/T9119	DN20-PN420RFGB/9115.1
GDJ6-290/50(32)	290	32	50
GDJ6-380/40(25)	380	25	40		DN20-PN6RFGB/T9119	DN40-PN420RFGB/T9116.1
GDJ6-480/32(20)	480	20	32
GDJ6-620/25(16)	620	16	25		DN25-PN6RFGB/T9119	DN40-PN260RFGB/T9116.1
GDJ6-780/20(12.5)	780	12.5	20
GDJ6-1000/16(10)	1000	10	16		DN32-PN6RFGB/T9119	DN40-PN150RFGB/T9116.1
GDJ6-1250/12.5(8)	1250	8	12.5
GDJ6-1600/10(6.3)	1600	6.3	10		DN40-PN6RFGB/T9119	DN40-PN110RFGB/T9116.1
GDJ6-2000/8(5)	2000	5	8
GDJ6-2500/6.3(4)	2500	4	6.3		DN50-PN6RFGB/T9119	DN50-PN50RFGB/T9116.1
GDJ6-3200/5(3.2)	3200	3.2	5
GDJ6-4000/4(2.5)	4000	2.5	4		DN65-PN6RFGB/T9114	DN65-PN40RFGB/T9119
GDJ6-5000/3.2(2)	5000	2	3.2
GDJ6-6300/2.5(1.6)	6300	1.6	2.5		DN80-PN6RFGB/T9119	DN80-PN40RFGB/T9119
GDJ6-8000/2(1.25)	8000	1.25	2
GDJ6-10000/1.6(1)	10000	1	1.6		DN100-PN6RFGB/T9119	DN100-PN40RFGB/T9119
GDJ6-12500/1.25(0.8)	12500	0.8	1.25
GDJ6-16000/1(0.63)	16000	0.63	1		DN125-PN6RFGB/T9119	DN125-PN40RFGB/T9119
GDJ6-20000/0.8(0.5)	20000	0.5	0.8
GDJ6-25000/0.63	25000		0.63		DN125-PN6 RFGB/T9119	DN125-PN6RFGB/T9119
GDJ6-32000/0.5	32000		0.5

GDJ6 Plunger Metering Pump Install Dimensions:

Type	A1	A2	B	C	D
GDJ6-120/50	290	240	119	DN20-PN420RF GB/9115.1	DN20-PN6RF GB/T9119
GDJ6-160/50
GDJ6-220/50(40)	290	240	119	DN20-PN420RF GB/9115.1	DN20-PN6RF GB/T9119
GDJ6-290/50(32)
GDJ6-380/40(25)	324	294	127	DN40-PN420RF GB/T9116.1	DN20-PN6RF GB/T9119
GDJ6-480/32(20)
GDJ6-620/25(16)	344	304	147	DN40-PN260RF GB/T9116.1	DN25-PN6RF GB/T9119
GDJ6-780/20(12.5)
GDJ6-1000/16(10)	360	334	147	DN40-PN150RF GB/T9116.1	DN32-PN6RF GB/T9119
GDJ6-1250/12.5(8)
GDJ6-1600/10(6.3)	340	340	149	DN40-PN110RF GB/T9116.1	DN40-PN6RF GB/T9119
GDJ6-2000/8(5)
GDJ6-2500/6.3(4)	248	218	144	DN50-PN50RF GB/T9116.1	DN50-PN6RF GB/T9119
GDJ6-3200/5(3.2)
GDJ6-4000/4(2.5)	256	236	148	DN65-PN40RF GB/T9119	DN65-PN6RF GB/T9114
GDJ6-5000/3.2(2)
GDJ6-6300/2.5(1.6)	298	298	156	DN80-PN40RF GB/T9119	DN80-PN6RF GB/T9119
GDJ6-8000/2(1.25)
GDJ6-10000/1.6(1)	340	340	175	DN100-PN40RF GB/T9119	DN100-PN6RF GB/T9119
GDJ6-12500/1.25(0.8)
GDJ6-16000/1(0.63)	402	402	195	DN125-PN40RF GB/T9119	DN125-PN6RF GB/T9119
GDJ6-20000/0.8(0.5
GDJ6-25000/0.63	402	402	195	DN125-PN6RF GB/T9119	DN125-PN6 RF GB/T9119
GDJ6-32000/0.5

GDJ6 Plunger Metering Pump Installation Diagram:

GDJ7 Plunger Metering Pump Parameters:

Type	Flow L/h	Max Pressure MPa			inlet pipe connections(D)	Outlet pipe connections(C)
		Motor 18.5kW		Motor 30kW
GDJ7-500/50(50)	500	50	50		DN32-PN40 RF(Rp) GB/T9119	DN32-PN420 RF GB/T9116.1
GDJ7-630/50(40)	630	40	50
GDJ7-800/50(32)	800	32	50
GDJ7-1000/40(25)	1000	25	40		DN40-PN40 RF(Rp) GB/T9119	DN40-PN420 RF GB/T9116.1
GDJ7-1250/32(20)	1250	20	32
GDJ7-1600/25(16)	1600	16	25		DN50-PN40 RF(Rp) GB/T9119	DN50-PN260 RF GB/T9116.1
GDJ7-2000/20(12.5)	2000	12.5	20
GDJ7-2500/16(10)	2500	10	16		DN65-PN40 RF(Rp) GB/T9119	DN65-PN150 RF GB/T9116.1
GDJ7-3200/12.5(8)	3200	8	12.5
GDJ7-4000/10(6.3)	4000	6.3	10		DN80-PN40 RF(Rp) GB/T9119	DN80-PN110 RF(NPT) GB/T9119
GDJ7-5000/8(5)	5000	5	8
GDJ7-6300/6.3(5)	6300	5	6.3		DN80-PN40 RF(Rp) GB/T9119	DN80-PN110 RF(NPT) GB/T9119
GDJ7-6300/6.3(4)	6300	4	6.3
GDJ7-8000/5(3.2)	8000	3.2	5		DN80-PN40 RF(Rp) GB/T911	DN80-PN50 RF(NPT) GB/T9119
GD7-10000/4(2.5)	10000	2.5	4
GDJ7-12500/3.2(2)	12500	2	3.2		DN100-PN40 RF(Rp) GB/T9119	DN100-PN40 RF(Rp) GB/T9119
GDJ7-16000/2.5(1.6)	16000	1.6	2.5
GDJ7-20000/2(1.25	20000	1.25	2		DN125-PN25 RF(Rp) GB/T9119	DN125-PN25 RF(Rp) GB/T9119
GDJ7-25000/1.6(1)	25000	1	1.6
GDJ7-32000/1.25(0.8)	32000	0.8	1.25		DN150-PN16 RF(Rp) GB/T9119	DN150-PN16 RF(NPT) GB/T9119
GDJ7-40000/1(0.63)	40000	0.63	1
GDJ7-50000/0.8(0.5)	50000	0.5	0.8		DN200-PN10RF(Series one) GB/T9119	DN200-PN10RF(Series one) GB/T9119

GDJ7 Plunger Metering Pump Install Dimensions:

Type	A1	A2	B	C	D
GDJ7-500/50(50)	301	256	185	DN32-PN420 RF GB/T9116.1	DN32-PN40 RF(Rp) GB/T9119
GDJ7-630/50(40)
GDJ7-800/50(32)
GDJ7-1000/40(25)	319	260	188	DN40-PN420 RF GB/T9116.1	DN40-PN40 RF(Rp) GB/T9119
GDJ7-1250/32(20)
GDJ7-1600/25(16)	327	279	194	DN50-PN260 RF GB/T9116.1	DN50-PN40 RF(Rp) GB/T9119
GDJ7-2000/20(12.5)
GDJ7-2500/16(10)	404	357	201	DN65-PN150 RF GB/T9116.1	DN65-PN40 RF(Rp) GB/T9119
GDJ7-3200/12.5(8)
GDJ7-4000/10(6.3)	318	280	211	DN80-PN110 RF(NPT) GB/T9119	DN80-PN40 RF(Rp) GB/T9119
GDJ7-5000/8(5)
GDJ7-6300/6.3(5)	298	260	211	DN80-PN110 RF(NPT) GB/T9119	DN80-PN40 RF(Rp) GB/T9119
GDJ7-6300/6.3(4)
GDJ7-8000/5(3.2)	301	272	216	DN80-PN50 RF(NPT) GB/T9119	DN80-PN40 RF(Rp) GB/T9119
GD7-10000/4(2.5)
GDJ7-12500/3.2(2)	358	358	230	DN100-PN40 RF(Rp) GB/T9119	DN100-PN40 RF(Rp) GB/T9119
GDJ7-16000/2.5(1.6)
GDJ7-20000/2(1.25	420	420	245	DN125-PN25 RF(Rp) GB/T9119	DN125-PN25 RF(Rp) GB/T9119
GDJ7-25000/1.6(1)
GDJ7-32000/1.25(0.8)	480	480	269	DN150-PN16 RF(NPT) GB/T9119	DN150-PN16 RF(Rp) GB/T9119
GDJ7-40000/1(0.63)
GDJ7-50000/0.8(0.5)	530	530	283	DN200-PN10 RF(Series one) GB/T9119	DN200-PN10 RF(Series one) GB/T9119

GDJ7 Plunger Metering Pump Installation Diagram:

2GDJ1 Plunger Metering Pump Parameters:

Type	Flow L/h	Max Pressure MPa	Plunger diameter mm	Coverage mm	Pump speed Times/min	Motor power Kw
2GDJ1-0.17/35	0.17	35	2	20	28	0.37
2GDJ1-0.4/35	0.4	35	2	20	72	0.37
2GDJ1-0.38/32	0.38	32	3	20	28	0.37
2GDJ1-1/32	1	32	3	20	72	0.37
2GDJ1-1.1/30	1.1	30	5	20	28	0.37
2GDJ1-3/30	3	30	5	20	72	0.37
2GDJ1-3/28	3	28	8	20	28	0.37
2GDJ1-7.2/28	7.2	28	8	20	72	0.37
2GDJ1-4.6/25	4.6	25	10	20	28	0.37
2GDJ1-12/25	12	25	10	20	72	0.37

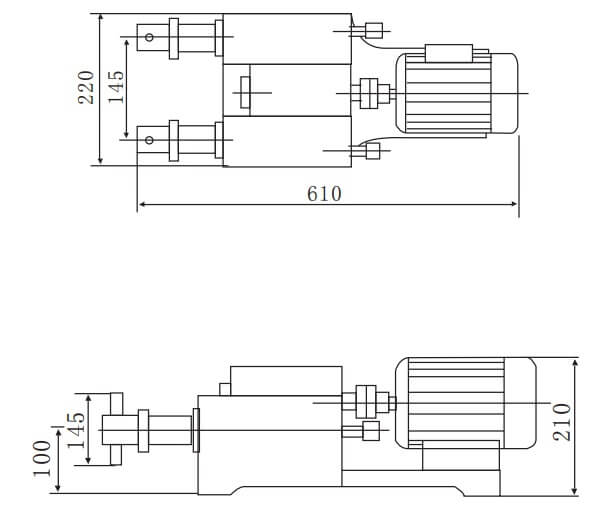

2GDJ1 Plunger Metering Pump Installation Diagram:

2GDJ2 Plunger Metering Pump Parameters:

Type	Flow L/h	Discharge pressure MPa	Plunger diameter mm	Coverage mm	Repetition rpm	Motor power Kw
2GDJ2-8/25	8	25	10	22	80	0.75
2GDJ2-14/16	14	16	13	22	80	0.75
2GDJ2-22/10	22	10	16	22	80	0.75
2GDJ2-38/6.4	38	6.4	21	22	80	0.75
2GDJ2-62/4.0	62	4.0	27	22	80	0.55
2GDJ2-125/2.5	125	2.5	39	22	80	0.55
2GDJ2-250/1.6	250	1.6	55	22	80	0.55
2GDJ2-310/1.2	310	1.2	61	22	80	0.75
2GDJ2-390/1.0	390	1.0	69	22	80	0.75
2GDJ2-500/0.5	500	0.5	78	22	80	0.75

2GDJ2 Plunger Metering Pump Install Dimensions:

DN	D	K	d	H1	H2	L
8	90	60	41	162	163	760
16	90	60	41	162	163	760
12	90	60	41	162	163	780
16	90	60	41	162	163	780
20	90	60	41	162	163	780
28	90	60	41	162	163	780
40	95	60	46	167	167	780
32	95	60	46	167	167	820
40	95	60	46	167	167	820
45	95	60	46	167	167	820

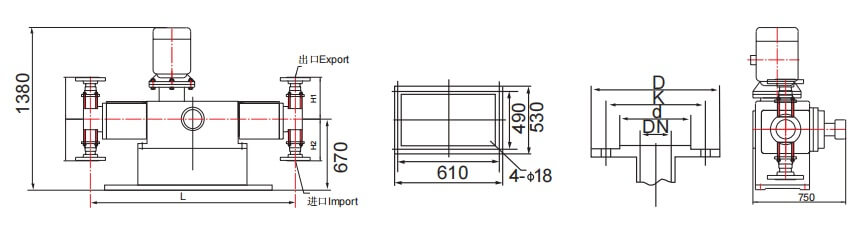

2GDJ2 Plunger Metering Pump Installation Diagram:

2GDJ3 Plunger Metering Pump Parameters:

Type	Flow L/h	Discharge pressure MPa	Plunger diameter mm	Coverage mm	Repetition rpm	Motor power Kw
2GDJ3-22/64	22	64	10	50	90	2.2
2GDJ3-33/64	33	64	12	50	90	2.2
2GDJ3-32/50	32	50	12	50	90	2.2
2GDJ3-48/50	48	50	15	50	90	2.2
2GDJ3-56/40	56	40	16	50	90	2.2
2GDJ3-84/40	84	40	20	50	90	2.2
2GDJ3-96/32	96	32	21	50	90	2.2
2GDJ3-144/25	144	25	26	50	90	2.2
2GDJ3-150/25	150	25	27	50	90	2.2
2GDJ3-224/20	224	20	33	50	90	3
2GDJ3-244/16	244	16	34	50	90	3
2GDJ3-366/12.5	366	12.5	42	50	90	3
2GDJ3-400/10	400	10	43	50	90	3
2GDJ3-600/10	600	10	53	50	90	3
2GDJ3-636/6.4	636	6.4	55	50	90	3
2GDJ3-954/6.4	954	6.4	67	50	90	4
2GDJ3-1040/5.0	1040	5.0	70	50	90	4
2GDJ3-1560/4.0	1560	4.0	86	50	90	4
2GDJ3-1720/3.2	1720	3.2	90	50	90	4
2GDJ3-2560/2.5	2560	2.5	110	50	90	4
2GDJ3-2160/2.0	2160	2.0	101	50	90	4
2GDJ3-3240/1.6	3240	1.6	124	50	90	4
2GDJ3-2770/1.6	2770	1.6	114	50	90	4
2GDJ3-4150/1.0	4150	1.0	140	50	90	4
2GDJ3-6200/0.5	6200	0.5	171	50	90	4

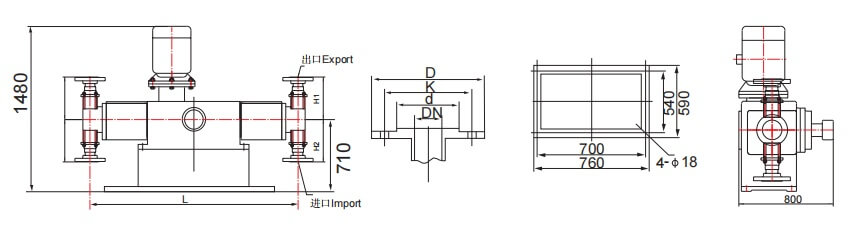

2GDJ3 Plunger Metering Pump Install Dimensions:

DN	D	K	d	H1	H2	L
8	90	60	41	155	195	1100
8	90	60	41	155	195	1100
8	90	60	41	155	195	1100
8	90	60	41	155	195	1100
8	90	60	41	155	195	1100
8	90	60	41	155	195	1100
8	90	60	41	155	195	1100
10	90	60	41	162	202	1100
10	90	60	41	162	202	1100
10	90	60	41	162	202	1100
10	90	60	41	162	202	1100
12	95	66	46	198	198	1120
12	95	66	46	198	198	1120
12	95	66	46	198	198	1120
12	95	66	46	198	198	1120
16	105	85	56	214	254	1120
16	105	85	56	214	254	1120
16	105	85	56	214	254	1120
16	105	85	56	214	254	1120
16	105	85	56	214	254	1120
26	115	85	65	205	245	1260
26	115	85	65	205	245	1260
26	115	85	65	205	245	1260
35	135	98	75	240	280	1350
35	135	98	75	240	280	1350

2GDJ3 Plunger Metering Pump Installation Diagram:

2GDJ4 Plunger Metering Pump Parameters:

Type	Flow L/h	Discharge pressure MPa	Plunger diameter mm	Coverage mm	Repetition rpm	Motor power Kw
2GDJ4-52/64	52	64	12	80	90	4
2GDJ4-78/64	78	64	15	80	90	4
2GDJ4-92/50	92	50	16	80	90	4
2GDJ4-138/50	138	50	20	80	90	4
2GDJ4-152/40	152	40	21	80	90	4
2GDJ4-228/40	228	40	26	80	90	4
2GDJ4-240/32	240	32	27	80	90	5.5
2GDJ4-360/32	360	32	33	80	90	5.5
2GDJ4-392/25	392	25	34	80	90	5.5
2GDJ4-588/25	588	25	42	80	90	5.5
2GDJ4-610/20	610	20	42	80	90	5.5
2GDJ4-900/20	900	20	52	80	90	5.5
2GDJ4-1016/16	1016	16	55	80	90	5.5
2GDJ4-1500/16	1500	16	67	80	90	5.5
2GDJ4-1666/10	1666	10	70	80	90	5.5
2GDJ4-2500/10	2500	10	86	80	90	5.5
2GDJ4-2288/8.0	2288	8.0	82	80	90	5.5
2GDJ4-3432/8.0	3432	8.0	101	80	90	5.5
2GDJ4-3100/6.4	3100	6.4	96	80	90	5.5
2GDJ4-4650/4.0	4650	4.0	117	80	90	5.5
2GDJ4-4000/2.5	4000	2.5	109	80	90	5.5
2GDJ4-6000/1.6	6000	1.6	133	80	90	5.5
2GDJ4-9000/1.6	9000	1.6	163	80	90	5.5
2GDJ4-7320/1.0	7320	1.0	147	80	90	5.5
2GDJ4-11000/1.0	11000	1.0	180	80	90	5.5
2GDJ4-15500/0.5	15500	0.5	214	80	90	5.5

2GDJ4 Plunger Metering Pump Install Dimensions:

DN	D	K	d	H1	H2	L
8	95	65	46	189	189	1250
8	95	65	46	189	189	1250
8	95	65	46	189	189	1250
8	95	65	46	189	189	1250
8	95	65	46	189	189	1250
8	95	65	46	189	189	1250
12	105	85	46	189	189	1250
12	105	85	56	189	189	1250
12	105	85	56	189	189	1250
12	105	85	56	189	189	1250
16	115	85	56	194	194	1300
16	115	85	65	194	194	1300
16	115	85	65	194	194	1300
16	115	85	65	194	194	1300
26	125	98	65	200	200	1350
26	125	98	75	200	200	1350
26	125	98	75	200	200	1350
26	125	98	75	200	200	1350
35	125	98	75	200	200	1350
35	125	98	75	200	200	1350
35	125	98	75	220	220	1350
40	145	110	85	235	235	1350
40	145	110	85	235	235	1350
80	195	160	135	270	270	1350
80	195	160	135	270	270	1350
80	195	160	135	270	270	1350

2GDJ4 Plunger Metering Pump Installation Diagram:

Inquiry >>

Products you need :
Your name :
Your tel :
* Your mail :
Your company :
Your country :
* Inquiry :	Please enter your inquiry

PRODUCT CATEGORIES

Hydroseeding Equipment

GHS15190 Hydroseeding equipment GHS13190 Hydroseeding equipment for mining sites green GHS10120 Hydroseeder for mine and oilfield reclamation GHS0883 Hydroseeding Machine for Sale GHS08100A Hydro seeding machine GHS08100 Hydroseeder for sale GHS0551 1000gallon commercial hydroseeder GHS0353 Hydroseeder Machine GHS0217 500gallon grass seeding hydroseeder GHS0117 Small hydroseeder for sale GHS0217PT 500gallon mechanical agitated hydroseeder GHS0110PT Jet agitated hydroseeder with poly tank GEC Slope Protection Machine Soil Sieving Machine

Plaster Pump

GPXT200-D/A Diesel pneumatic conveyor for floor screeds GPXT200-D/A Diesel screed mixer pump with air pressure GPXT400-E Electric screed mortar mixing and pumping machine GSLC-10/D Self leveling mortar mixing conveying machine GMP-5X Mortar plastering machine with mixer and screw pump GPXT200-D/A Mortar Mixer and Transfer Machine with Air Pressure Screed Machine GMP70/30 Double piston mortar spraying machine Double piston mortar spraying pump GH32H Mortar Spraying Machine Full Automatic Screw Type Mortar Spraying Pump Machine GMP35/30 Mortar Spray Pump GMP40/10-H Mortar Plaster Pump GMP50/40 Mortar Spraying Machine GD-N5 Wall Putty Spray Machine GH38ME mortar pump GD-N2 Plastering Machine GD-N1 Wall Putty Spray Machine Hydraulic Mortar Pump Electric Mortar Transfer Pump Machine GEC-SUB8.0 High Pressure Mortar Spraying Pump

Grout Plant

GGP1200/1200/2×75/100PL-E Automatic grout mixing and pumping equipment GGP400/1000/90DPL-E Bentonite cement grout mixer and pump GGP400/700/80/100DPI-D Cement grout unit GGP300/300/75PI-E Grout plant for sale GGP1000/2X75/100PI-E Automatic Grouting Station GGP400/1000/95/165DPL-E/A Grout Mixer and Pump GGP1000/4000/2x165/30PL-E Automatic grouting station / plant GGP1200/1200/2X75/100PI-E Fully automatic version grout station for TBM GGP400/700/80DPL-D Diesel engine grout inject station GGP550/800/150/70DPL-E Compact grout plant GGP300/300/300/70/80PI-E Mortar Grout Plant GGP250/700/75PI-E Grout Inject Station GGP250/350/100DPI-D Bentonite grout mixing plant GGP400/700/320/100TPI-E Colloidal grout plant GGP400/700/80DPL-E TBM grout plant GGP400/80PL-E Bentonite injection plant GGP220/350/50DPI-D TBM grouting plant for tunnel lining GGP100/150/20PI-E TBM backfill grout plant GGP1200/3000/300H-E Grout mixer and pump for backfilling GGP500/2000/165H-E Grout mixing and pumping system GGP400/700/80PL-E Grout Station GGP800/1200/200PI-D Grout Station Automatic Bentonite Turbo Mixer/Pump Plant/Station GGP300/350/85PL-E Grout Station GGP350/800/70PI-E grout injection station GGP800/1200/130H-E electric hose type grout plant GGP500/700/100PI-E Electric Grout Station GGP500/700/100PI-D Grout plant unit GGP200/300/100PI-D Grouting Injection Plant GGP400/700/100PL-D Grout Station/Plant GGP250/350/100PI-D Grout Pump Station System GGP200/300/100PI-E Grout mixing injection plant GGP220/300/300PI-E China mortar grout station for sale Grouting Works Drilling Rig Grouting Recorder

Grout Mixer and Agitator

GMA850-1500A/E Grout mixing machine GMA30 Automatic mixing plant and HCS17B cement silo GMA2X300/1000 Container type grout mixing machine GMA20 Automatic cement slurry grout mixer with cement silo GMA400-700AW Auto mixing station GMA750-1500E Grout turbo mixer with agitator GMA850-1500D High speed cement slurry mud grout mixer and agitator GM400D High speed grout mixer GMA300-650E/D Cement grout mixer with agitator GMA1500-1200E Turbo mix grout mixer with agitator GMA360D High speed diesel grout mixer/agitator GMA850-1500E Bentonite cement grout mixer and agitator GM500E Colloidal grout mixer GMA400-700E electric grout mixer machine for sale GMA500-1000E Cement grout mixer with agitator GM300E high shear grout mixer (Colloidal type)GMA250-700E Cement grout mixer GM400E high shear grout mixer (wing shaft type)

Grout Pump

GGP250/450-250D diesel driven high pressure jet grouting pump GGP440/50PI-22E Inverter speed high pressure grouting pump GGP120/30PI-E Electric grout pump GGH75/100PI-E High pressure vertical grouting pump GGP114/500-120D High pressure triplex pump for jet grouting GGH95/165PL-E High pressure grout pump GGM90/100PLD-E High pressure double plunger hydraulic grout pump GGH Series High Pressure Grouting Pump GGP10/40-E grout pump GGP25/15 Small type grout pump GDM130/20 Medium-Pressure Grouting Pump GDM60/40 Medium-Pressure Dual- slurry Grouting Pump GH-H Series Hydraulic Grouting Pump GH-HD Series Dual Slurry Hydraulic Grouting Pump GP Series Pneumatic Grout Pumps GHG-10 Grouting Cement Small Grout Pump GE Series Hydraulic Grout Pumps GDB Series Grouting Pump Mortar concrete grout pump XPB-10 Low Pressure Large Output Grouting Pump XPB-50 High Pressure Grouting Pump XPB-90 Series High Pressure Grouting Pump Dual slurry grouting injection pump

Drilling Rig

GE90R Core drill rig GPD100H-D/E Portable hydraulic drive DTH drilling machine GPD100H Portable chain feeds drilling machine XL-50 Jet Grouting Drilling Rig DTH drilling machine for blast-hole in quarry GL-4000 Full Hydraulic Crawler Jet Grouting Anchor DTH Drilling Rig GL-6000 Full Hydraulic Multifunctional Jet Grouting Anchor Engineering Drilling Rig XDQ-1200 Full Hydraulic Portable Diamond Wireline Core Drilling Rig XY-44B Core Drilling Rig XDL-1800/1200 Crawler Full Hydraulic Core Drilling Rig GSD-I trailer mounted water well drilling machine GSD-Ⅱ diesel water well drilling rig GSD-III truck mounted water well drilling rigs GSD-IIA water well drilling machine GD-370 hydraulic drilling machine GD-380T split type air kinetic energy DTH drilling machine GD-X5 powerful hydraulic DTH hammer drilling rig with dust collector

Anchor Equipment and Tools

GDBLDT150 Intelligent walking jacking system CLL70-50 Double acting hollow lock nut hydraulic jack STQS200-300 200ton Universal anti-eccentric load hydraulic jack YDC500DY-250A PT Multi strand tension hydraulic jack Double acting hydraulic jack Double acting hollow hydraulic jack YDC Post Tension Hollow Hydraulic Jack Hollow hydraulic torque wrench set Single acting hydraulic jack Heavy duty double acting flange hydraulic jack Prestressed Concrete Cable Thin type single acting hydraulic jack Aluminum titanium alloy square drive hydraulic torque wrench set Single acting hollow hydraulic jack Self-locking type hydraulic jack Synchronous control hydraulic jack QYC Front-end mono strand hydraulic jack Electric Oil Pump 2.2Kw Single acting Electric Oil Pump Used for Lifting Hydraulic Jack Hand oil pump for hydraulic jack Oil Pump GJP-63D Pump station with diesel driven Prestressed concrete round anchors Flat anchor Prestressed PC Strands Pusher Machine for Bridge and Railway Metal Ducts Making Machine GYJ Extrusion Machine

Refractory Gunite/Shotcrete/Mixer

GZ-3ER Refractory Shotcrete Machine GRM Refractory Pan Mixer GDPX Refractory mixing and conveying unit GTS-40E/S Tundish spraying machine GZ-3ER/SC Dry mix gunning machine for refractory work GZ-3ER/S Electrical refractory gunning machine GZ-6DR/RD Diesel engine driven refractory gunite machine GZ-9ER Refractory shotcrete machine in steel mill GZ-6AR/RD Air Driven Refractory Gunning Machine GZ-1.5ER Mobile portable refractory gunning machine GZ-5AR Gunning machine for refractory GZ-3AR Refractory gunning machine GZ-5ER Refractory dry gunning machine Converter refractory hot repair gunning machine GCPM Counter Current UHPC Planetary Concrete Mixer GRM100 100kg refractory castable mixer GRM250 250kg capacity refractory pan mixer GRM500 500kg capacity refractory cement mixer GRM800 800kg castable refractory pan mixer GRM1000 1000kg capacity refractory pan mixer for mixing refractory GCG-40 Coke oven guniting machine for sale GD-BJ Switch-plate Type Refractory Gunning Machine GD-BP Fluidifying Semi-dry Refractory Concrete Spraying Machine GD-SL Metallurgical Furnace Used Screw Pump GWR Wet gunning refractory pump

Shotcrete Machine

GZC-15/D Conveyor and shotcrete machine combination GSZ-10S/E Electric shotcrete machine (dry and wet)GZ-9E/S Wet & dry sprayed concrete linings and convey pea-gravel machine GSZ3000 Wet Shotcrete Machine GDS1500 Wet Shotcrete Machine GSZ-10S wet and dry concrete spraying and conveying machine GZ-3A Air motor dry mix shotcrete machine GZ-9 Dry-mix Concrete Spraying Machine GPS-7A Wet Shotcrete Machine GZ-5 Dry-mix Gunite Machine GZ-7 Dry Mix Concrete Shotcrete Machine GZ-3 Dry mix shotcrete machine GDS2000G Shotcrete Pump GDS2000E Shotcrete pump for sale GDUH15A-A Liquid admixture dosing unit for shotcrete HSC-3016 concrete sprayer shotcrete system with shotcrete arm HSC-2008 shotcrete machine with spray arm HSC-2513 concrete spray shotcrete system with robotic arm HSC-2515 concrete sprayer shotcrete system HSC-2815 concrete spray shotcrete system HSC-2815B robotic shotcrete machine GPS5-15S hydraulic pump wet concrete spray shotcrete machine YSC5-15S vehicular hydraulic pump concrete spray wet shotcrete machine GSZ3000V Wet Gunite Machine GPS-7 Wet Spraying Machine GPS10/80 Shotcrete concrete pump

Peristaltic Pump

GH100-915B Super high pressure bentonite hose pump GCP20H-H hose pump for pumping concrete GH76-770B Customize Hose Pump for Grouting Cement GH76-915B Squeeze Hose Grouting Pump for TBM GCP15H-E Hose Type Concrete Pump GH Series Industrial Peristaltic Hose ump GH32-330SR Single roller hose pump GCP40H-E Hose Type Concrete Pump GH32-330SR Single roller hose pump with hydraulic motor GCP15H-D Squeeze concrete hose pump GH100-1050B Hose Pump for Filter Press Machine GH89-610C Peristaltic Hose Pump for TBM GH100-915B Peristaltic Pump for Pumping Foam Concrete Special GH76-770B Peristaltic Pump for Pumping Oil Sludge and Slurries GH32-330B Explosion proof peristaltic squeeze hose pump

Foam Concrete Machine

GF5H CLC foam concrete making machine GM2000 Foam concrete mixer with auto-weighing system GF5 Foaming concrete machine GW30B Foam Concrete Block Wire Cutting Machine GM2000 15-20m3/h CLC Foam Concrete Mixer GF10B Foam concrete machine for sale GF40A Automatic foaming concrete equipment GF60A Foam cement light-weight thermal insulation mixing station GF100 Large bridge head road base backfill foam concrete machine GFC1000-H Foam cement machine for roof and floor insulation GF30A Hydraulic high-pressure type lightweight concrete work plant GR5 CLC foam generator for concrete GA40 foam agent for foam concrete GF20 CLC foam concrete machine for cast in place GF20D Foam concrete machine for cast in situ GF10A Cement foam concrete unit GP30 30m3/h Lightweight Foam Concrete Pump GF10 Lightweight Foam Concrete Machine for Floor Heating GF15 cellular lightweight concrete machine GF30 Cellular Lightweight Concrete Making Machine GF40 Cement foam concrete unit GM1000 Foam Concrete Making Machine GF25 Lightweight Foam Concrete Unit GF35A Foaming Cement Machine GF35B Cement Foam Concrete Unit

Filter Press

Hydraulic ceramic piston pump Program controlled automatic filter press Membrane filter press Hydraulic pressure filter press Manual Jack Filter Press Small type membrane filter press Round Plate Filter Press Multi-layer stainless steel frame filter

Planetary Concrete Mixer

GCPM UHPC planetary concrete mixer for sale GCPM Counter current planetary concrete mixer with lift skip hoist and hopper GCPM Refractory castable concrete planetary mixer GCPM Hydraulic discharging concrete planetary mixer

Slurry Pump

BW850-2 Mud Pump BW Series Slurry Pump BW160/10 Slurry Pump BW200 Mud Pump GDD Series Mud Pump GDF Series Slurry Pump

Concrete Pump

JBT40 P2 Diesel concrete mixer pump JBT30 P2 small portable concrete pump with mixer GCP40H-E Hose Type Concrete Pump GMP7/35D Small Concrete Pump with Diesel Engine GPS-7A capacity adjustable mini concrete pump JBT40 Electric concrete mixer pump GCP8/80-30D Diesel Concrete Pump Mini Portable Concrete Pump GCP15H-E/D Hose Type Concrete Pump HBT-D series diesel concrete pump machine HBT-E series electric concrete pump machine JBT40 L1 Trailer concrete pump with forced mixer JBT40 L2 Trailer concrete pump with forced mixer JBT40 P1 portable concrete mixer and pump JBC40 L1 Truck mounted Concrete mixer pump JBC40 L2 Concrete pump mixer JBC40 P1 Concrete mixer pump Coal Mine Concrete Pump JS series Forced Type Concrete Mixer CM-D series portable mini diesel power concrete mixer GCM-130 Gas Mixer Machine GCM-120 Mortar Mixer Machine Gasoline Mixer Machine Portable Mini Cement Sand Concrete Mixer Machine Portable Cement Mixer Machine

Hydraulic Pump Station

GBHPP15/55X2-30D Hydraulic power unit GHPP20/30-15E electric hydraulic power pack GHPP16/50-18.5E electric hydraulic power pack GHPP14/68-30D diesel hydraulic power pack GHPP14/68-22D diesel hydraulic power pack GHPP13/50-14D diesel hydraulic power pack

Road Marking Machine

GD-D390 Marking Removal Machine GD320 Hand push thermoplastic road marking machine GD800 GD1200 Hydraulic Double Cylinders Thermoplastic Kettle GD18L Hand Push and Truck-mounted High Pressure Airles Cold Paint Road Marking Machine GD18L-2 Double Cylinder and Pump Cold Paint Truck-mounted Road Marking Machine GD160 Hand-push Thermoplastic Road Marking Machine GD320S Self Propelled Thermoplastic Road Marking Machine GD Vibration Marking Machine GD300 Mechanical Single Cylinder Thermoplastic Kettle GD600 Mechanical Single Cylinder Thermoplastic Kettle GD400 Hydraulic Single Cylinder Thermoplastic Hot Melt Kettle GD6L Cold Painting Machine GD Vehicle Booster GD High Pressure Road Surface Cleaning Machine GD High Pressure Road Surface Blower GD Series Assistant Equipment for Index Line Construction

DTH Drill Tools

DTH High pressure drill bit Eccentric drilling tools with casing tube DTH High air pressure hammer

Customized Service

GH15-200 Dosing Hose Pump GSC500H Scraper Conveyor GDJ High Pressure Plunger Metering Pump GWP160/45-E Water pump for cooling and cleaning drill pipes Chemical dosing system GDJM Mechanical Diaphragm Metering Pump GDJ-M High pressure hydraulic diaphragm dosing metering pump

Send Inquiry

hot product

DN	D	K	d	H1	H2	L
8	90	60	41	162	163	760
16	90	60	41	162	163	760
12	90	60	41	162	163	780
16	90	60	41	162	163	780
20	90	60	41	162	163	780
28	90	60	41	162	163	780
40	95	60	46	167	167	780
32	95	60	46	167	167	820
40	95	60	46	167	167	820
45	95	60	46	167	167	820

DN	D	K	d	H1	H2	L
8	90	60	41	162	163	760
16	90	60	41	162	163	760
12	90	60	41	162	163	780
16	90	60	41	162	163	780
20	90	60	41	162	163	780
28	90	60	41	162	163	780
40	95	60	46	167	167	780
32	95	60	46	167	167	820
40	95	60	46	167	167	820
45	95	60	46	167	167	820

DN	D	K	d	H1	H2	L
8	90	60	41	162	163	760
16	90	60	41	162	163	760
12	90	60	41	162	163	780
16	90	60	41	162	163	780
20	90	60	41	162	163	780
28	90	60	41	162	163	780
40	95	60	46	167	167	780
32	95	60	46	167	167	820
40	95	60	46	167	167	820
45	95	60	46	167	167	820
