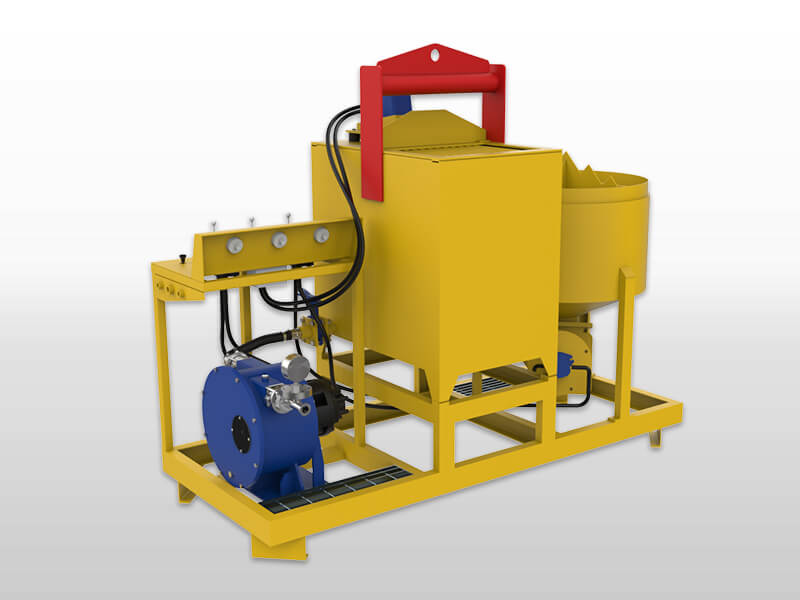

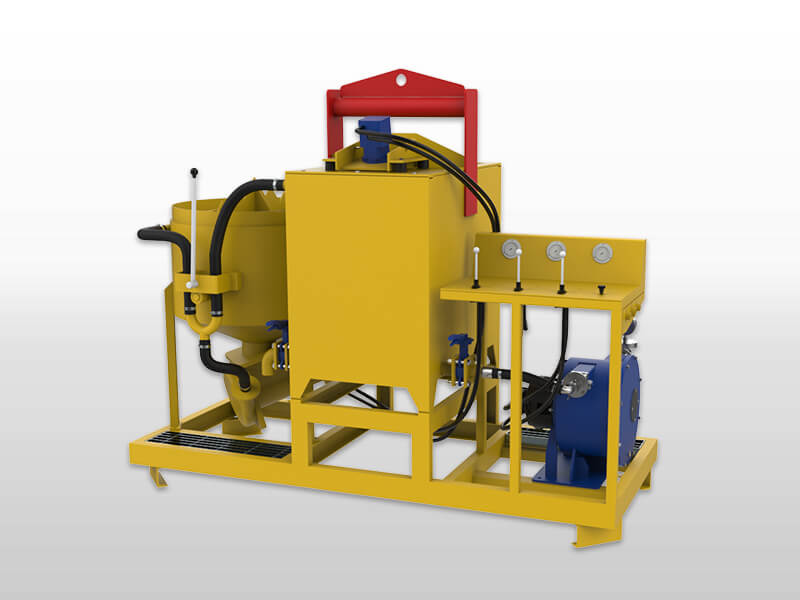

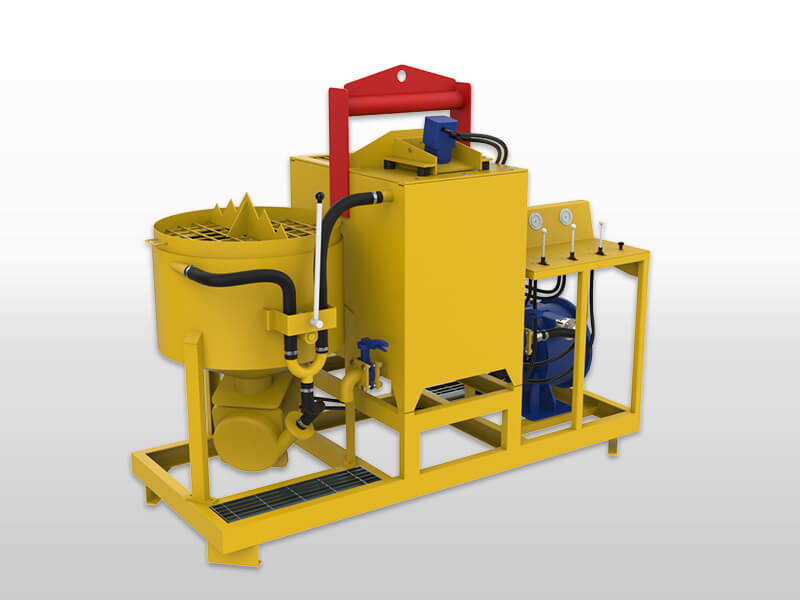

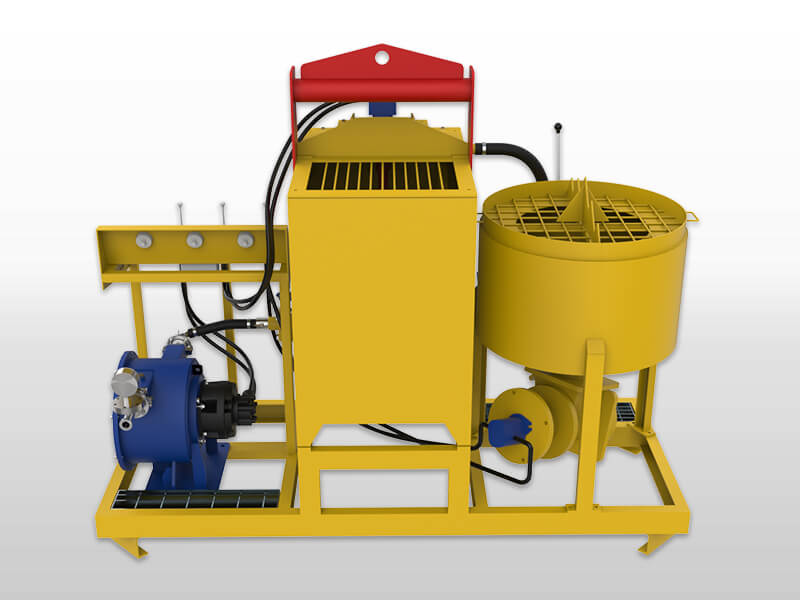

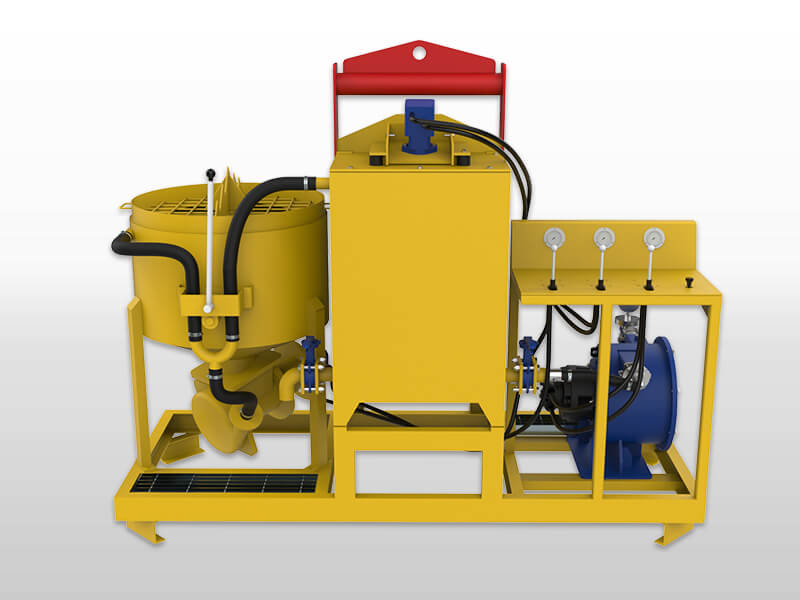

GGP220/450/38H-H Hydraulic Drive Grout Plant integrates slurry preparation, agitation and pumping into a single modular system. Designed for civil engineering, tunnel works and void filling, it brings together a 220 L mixer, a 450 L agitator and a GH32-330SR hose pump, reducing the need to arrange separate machines and connect inter-unit piping on site.

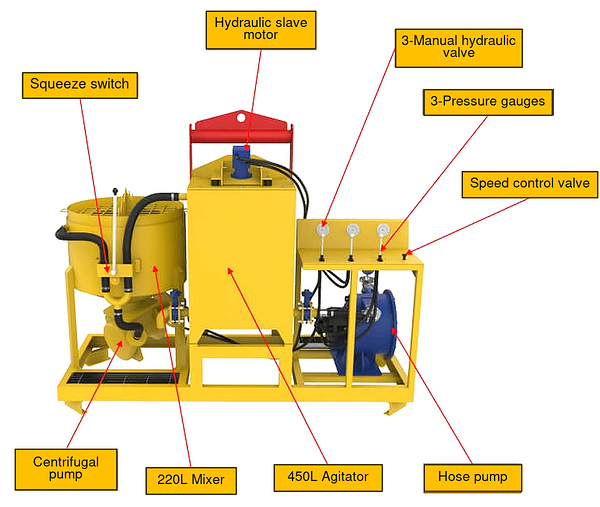

Water, cement and suitable additives are introduced into the mixer in the required proportions. A centrifugal pump circulates the mixture through a return line to promote thorough blending. Once mixing is complete, the squeeze valve redirects the prepared slurry into the agitator, making the mixer available for the next batch.

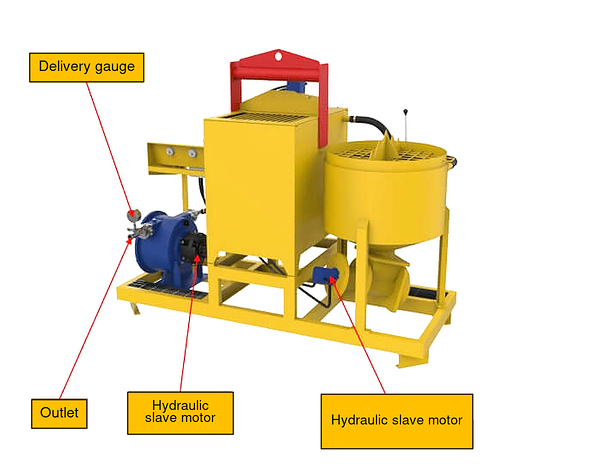

The 450 L agitator keeps the prepared slurry moving while it awaits pumping, helping maintain consistency and limit settling. The hose pump then transfers the slurry to the application point, with a specified output range of 19–38 L/min and a pressure specification of 14 bar.

The plant operates from an external hydraulic supply of 45 L/min at 16.5 MPa. It does not require an electrical connection for its drive system, avoiding site voltage and frequency compatibility issues. This configuration is useful for projects where a suitable hydraulic power source is already available.

Gaode Equipment can customize the plant according to project requirements. For selection, provide the slurry composition, required delivery distance, pumping pressure and available hydraulic supply.

1. Civil Engineering Grouting

1. Integrated Mixing, Agitation and Pumping

Name	Data
Machine Type	GGP220/450/38H-H
Mixer	Volume	220L
	Speed	1500rpm
Agitator	Volume	450L
	Speed	46rpm
Hose pump	Model	GH32-330SR
	Pump pressure	14bar
	Output	19~38L/min

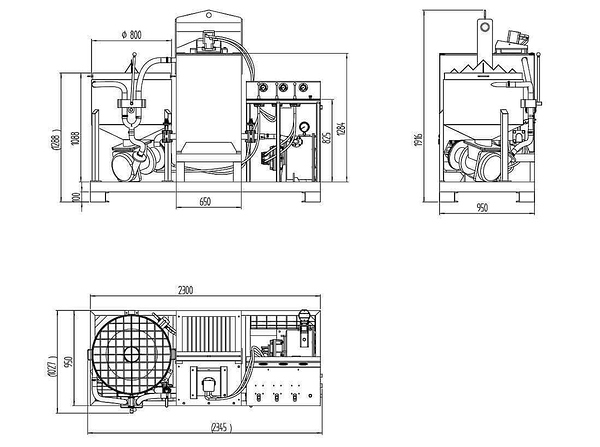

Dimensions in mm	Height	1920mm
	Length	2350mm
	Width	1030mm
Weight in kg	950kg
Require Hydraulic	45L/min@16.5mpa
We could also customize according to your demands.
