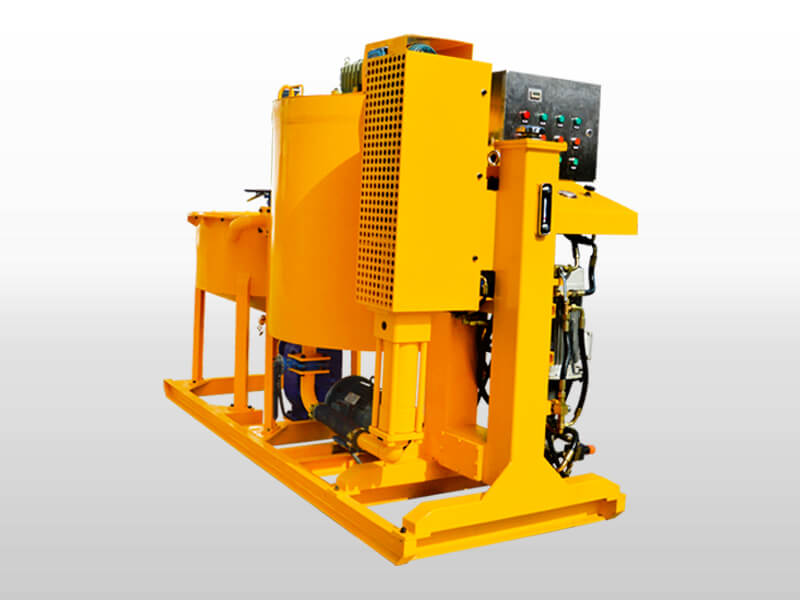

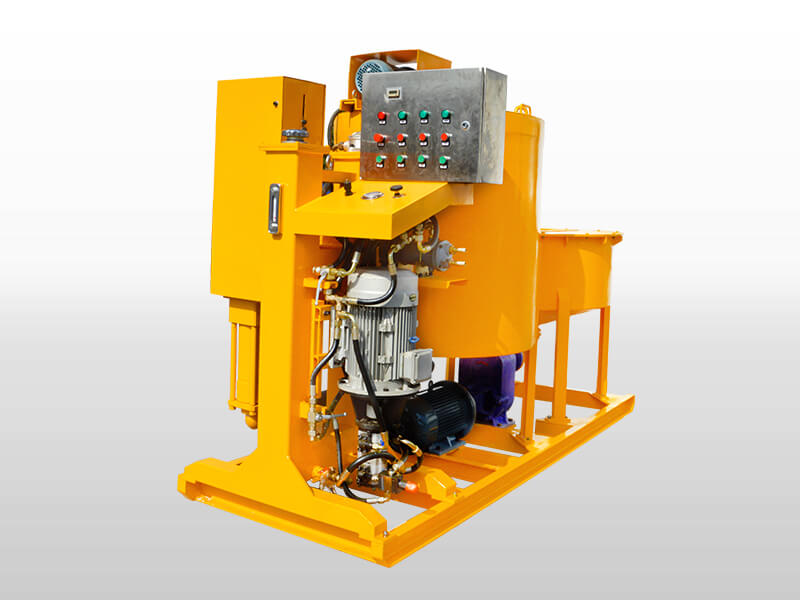

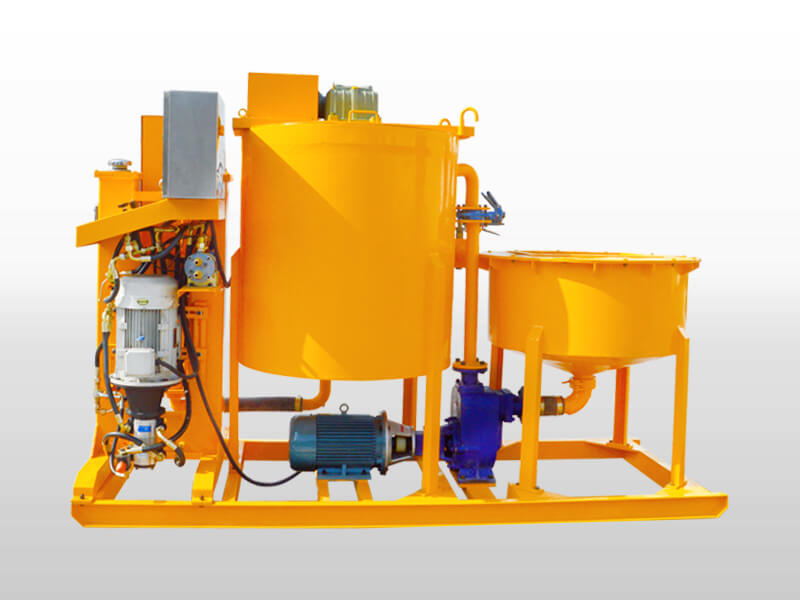

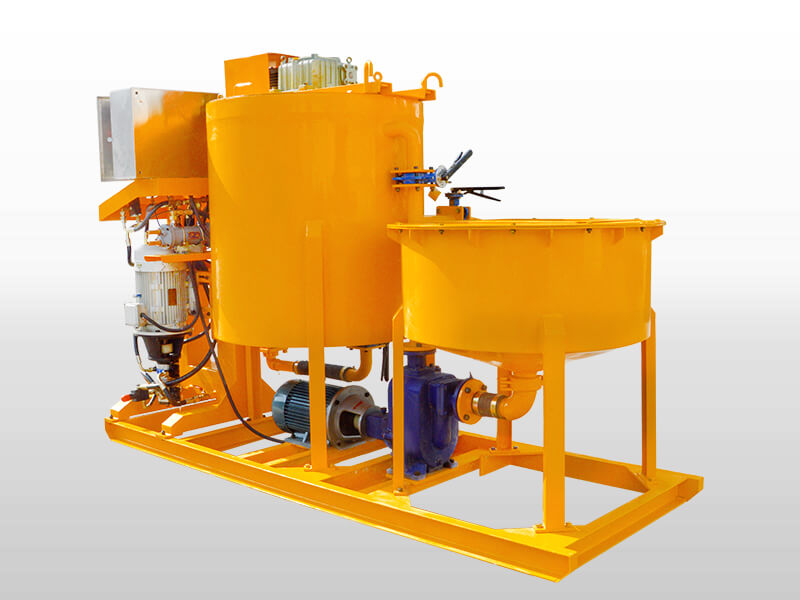

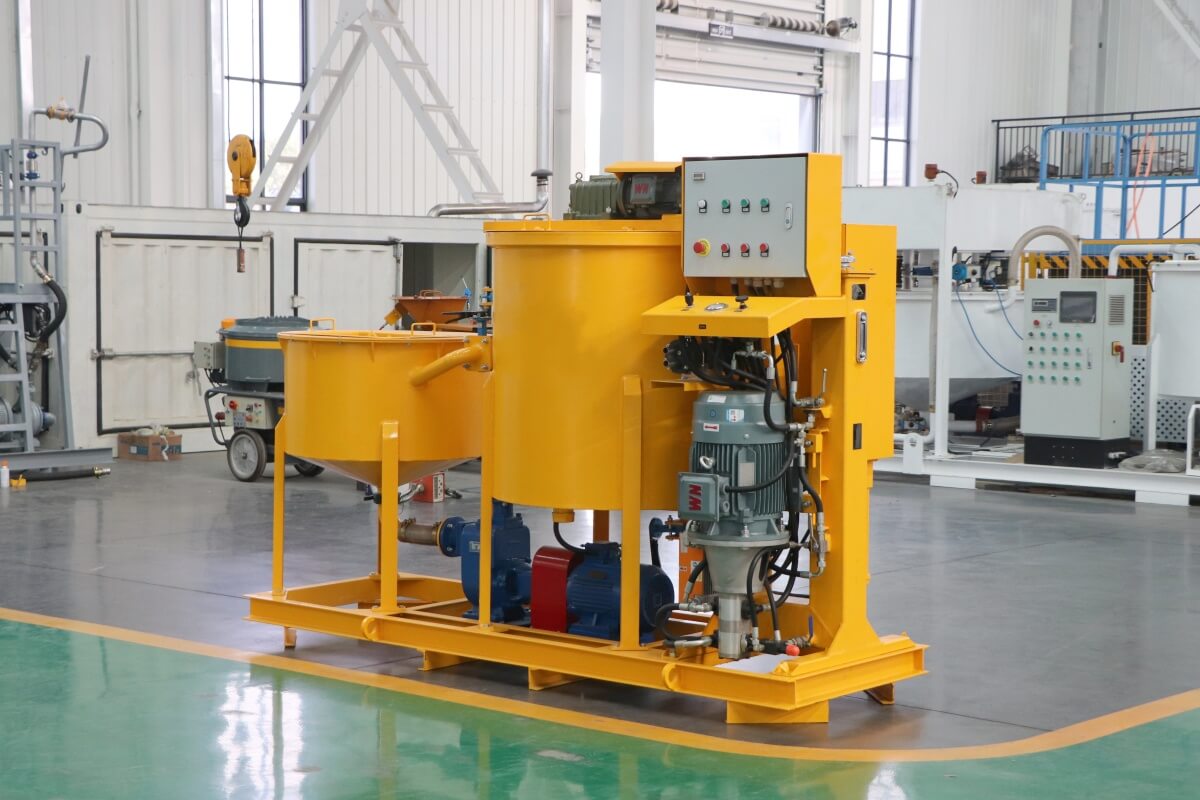

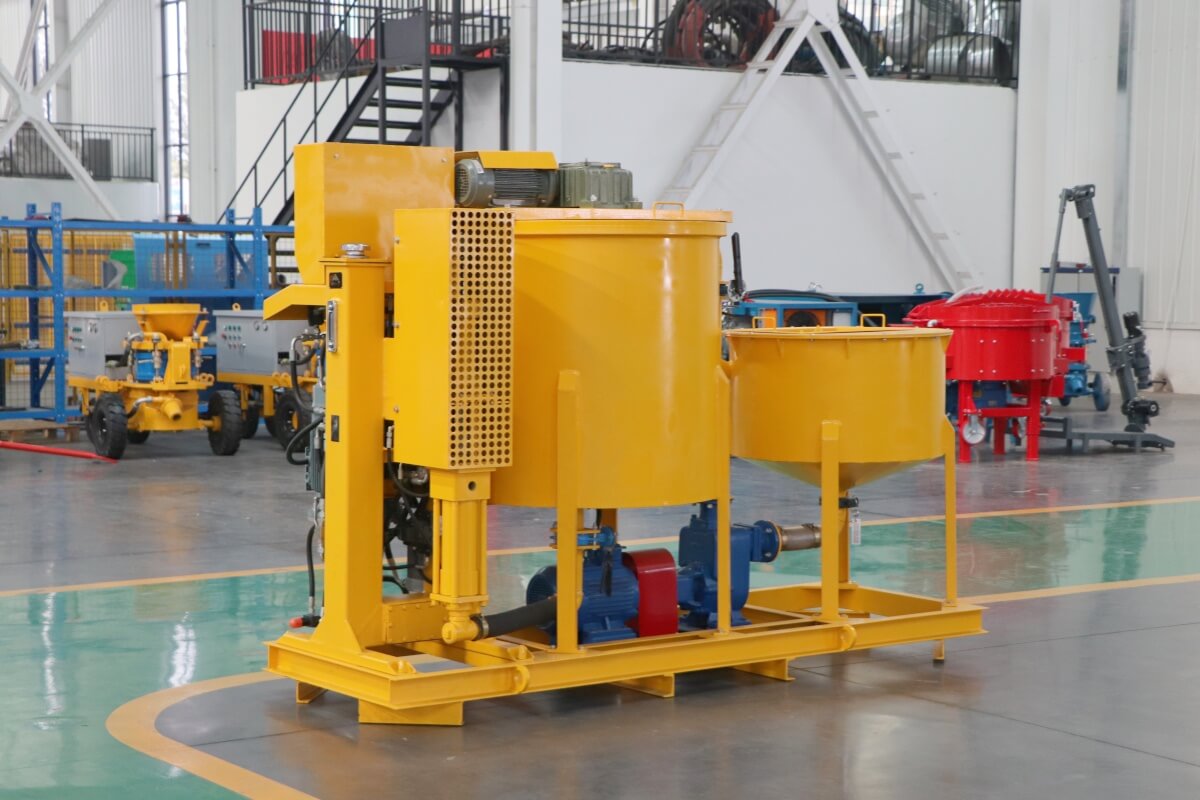

GGP250/700/75PI-E Grout Inject Station

  • Pump Power: 7.5KW
  • Recycling Pump: 1100L/min
  • Pump Low pressure: 0-75L/min, 0-50bar
  • Pump High Pressure: 0-40L/min, 0-100bar
  • Mixer Capacity: 250L
  • Agitator Capacity: 700L

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
Share with:
  • Grout pump Station
  • Inject pump Station
  • grout pump mixer and agitator
  • inject pump station,
  • Grout Inject Station
■ Description

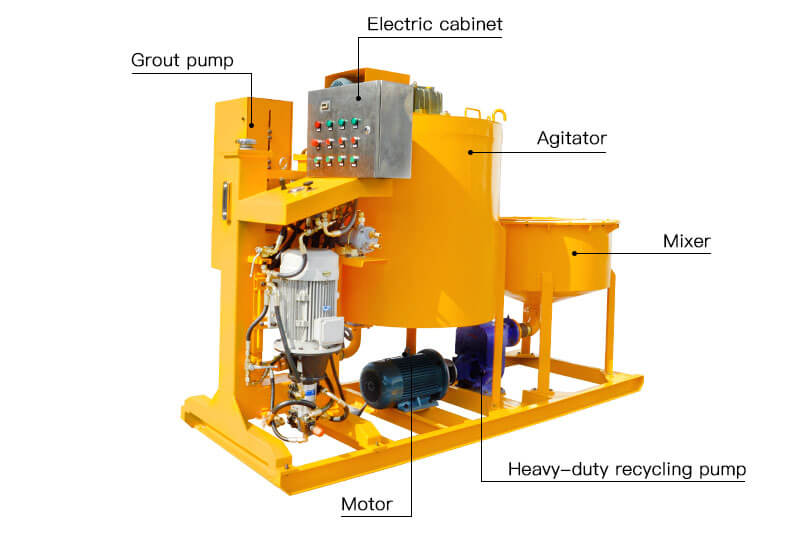

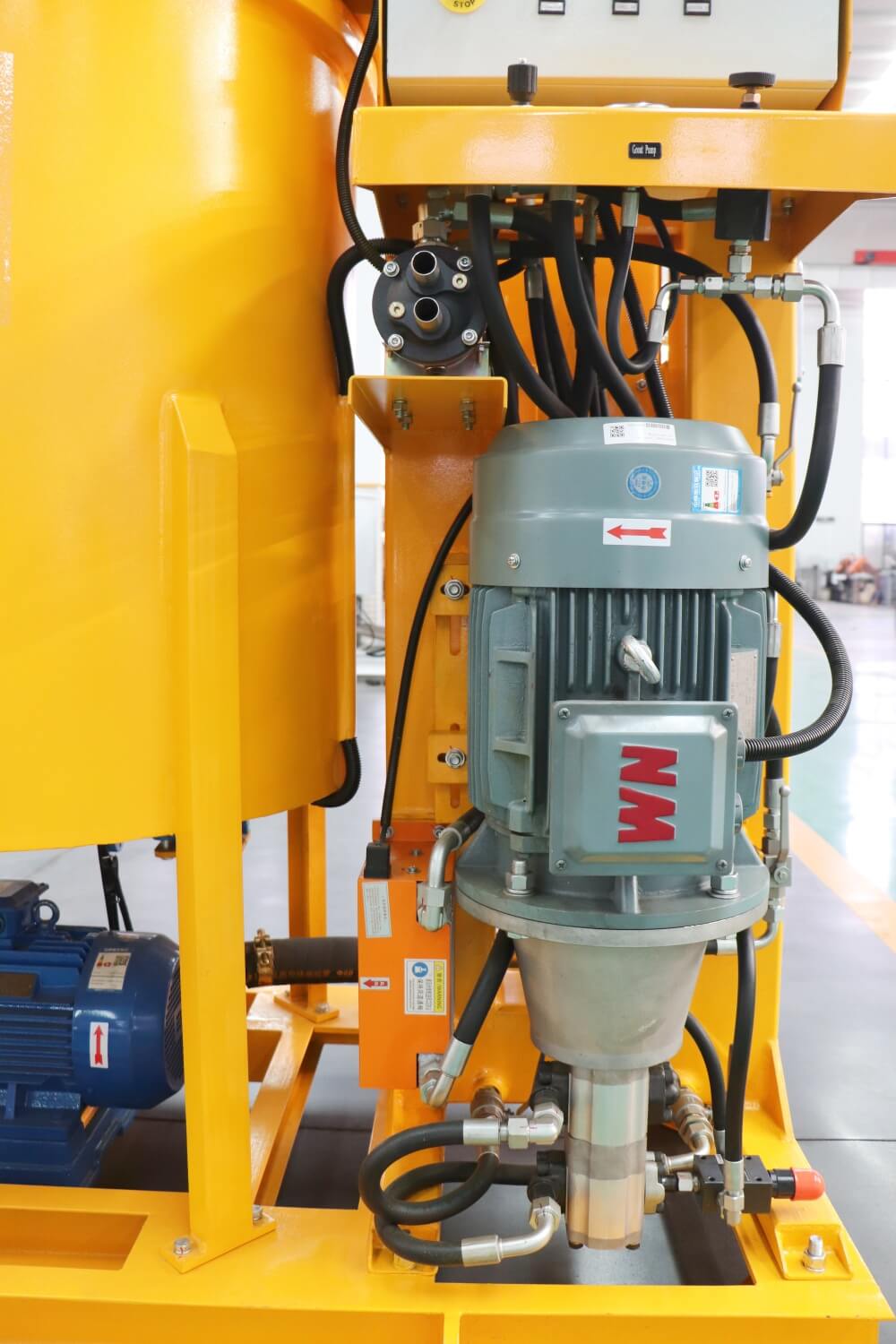

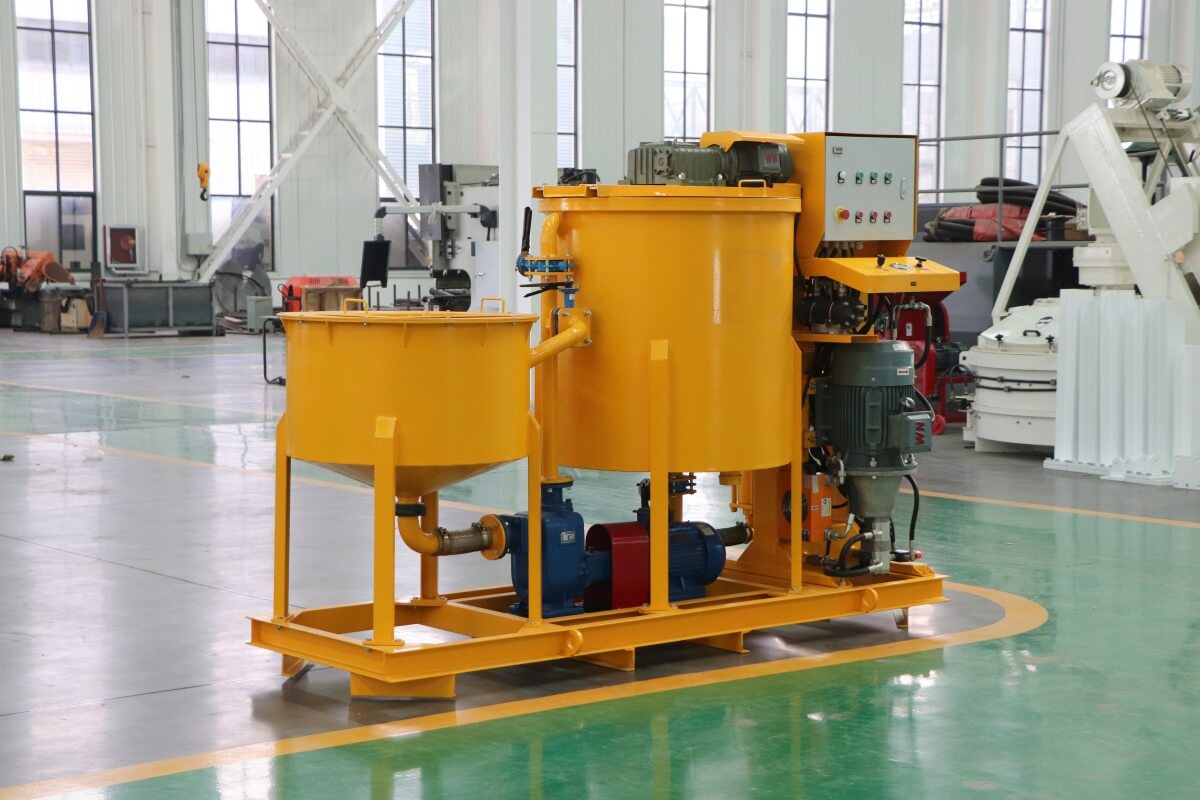

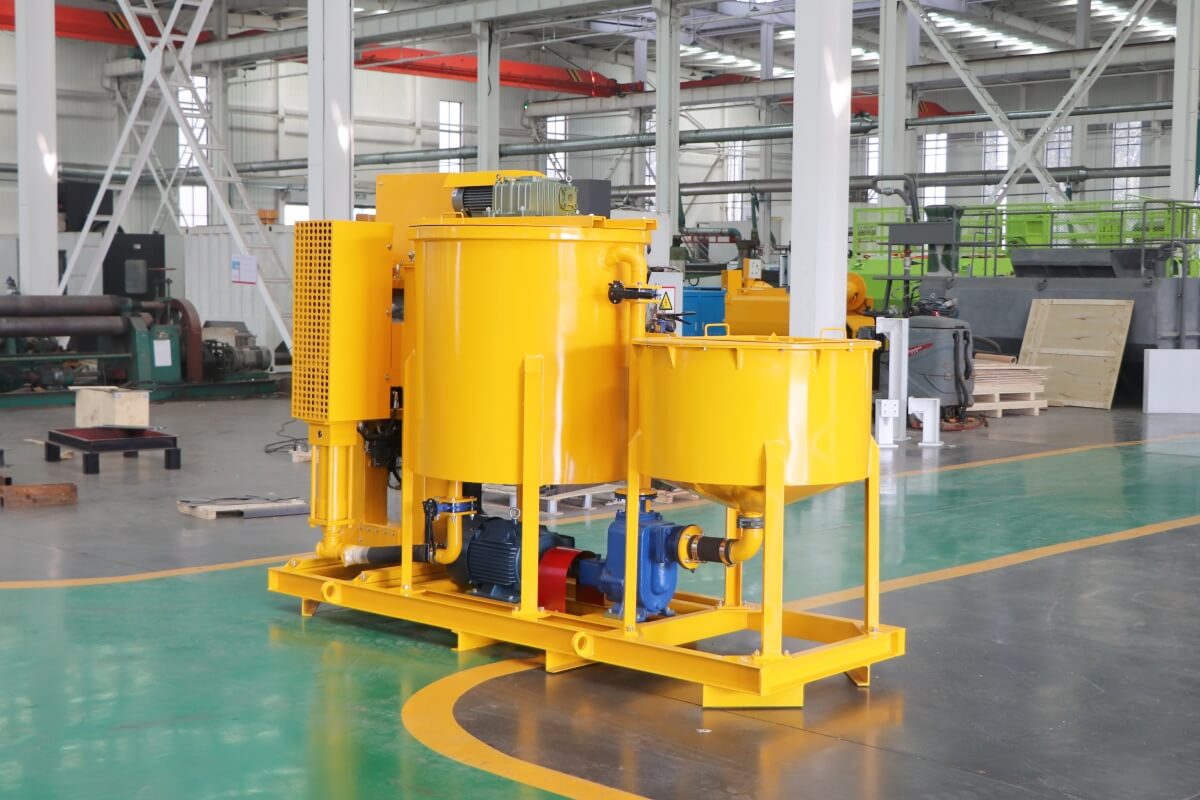

GGP250/700/75PI-E Grout Inject Station is a combination of mixer, agitator and grout pump in one base frame. High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.
