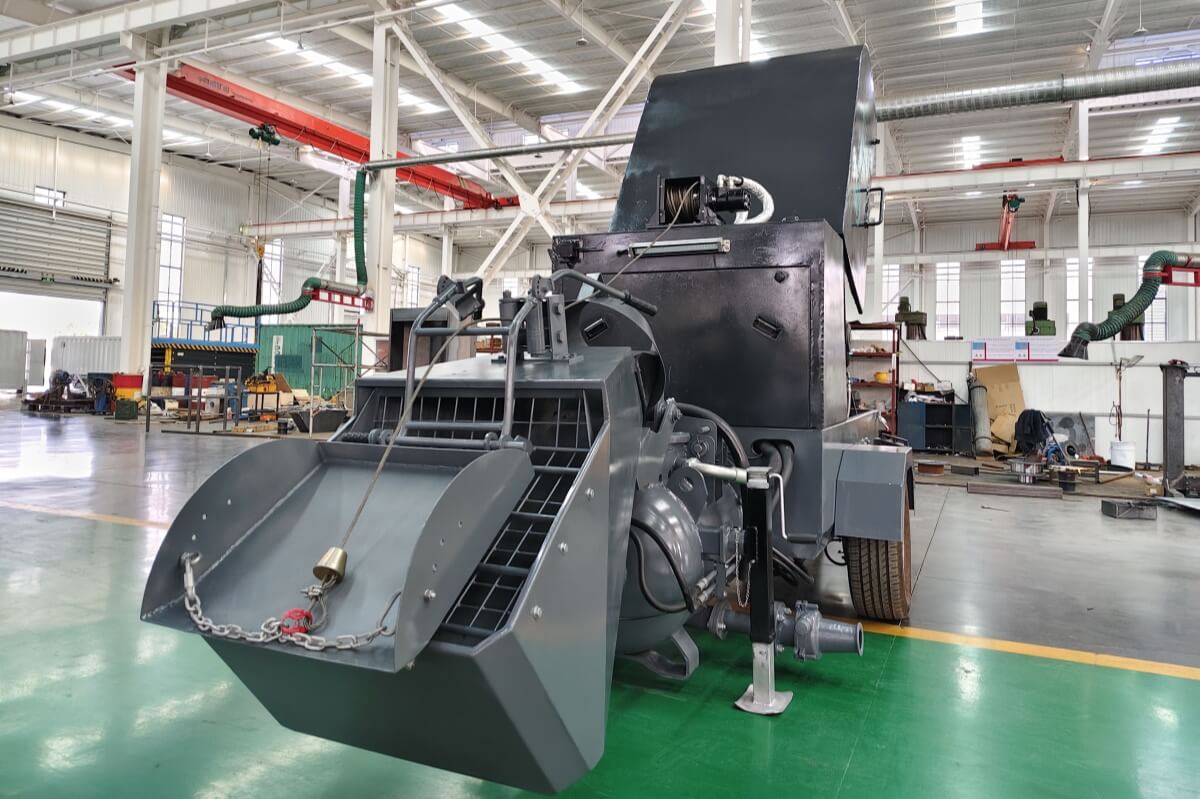

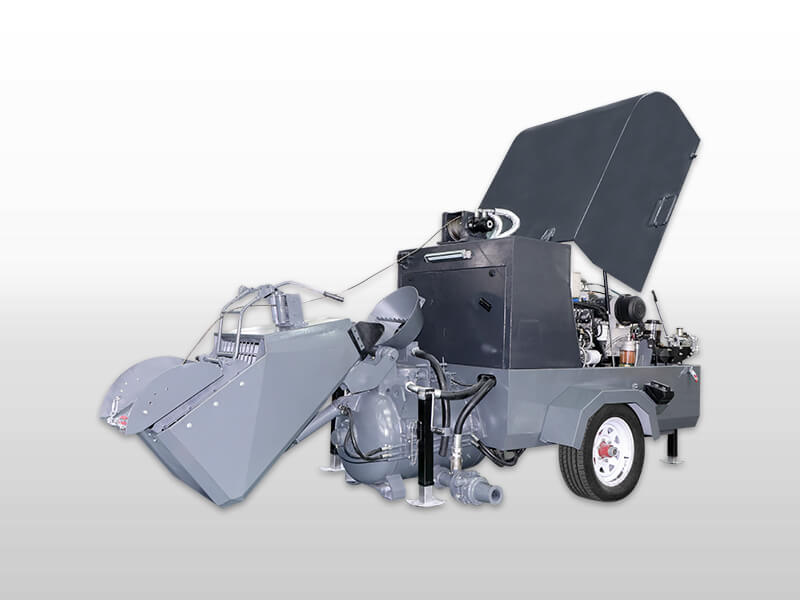

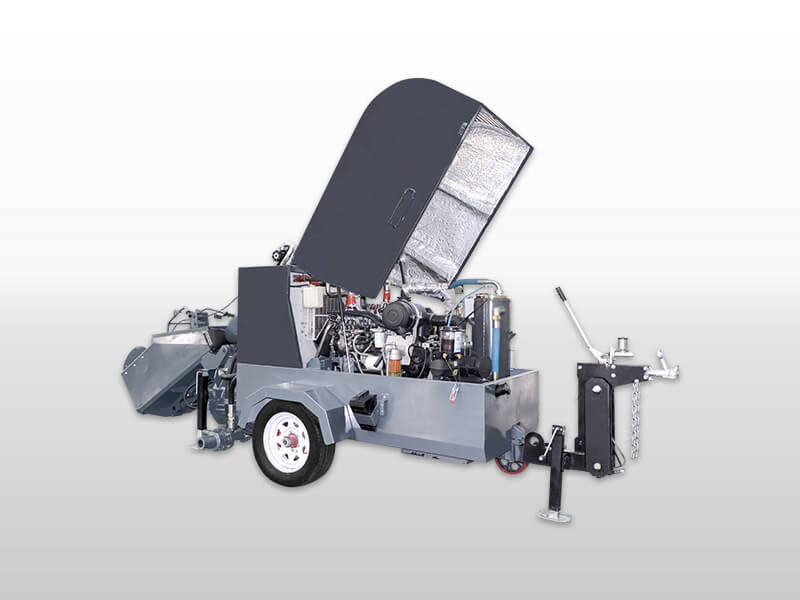

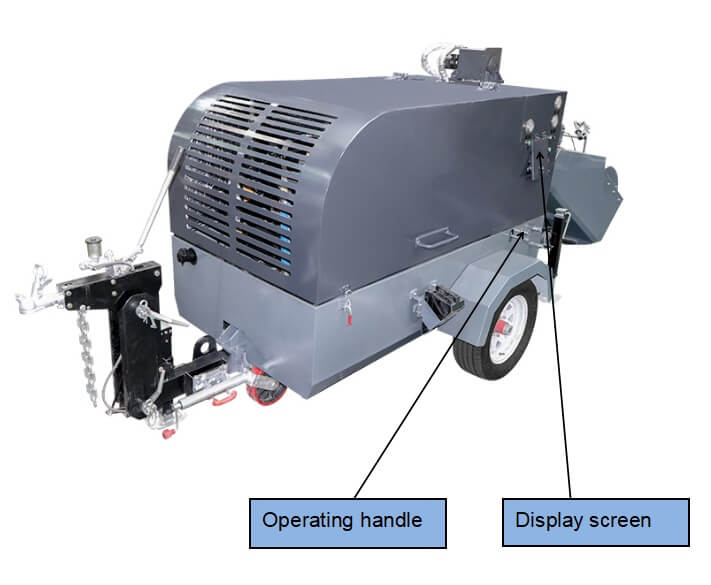

GPXT200-D/A Mortar Mixer and Transfer Machine with Air Pressure-Screed Machine is designed to deliver smooth, reliable power to convey the type of construction material continuously. The 4-cylinder engine options have been developed with an electronic display where all necessary parameters can be monitored and an easy-to-maintain component layout. It continues to offer you easy and useful advantages in your screed projects.
The new model mortar machine can convey the material horizontally and vertically, and the built-in air compressor generates strong pressure and airflow to ensure smooth transportation of the material within the working range. With the use of an efficient mortar machine, you can complete leveling applications more easily, faster and in less time than traditional applications.

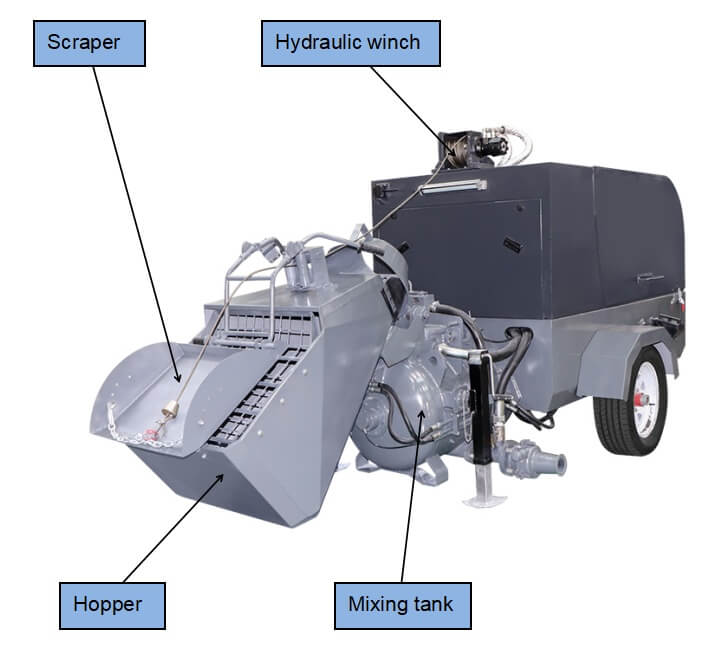

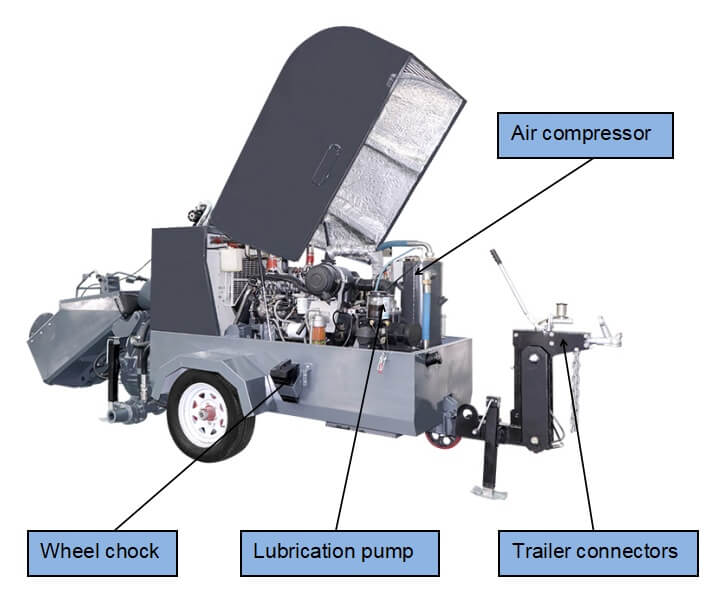

GPXT200-D/A Mortar Mixer and Transfer Machine Details Structure:

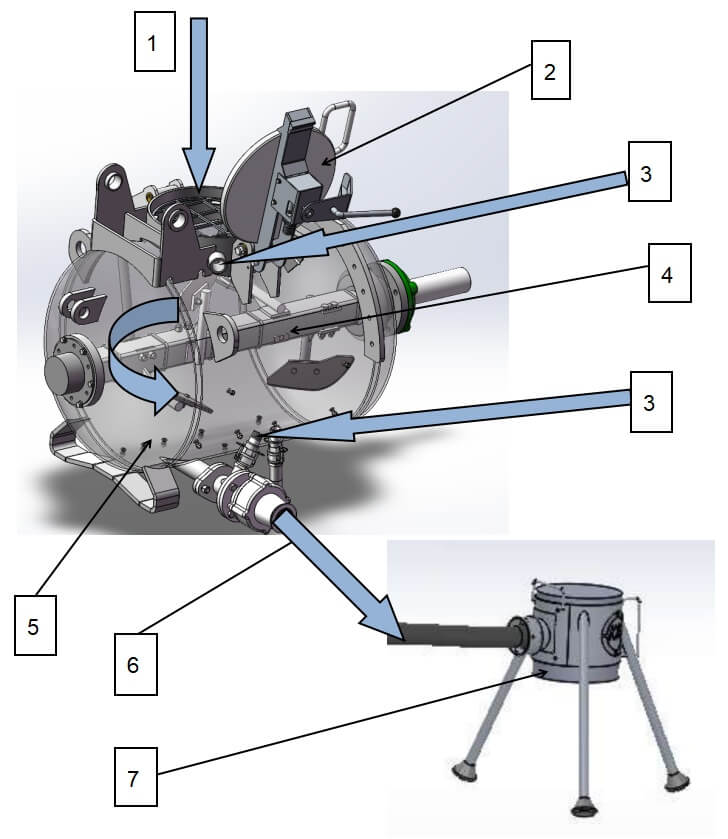

Operating Principle of GPXT200-D/A Mortar Mixer and Transfer Machine with Air Pressure Screed Machine:
① Add material 1 to mixing tank 6.
② Put on the sealing cover 2 and press it down firmly.
③ The materials are fully stirred in the mixing tank 6.
④The air compressor starts to generate compressed air with sufficient
pressure, which enters the mixing tank 6 and the upper pipeline 3. When the pressure inside the tank reaches a certain level, the material begins to be transported.

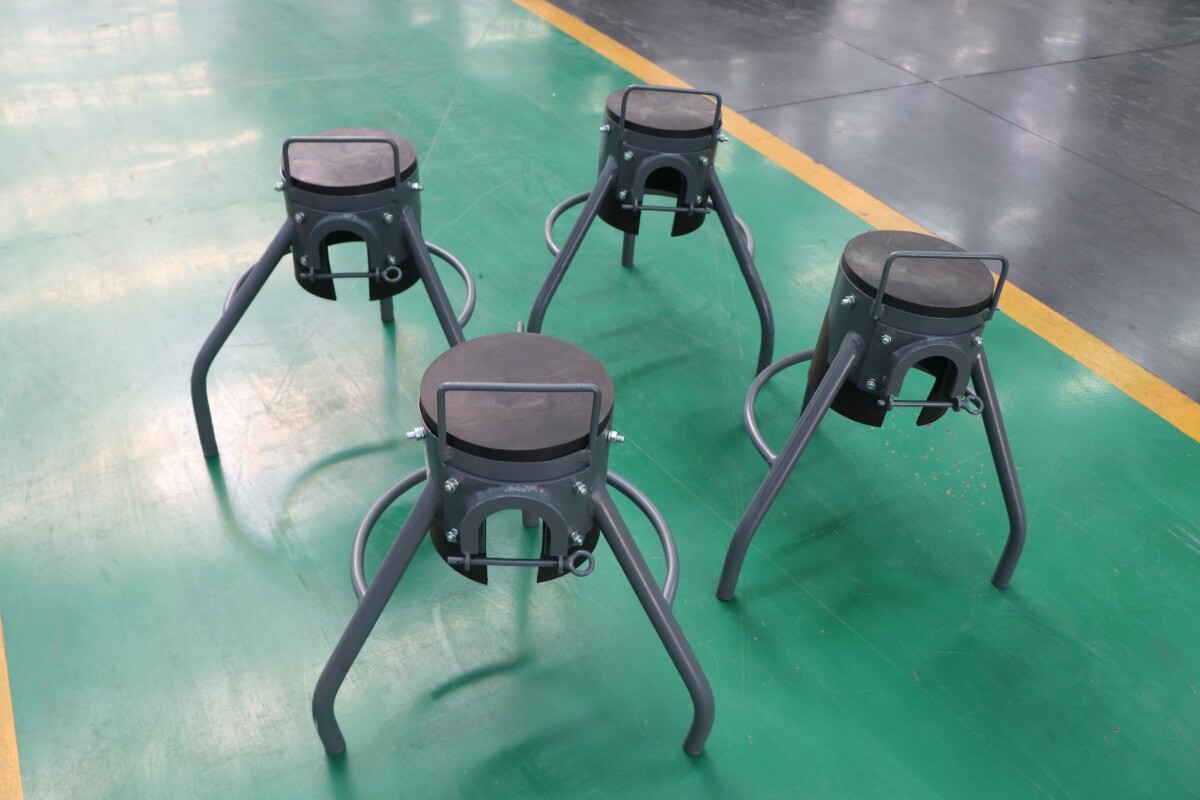

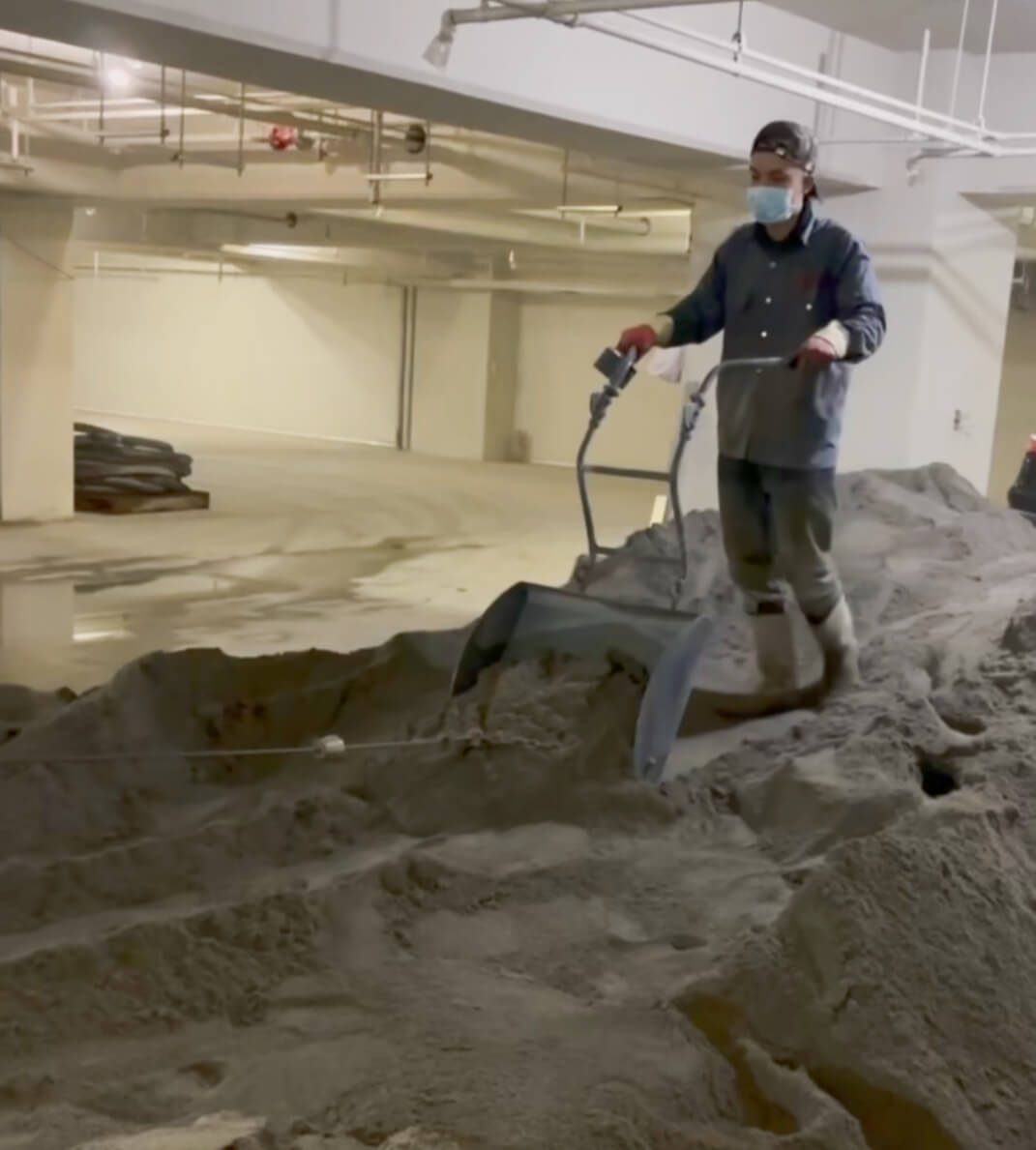

⑤The material is discharged from discharge port 7, passes through the conveying hose, reaches the discharge point, and is discharged at discharge port 8.
⑥If you want to transport long-distance or high-rise materials, you need to open the lower intake pipe 5.
