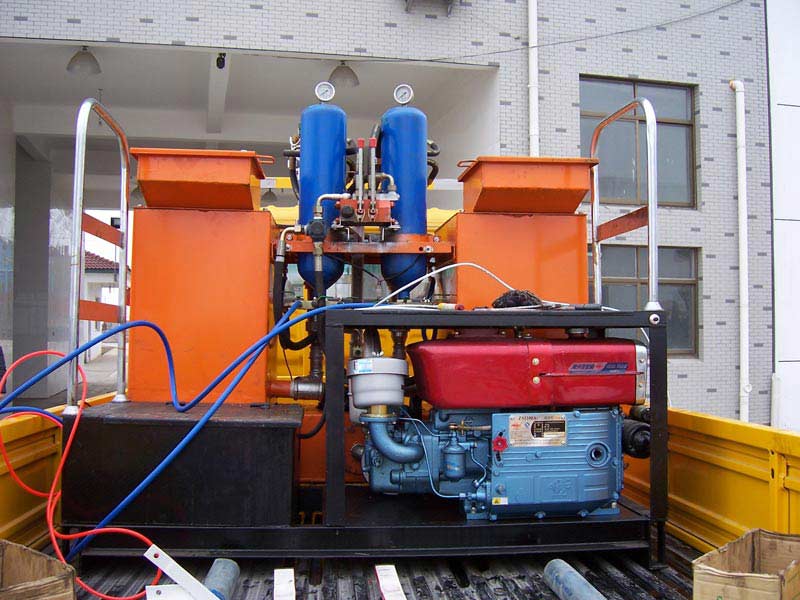

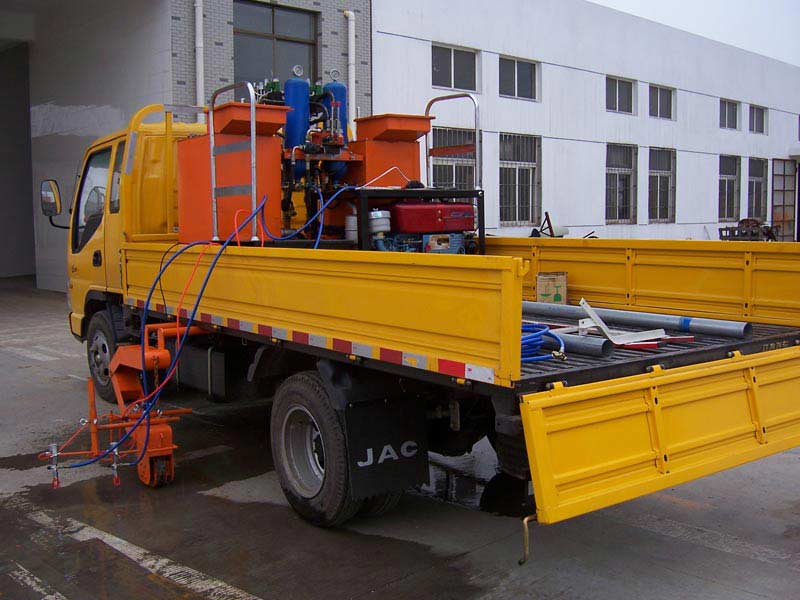

The truck-mounted double cylinder and pump cold paint road marking machine adopt many good quality parts such as Honda engine, Simens automatic break line machine and manual controller.

GD18L-2 Cold Paint Truck mounted Road Marking Machine is mainly suitable for draw a straight line, dotted line, curve etc. for high speed way roads, parking lots, airports, stations, factories etc.

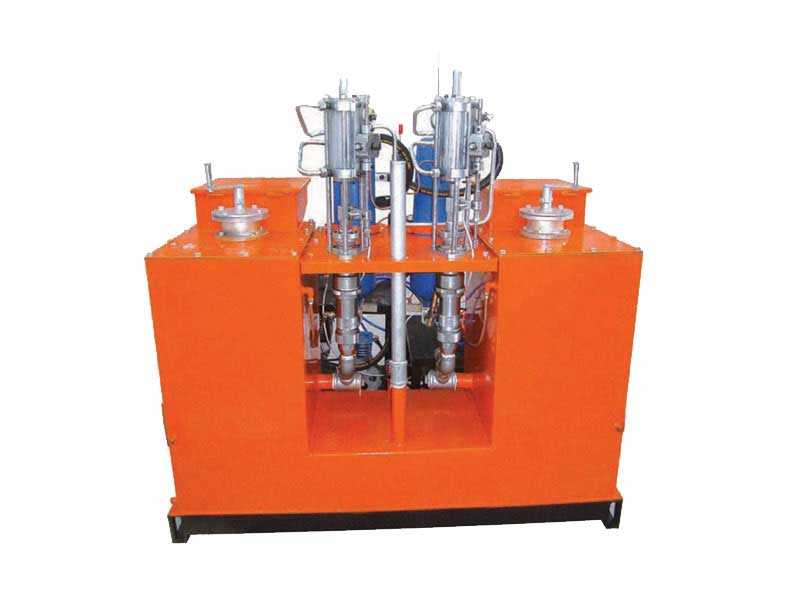

GD18L-2 Double Cylinder and Pump Road Marking Machine can work conveniently and quickly with less labor intensity. Main Machine Configuration
1. 270 Honda engine;
2. Gear pump;
3. Oil tank;
4. Pressure regulator;
5. Accumulator;
6. Reverser;
7. Reversing oil tank;
8. Paint high pressure pump;
9. Strainer;
10. Air compressor.

1. Maximum flow rate: 30L
2. Maximum work pressure: 30Mpa
3. Weight of facility: 820kg
4. Width of spray: 50-900mm
5. Thickness of spray: 0.2-06mm
6. Four guns can spray at the same time by truck moving
7. Dimension: 1530*1230*1380mm
