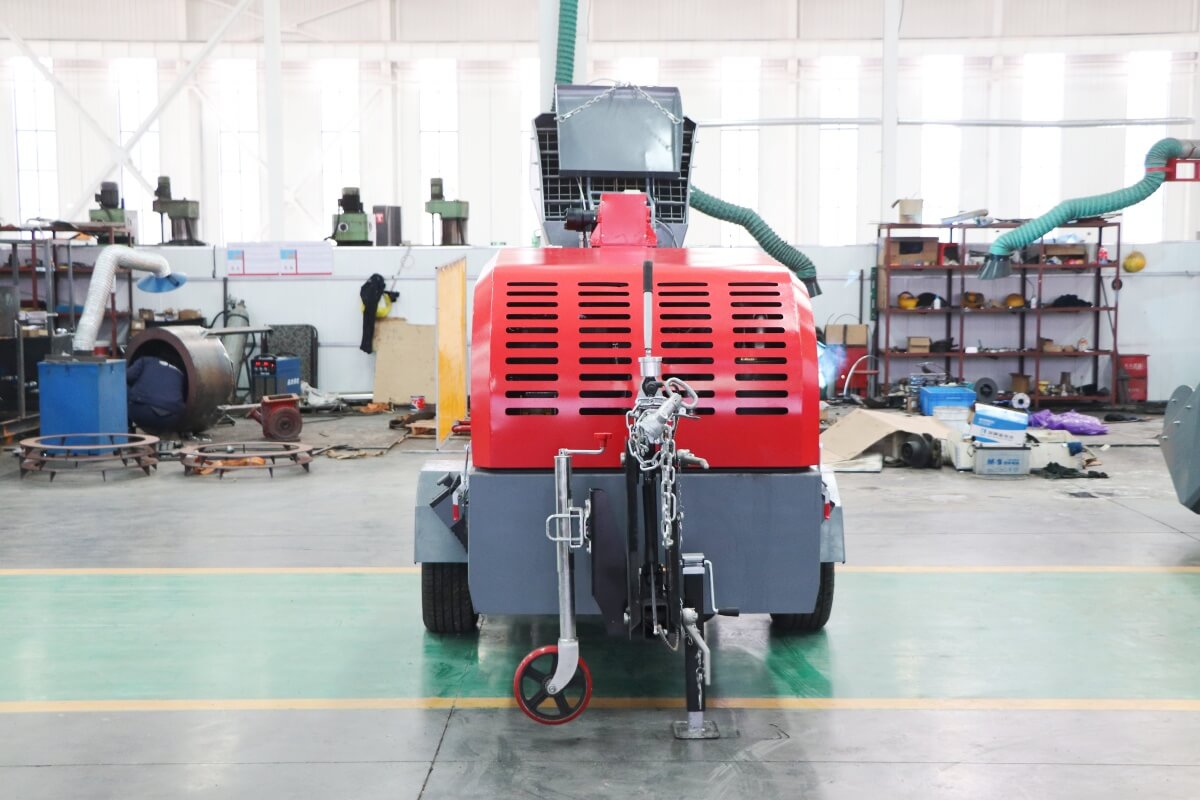

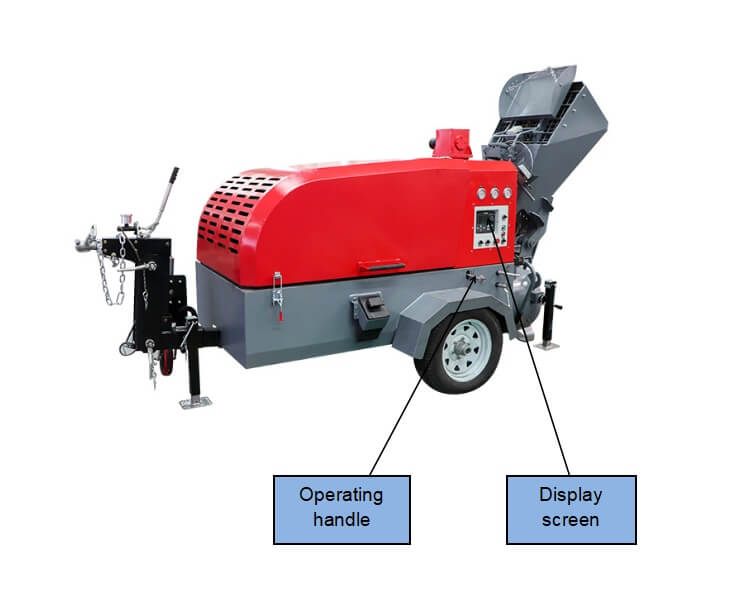

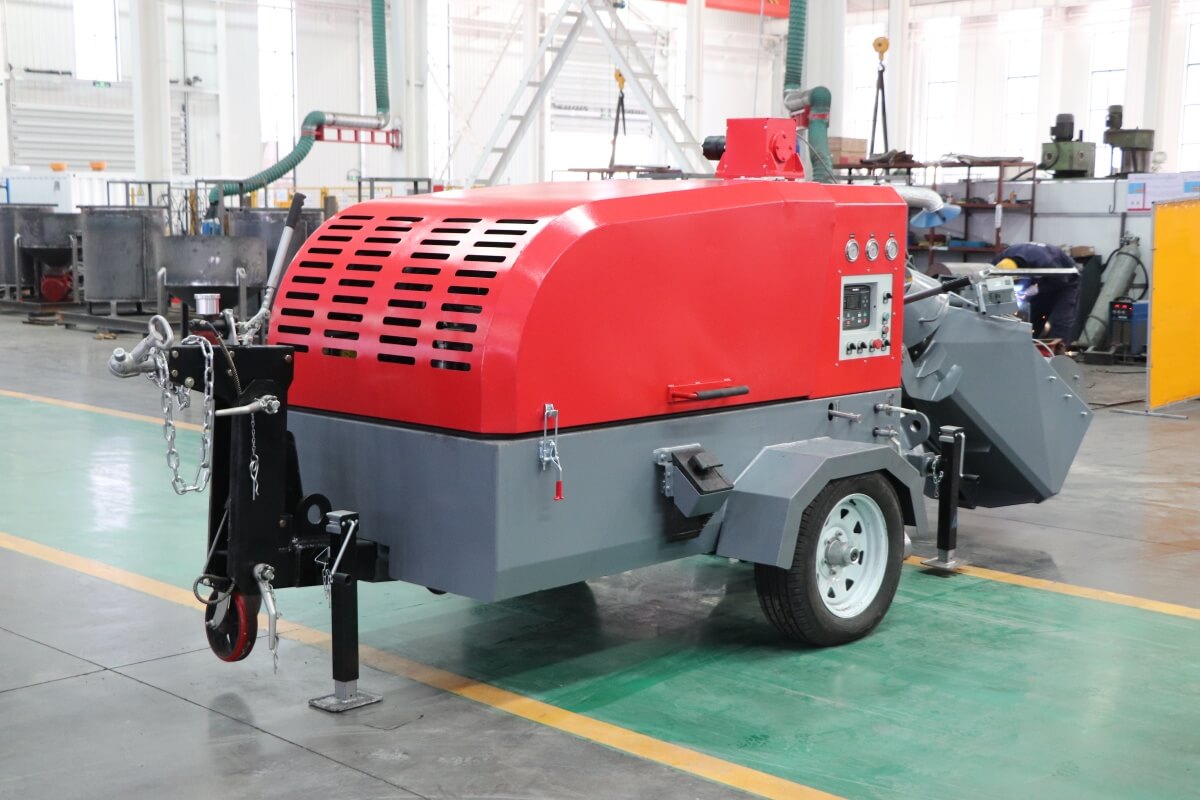

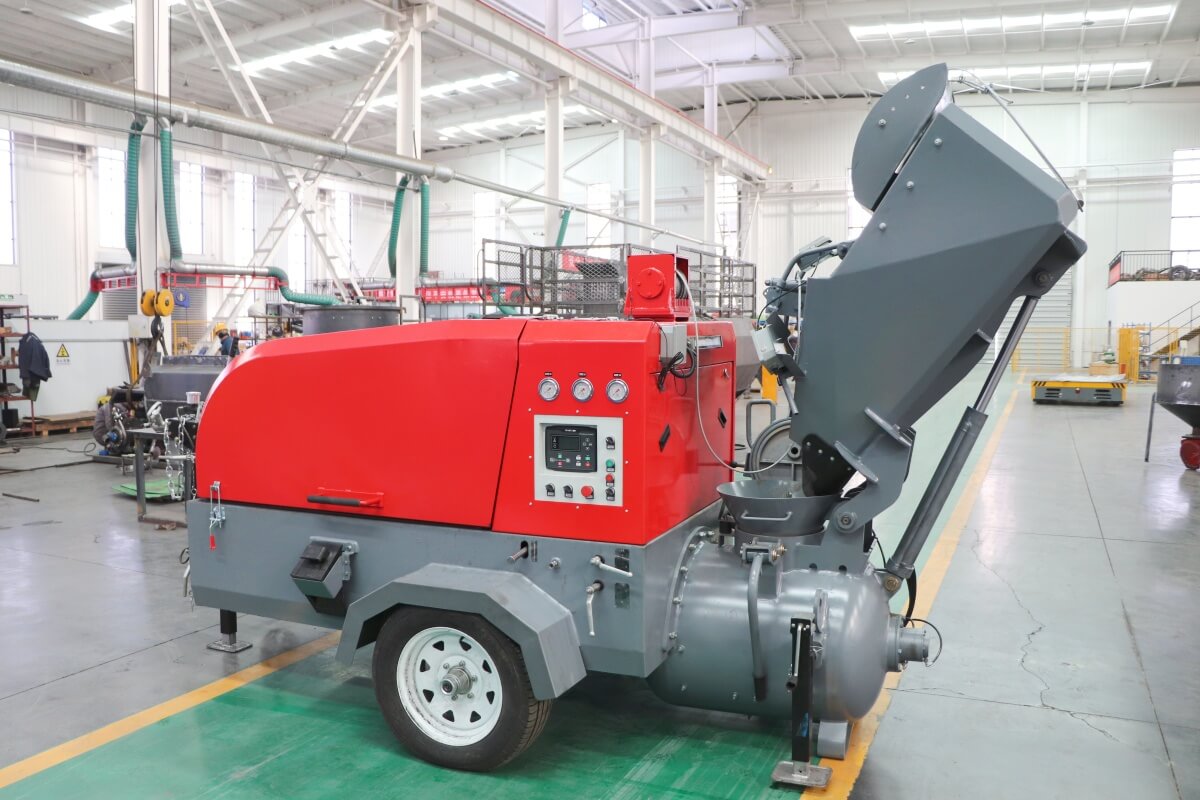

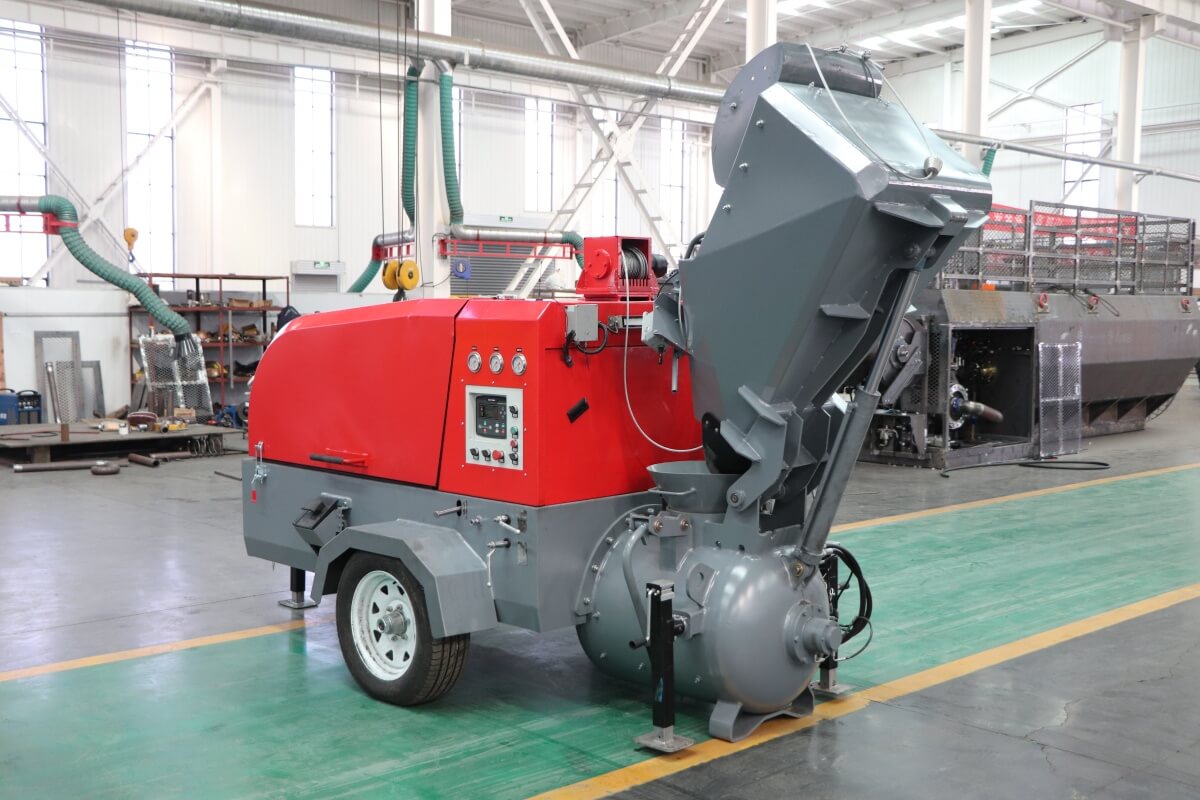

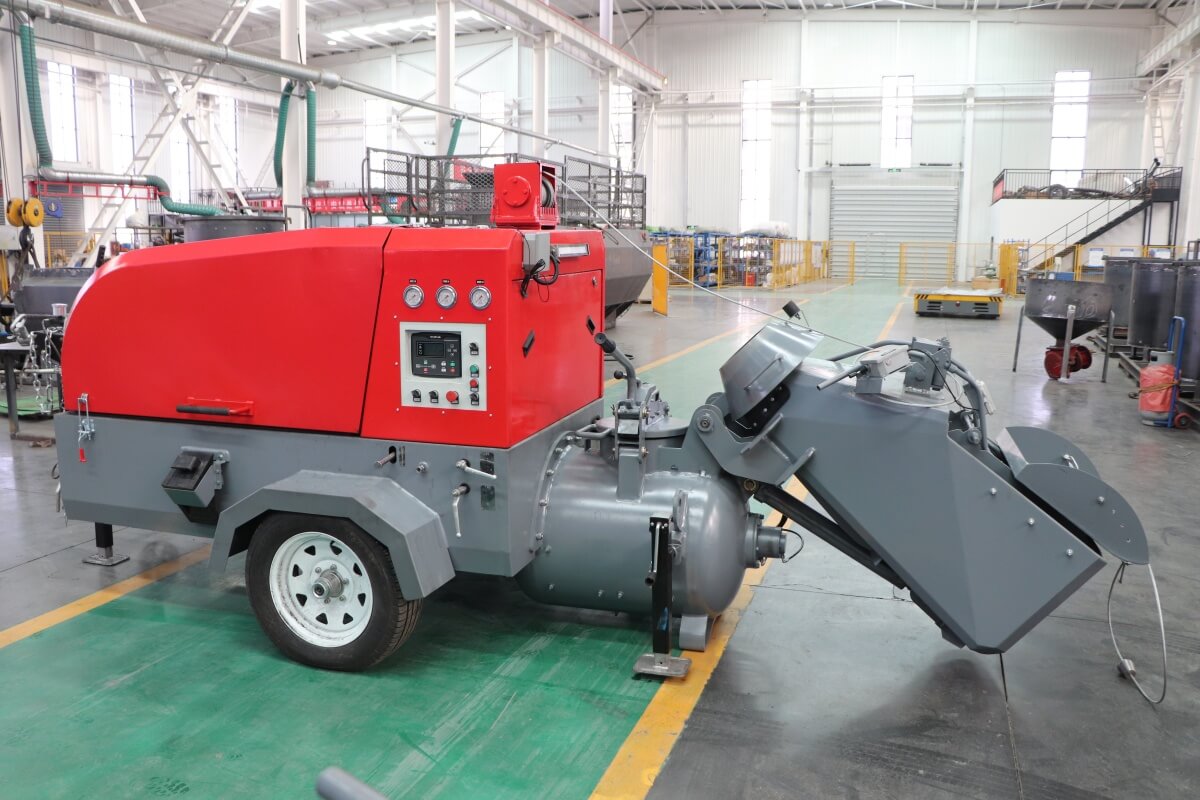

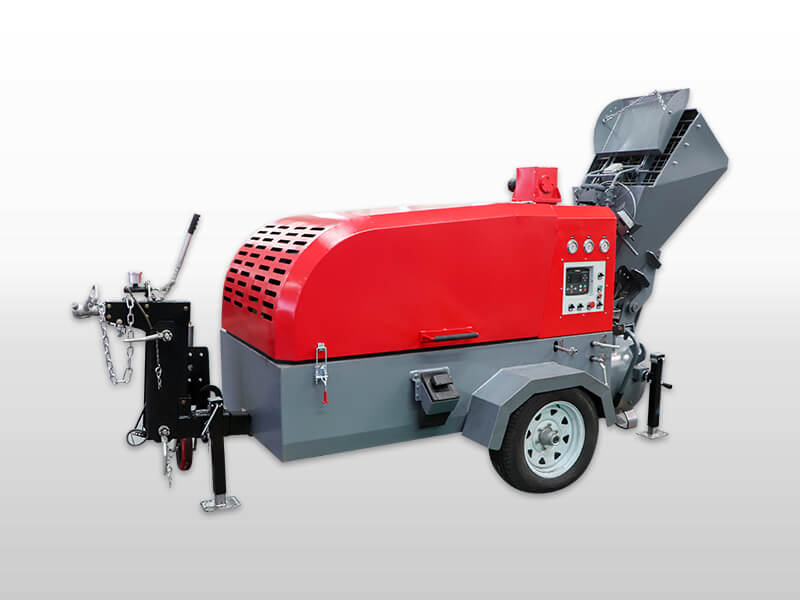

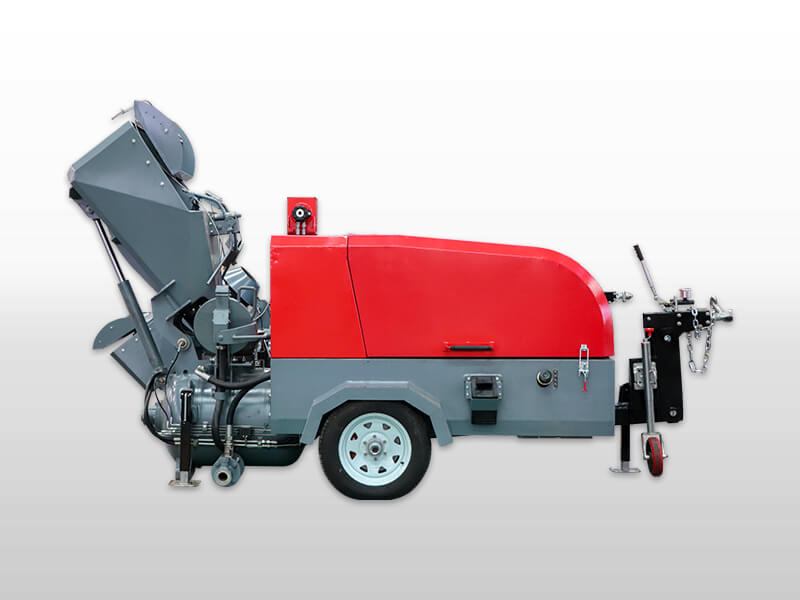

GPXT200-D/A Diesel screed pump, integrated with an air pressure screed function, is ingeniously engineered to provide seamless and dependable power transmission for the uninterrupted conveyance of various construction materials. This machine features a range of 4-cylinder engine options, each equipped with an electronic dashboard that allows for real-time monitoring of all essential operational parameters. Additionally, its component layout is designed for effortless maintenance, ensuring you can enjoy hassle-free and efficient advantages throughout your screed projects.
This newly upgraded diesel screed pumpe boasts the capability to transport materials both horizontally and vertically. It's built-in air compressor generates robust pressure and airflow, guaranteeing the smooth and efficient movement of materials within its operational range. By utilizing this high-performance mortar machine, you can achieve leveling tasks with greater ease, speed, and efficiency compared to traditional methods, significantly reducing the time required for completion.

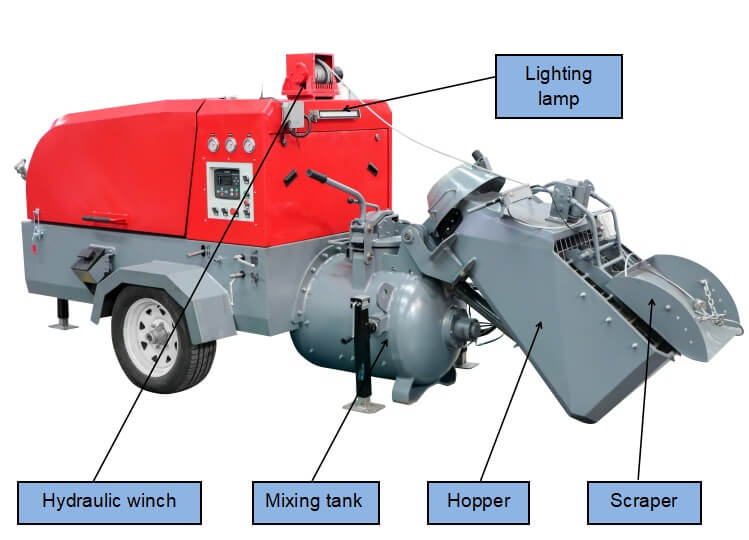

Operating principle of GPXT200-D/A screed pump with diesel engine:

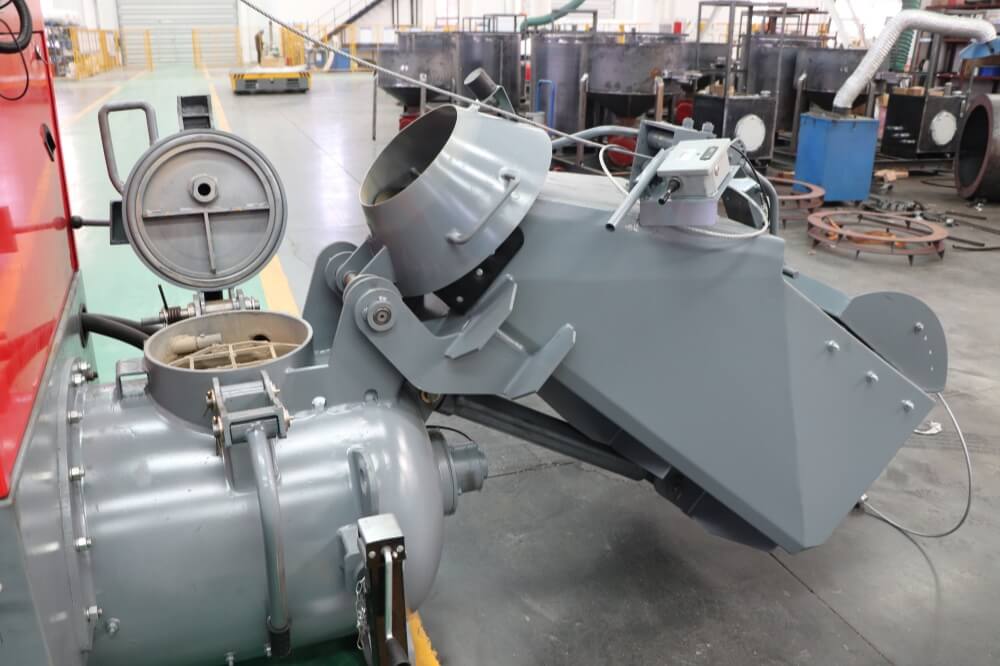

① Add material 1 to mixing tank 6.
② Put on the sealing cover 2 and press it down firmly.
③ The materials are fully stirred in the mixing tank 6.

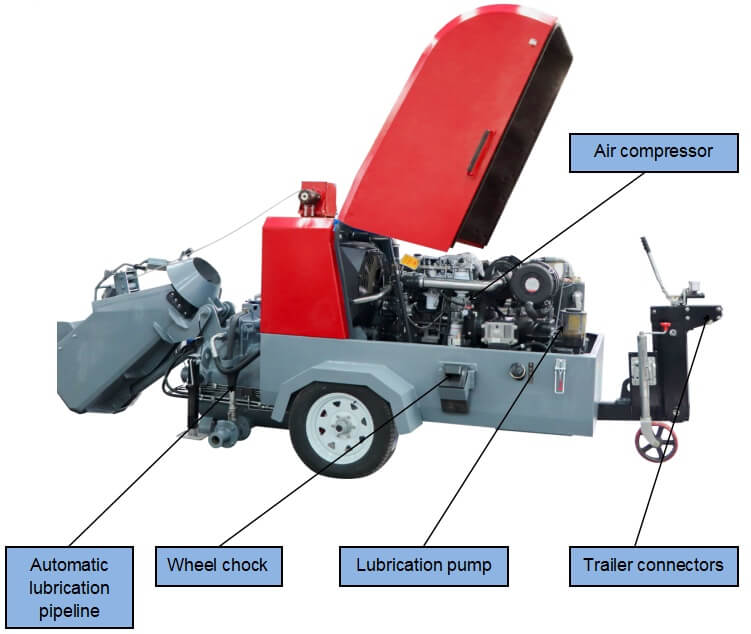

④The air compressor starts to generate compressed air with sufficient
pressure, which enters the mixing tank 6 and the upper pipeline 3. When the pressure inside the tank reaches a certain level, the material begins to be transported.
⑤The material is discharged from discharge port 7, passes through the conveying hose, reaches the discharge point, and is discharged at discharge port 8.
⑥If you want to transport long-distance or high-rise materials, you need to open the lower intake pipe 5.
