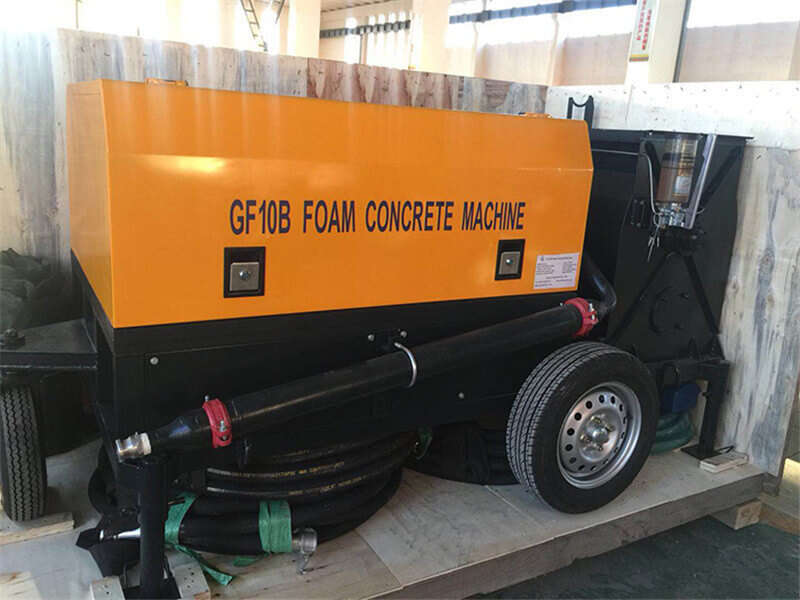

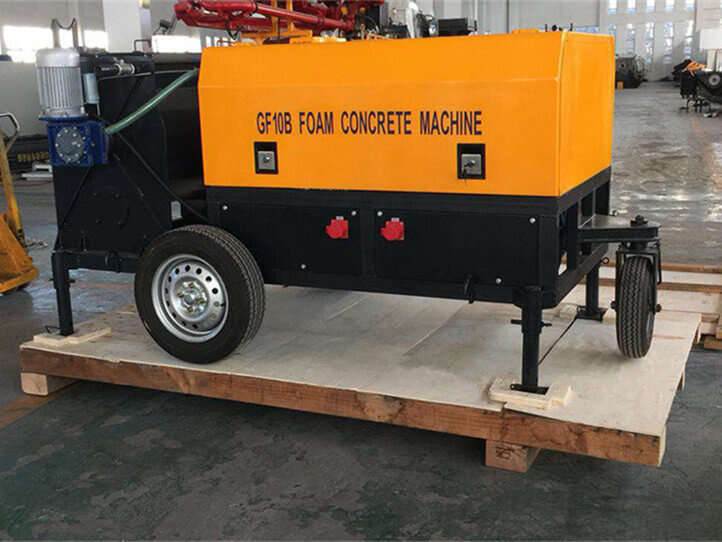

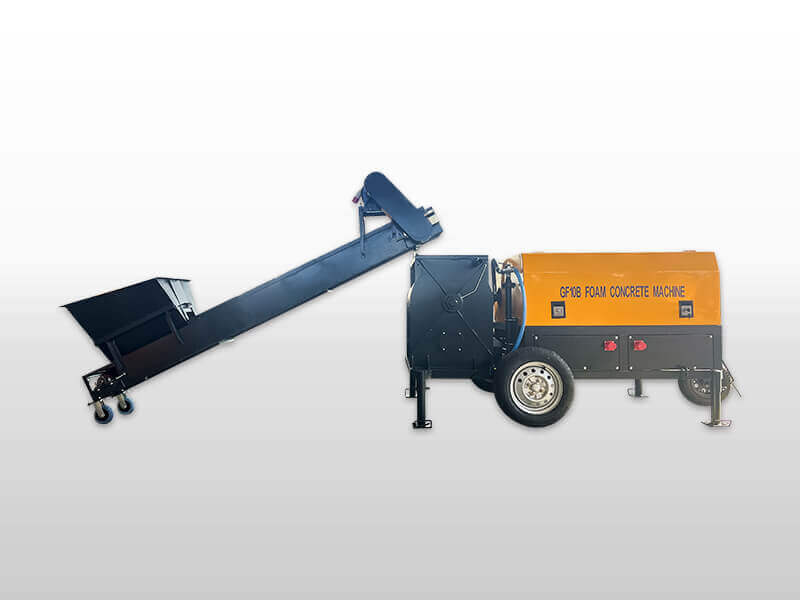

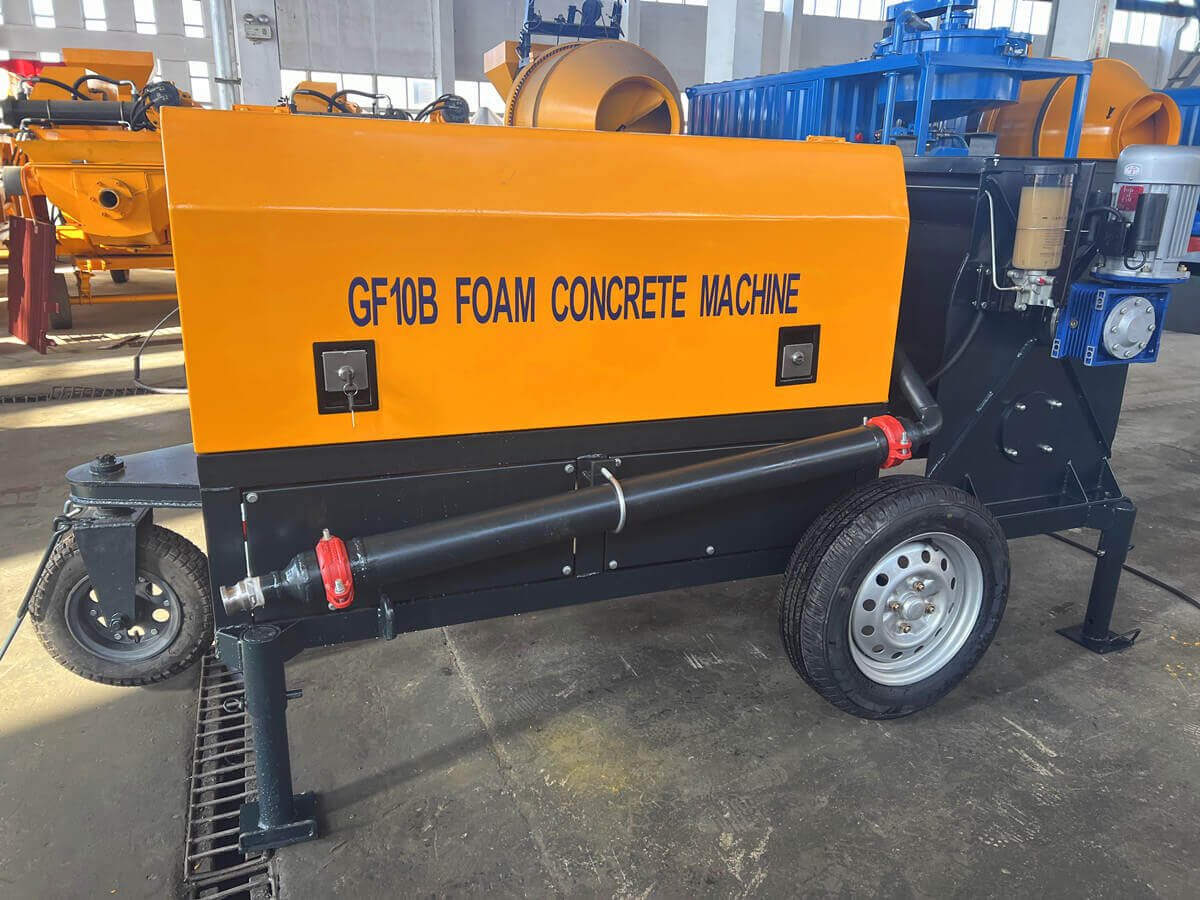

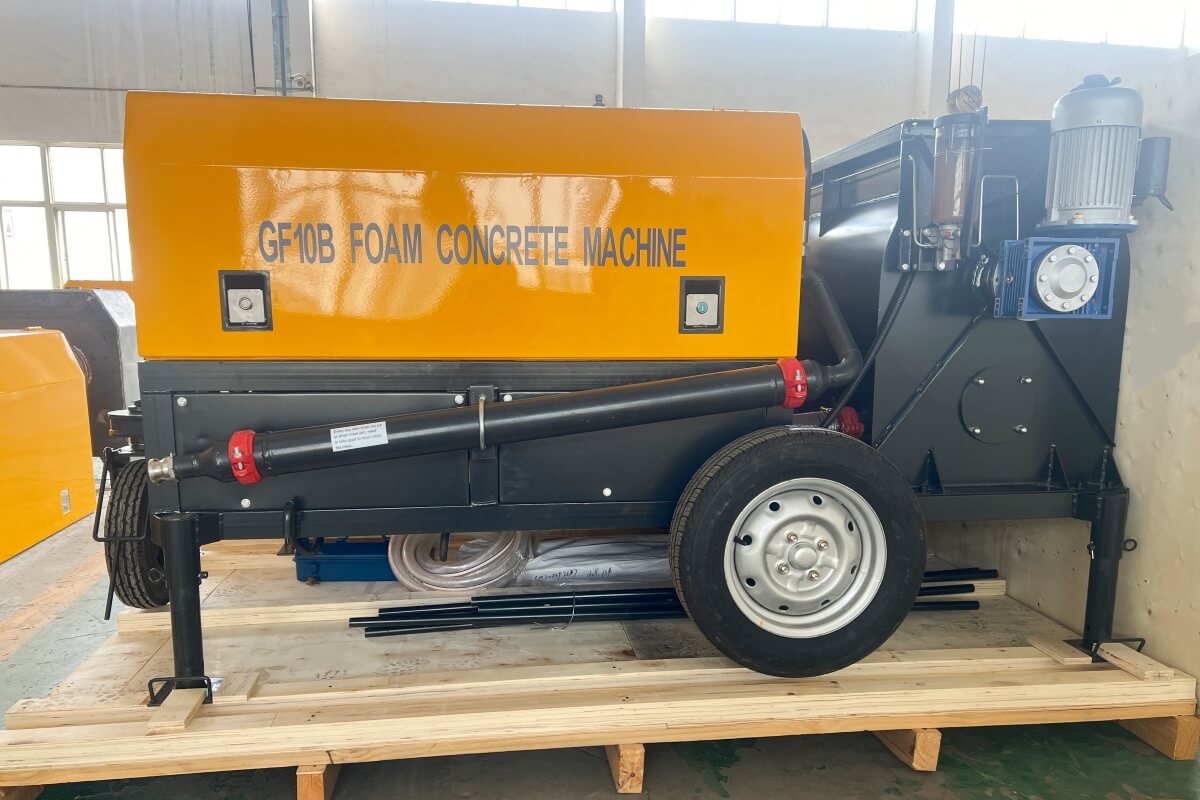

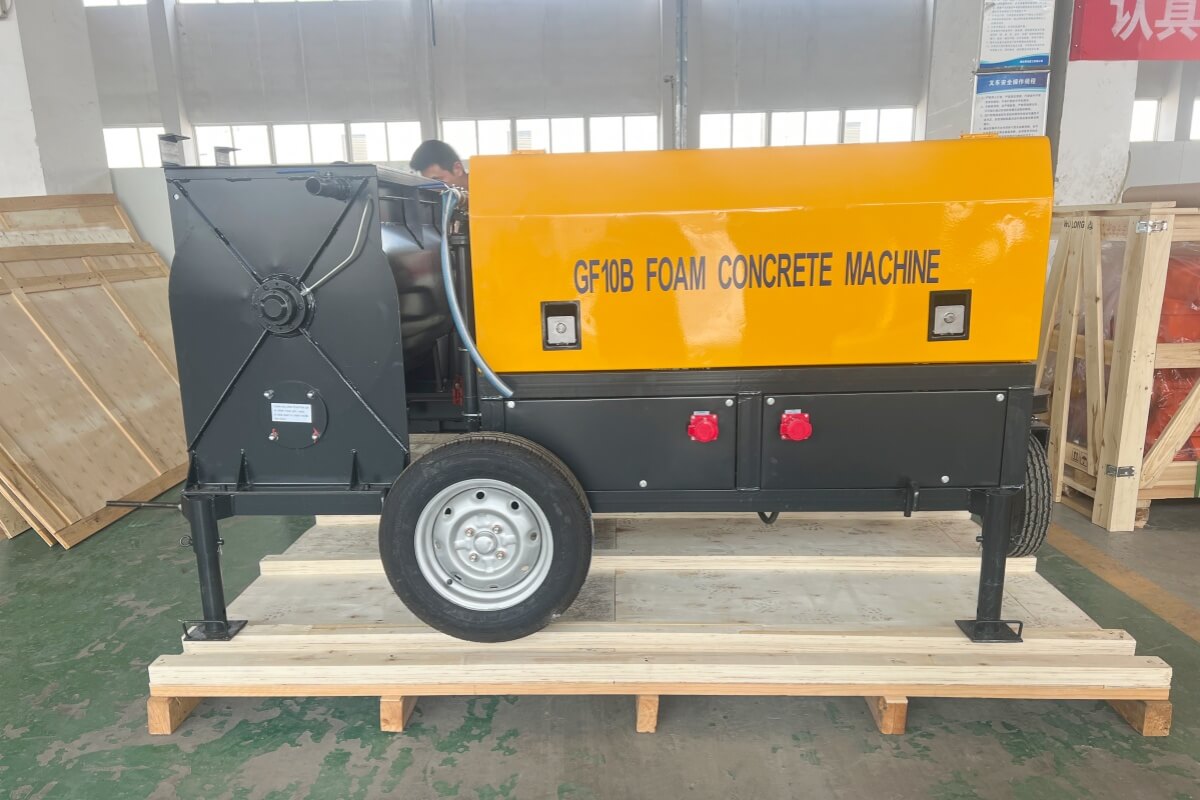

GF10B Foam concrete machine puts a screw conveyor, a concrete mixer, a foam generator and a hose pump 4 parts in one, adopts advanced control technology, can exactly adjust foam cement density; it also meets different density of foam concrete manufacturing. The capacity is 10m3/h, can directly put on the truck for working. It is easy to operate, low cost and mobile, with continuous material feeding and water supply system, high pumping height and low power requirement.

Foamed concrete has changed the traditional way of building walls with precast concrete segments. The excellent integrity and easy operation mean low labor intensity and low building cost. Besides, good strength characteristics with reduced eight, excellent

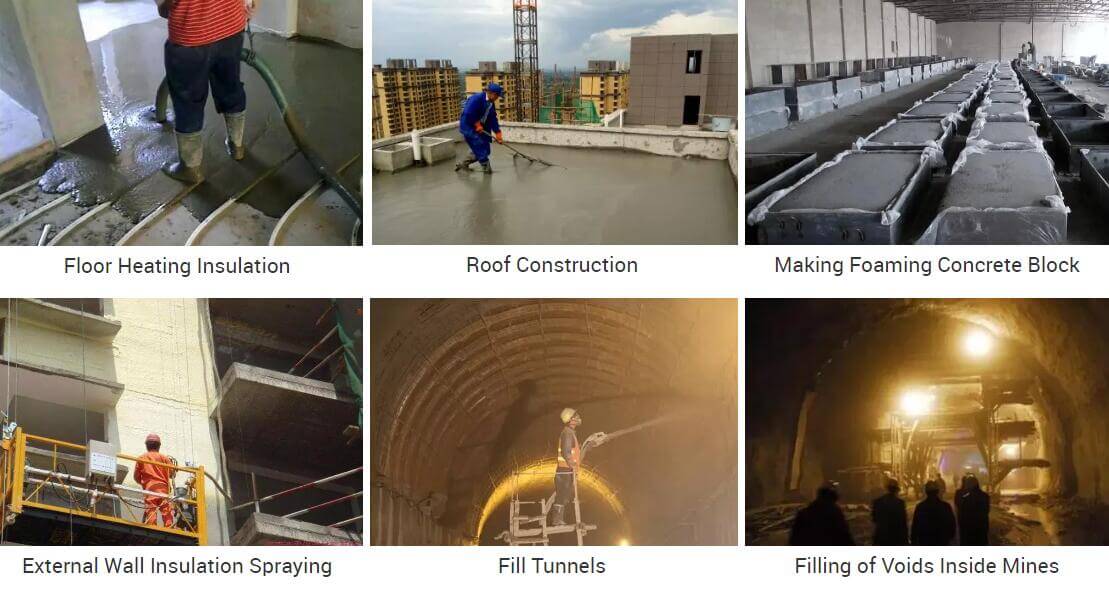

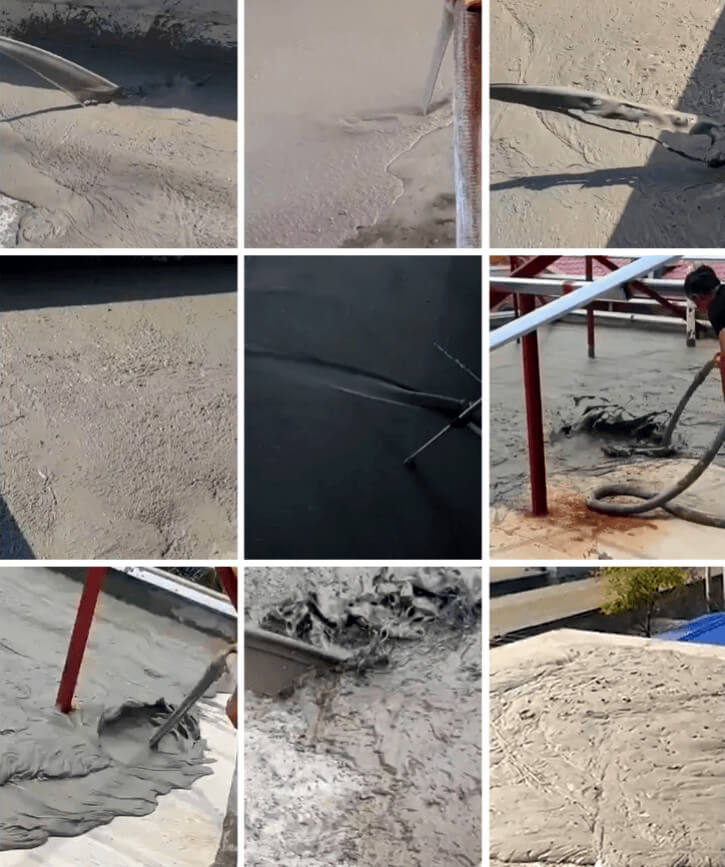

GF10B Foam concrete machine also meets different density of foam concrete manufacturing. The capacity is 10m3/h, can directly put on the truck for working. It's used for floor casting, roof casting, blocks, wall panel, framed wall and house structure casting and subway and coal mining backfill etc.

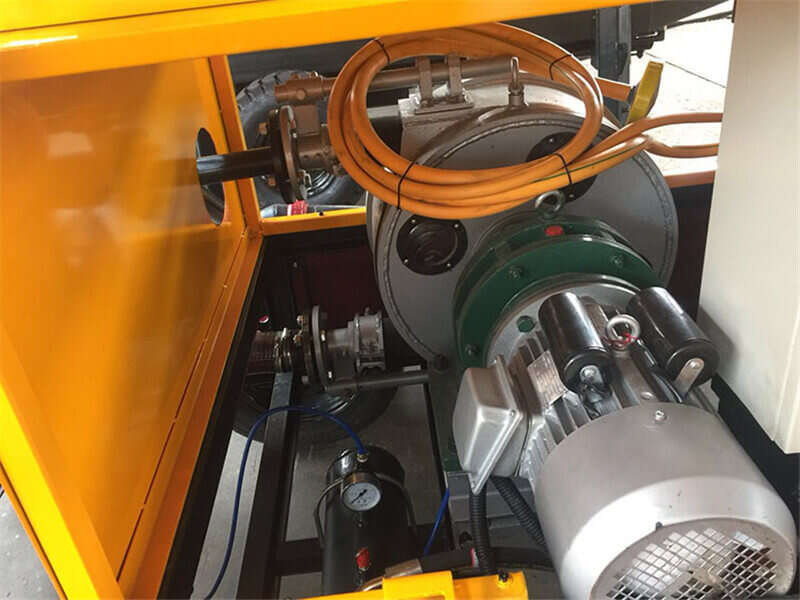

1. Frequency converter: Can exactly adjust foam cement density.
2. Static mixer : Reduce the ratio of foam loss and guarantee the quality of the foam concrete.
3. Hose pump: Compared with screw pump and piston pump, the hose pump has almost no damage to the performance of foamed concrete.

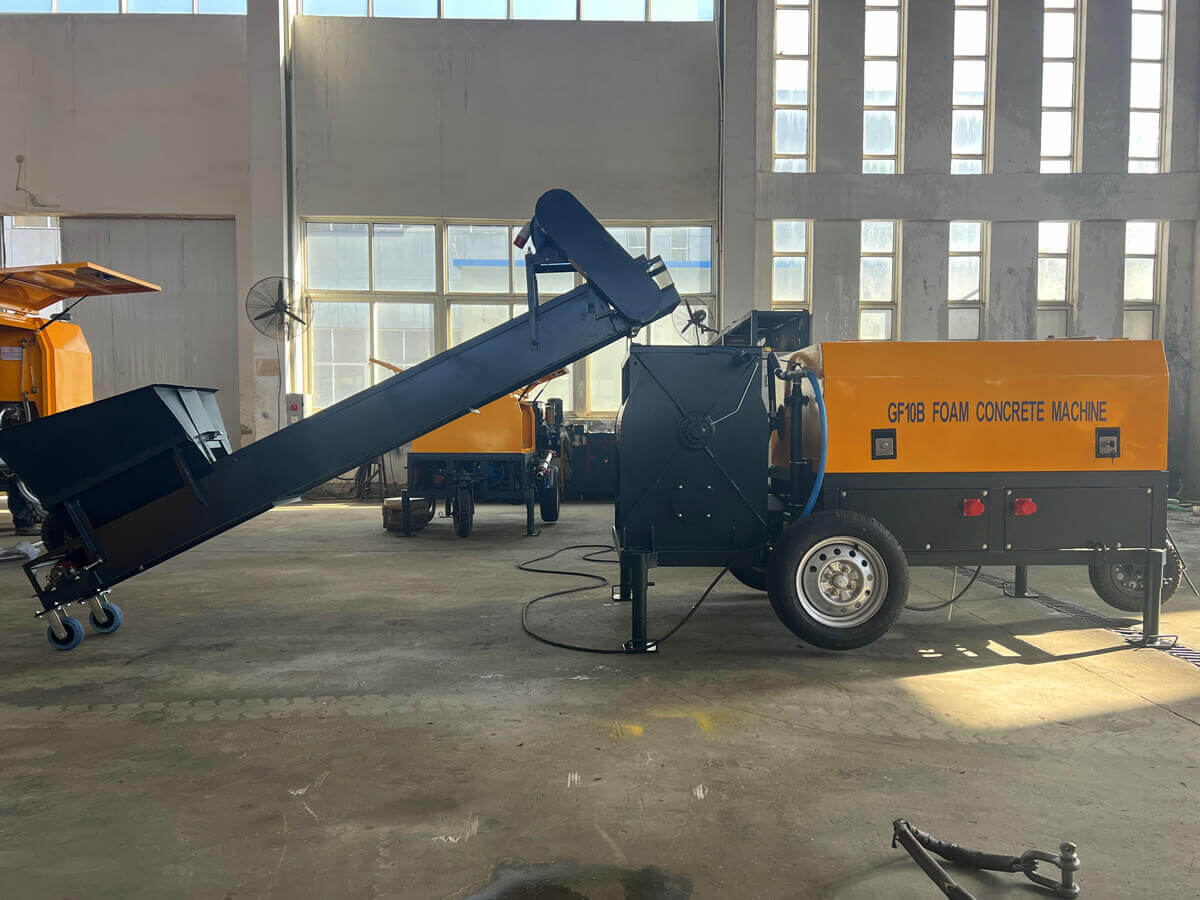

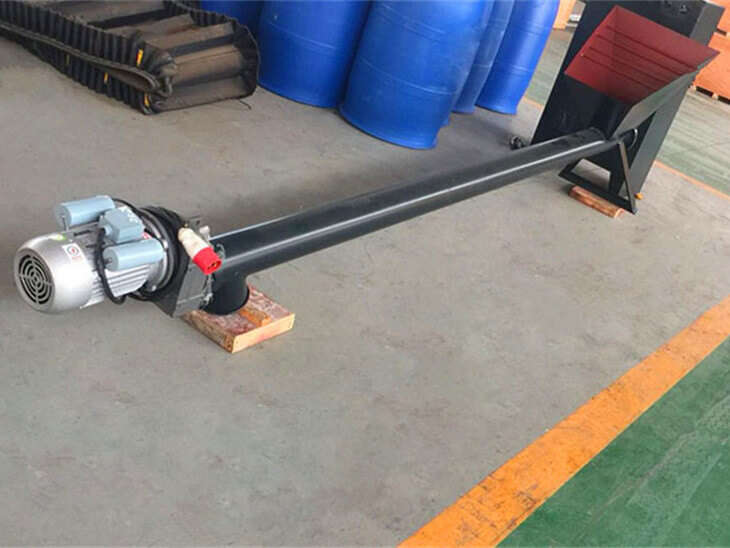

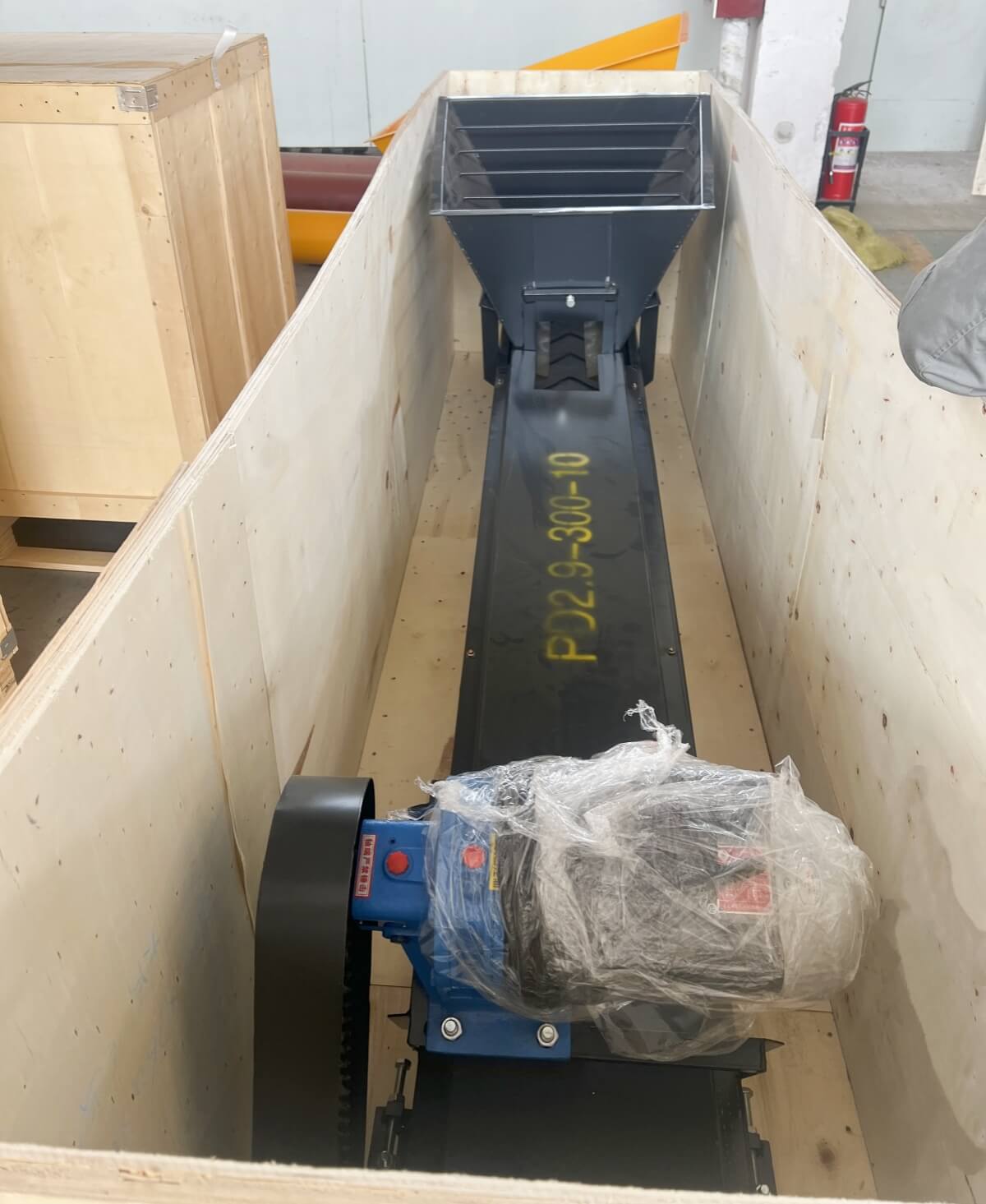

4. Screw conveyor: Time-saving and labour-saving, very convenient to use.
5. Dust cover: Protect working people from dust, keep healthy.

Model	GF10B Foam concrete machine
Max. theoretical concrete put(m³/h)	10
Motor power(kw)	13.2
Theoretical vertical conveying height(m)	40
Theoretical level transmission distance(m)	300
Mixer tank capacity(L)	350
Filling height(mm)	1000
Feeder size(mm)	2990*760*830
Overall dimension(mm)	2390*1490*1440
Total weight(kg)	1000
