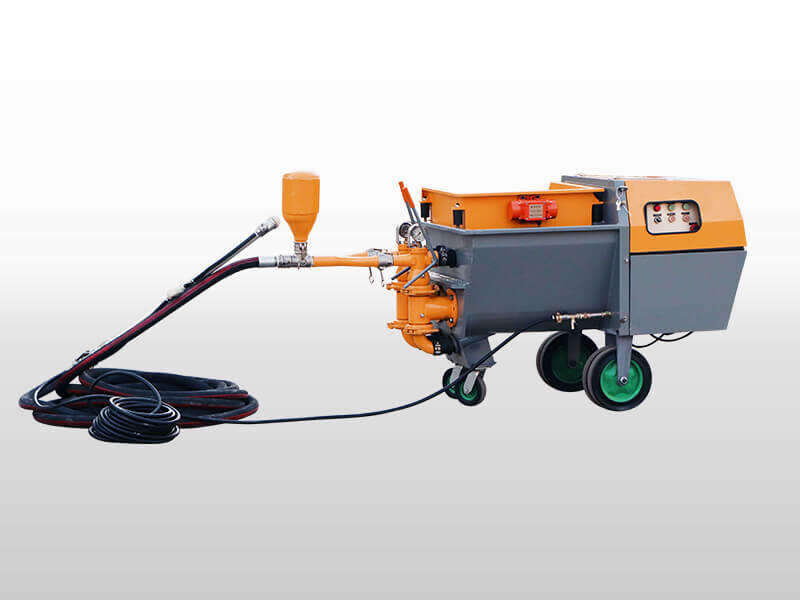

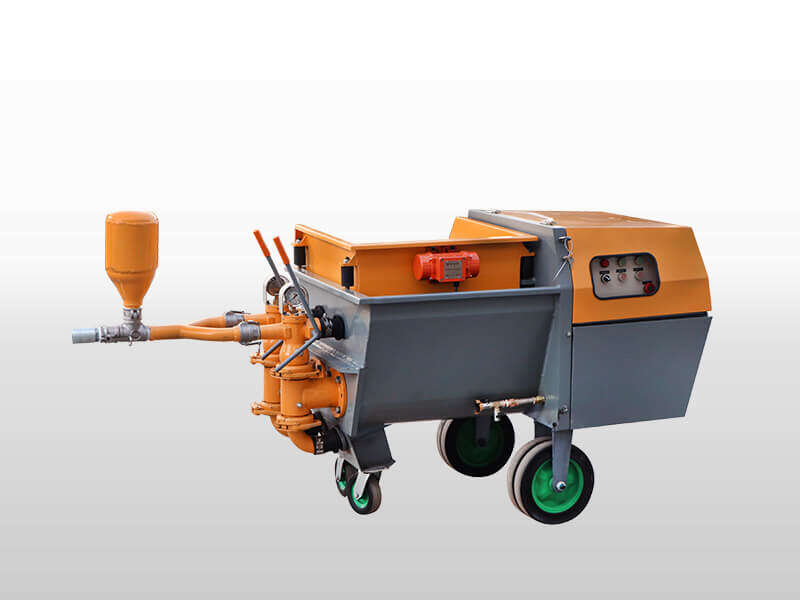

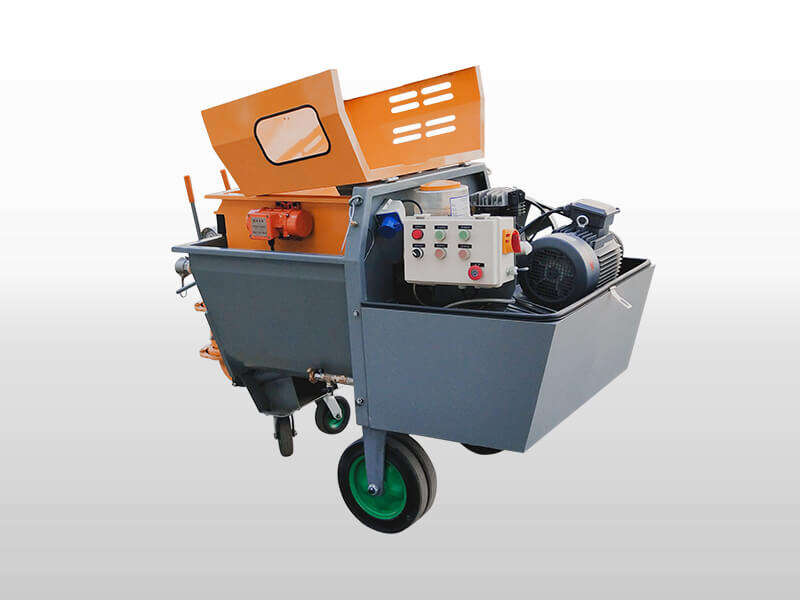

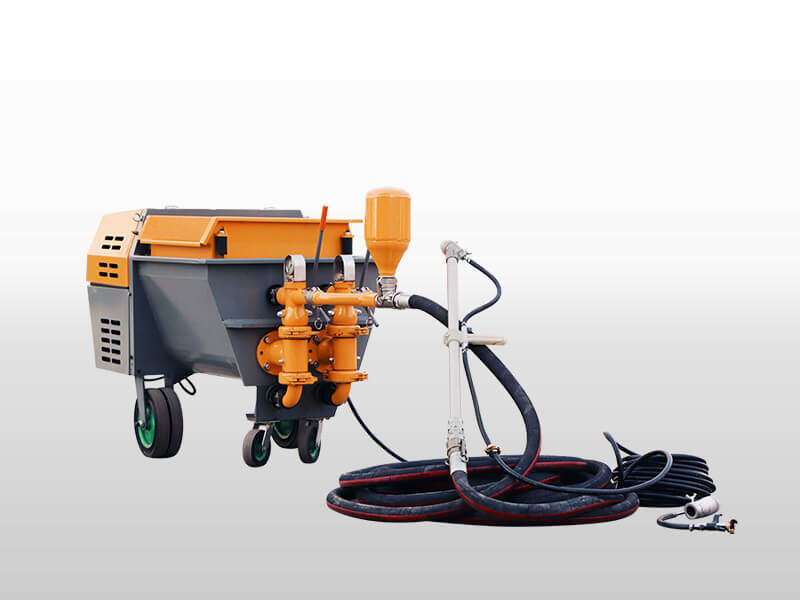

GMP70/30 Double piston mortar spraying machine can handle aggregates with a particle size up to a maximum of 5 mm, ensuring high efficiency, low maintenance costs and low energy consumption. Thanks to pump unique design inspiration is equipped with 2 pistons. Machine guarantees uniform and continuous spray pattern. It can spray more than 1500m2 per day with an average thickness of 2cm with double piston.

Double piston mortar spraying machine is main used for pumping, conveying, injecting and spraying common, premixed and special mortars.

1.Double cylinder & double-acting, ball valve, quick clamp connection, operation and cleaning conveniently. Paddles in hopper with Reciprocating movement, prevent hopper materials deposition.

Model	GMP70/30
Electric motor	4kw
Theorical output	70L/min
Max. aggregate size	5mm
Max. working pressure	30bar
Compressor	200L/min
Hopper capacity	0.28m3
Delivery distance	90m
Delivery height	28m
Dimension	200x86x88cm
Weight	360kgs
