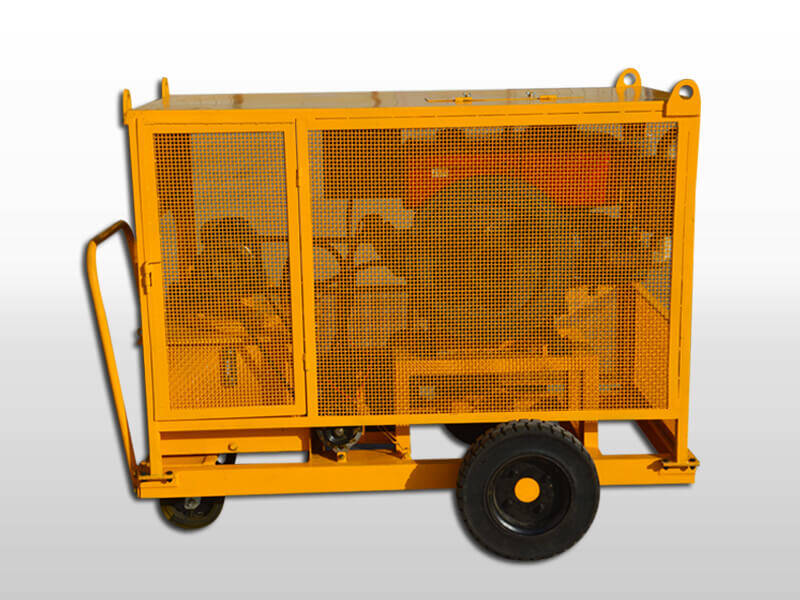

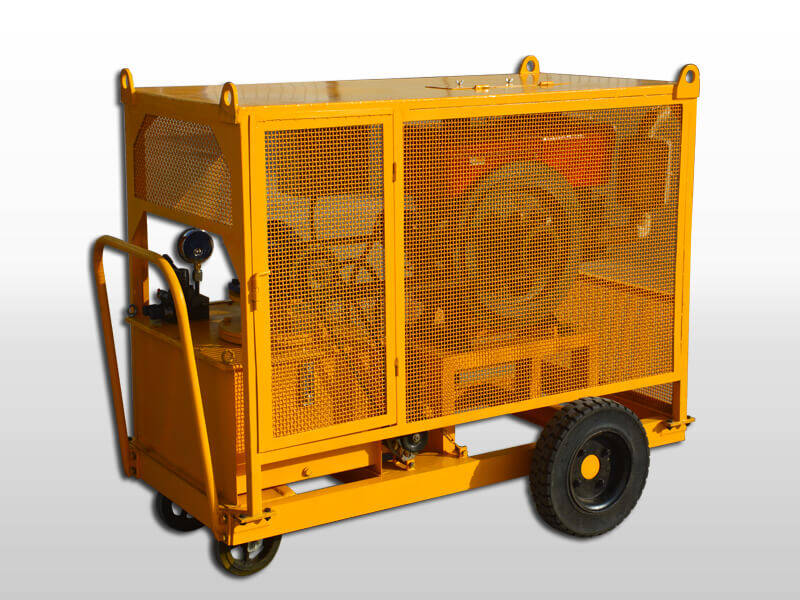

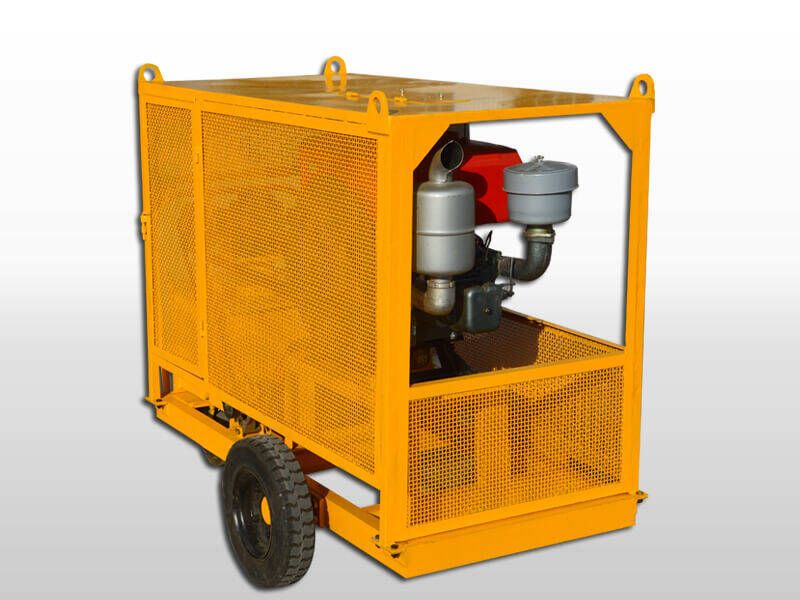

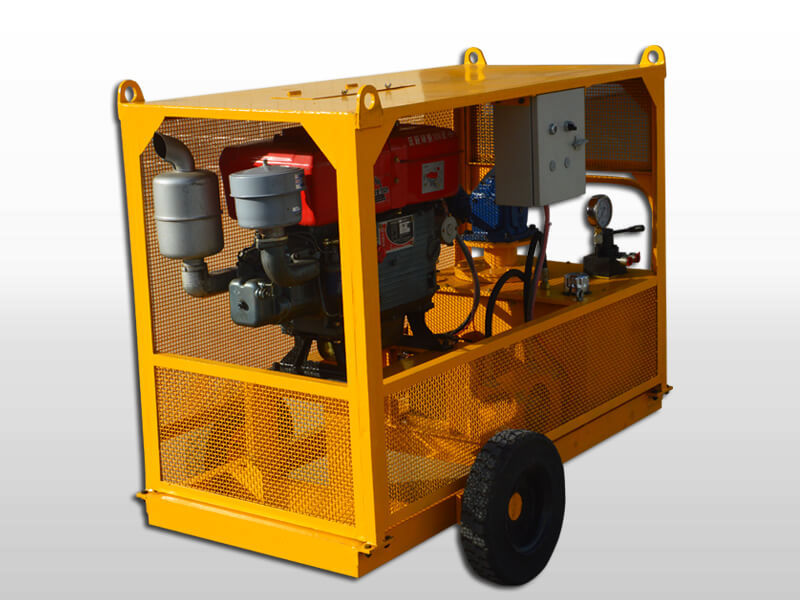

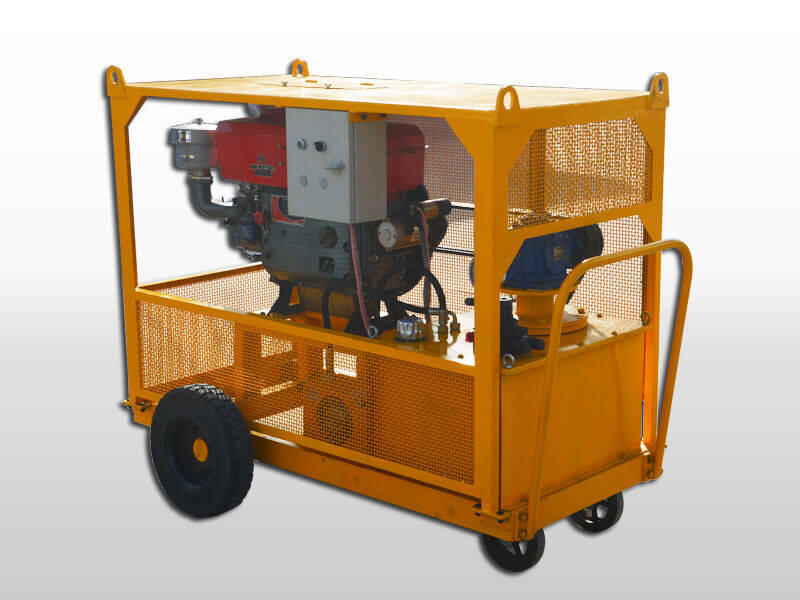

GJP-63D Pump station with diesel driven

Max pressure: 70Mpa
Working pressure: 63Mpa
High pressure flow: 5L/min
Low pressure flow: 10L/min
Oil capacity: 90L
Overall Dimension: 1800*1100*1250mm

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

Description
Application
Features
Technical data

■ Description

GJP-63D Pump station with diesel driven is modified by electric pump station. This diesel oil pump station is consisted on diesel engine, transmission, control cabinet, air cooling, oil tank, control valve, oil gauge, etc. The oil pump station matched with varied hydraulic jacks, the device can do kinds of different work, for example, lifting, pulling, pushing, extruding, pressuring and other working type.

Inquiry >>

Products you need :
Your name :
Your tel :
* Your mail :
Your company :
Your country :
* Inquiry :	Please enter your inquiry

PRODUCT CATEGORIES

Hydroseeding Equipment

GHS15190 Hydroseeding equipment GHS10120 Hydroseeder for mine and oilfield reclamation GHS0883 Hydroseeding Machine for Sale GHS0217PT 500gallon mechanical agitated hydroseeder GHS0110PT Jet agitated hydroseeder with poly tank GHS08100A Hydro seeding machine GHS08100 Hydroseeder for sale GHS13190 Hydroseeding equipment for mining sites green GHS0551 1000gallon commercial hydroseeder GHS0217 500gallon grass seeding hydroseeder GHS0117 Small hydroseeder for sale GHS0353 Hydroseeder Machine GEC Slope Protection Machine Soil Sieving Machine

Grouting Mixing Plant

GGP1000/4000/2x165/30PL-E Automatic grouting station / plant GGP400/1000/95/165DPL-E/A Grout Mixer and Pump GGP1200/1200/2X75/100PI-E Fully automatic version grout station GGP300/300/75PI-E Grout plant for sale GGP400/700/80/100DPI-D Cement grout unit GGP1000/2X75/100PI-E Automatic Grouting Station GGP400/700/80DPL-D Diesel engine grout inject station GGP550/800/150/70DPL-E Compact grout plant GGP300/300/300/70/80PI-E Mortar Grout Plant GGP250/700/75PI-E Grout Inject Station GGP250/350/100DPI-D Bentonite grout mixing plant GGP400/700/320/100TPI-E Colloidal grout plant GGP400/700/80DPL-E TBM grout plant GGP400/80PL-E Bentonite injection plant GGP220/350/50DPI-D TBM grouting plant for tunnel lining GGP100/150/20PI-E TBM backfill grout plant GGP1200/3000/300H-E Grout mixer and pump for backfilling GGP500/2000/165H-E Grout mixing and pumping system GGP400/700/80PL-E Grout Station GGP800/1200/200PI-D Grout Station Automatic Bentonite Turbo Mixer/Pump Plant/Station GGP300/350/85PL-E Grout Station GGP350/800/70PI-E grout injection station GGP800/1200/130H-E electric hose type grout plant GGP500/700/100PI-E Electric Grout Station GGP500/700/100 PI-D Grout plant unit GGP200/300/100PI-D Grouting Injection Plant GGP400/700/100PL-D Grout Station/Plant GGP250/350/100PI-D Grout Pump Station System GGP200/300/100PI-E Grout mixing injection plant GGP220/300/300PI-E China mortar grout station for sale Grouting Works Drilling Rig Grouting Recorder

Grouting Mixer and Agitator

GMA2X300/1000 Container type grout mixing machine GMA20 Automatic cement slurry grout mixer with cement silo GMA400-700AW Auto mixing station GMA800-1500D High speed cement slurry mud grout mixer and agitator GM400D high speed grout mixer GMA300-650E/D Cement grout mixer with agitator GMA1500-1200E Turbo mix grout mixer with agitator GMA360 High speed diesel grout mixer/agitator GMA850-1500E Bentonite cement grout mixer and agitator GMA750-1500E Grout turbo mixer with agitator GM500E colloidal grout mixer GMA400-700E electric grout mixer machine for sale GMA500-1000E Cement grout mixer with agitator GM300E high shear grout mixer (Colloidal type)GMA250-700E Cement grout mixer GM400E high shear grout mixer (wing shaft type)

Grouting Pump

GGP440/50PI-22E Inverter speed high pressure grouting pump GGP114/500-120D High pressure triplex pump for jet grouting GGH95/165PL-E High pressure grout pump GGP120/30PI-E Electric grout pump GGH75/100PI-E High pressure vertical grouting pump GGP25/15 Small type grout pump GGM80/50PLD-E Double-Plunger Hydraulic Grouting Pump GGH Series High Pressure Grouting Pump GGP10/40-E grout pump GDM130/20 Medium-Pressure Grouting Pump GDM60/40 Medium-Pressure Dual- slurry Grouting Pump GH-H Series Hydraulic Grouting Pump GH-HD Series Dual Slurry Hydraulic Grouting Pump GP Series Pneumatic Grout Pumps GHG-10 Grouting Cement Small Grout Pump GE Series Hydraulic Grout Pumps GDB Series Grouting Pump Mortar concrete grout pump XPB-10 Low Pressure Large Output Grouting Pump XPB-50 High Pressure Grouting Pump XPB-90 Series High Pressure Grouting Pump Dual slurry grouting injection pump

Refractory Gunite/Shotcrete/Mixer

GZ-3ER Refractory Shotcrete Machine GRM Refractory Pan Mixer GDPX Refractory mixing and conveying unit GZ-6DR/RD Diesel engine driven refractory gunite machine GZ-9ER Refractory shotcrete machine in steel mill GZ-6AR/RD Air Driven Refractory Gunning Machine GZ-3ER/S Electrical refractory gunning machine GZ-1.5ER Mobile portable refractory gunning machine GZ-5AR Gunning machine for refractory GZ-3AR Refractory gunning machine GZ-5ER Refractory dry gunning machine GCPM Counter Current UHPC Planetary Concrete Mixer GRM100 100kg refractory castable mixer GRM250 250kg capacity refractory pan mixer GRM500 500kg capacity refractory cement mixer GRM800 800kg castable refractory pan mixer GRM1000 Refractory Pan Mixer for Mixing Refractory GCG-40 Coke oven guniting machine for sale GD-BJ Switch-plate Type Refractory Gunning Machine GD-BP Fluidifying Semi-dry Refractory Concrete Spraying Machine GD-SL Metallurgical Furnace Used Screw Pump GWR Wet gunning refractory pump

Planetary Concrete Mixer

GCPM Hydraulic discharging concrete planetary mixer GCPM Counter current planetary concrete mixer with lift skip hoist and hopper GCPM Planetary concrete mixer for sale GCPM Refractory castable concrete planetary mixer

Shotcrete Machine

GSZ-10S/E Electric shotcrete machine (dry and wet)GZ-9E/S Wet & dry sprayed concrete linings and convey pea-gravel machine GSZ3000 Wet Shotcrete Machine GDS1500 Wet Shotcrete Machine GSZ-10S wet and dry concrete spraying and conveying machine GZ-3A Air motor dry mix shotcrete machine GZ-9 Dry-mix Concrete Spraying Machine GPS-7A Wet Shotcrete Machine GZ-5 Dry-mix Gunite Machine GZ-7 Dry Mix Concrete Shotcrete Machine GZ-3 Dry mix shotcrete machine GDS2000G Shotcrete Pump GDS2000E Shotcrete pump for sale HSC-3016 concrete sprayer shotcrete system with shotcrete arm HSC-2008 shotcrete machine with spray arm HSC-2513 concrete spray shotcrete system with robotic arm HSC-2515 concrete sprayer shotcrete system HSC-2815 concrete spray shotcrete system HSC-2815B robotic shotcrete machine GPS5-15S hydraulic pump wet concrete spray shotcrete machine YSC5-15S vehicular hydraulic pump concrete spray wet shotcrete machine GSZ3000V Wet Gunite Machine GPS-7 Wet Spraying Machine GPS10/80 Shotcrete concrete pump

Peristaltic Pump

Squeeze Hose Grouting Pump for TBM GH100-915B Super high pressure bentonite hose pump GCP20H-H hose pump for pumping concrete GH32-330SR Single roller hose pump GCP40H-E Hose Type Concrete Pump GH32-330SR Single roller hose pump with hydraulic motor Customize Hose Pump for Grouting Cement GCP15H-E Hose Type Concrete Pump GCP15H-D Squeeze concrete hose pump GH100-1050B Hose Pump for Filter Press Machine GH89-610C Peristaltic Hose Pump for TBM Industrial Peristaltic Pump GH100-915B Peristaltic Pump for Pumping Foam Concrete Special GH76-770B Peristaltic Pump for Pumping Oil Sludge and Slurries GH32-330B Explosion proof peristaltic squeeze hose pump

Anchor Equipment and Tools

Hollow hydraulic torque wrench set Double acting hydraulic jack Single acting hydraulic jack Double acting hollow hydraulic jack Thin type single acting hydraulic jack Aluminum titanium alloy square drive hydraulic torque wrench set Single acting hollow hydraulic jack Self-locking type hydraulic jack Synchronous control hydraulic jack YDC Tension Hollow Hydraulic Jack QYC Front-end mono strand hydraulic jack Electric Oil Pump 2.2Kw Single acting Electric Oil Pump Used for Lifting Hydraulic Jack Hand pump Oil Pump GJP-63D Pump station with diesel driven Prestressed concrete round anchors Flat anchor Prestressed PC Strands Pusher Machine for Bridge and Railway Metal Ducts Making Machine Prestressed Concrete Cable GYJ Extrusion Machine

Foam Concrete Machine

GM2000 Foam concrete mixer with auto-weighing system GF10B Foam concrete machine for sale GF5 Foaming concrete machine GF40A Automatic foaming concrete equipment GF60A Foam cement light-weight thermal insulation mixing station GF100 Large bridge head road base backfill foam concrete machine GFC1000-H Foam cement machine for roof and floor insulation GW30B Foam Concrete Block Wire Cutting Machine GF30A Hydraulic high-pressure type lightweight concrete work plant GM2000 15-20m3/h CLC Foam Concrete Mixer GR5 CLC foam generator for concrete GA40 foam agent for foam concrete GF5H CLC foam concrete making machine GF20 CLC Machine for Cast in place GF20D Foam concrete machine for cast in situ GF10A Cement foam concrete unit GP30 30m3/h Lightweight Foam Concrete Pump GF10 Lightweight Foam Concrete Machine for Floor Heating GF15 cellular lightweight concrete machine GF30 Cellular Lightweight Concrete Making Machine GF40 Cement foam concrete unit GM1000 Foam Concrete Making Machine GF25 Lightweight Foam Concrete Unit GF35A Foaming Cement Machine GF35B Cement Foam Concrete Unit

Filter Press

Hydraulic ceramic piston pump Program controlled automatic filter press Membrane filter press Hydraulic pressure filter press Small type membrane filter press Manual Jack Filter Press Round Plate Filter Press Multi-layer stainless steel frame filter

Slurry Pump

BW Series Slurry Pump BW160/10 Slurry Pump BW200 Mud Pump BW850-2 Mud Pump GDD Series Mud Pump GDF Series Slurry Pump

Drilling Rig

GPD100H Portable hydraulic drive DTH drilling machine GPD100H Portable chain feeds drilling machine DTH drilling machine for blast-hole in quarry XL-50 Jet Grouting Drilling Rig GL-4000 Full Hydraulic Crawler Jet Grouting Anchor DTH Drilling Rig GL-6000 Full Hydraulic Multifunctional Jet Grouting Anchor Engineering Drilling Rig XDQ-1200 Full Hydraulic Portable Diamond Wireline Core Drilling Rig XY-44B Core Drilling Rig XDL-1800/1200 Crawler Full Hydraulic Core Drilling Rig GSD-I trailer mounted water well drilling machine GSD-Ⅱ diesel water well drilling rig GSD-III truck mounted water well drilling rigs GSD-IIA water well drilling machine GD-370 hydraulic drilling machine GD-380T split type air kinetic energy DTH drilling machine GD-X5 powerful hydraulic DTH hammer drilling rig with dust collector

Plaster Pump

GMP-5X Mortar plastering machine with mixer and screw pump GMP70/30 Double piston mortar spraying machine Double piston mortar spraying pump GH32H Mortar Spraying Machine Full Automatic Screw Type Mortar Spraying Pump Machine GMP35/30 Mortar Spray Pump GMP40/10-H Mortar Plaster Pump GMP50/40 Mortar Spraying Machine GD-N5 Wall Putty Spray Machine GH38ME mortar pump GD-N2 Plastering Machine GD-N1 Wall Putty Spray Machine Hydraulic Mortar Pump Electric Mortar Transfer Pump Machine GEC-SUB8.0 High Pressure Mortar Spraying Pump

Road Marking Machine

GD-D390 Marking Removal Machine GD320 Hand push thermoplastic road marking machine GD800 GD1200 Hydraulic Double Cylinders Thermoplastic Kettle GD18L Hand Push and Truck-mounted High Pressure Airles Cold Paint Road Marking Machine GD18L-2 Double Cylinder and Pump Cold Paint Truck-mounted Road Marking Machine GD160 Hand-push Thermoplastic Road Marking Machine GD320S Self Propelled Thermoplastic Road Marking Machine GD Vibration Marking Machine GD300 Mechanical Single Cylinder Thermoplastic Kettle GD600 Mechanical Single Cylinder Thermoplastic Kettle GD400 Hydraulic Single Cylinder Thermoplastic Hot Melt Kettle GD6L Cold Painting Machine GD Vehicle Booster GD High Pressure Road Surface Cleaning Machine GD High Pressure Road Surface Blower GD Series Assistant Equipment for Index Line Construction

Concrete Pump

JBT30 P2 small portable concrete pump with mixer GCP8/80-30D Diesel Concrete Pump GMP7/35D Small Concrete Pump with Diesel Engine GPS-7A capacity adjustable mini concrete pump GCP40H-E Hose Type Concrete Pump Mini Portable Concrete Pump GCP15H-E/D Hose Type Concrete Pump HBT-D series diesel concrete pump machine HBT-E series electric concrete pump machine JBT40 P2 Electric concrete mixer pump JBT40 L1 Trailer concrete pump with forced mixer JBT40 L2 Trailer concrete pump with forced mixer JBT40 P1 portable concrete mixer and pump JBC40 L1 Truck mounted Concrete mixer pump JBC40 L2 Concrete pump mixer JBC40 P1 Concrete mixer pump Coal Mine Concrete Pump JS series Forced Type Concrete Mixer CM-D series portable mini diesel power concrete mixer GCM-130 Gas Mixer Machine GCM-120 Mortar Mixer Machine Gasoline Mixer Machine Portable Mini Cement Sand Concrete Mixer Machine Portable Cement Mixer Machine

Hydraulic Pump Station

GBHPP15/55X2-30D Hydraulic power unit GHPP20/30-15E electric hydraulic power pack GHPP16/50-18.5E electric hydraulic power pack GHPP14/68-30D diesel hydraulic power pack GHPP14/68-22D diesel hydraulic power pack GHPP13/50-14D diesel hydraulic power pack

DTH Drill Tools

DTH High pressure drill bit Eccentric drilling tools with casing tube DTH High air pressure hammer

Customized Service

GWP160/45-E Water pump for cooling and cleaning drill pipes GH15-200 Dosing Hose Pump GDJ-M High pressure hydraulic diaphragm dosing metering pump GDJM Mechanical diaphragm digital chemical dosing metering pump GSC500H Scraper Conveyor

Send Inquiry

hot product

Items		Parameter
Model		GJP-63D Pump station with diesel driven
Diesel engine	Brand&model	Changchai L24
	Power	24Hp
	Rotate speed	2200rpm
Max pressure		70Mpa
Working pressure		63Mpa
High pressure flow		5L/min
Low pressure flow		10L/min
Oil capacity		90L
Overall Dimension		180011001250mm
Weight		500kg
