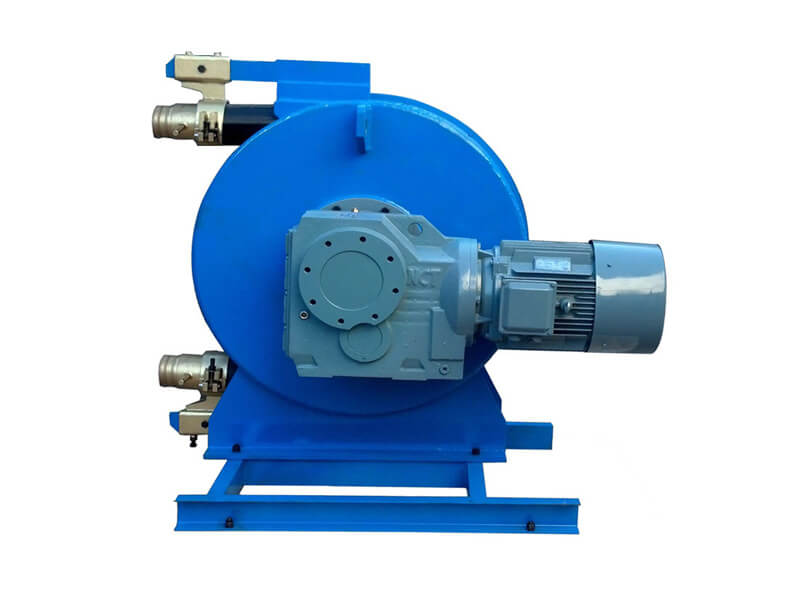

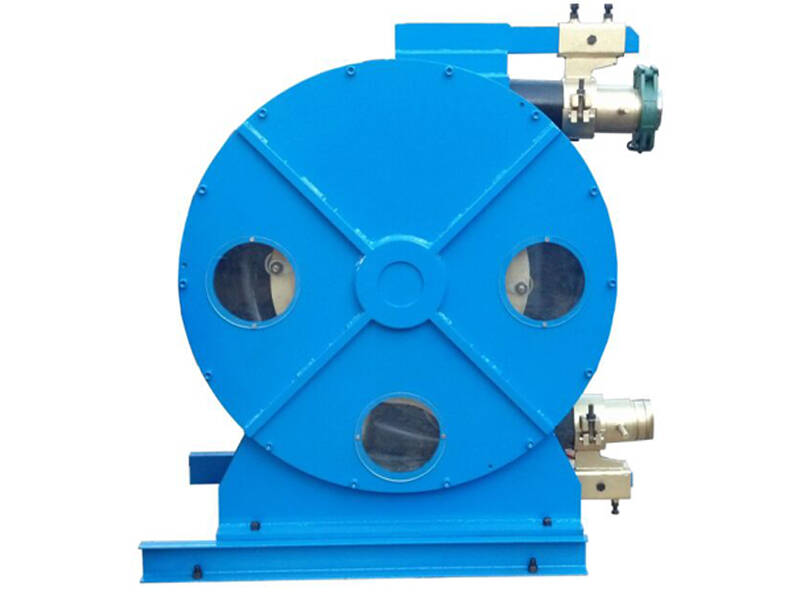

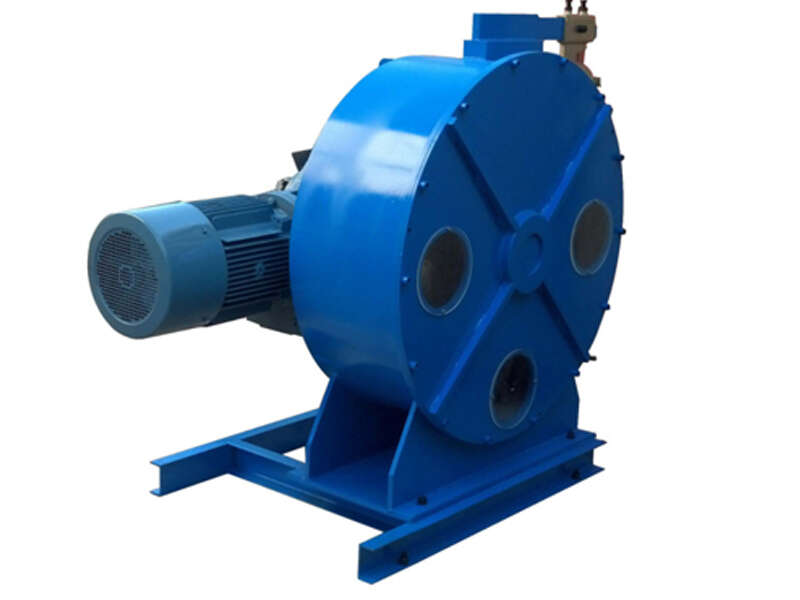

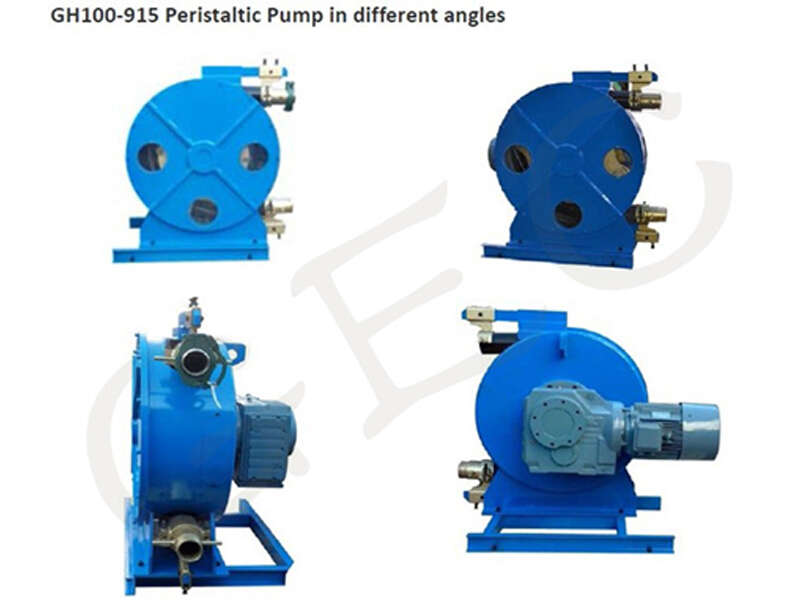

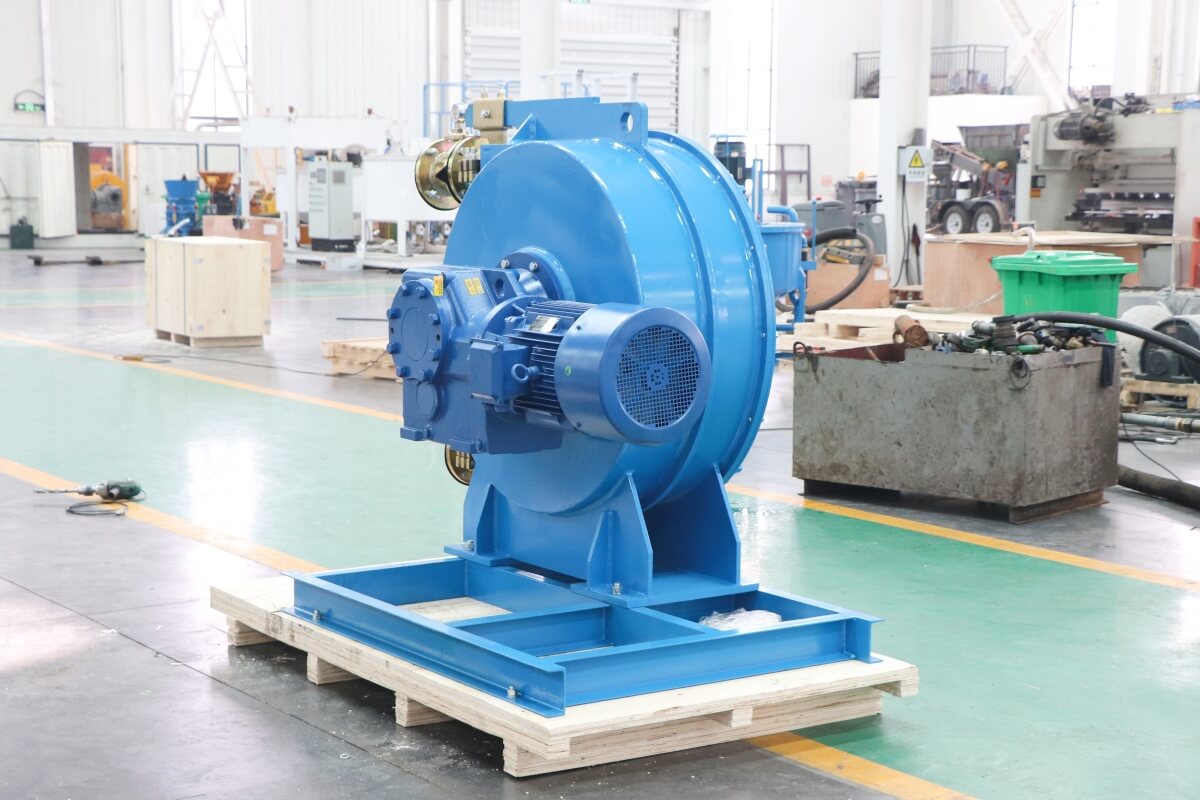

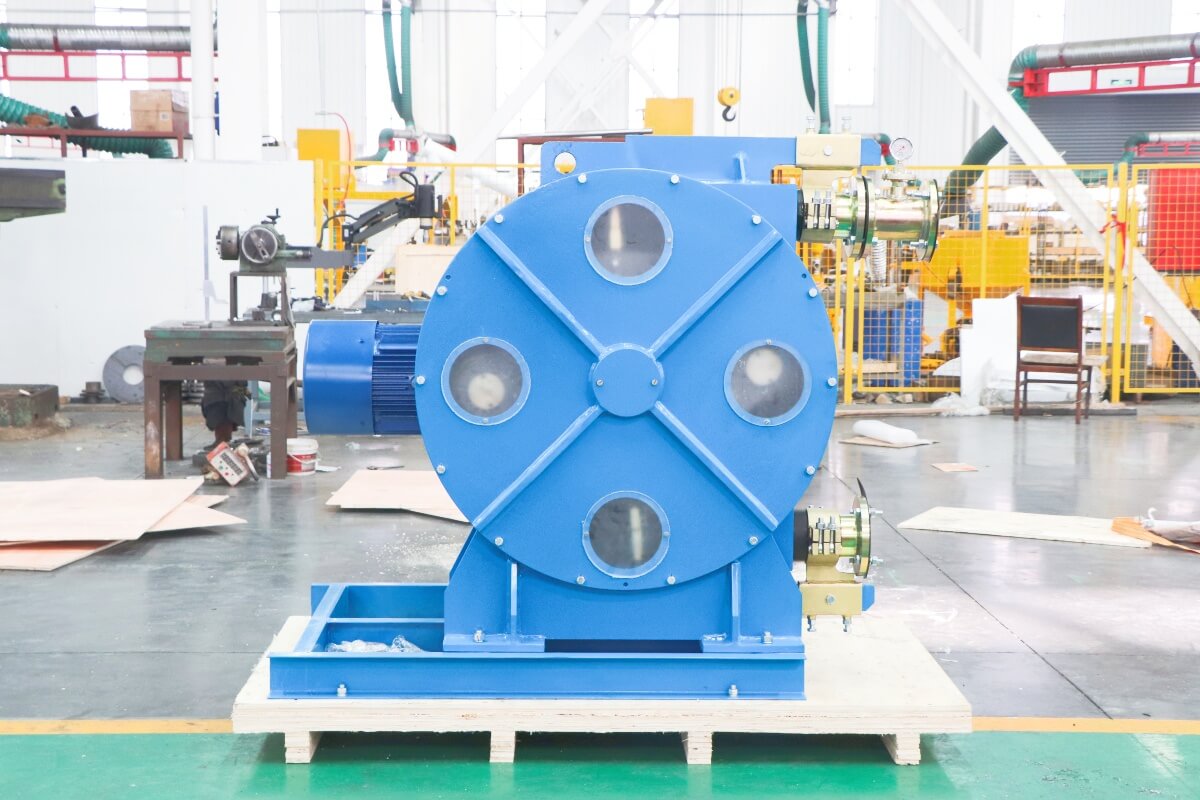

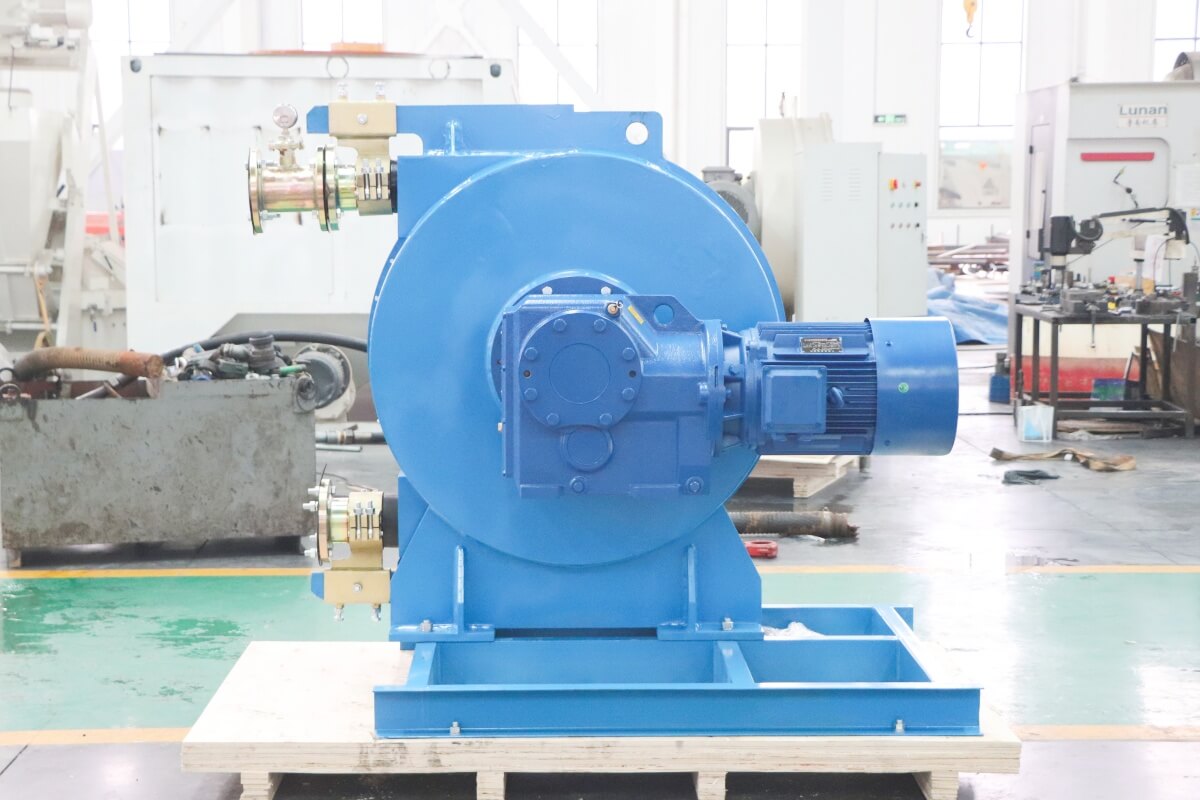

GH100-915B Peristaltic Pump for Pumping Foam Concrete

  • Max. output: 40m3/h
  • Rotation: 40RPM
  • Squeeze hose ID: 100mm
  • Working pressure: 8bar
  • Voltage: 3phase, 380V, 50HZ
  • Power: 22KW

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message
  • pumping foam concrete
  • foam concrete pump
  • squeeze pump for pumping foam concrete
  • foam concrete pump for pumping foam concrete
  • hose pump for pumping foam concrete
■ Description

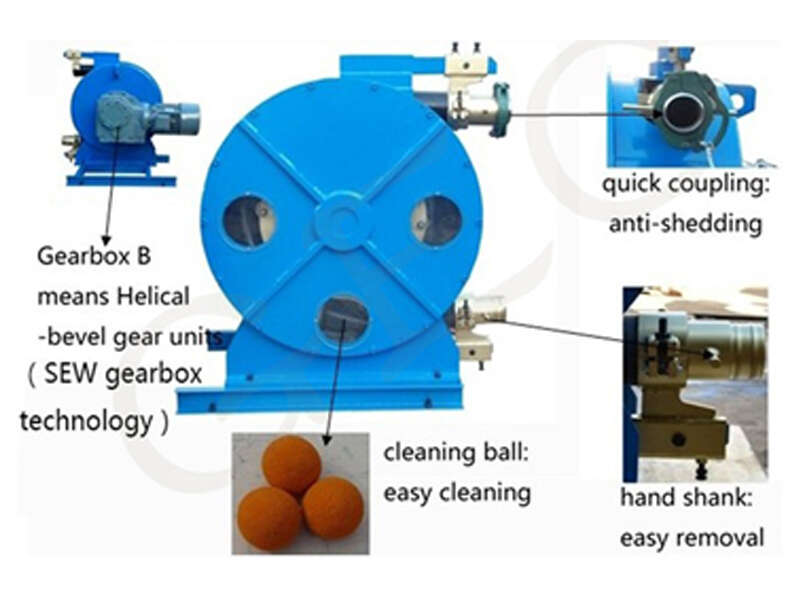

GH100-915B industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.
