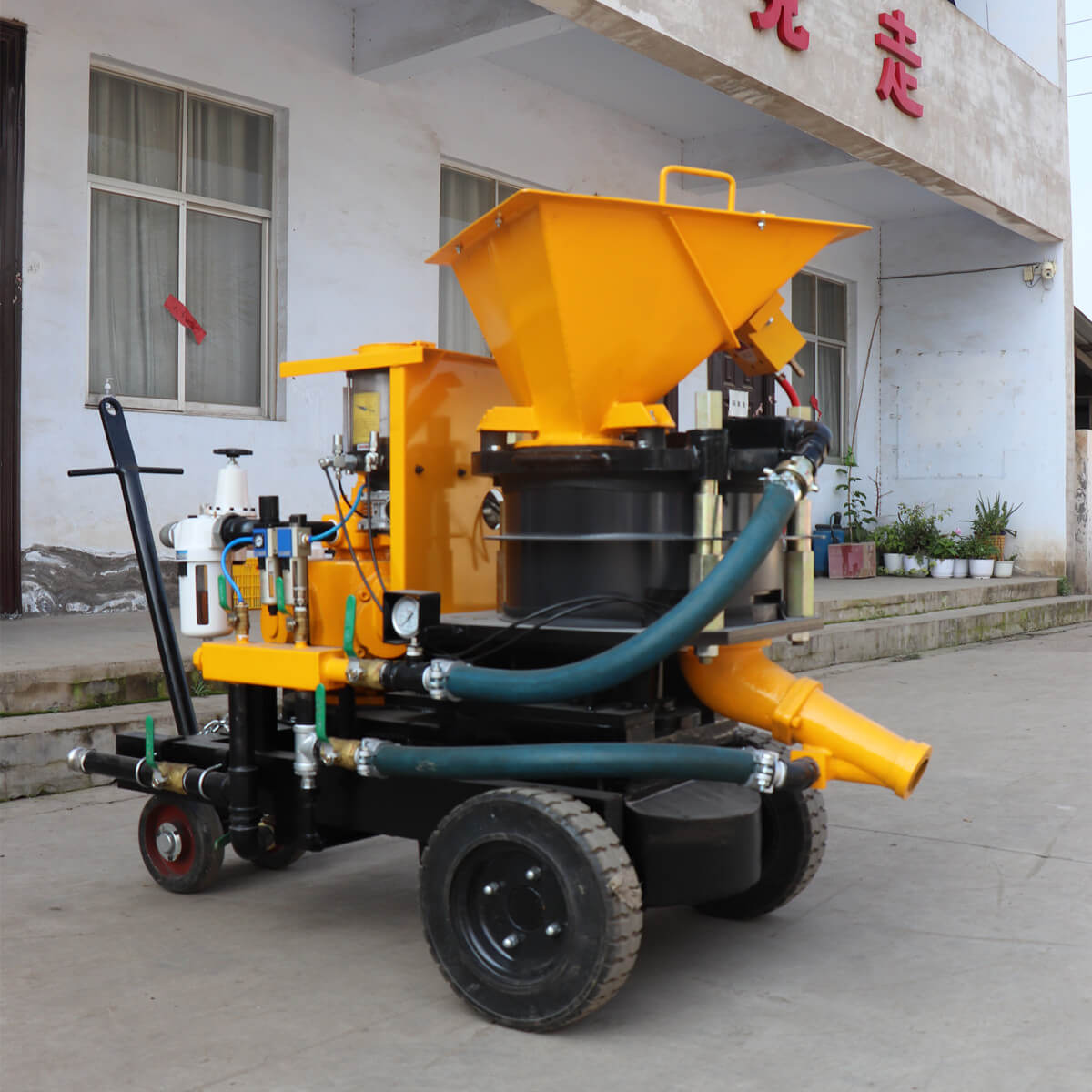

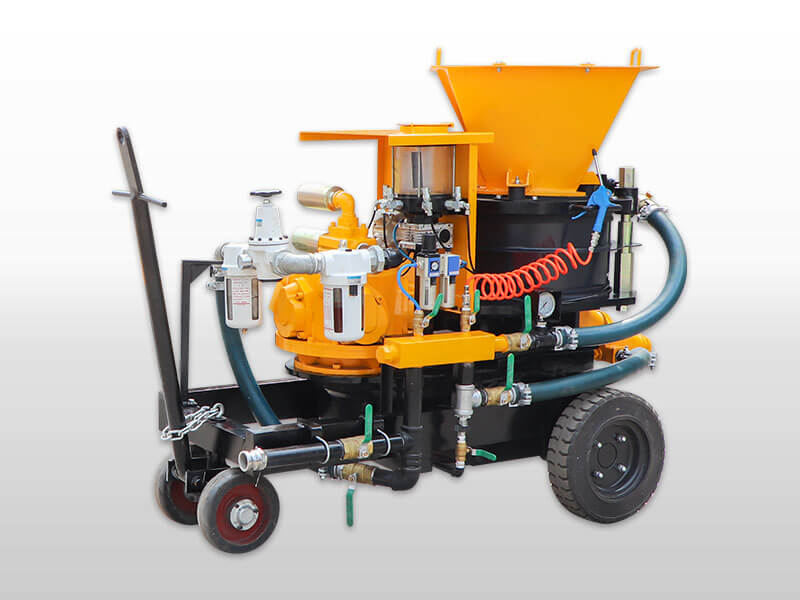

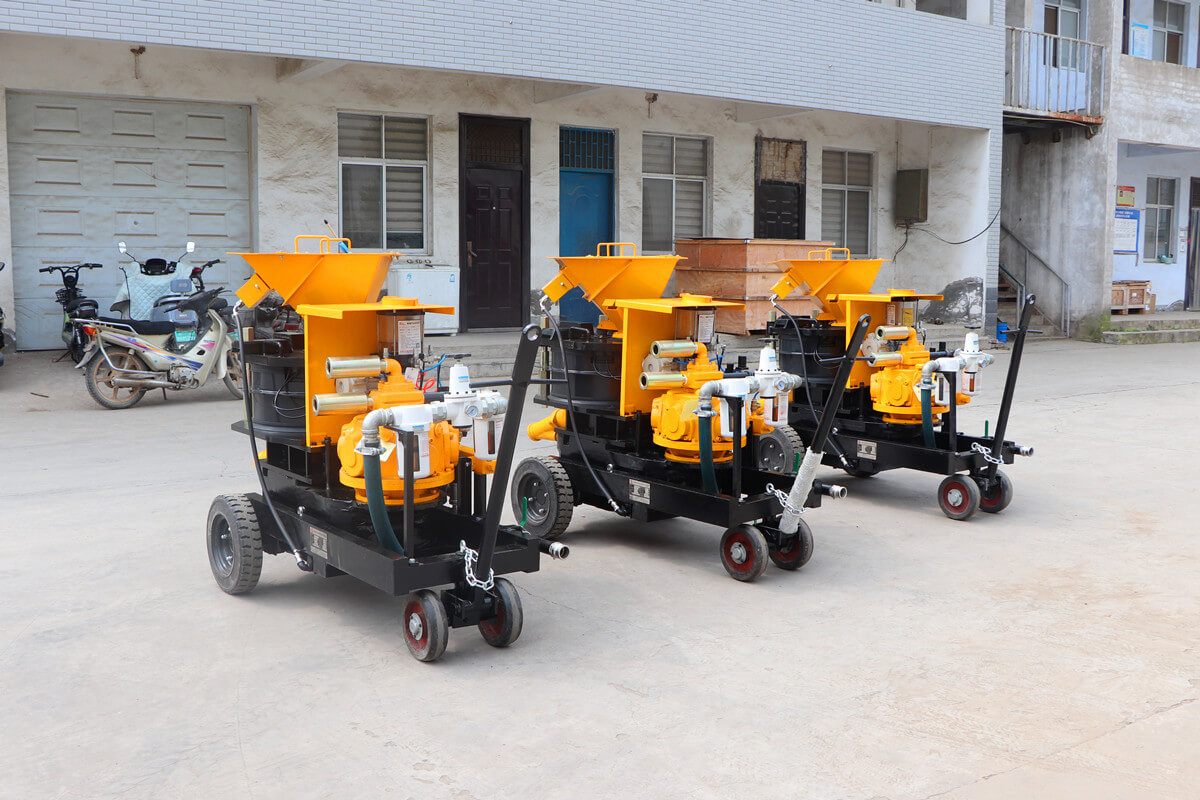

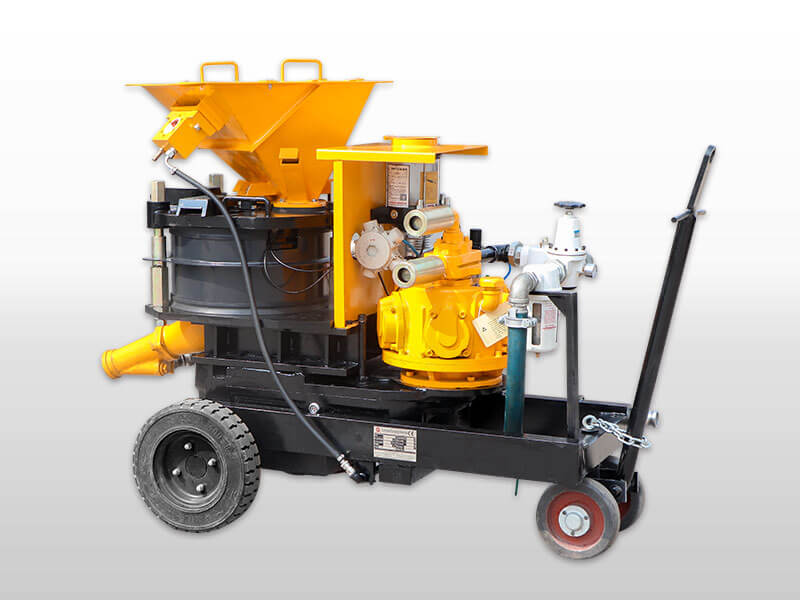

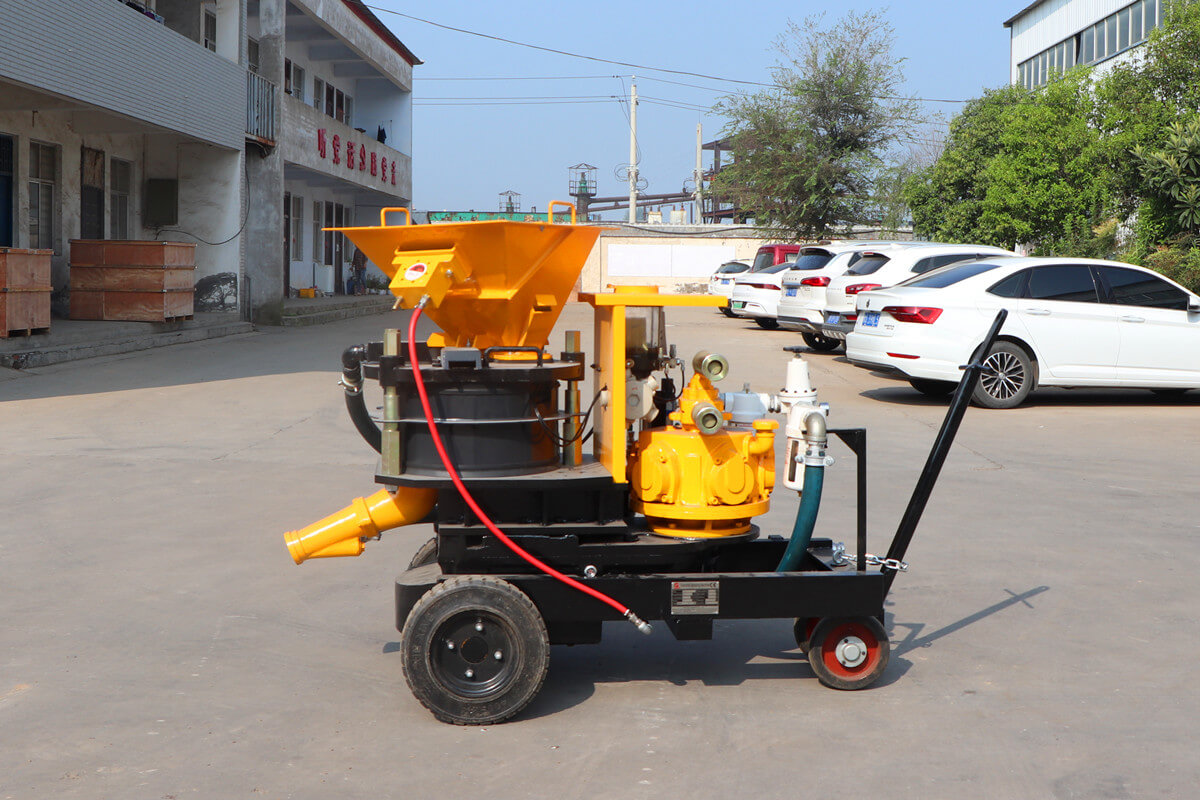

GSZ-10S wet and dry concrete spraying and conveying machine

  • Concrete Spraying Machine Type: Rotary machine GSZ-10S
  • Process: Thin-stream
  • Air motor type: TMH8A
  • Air motor power: 8 kw
  • Air consumption : Machine: 10 m³/min; Air motor: 9 m³/min
  • Air pressure : Machine: 0.2Mpa; Air Motor: 0.63Mpa

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message
download:Catalogue
Click to view :

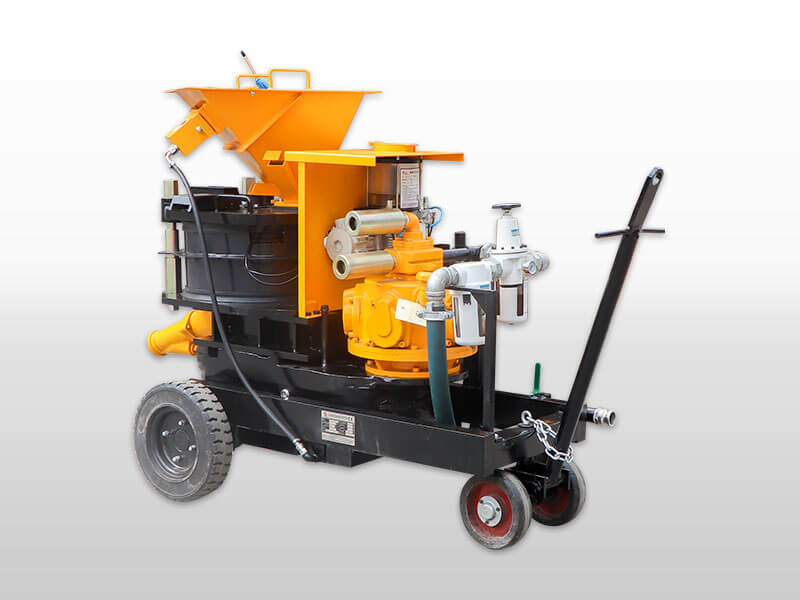

  • wet and dry concrete spraying and conveying machine
  • wet and dry spraying and conveying machine
  • dry wet mix concrete spraying machine
  • concrete spraying machine
  • wet dry concrete spraying machine
■ Description
GSZ-10S wet and dry concrete spraying and conveying machine is a multifunctional rotor type machine for wet and dry spraying and conveying. The materials which can be sprayed and conveyed are concrete, mortar, refractory, sand, pea gravel and crushed stone.
Compared with traditional wet and dry mix concrete spraying machines, GSZ-10S concrete spraying machine has the advantages of being lighter and more compact. By changing the rotor of different sizes and adjusting the motor speed, the theoretical displacement range is 0.7~10m3/h, which can better meet the needs of customers. In addition, GSZ-10S concrete spraying machine is equipped with rubber sealing plate lubrication system, which can effectively reduce the wear of rubber plate, longer service life and better sealing effect.

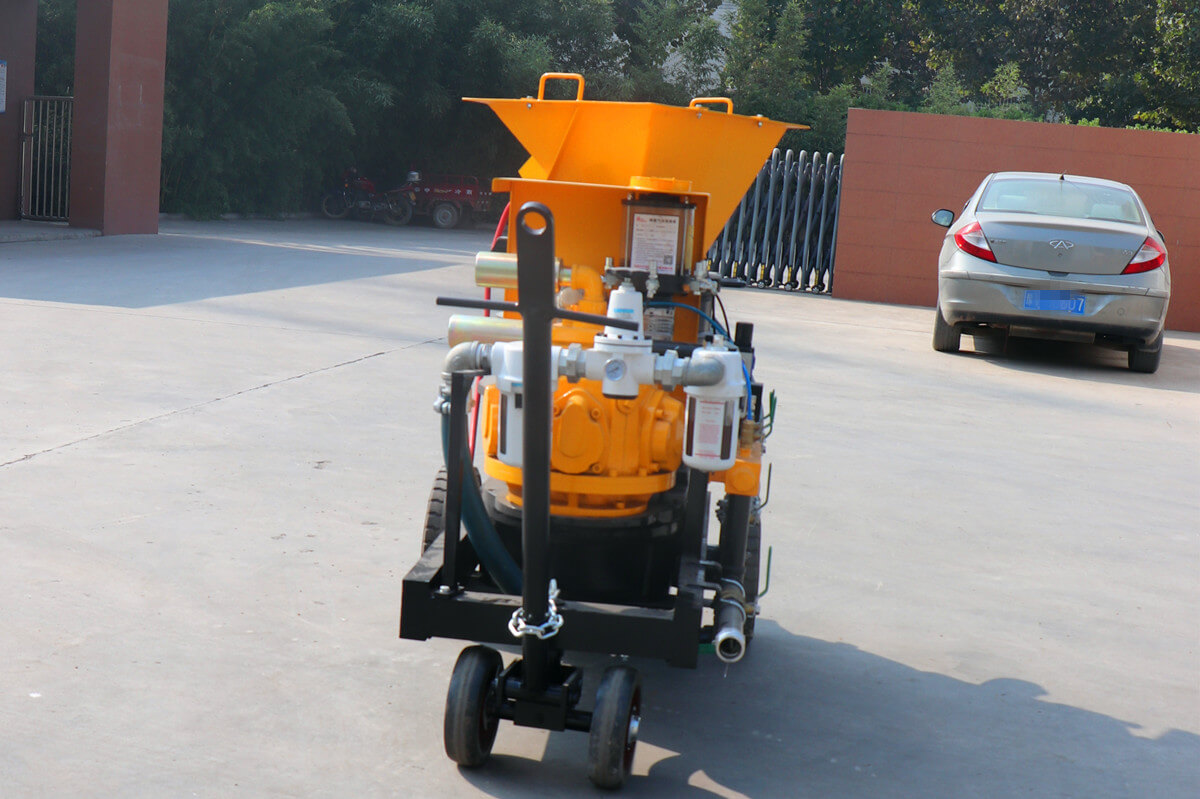

similar Concrete Spraying Machine Aliva


similar Aliva 257 Shotcrete Spraying Machine

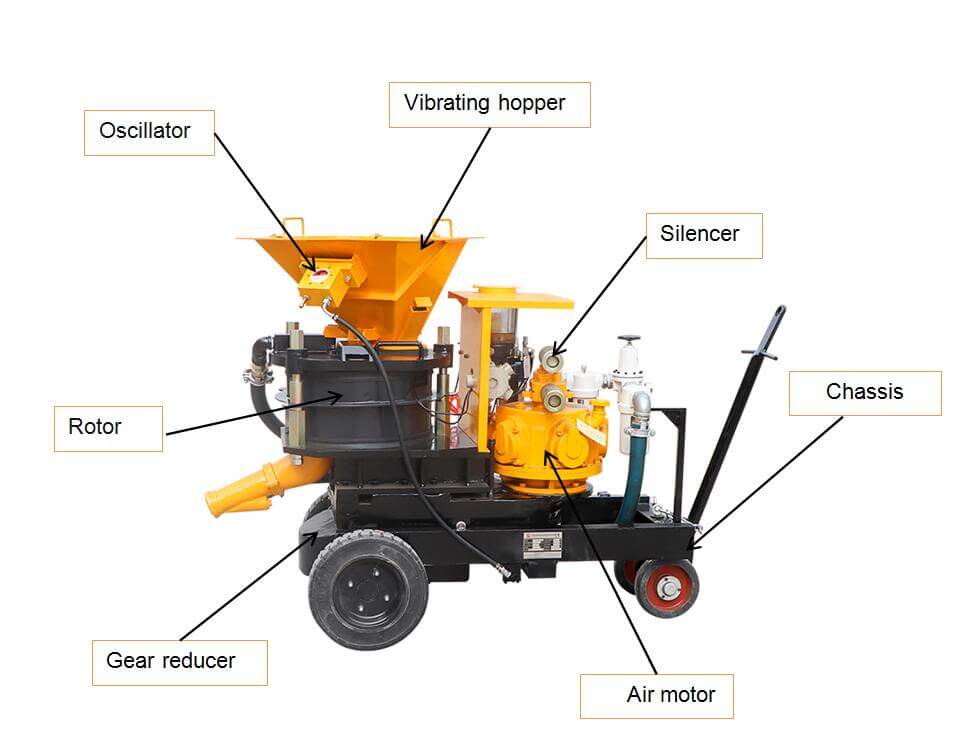

Standard configuration concrete spraying machine:

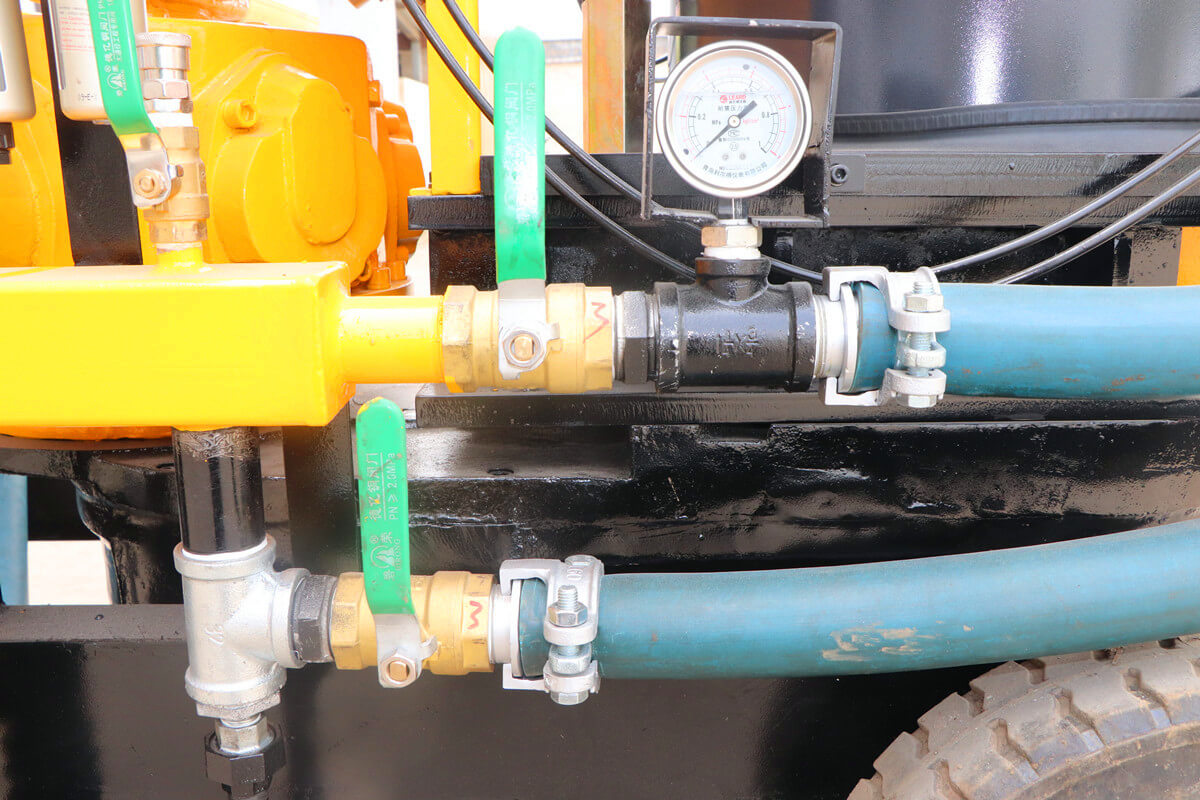

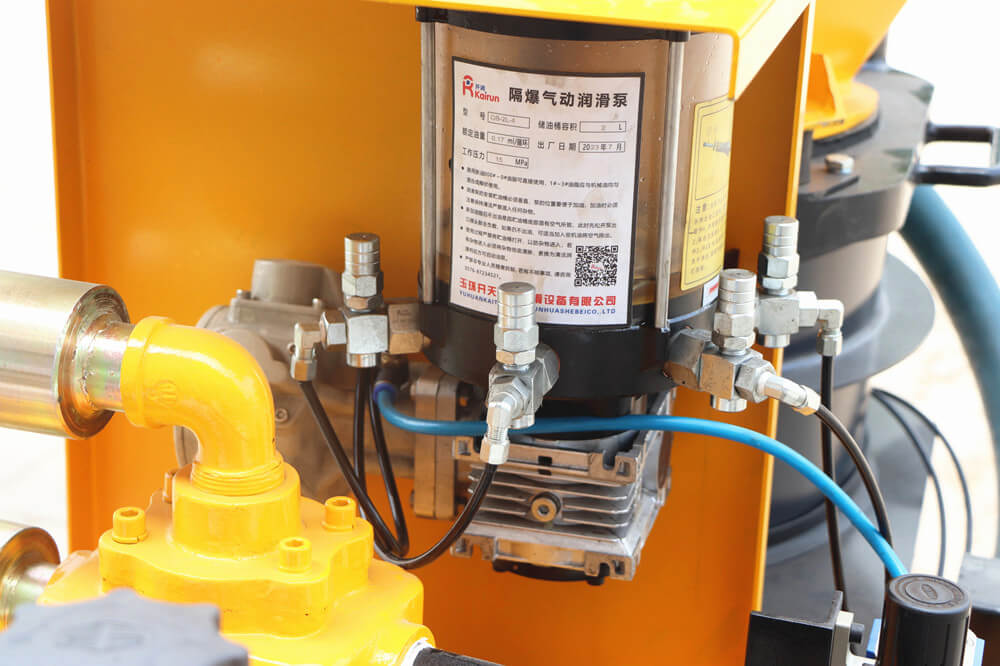

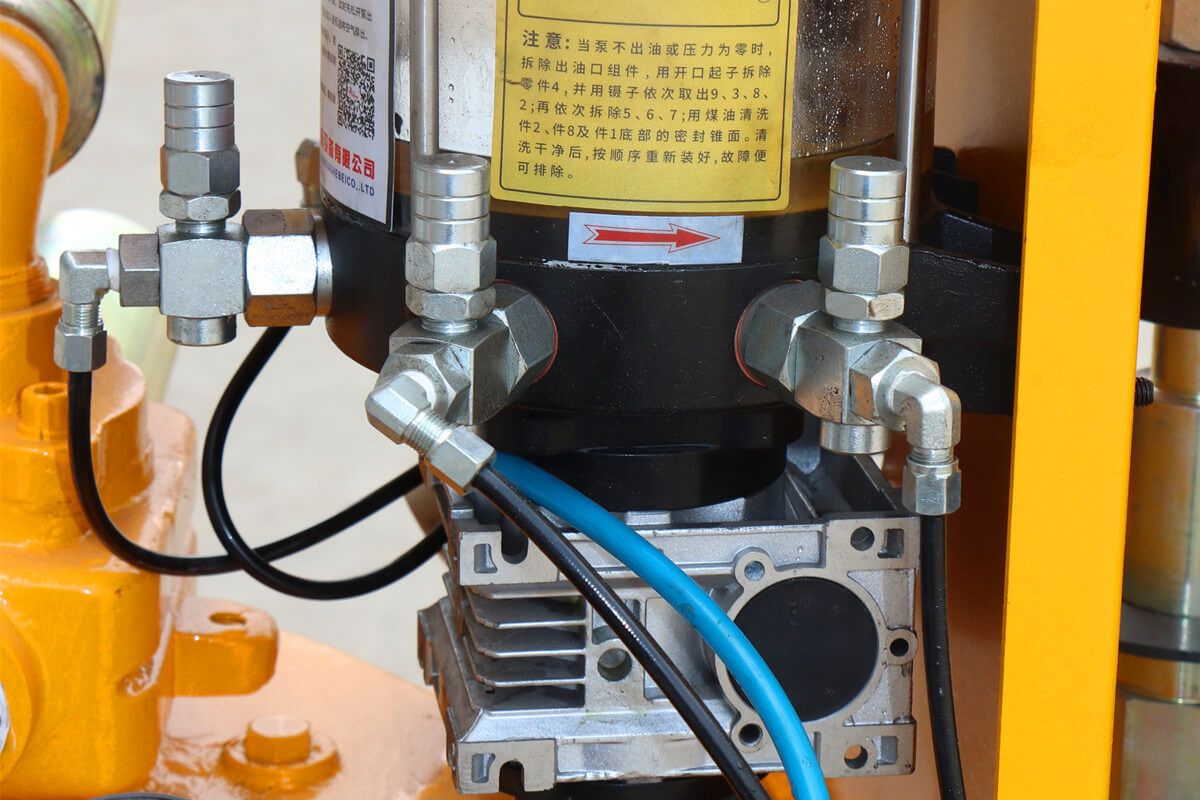

1. Automatic lubrication system.
2. Frequency convertor.
3. Vibrating hopper.

similar Aliva 257 concrete Spraying Machine

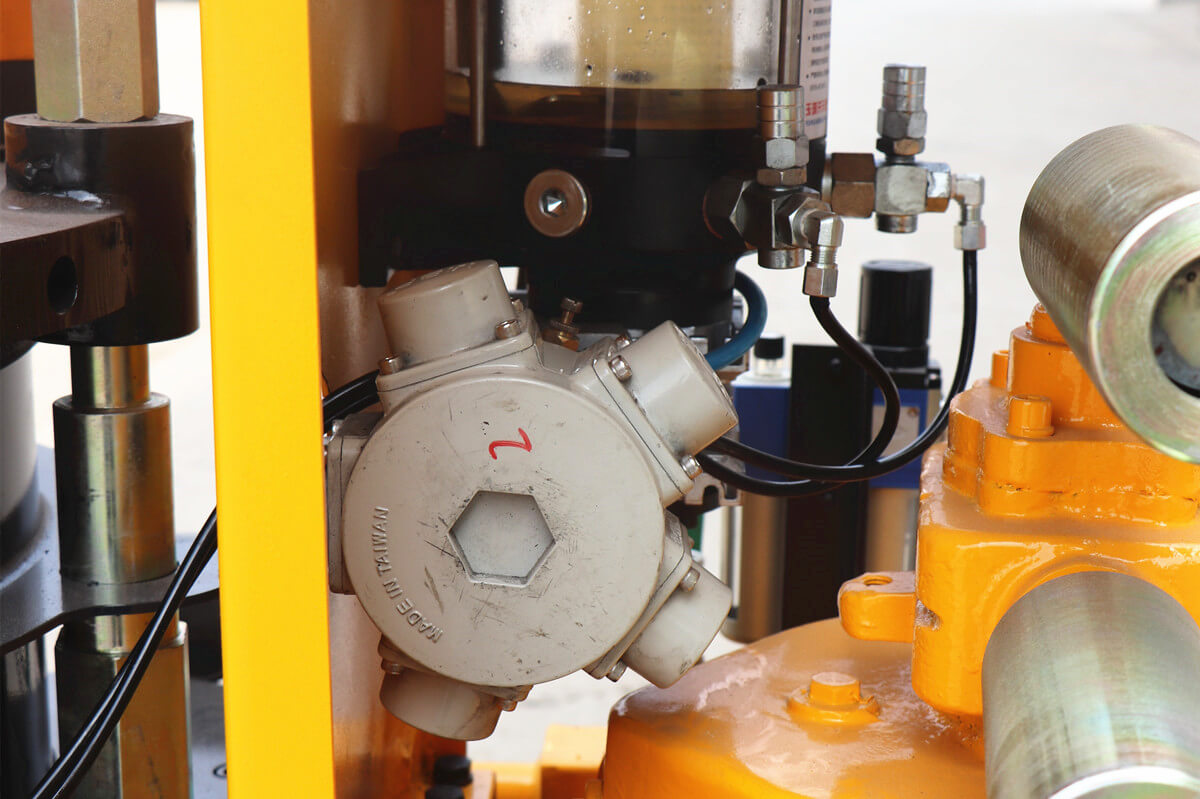

pneumatic motor concrete spraying machine aliva


Rubber and steel sealing plates of concrete spraying machine:

concrete spraying machine rubber and steel sealing plates

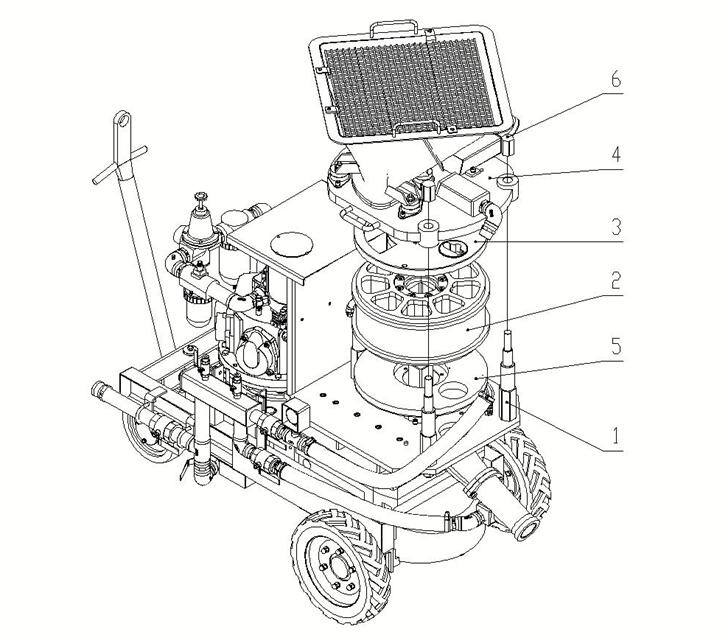

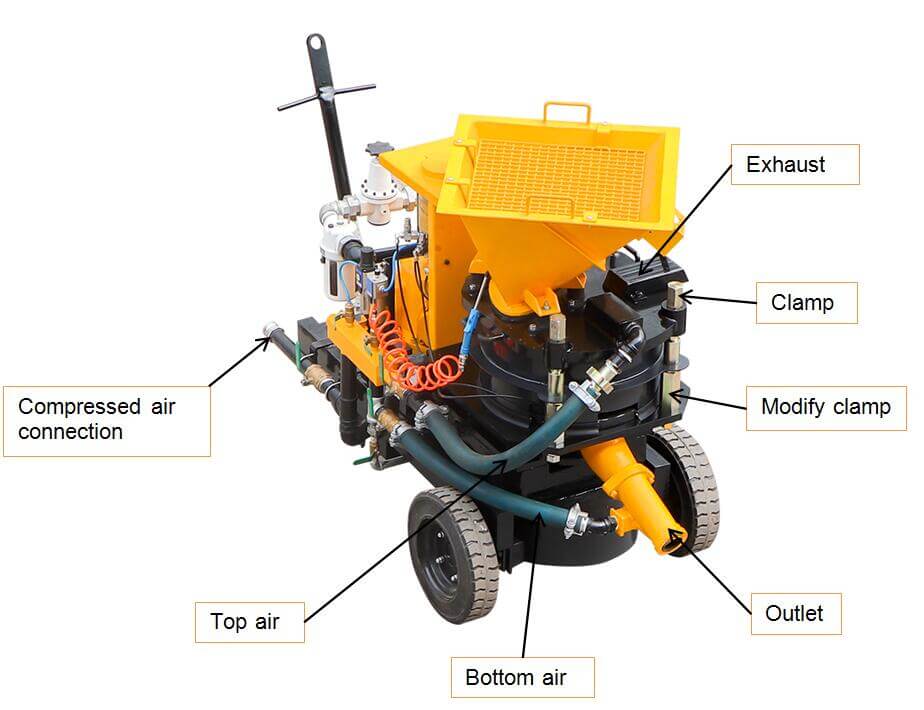

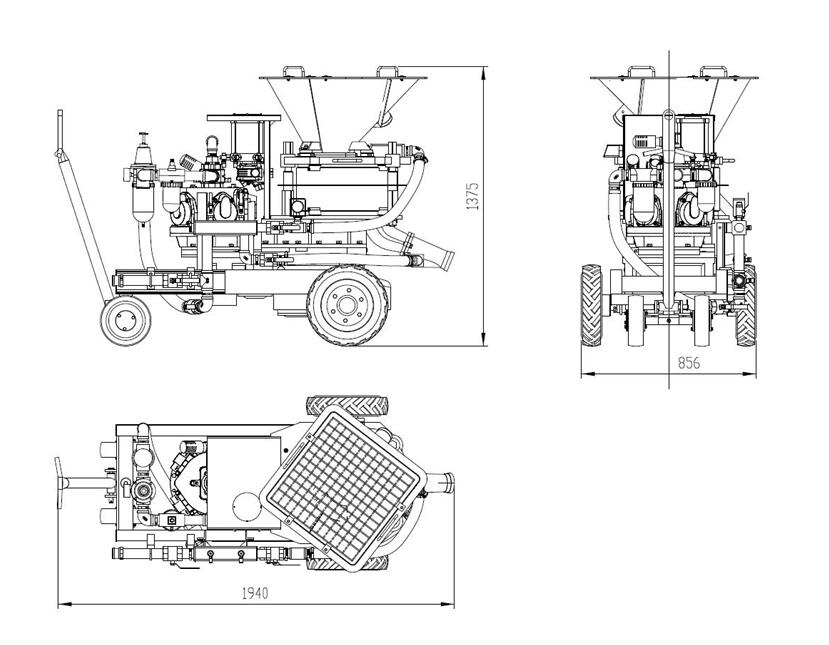

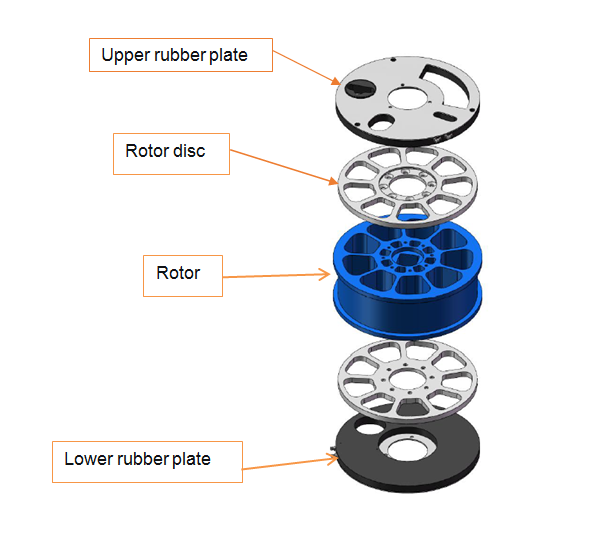

The main structure:

Structure of wet and dry concrete spraying and conveying machine

1

Modify clamp

2

Rotor

3

Upper rubber plate

4

Hopper seat

5

Lower rubber plate

6

Clamp

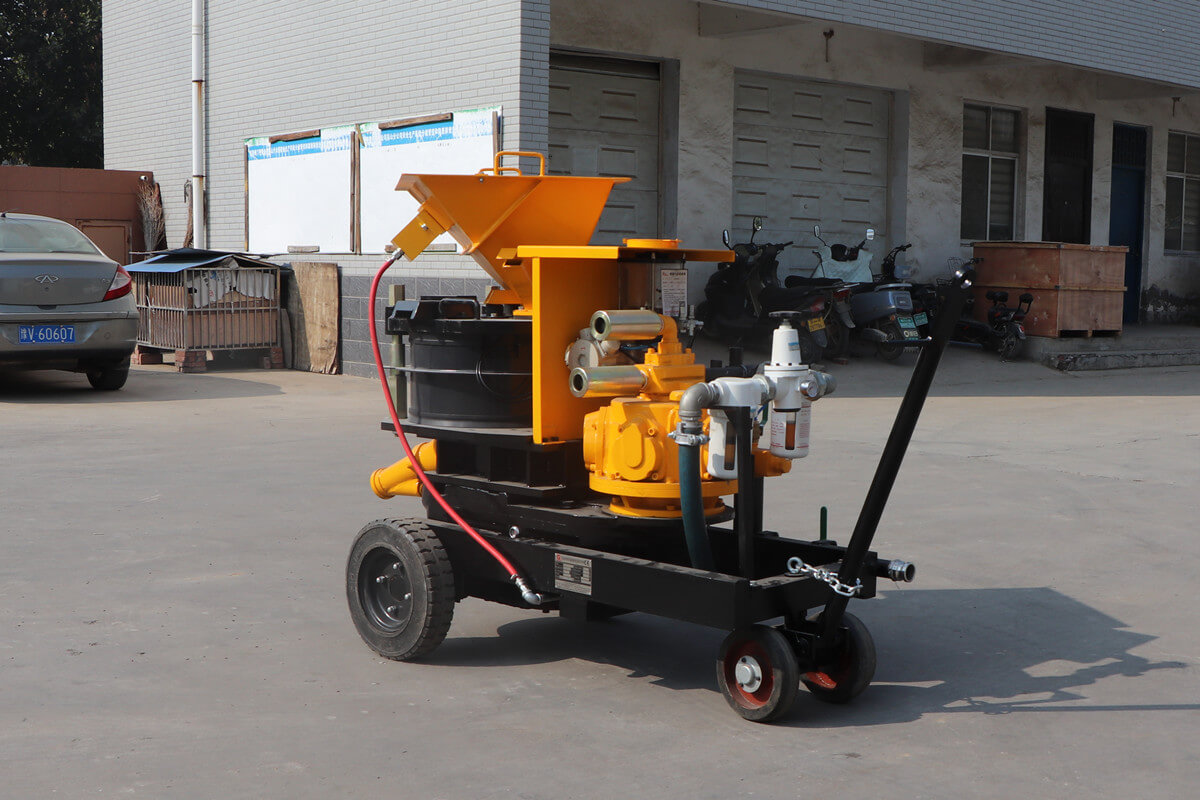

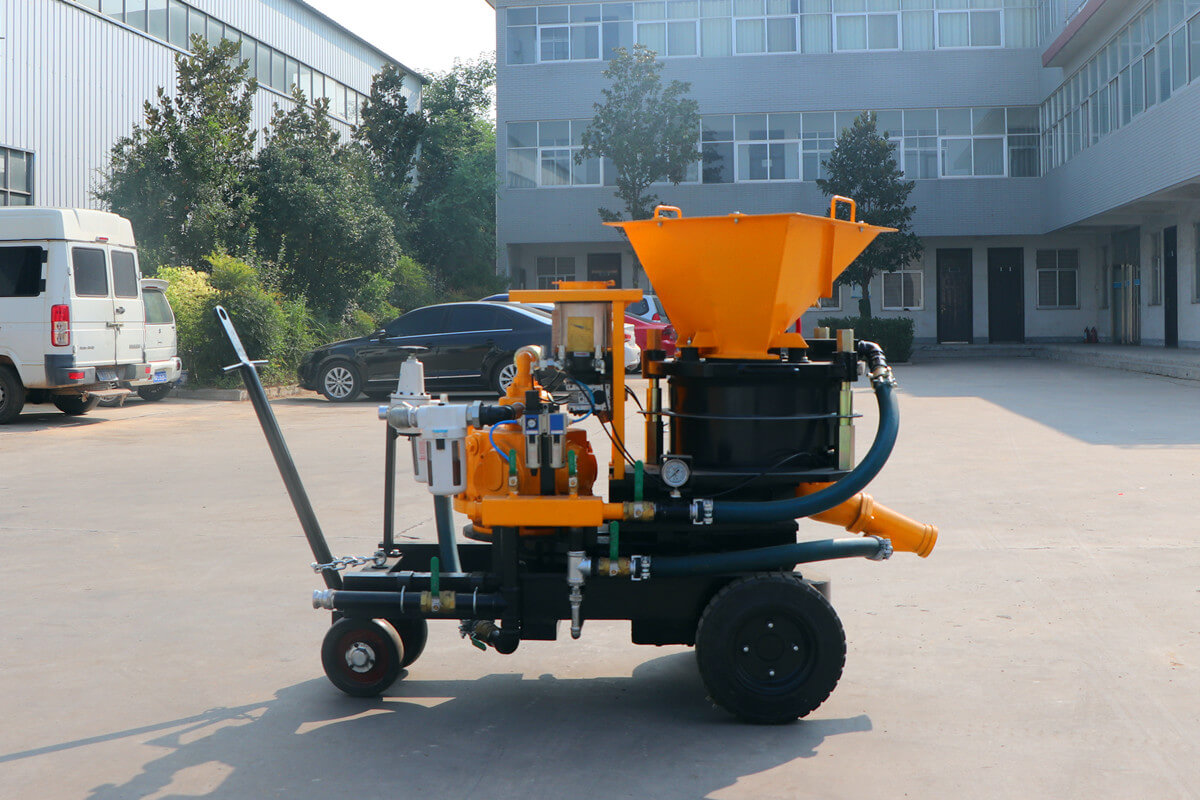

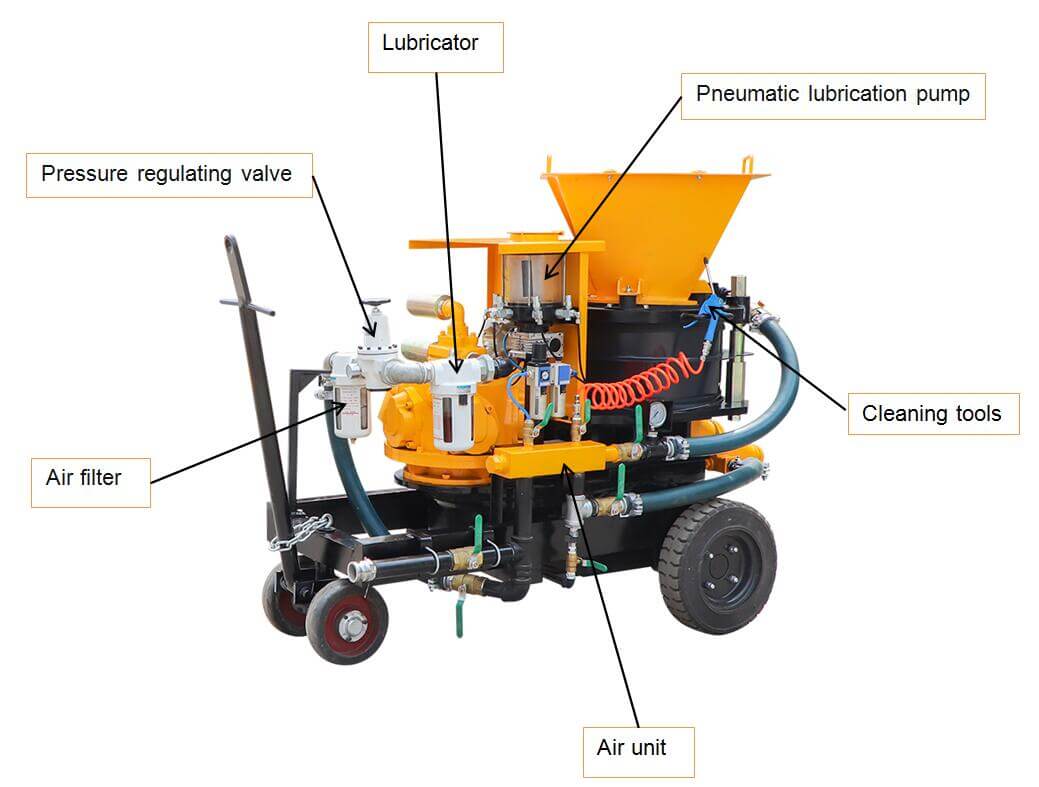

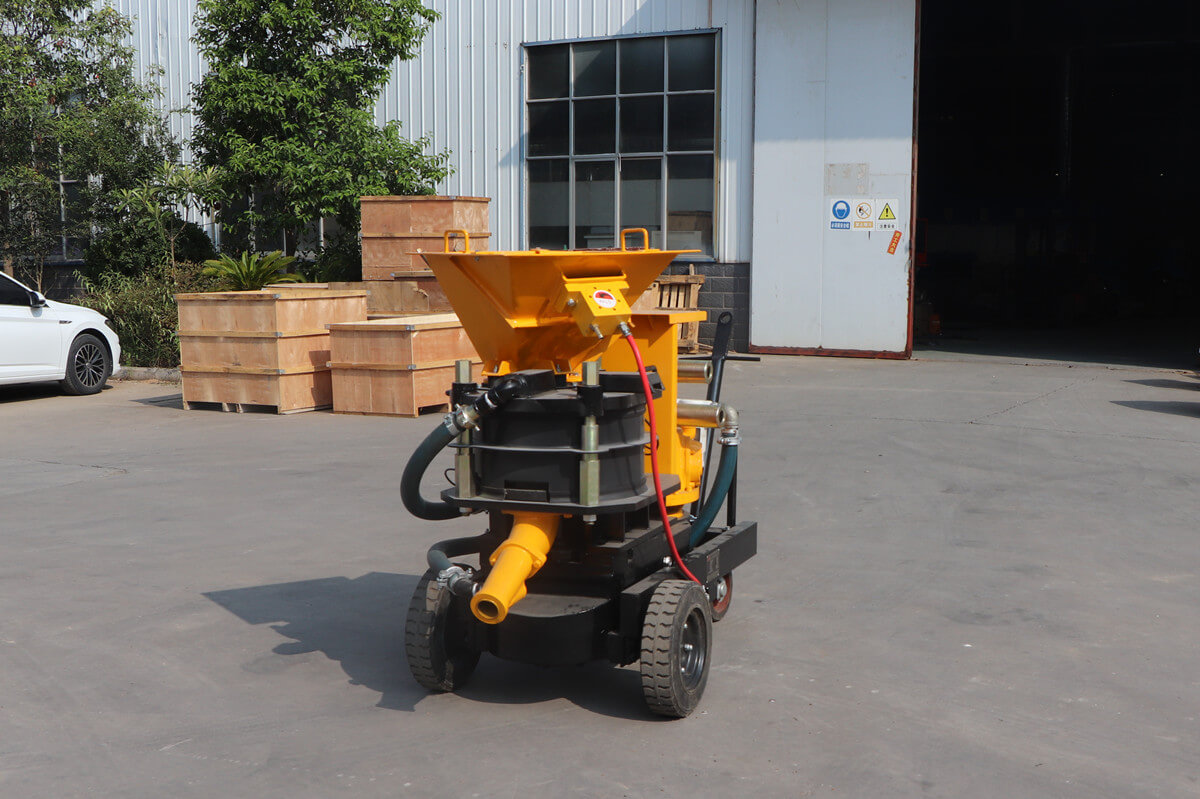

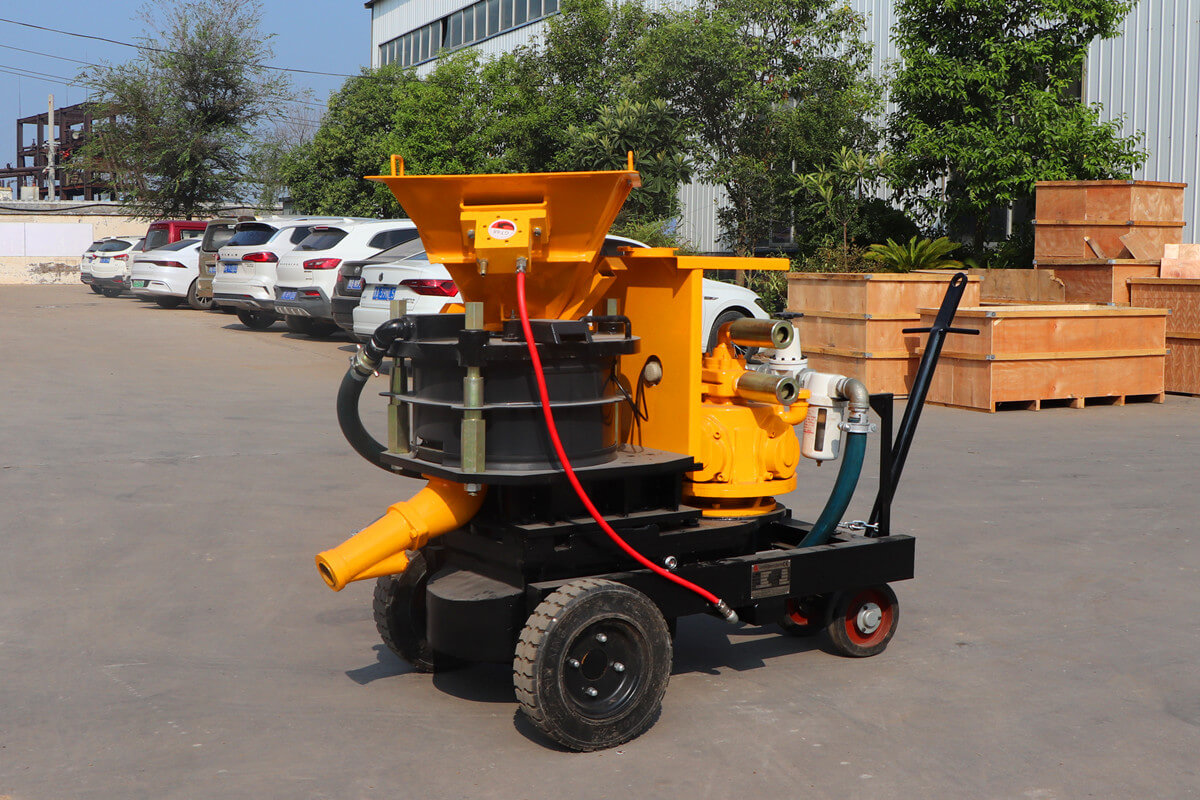

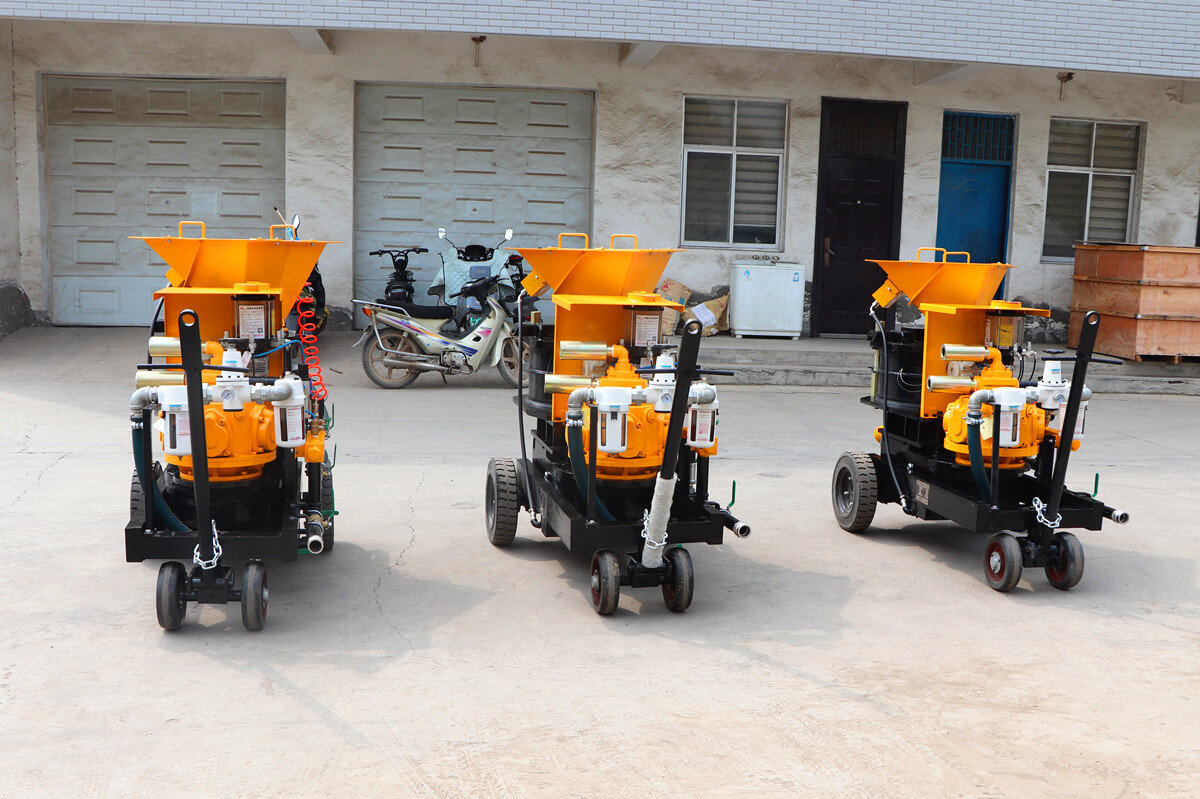

Detail part of GSZ-10S wet and dry concrete spraying and conveying machine:

concrete mortar spraying machine


pea gravel concrete spraying machine


refractory spraying machine
