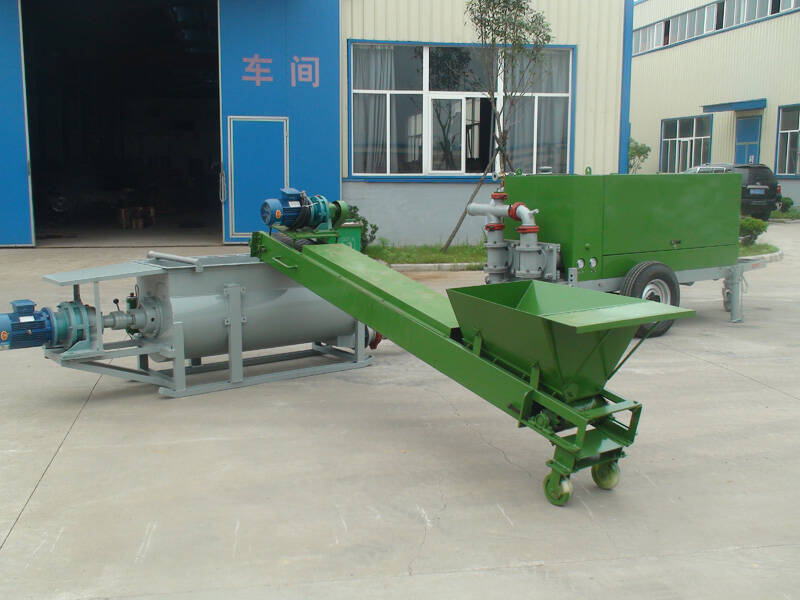

GF25 foaming cement machine put cement and water into a slurry mixing and then mix them in a certain proportion, press them into transmission pipelines through hydraulic cylinder; According to a certain proportion foam mixed with water and then mixed with compressed air by the high-pressure pump; In the pipeline it form the high-density foam and meticulous, at last form the foam cement with the slurry in the pipeline.

1. Applied for insulating layer in floor heating constructions: the surface will flow smooth naturally and is essential advanced equipment for floor heating construction;
2. Applied for roof insulation constructions: The foam material used in roof insulation is with warm keeping, heat insulating function, it’s effect is 20-30 times the ordinary material, which keeps the room temperature of top floor the same as other floors, warm in winter and cool in summer;
3. Can be used in producing various specifications of cement foam board, cement foam bricks and external wall insulation material;
4. Can be used in filling tunnel and mine internal voids, etc. And applied for insulation of low temperature cold store and refrigerated depot section;
5. Applied in freezing prevention and temperature maintenance of pipeline.

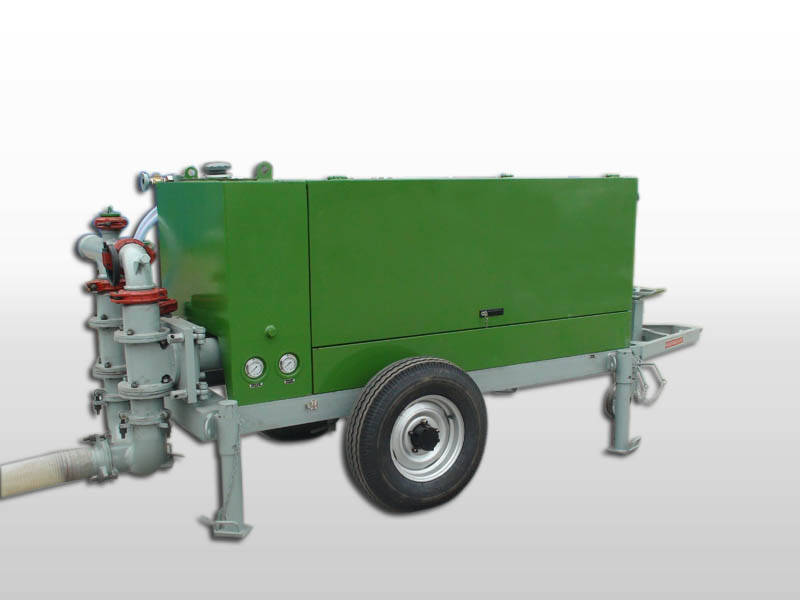

1. Adopting double cylinder hydraulic push mechanism to pump lightweight concrete, flux is stable, and wave is small;
2. Proportion of mixture is controlled automatically, so the density of lightweight concrete can be adjusted easily;
3. Adopting selected matching components, it also has reliable quality and good after-sales service;
4. We can also use good domestic foaming agent to reduce the construction cost;
5. With road wheel and universal wheel, the machine is flexible with moving and positioning;
6. Hydraulic system cooling use air cooling instead of water cooling, this make it more convenient as there’s no need to drain pipe;
7. Electrical appliance box is equipped with remote control handle; all functions can be operated by remote control handle;
8. It can be used in vehicle.

Model	GF25
Max.Output	25m3/h
Max.Conveying Pressure	3MPa
Max.Horizontal Transporting Range	300m
Max. Vertical Transporting Height	120m
Acceptable Max. Aggregates size	8mm
Power	30KW
Dimension	3800x1500x1500mm
Weight	1700kg
