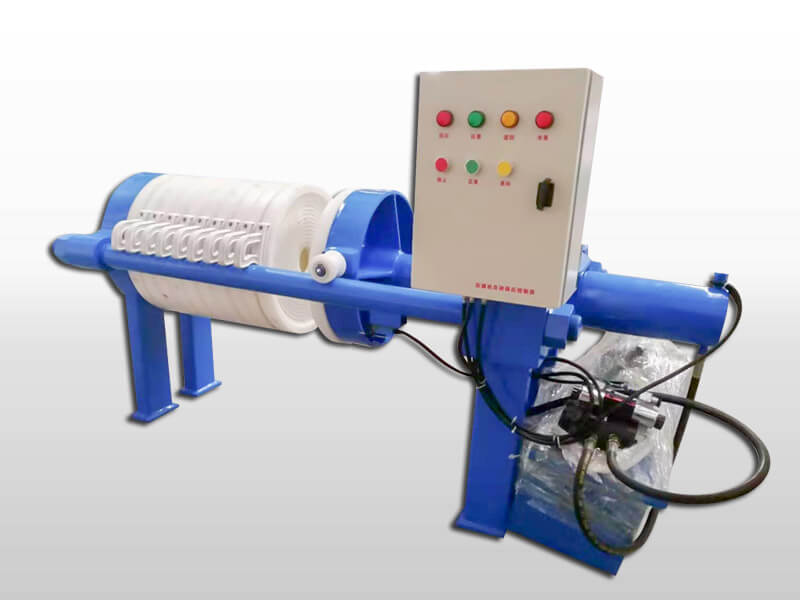

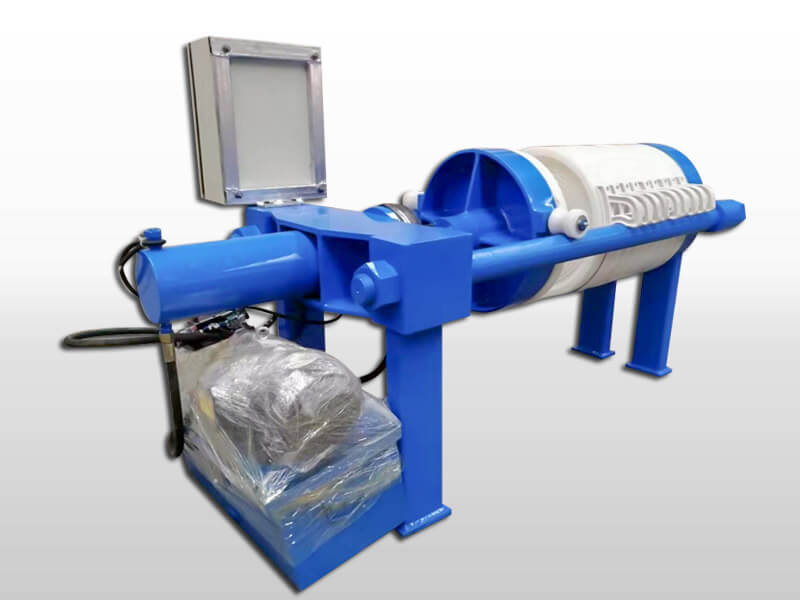

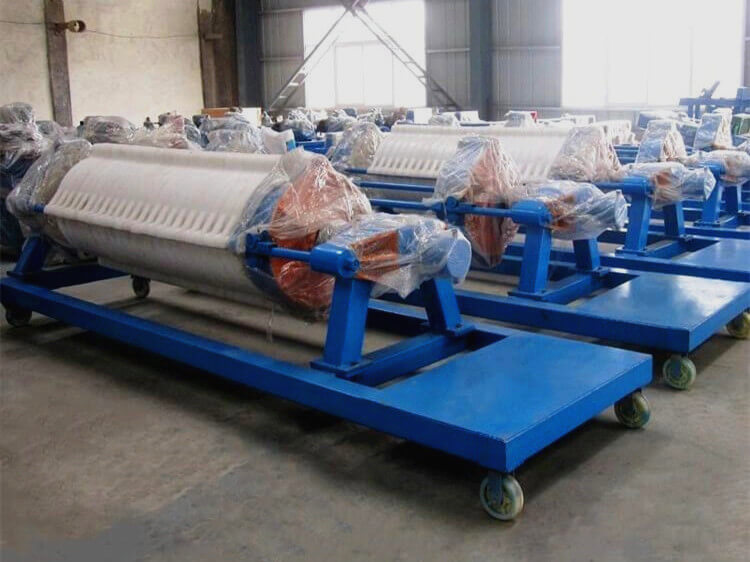

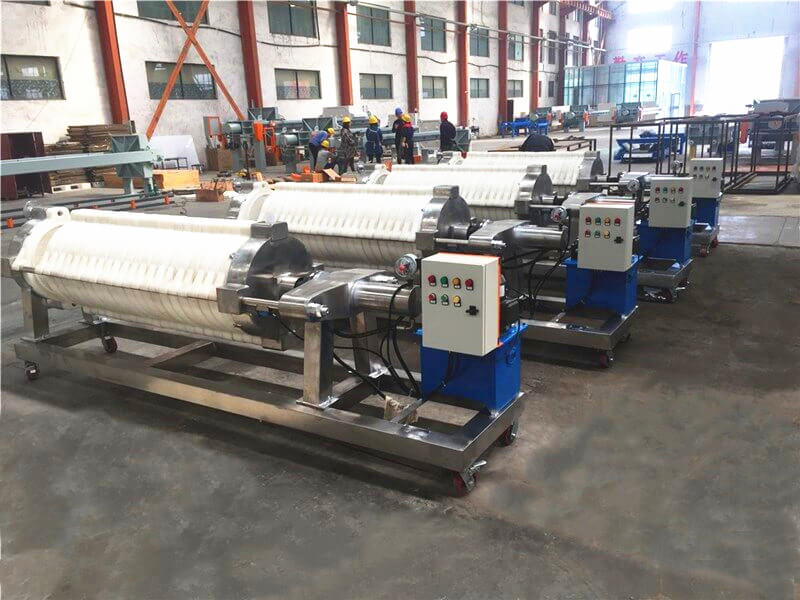

The round plate filter press is mainly suitable for industries with finer particles and higher moisture content of cakes, such as ceramics (bone porcelain, electric porcelain, ornamental porcelain), kaolin, and so on. The filter area of this machine is 20-80 m2.

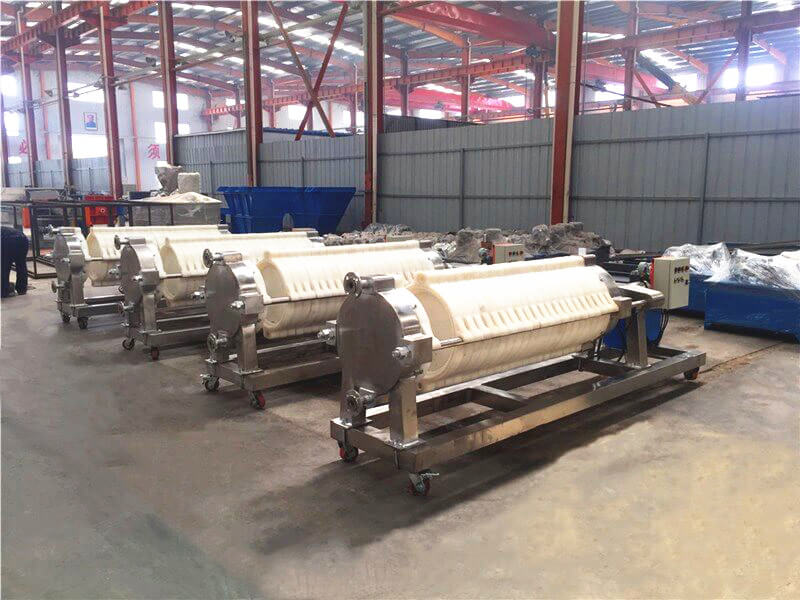

Round plate filter press manufacturer and supplier:

The program controlled automatic chamber filter press is used in chemical, petroleum, pharmaceutical, light industry, food, mineral processing, water treatment, electroplating, metallurgy, dyes, textile, industries etc.

1. The filter plate adopts a point-shaped conical boss design, which has fast filtration speed, high filter cake dehydration rate, even and thorough washing, and good sealing performance.
2. The chemical performance of the filter plate is stable: strong corrosion resistance, resistance to acid, alkali, salt, non-toxic and tasteless.
3. The round filter plate has excellent geometric properties, making the filter pressure up to 2 MPa.
4. Using hydraulic compression, the maximum compression pressure is 25MPa, and can achieve automatic pressure retention.

Model	Filter area (m2)	Plate size (mm)	Cake thickness (mm)	Filter chamber volume (L)	Plate NO. (pcs)	Filtration pressure (Mpa)	Weight (Kg)	Dimensions L xW x H(mm)	Foundation Size (mm)
									L	B	D
XAM20/φ800-25	20	φ800	25	255	20	1.0-1.2	3346	3300 x 1100 x 1060	2300	530	1050
XAM30/φ800-25	30			377	30		3590	3780 x 1100 x 1060	2980
XAM40/φ800-25	40			499	40		4554	4300x 1100 x 1060	3500
XAM50/φ800-25	50			621	50		5150	4820x 1100 x 1060	4020
XAM60/φ800-25	60			753	60		9710	5340x 1100 x 1060	4540
XAM70/φ800-25	70			875	70		5760	5860x 1100 x 1060	5580
XAM80/φ800-25	80			1000	80		6860	6200 x 1100 x 1060	5660
