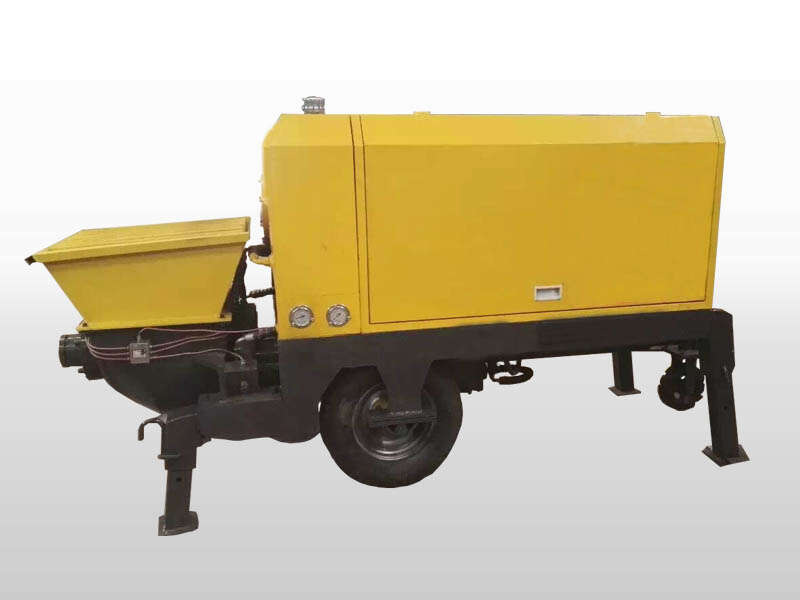

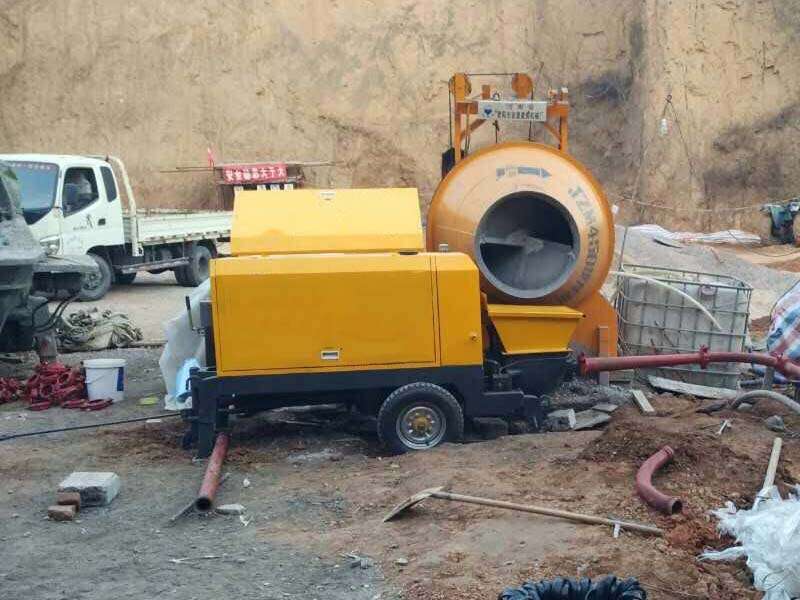

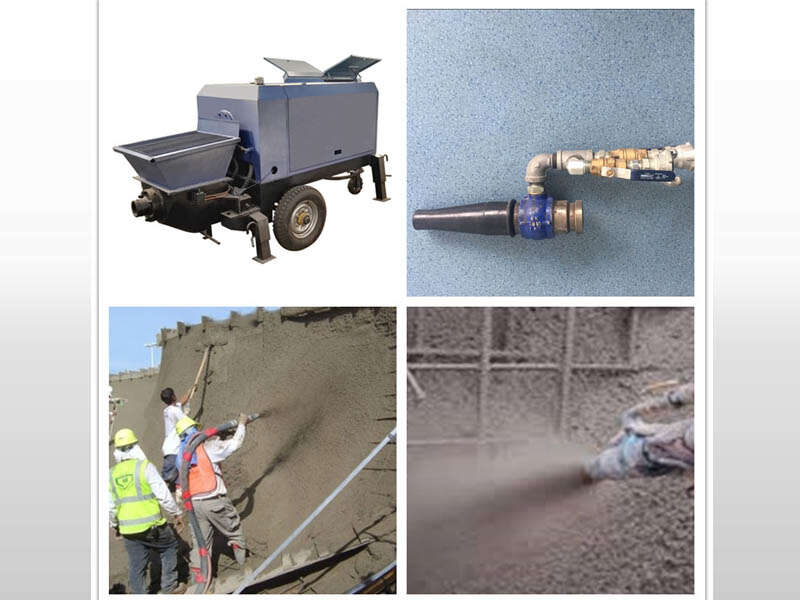

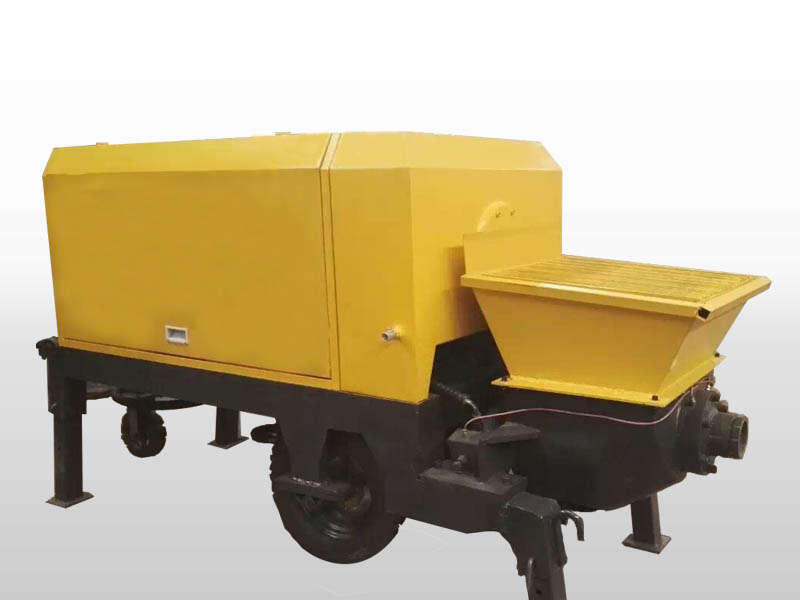

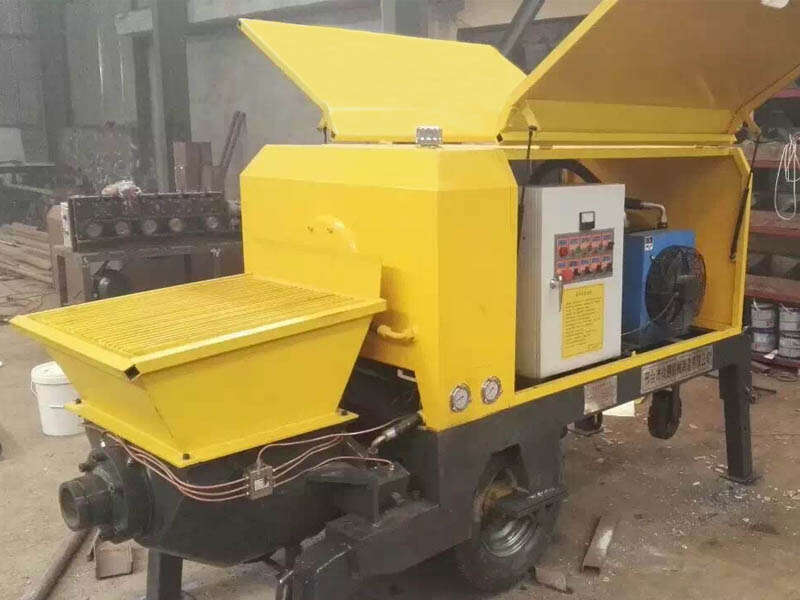

GPS10/80 multi-function wet spraying machine mainly used for wet shotcrete spray and concrete slurry pumping, it could be used for roads, railways, mining and tunnel, spraying mixed vegetation for slope of road and railway, grouting for wall, pumping fine aggregate concrete and so on.

GPS10/80 multi-function wet spraying machine could be used for roads, railways, mining and tunnel, spraying mixed vegetation for slope of road and railway, grouting for wall, pumping fine aggregate concrete and so on.

1. Wet spraying machine has stepless speed change. The conveying output is 0-7 cubic meters / hour.
2. The machine has hydraulic power. The export is connected with high pressure hose. The nozzle is connected with a small 10 cubic meters of air compressors to achieve wet spraying. This changed the traditional use of large 20 cubic meters of air compressor.
3. Compared with rotary pneumatic wet spraying machine, this machine has a smaller size, superior performance, lower maintenance costs, easier to operation, better flexibility, and widely range of applications.

Parameters	GPS10/80
The output	5-10 m3/h(adjustable)
Output pressure	80bar
Max. aggregate	15-20mm
Motor power	22kw
Dimension	2800*1300*1500mm
Max. Vertical conveying distance	40-45m
Max. horizontal conveying distance	150m
Weight	1100kg
Filling height	950mm
Conveying hose diameter	Φ75/80/100
