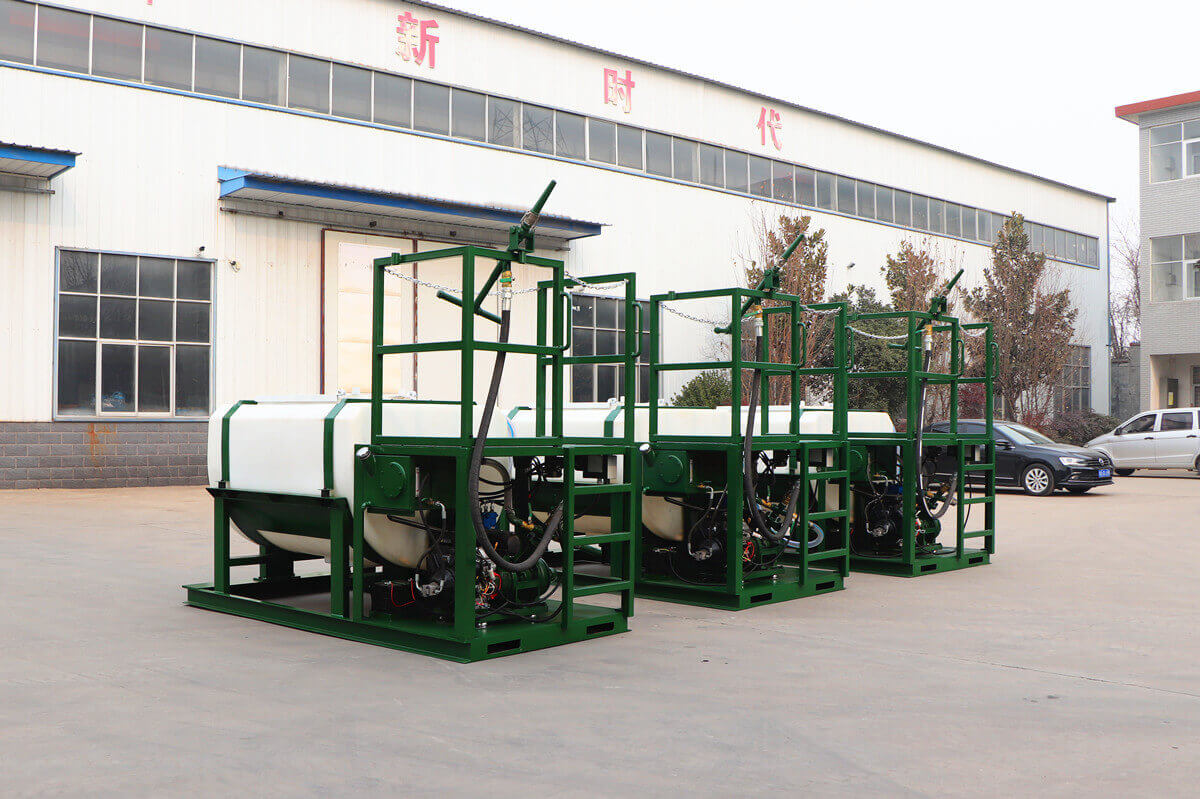

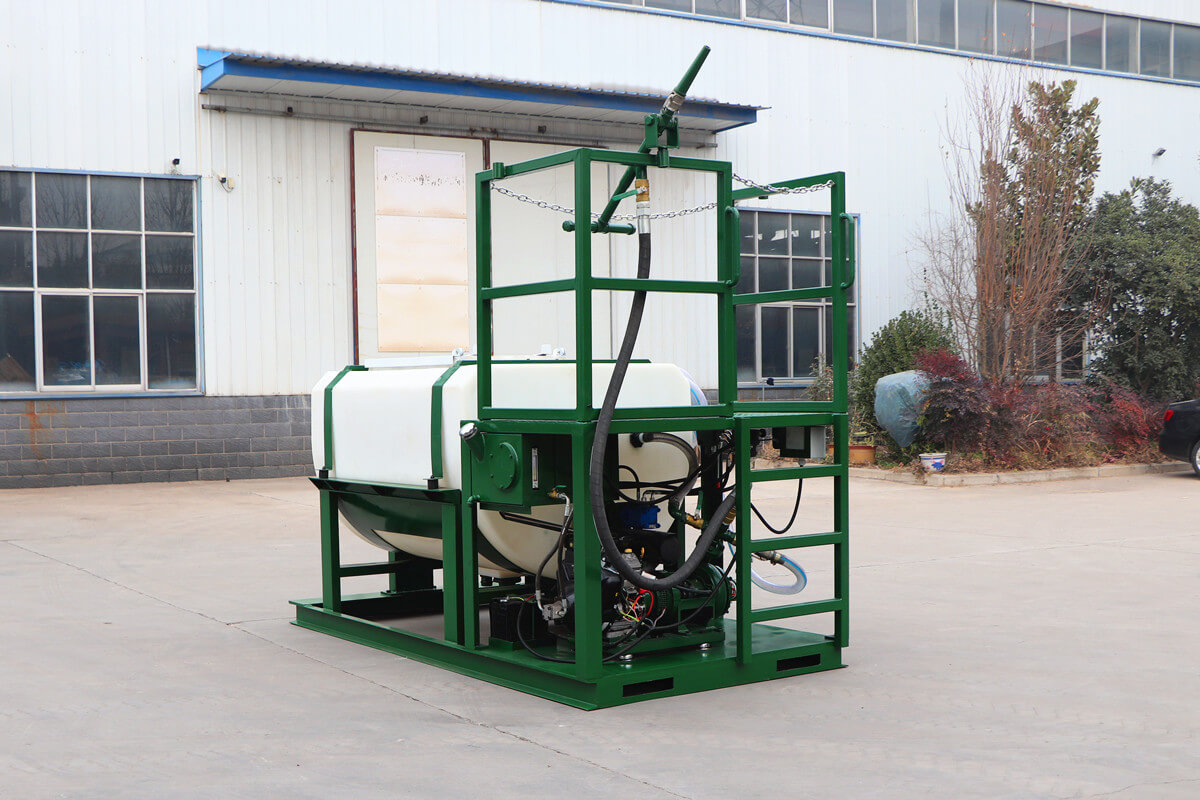

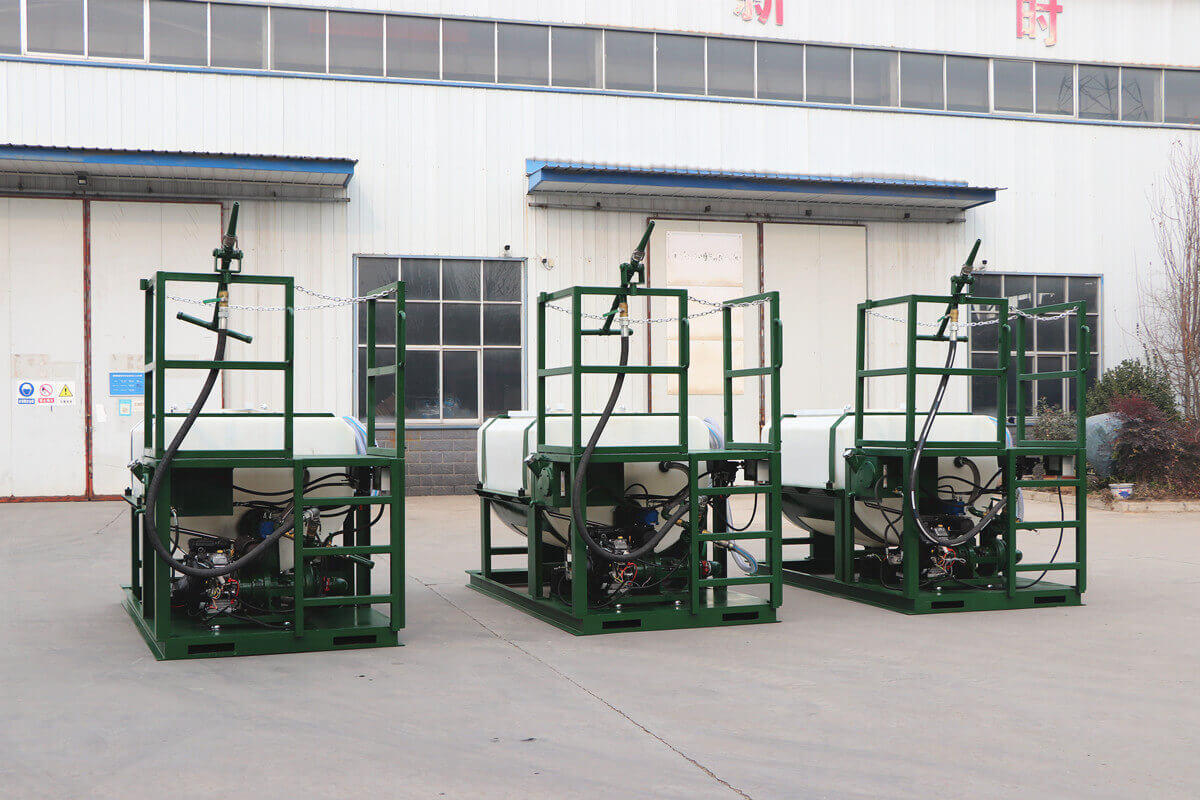

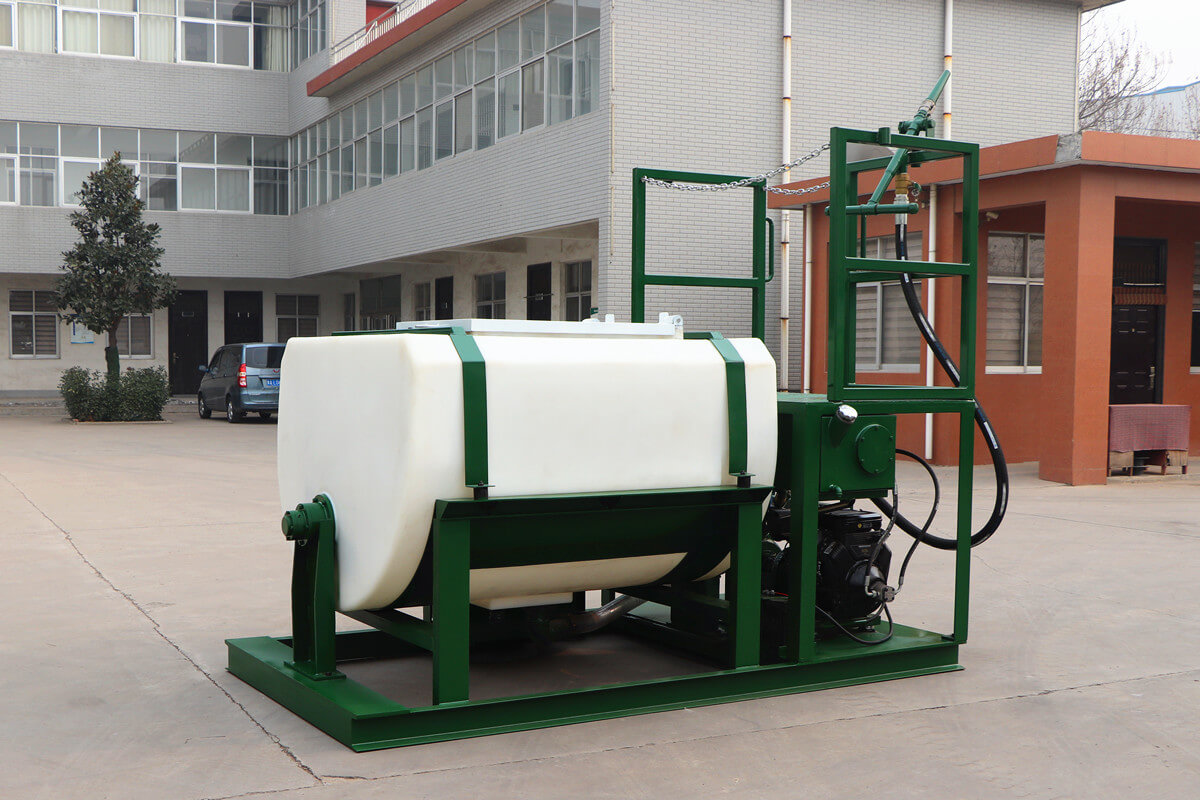

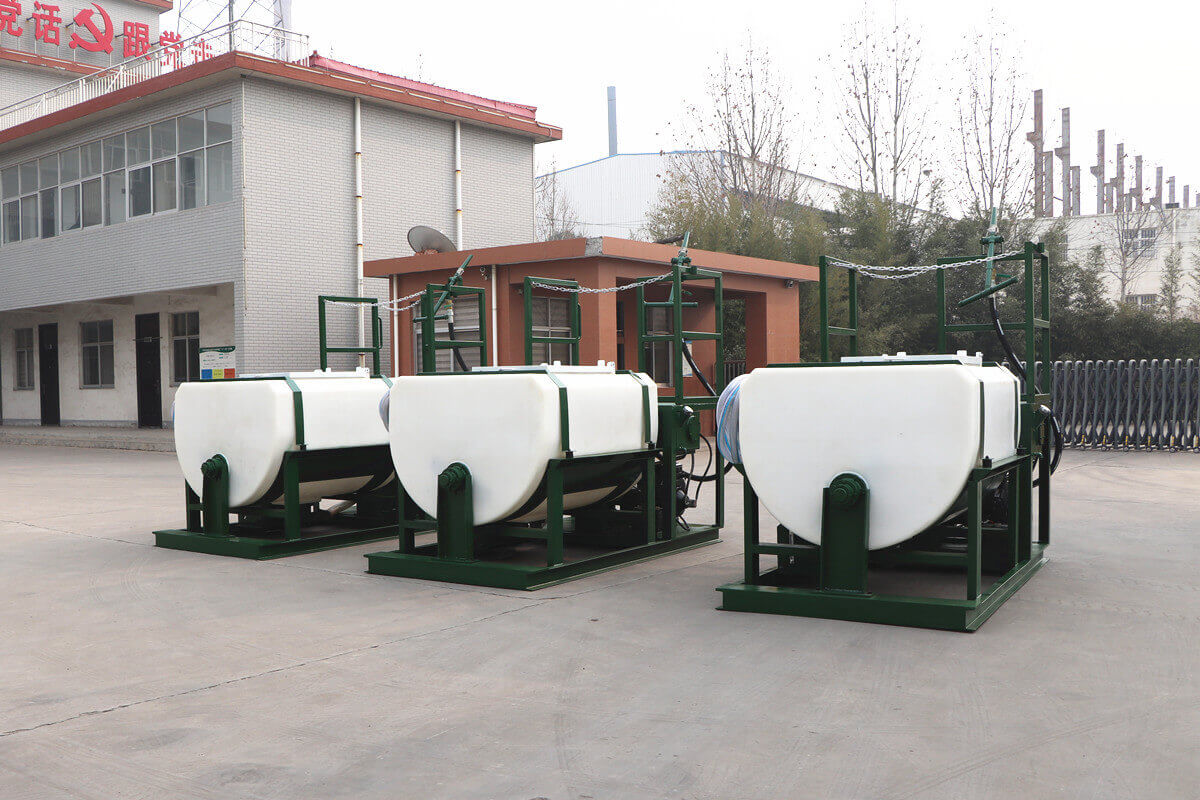

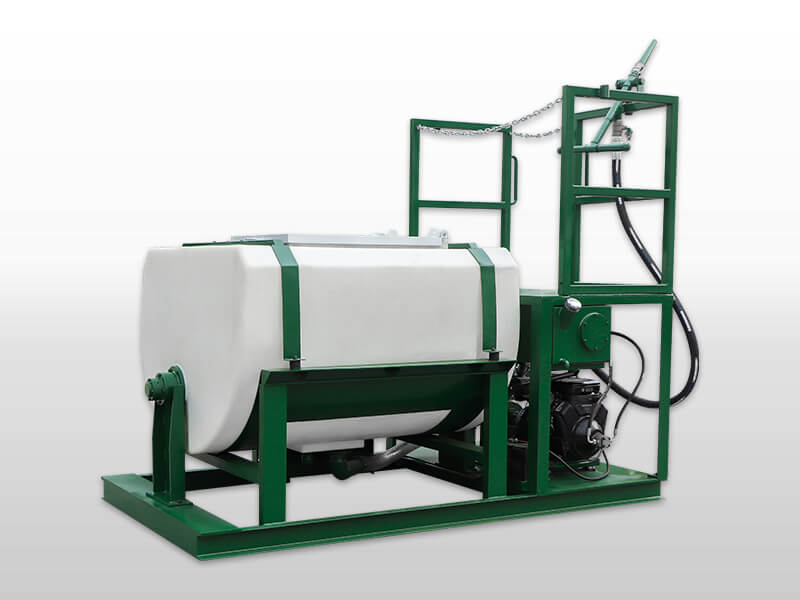

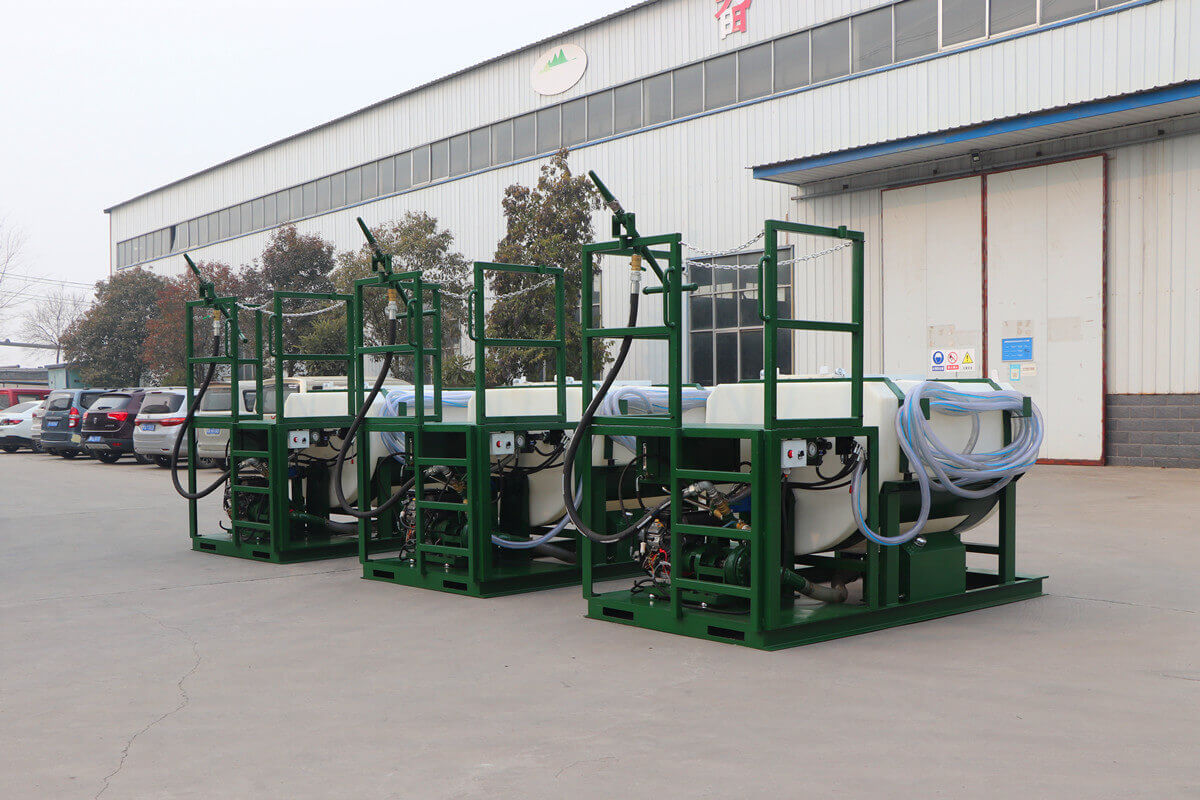

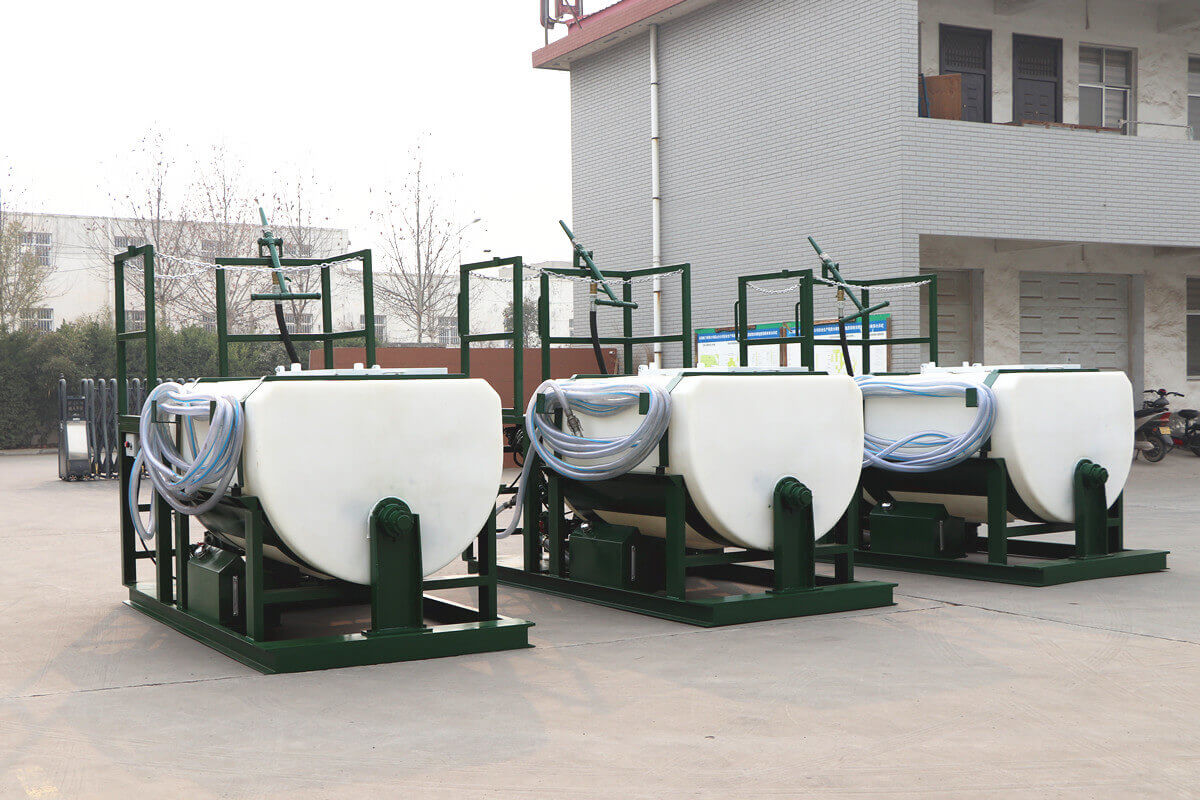

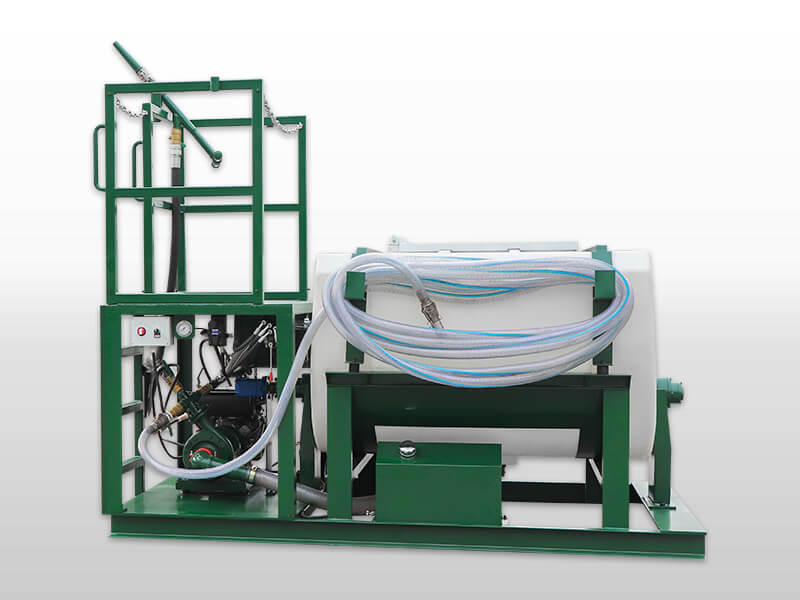

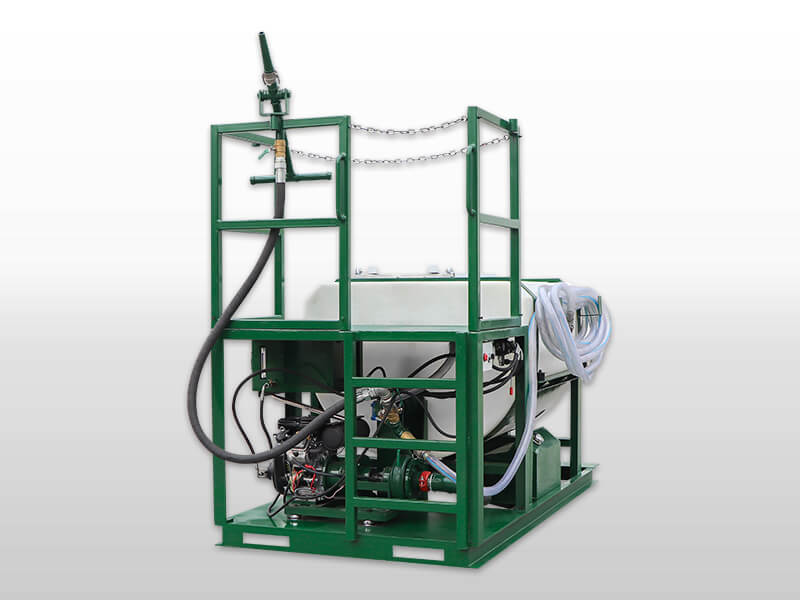

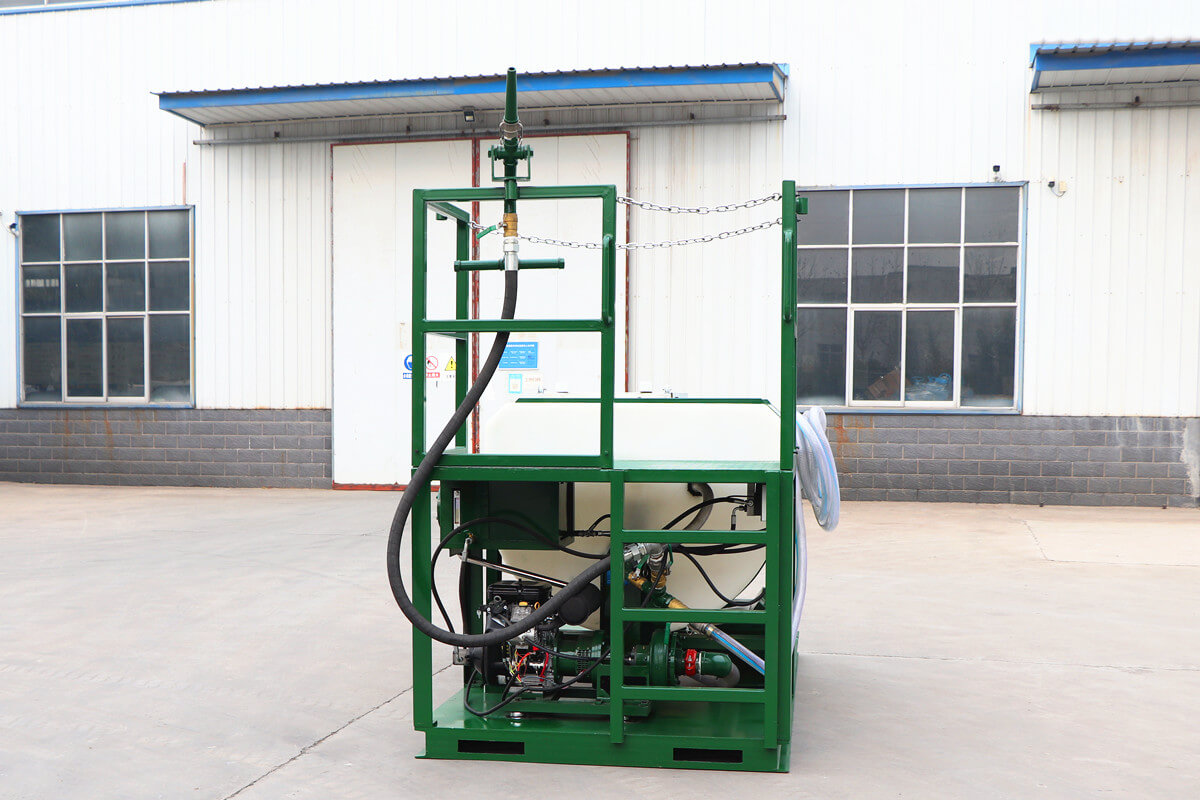

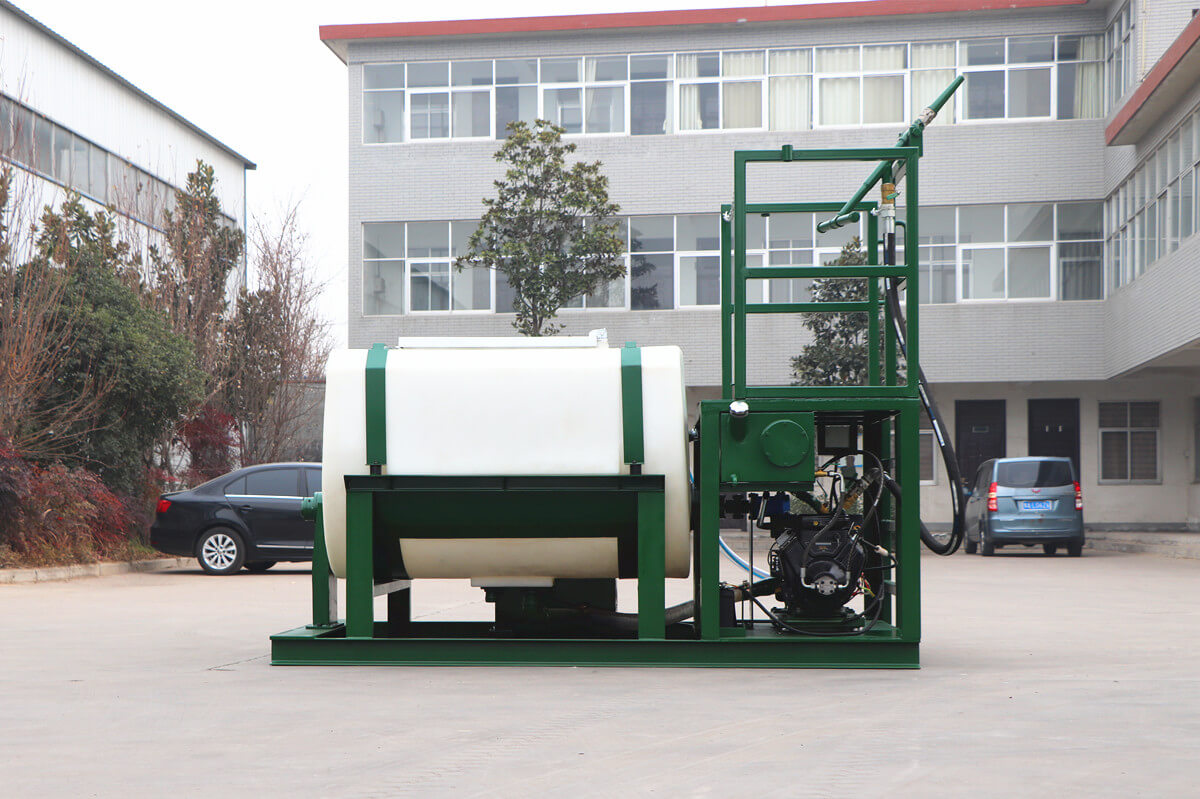

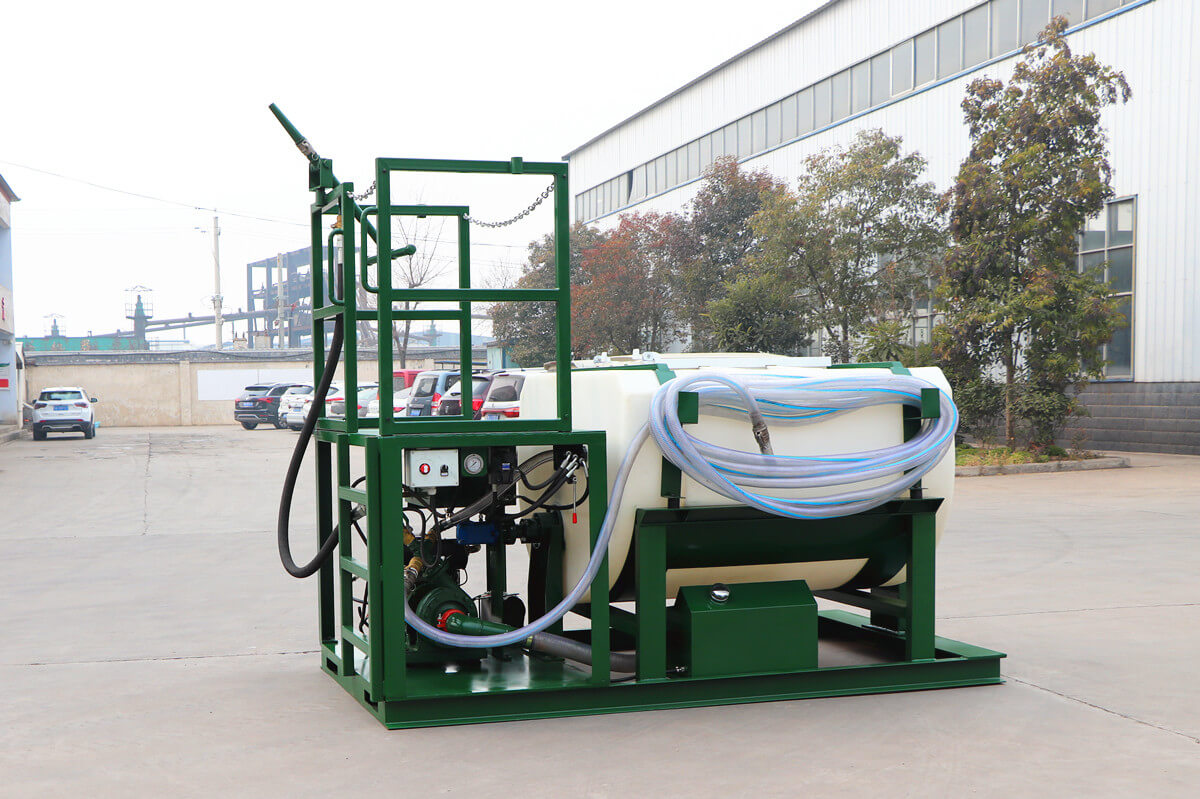

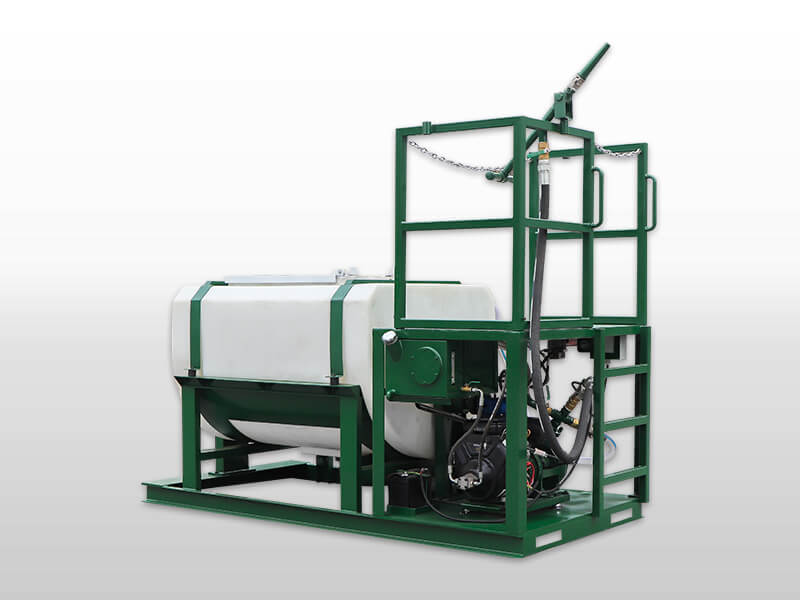

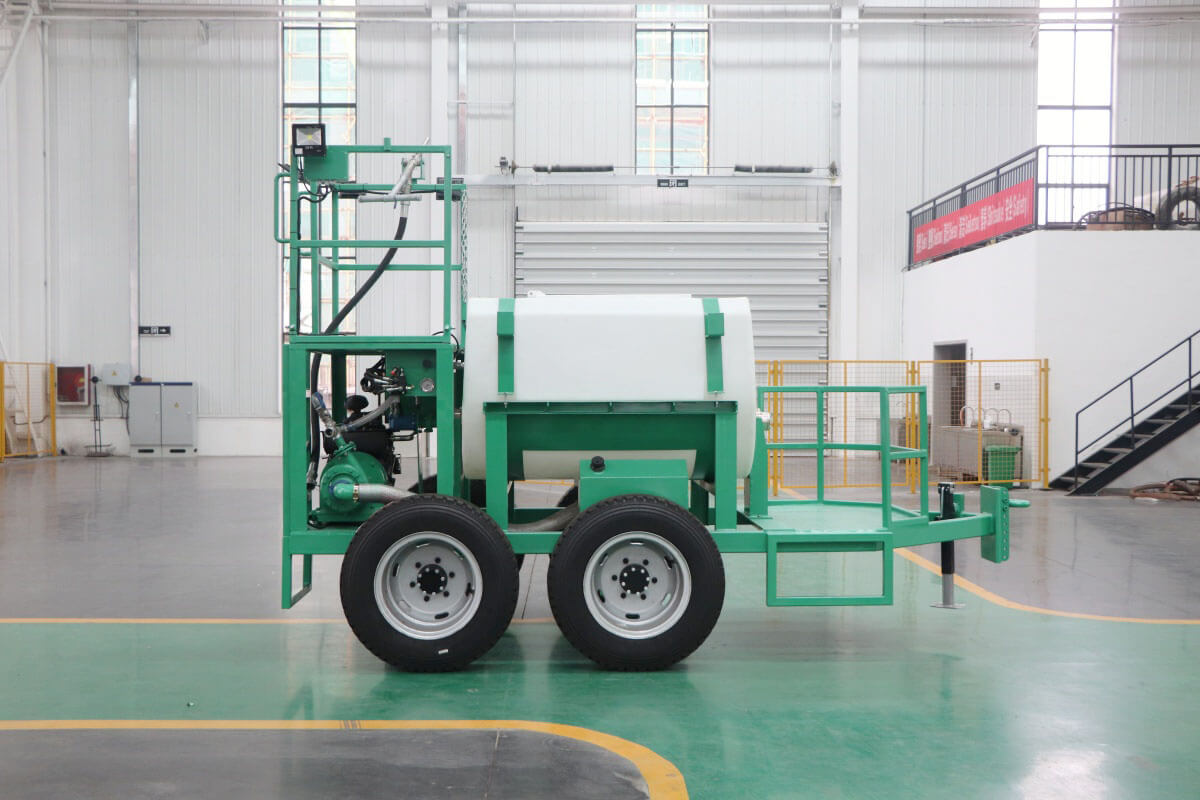

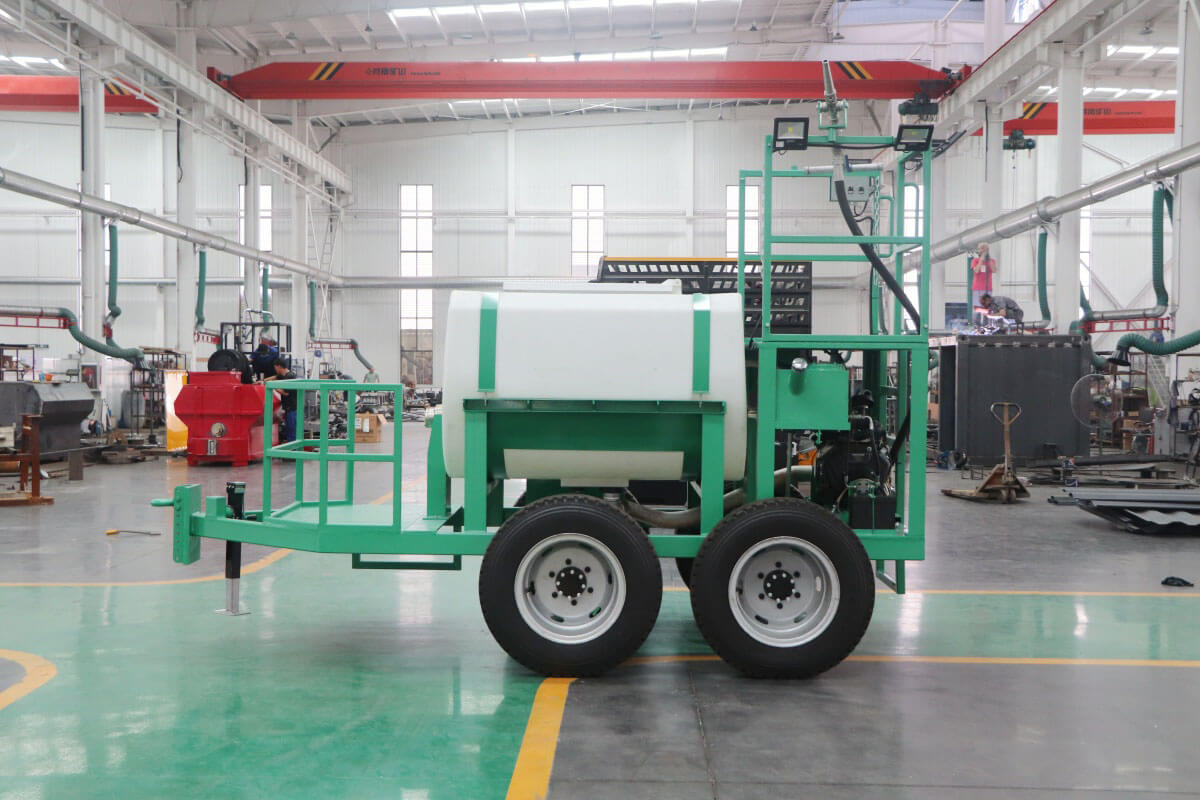

GHS0217PT 500gallon mechanical-agitated hydroseeder is an ideal machine for those who need to spray difficult materials and heavy slurries. It is a unit that combines the best features of both jet and mechanical hydroseeders. The aggressive paddle agitation allows you to load full bales without the need to break them up and allows quick mixing of thick slurries of hydro-seeding material.

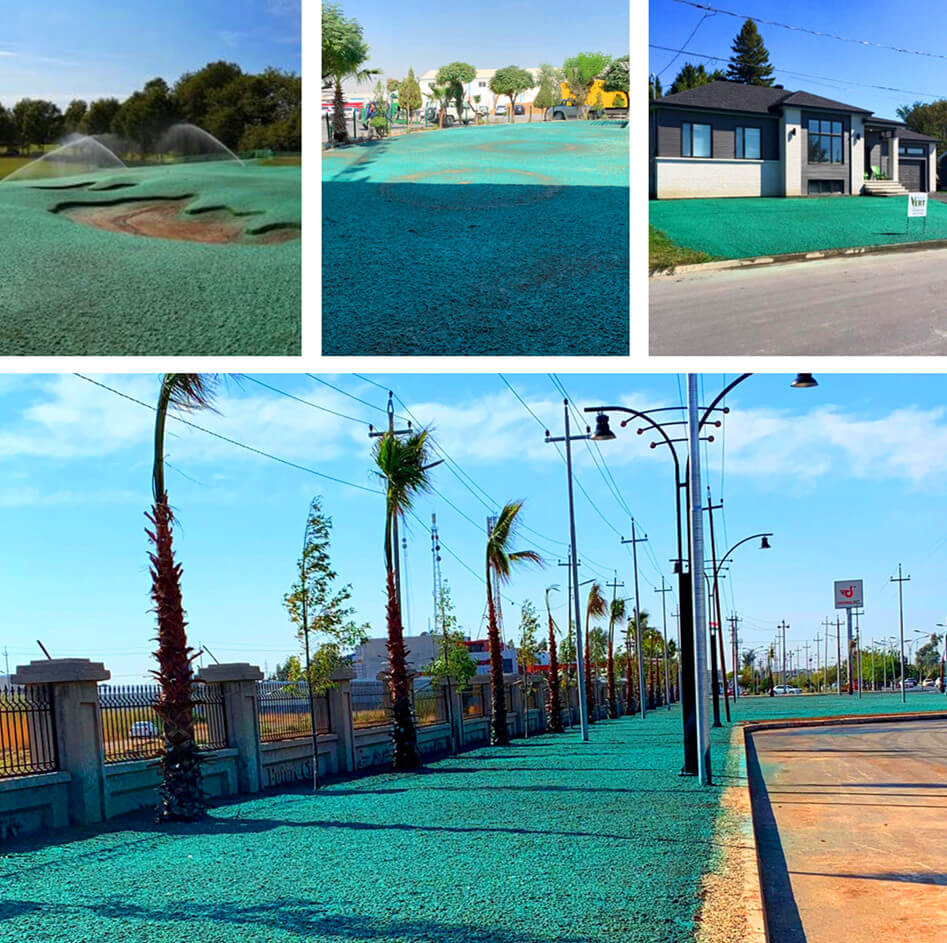

The GHS0217PT 500-gallon mechanical agitated hydroseeder is perfect for landscapers engaged in residential and commercial seeding, roadside projects, erosion control tasks, and any hydroseeding assignment. It has the capacity to load full bales into the unit, and the mixing time ranges from 2 to 20 minutes.

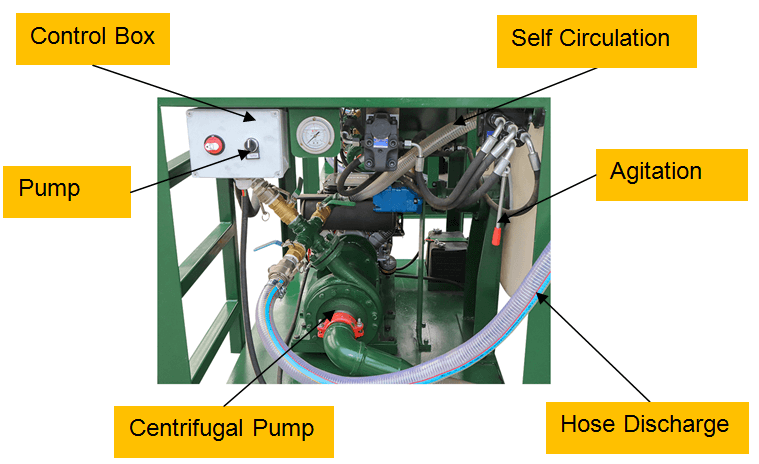

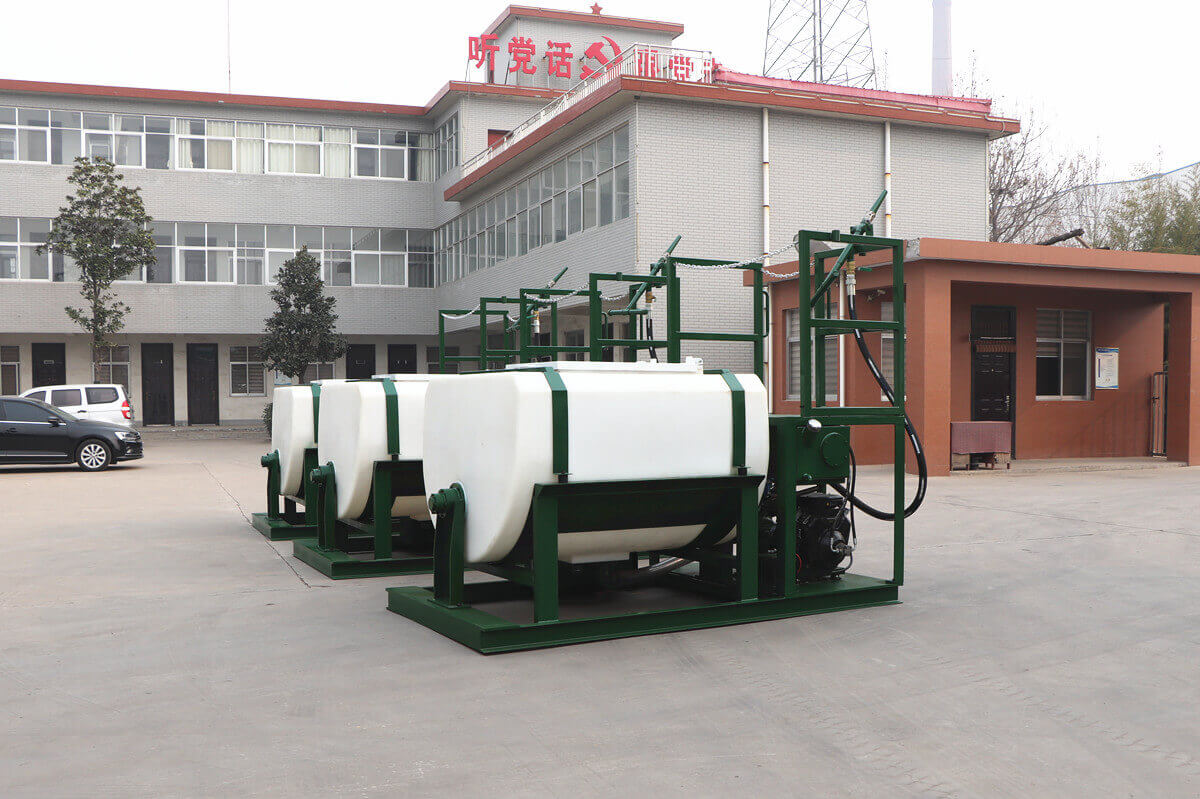

1. Poly tank
Only as a carrier for fluid, fast clean up, never rust.
2. Power unit
BRIGGS STRATTON 23 hp made in the USA with electric start.
The electromagnetic clutch controls the action of the centrifugal pump.
Provide power to the hydraulic system.

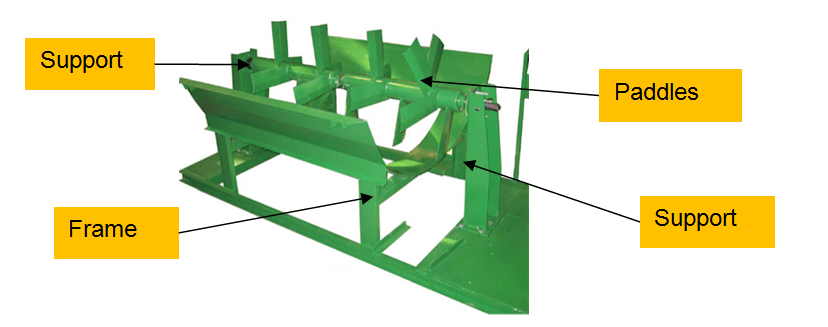

3. Paddles( reliable and more uniform)
Hydraulic motor drives paddles to achieve positive and negative mixing, which is more conducive to material mixing and elimination.
Paddles are supported completely by a heavy steel frame and put stress on the tank.
Paddle agitation quickly mixes a lot of materials.
No need to break the seeder up.
Jets are equipped with a quick coupler for easy service in the unlikely event of a problem.

4. 3″ X 1.5″ centrifugal pump

Electromagnetic clutch control centrifugal pump.
Outlet 3 pipelines: town gun, self circulation, DN32 hose.
Fully mixed materials by self circulation system.
Long injection distance, high efficiency and high factor of safety.
Easy and convenient maintenance and replacement of vulnerable parts.

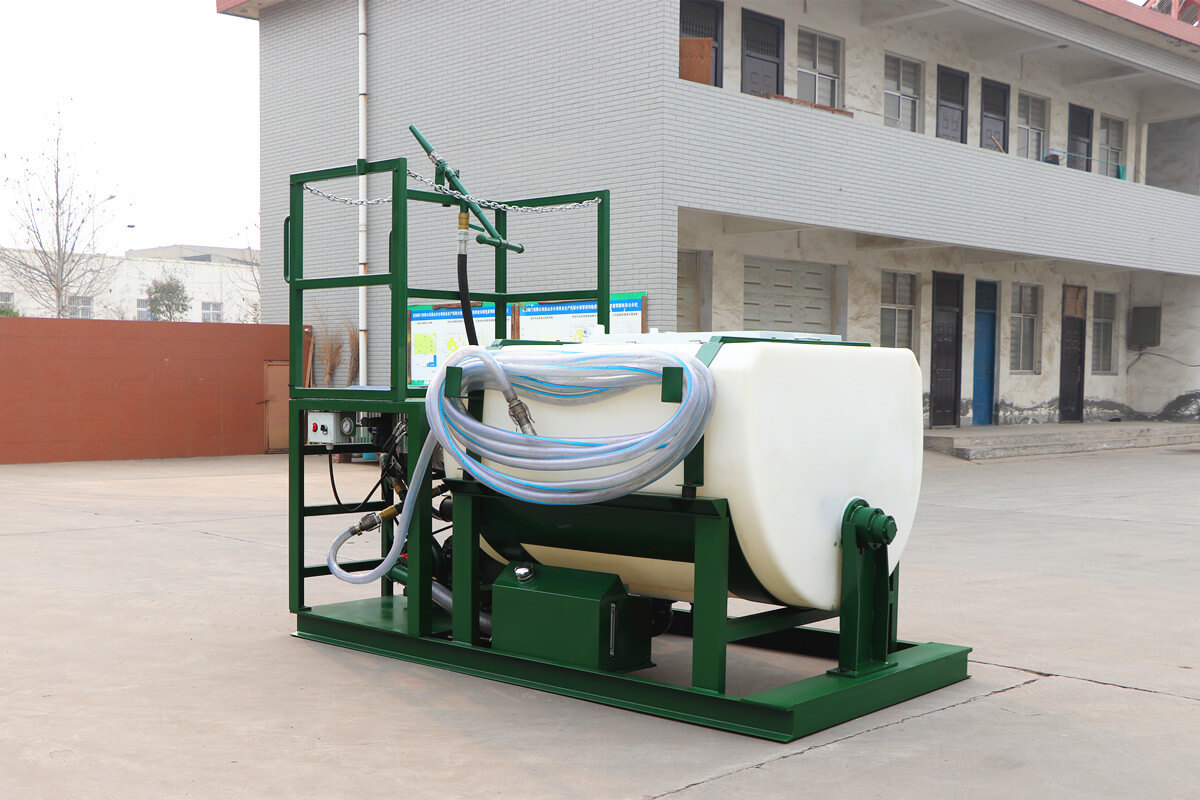

5. Hose discharge
Hose is light weight and easy to handle.
Jets are equipped with a quick coupler for easy service in the unlikely event of a problem.
A quick disconnect for the discharge hose, and a bale tray for easy loading.

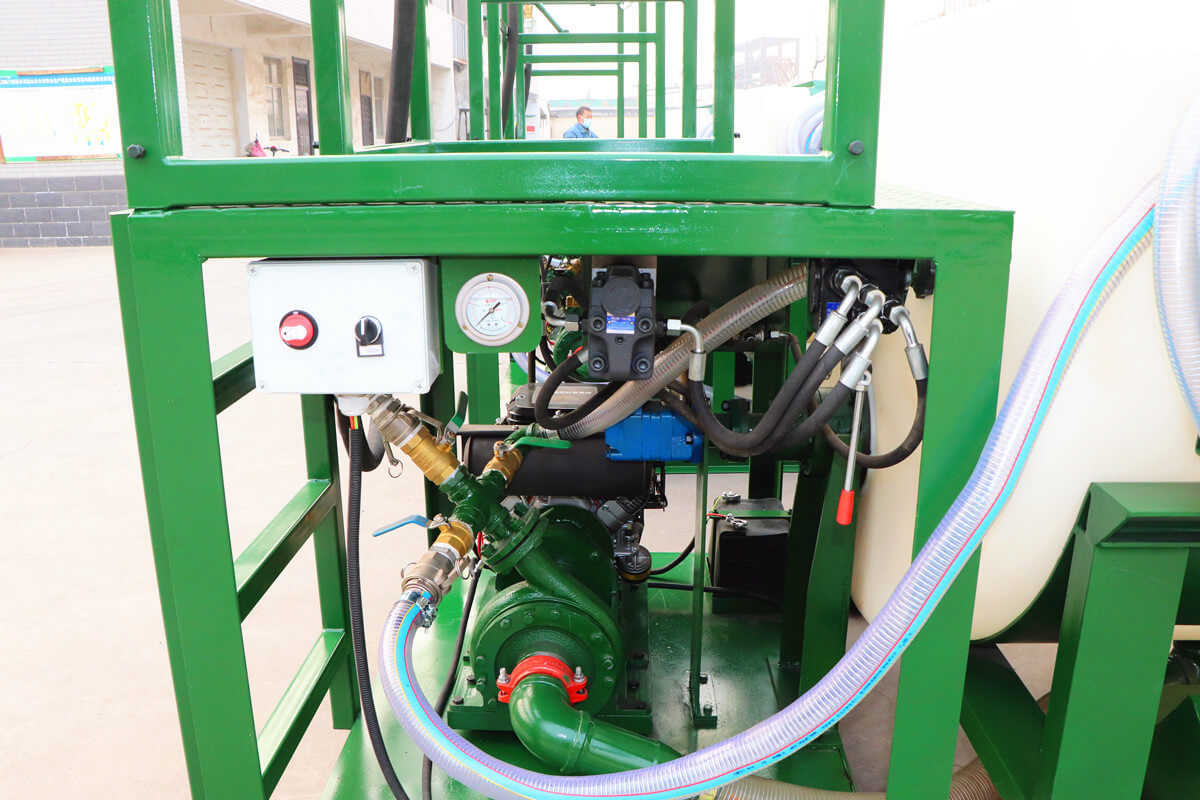

6. Control system (safe, and easy to operate)
Hydraulic control system.
Electrical control system.
One button for the pump, one lever for the paddles.

Specification:
1. Poly tank means fast cleaning up, never deal with tank rust. 2. Paddles are supported completely by a heavy steel frame and put stress on the tank. 3. Positive and negative hydro motors will mix thick slurries of difficult materials. 4. Load full bales of hydro-seeding mulch. No need to break the seeder up. 5. The distance to spray a load from the tower is up to 28m. 6. Simple to operate.
Model		GHS0217PT Mechanical-agitated Hydroseeder
Volume	2m³		Material of a tank	Polyethylene
Agitated speed	0-120r/min		Material of frame	Steel
Engine			23 hp gasoline engine with electric start
Passage section of pump			3″ X 1.5″ centrifugal pump
Capacity of pump	120 m³/h		Coverage	620 m2/tank
Hose length	20m		Empty weight	1180kg
Loaded weight	2810kg		Overall Size(LXWXH)	2920×1630×2290mm
Data: 1. All data are tested by water. 2. We can customize mechanical agitated hydroseeder according to your requirements.

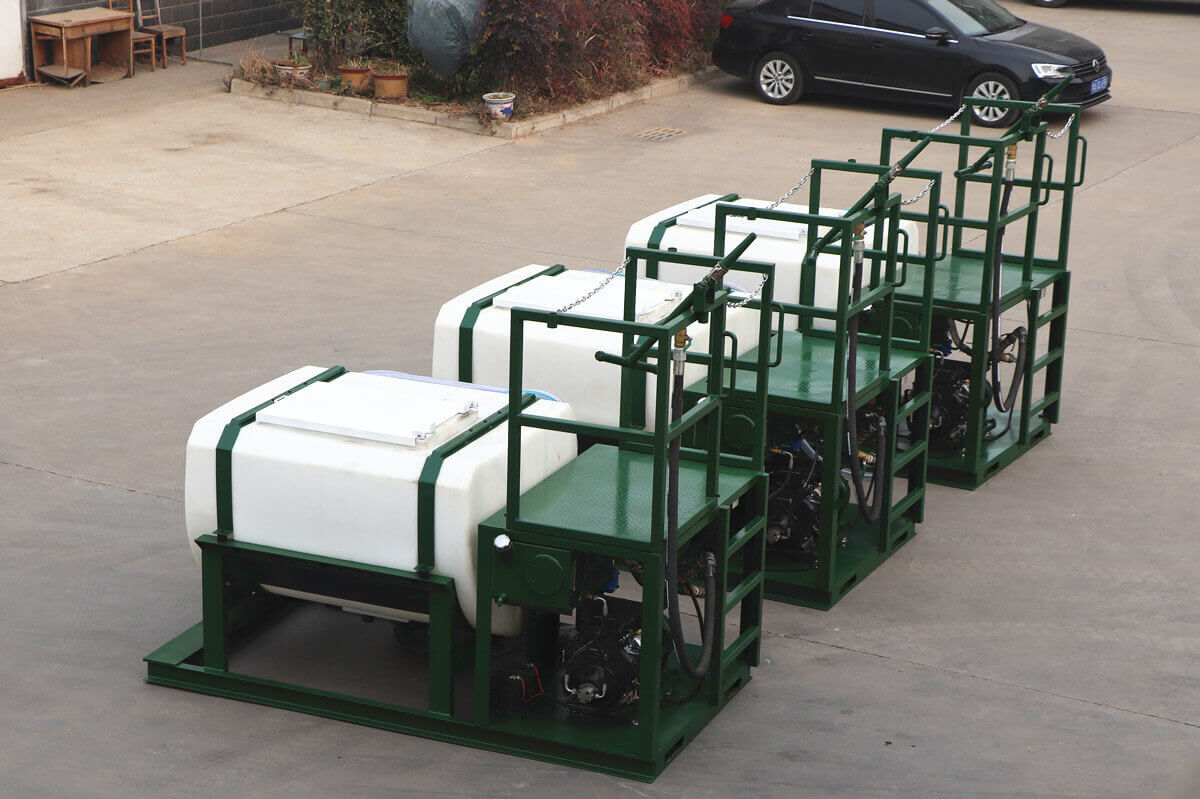

Packing & Delivery of GHS0217PT 500gallon mechanical agitated hydroseeder from our factory in China:
