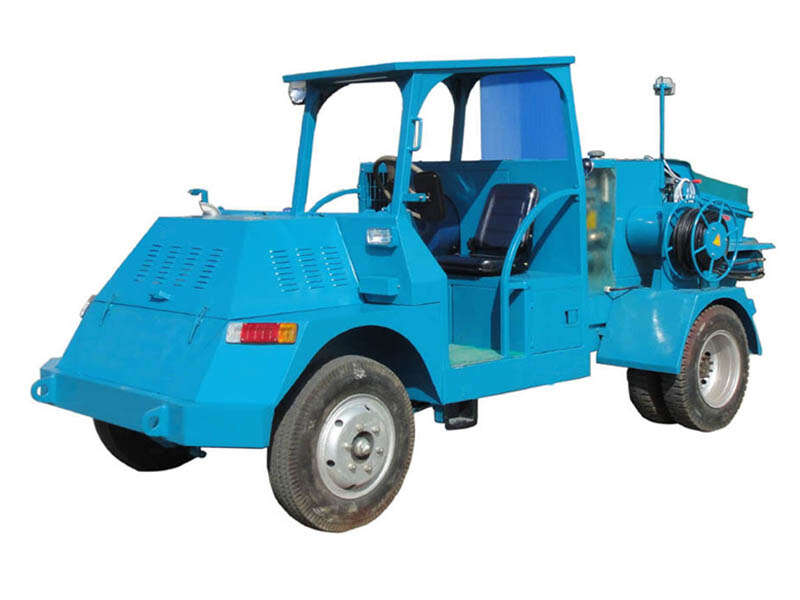

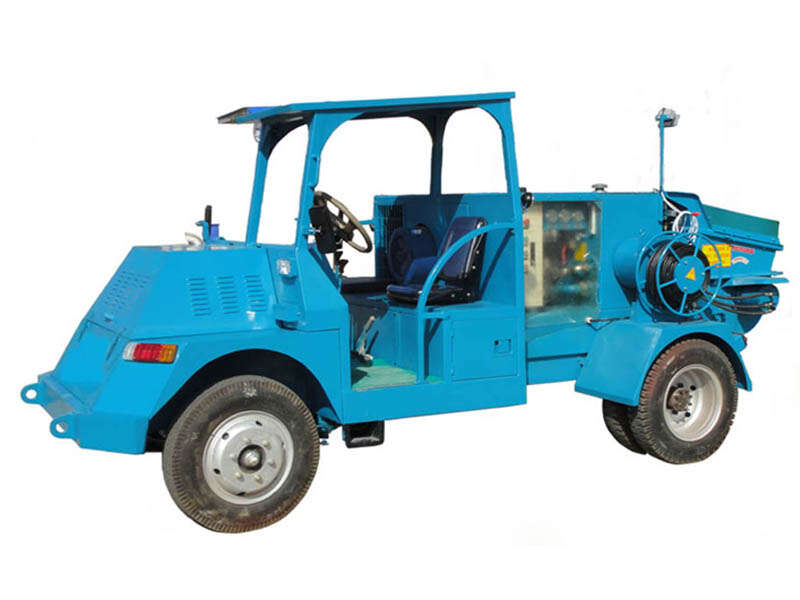

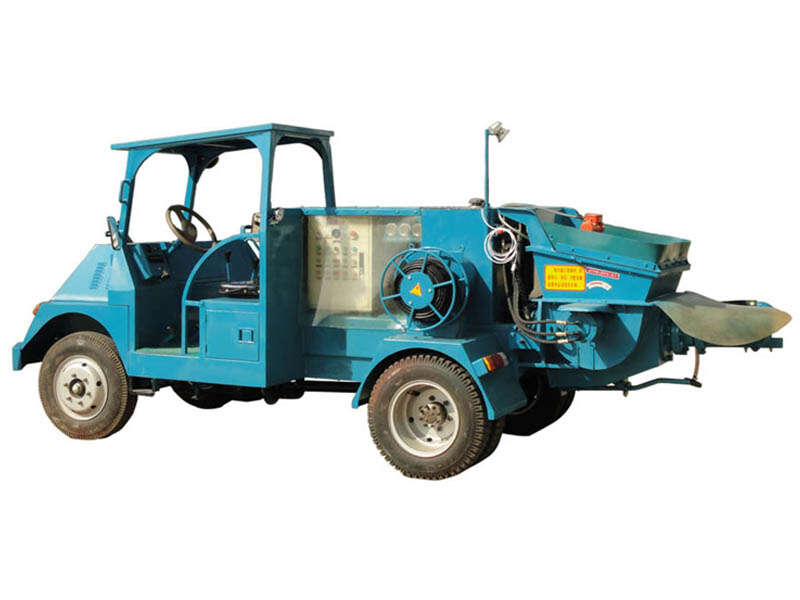

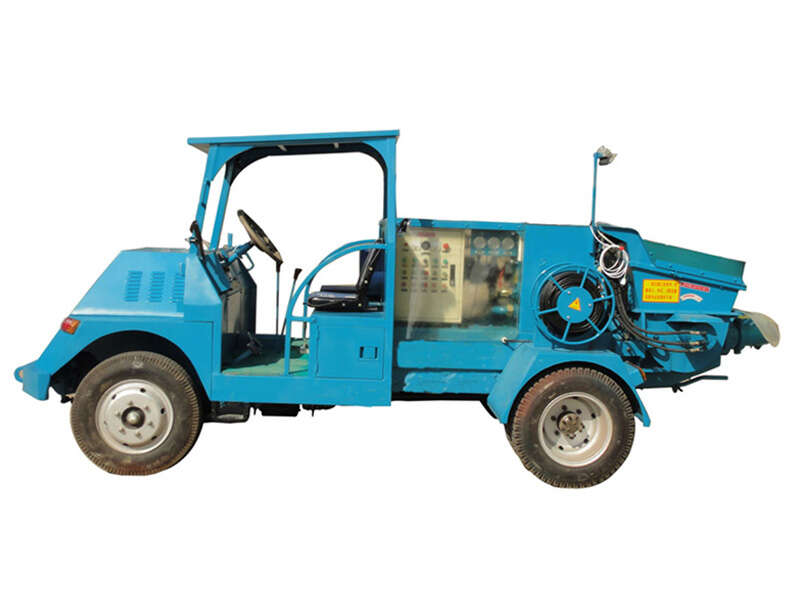

YSC5-15S vehicular hydraulic pump concrete spray wet shotcrete machine

Rated output: 5-15m³/h
Rated pressure: 4MPa
Max. Rated vertical distance: 50m
Max. Rated horizontal distance: 180m
Distributing valve form: S tube valve
Max. aggregate size: 25mm

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message

download:Catalogue

Description
Application
Features
Technical data

■ Description

YSC5-15S vehicular hydraulic pump concrete spray wet shotcrete machine can be used for conveying and spraying of plain concrete, fiber concrete.

■ Technical data

Parameter		unit	YSC5-15S
Pump system	Rated output	m³/h	5-15
	Rated pressure	MPa	4
	Max. Rated vertical distance	m	50
	Max. Rated horizontal distance	m	180
	Distributing valve form		S tube valve
	Max. aggregate size	mm	25
	Slump	cm	12-23
	Air consumption	m³/min	9-20
	System air pressure	MPa	0.7
	Working air pressure	Mpa	0.4-0.6
	Rebound rate	%	≦15
	Dust density (near machine)	mg/m³	≦10
	Conveying cylinder ID *stroke	mm	Ф160*800
	Pump motor power	kw	18.5
	Dosing pump motor power	kw	0.55
	Vibrator motor power	kw	0.25
	Cooling fan motor power	kw	0.12
	Voltage/frequency	V/Hz	380/50
	Oil tank volume	L	128
	Charging height	mm	1400
Running system	Running diesel power	kw	20
	Max. running speed	km/h	25
	Wheel track	mm	1500
	Wheel base	mm	2600
	Min. turning radius	m	4.3
	Max. gradeability	%	30
	Min. ground clearance	mm	130
Complete machine	Dimension	mm	525019502110
Complete machine	Weight	kg	3800
