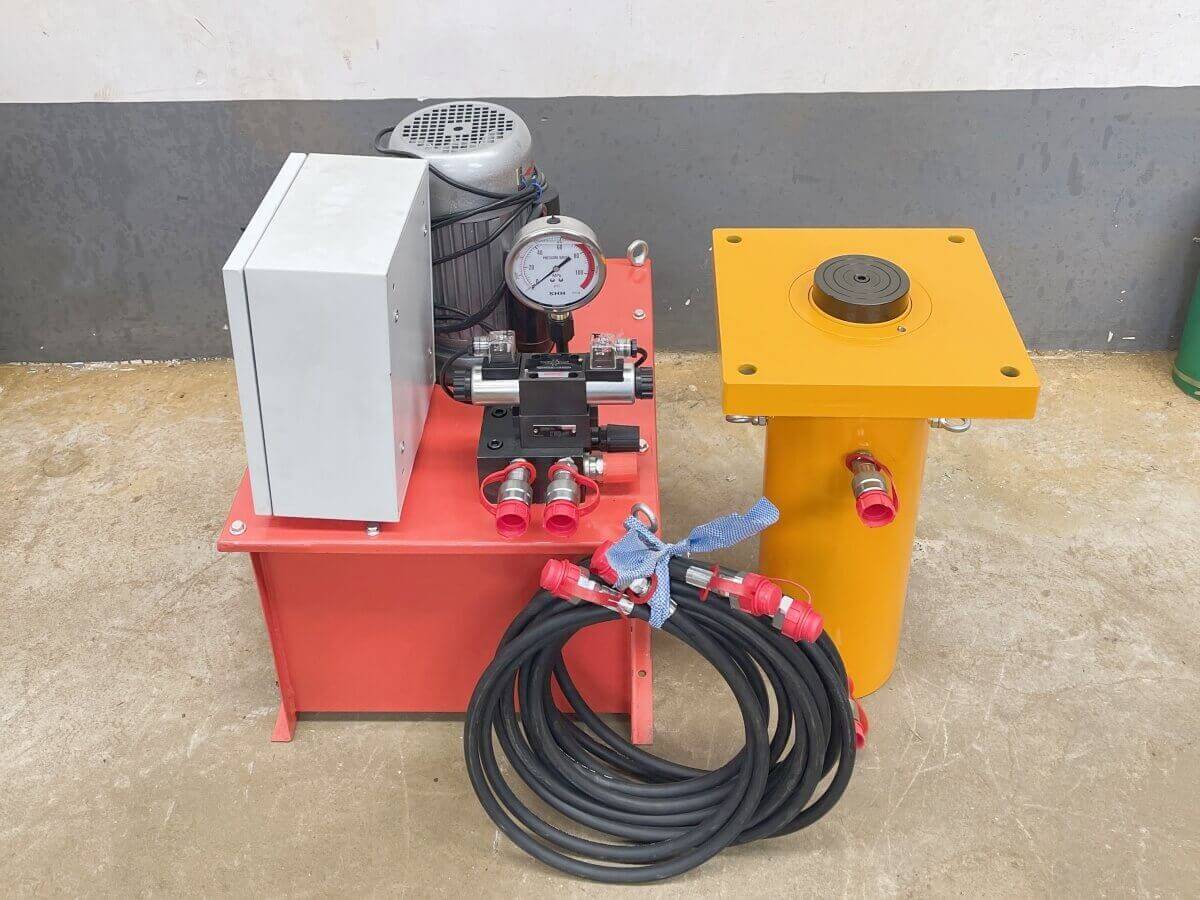

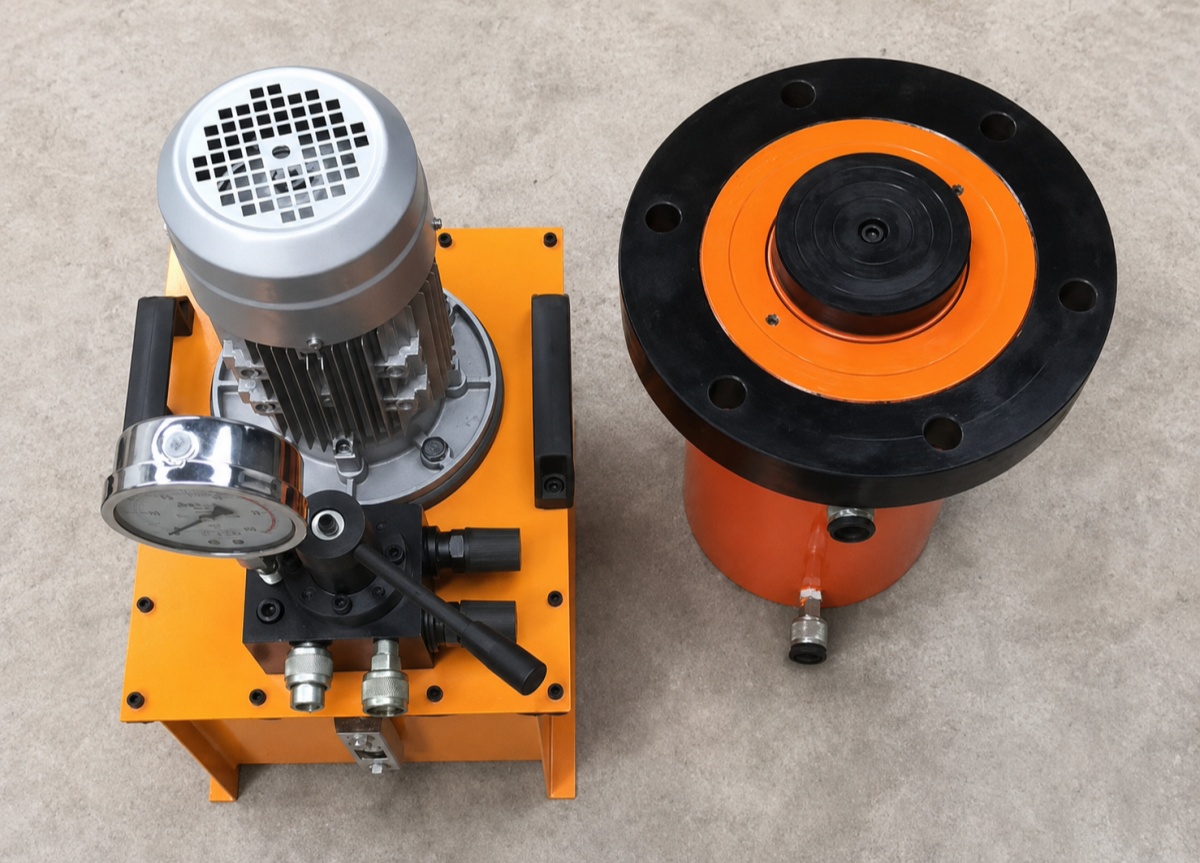

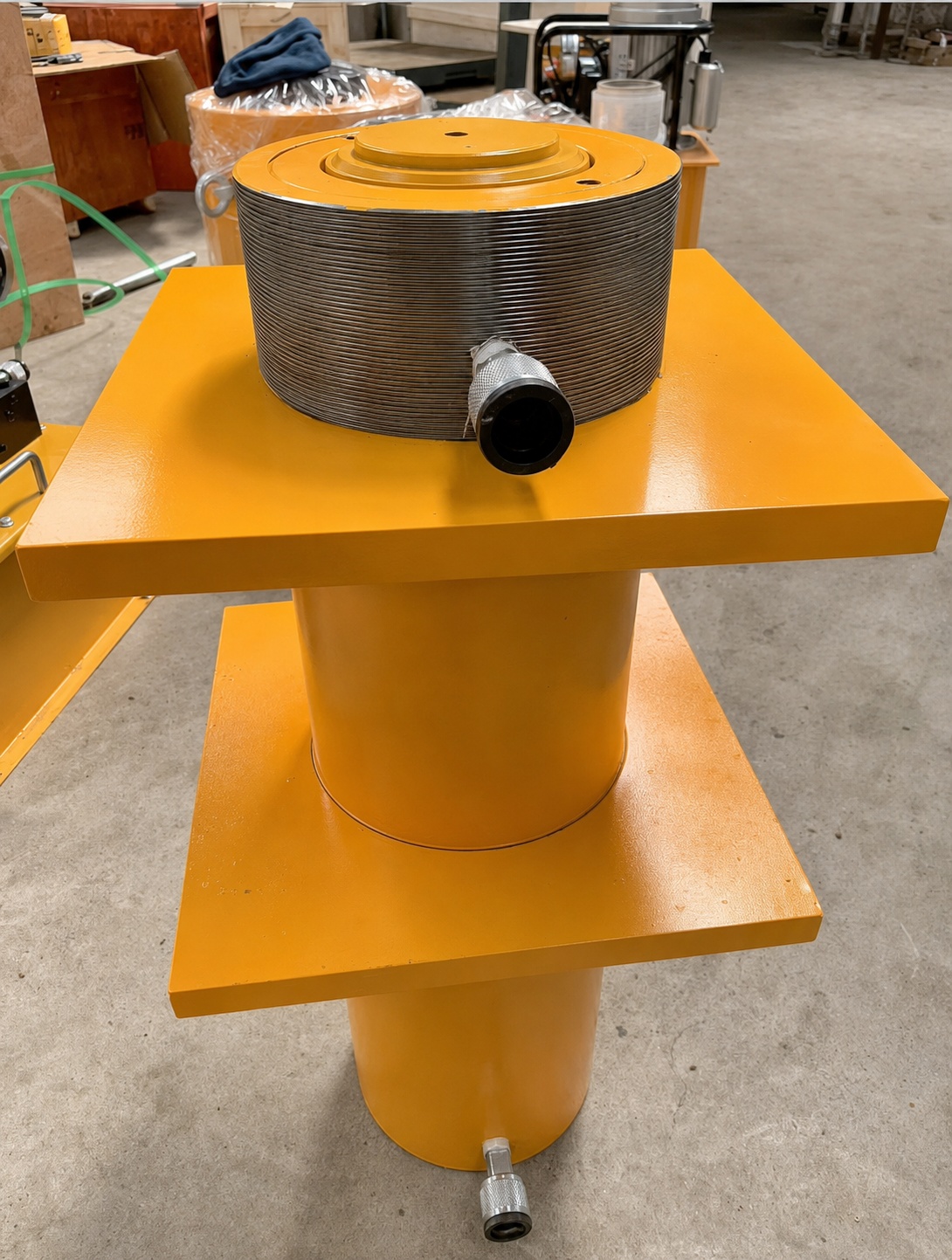

Heavy duty double acting flange hydraulic jack

Model: STQ1000
Tonnage : 1000ton
Outer diameter of oil cylinder : 600mm
Dimension of plunger : 320mm
Dimension of oil pump : 450mm
Pressure: 63MPA

We're here to help:

Easy ways to get the answers you need.

Description
Application

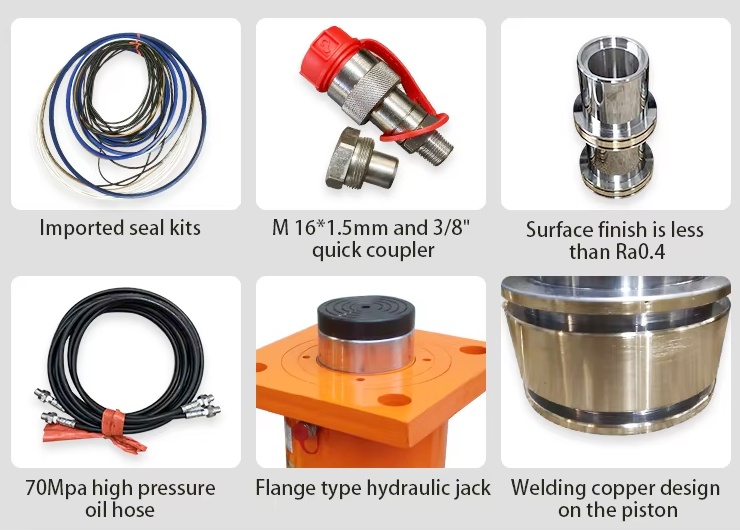

Features
Technical data

■ Description

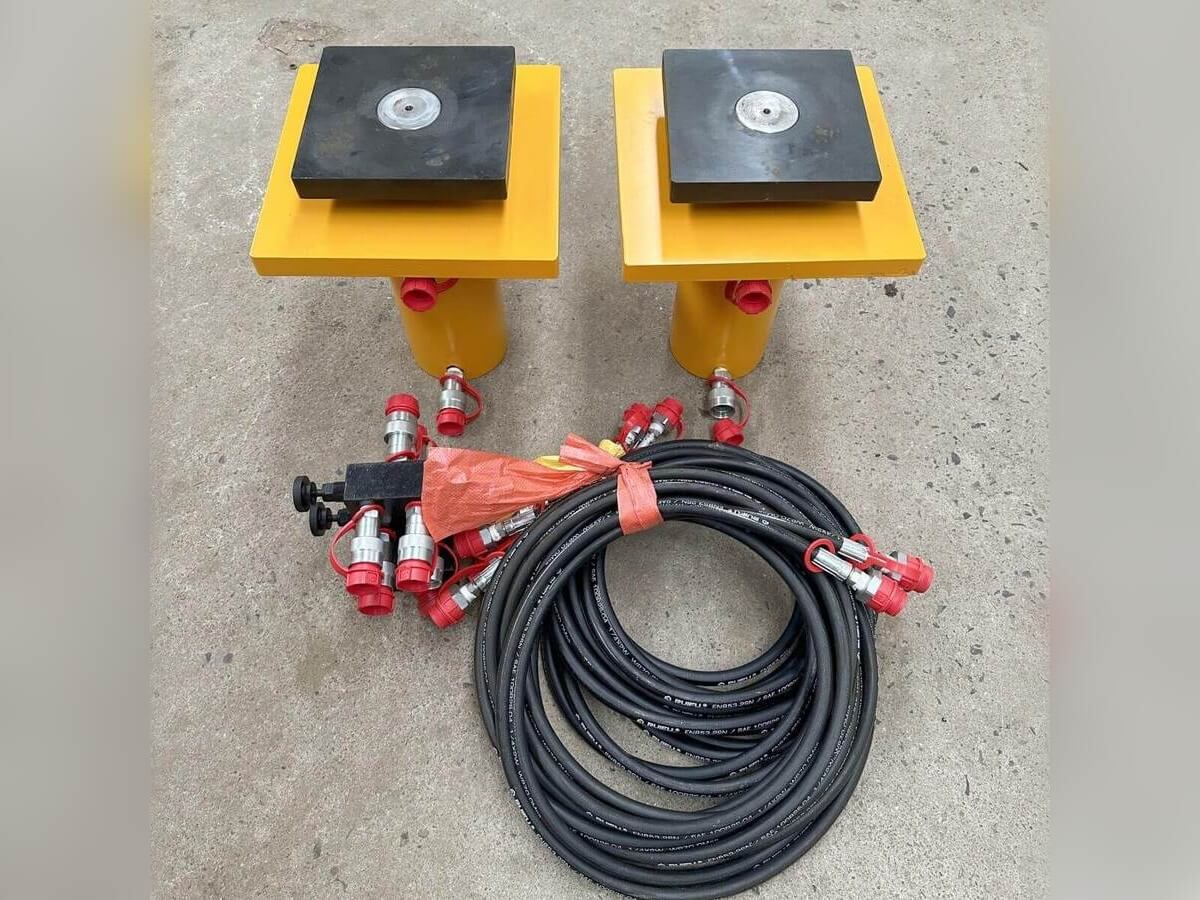

The heavy-duty double-acting flange hydraulic jack is engineered for demanding lifting, pushing, pulling and structural positioning operations. Its integrated mounting flange enables the jack to be firmly secured to machinery, steel frameworks or synchronized lifting systems, improving operational stability under heavy loads.

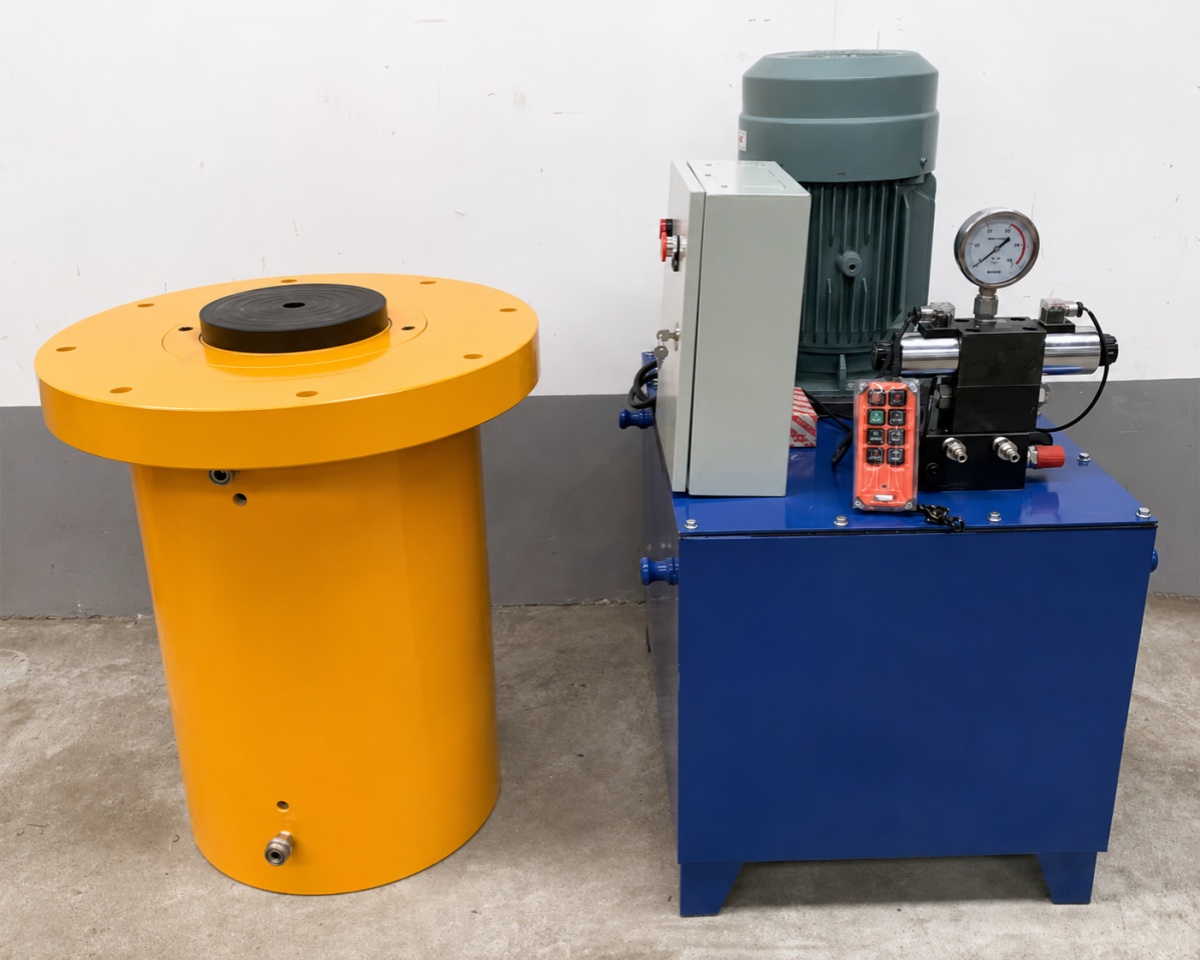

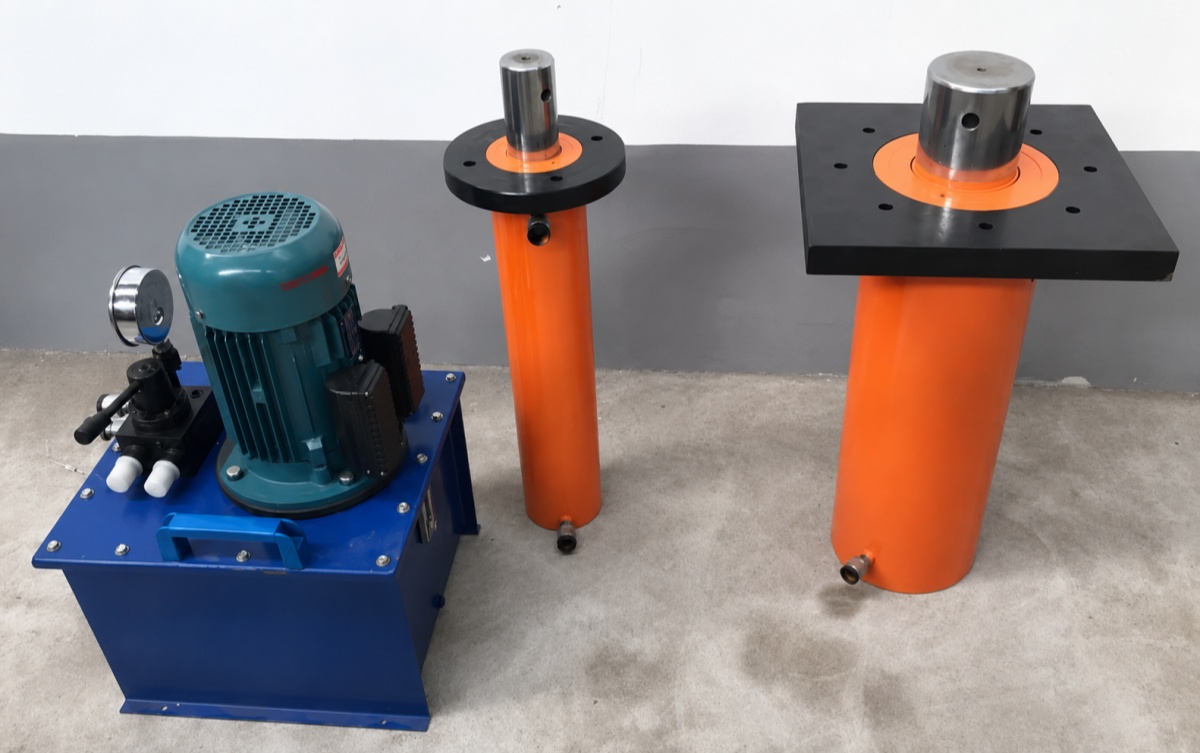

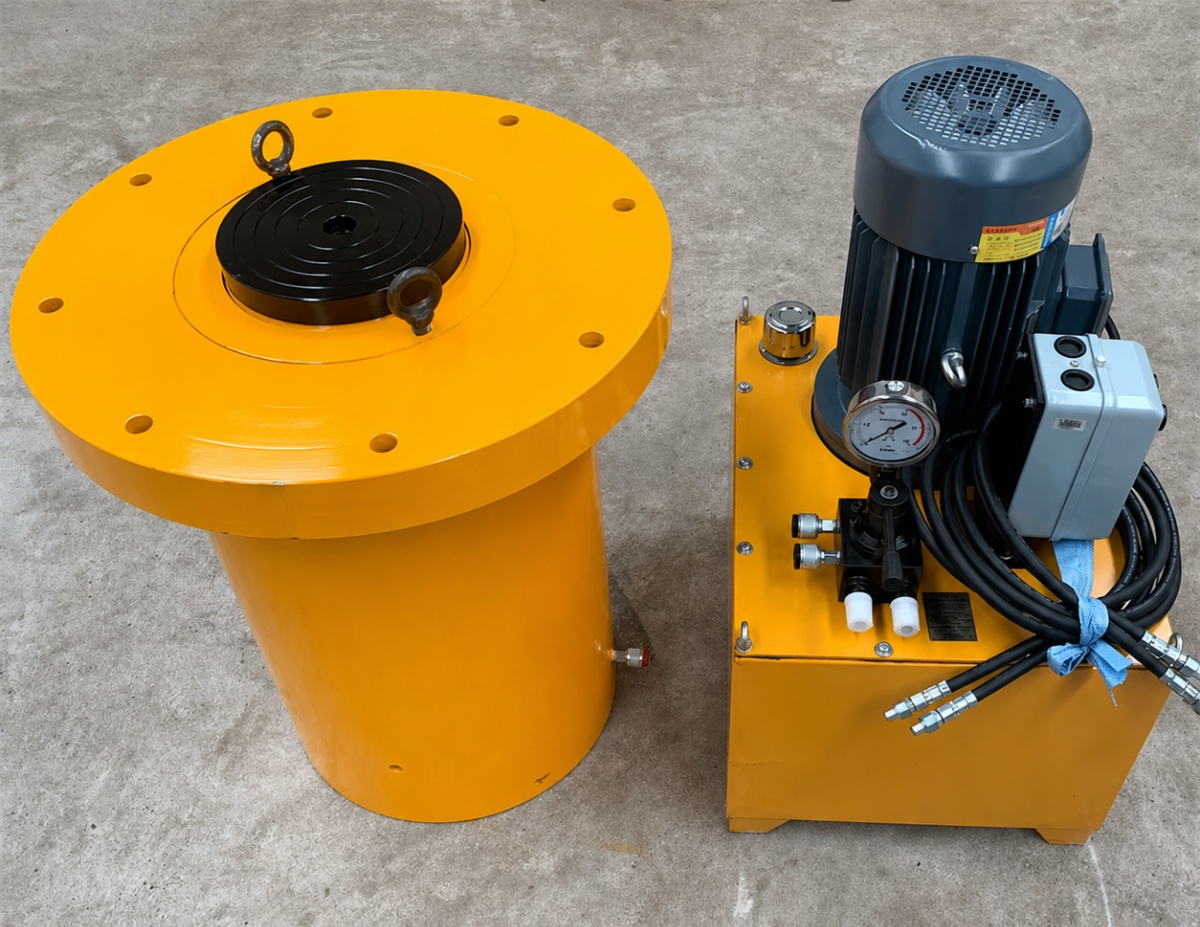

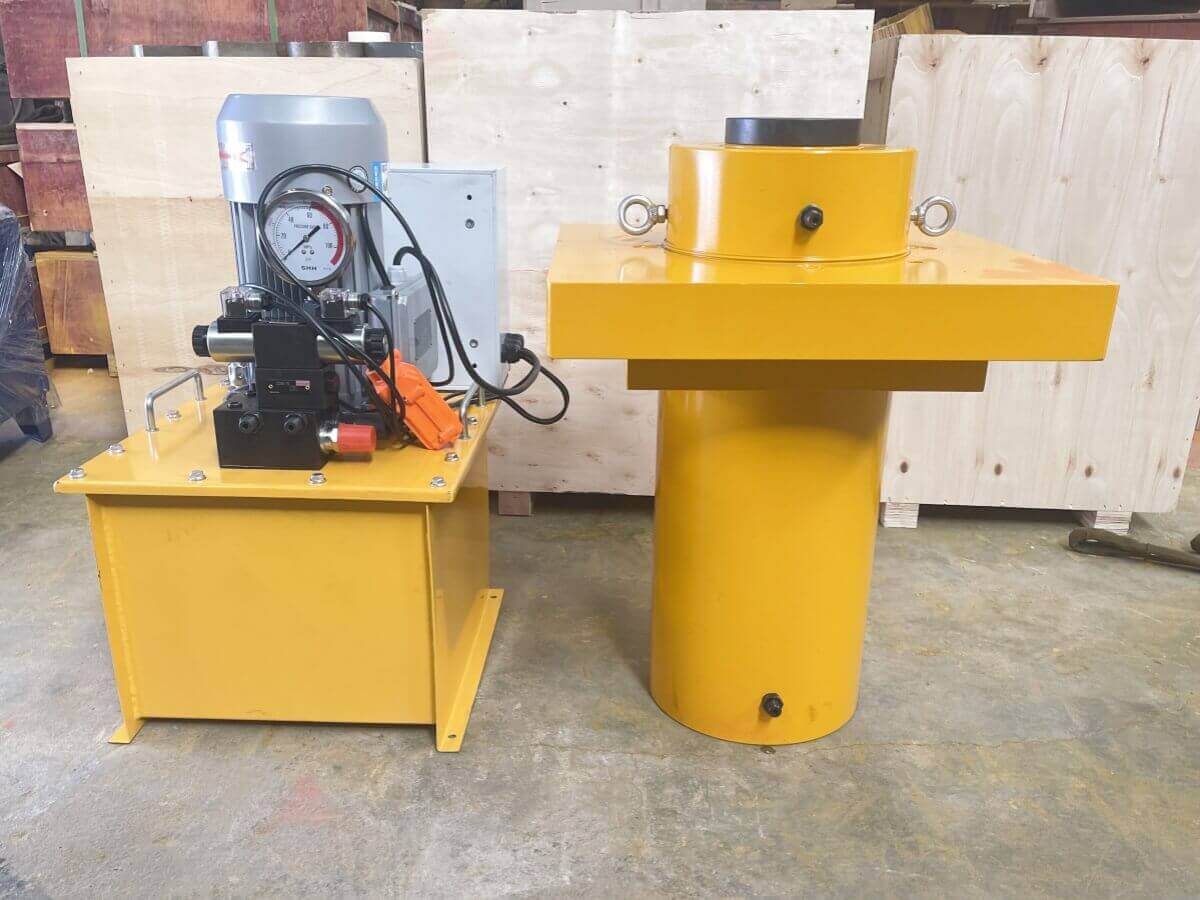

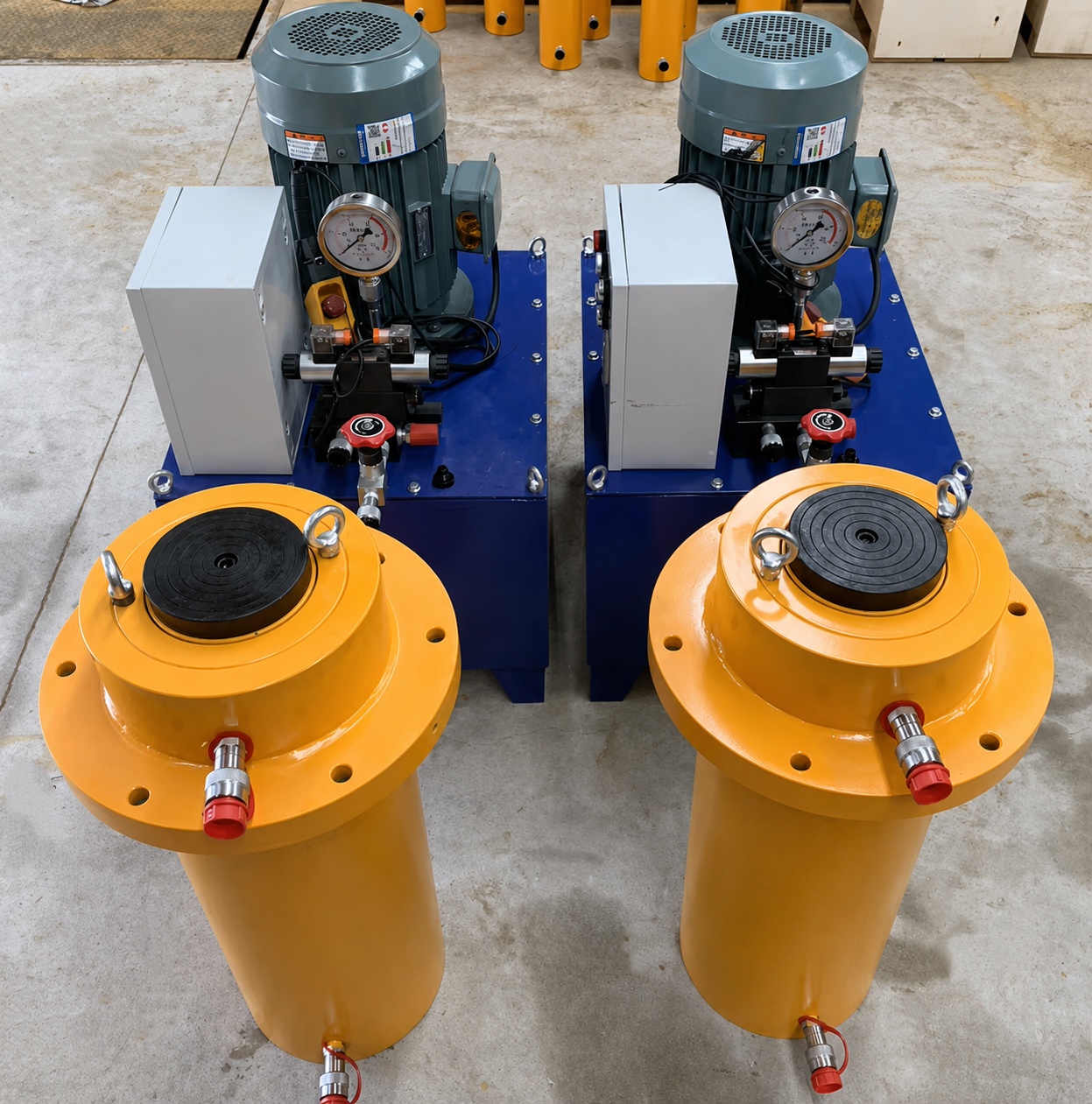

Powered by a compatible ZB series high-pressure electric pump, the jack provides hydraulic piston extension and retraction for fast, accurate and controlled movement. The hydraulic system can incorporate overflow protection, overload protection and a safety pressure gauge to reduce the risk of excessive operating pressure.

With high lifting force, compact construction and flexible remote operation, the flange-mounted hydraulic jack is suitable for complex industrial and construction projects. Different tonnages, strokes, closed heights and flange dimensions can be customized according to specific working conditions.

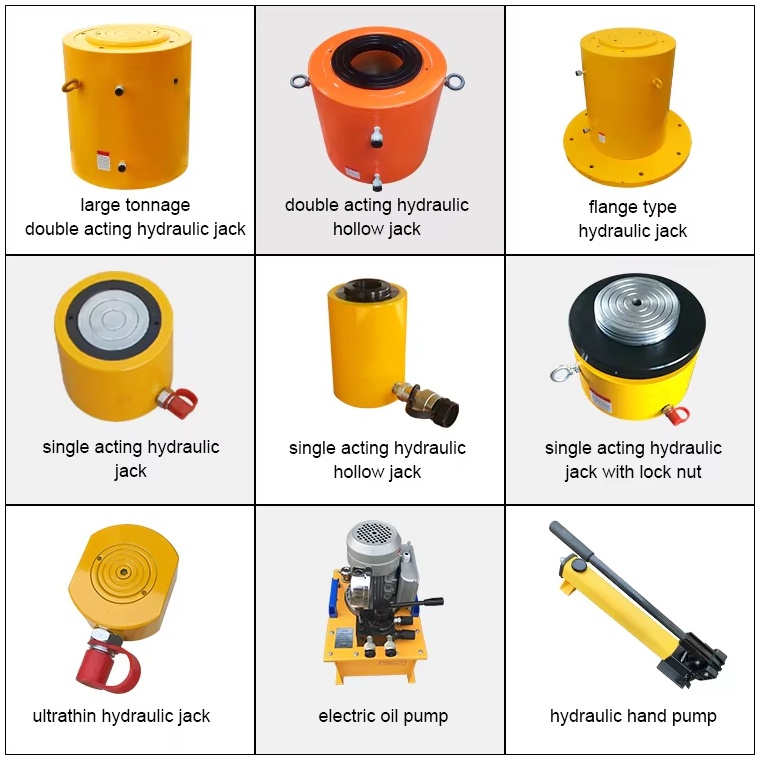

Hydraulic Jack Selection Guide:

We offer a complete range of industrial hydraulic jacks and hydraulic cylinders for lifting, pushing, pulling, tensioning and load-holding applications. Different capacities, strokes, closed heights and mounting options can be customized to suit your project requirements.

Heavy-Duty Double-Acting Hydraulic Jack: Available from 50 to 2,000 tons, this high-tonnage hydraulic jack provides powered piston extension and retraction. It is suitable for high-capacity lifting, pushing and positioning operations where fast hydraulic return is required.

Double-Acting Hollow Hydraulic Jack: Designed with a central hole that allows PC strands, steel wires, threaded rods or anchor bars to pass through the cylinder. Capacities range from 50 to 2,000 tons, making it ideal for prestressing, tensioning, pulling and anchoring work.

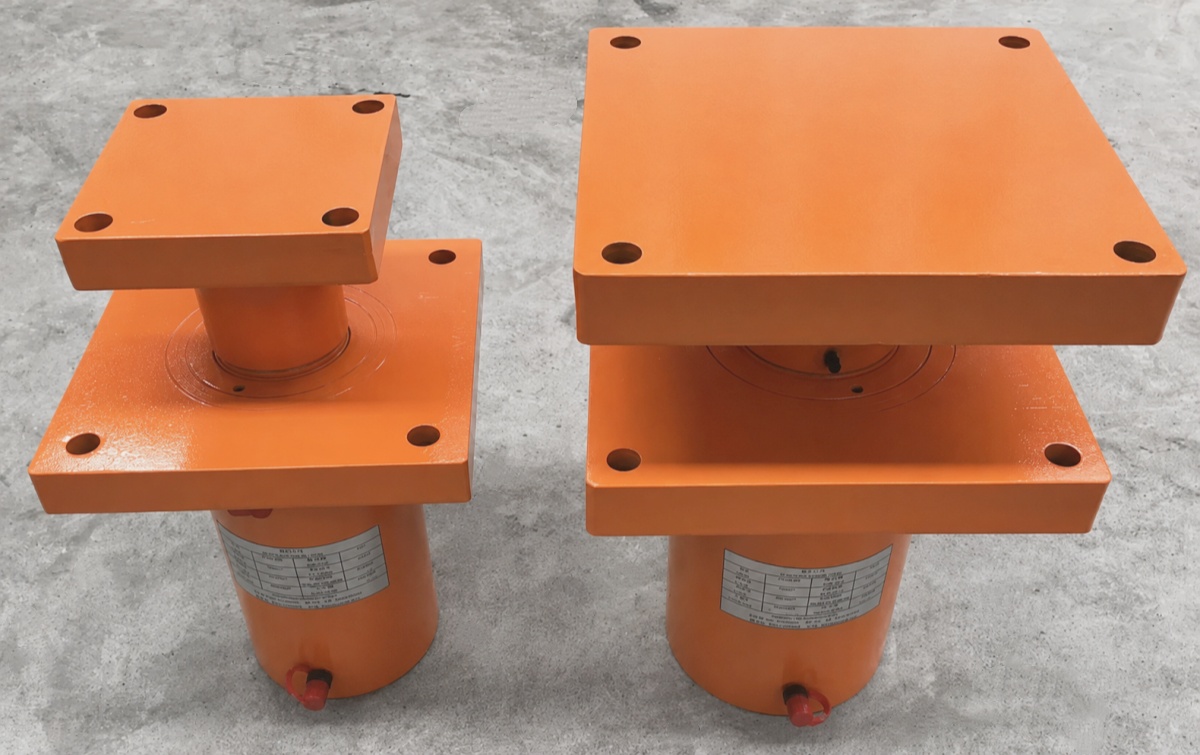

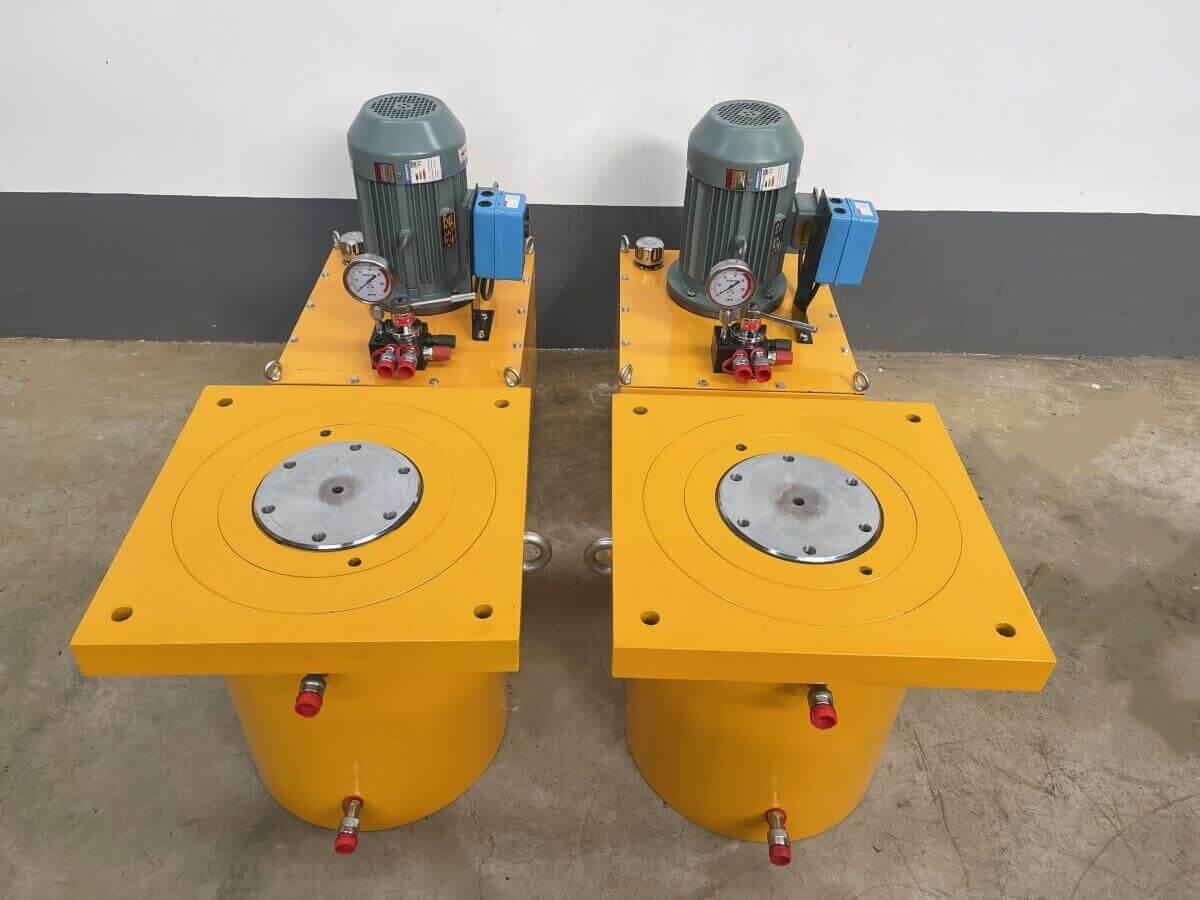

Flange-Mounted Hydraulic Jack: The integrated mounting flange allows the jack to be securely installed on machinery, steel structures or dedicated working platforms. Available capacities range from 10 to 630 tons.

Single-Acting Hydraulic Jack: A cost-effective solution for general lifting and pressing applications requiring relatively small capacities and strokes. Standard capacities range from 10 to 100 tons.

Single-Acting Hollow Hydraulic Jack: Equipped with a hollow center for cables, rebar, anchor rods and other components to pass through. When combined with specialized tools, it can be used for tensioning, pulling and removal operations. Available from 12 to 100 tons.

Single-Acting Lock Nut Hydraulic Jack: The mechanical lock nut securely supports the load after lifting, making this jack suitable for long-term load-holding applications. Available capacities range from 55 to 200 tons.

Low-Profile Hydraulic Jack: Also known as an ultra-thin or pancake hydraulic jack, this compact model is designed for lifting operations in narrow spaces and areas with limited clearance. Capacities range from 10 to 200 tons.

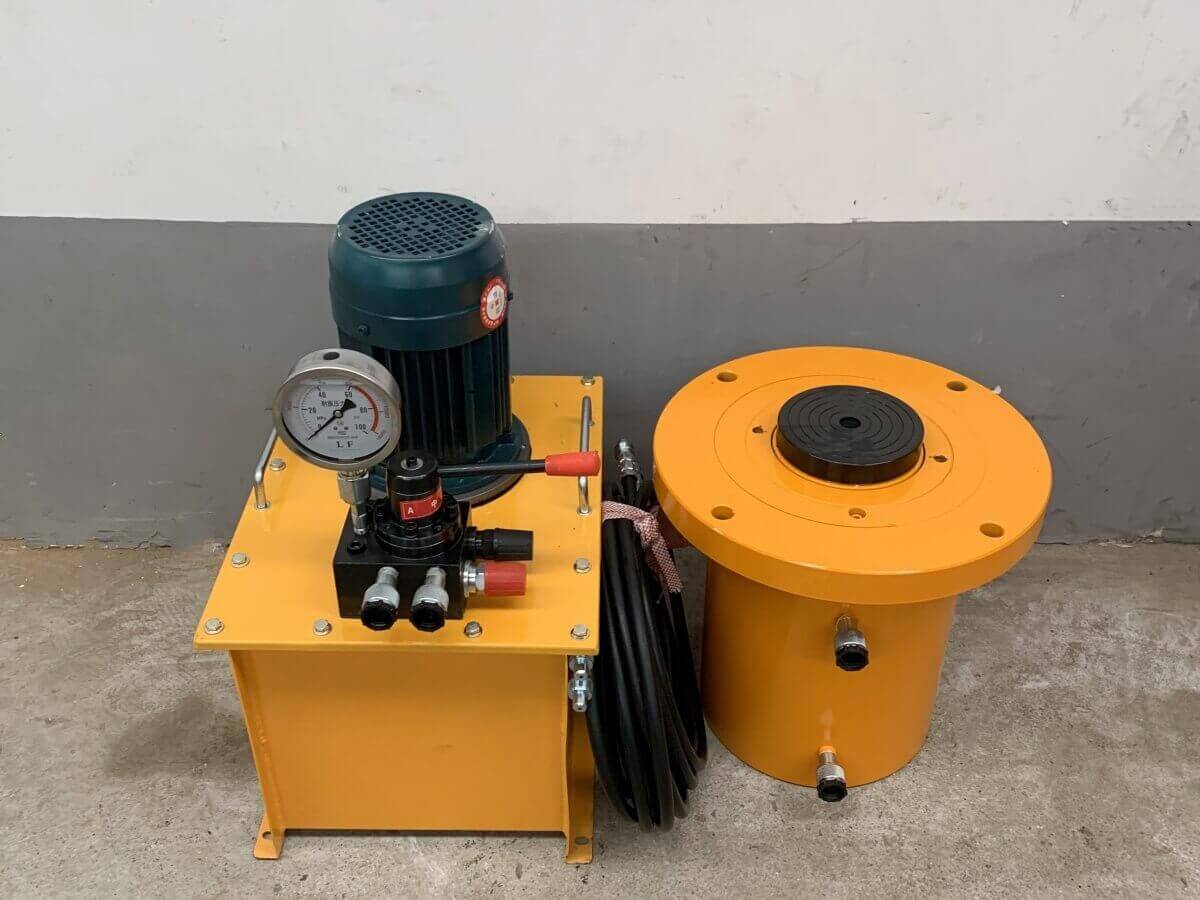

To complete the hydraulic lifting system, we provide high-pressure electric hydraulic pumps for both single-acting and double-acting jacks. Portable hydraulic hand pumps are also available for job sites without electricity or for applications where operating speed is not the main requirement.

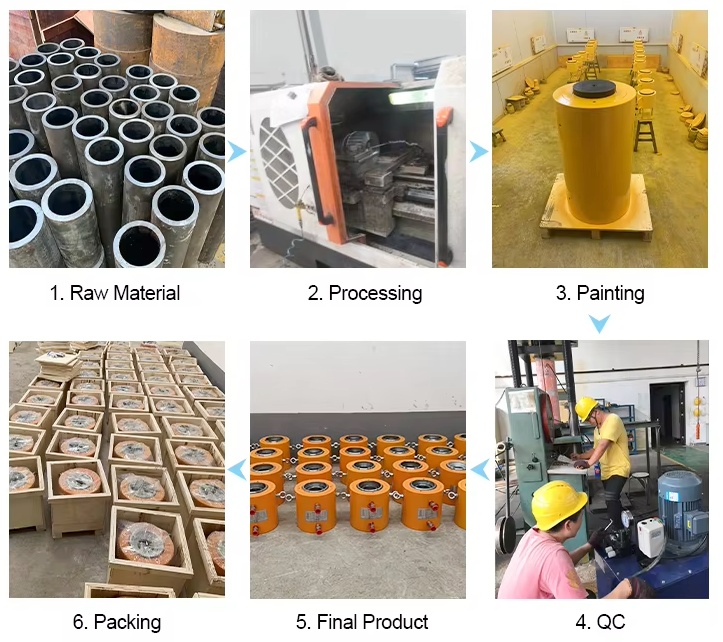

Jack capacity, stroke, closed height, mounting dimensions and hydraulic pump configuration can all be customized. We provide reliable hydraulic lifting solutions, professional technical support and a two-year warranty.

■ Technical data

Model	Tonnage T	Stroke mm	Own body height mm	Extend height mm	Outer diameter of oil cylinder mm	Dimension of plunger mm	Dimension of oil pump mm	Weight kg	Pressure
STQ50-100	50	100	225	325	127	70	100	35	63MPA
STQ50-160		160	285	445				39
STQ50-200		200	325	525				46
STQ50-300		300	425	725				48
STQ50-500		500	625	1125				63
STQ100-100	100	100	250	350	180	100	140	58
STQ100-160		160	310	470				63
STQ100-200		200	350	550				78
STQ100-300		300	450	750				96
STQ100-500		500	650	1150				130
STQ150-100	150	100	260	360	219	125	180	58
STQ150-160		160	320	480				69
STQ150-200		200	360	560				86
STQ150-300		300	460	760				103
STQ150-500		500	660	1160				255
STQ200-100	200	100	285	385	240	150	200	96
STQ200-160		160	345	505				103
STQ200-200		200	385	585				116
STQ200-300		300	485	785				161
STQ200-500		500	685	1185				221
STQ320-100	320	100	310	410	330	180	250	196
STQ320-160		160	370	530				240
STQ320-200		200	410	610				258
STQ320-300		300	510	810				311
STQ320-500		500	710	1210				456
STQ400-100	400	100	355	455	380	200	290	198
STQ400-160		160	415	575				231
STQ400-200		200	460	660				264
STQ400-300		300	555	855				367
STQ400-500		500	755	1255				456
STQ500-100	500	100	360	460	430	200	320	323
STQ500-160		160	420	580				330
STQ500-200		200	460	660				420
STQ500-300		300	560	860				581
STQ500-500		500	760	1260				599
STQ630-100	630	100	417	517	500	250	360	560
STQ630-160		160	477	637				633
STQ630-200		200	517	717				696
STQ630-300		300	617	917				898
STQ630-500		500	817	1317				1250
STQ800-100	800	100	488	588	560	300	400	896
STQ800-200		200	598	798				1040
STQ800-300		300	698	998				1380
STQ800-500		500	898	1398				1520
STQ1000-100	1000	100	530	630	600	320	450	1286
STQ1000-200		200	630	830				1332
STQ1000-300		300	760	1060				1663
