Quotation

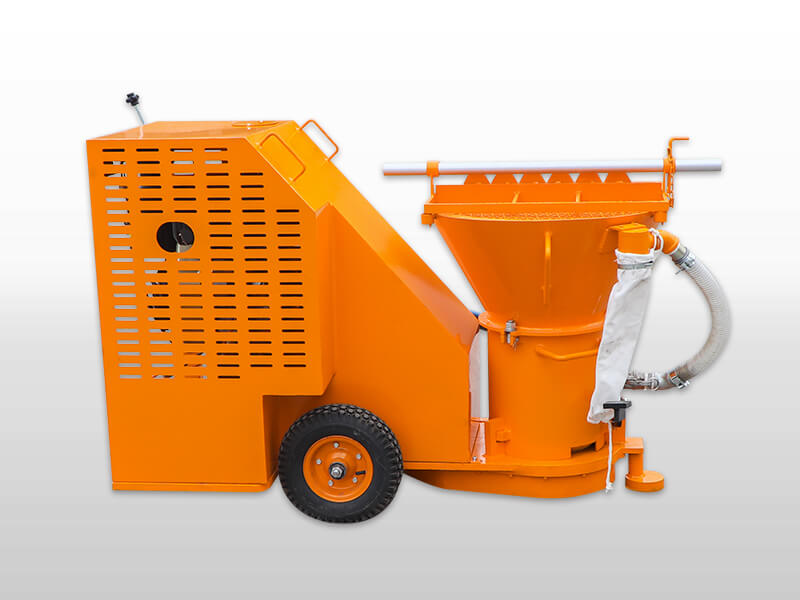

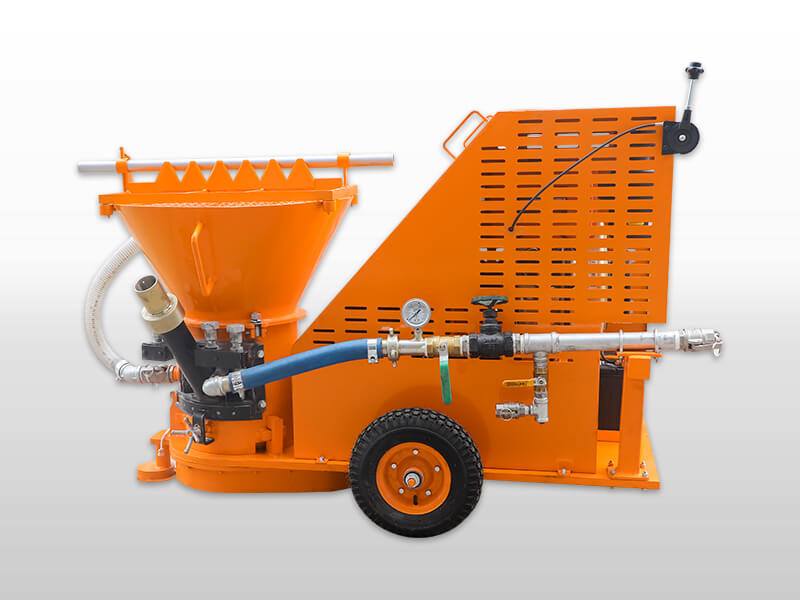

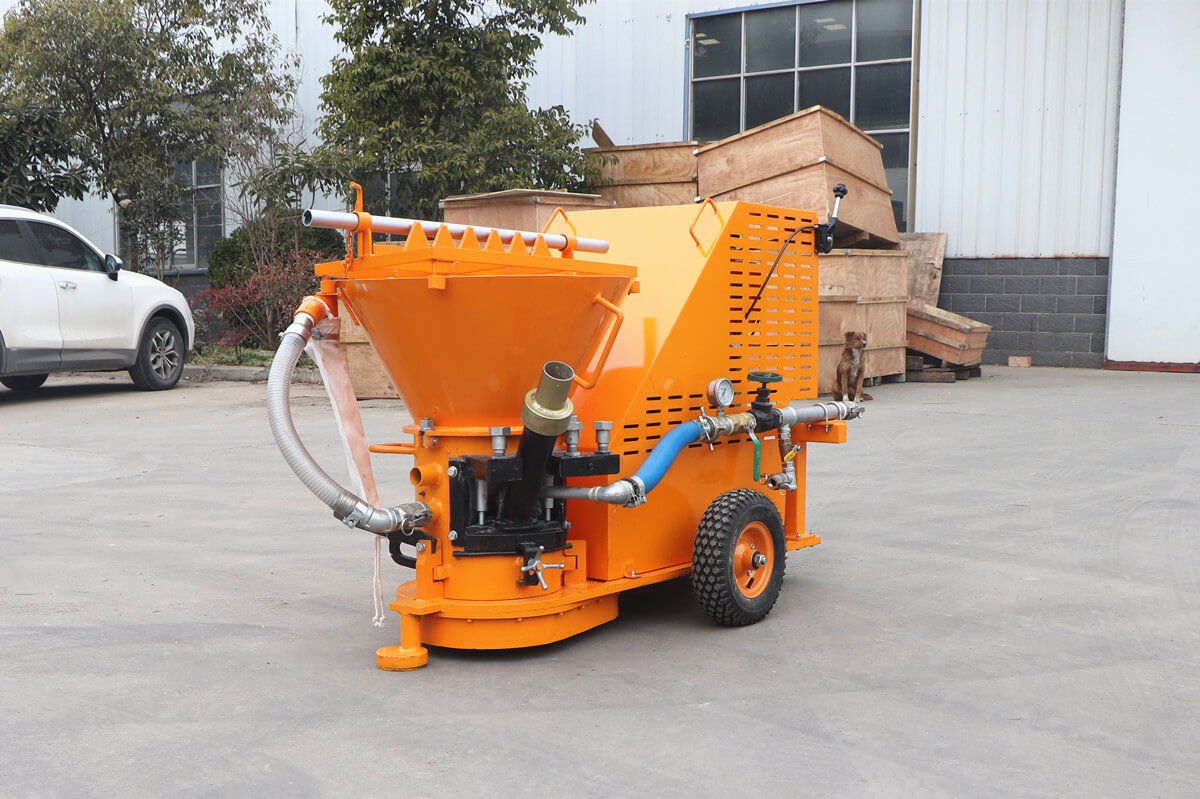

GZ-6DR/RD Diesel engine driven refractory gunite machine

  • Maximum output: 6m³/hr
  • Hopper capacity: 80L
  • Max. aggregate size: 10mm
  • Feed bowl pocket number: 16
  • Hose ID: 38mm
  • Diesel engine power: 8.2KW

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message
download:Catalogue
Click to view :
  • diesel engine driven dry mix gunning machine
  • diesel engine driven refractory gunite machine
  • diesel engine driven refractory gunning machine
  • diesel engine driven gunite machine
  • diesel engine of refractory gunning machine
■ Description
GZ-6DR/RD Diesel engine driven refractory gunite machine provides a steady flow of material which allows uniform hydration and very smooth spraying.

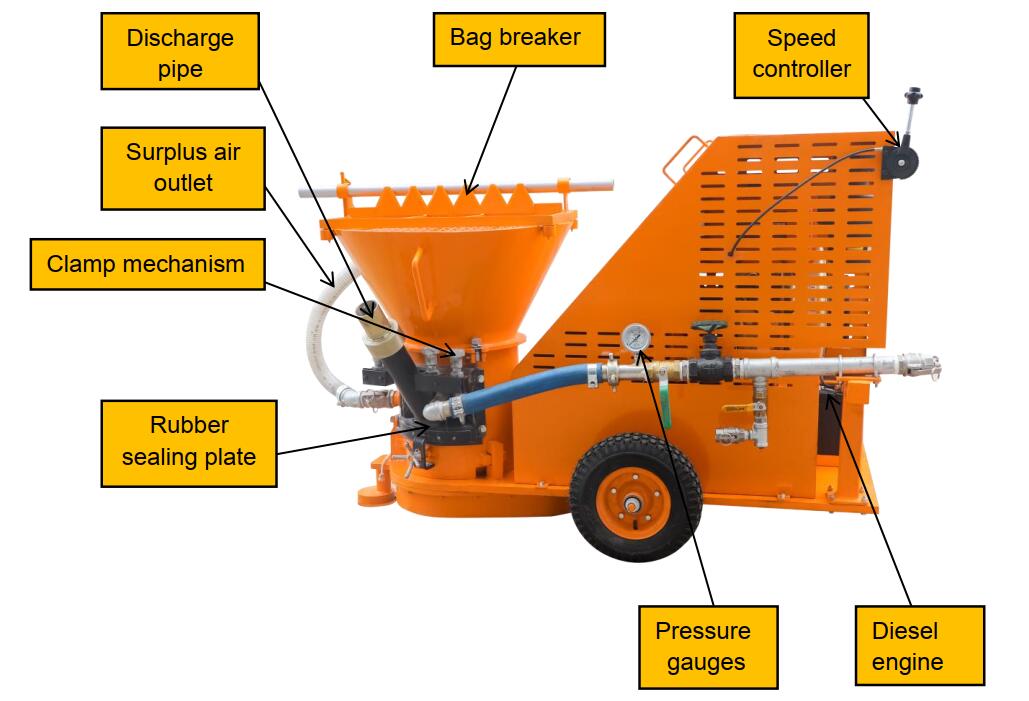

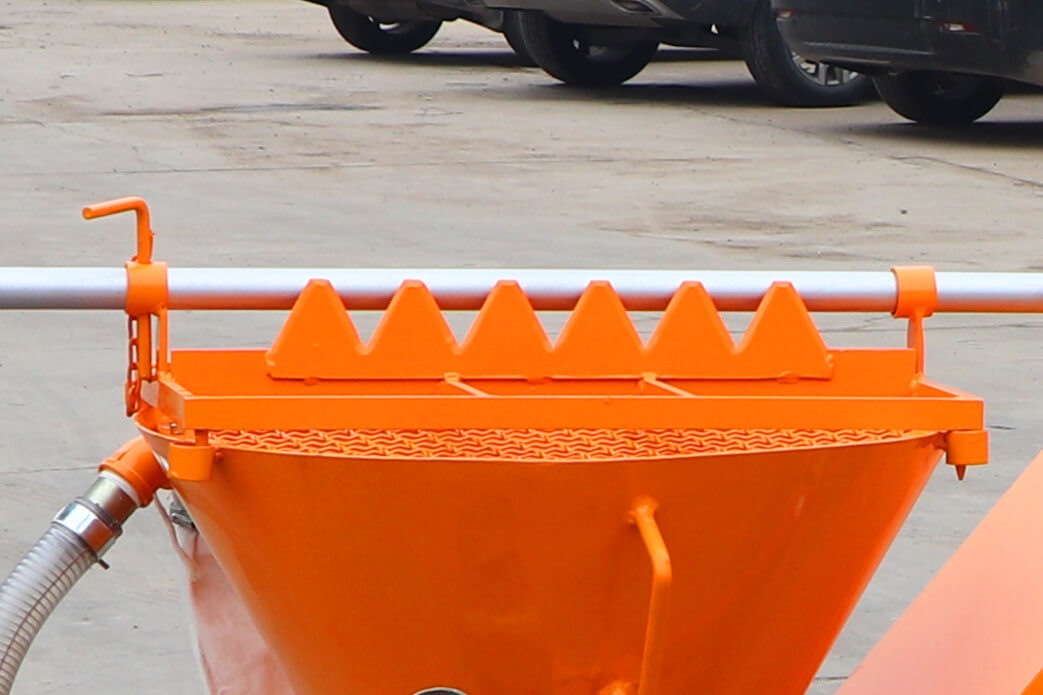

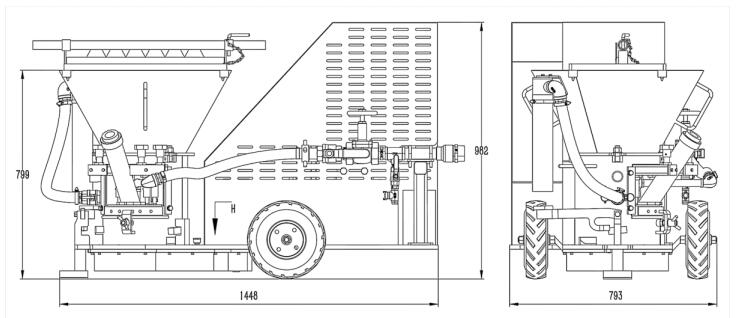

structural features of refractory gunning machine

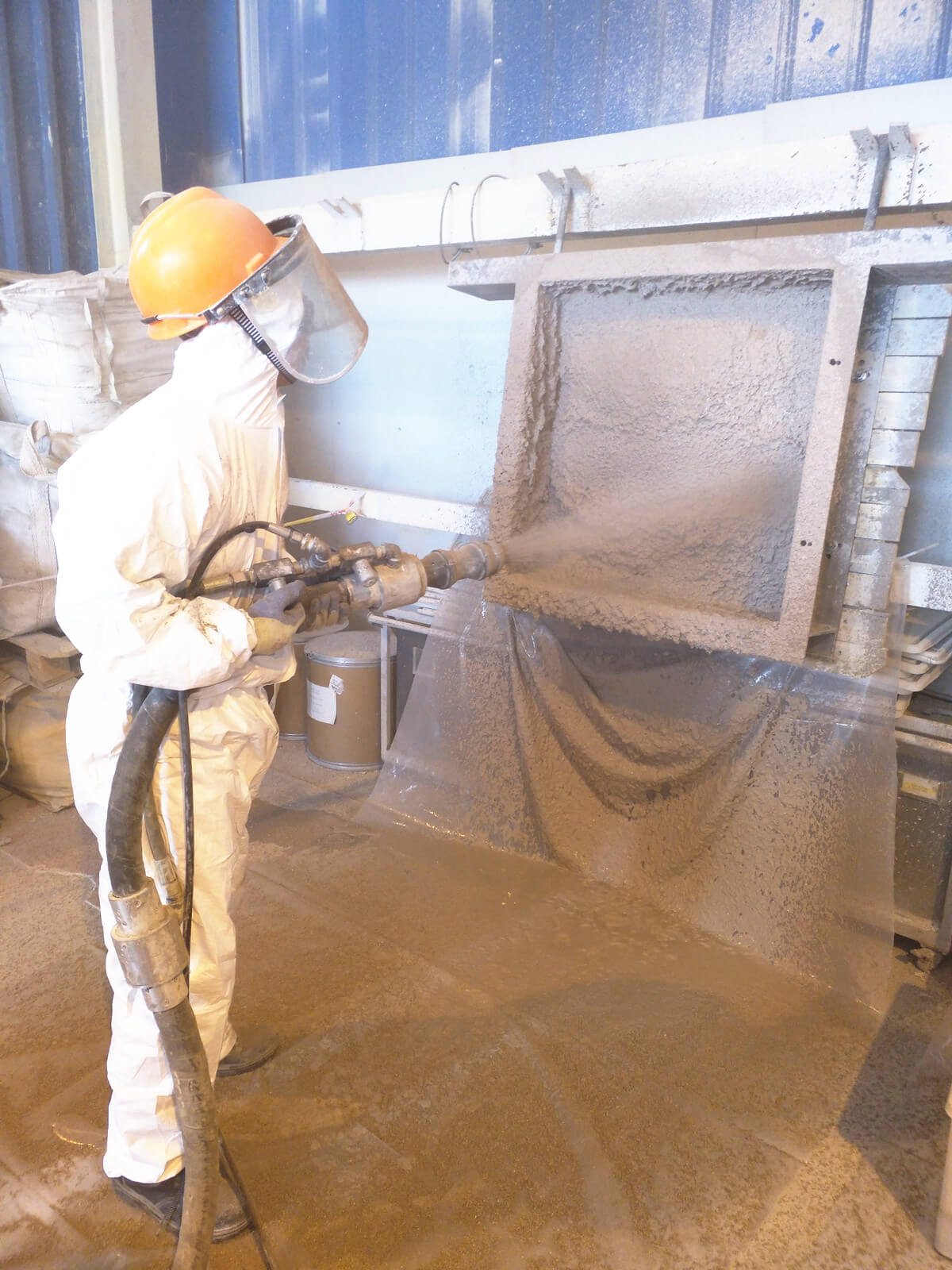

The adjustable output of the material may be increased without sacrificing the quality of the application. The compact GZ-6DR/RD is capable of spraying through 38mm inner diameter conveying hoses. Widely used in refractory spraying and installing projects.

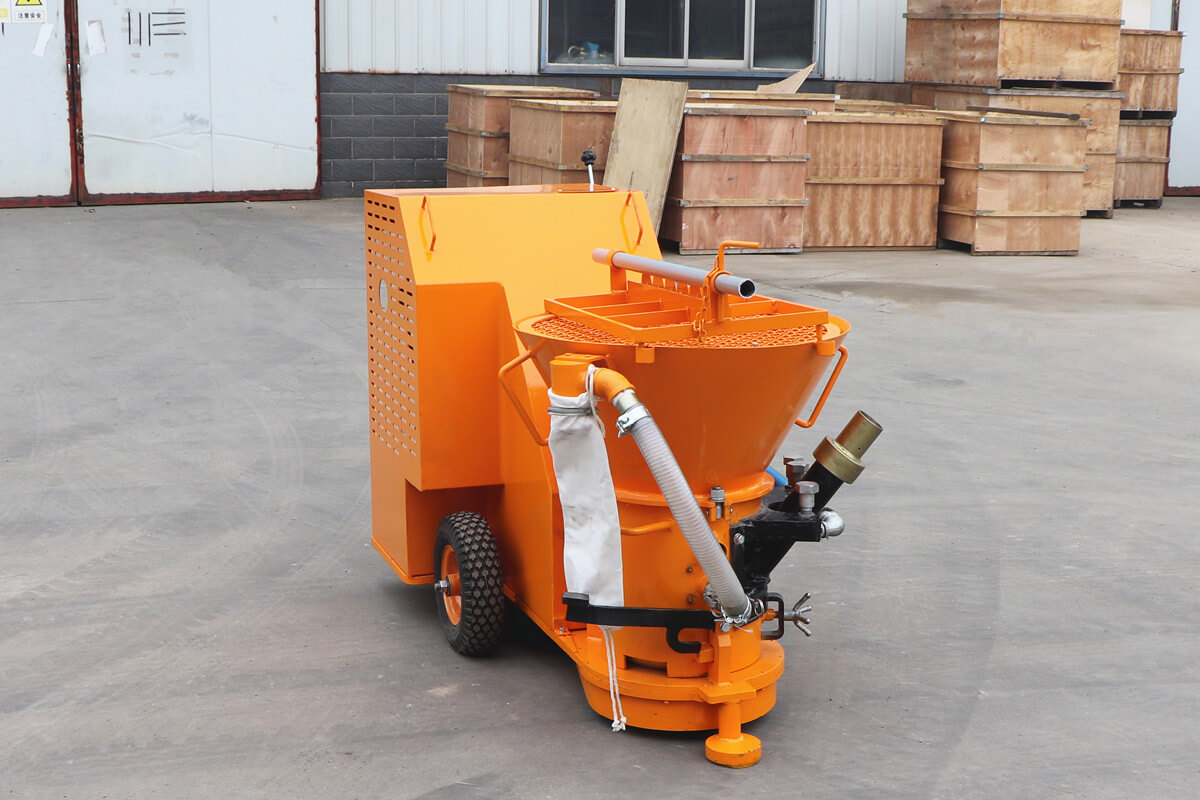

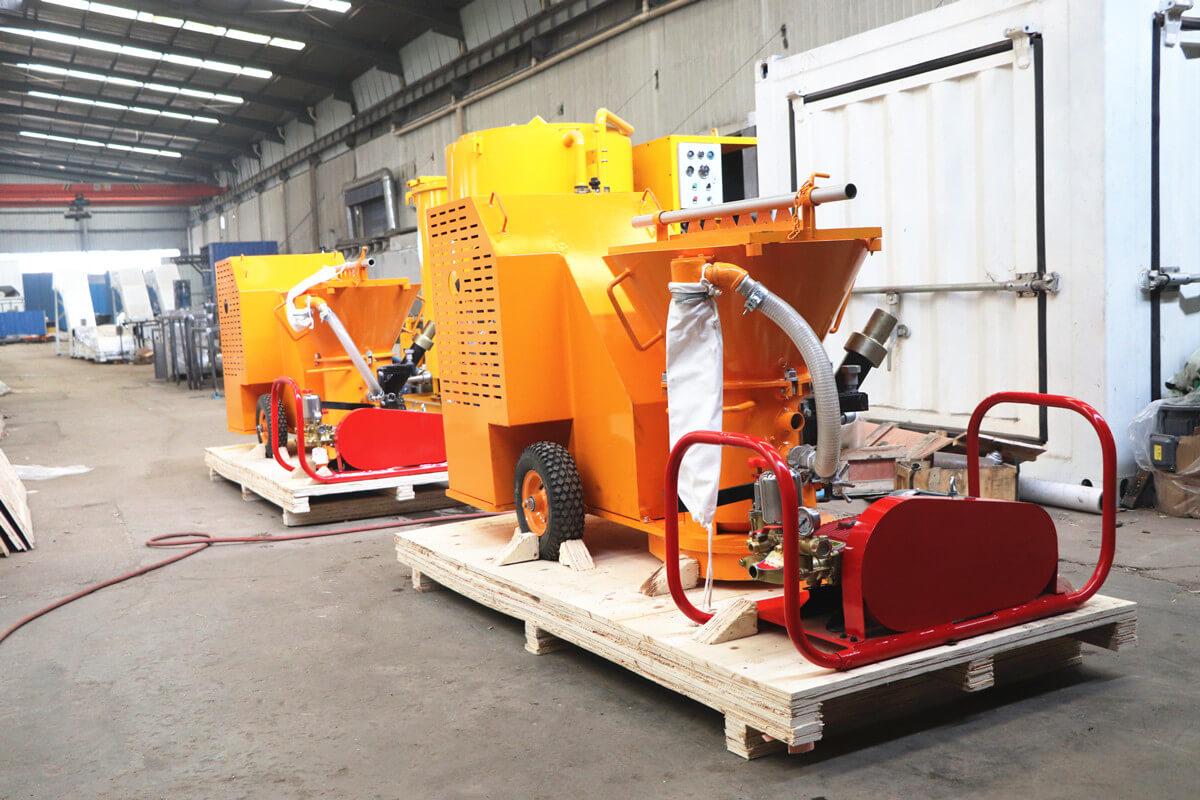

small refractory gunning machine

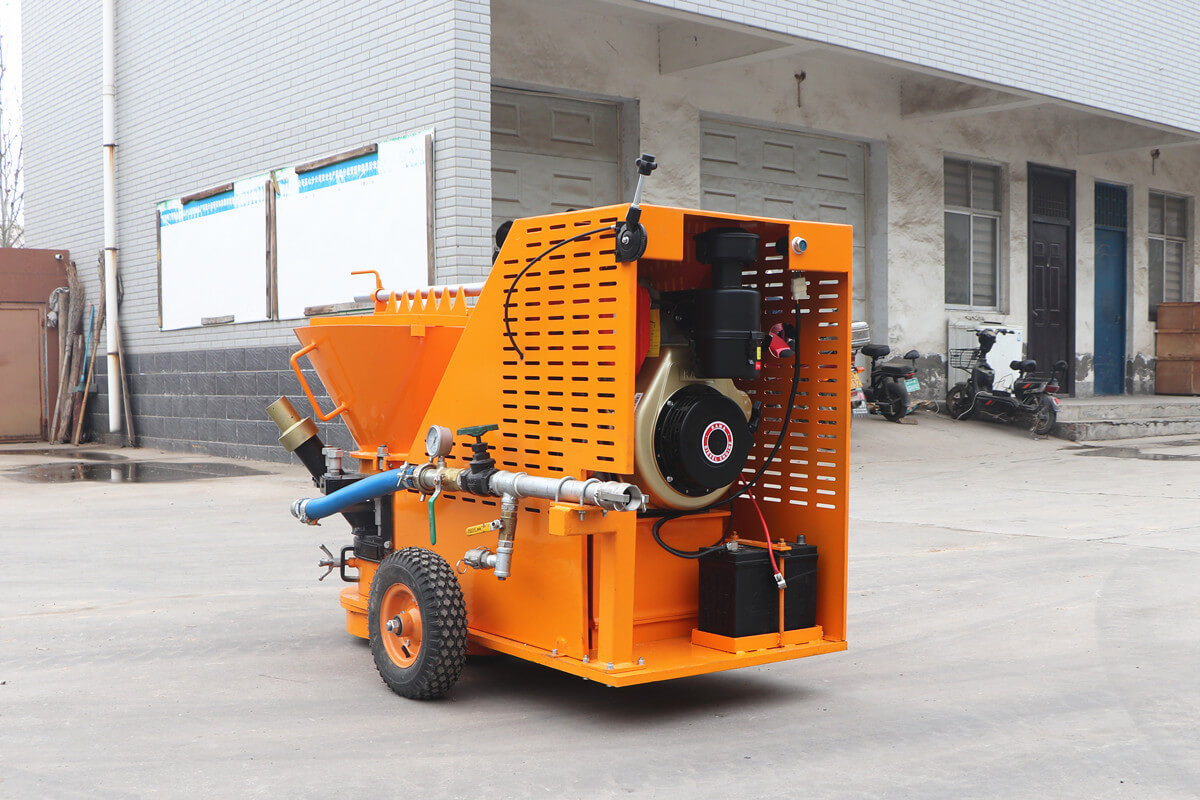

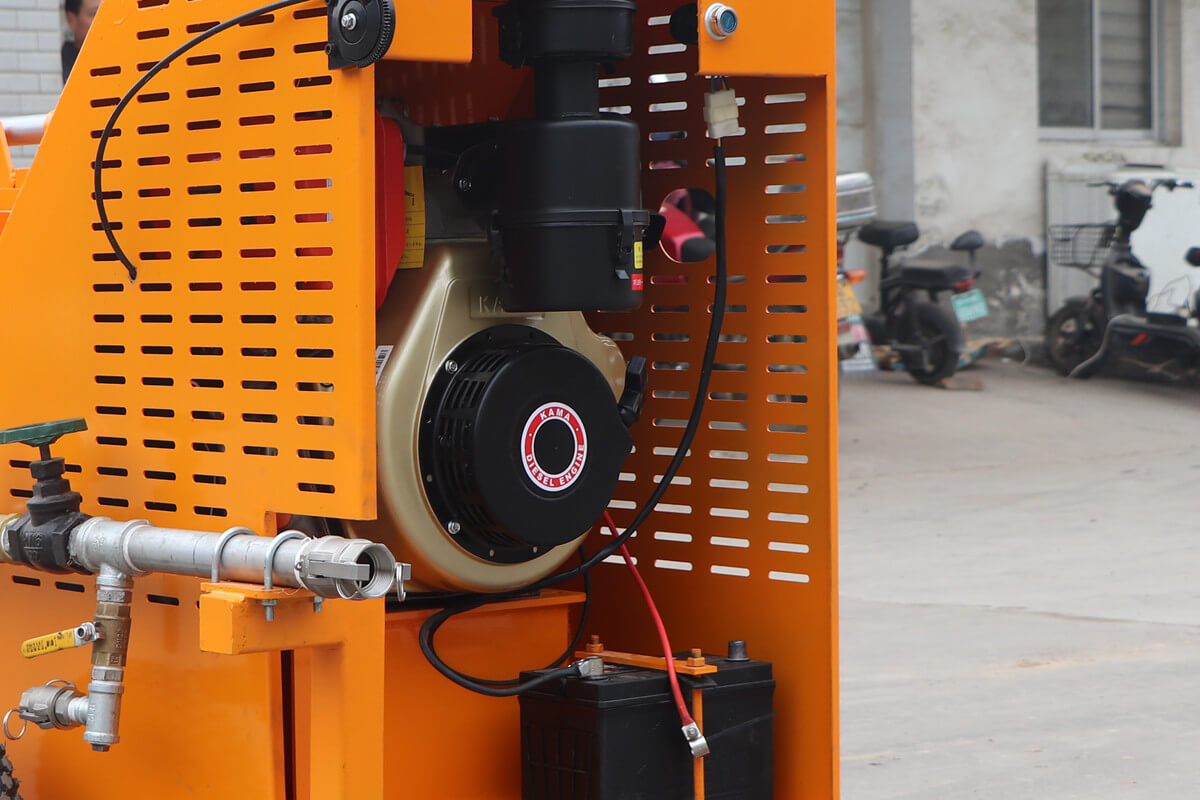

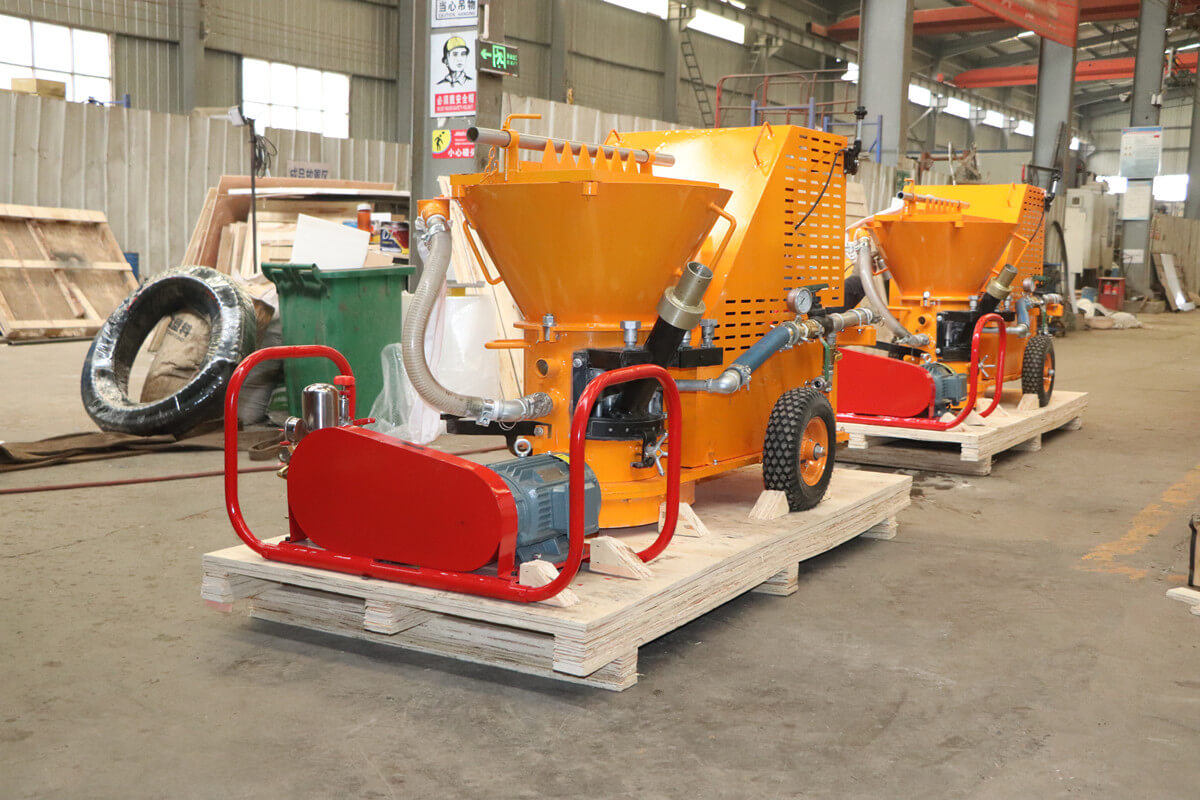

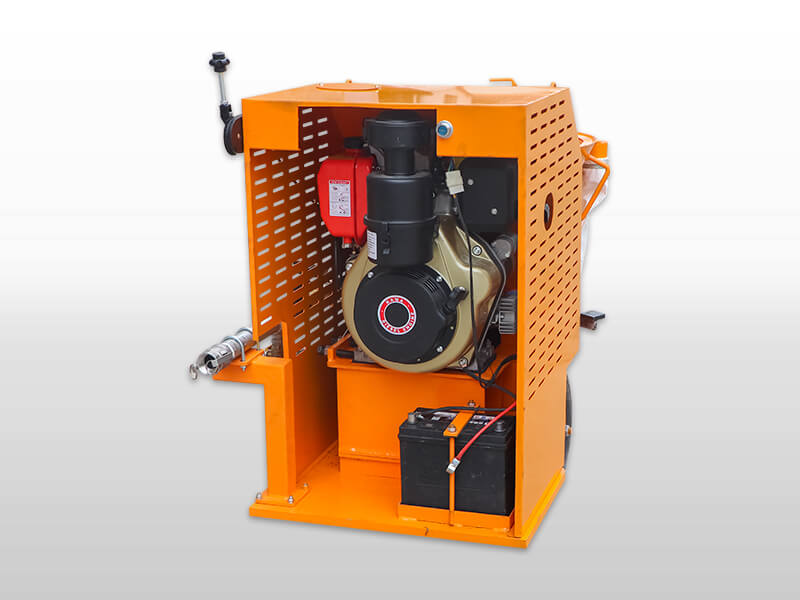

refractory gunning machine with a diesel engine

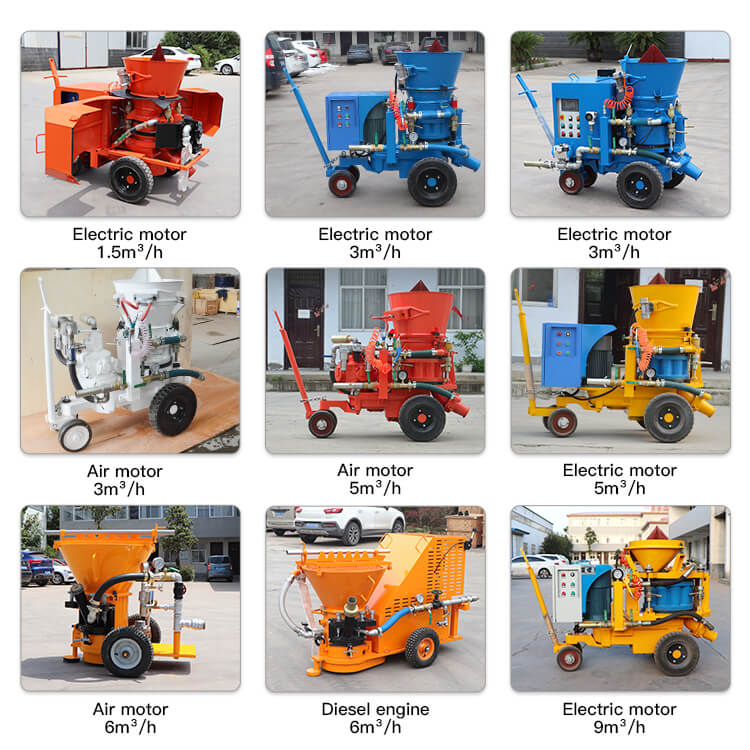

reed similar gunning machine

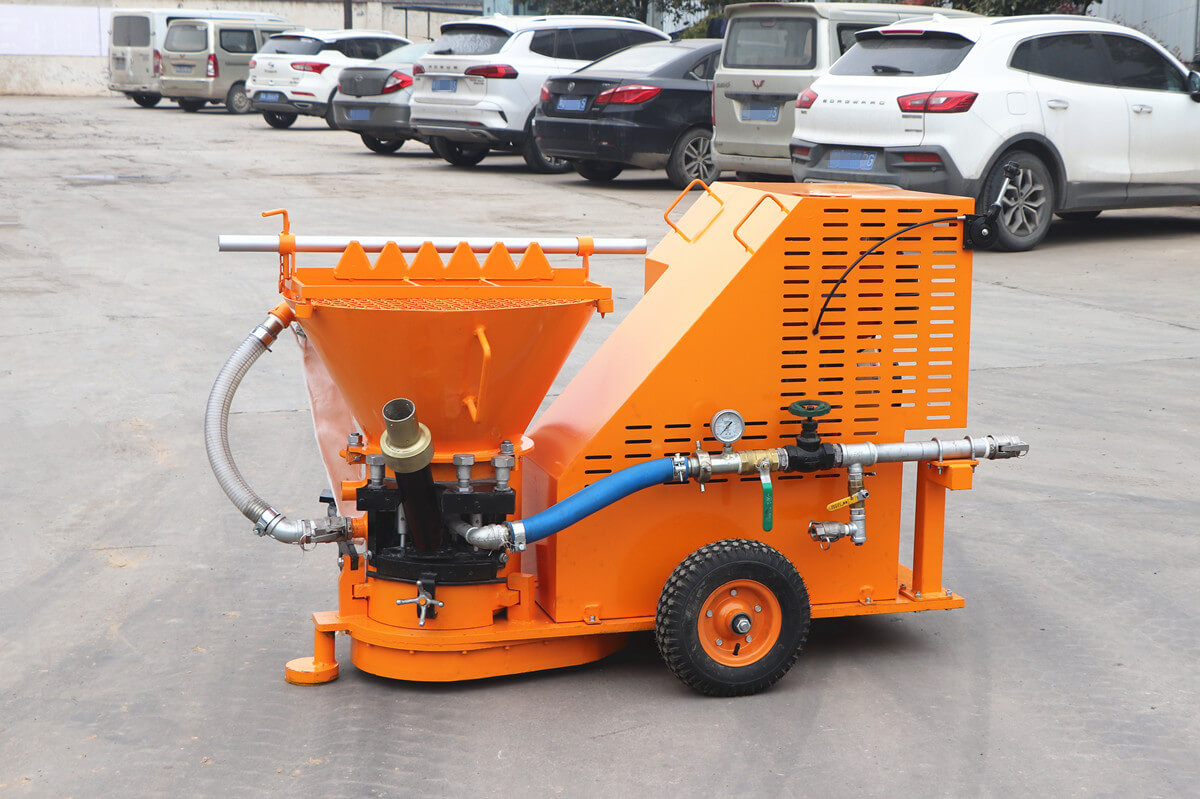

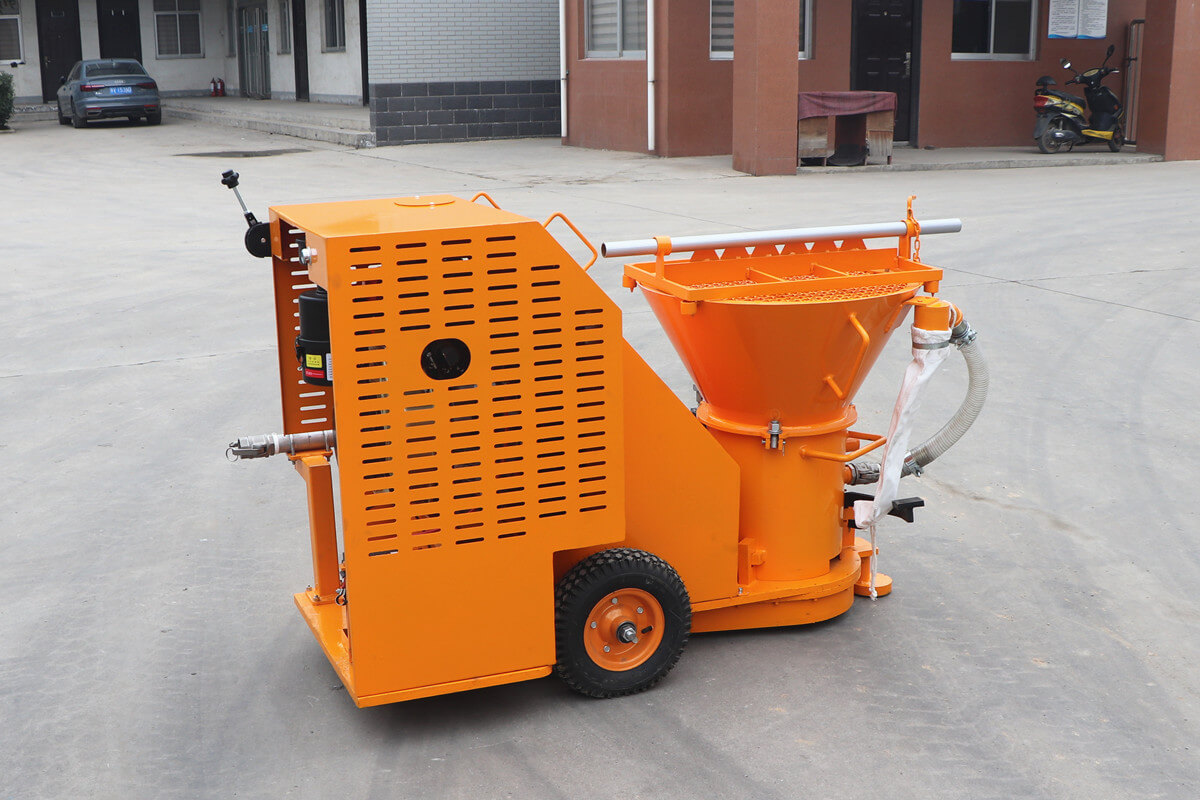

mini refractory gunning machine

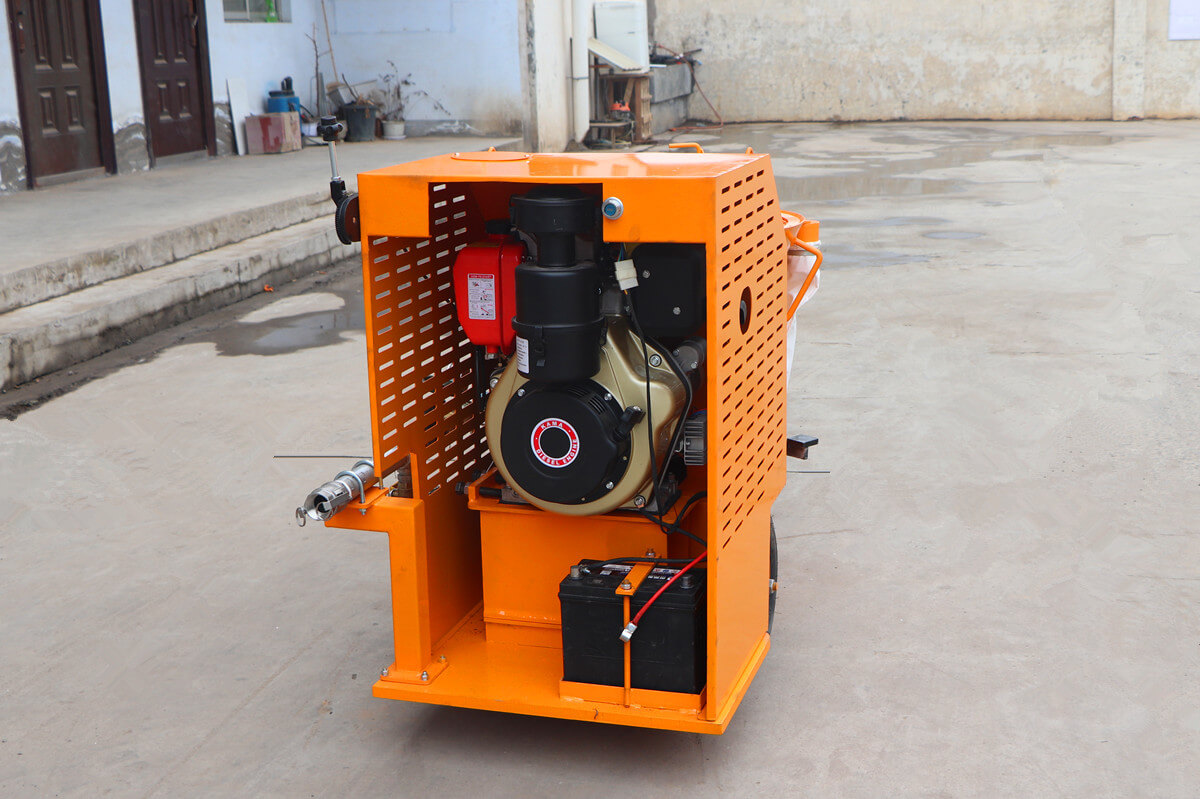

GZ-6DR/RD Diesel engine driven refractory gunite machine uses a diesel engine to rotate the machine’s material feed bowl. An air compressor is required to convey material from the feed bowl to the nozzle.

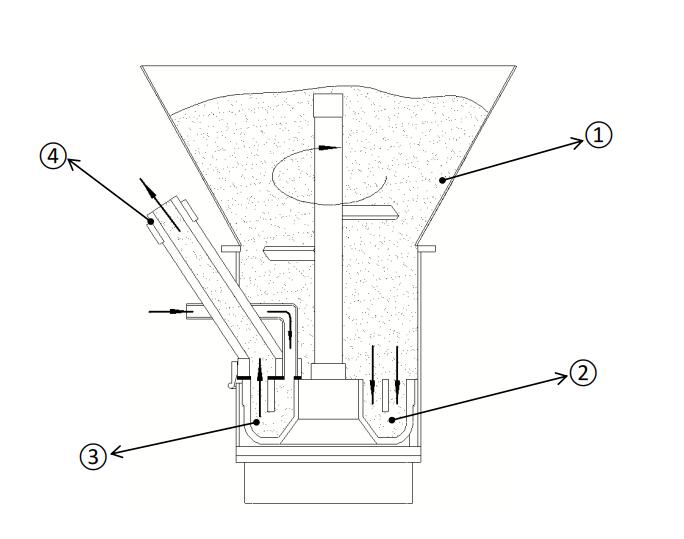

Operating principle of GZ-6DR/RD Diesel engine driven refractory gunite machine:

working principle of diesel driven refractory gunite machine


① The dry material is fed through the hopper down into the pockets of the rotary feed wheel below.
② The rotary feed wheel, driven by a heavy-duty oil bath gear drive, rotates the mix under the conveying air inlet and material outlet.
③ With the introduction of compressed air, the mix is evacuated from the feed wheel pockets and then travels through the outlet and into the hoses.
④ The dry mix material is then conveyed in suspension through hoses to the nozzle, where water is added and the water and dry material mix.

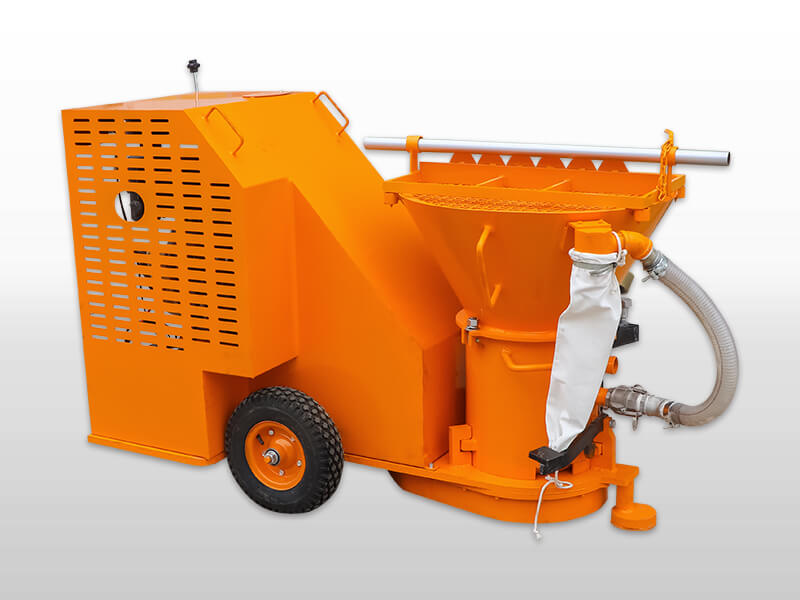

diesel motor refractory gunite machine from China

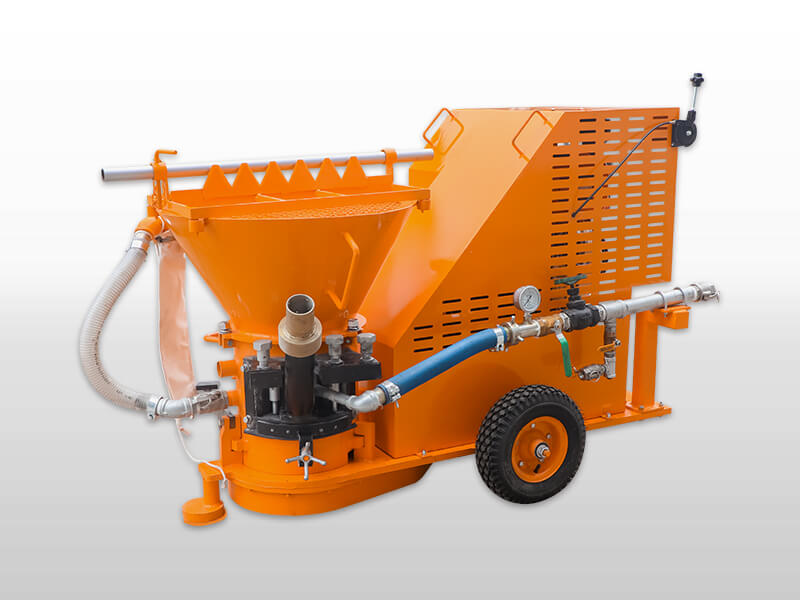

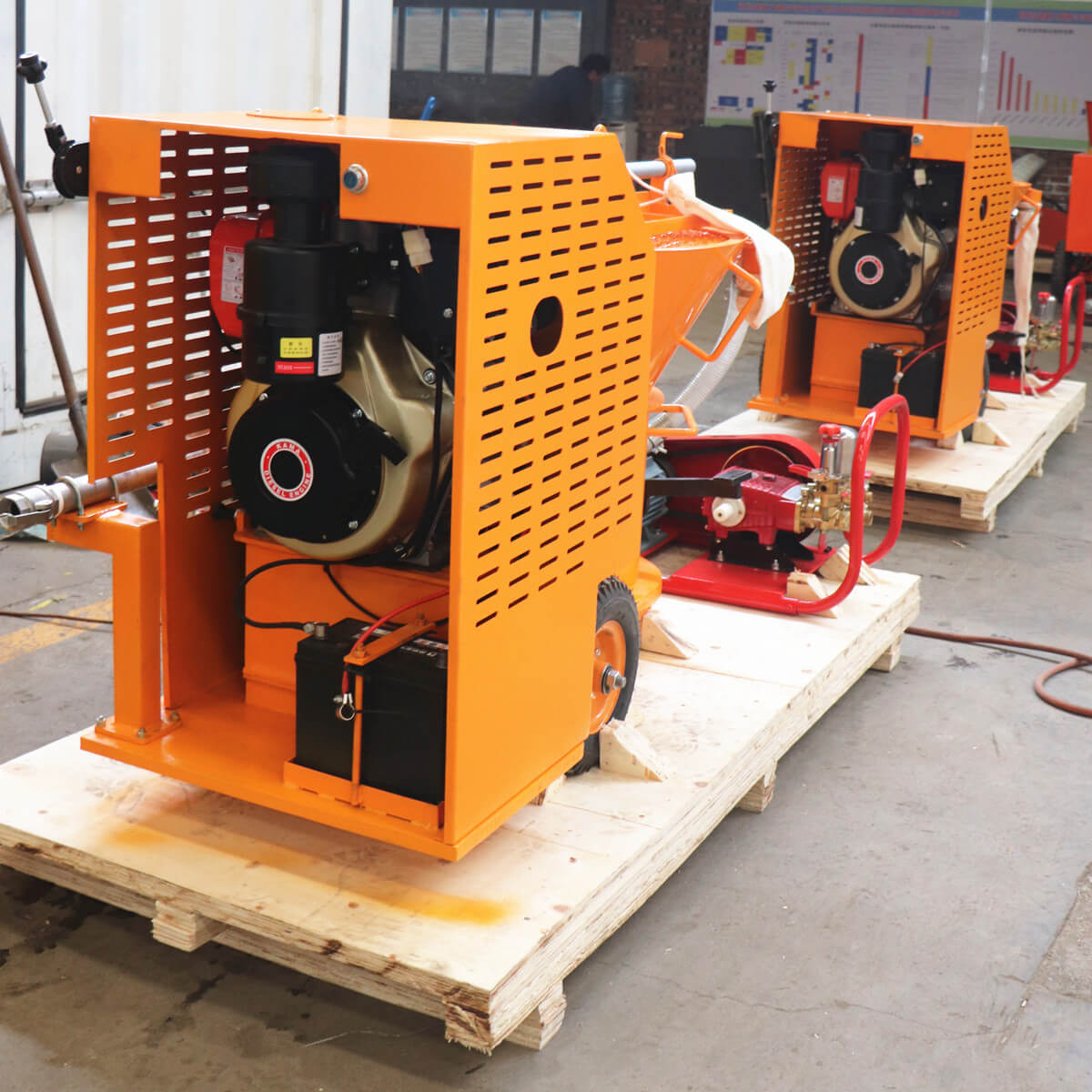

diesel engine refractory spraying machine

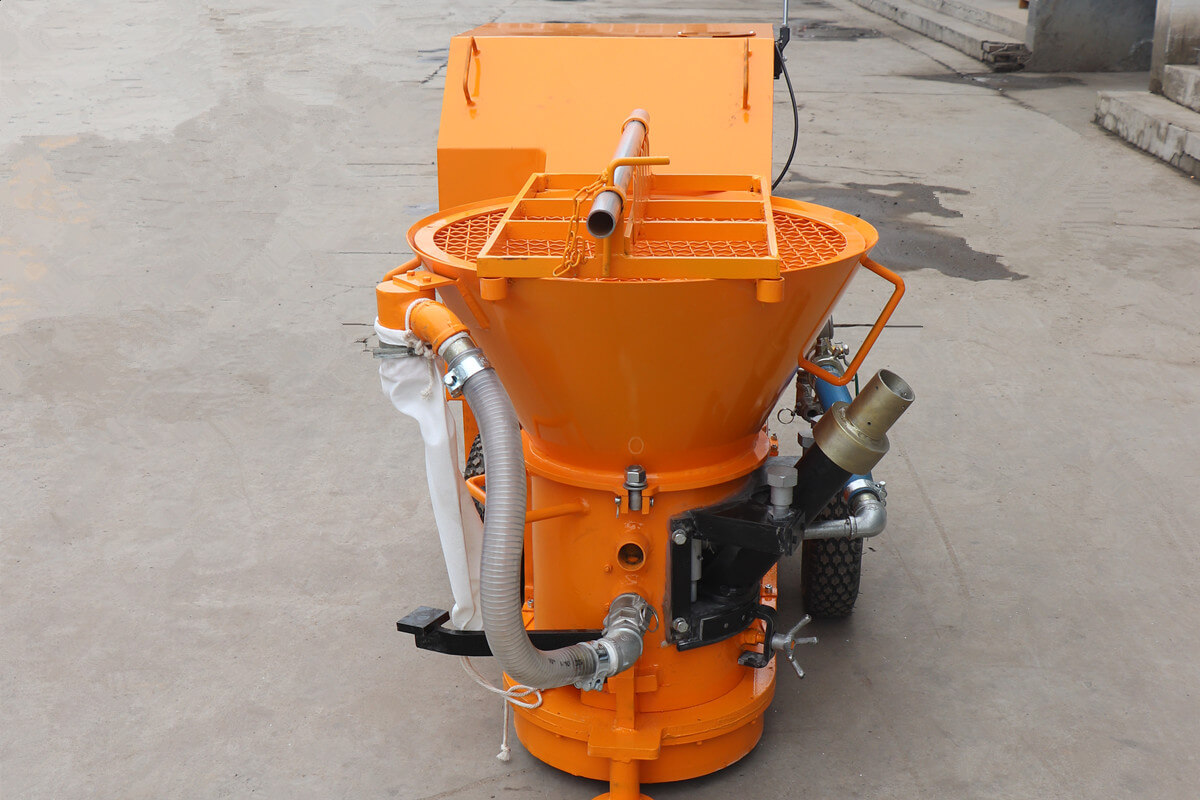

diesel engine refractory dry mix gunning machine
