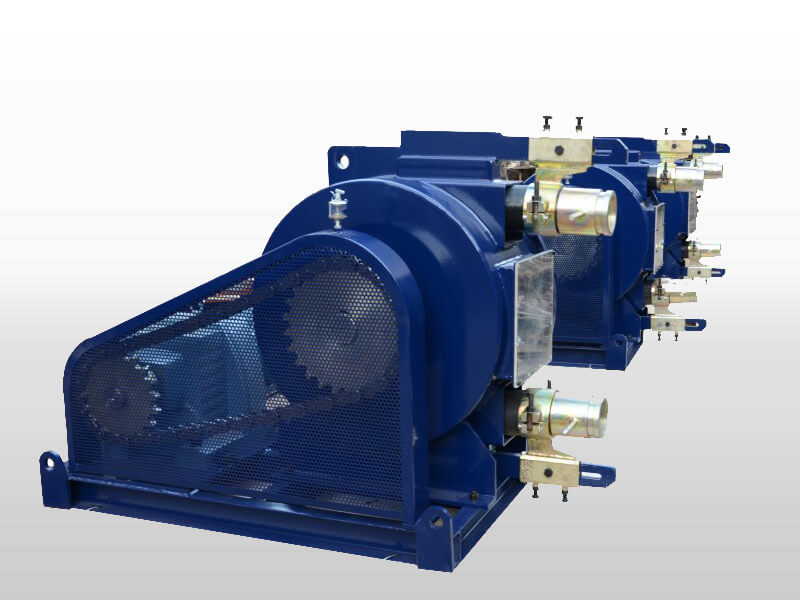

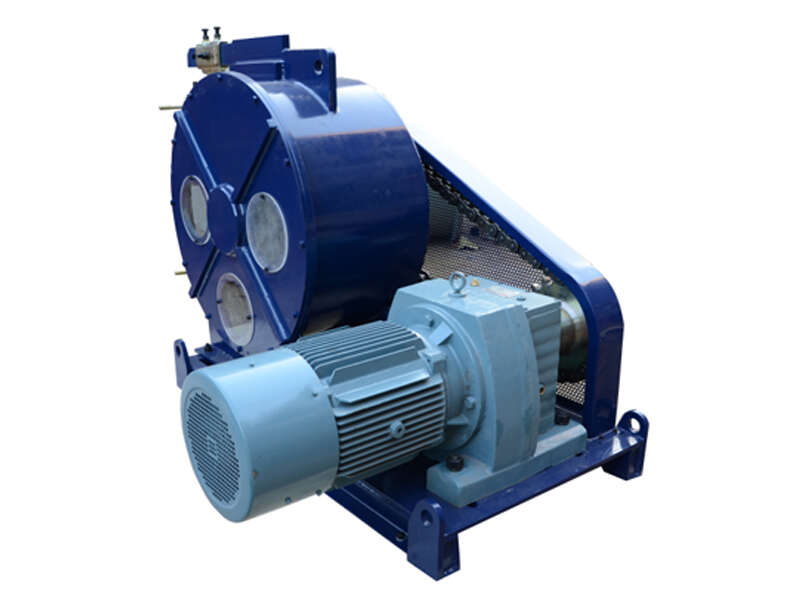

GH89-610C Peristaltic Hose Pump for TBM

  • Max. output: 240L/min
  • Rotation: 45RPM
  • Squeeze hose ID: 89mm
  • Max. pressure: 1.0Mpa
  • Voltage: 3 phase, 380V, 50HZ
  • Power: 22KW

We're here to help:

Easy ways to get the answers you need.

(※ Click this button to inquiry)
download:
Share with:
  • hose pump for TBM
  • peristaltic pump for TBM
  • adjustable flow rate peristaltic pump for TBM
  • adjustable peristaltic pump for TBM
■ Description
♦ GH89-610C Peristaltic Hose Pump for TBM is a kind of peristaltic pump, which is suitable for handling aggressive, high viscosity, high density products, such as abrasive slurry, corrosive acids, gaseous liquids, sand/cement mortar, liquid accelerator, etc. Peristaltic Hose Pump also is used for dosing pump with 1% repeat precision. It consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

♦ High efficiency GH89-610C Peristaltic Hose Pump for TBM is absorbing the advanced technology of foreign countries and developing a new type of multi-functional and multi-functional industrial pump. It is completely separated from the operation mode of the impeller and shaft seal of the traditional pump, and has great advantages in viscosity, corrosiveness, impurities in the fluid medium, and the transmission of the medium. The principle adopted is quite different from the traditional pump, and has a wide range of application.
