1.GYJ series extrusion machine is the special equipment of making the P fixed- end anchorage.
2.YH30 embossing machine is the special extruding equipment of making the fixed-end anchorage, mainly used for extruding  the fixed-end of Prestressing strands into pear-shaped scattering shape.
3. For prestressing and post-tensioning use.
4. Good quality with high performance

It has been widely adopted by modern construction, especially used in pre-tension or post-tension for concrete constructions as building materials, such as bridge construction, railway and highway construction, buildings and channel construction, ect.

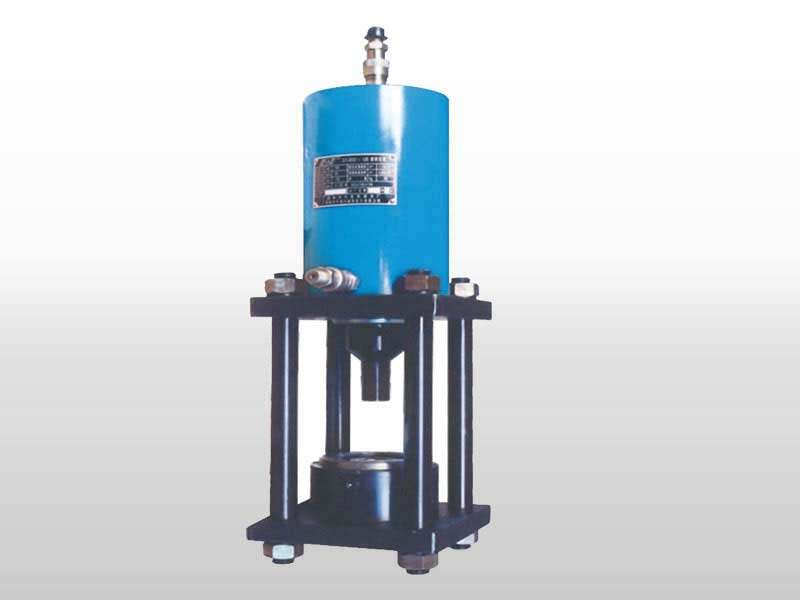

For GYJ extruding machine:
Extruding Machine is a professional equipment mainly used to extrude prestressed cable and make them become grip Wrap type anchors. it is applied for single end anchoring, such as Φ12-Φ15.7 prestressed cable. This method is very simple and this kind of equipment is easy to operate, high efficiency with extruding 20 or 30 pieces of anchors per hour.
For YH30 embossing machine:
YH30 Embossing Machine is a special equipment which is applied in multistrand fixing and H type anchoring system. After replaced the wedge, it can be used for the other specification of steel strands. YH30 type embossing machine is small in size, light, and easy to operate. .

The technical parameter of GYJ extrusion machine:

parameter table of GYJ extrusion machine
Model	Rated extrusion	Extrusion	Extrusion	Return area	Stroke of	Mass	Overall
	pressure	hydro-cylinder	area of piston	of piston	extrusion		dimension
	KN	Mpa	m²	m²	mm	kg	mm
GYJ500	495	63	7.85 ×10-³	4.5×10-³	150	70	760×200×200
GYJ600	565	50	1.13×10-²	4.95×10-²	150	50	605×195×195

The technical parameter of YH30 embossing machine:

Parameter table of YH30 embossing machine
Model	Rated stressing	Oil	Return area	Extrusion area	Stroke of	Mass	Overall
	pressure	pressure	of piston	of piston	extrusion		dimension
	KN	Mpa	m²	m²	mm	kg	mm
YH30	30	43	0.425×10-³	0.707×10-³	70	11	560×155×215
