GH32H mortar spraying machine is a micro-mortar transport, spraying equipment, which is designed based on the combination spraying characteristics of hose pumps and mortar (or similar materials) pumping. Equipped with a dedicated spray gun.

GH32H mortar spraying machine can be used for spraying glass fiber mortar, mortar, gypsum, putty and other viscous, difficult to transport materials. Spray uniform and continuous, widely used in construction and crafts production areas.

1. No valve, suitable for pumping mortar with glass fiber and other viscous slurry;

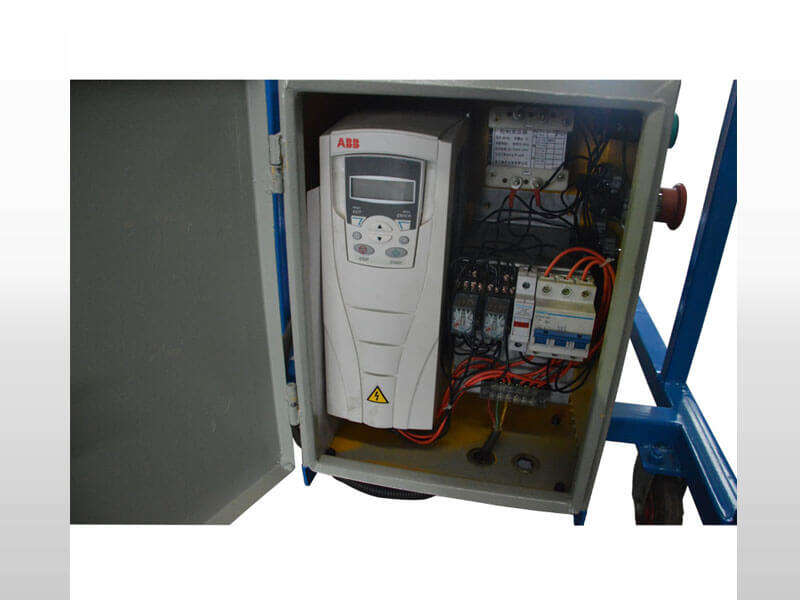

2. Variable output with ABB variable frequency;
3. High self-priming ability, no backflow, stable flow;
4. Easy to clean, online cleaning, no need to remove the pipeline;
5. Less wearing parts, only the hose is wearing parts, easy maintenance;
6. Machine structure is compact, suitable for small space work;
7. Spraying uniform and continuous.

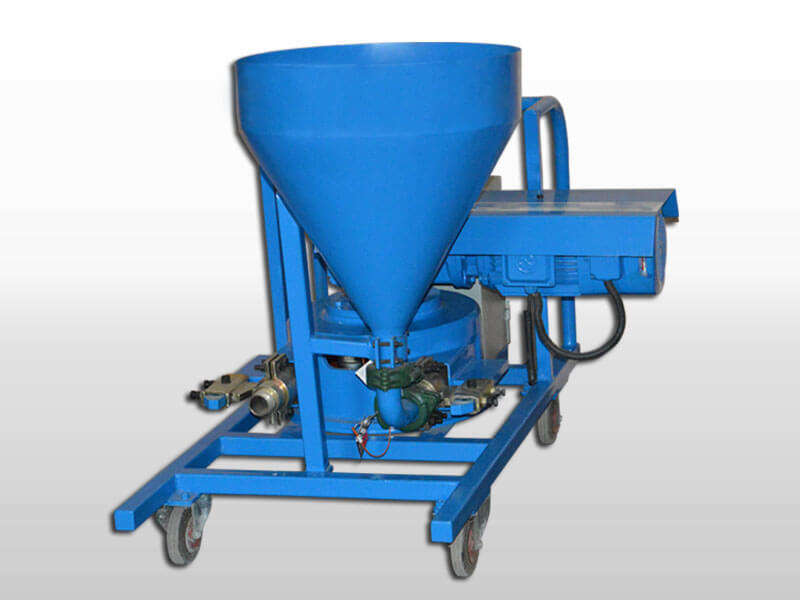

GH32H Mortar Spraying Machine
Output	5-20L/min
Working Pressure	1.5Mpa
Hose Pump Model	GH32-330
Rotor Speed	32r/min
Gearbox	KF57
Electric Motor Power	2.2KW 380V 50HZ 3phase
Squeeze Hose ID	32mm
Hopper Capacity	56L
Conveying Horizontal Distance	30m
Air Consumption	250L/min
Material Charging Height	1000mm
Overall Dimension	1200×940×1000mm
Net weight	240kg
