1. Steel tank
Only as a carrier for fluid; fast clean up
The sleek design of the tank provides a smooth slurry flow pattern

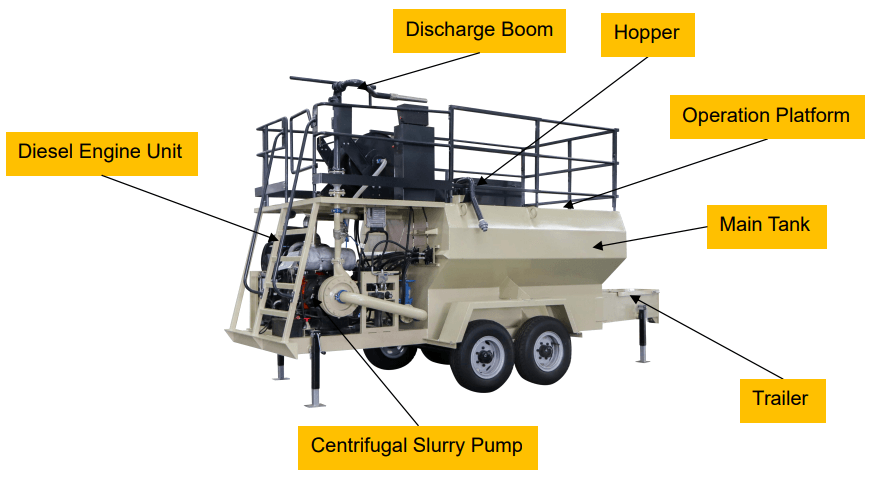

2. Power unit
Cummins 72 hp diesel engine with electric start
Pneumatic clutch controls the action of the centrifugal slurry pump
Provides power to the hydraulic system

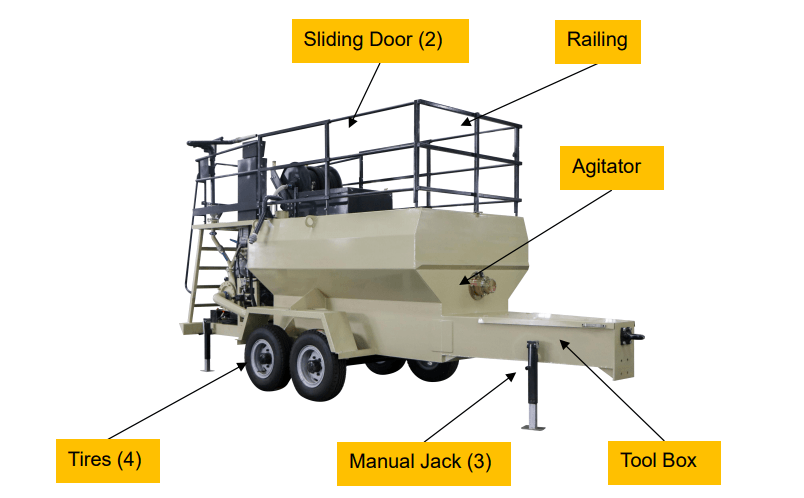

3. Agitator (reliable and more uniform)
A heavy-duty agitator driven by a variable speed, reversible hydraulic motor.
Paddles are supported completely by a heavy steel frame and put stress on the tank.
Paddle agitation quickly mixes a load of materials

4. 4″ X 2″ centrifugal slurry pump
Pneumatic clutch-controlled centrifugal pump
Outlet 3 pipelines: discharge boom, self circulation, DN32 hose reel
Fully mixed materials by self circulation system
Long injection distance, high efficiency and high factor of safety
Easy and convenient maintenance and replacement of vulnerable parts

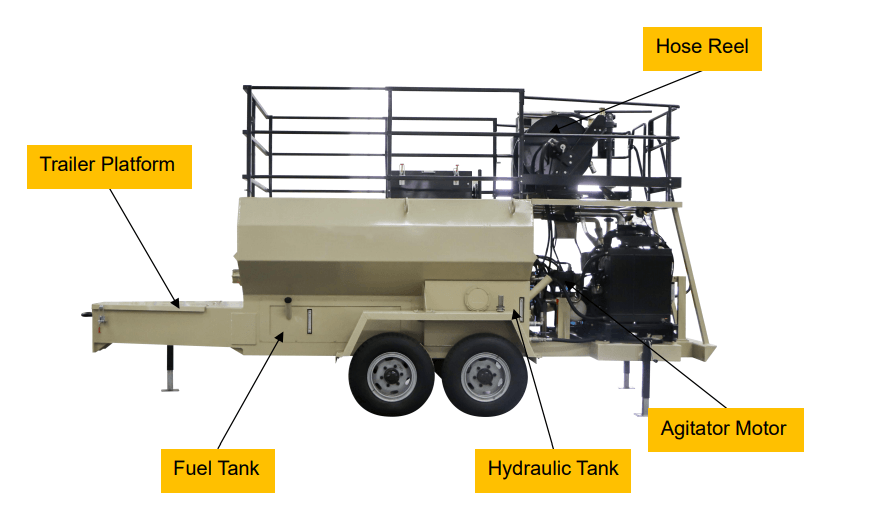

5. Hose reel
The winding capacity of the hose reel is 50m
Jets equipped with a quick coupler for easy service in the unlikely event of a problem.
6. Trailer
For ease of use, the large loading hatch is located at the front of the unit
The independent torsion suspension axles
Heavy duty truck wheels with standard highway-rated tires provide
solid stability on uneven terrain

7. Control system (safe and easy to operate)
Hydraulic control system
Electrical control system
Local control mode and remote control mode
