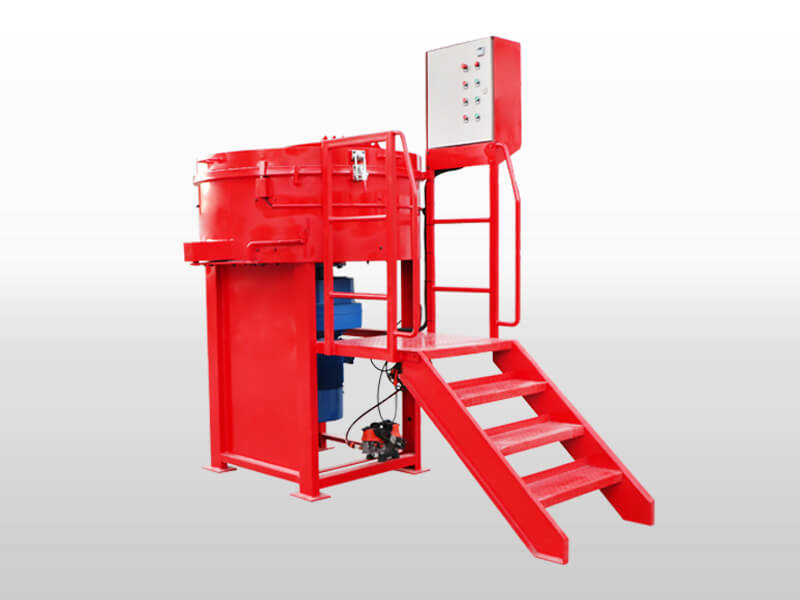

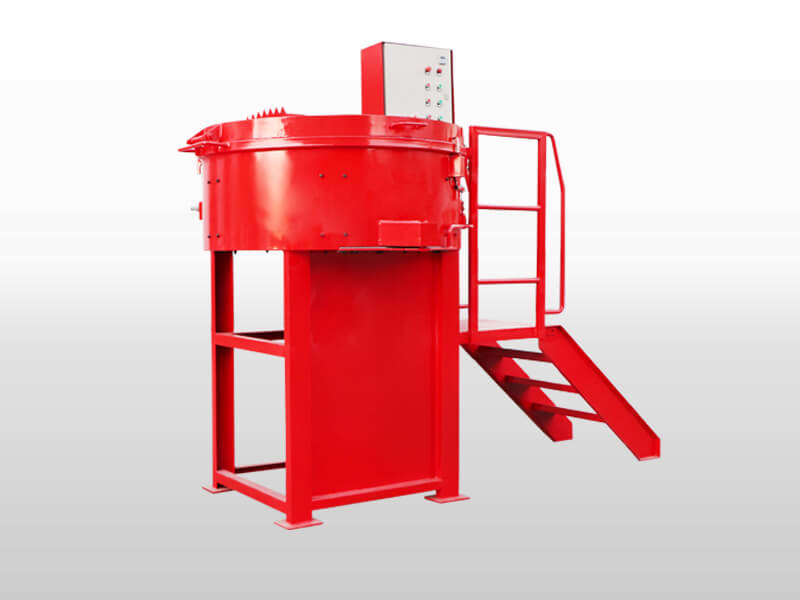

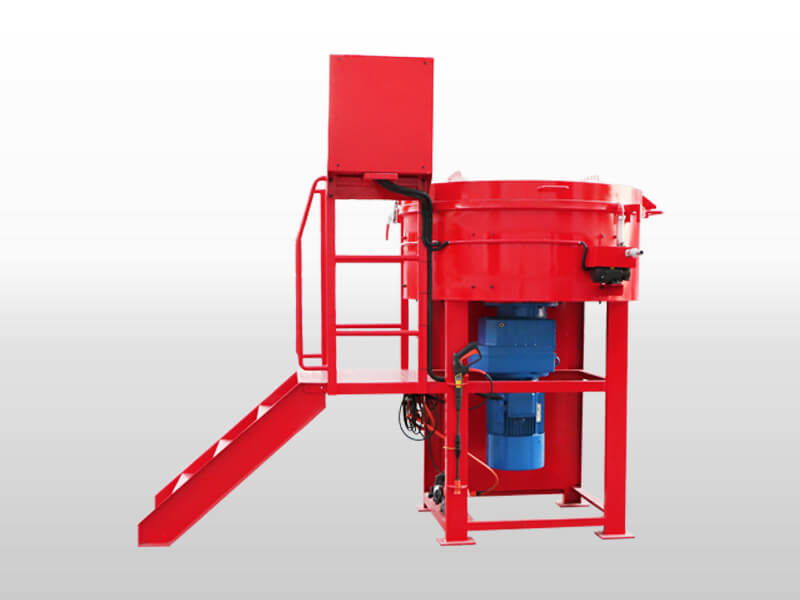

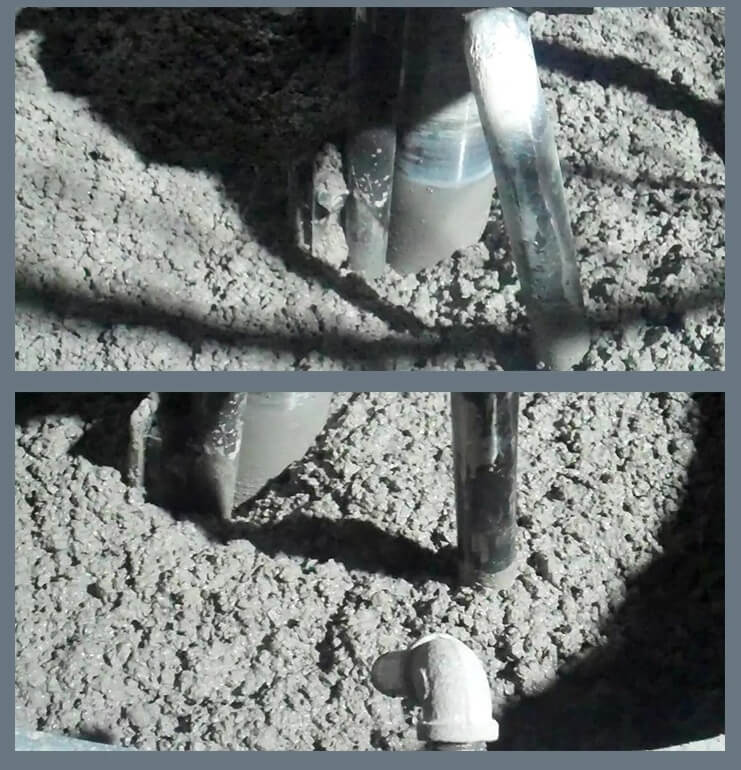

GRM800 Refractory Pan Mixer is the most efficient and productive mixer for refractory castables. It is reinforced with bolt in high wear resistance steel drum liners, making the refractory pan mixer the most durable refractory mixers on the market. The unique paddle design is exclusive to GAODETEC. The paddles are oriented vertically to forcibly cut through material. Durable mixing blades allow for uniform mixing. Usually, work with wet refractory spraying pump to finish refractory installing.

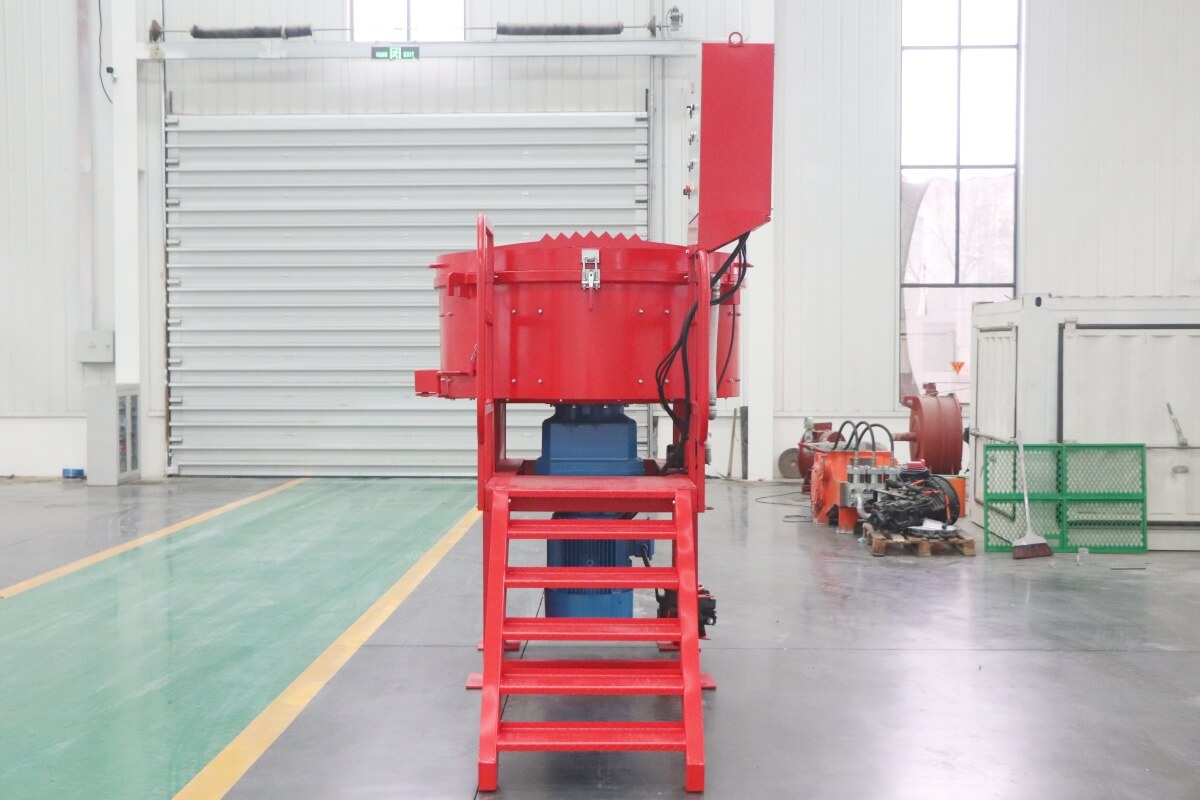

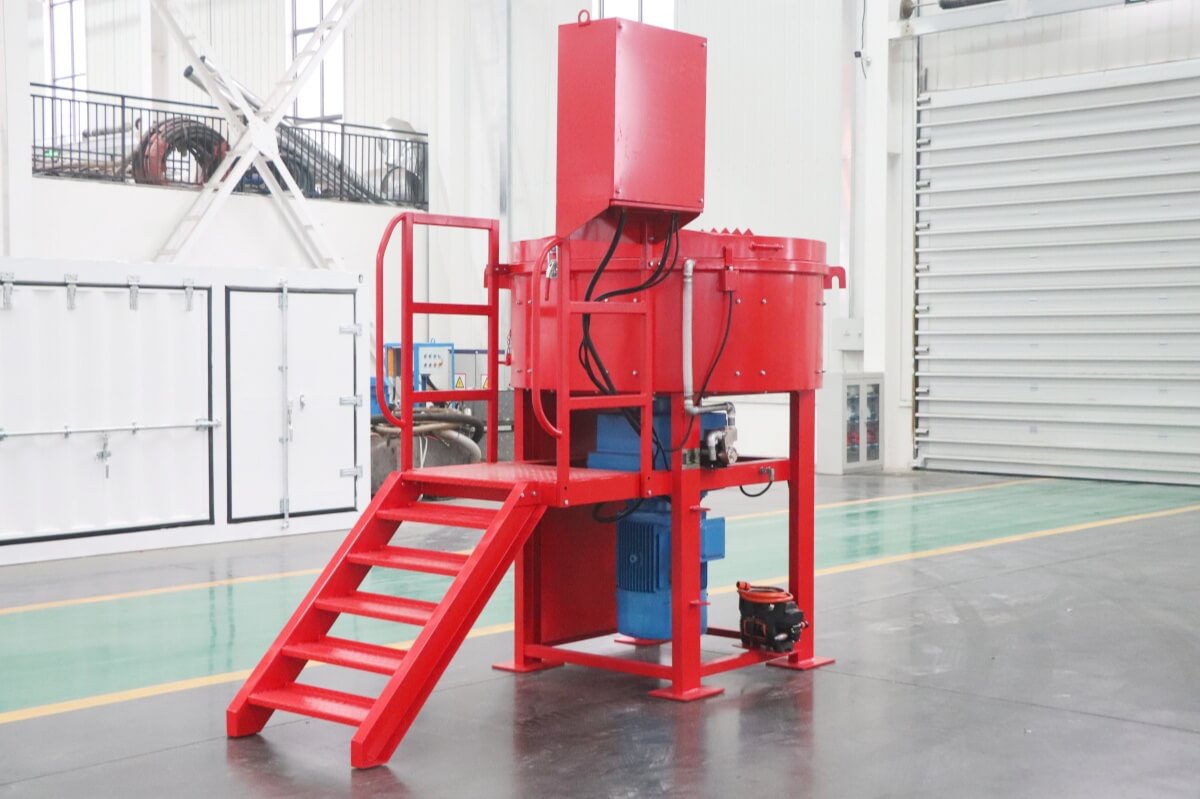

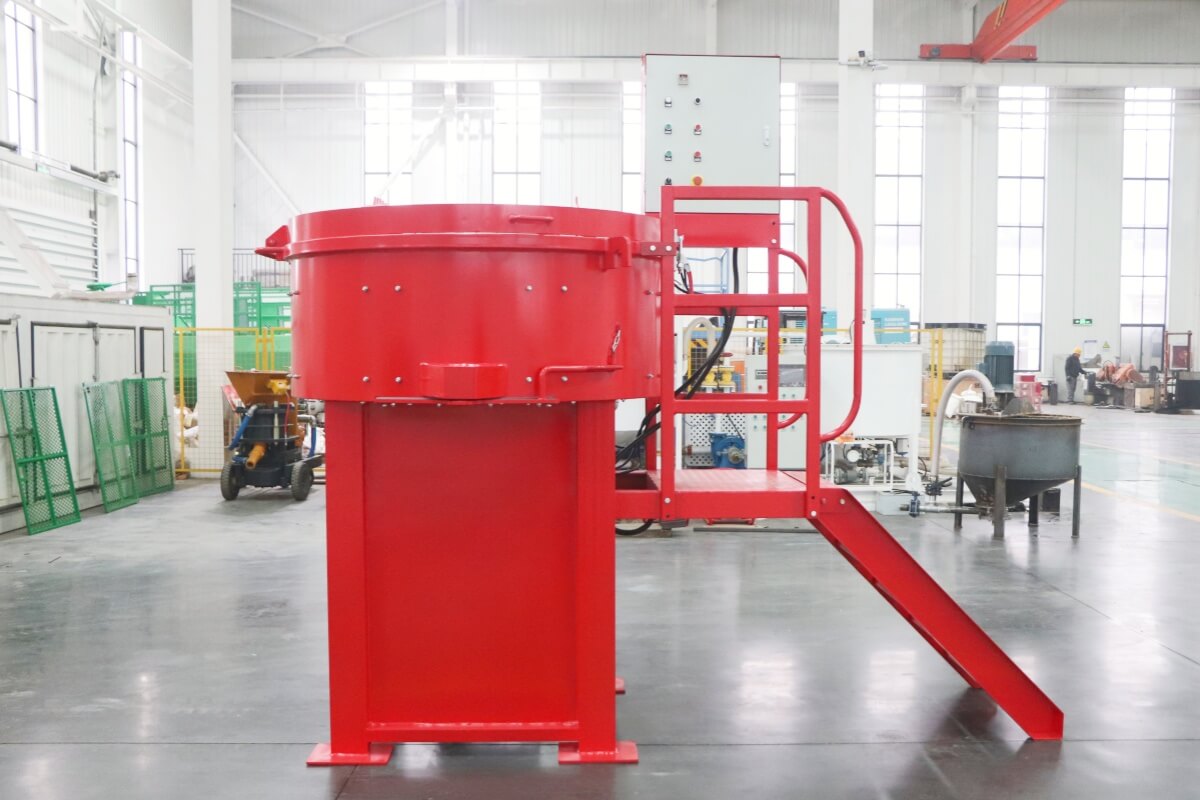

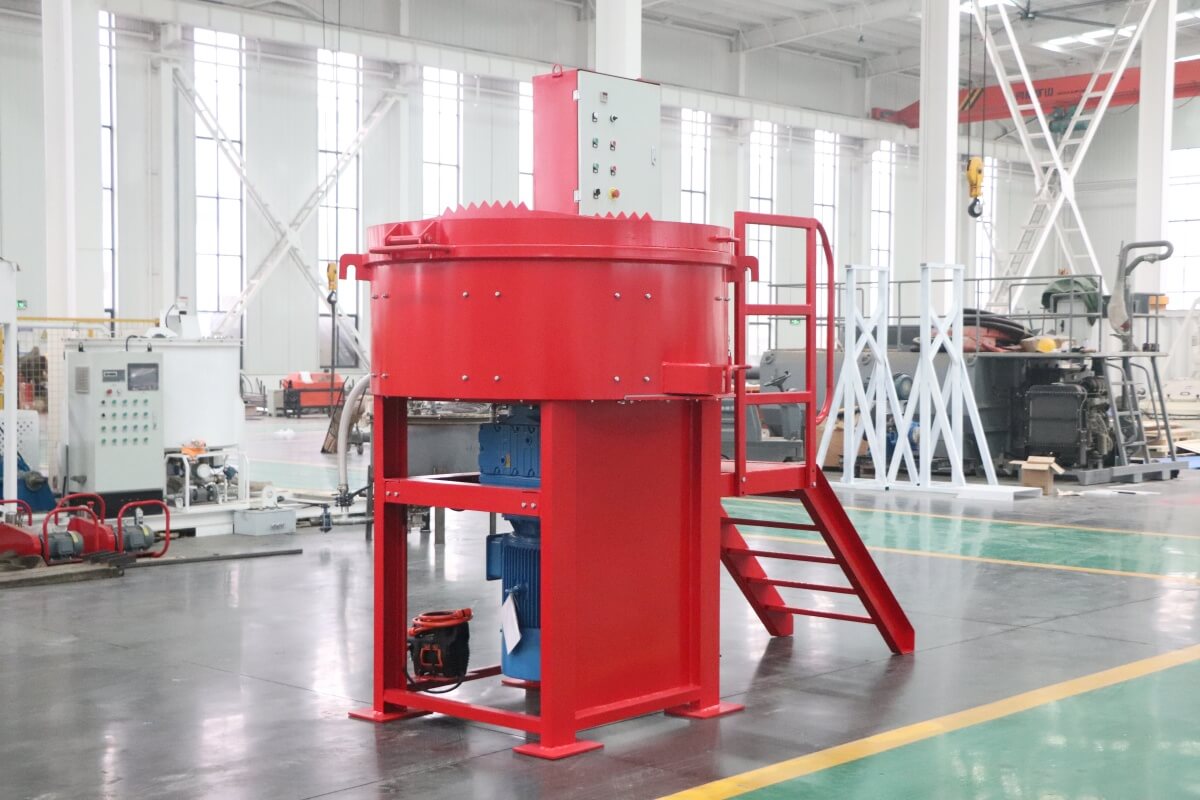

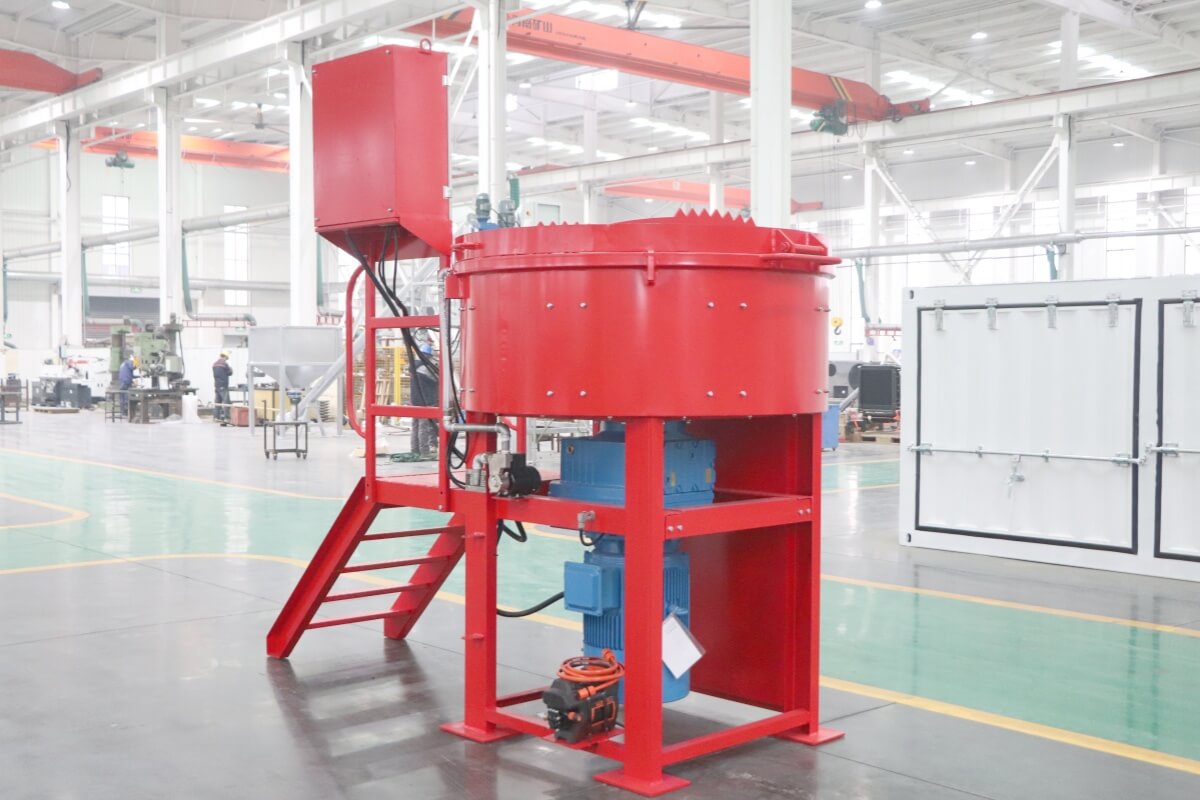

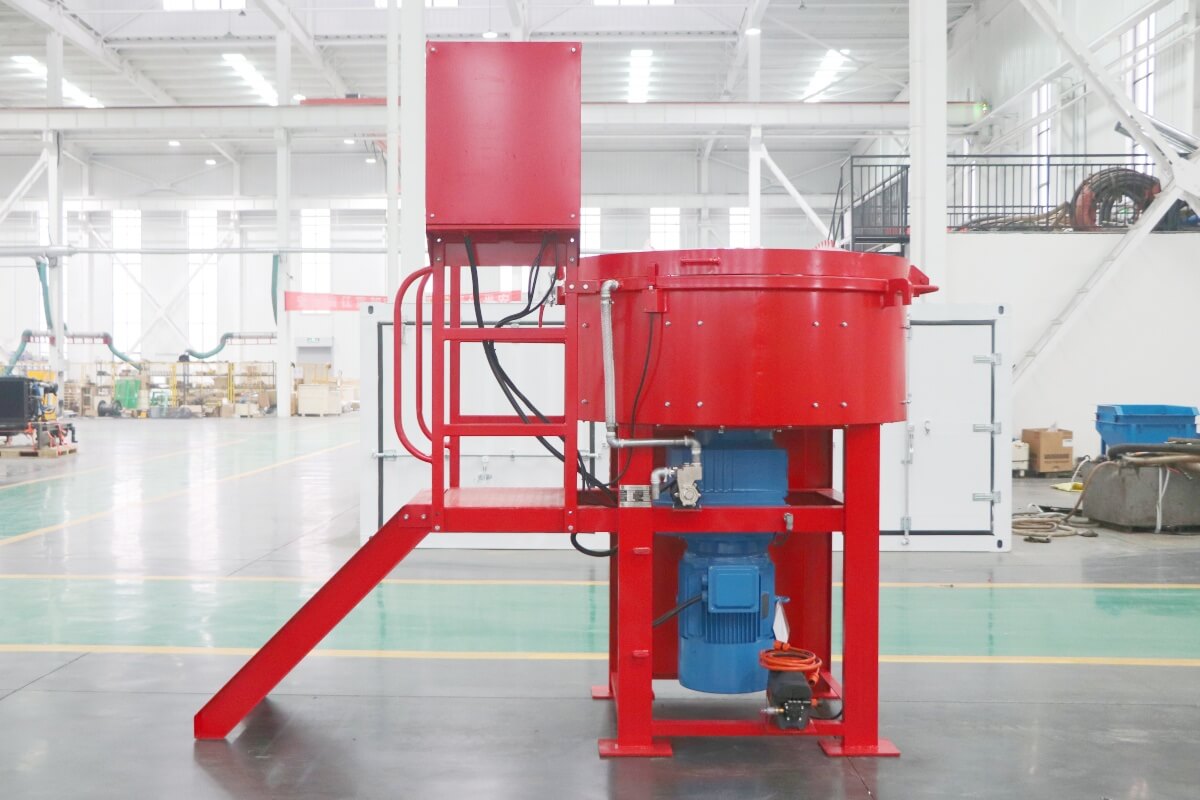

Factory display of GRM800 800kg castable refractory pan mixer:

GRM800 Refractory Pan Mixer is used for mixing refractory materials, friction materials, chemical matrials, glass reinforced concrete (GRC) with glass fibers in mix, precast concrete, mortar, aggregrate mixing and glass materials etc.

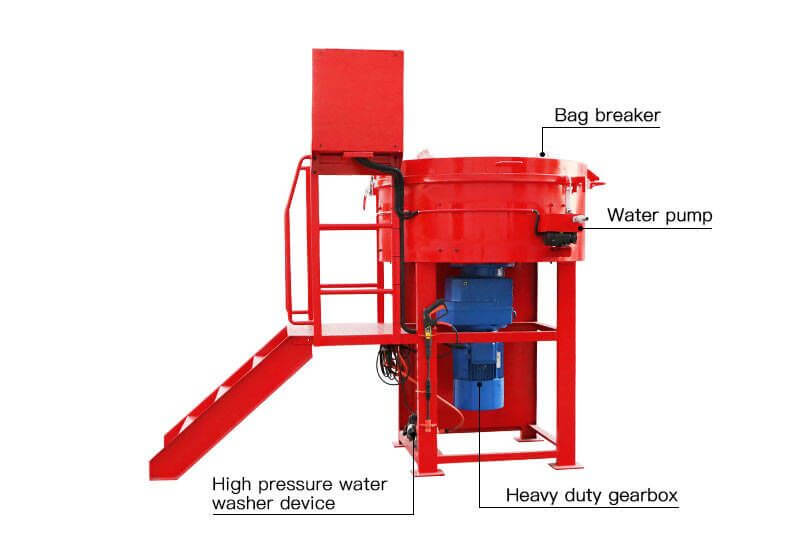

1. Operators platform with safety rails and ladder;
2. Fast mixing speed and homogeneous;
3. Equipped with high pressure water washer device, easy to clean;
4. Easy to move, equipped with forklift hole;
5. Manual discharge door, hydraulic discharge door for option;
6. Soft start device protecting motor.

GRM800 800kg capacity castable refractory pan mixer details picturers:

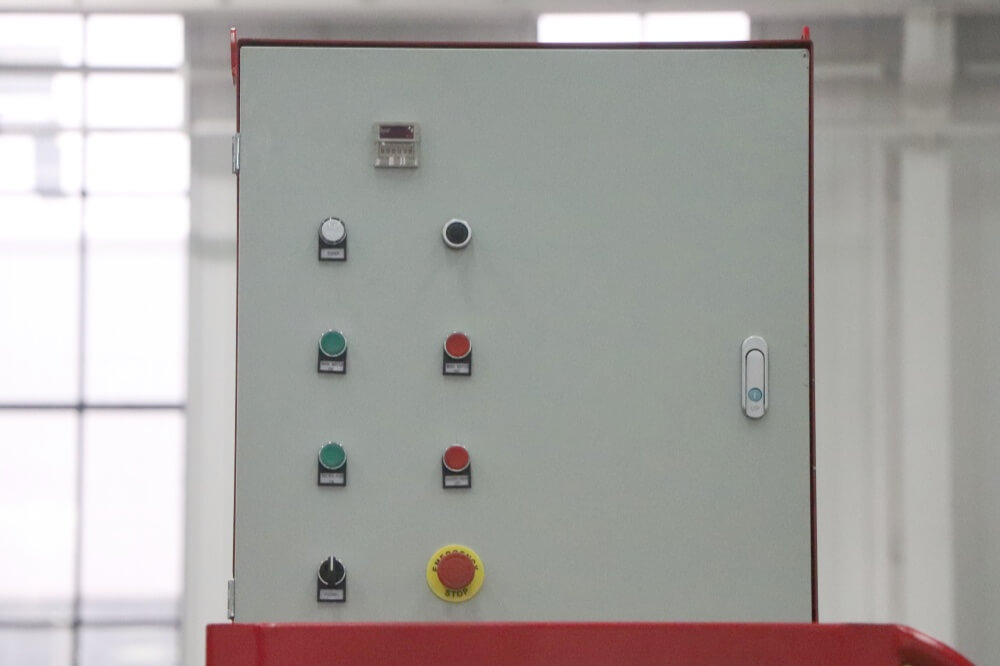

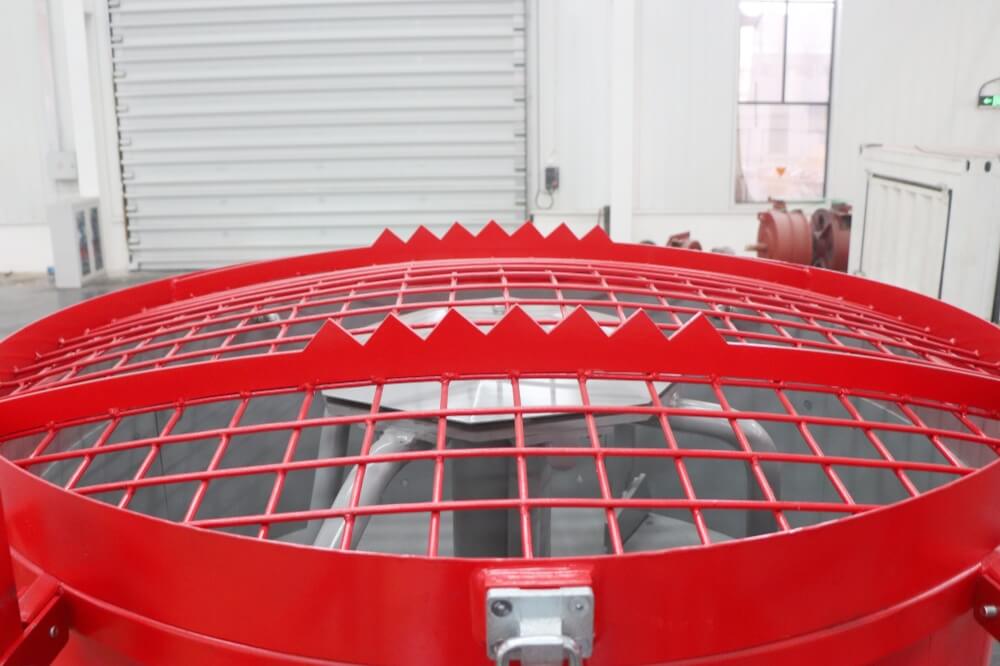

Control panel	Cover with bag breaker

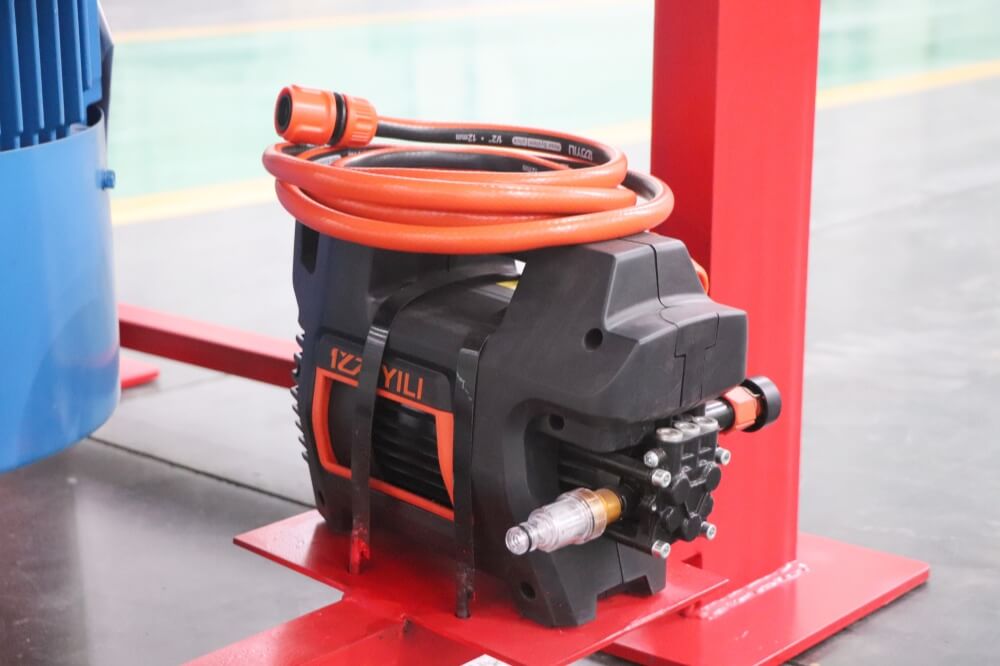

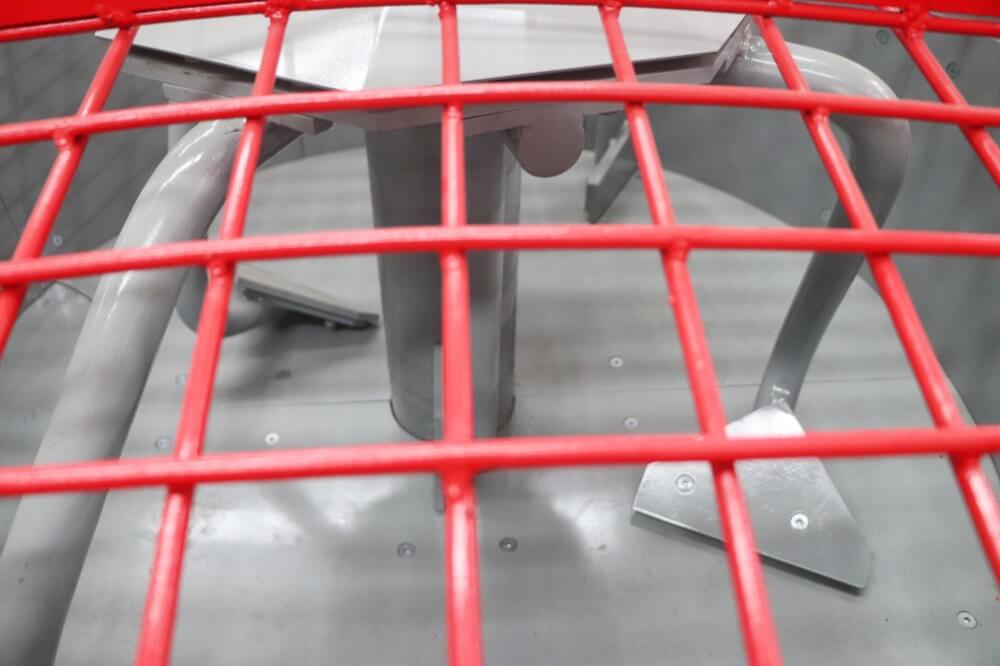

Internal structure of refractory paddle mixer	High pressure water washer device

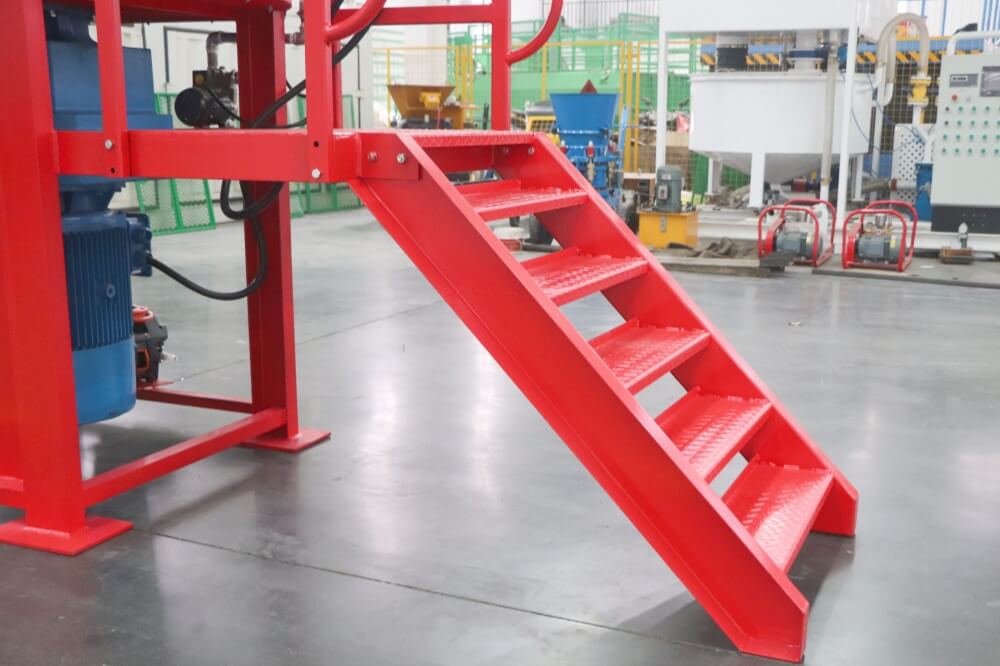

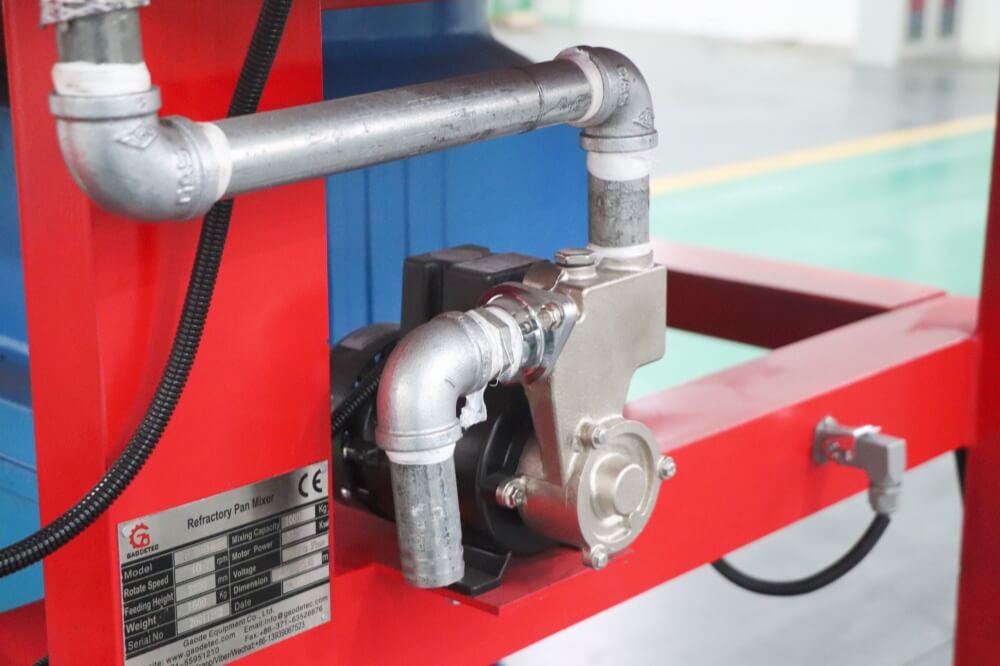

Water pump	Ladder

GRM800 800kg mixing capacity refractory cement pan mixer for mixing Refractory technical data:

Item	GRM100	GRM250	GRM500	GRM800	GRM1000
Mixing capacity	100kg	250kg	500kg	800kg	1000kg
Rotating speed	33rpm	34rpm	36rpm	39rpm	39rpm
Motor Power	4kw	7.5kw	11kw	22Kw	37Kw
Feeding Height	1100mm	1200mm	1300mm	2500mm	2100mm
Dimensions (mm)	1400x1300x1100	1480x1380x1230	1700x1250x1350	2800x1880x2640mm	1600x1500x2140mm
Weight	550kg	650kg	1010kg	1350kg	1680Kg
Note: Technical data of refractory pan mixers may change due to technical progress, subject to modification without notice.
