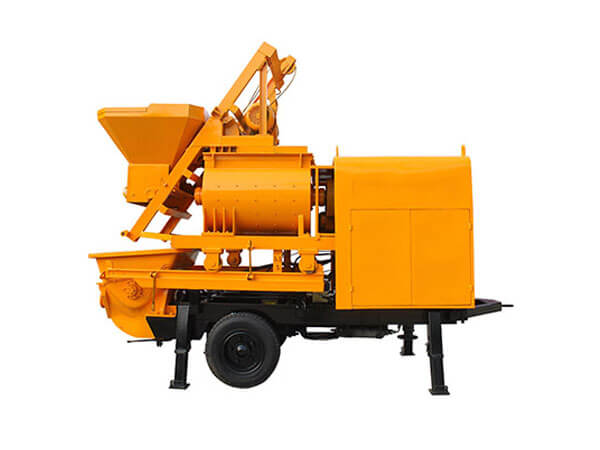

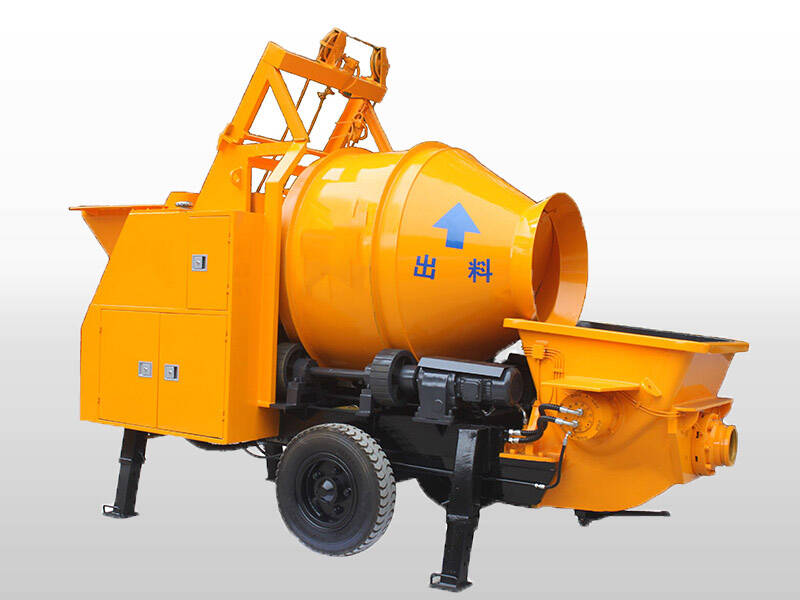

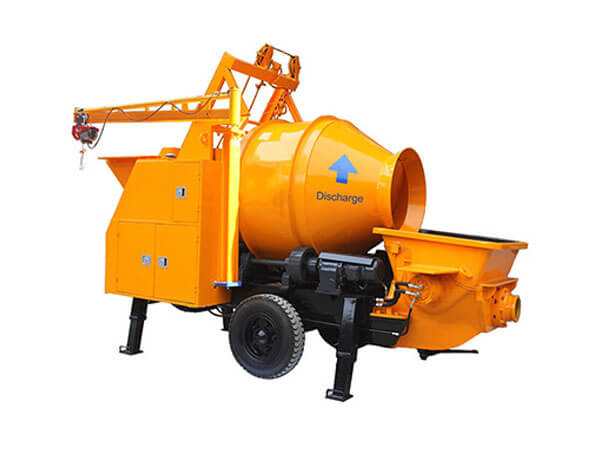

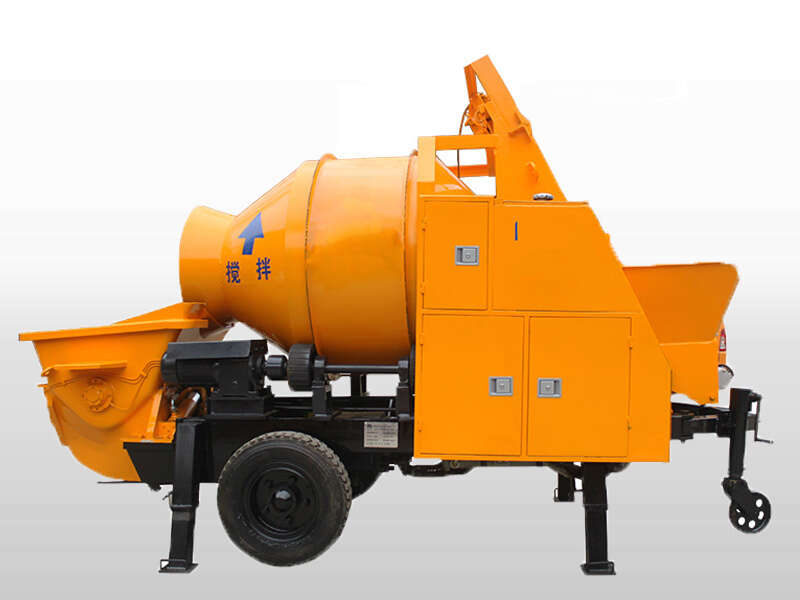

Small portable concrete pump with mixer is combined by the traditional concrete pump and the mixer together. JBT30 P2 small concrete pump with mixer achieves full automatic during concrete construction process. JBT30 P2 small portable concrete pump with mixer is a new type of engineering equipment combining concrete mixer with concrete pump. It is with small size, small operating space, large concrete pouring volume, mature and stable performance and other excellent characteristics. The product is suitable for small-scale construction, as well as a variety of caves, roads, railway tunnels, water conservancy and hydropower projects, geological disaster slope management projects.

1. Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
2. Convey greening soil in ecological environment construction.
3. Convey all kinds of engineering construction in the plain concrete, fiber concrete.
4. Portable concrete pump is most suitable for four to six floor buildings, especially in the group buildings, bridges and the small construction sites where need the concrete mixer at the scene.

Parameters	JBT30 P2 small concrete pump
Main oil pump	Domestic / Kawasaki 112
Mixer model	JZM350
Main Oil Cylinder / Rod* stroke	100*70*800
The maximum theoretical delivery output	30m3/h
The maximum theoretical mix output	15m3/h
Vertical pumping distance	70m
Horizontal pumping distance	300m
Distribution valve type	S valve
Main motor	30kw
Rated speed	1480rpm
Outlet pressure	6Mpa
Hydraulic system	Open system
Oil tank capacity	200L
Concrete cylinder * stroke	200*800mm
Hopper capacity * feeding height	600*1050mm
Motor Rated Voltage	380V
Hoist motor	5.5kw
Mixing motor	4*2kw
Concrete outlet diameter	180mm
Electrical components	Domestic
Max. aggregate size	Cobblestone 40mm Gravel 30mm
Weight	4500kg
Dimension	4960*2100*2500mm
