JBT40 P2 Diesel concrete mixer pump

  • Max. theo. concrete output : 40/20m3/h
  • Max.concrete pumping pressure: 11/8MPa
  • Concrete cylinder diameter×stroke: Ф160×1100
  • Hopper capacity×feeding height: 450L×1100mm
  • Outlet diameter: Ф150mm
  • Diesel engine rated power: 66KW

We're here to help:

Easy ways to get the answers you need.

Send E-mail Leave A Message
  • concrete pump with mixer
  • concrete mixer pump
  • small concrete mixer pump
  • small concrete pump with mixer
  • trailer concrete mixer pump
■ Description

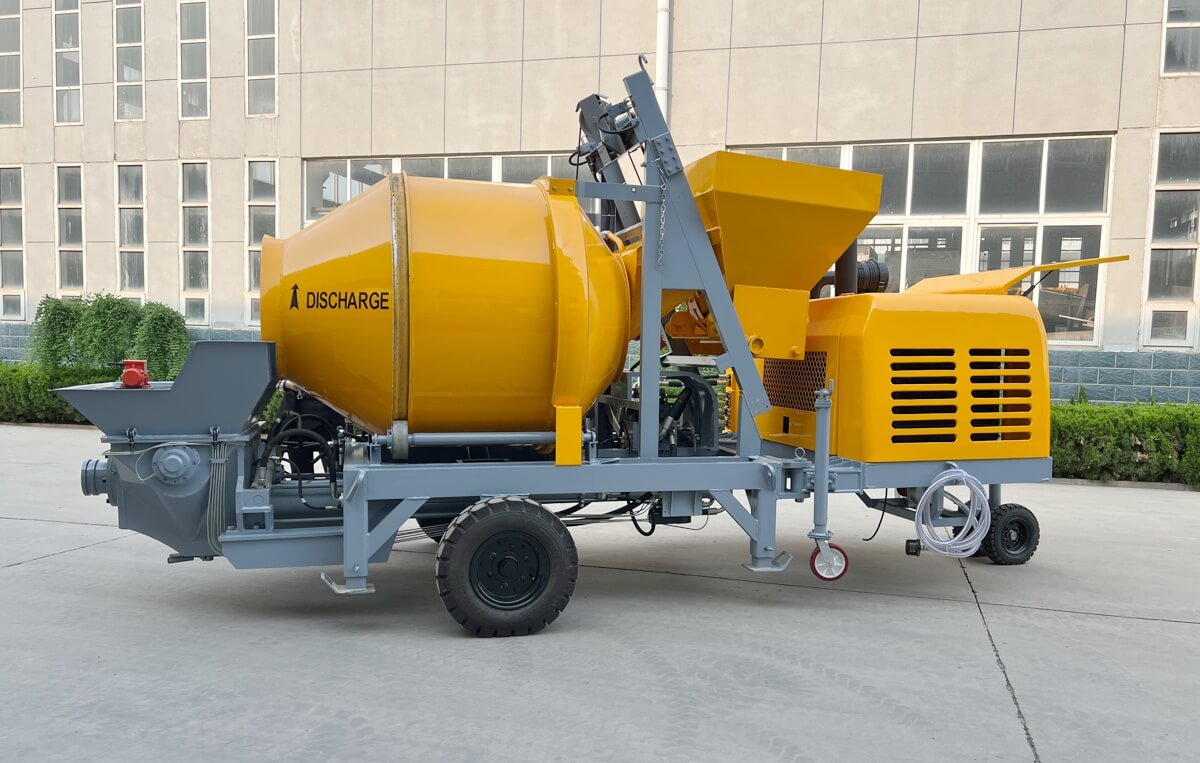

JBT40 P2 Diesel concrete mixer pump is a traditional concrete mixer and concrete pump together, to achieve full concrete construction process automation material, mixing, and pumping in one of the small high-pressure concrete pump.

China diesel concrete pump with mixer

China concrete mixer pump for sale

concrete mixer pump factory

JBT40 P2 Diesel concrete mixer pump is suitable for small and medium sized, ground transportation, such as playing a large village aggregate concrete, especially for a group of 12 layer floor, small bridges, wild place scattered site mixing of concrete construction projects. The concrete pump with mixer can be achieved without human or trailer transitions, greatly improved work efficiency. A diesel engine or an electric motor can be used as the power system, and the diesel engine-powered concrete mixing and pumping integrated machine adopts a rotatable design. The construction operating system is fully automated, and the mixing pump, material, and water can be operated with one click. It can be easily moved around the construction site and can unload concrete tankers or dump trucks to adapt to more environments. We can also customize the diesel concrete pump according to customer requirements.
