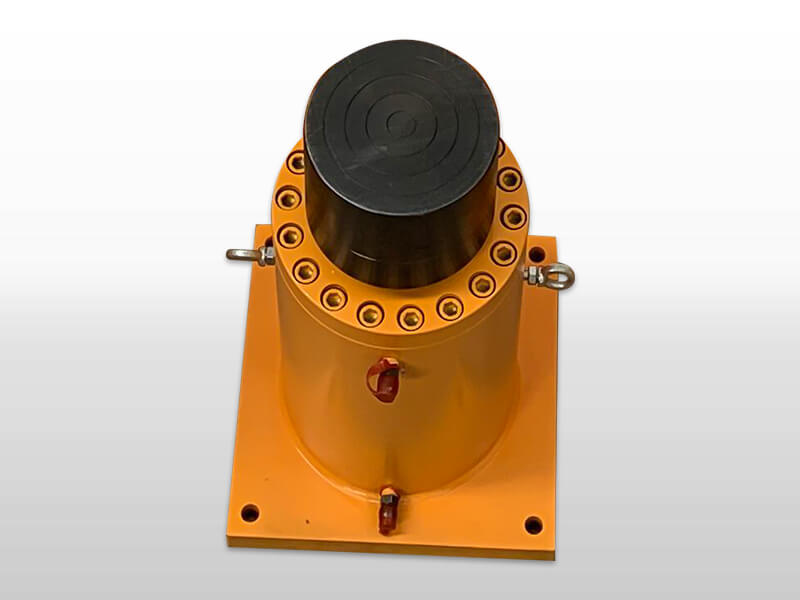

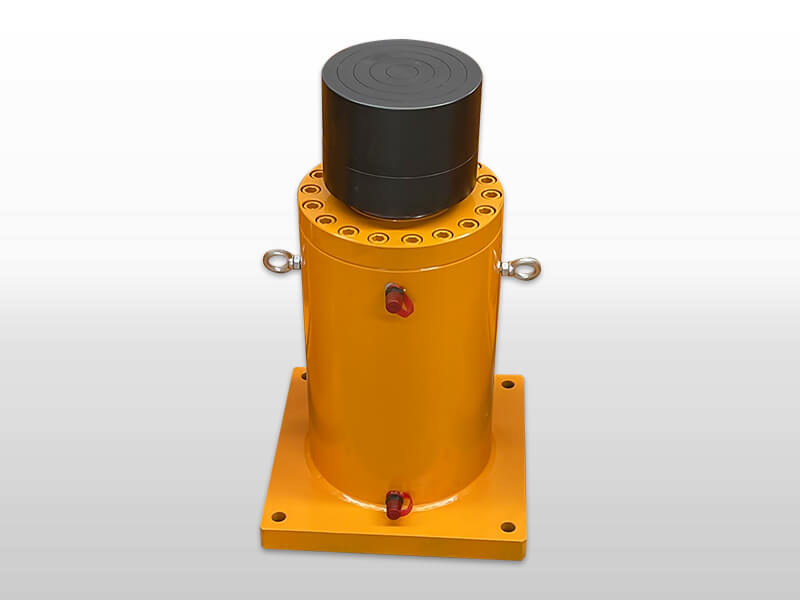

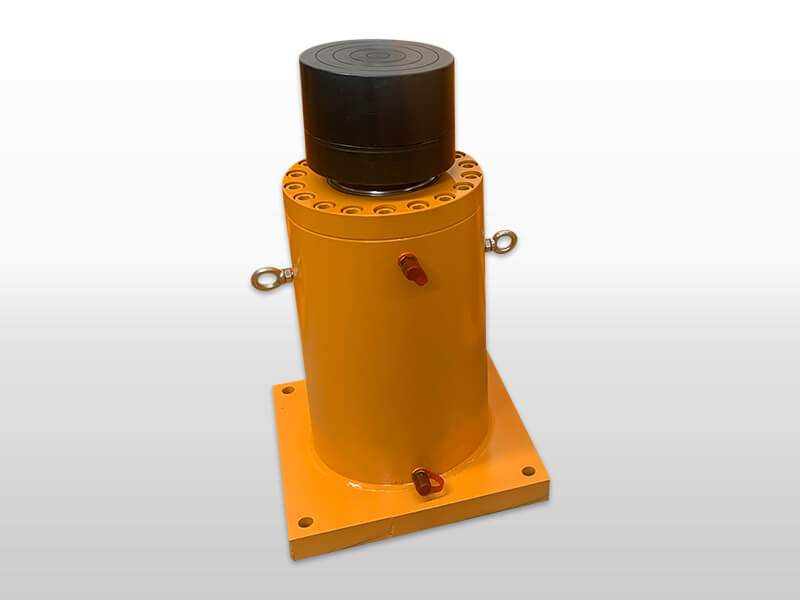

1. Universal Anti-Eccentric Load Design

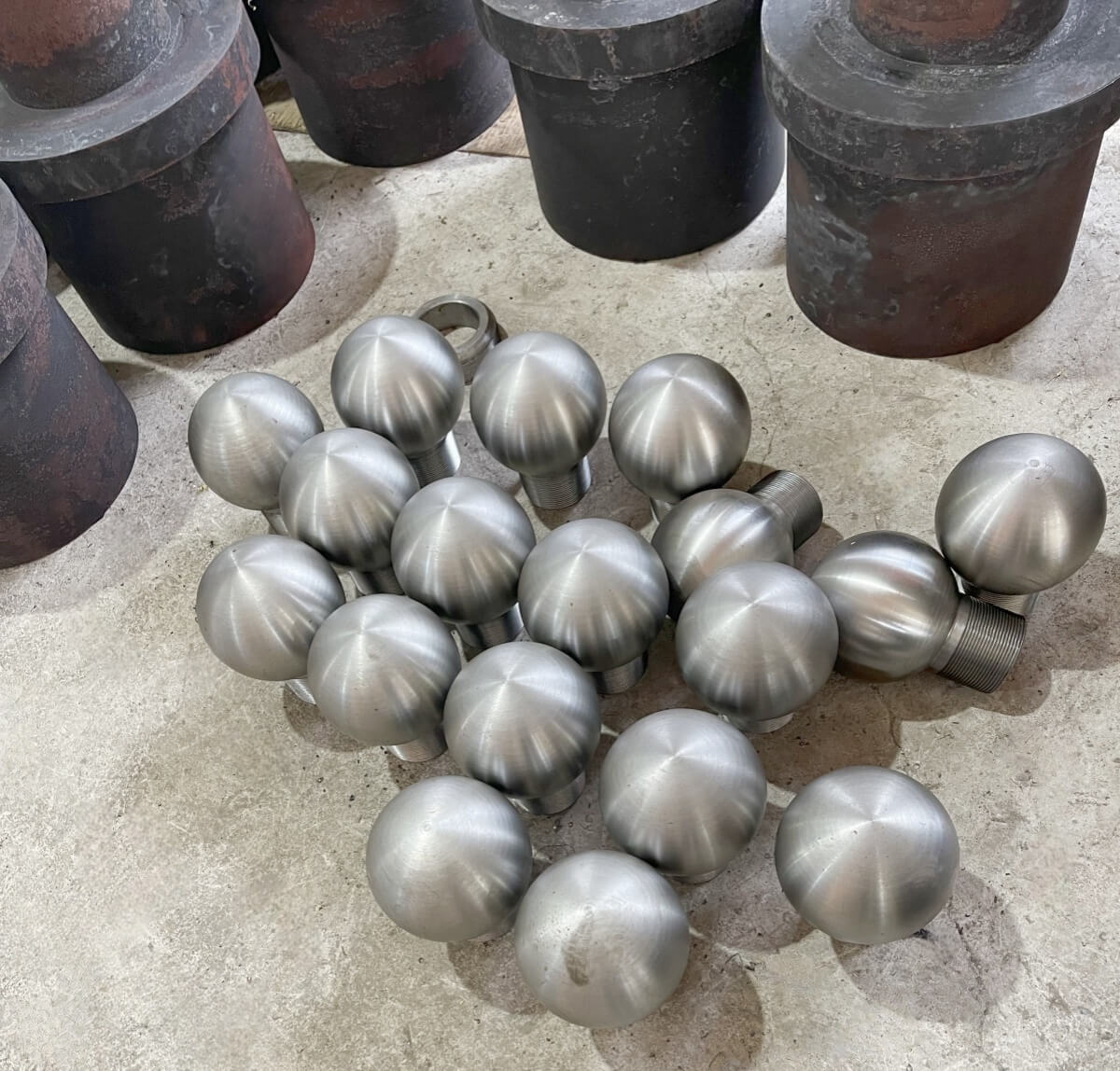

The top-mounted universal ball joint (Ø200mm, 190mm thick) allows for angular self-alignment, automatically compensating for uneven or skewed load surfaces to prevent side load damage to the piston rod and cylinder.

2. High-Performance Specifications
Rated capacity: 200 tons
Working pressure: 63 MPa
Effective piston area: 31400 mm²
Stroke: 300 mm, closed height: 650 mm
Compact yet powerful, with a total weight of only 230 kgs for manageable on-site handling.
3. Robust Flanged Base Mounting

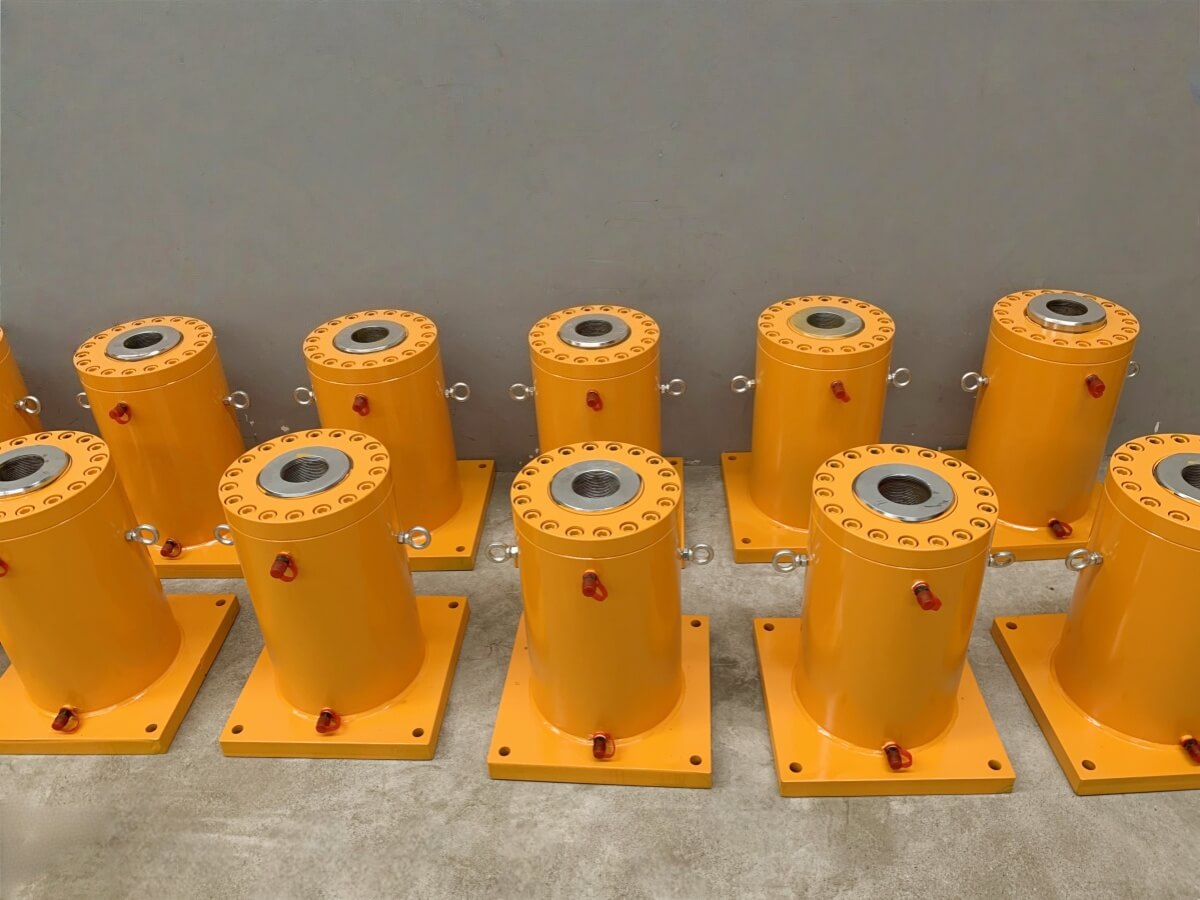

The square flange base (370×370×40mm, customizable) provides stable, secure installation, making it ideal for fixed-position applications like bridge bearing replacement or structural jacking.
4. Heavy-Duty Construction
Piston rod diameter: 150mm for high rigidity and resistance to deflection under full load.
All critical components are precision-machined and coated for corrosion and wear resistance, suitable for long-term use in outdoor construction sites.
