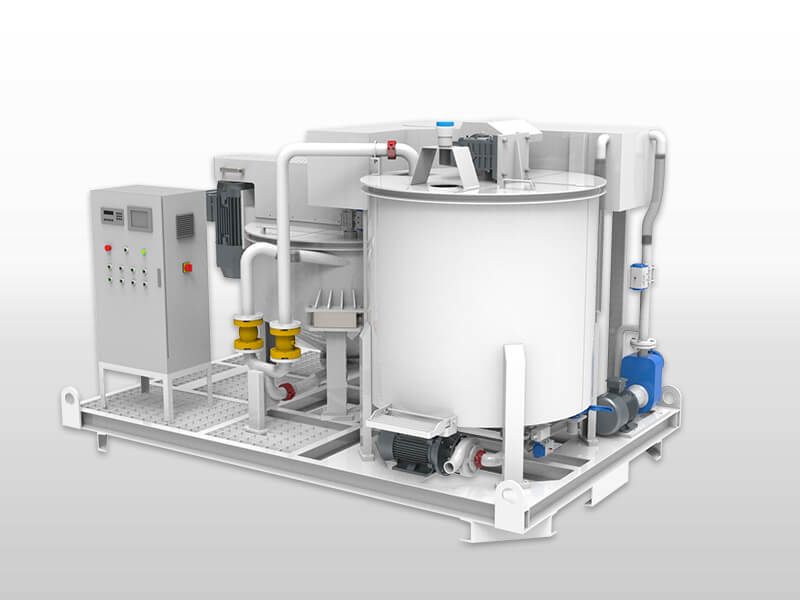

GMA850-1500A/E Grout mixing machine boasts an integrated construction, where the mixer, agitator, and booster pump are all mounted on a single base frame. This design gives it a compact form factor and makes it extremely easy to transport. This piece of equipment is primarily utilized for preparing mixtures like cement slurry and finds extensive use in both surface and underground projects, encompassing highway construction, railway engineering, hydropower projects, general building construction, and mining activities.

Its high - speed vortex mixing technology guarantees a swift and even mixing process. This enables water and cement to combine rapidly, resulting in the formation of a well - blended, homogeneous slurry.

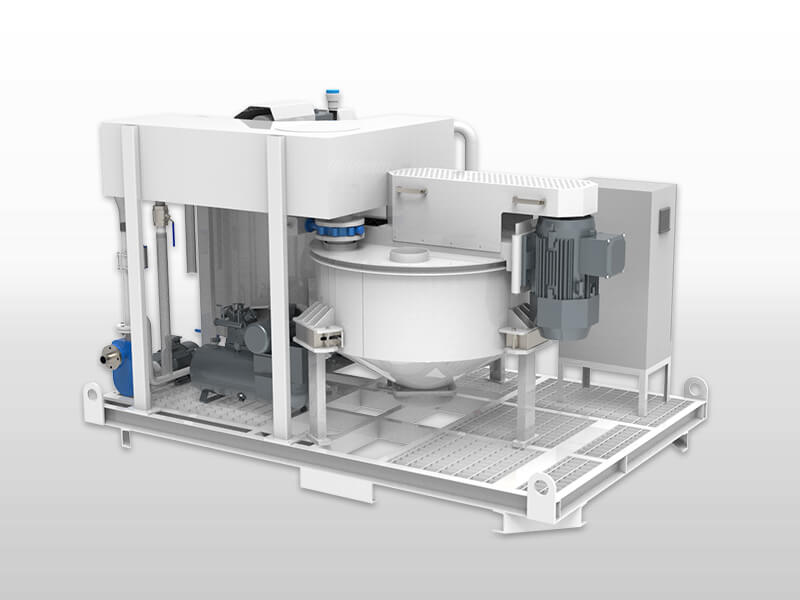

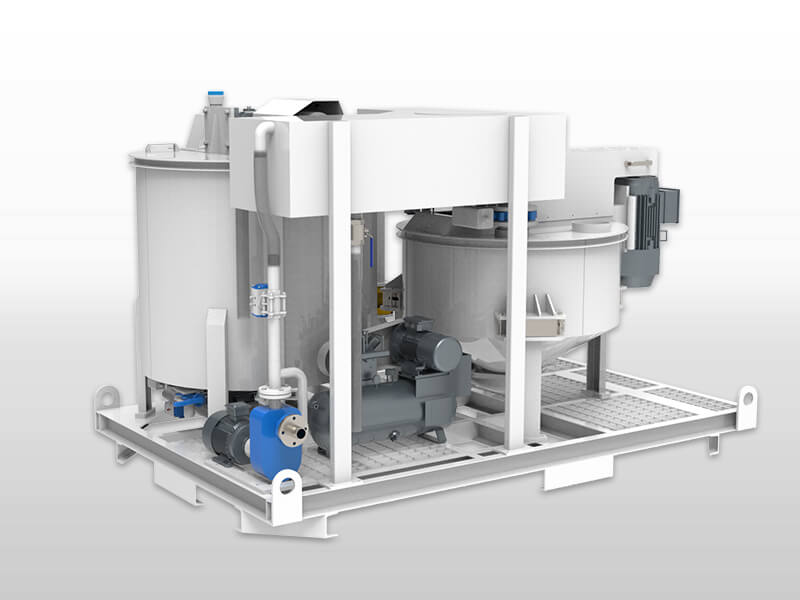

The GMA850-1000A/E colloidal high speed high shear grout mixing machine,grout mixer is mainly used in the following projects:

1. Highway construction projects: Used for grouting and reinforcing road base and subgrade, improving the road's load-bearing capacity and durability, and ensuring a smooth and stable road surface.
2. Railway engineering: Used for grouting operations in railway subgrade and tunnel construction, enhancing foundation stability, preventing settlement and deformation, and ensuring train operation safety.
3. Hydropower engineering: Used for foundation treatment of dams, sluices, and other water conservancy facilities, filling gaps and voids with grout to improve the structure's impermeability and overall strength.
4. Building construction: Used for foundation reinforcement and defect repair in the foundation construction of high-rise buildings and large structures, ensuring the safety and durability of the buildings.
5. Mining engineering: Used for support in mine roadways and goaf areas, reinforcing surrounding rock through grouting to prevent collapse accidents, improve the working environment, and ensure the safety of personnel and equipment.

1. GMA850-1500A/E Grout mixing machine is equipped with an automatic pulping function.
2. Compact structure.

Name		Data
Model		GMA850-1500A/E
Mixer	Capacity	850L
	W/C ratio	0.5~1
	Rate Rev.	1800rpm
	Power	18.5Kw
	Production capacity	10m3/h
	Max pump flow rate	1200L/min@3bar
Agitator	Capacity	1500L
	Rate Rev.	39rpm
	Power	3Kw
Booster pump	Flow	700L/min
	Pressure	1Bar
	Power	3KW
Power requirements		Voltage 3 Phase 380V, 50Hz

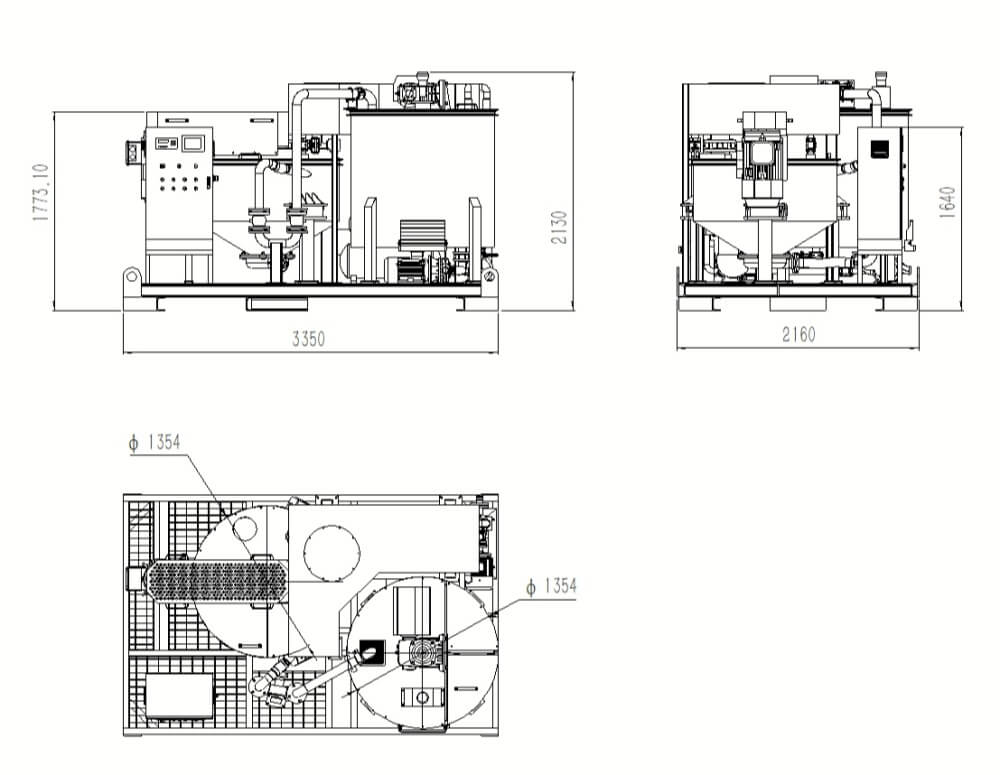

Dimension		3350×2160×2130mm
Weight		2600Kg
We can also customize grout mixing machines according to your needs.
